I/O Extender

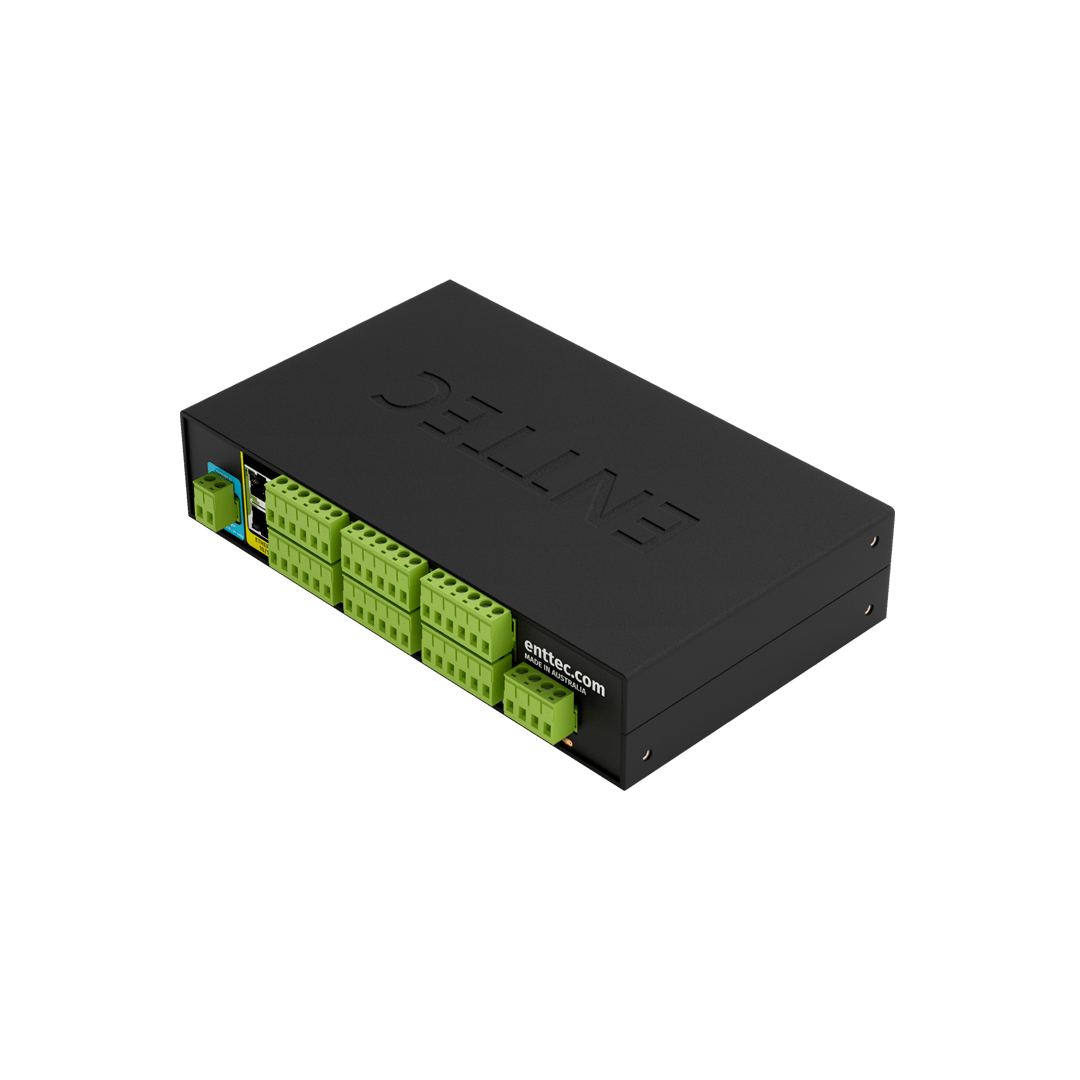

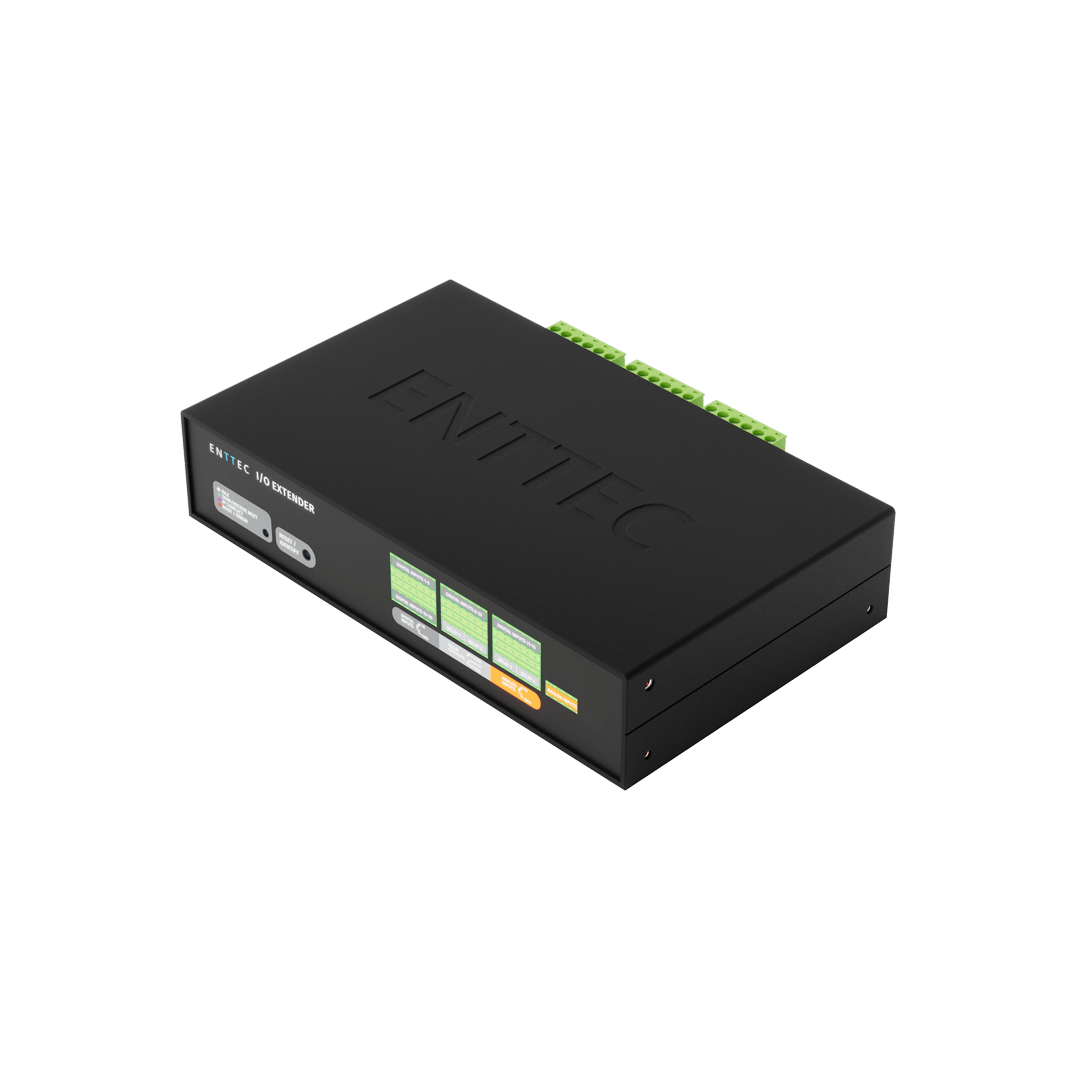

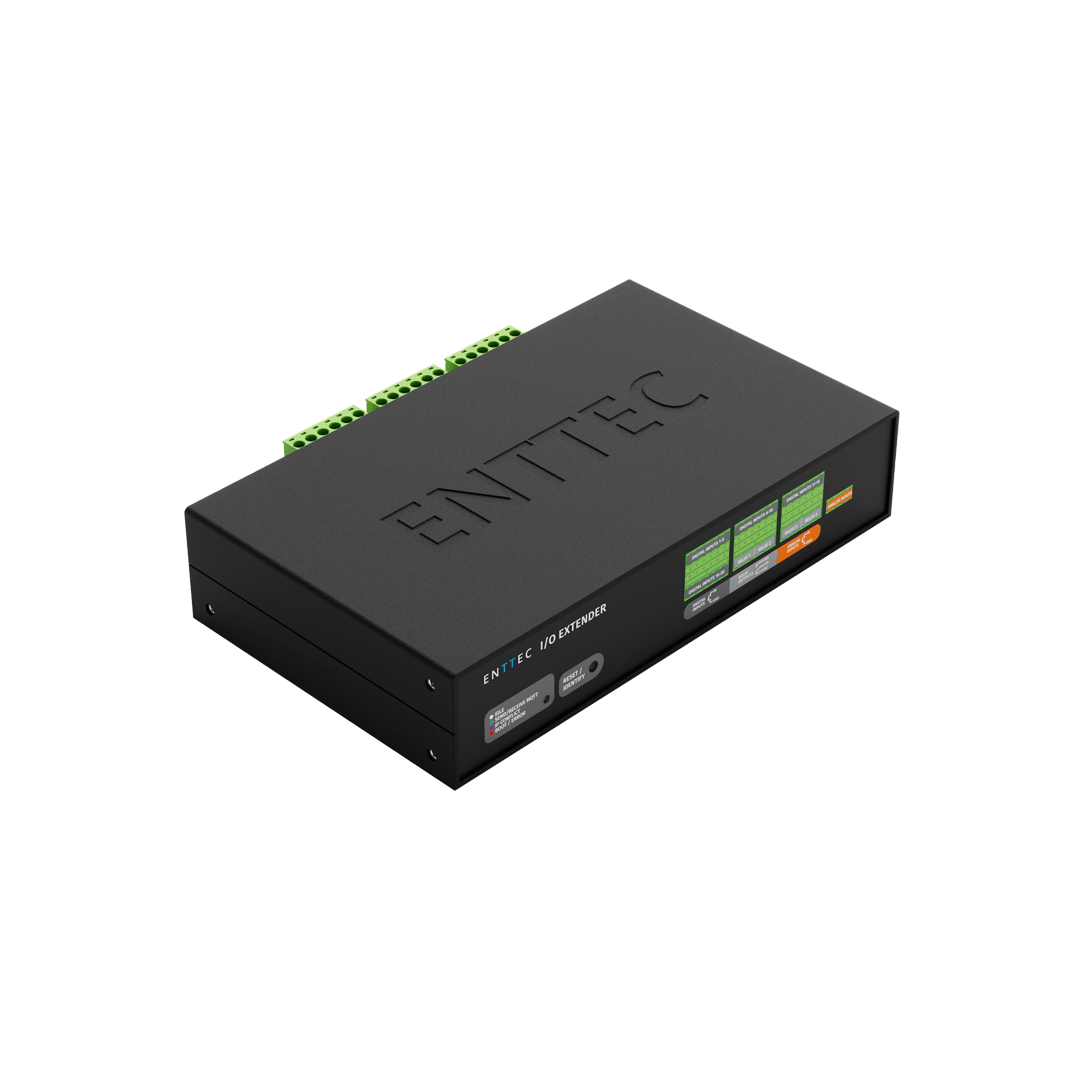

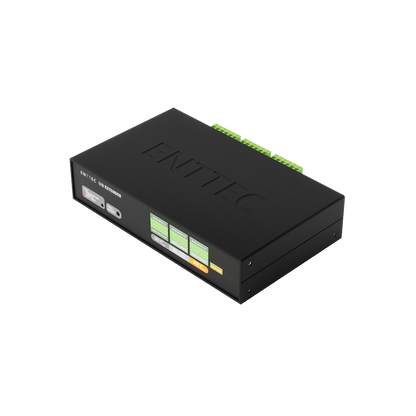

The ENTTEC I/O Extender is a companion device for the S-PLAY SP1 that expands its physical input/output capabilities with 20 digital inputs, 4 relay outputs, and 2 analog inputs, enabling more complex trigger-driven lighting control in architectural and entertainment installations.

From the Manufacturer

The ENTTEC I/O Extender is designed to work alongside the S-PLAY SP1 (firmware V3 and above), dramatically expanding the number of physical connections available for triggering and controlling lighting shows. Twenty general-purpose digital inputs accommodate sensors, wall switches, buttons, and other contact-closure devices. Four relay outputs handle mechanical devices such as curtains, pumps, winches, or lifts — rated at up to 60W (2A / 50V AC or DC). Two analog inputs accept 0–10V signals from light sensors, pressure sensors, temperature sensors, joysticks, or virtually any analog signal device. All inputs and triggers are managed through the existing S-PLAY web interface, requiring no additional software.

The I/O Extender includes two Ethernet ports (RJ45, 10/100Base-T), allowing it to be used as a dedicated standalone show playback network switch — devices can be connected directly to the I/O Extender's built-in network switch without the need for a separate network infrastructure. Multiple I/O Extenders can be added to a single S-PLAY setup to build a larger, more powerful control network. The unit is configurable via DHCP or static IP and is discoverable through ENTTEC's EMU software. Flexible mounting options include half rack, full rack, and surface mount.

Features

• Compatible with S-PLAY SP1-1 (firmware V3 and above)
• 20 x general-purpose digital inputs for sensors, wall switches, buttons, and contact-closure devices
• 4 x relay outputs for mechanical devices — rated at up to 60W (2A / 50V AC or DC)
• 2 x analog inputs (0–10V) for light, pressure, temperature sensors, joysticks, and other analog signal devices
• 2 x RJ45 Ethernet ports (10/100Base-T) function as a built-in network switch for dedicated standalone show networks
• Multiple I/O Extenders can be chained to expand a single S-PLAY system further
• All settings managed via the S-PLAY's existing web interface — no additional software required
• DHCP (default) or static IP (192.168.0.10) network configuration
• Network discovery via ENTTEC EMU software

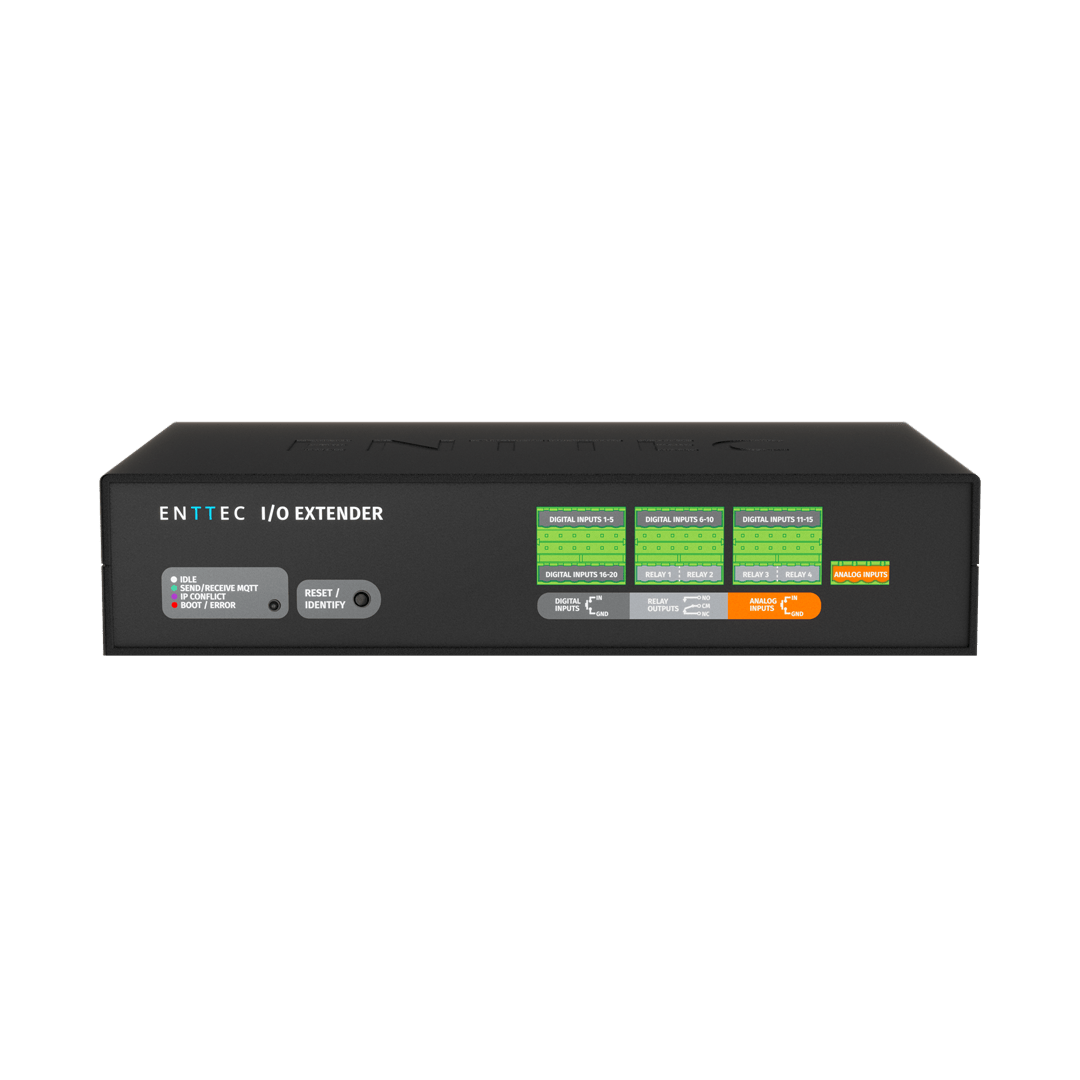

• Forward-facing LED status indicator; network link/activity indicators integrated into RJ45 ports
• 12–24V DC screw terminal power input
• Fanless convection cooling
• ABS plastic and anodized aluminium construction
• Half rack, full rack, or surface mount options
• 3-year manufacturer warranty
• Recommended use: Architectural and entertainment installations requiring trigger-driven show control, permanent installations with wall panels, sensors, or mechanical integration

Specifications

Inputs & Outputs

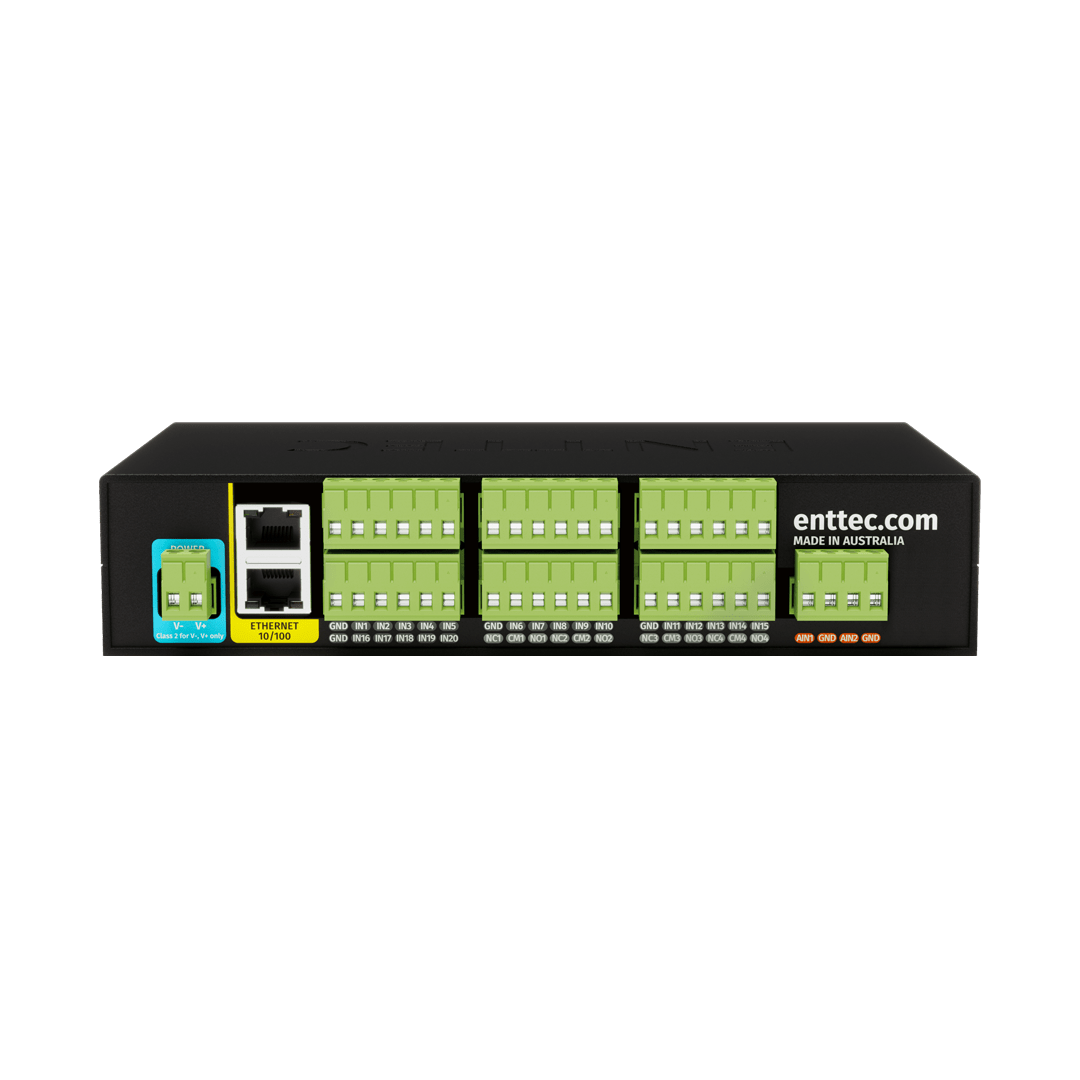

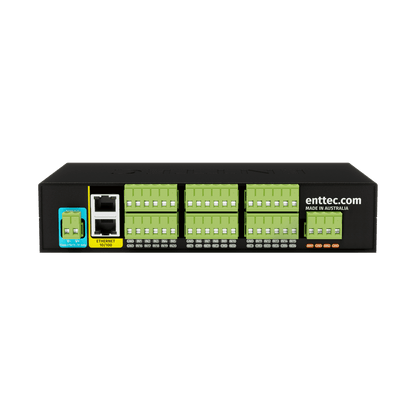

• Digital Inputs: 20 x GPIO (screw terminal)
• Relay Outputs: 4 x (screw terminal); max 60W, 2A, 50V AC or DC
• Analog Inputs: 2 x 0–10V (screw terminal)
• Ethernet: 2 x RJ45 (10/100Base-T)
• Power Input: 1 x screw terminal

Control

• Compatible Controller: S-PLAY SP1-1 (firmware V3 and above)
• Network Speed: 10/100Base-T
• Network Configuration: DHCP (default) / Static (192.168.0.10)
• Network Discovery: ENTTEC EMU software

Electrical

• Power Input: 12–24V DC
• Max. Power Draw: 3.35W
• Max. Current Draw: 280mA
• Max. Relay Power Throughput: 60W (2A / 50V AC or DC)
• Cooling Method: Convection

Construction / Physical

• Body Material: ABS plastic and anodized aluminium
• IP Rating: IP20
• Mounting Options: Half rack, full rack, surface mount
• Unit Dimensions: 200 x 120 x 42 mm
• Unit Weight: 0.50 kg / 1.10 lbs
• Shipping Dimensions: 335 x 265 x 78 mm
• Shipping Weight: 1.15 kg / 2.54 lbs

Environmental

• Operating Temperature: 0°C to 50°C / 32°F to 122°F
• Operating Humidity: 0–95% (non-condensing)

Certifications

• Compliance: RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
• Warranty: 3-year return to base manufacturer warranty
