Ice Fog Compack

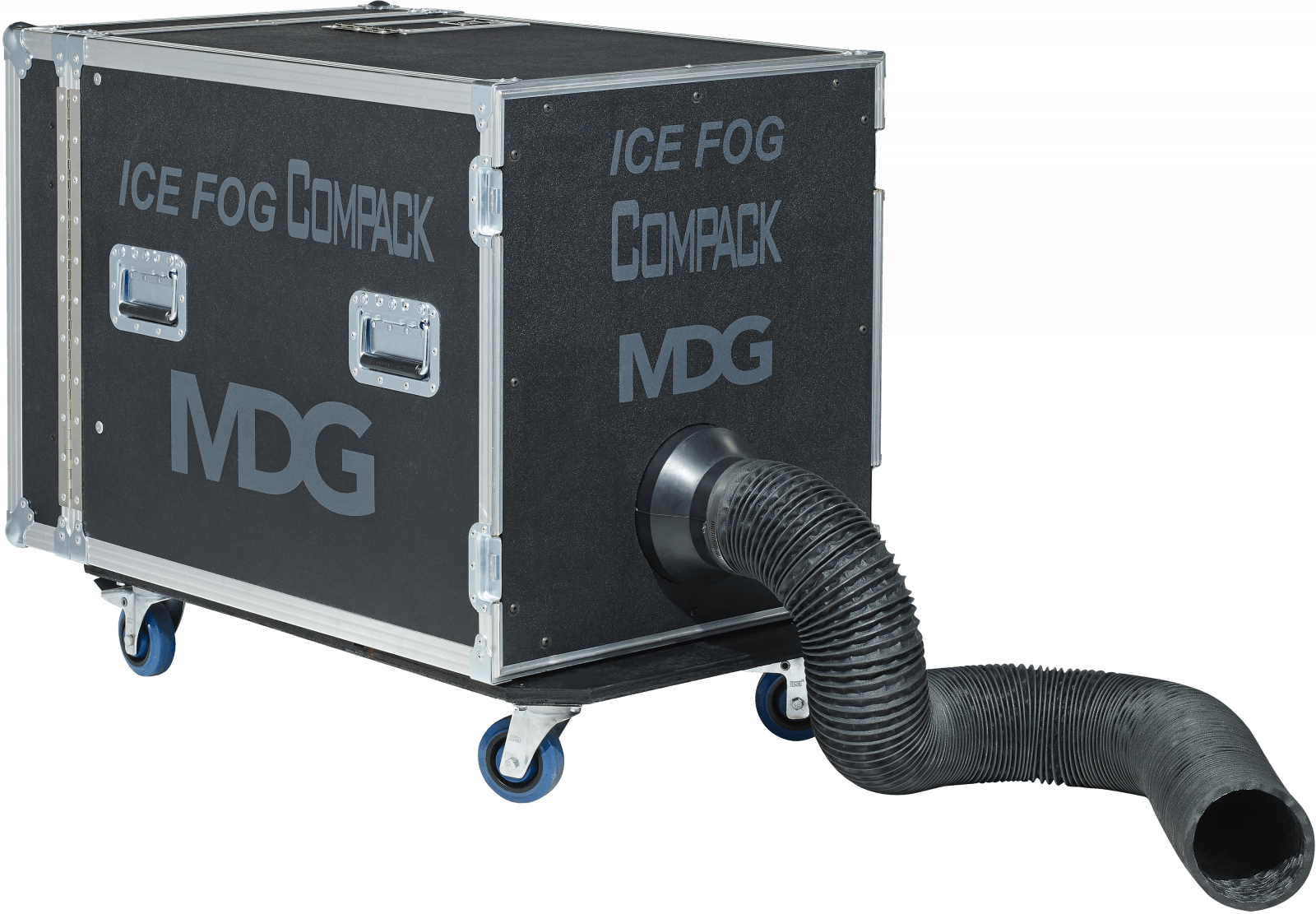

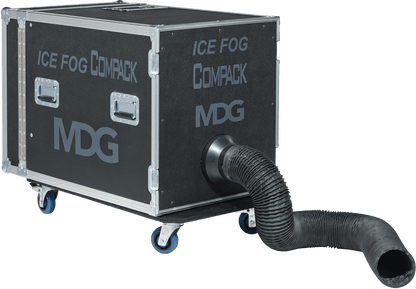

The MDG Ice Fog Compack is a low fog generator that creates zero-residue, low-lying fog, available in high or low pressure versions.

From the Manufacturer:

ICE FOG Compack: Dense low fog in its own convenient flight case.

Our ICE FOG Compack creates a thick low-lying fog with zero residue without the use of dry ice.

Features:

• Extremely low fluid consumption: 35 ml (1.18 US fl oz) per minute at full output.
• Adjustable low fog density. 100 % duty cycle.
• Low pressure or high pressure versions available
• Self-contained unit on wheels for easy transport
• Detachable remote control and 8 m (26 ft) cable included
• Compatible with DMX interface and remote control timer

Specifications:

• Liquid CO2 type:
  • Low pressure version: refrigerated
  • High pressure version: non-refrigerated
• Liquid CO2 consumption:
  • Low pressure version: 1.5 L (0.40 US gallon) at 15.5 bar (225 psi) per minute
  • High pressure version: 1.35 kg (3 lb) at 60.3 bar (875 psi) per minute
• Reservoir capacity: 2.5 L (0.66 US gallon)
• Fog colour: Pure white
• Particle size: 0.5 - 4.5 microns
• CO2 running time
  • Low pressure version: 180 L (48 US gallon) canister (DEWAR) = 120 minutes
  • High pressure version: 23 kg (50 lb) canister = 17 minutes
• Warm-up time: 8 minutes (maximum)
• Fluid type: MDG Low Fog
• Operating voltage (single phase): 115 or 230 VAC, 50/60 Hz
• Power consumption: 1,450 W
• Fluid consumption: 35 ml (1.18 oz) per minute at full output

Dimensions

• Total length: 1.15 m (45 1/8“)
• Operating length: 1.08 m (42 3/8”)
• Width: 63.5 cm (25”)
• Height: 82.5 cm (32 1/2”)
• Weight: 91 kg (200 lb)
• Approval: CE Declaration. SPE1000 approuved
