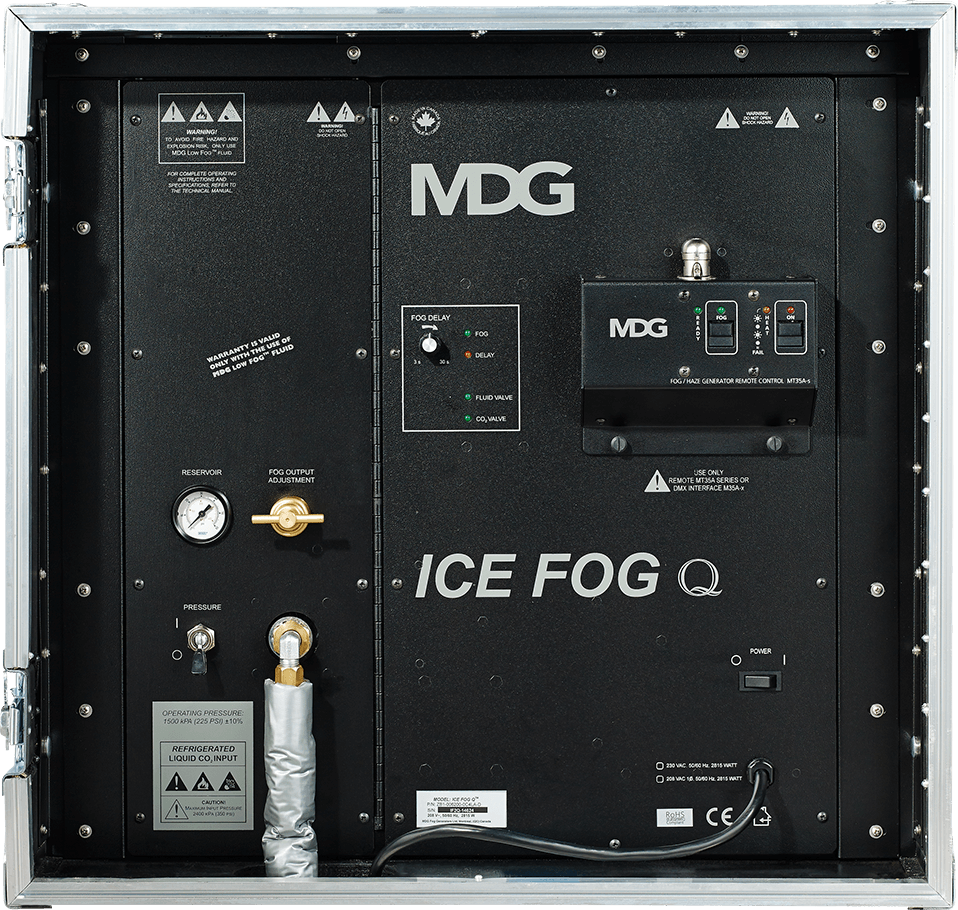

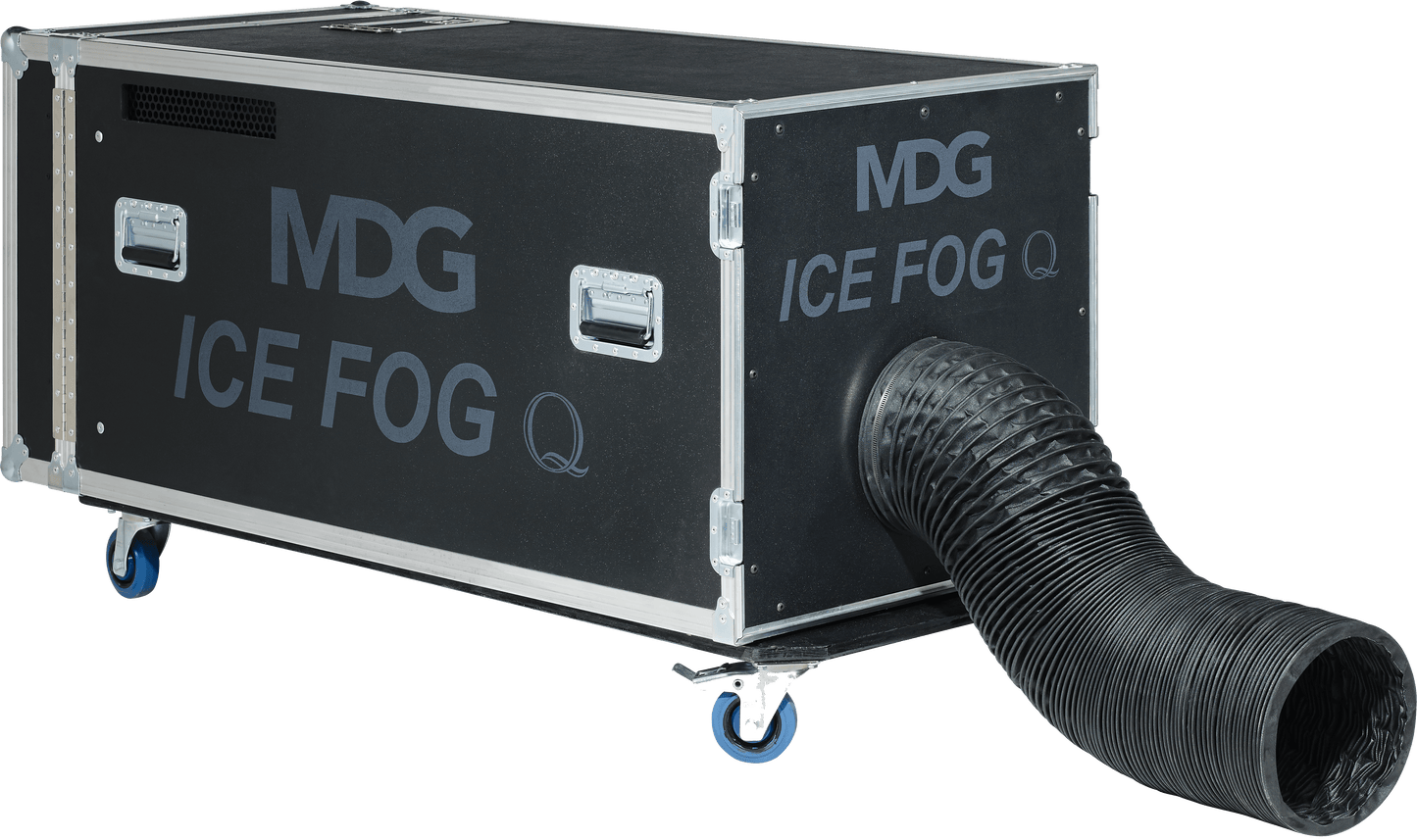

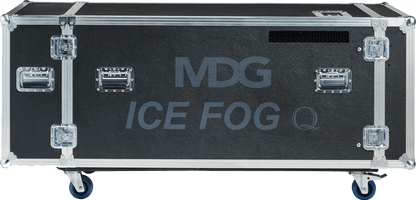

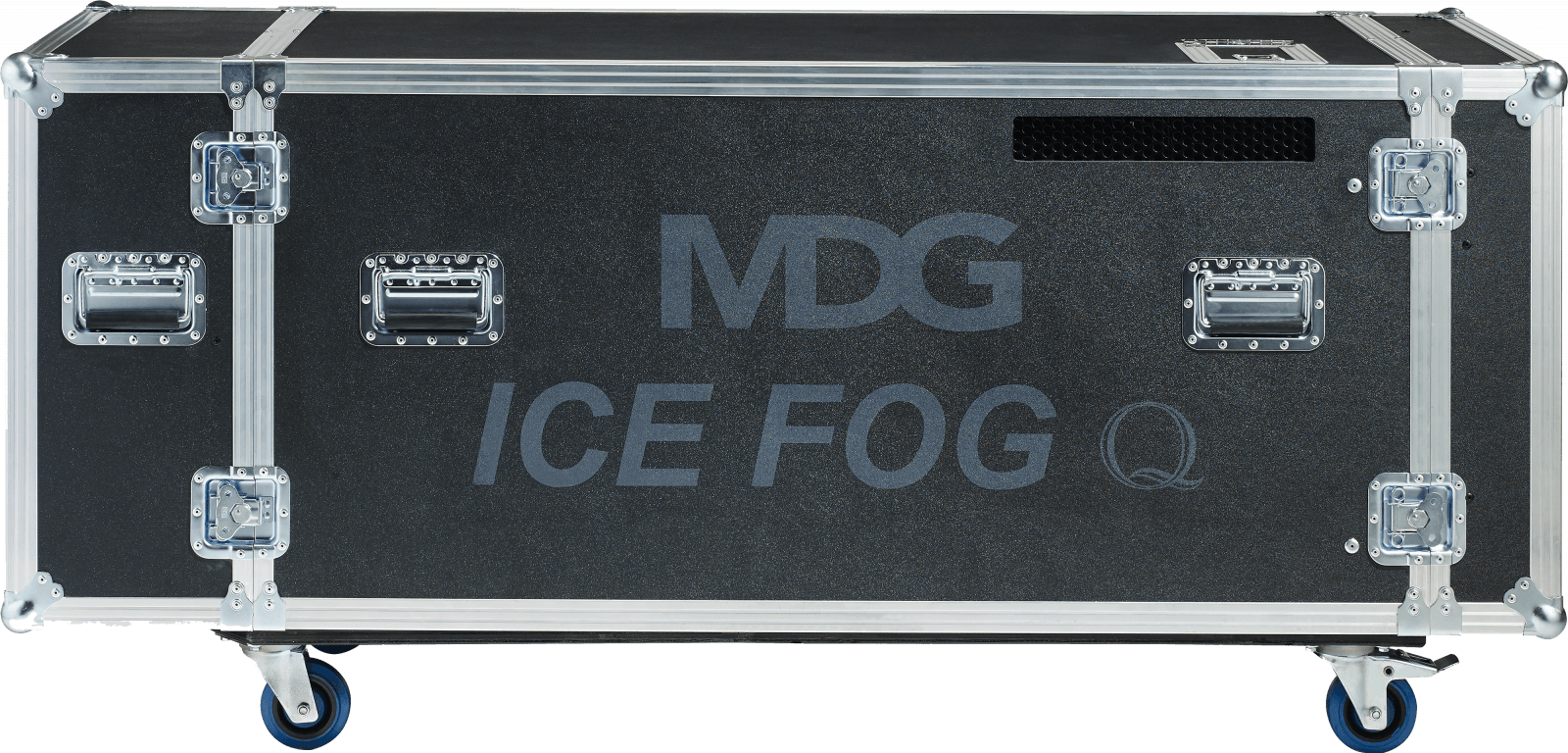

Ice Fog Q

The MDG Ice Fog Q is a high output fog generator that creates a dense low-lying fog with zero residue without the use of dry ice.

From the Manufacturer:

ICE FOG Q: The densest low fog you’ve ever experienced.

Our high output ICE FOG Q creates a thick dense low-lying fog with zero residue without the use of dry ice.

Features:

• Low pressure or high pressure versions available.
• Low fluid consumption 90 ml (3.04 US fl oz) per minute at full output.
• Adjustable low fog density. 100% duty cycle.
• Self-contained unit on wheels for easy transport.
• Detachable remote control and 8 m (26 ft) cable included.
• Compatible with DMX interface and remote control timer.
• The quietest low fog generator on the market can be placed closer to the action.

Specifications:

• Fluid consumption: 90 ml (3.04 oz) per minute at full output
• Liquid CO2 type:
  • Low pressure version: refrigerated
  • High pressure version: non-refrigerated
• Liquid CO2 consumption:
  • Low pressure version: 3 L (0.79 US gallon) at 15.5 bar (225 psi) per minute
  • High pressure version: 2.77 kg (6 lb) at 60.3 bar (875 psi) per minute
• Reservoir capacity: 2.5 L (0.66 US gallon)
• Fog colour: Pure white
• Particle size: 0.5 - 4.5 microns
• CO2 running time:
  • Low pressure version: 180 L (48 US gallon) canister (DEWAR) = 70 minutes
  • High pressure version: 35 kg (77 lb) canister = 13.25 minutes
• Warm-up time: 8 minutes (maximum)
• Fluid type: MDG Low Fog Fluid
• Operating voltage (single phase): 208 VAC or 230 VAC, 50/60 Hz
• Power consumption: 2,850 W

Dimensions

• Total length: 1.71 m (67 3/8“)
• Operating length: 1.51 m (59 1/2”)
• Width: 67 cm (26 3/8”)
• Height: 78 cm (30 5/8”)
• Weight: 113 kg (250 lb)
• Approval: CE Declaration. SPE1000 approuved
