iP-1515-RX Surge protection and rackmount Web based power controller. 15 Amp.

The iP-1515-RX is a surge protection unit with a simple LED monitoring system but can also be controlled over an internet or intranet connection. This is a good quality simple to use rack mounted unit intended for install applications.

From the Manufacturer:

The Juice Goose iP 1515 is a web based power distribution device with AC power protection that can be accessed via internet or intranet communications using Ethernet or RS232 connection. With this remote access, individual AC receptacles can be turned on and off. The iP 1515 has a fifteen amp capacity. The iP 1515 provides economical web or intranet based remote power control to six receptacles grouped into three individual Power Pods. These Pods can be turned on and off individually from anywhere.

The iP 1515 can be controlled by the on board web server graphic interface that can be accessed by any web browser.

It can also be remote controlled by RS232 or TCP/IP connection to commercial or proprietary control systems.

Features:

• Web server (GUI), TCP/IP, UDP or RS232 remote control

• Local fail safe sequencing and manual override

• On-board web server for easy set up, control, sequencing and monitoring

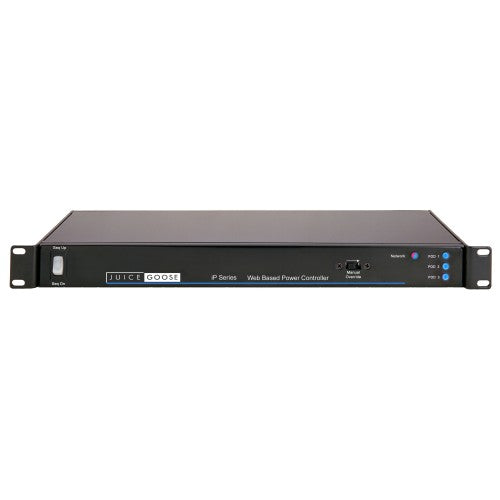

• Front panel indicators for network connection, surge protection and outlets on

• Administrator and User login options

• Automatic Power Cycle to reboot a network data router if network connection is lost

• AC surge protection

Specifications:

• Chassis

• 16 gauge steel with 11 gauge rack mount brackets

• Dimensions

• 1.75”H x19”W x 7”D

• Weight

• 10 lbs

• Circuit Breaker

• 15A (iP 1515) or 20A (iP 1520) thermal on back of the chassis

• Number of Addressable Power Pods

• Three

•  Power Input

• Seven foot power cord with NEMA 5/15P (iP1515)

•  or NEMA 5/20P (iP1520) (NOTE: iP1520 requires a 5/20R receptacle)

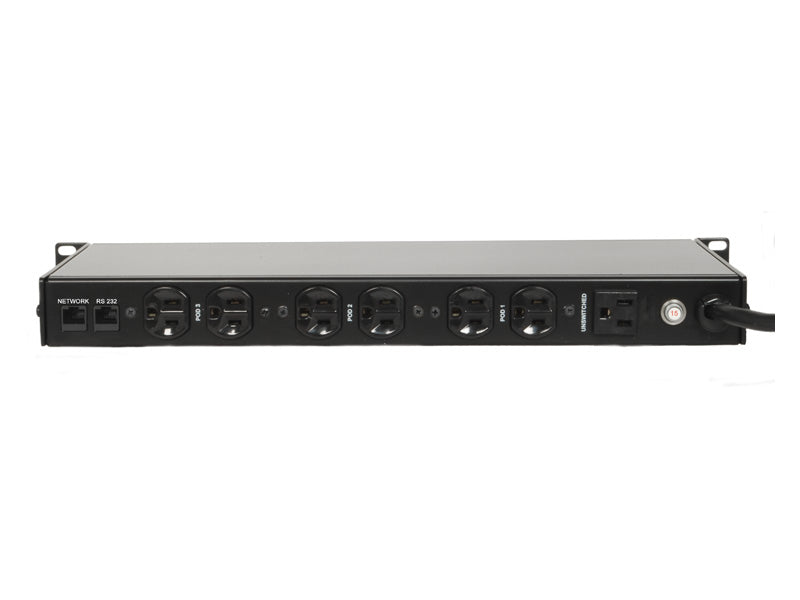

• Power Output

• Six switched NEMA 5/15R (iP1515) or 5/20R (iP1520), plus one unswitched

• NEMA 5/15R (iP1515) or 5/20R (iP1520)

• Input Voltage

• 120 VAC @ 60Hz

• Signal Connections

• Ethernet (RJ-45) RS 232 (RJ-11)

• Network Protocol

• HTML, TCP, UDP, RS232, SNMP (special model)

• Monitor Features

• Local and remote, network connection and current level

Network LED

•  Blue/Red Solid…...……………………...Network Connection and Surge Protection OK

•  Blue/Red Blinking………………....…..Network Connection Fault, Surge Protection OK

•  Red Solid………………………...…….Network Connection OK, Surge Protection Fault

•  Blue Solid…………..…………………..Network Connection Fault, Surge
