iP-50

The Juice Goose iP-50 is a slim line web-based power controller with designed for convenient installation.

WEB SERVER

All iP Series products have an on board web server that provides graphic user interface for controlling and monitoring equipment connected to the iP Series unit. This feature is available for remote use as soon as the IP address of the unit is entered in a web browser.

TCP / IP CONTROL

It is possible to control and monitor iP 50 over Ethernet using raw TCP protocol. In this mode, any PC ( Windows, Linux, Mac ) can connect to the iP 50 over a TCP/IP connection using a suitable TCP/IP client program. Once the connection is made, the console commands are available to the user over TCP/IP as if the user was connected to iP 50 over the local serial connection.

LOCAL MONITORING

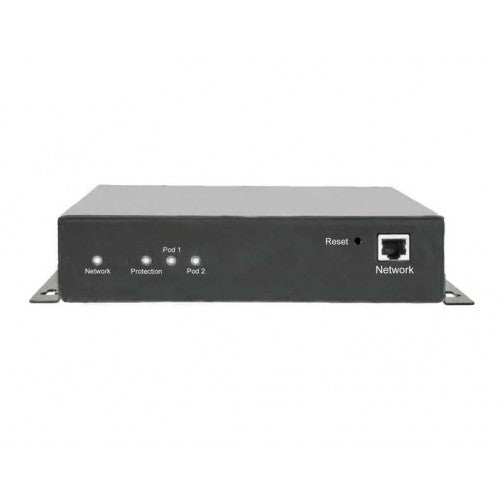

There are four LED lights on the front of the iP 50 chassis. Two lights indicate which of the two Power Pods have been turned on. One light indicates that the iP 50 is plugged into electric power and connected to an active data network. This light will blink in the event of a network disconnection or failure. A fourth light indicates the status of AC line surge protection.

REPLACEABLE POWER PROTECTION

The iP 50 protects against AC power line surges between hot and neutral without ground line contamination. This protection component is not sacrificial. However, should that component be damaged as a result of exposure to extended over voltage or some other catastrophic event, the protection status LED will go off. In that event, the iP 50 can be serviced to replace the surge protection component. See the iP 50 manual for warnings and instructions.
