IP PLINK INJECTOR

The ENTTEC IP PLink Injector is a ruggedized, IP66-rated waterproof PLink-to-SPI pixel data injector designed for controlling LED pixel strips and dots outdoors as part of the ENTTEC Pixelator Series PLink system.

From the Manufacturer

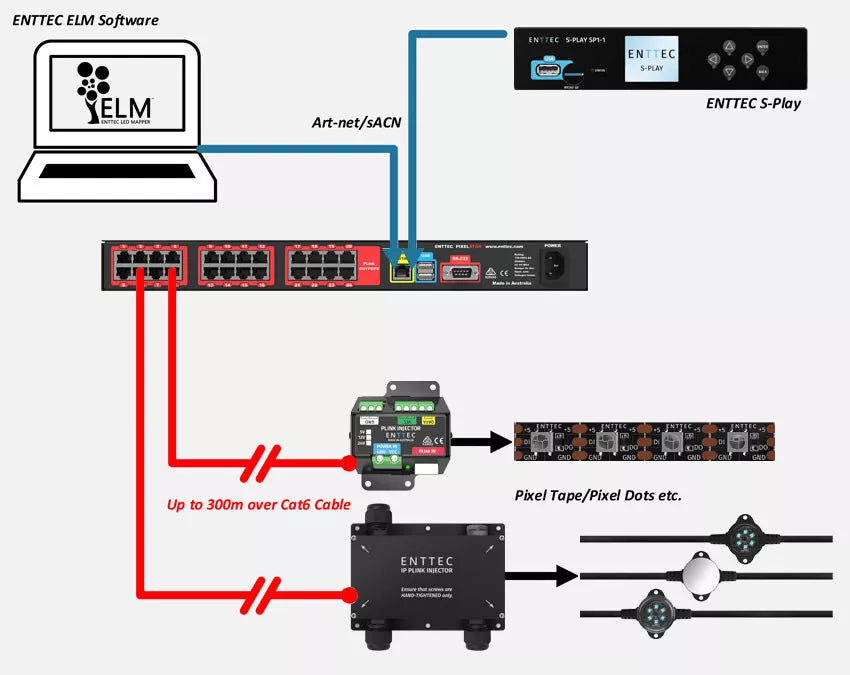

The IP PLink Injector is engineered for outdoor LED pixel installations where long cable runs, weather exposure, and large-scale scalability are primary concerns. It receives up to 4 universes of PLink data from the ENTTEC Pixelator Series and converts it to SPI data for auto-addressing connected LED pixel strips or dots — with no local configuration required. PLink data is transmitted over Cat5/Cat5e/Cat6 cable at distances of up to 300 metres between devices, making it ideal for large architectural and landscape installations. The IP PLink Injector can be powered directly from the same power supply as the connected LED pixels, with an internal jumper to select between 5V or 12–24V DC operation, eliminating the need for a separate power supply.

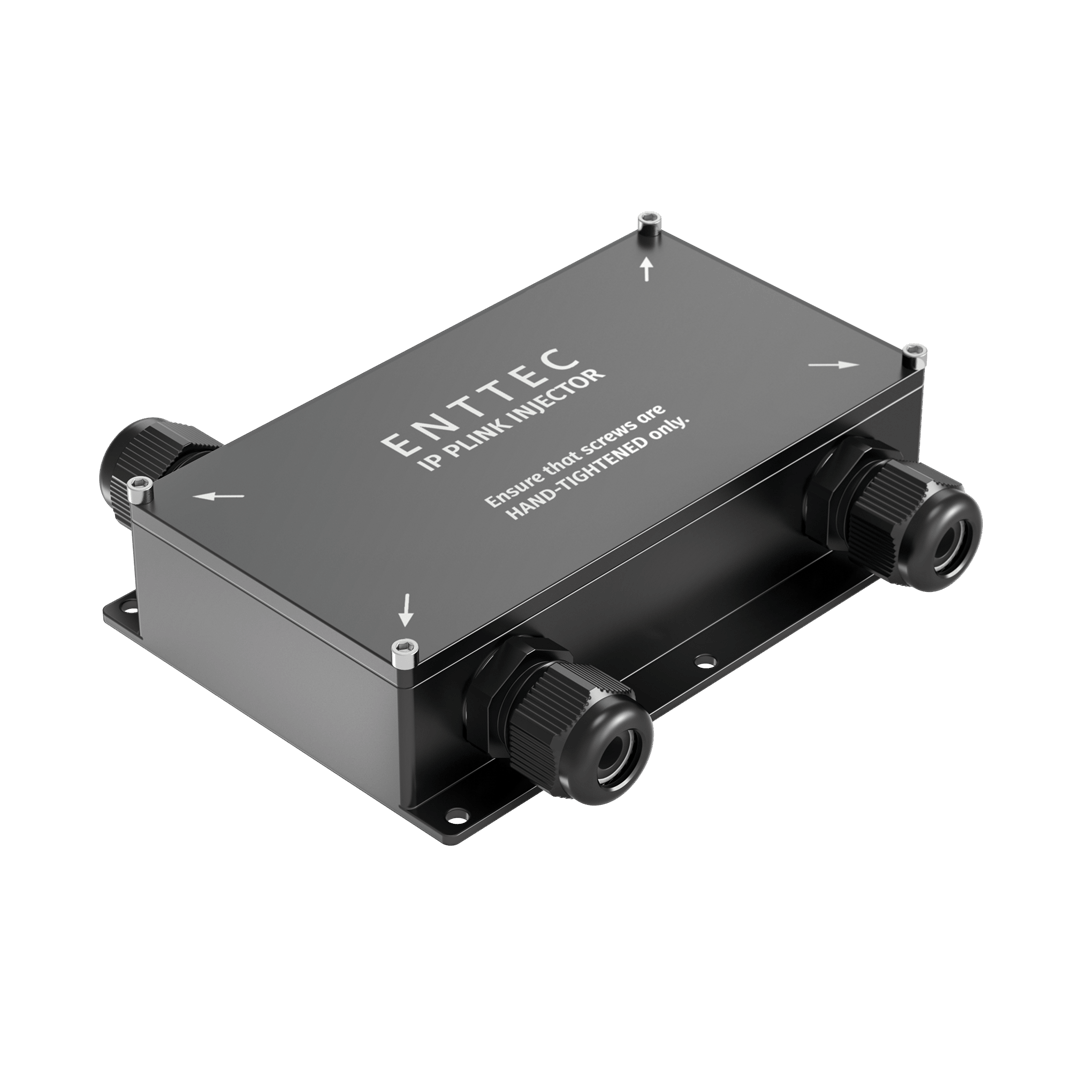

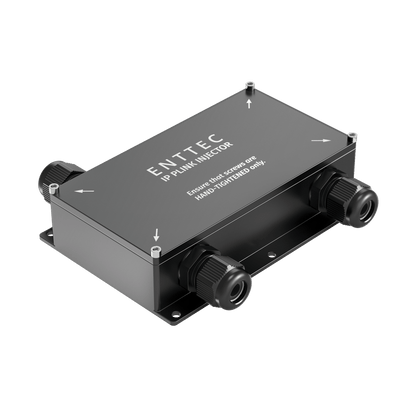

The compact anodized aluminium enclosure carries an IP66 ingress protection rating, keeping the internals fully protected against dust and powerful water jets. Three watertight cable glands (4–8mm diameter) accommodate power and data wiring, while internal rising clamp screw terminals and an RJ45 port simplify installation. With a 10A rated current throughput and an operating temperature range of -10°C to 65°C, the IP PLink Injector is built for demanding year-round outdoor deployments. An indoor IP20 variant is also available.

Features

• Receives up to 4 universes of PLink data and converts to SPI for auto-addressing LED pixel strips and dots
• Compatible with ENTTEC Pixelator Series PLink systems
• PLink data transmission up to 300 metres over Cat5/Cat5e/Cat6 cable between devices
• No local configuration required — auto-addressing via PLink
• Powered from the same PSU as connected LED pixels — internal jumper selects 5V or 12–24V DC operation
• 10A rated current throughput
• IP66 ingress protection for outdoor installations
• Operating temperature: -10°C to 65°C / 14°F to 149°F
• 3 x watertight cable glands (∅4–8mm) for weatherproof wiring entry
• Internal rising clamp screw terminals and RJ45 port for easy wiring
• Compact, robust anodized aluminium body designed for discreet installation
• Scalable design for large outdoor projects
• 3-year manufacturer warranty
• Recommended use: Outdoor architectural LED pixel installations, landscape lighting, large-scale permanent pixel installations requiring weatherproof data injection

Specifications

Control

• Input Protocol: PLink (up to 4 universes)
• Output Protocol: SPI (auto-addressing)
• Max. Cable Length: 300 metres per segment (Cat5/Cat5e/Cat6)
• Local Configuration Required: No

Connections

• Data Input: RJ45
• Power & Data Output: Internal rising clamp screw terminals
• Cable Glands: 3 x watertight (∅4–8mm)

Electrical

• Input Voltage: 5V or 12–24V DC (selectable via internal jumper)
• Max. Current Throughput: 10A

Construction / Physical

• Body Material: Anodized aluminium
• IP Rating: IP66

Environmental

• Operating Temperature: -10°C to 65°C / 14°F to 149°F

Certifications

• Warranty: 3-year manufacturer warranty
