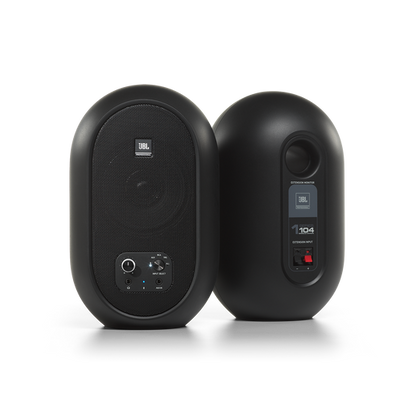

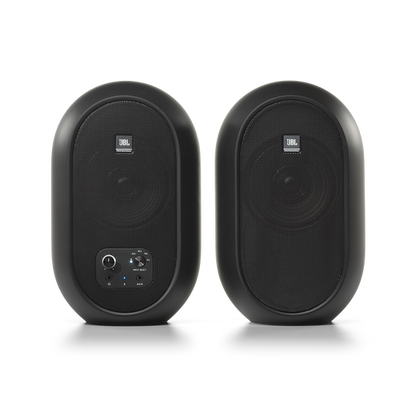

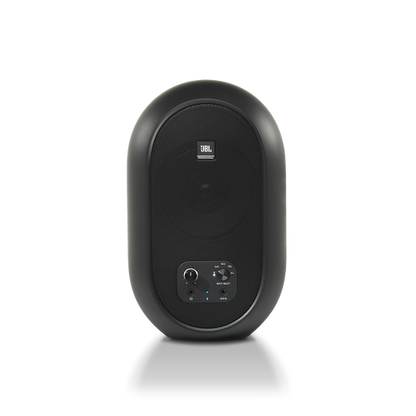

104SET-BT-US

The JBL 104-BT reference monitors are an elegant and powerful solution for streaming both wired and wireless sound into studio monitors.

From the Manufacturer

JBL 104-BT compact reference monitors with Bluetooth, the newest models in the 1 Series line, draw from seven decades of JBL Professional engineering to deliver the truest, most accurate sound in their class. They’re perfect for recording musicians, producers, podcasters and vloggers, as well as professional audio engineers seeking an accurate portable reference with Bluetooth streaming.

JBL 104-BT Reference Monitors combine a powerful coaxial 4.5-inch (118 mm) low-frequency driver and .75-inch (19 mm) soft-dome tweeter, potent integrated 60-watt amplification and an innovative acoustic design to reproduce honest sound with exceptional imaging and crisp detail. Bluetooth streaming lets you check mixes over Bluetooth to make sure they sound great in every listening scenario.

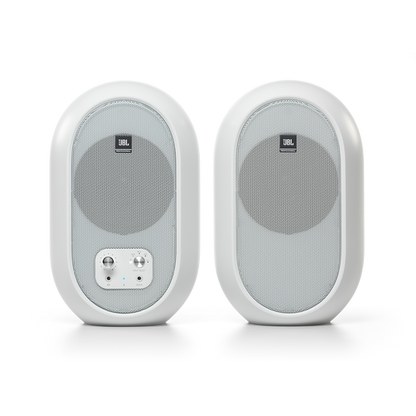

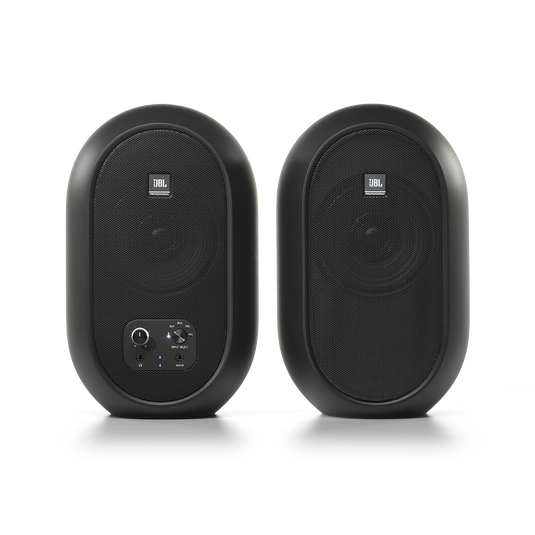

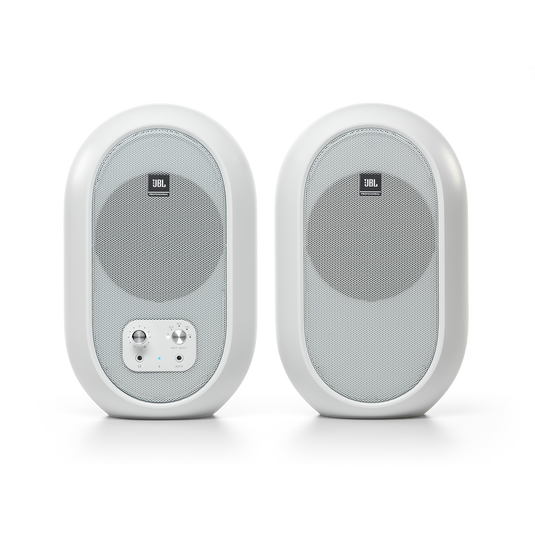

Both the black 104-BT and white 104-BTW versions are sleek, elegant designs and compact form factors, making stunning statements in any studio while conserving valuable work space. Creative professionals, music lovers and anyone who wants the flexibility to stream both wired and wireless sound into high-quality studio monitors can count on JBL 104-BT to provide an accurate, reliable sonic reference and a truly enjoyable listening experience.

Features

• Coaxial driver design: With 4.5-inch (118 mm) LF driver and .75-inch (19 mm) soft-dome HF driver
• Integrated 60-watt Class D power amplifier: Distributes 30 watts to each speaker
• Acoustically optimized: For desktop placement
• Three sets of inputs and built-in Bluetooth: Allow connection with professional equipment, personal music players and consumer products

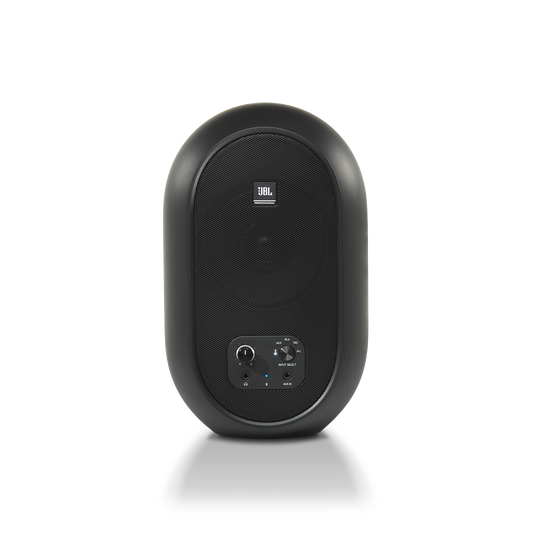

• Smart features: Include front-panel volume control, input selection and headphone jack with automatic speaker mute

Specifications

• Bluetooth Version: 5.0
• Low Frequency Transducer: 4.5 in (118 mm)
• High Frequency Transducer: 0.75 in (19 mm), soft dome
• Crossover: 1725 Hz, 1st order
• Power Amp: 60 W (30 W each speaker), Class D
• Sensitivity: 87 dB SPL @ 1 m with -10 dBV Aux In (Volume = Max)
• Maximum Continuous SPL: 89 dB
• System Peak SPL: 102 dB (pink noise, 12 dB crest factor)
• Maximum SPL, Momentary Peak: 104 dB
• Maximum Peak Input Level (-10 dBV / +4 dBu): +6 dBV / +20.3 dBu
• Frequency Range (-3 dB SPL): 88 Hz – 20 kHz
• Frequency Range (-10 dB SPL): 60 Hz – 20 kHz
• System Rated Impedance: 8 Ω
• Minimum Impedance: 7.8 Ω @ 260 Hz
• Cabinet Tuning Frequency: 72 Hz
• System Distortion Criteria: <10% THD at maximum output with full compressor / limiter engagement
• Electrical Distortion Criteria: <0.2%THD @ 1 kHz, 2.83 VRMS output; <1% THD @ 1 kHz, full rated output
• Signal to Noise Ratio: 75 dBA (A-Weighted), 70 dBr (unweighted), relative to 2.83 VRMS output on HF
• Coverage (Horizontal x Vertical): 120º x 60º
• Acoustic Test Specification: ATS# 1000340443
• Height: 9.72 in (247 mm)
• Width: 6.02 in (153 mm)
• Depth: 4.88 in (124 mm)

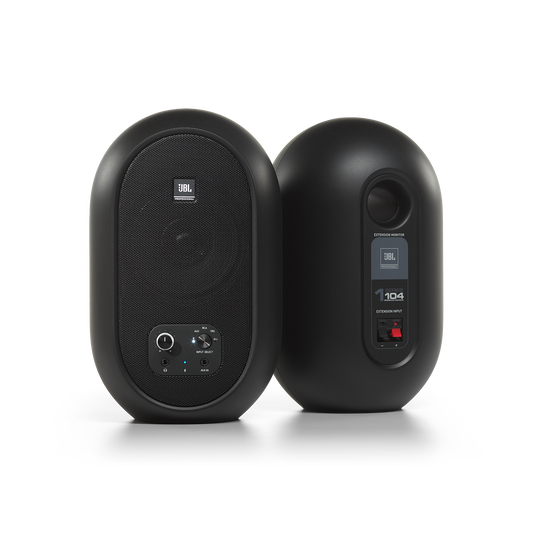

• Net Weight: Primary Monitor = 4.54 lb (2.06 kg); Secondary Monitor = 3.81 lb (1.73 kg)

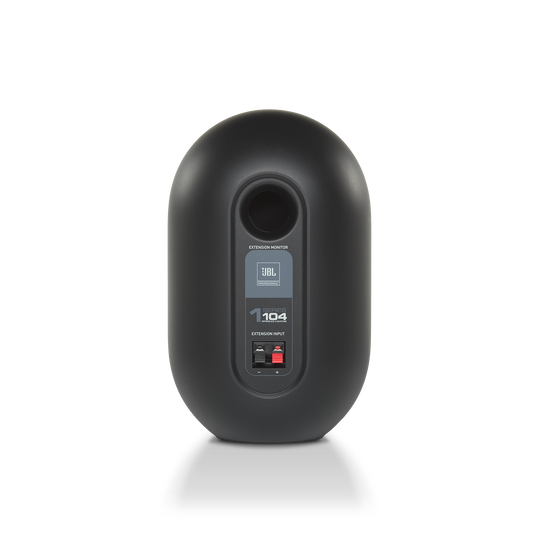

• Enclosure Type: Ported
• Enclosure Material: ABS with metal grille
• Enclosure Finish: Matte black acrylic paint (104-BT) ; Matte white acrylic paint (104-BTW)
• System Output Type: 1/8" stereo headphone with auto speaker mute

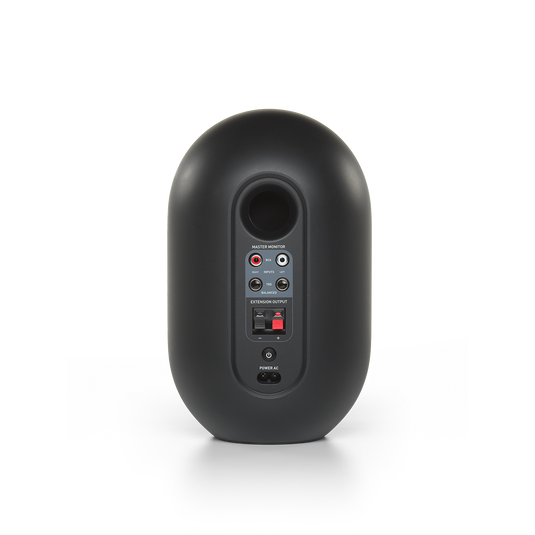

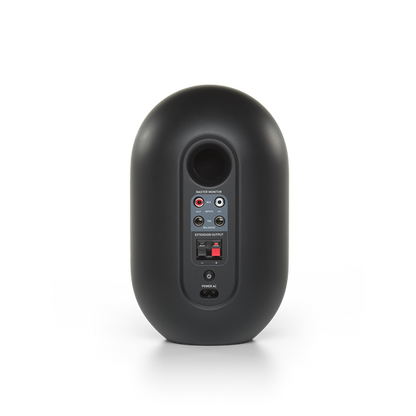

• System Input Type: Bluetooth, 1/8" Aux, RCA, 1/4" TRS balanced
• Input Selection Options: Bluetooth, Aux, RCA, TRS, All
• System Power Handling: 30 W x 2 @ 100 hours, IEC/SMS
• System Polarity: EIA
• AC Input Voltage: 100 – 240 VAC (± 10%), 50/60 Hz
• Current Draw: 85 watts
• Electrical Current Draw (W) Idle 100 / 240 VAC: 3.52 / 3.70
• Electrical Current Draw (W) Max Power 100 / 240 VAC: 80 / 80
• Electrical Current Draw (W) Low Power Standby Mode 100 / 240 VAC: 0.34 / 0.46
