708P

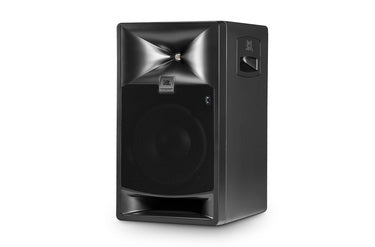

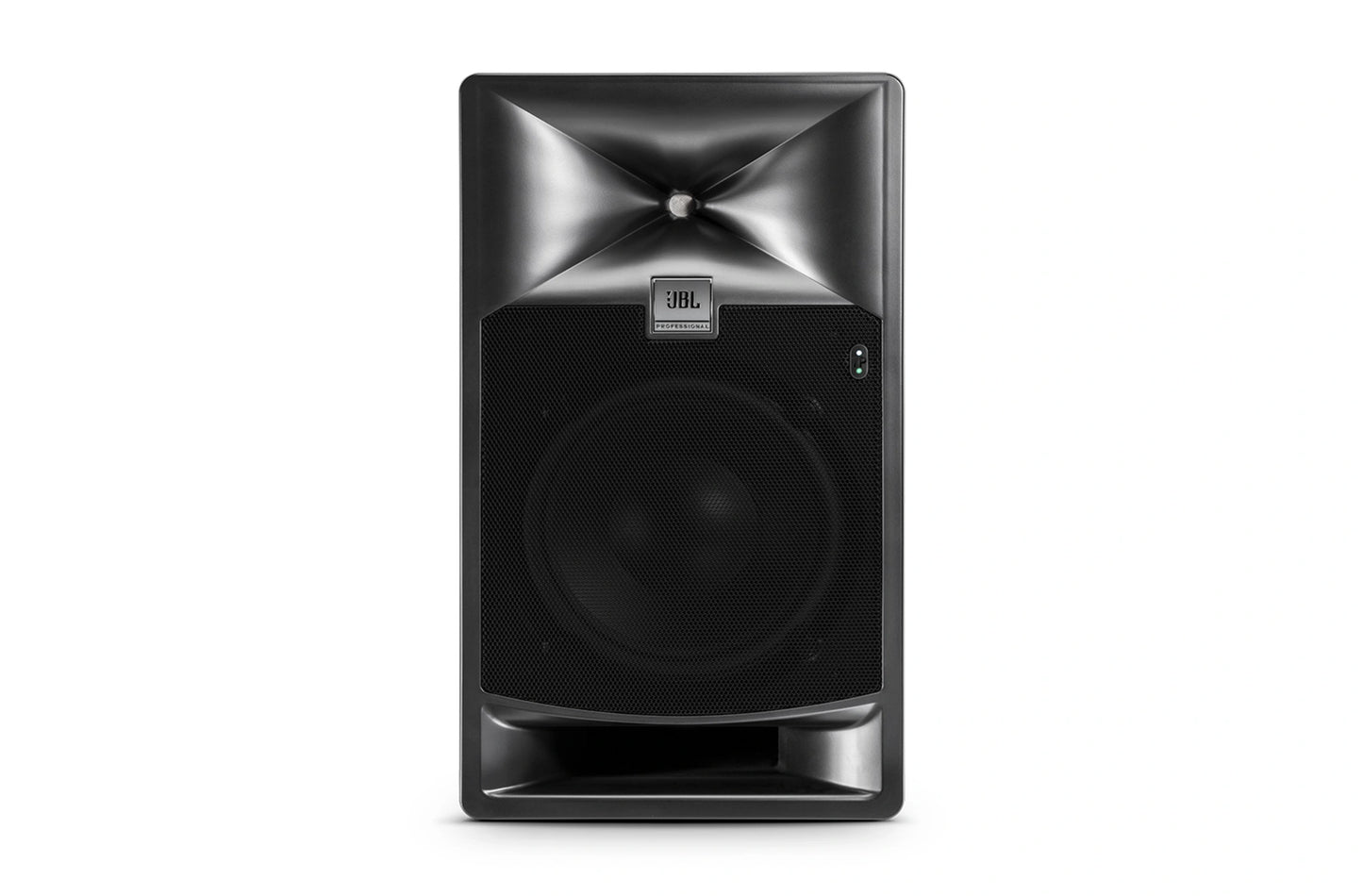

The JBL 708P is an 8" Bi-Amplified Master Reference Monitor. It is a great option for studio monitors.

From the Manufacturer:

JBL 708P is the self-powered reference monitor for critical music recording, film post and broadcast production applications. The 708P leverages new patent-pending driver technologies and JBL’s renowned Image Control Waveguide to deliver extraordinary output, stunning detail, an expansive soundstage, and greater accuracy in a broad range of rooms. 708P delivers several times the output of other comparably-sized studio monitors, providing significantly greater dynamic range and greater working distances.

Features:

• Next-generation JBL driver technology

• Patent-pending Image Control Waveguide

• Integrated dual amplification system with internal floating-point DSP

• Comprehensive room EQ and delay controls

• Compact enclosures for easy placement and installation

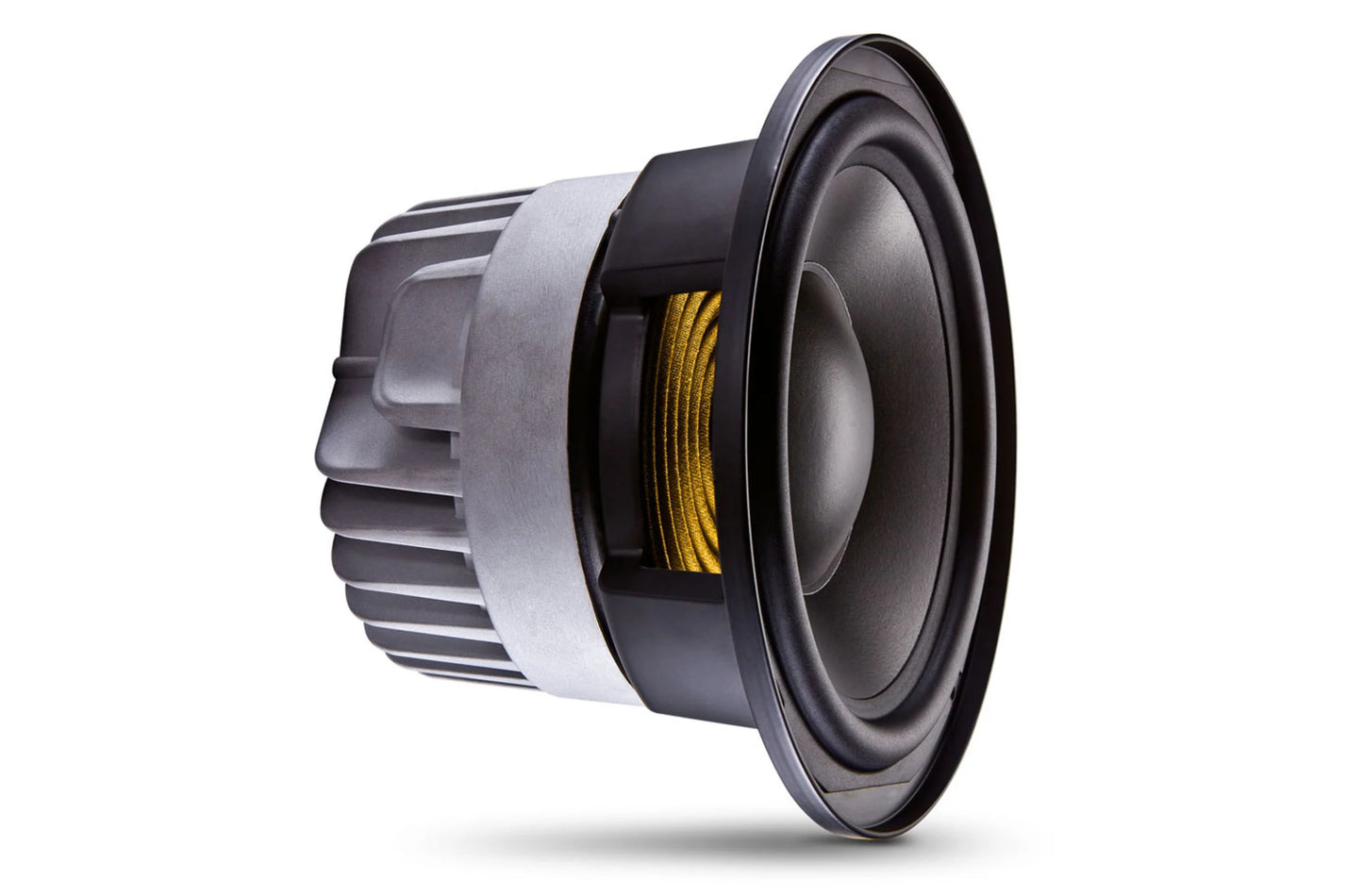

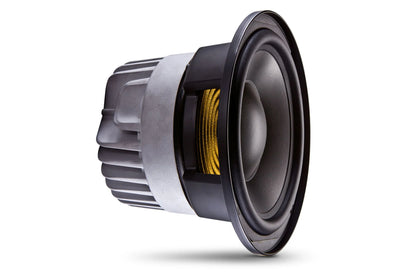

• JBL 728G low-frequency transducer with patented Differential Drive® allows extended low frequency with low distortion and high SPL

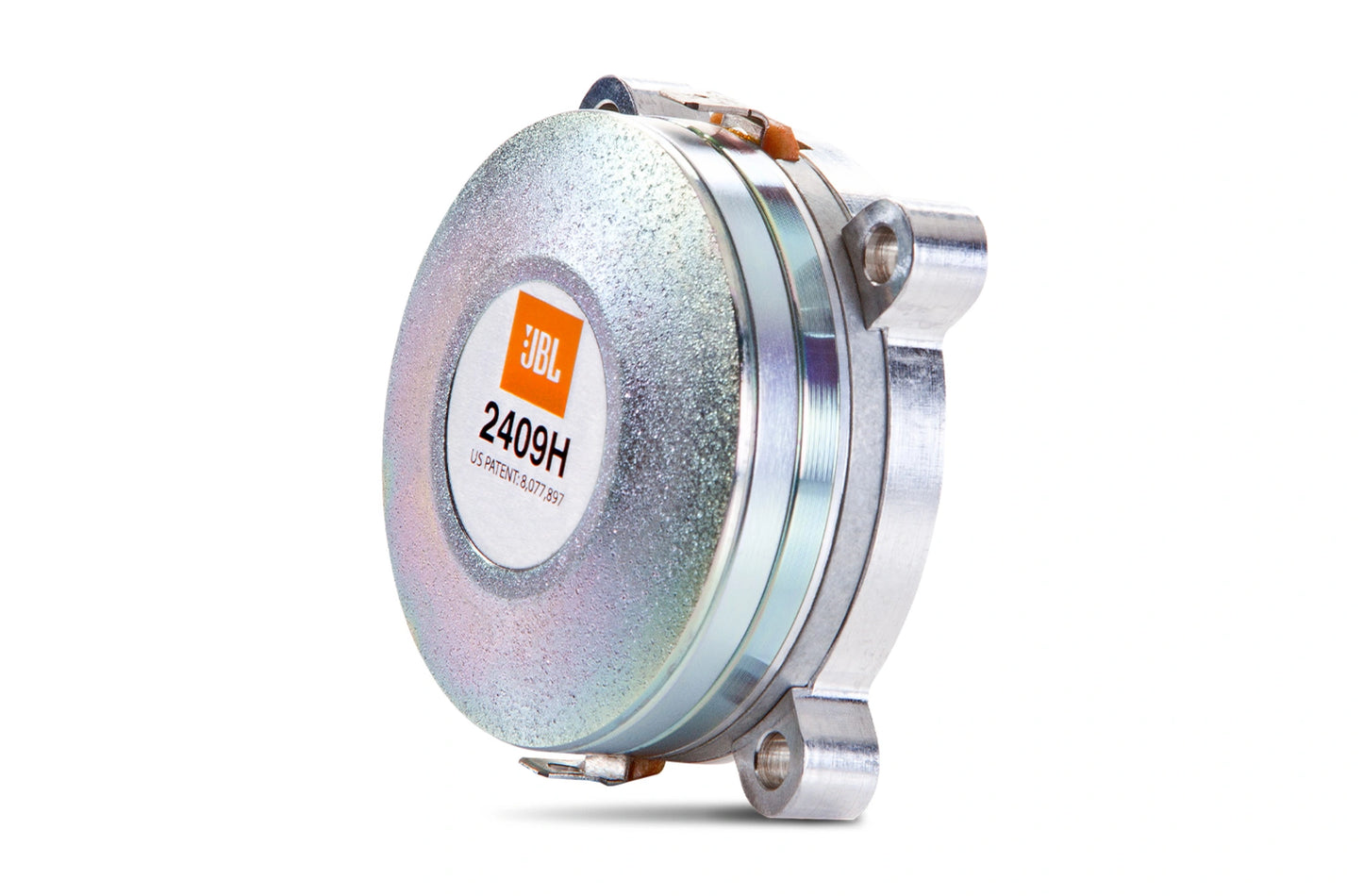

• JBL 2409H high-frequency transducer with low-mass annular diaphragm

• JBL-designed patent-pending Image Control Waveguide

• 2-channel Class-D amplifier HF 250W / LF 250W

• 192 kHz 32-bit floating point processing

• 12 bands of Room EQ, 8 Bands of User EQ

• 6 factory presets, 6 user-defined presets

• 18 milliseconds of Room Delay, 150 milliseconds of AV Sync Delay

• 1 x XLR-1/4" balanced combination analog audio input

• 1 x XLR AES3 format digital input with 1 x XLR pass-through output

• Digital input will accept sample rates of up to 192 kHz

• User enabled sample rate converters

• RJ-45 network connection for Harman HiQnet connectivity

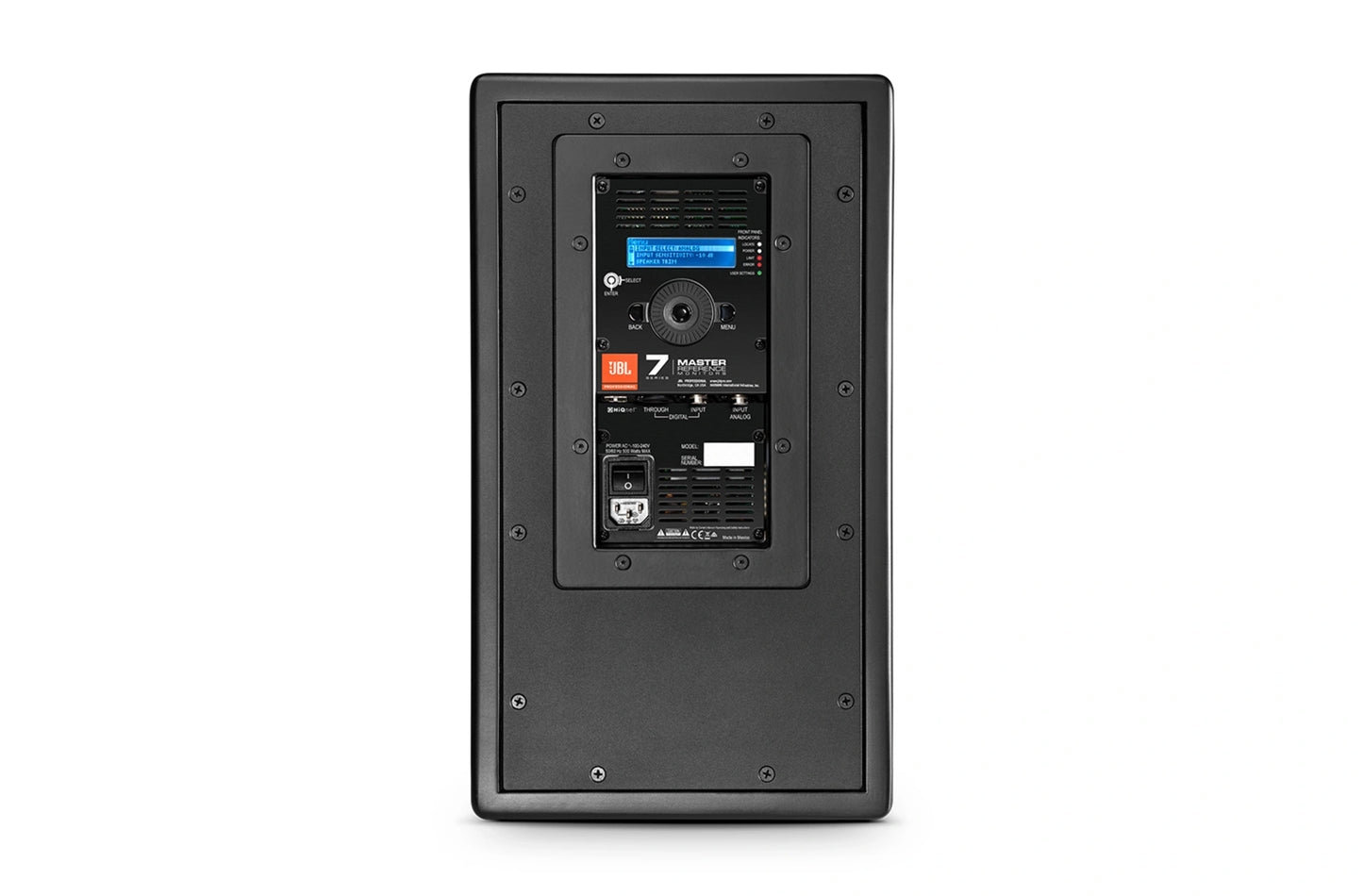

• Rear-panel multi-function controls and LCD display allow selection of ofinput sensitivity, input trim, Room EQ, User EQ, Room Delay, AV Sync Delay

• Integrated handles

• Top and bottom mounting points; birch plywood cabinets reinforced for safe mounting

• Protective steel grilles

Specifications:

• Frequency Response (±3 dB)

• 41Hz-25kHz

• Frequency Range

• 35Hz – 36 kHz

• Maximum Continuous SPL

• (80 Hz - 20 kHz) >108 dB SPL / 1m

• Maximum Peak SPL

• (80 Hz - 20 kHz) >114 dB SPL / 1m

• HF Driver

• 2409H

• LF Driver

• 728G - 8in (203mm)

• Dividing Network Transition Frequency

• 1.7 kHz

• Input Connectors

• 1 x XLR balanced analog audio input

• 1 x XLR AES3 format digital input with

• 1 x XLR pass-through output

• Digital input will accept sample rates up to 192 kHz

• Dimensions (HxWxD) 17.25 x 9.75 x 11.5 in (438 x 248 x 292 mm)

• Net Weight (each)

• 25.2 lb (11.5 kg)

• Enclosure

• Birch plywood reinforced for mounting

• Mounting

• Top, bottom and rear mounting points. 4-hole mounting pattern

• LF Driver Power Handling

• 250W Class D

• Amplifier Power Rating

• 250W
