JG 9

The JG 9 is a power distribution unit for rack mounted electronic systems.

From the Manufacturer:

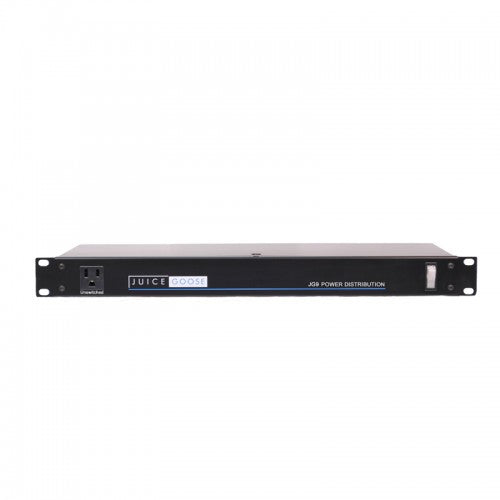

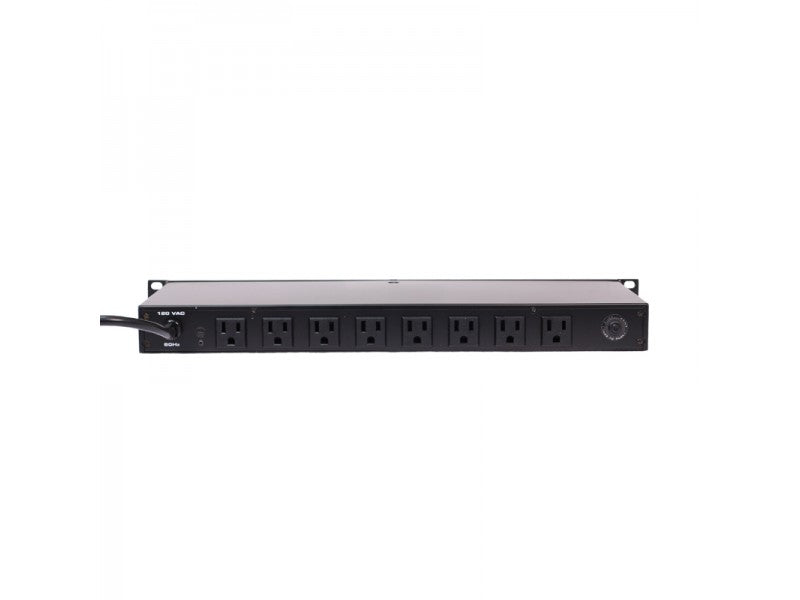

The Juice Goose JG 9 features a full 7 inch deep rack mounted chassis with an illuminated power switch, current overload protection, one unswitched outlet on the front and 8 outlets on the back, rotated 90 degrees to better accommodate "wall wart" power supplies. Fifteen amps of power in a black steel chassis. Includes basic AC line conditioning and spike protection.

The JG Series family of commercial grade power and light modules includes six high quality, economical models that are valuable accessories for any rack-mounted system. The switched outlets on the back of each unit provide power while the discreet components inside provide a basic level of protection to help clean up dirty and dangerous AC voltage.

Basic power conditioning includes a fast-acting metal oxide varistor (MOV) installed to clamp voltage spikes running between the incoming line and neutral leads. This level of conditioning also includes a capacitor to reduce the level of AC line interference that may be transmitted between the line and neutral leads.

Features:

• General Description

• The Juice Goose CQ-3000, along with the other products in the CQ Series, provides a versatile and powerful means of remotely activating AC power in a sequenced array for application to both sensitive and high amperage equipment. CQ Series products need no additional controllers. Each contains the circuitry to be activated by a simple contact closure and to perform in coordination with other CQ devices. All power down sequences are exact reversals of the power up sequences.

• Operation

• The CQ-3000 is a 30 amp hardwire model featuring one AC power output, a locking NEMA L5-30R. This is a single sequence event device that will usually be specified for an audio system with one or more high current, low frequency amplifiers. High performance components have been designed into the CQ-3000 to provide the additional margin of performance required for high in-rush amplifiers. The CQ-3000 can be connected by way of six wire modular phone cable to a system of CQ Series sequencers. In this fashion the CQ-3000 will turn on and off in coordination with the other products. No time delay settings or additional equipment is required. When used to power an amplifier the CQ3000’s sequence event will be triggered after a previous CQ device has completed its sequenced turn on.

• Control line Connection

• All CQ products can be easily controlled by way of 8 wire RJ-45 modular phone cable. (Consult the CQ Series Owners Manual before assembling the cable.) Each CQ has a Sequence Signal Input and Output connector on the chassis. This communication link allows any CQ device to be installed at any stage in a power sequencing system and act as a power sequencer or controller. There is no limit to the number of CQ devices that can be connected in this manner. Because the sequence process is controlled with a latching contact closure, the system can be activated with a custom mounted single pole switch, a relay, the control switch on the CQ device itself or a Juice Goose RC-5 key switch control accessory. It is also activated with controllers from Crestron AMX and other manufacturers.

• Control And Monitors

• The CQ-3000 features a three position switch on the front of the chassis. This switch is active only if there is no control cable on the Sequence Signal Input connector. When active, this switch allows the unit to sequence up or sequence down and to control the sequencing of any unit connected to the Sequence Signal Output connector. The Manual On switch position allows the CQ-3000 to be manually operated, overriding the control circuit in the unlikely event of a fault or failure. Lights on the front of the chassis allow monitoring of the unit operation. The PROCESSOR light will blink to indicate the control processor on the unit is functioning. The POD light is illuminated as a result of contact closure by the CQ-3000 relay, indicating that actual relay closure has occurred.
