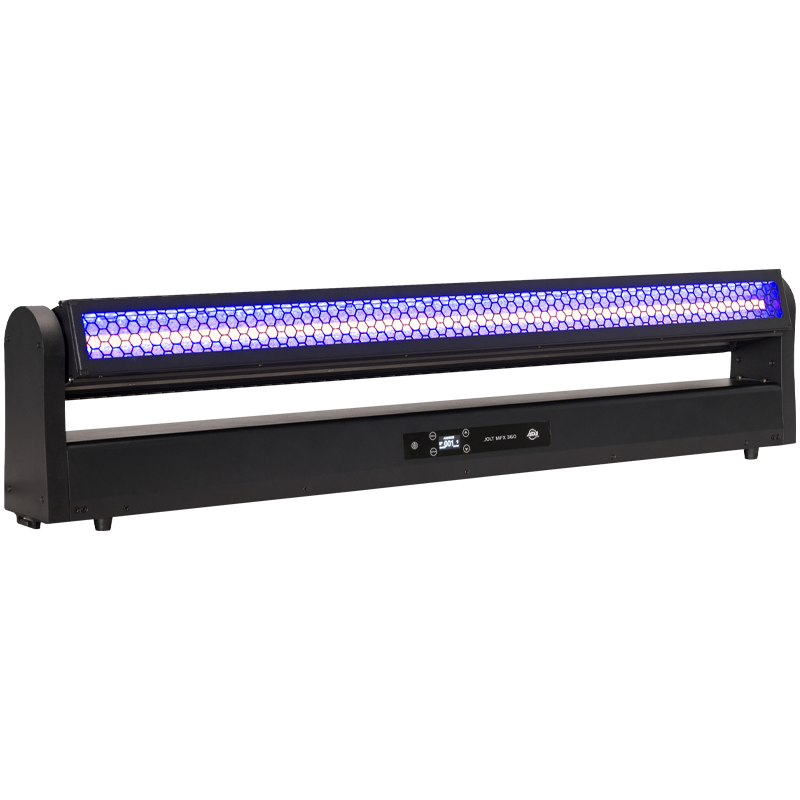

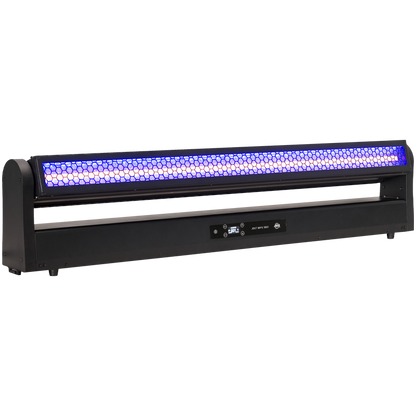

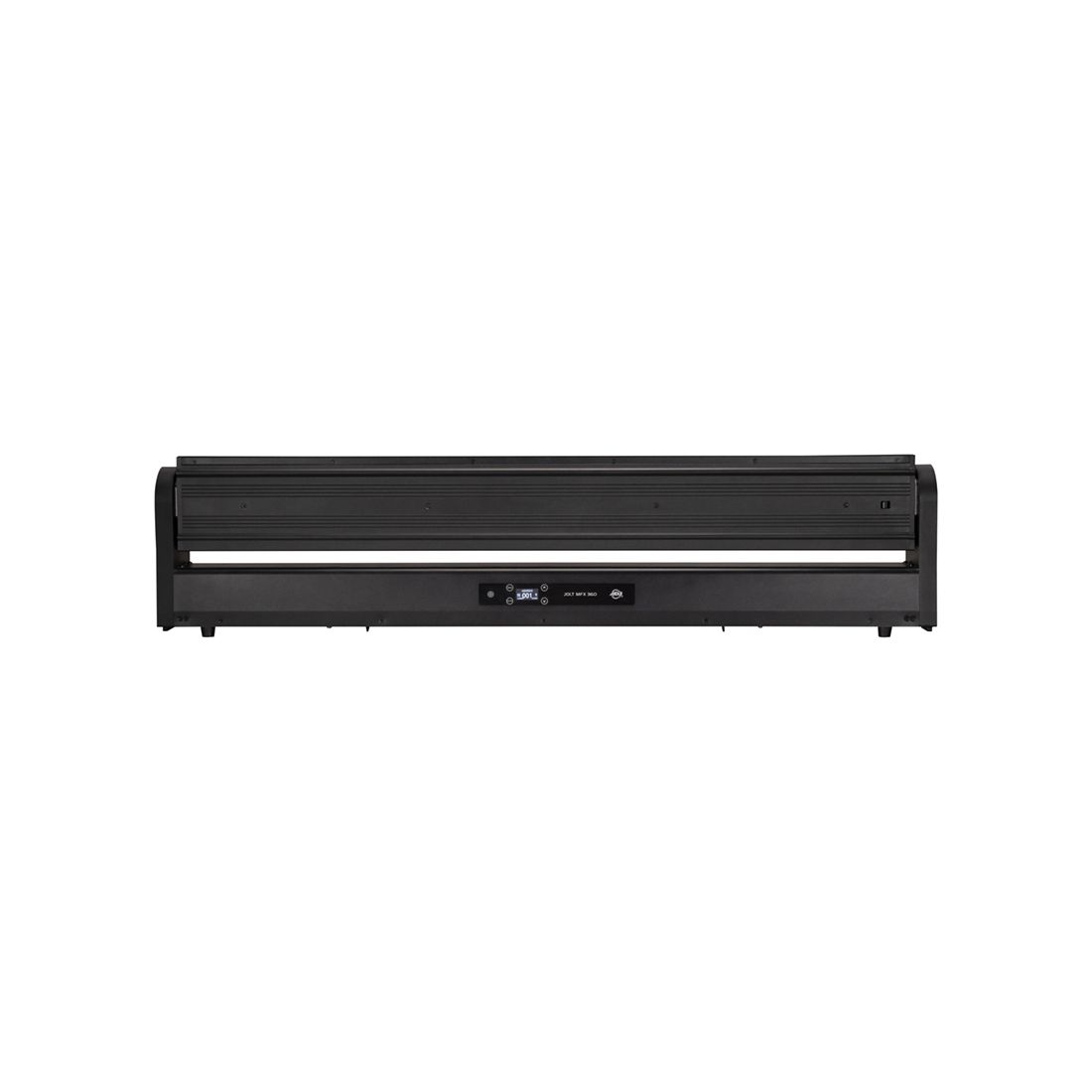

Jolt MFX 360

The ADJ Jolt MFX 360 is a hybrid two-sided lighting fixture combining the Jolt Bar and Vintage Bar for limitless special effects in touring or fixed installations.

From the Manufacturer:

The ADJ Jolt MFX 360 is a boundary-pushing hybrid lighting fixture that fuses two of ADJ’s most iconic effects into one powerful, fully integrated design. Engineered for maximum visual versatility, it features a dual-sided configuration that seamlessly merges the atmospheric warmth of the Vintage Bar with the explosive energy of the Jolt Bar, unlocking an entirely new dimension of creative possibilities for lighting designers, rental houses, and integrators.

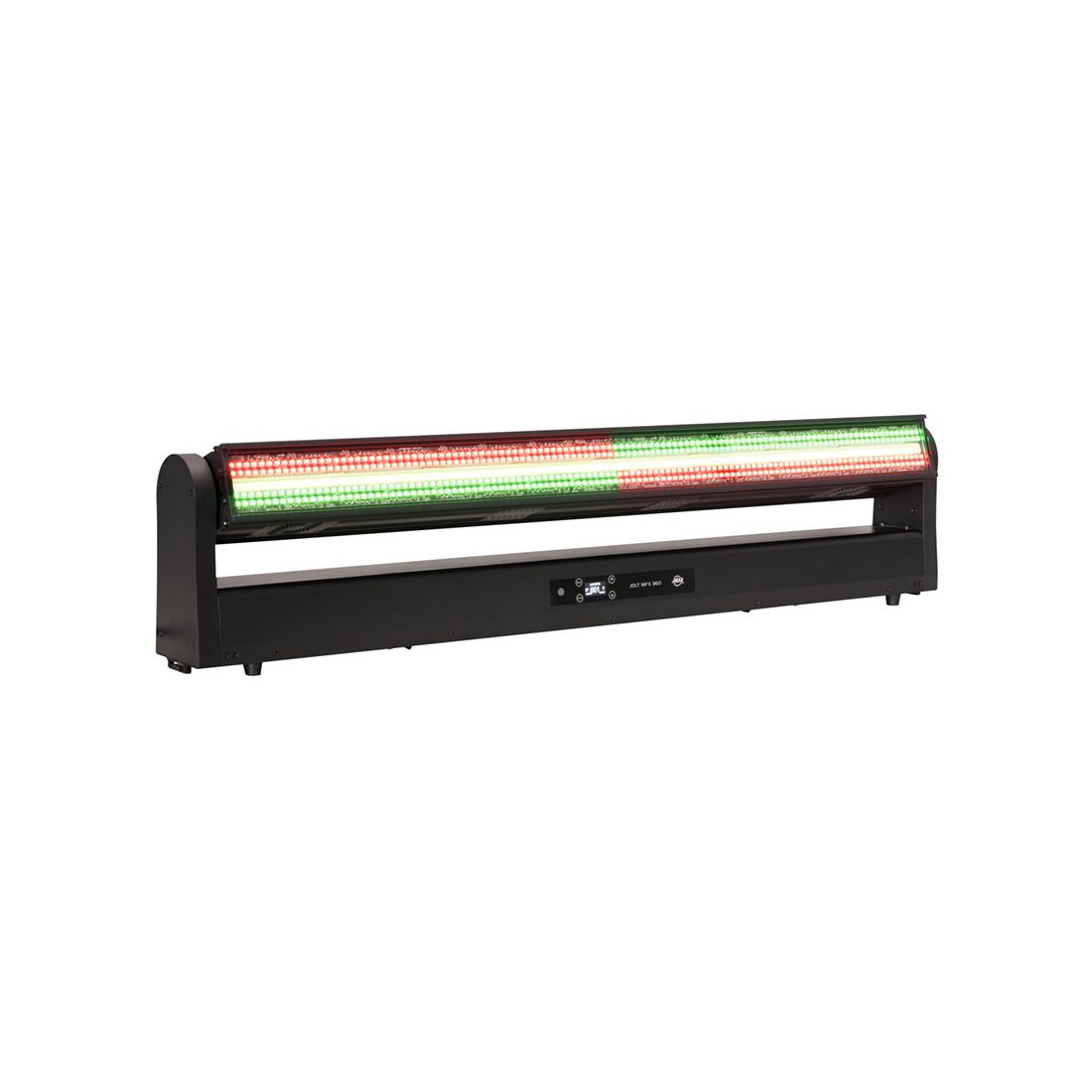

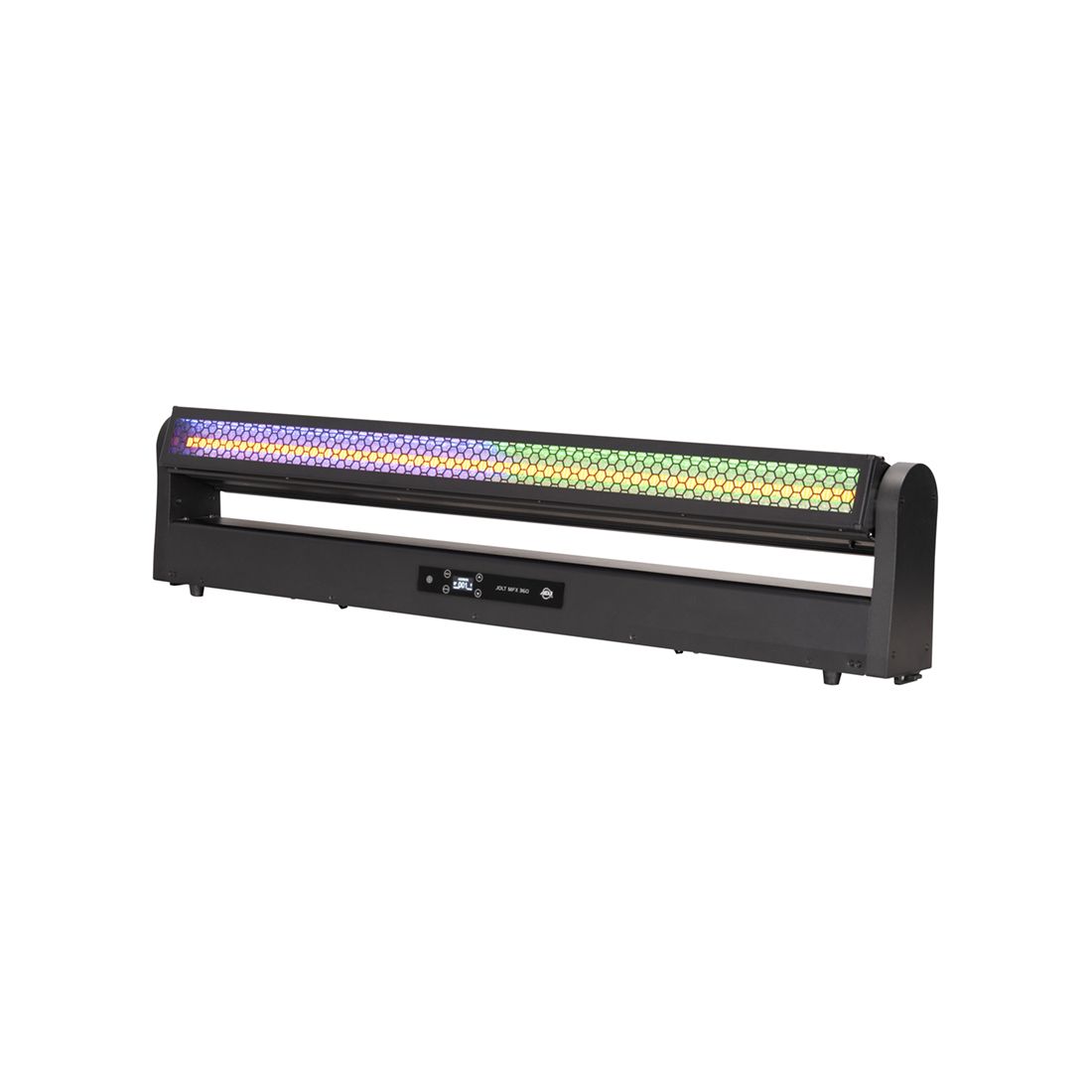

On one side, the Vintage Bar scenic effect delivers a nostalgic glow with a central strip of four 100-watt amber COB LEDs that emulate classic filament-style blinders, surrounded by a textured reflector illuminated by 140 x 0.8-watt RGBL SMD LEDs for vibrant background ambience. Flip to the opposite side, and the Jolt Bar effect takes over with a central strip of 448 x 1-watt cool white strobe LEDs, surrounded by 448 x 0.5-watt RGB color mixing LEDs that provide bold, high-impact washes. The combination of these two contrasting looks allows designers to shift instantly from warm, retro mood lighting to punchy, modern strobe-driven energy.

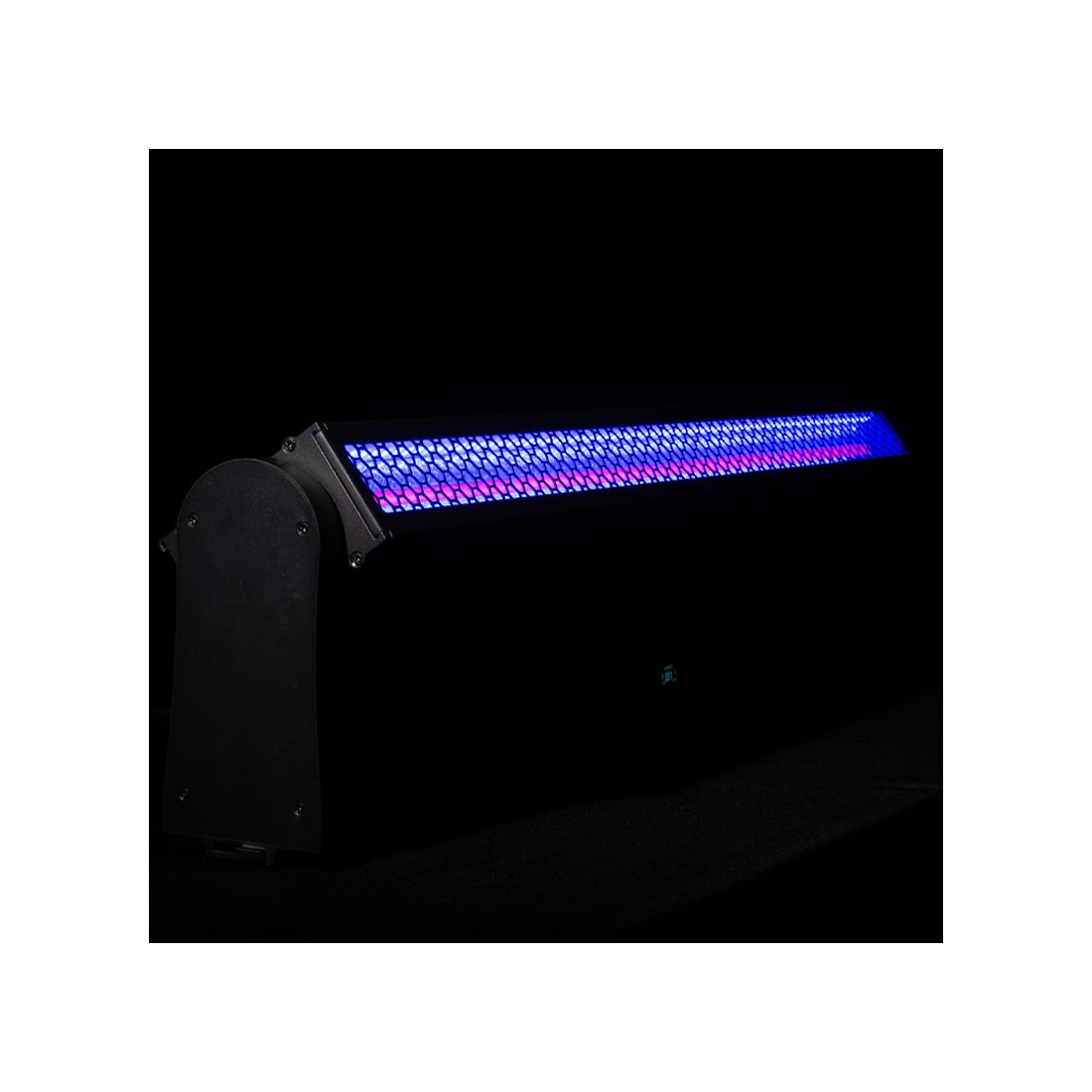

Thanks to fast motorized tilt and 360° continuous rotation, the Jolt MFX 360 can transform any stage or venue with fluid, high-speed transitions and immersive hybrid effects that move well beyond the capabilities of traditional static fixtures. Creative control is further expanded with an extensive library of built-in macro programs, zone-based pixel mapping, and flexible dimming profiles. A lens slot on the Jolt Bar side enables use of optional frost filters to diffuse the output for a more homogenized look.

Designed for both touring and fixed installations, the Jolt MFX 360 features integrated Aria X2 wireless management system and NFC configuration, ensuring fast setup and robust control across DMX (with RDM), Art-Net and sACN. Rugged construction, a useful tilt lock, and magnetic end caps for easy alignment of fixtures placed end-to-end, round out a fixture built for professional demands.

From generating warm scenic effects to unleashing full-throttle strobe sweeps, the Jolt MFX 360 stands as a singular tool capable of delivering multiple signature looks from one compact unit – making it a transformative addition to any lighting rig.

Key Features:

• Control
  • Control Protocols: DMX, ArtNet, sACN, Aria X2, NFC and RDM

• Effects
  • 360° Continuous Tilt Movement in both directions
• Source

  • 4 x 100-Watt COB Amber (1800K) LED's Side 2
  • 448 x 1-Watt Cool White (6500K) SMD LED's

Specifications:

• Vintage Effect Side:
  • 4 x 100-Watt COB Amber (1800K) LED's
  • Wavelength: 588–592nm
  • Lux: 473
  • CRI: 60
  • Beam Angle: 120°
  • Field Angle: 140°
  • LED Life (Average): 50,000 Hours
  • 140 x 0.8-Watt RGBL SMD LED's
  • Wavelength: Red (620–625nm), Green (520–525nm), Blue (455–460nm), Lime (570nm)
  • LED Life (Average): 50,000 Hours
• Jolt Bar Effect Side:
  • 448 x 1-Watt Cool White (6500K) SMD LED's
  • Wavelength: 620nm
  • LUX: 585
  • CRI: 73
  • Beam Angle: 60°
  • Field Angle: 80°
  • LED Life (Average): 50,000 Hours
  • 448 x 0.5-Watt RGB SMD LED's
  • Wavelength: Red (630nm), Green (520–525nm), Blue (470nm)
  • LED Life (Average): 50,000 Hours
• Features:
  • 4 x Amber LED's on Vintage Effect Side (203, 220, 223, and 229CH Modes)
  • 20 x RGBL LED Zones on Vintage Effect Side (203, 220, 223, and 229CH Modes)
  • 16 x Cool White LED Zones on Jolt FX Bar Side (203, 220, 223, and 229CH Modes)
  • 32 x RGB Background LED Zones on Jolt FX Bar Side (203, 220, 223, and 229CH Modes)
  • 128 Built-in RGB (Jolt Bar) and RGBL (Vintage) Background LED Macros
  • 6 Built-in RGBL LED Program Macros with Speed and Fade Control (Vintage Side)
  • 6 Built-in RGB LED Program Macros with Speed and Fade Control (Jolt Bar Side)
  • 6 Built-in Cool White LED Program Macros with Speed and Fade Control (Jolt Bar Side)
  • 360° Continuous Tilt Movement in both directions
  • Tilt Lock
  • Built-in Aria X2 Wireless Management System
  • NFC Ready
  • Lens slot on Jolt Bar side for optional frost lens
  • Alignment feature for precise end-to-end unit setup
• Control:
  • Control Protocols: DMX, ArtNet, sACN, Aria X2, NFC and RDM
  • Primary / Secondary Functionality
  • 12 DMX Channel Modes: 16, 31, 36, 42, 79, 96, 99, 105, 203, 220, 223, and 229
  • Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
  • Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law, and S Curve)
  • 0–100% Smooth Dimming
  • Strobe Effects: Linear Speed, Pulse, and Random
  • Max Strobe Rate: 25Hz; Min Strobe Rate: 0.35Hz
  • Refresh Rate: 900Hz–25kHz
  • OLED Display Menu with 4 Touch Buttons

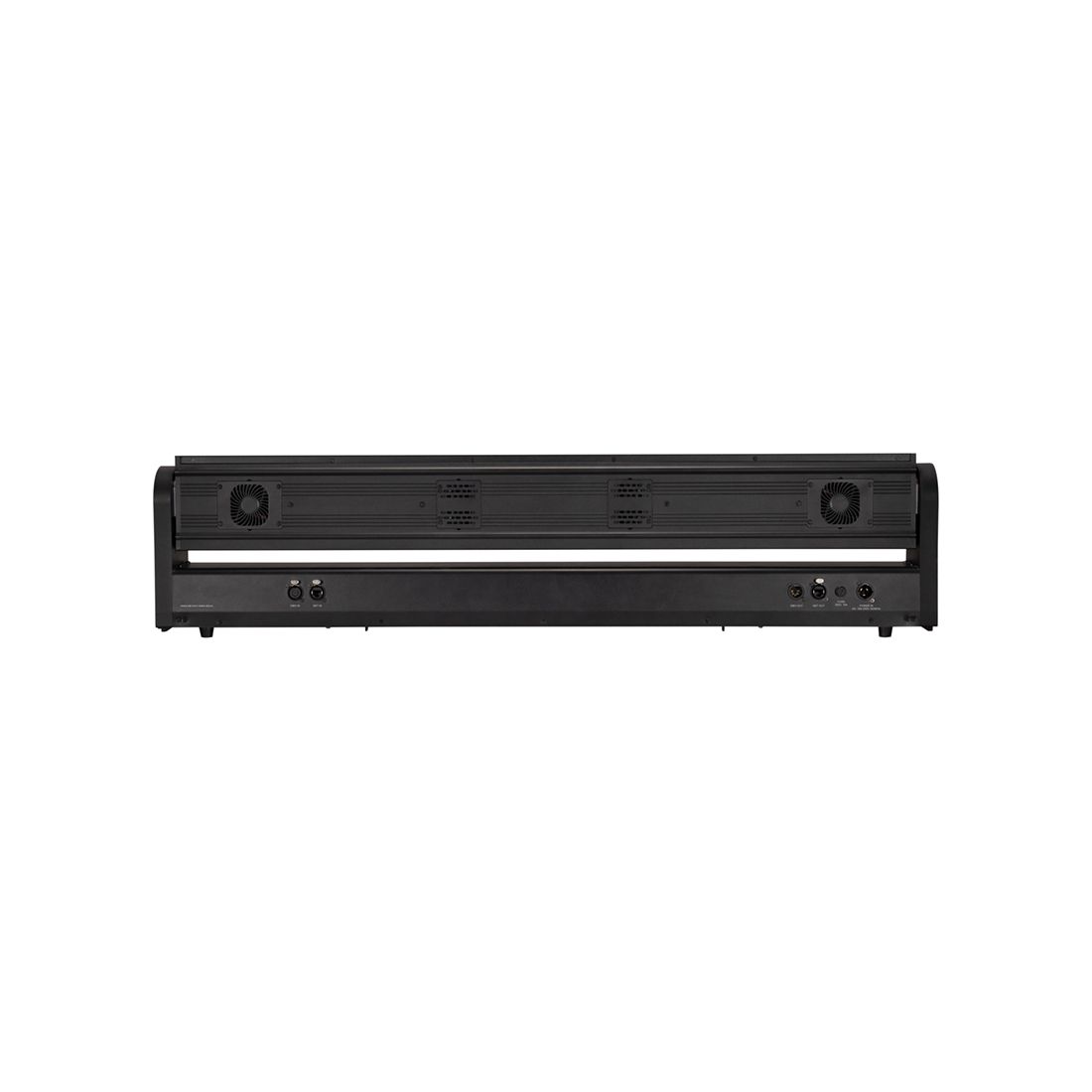

• Connections:
  • Data: Seetronic 5-pin XLR Locking DMX In/Thru
  • Data: Seetronic RJ45 Locking In/Thru
  • Power: IP65 Power Locking In/Thru
• Electrical:
  • 100–240V, 50Hz/60Hz (Auto Sensing)
  • Max Power Consumption: 780W (3.55A @ 220V)
  • Max Power Link: 4 units @220V/240V
  • Fuse Protected: T6.3A/250V Glass Fuse (5x20mm)
• Dimensions / Weight:
  • Length: 1078.2mm
  • Width: 129.2mm
  • Height: 280mm
  • Weight: 18.3 kg
• What's Included:
  • 1 x IP65, 3x14AWG, 6.5ft Locking Power Cable
  • 1 x Safety Cable
  • 2 x 107mm Omega Brackets
• Optional Accessories:
  • Jolt Bar FX BLKF – Black Filter for Jolt MFX 360, Jolt Bar FX2, and Jolt Bar FXIP (1226100511)
  • Jolt Bar FX 1x60 LF – 1x60° Linear Effect Filter for Jolt MFX 360, Jolt Bar FX2, and Jolt Bar FXIP (1226100512)
  • Jolt Bar FX 60x1 LF – 60x1° Linear Effect Filter for Jolt MFX 360, Jolt Bar FX2, and Jolt Bar FXIP (1226100513)
• Approvals and Ratings:
  • IP20
