Sku: JOL698

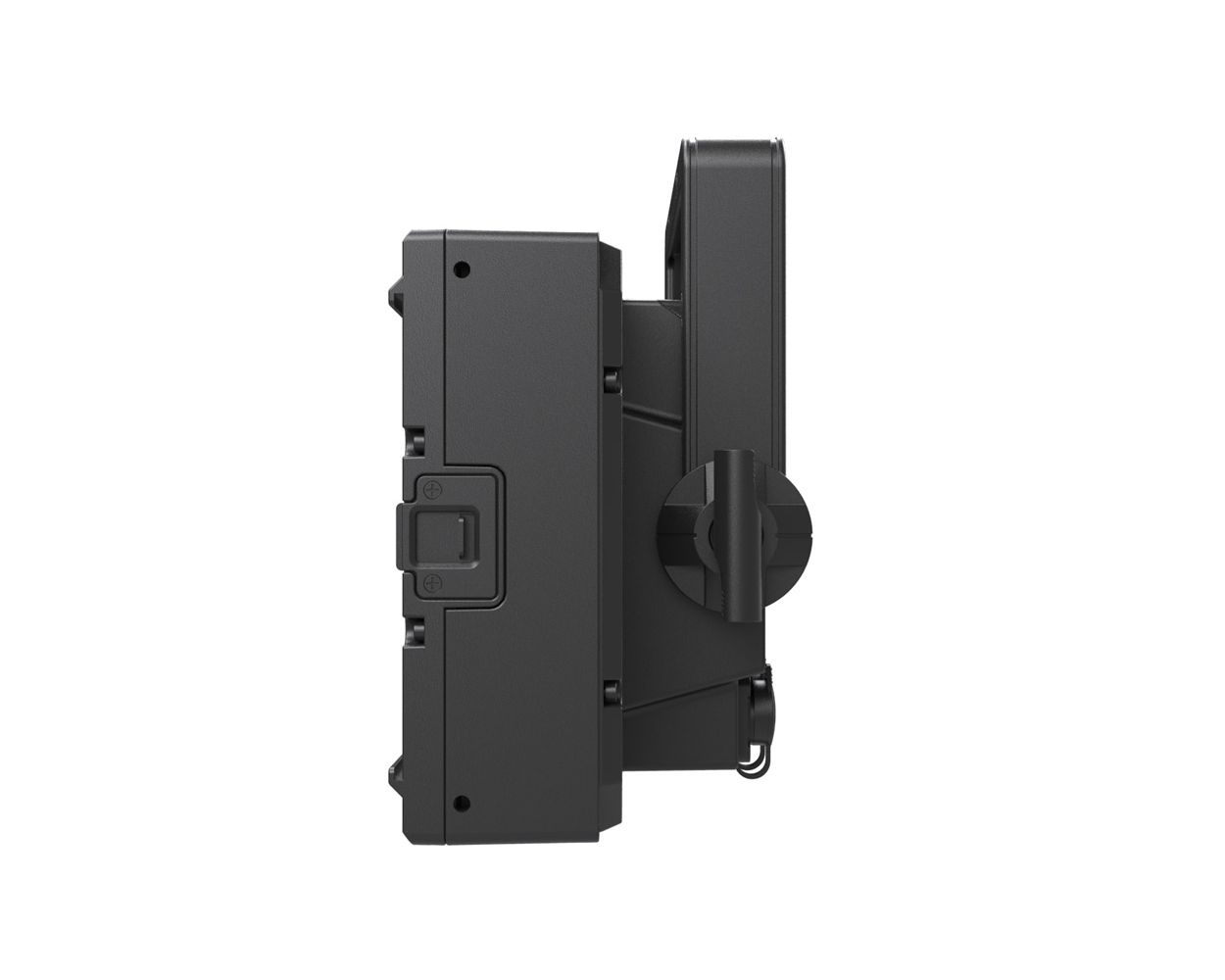

Jolt Panel FXIP

Regular price
$1,249.99
Regular price
Sale price
$1,249.99
Shipping calculated at checkout.
Vendor: ADJ

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Description

Caret Down

From the Manufacturer

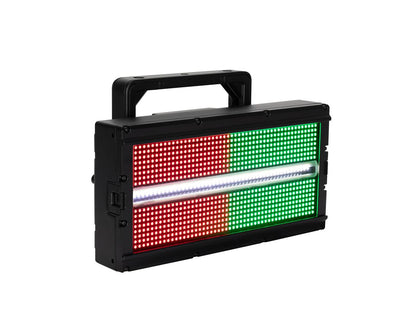

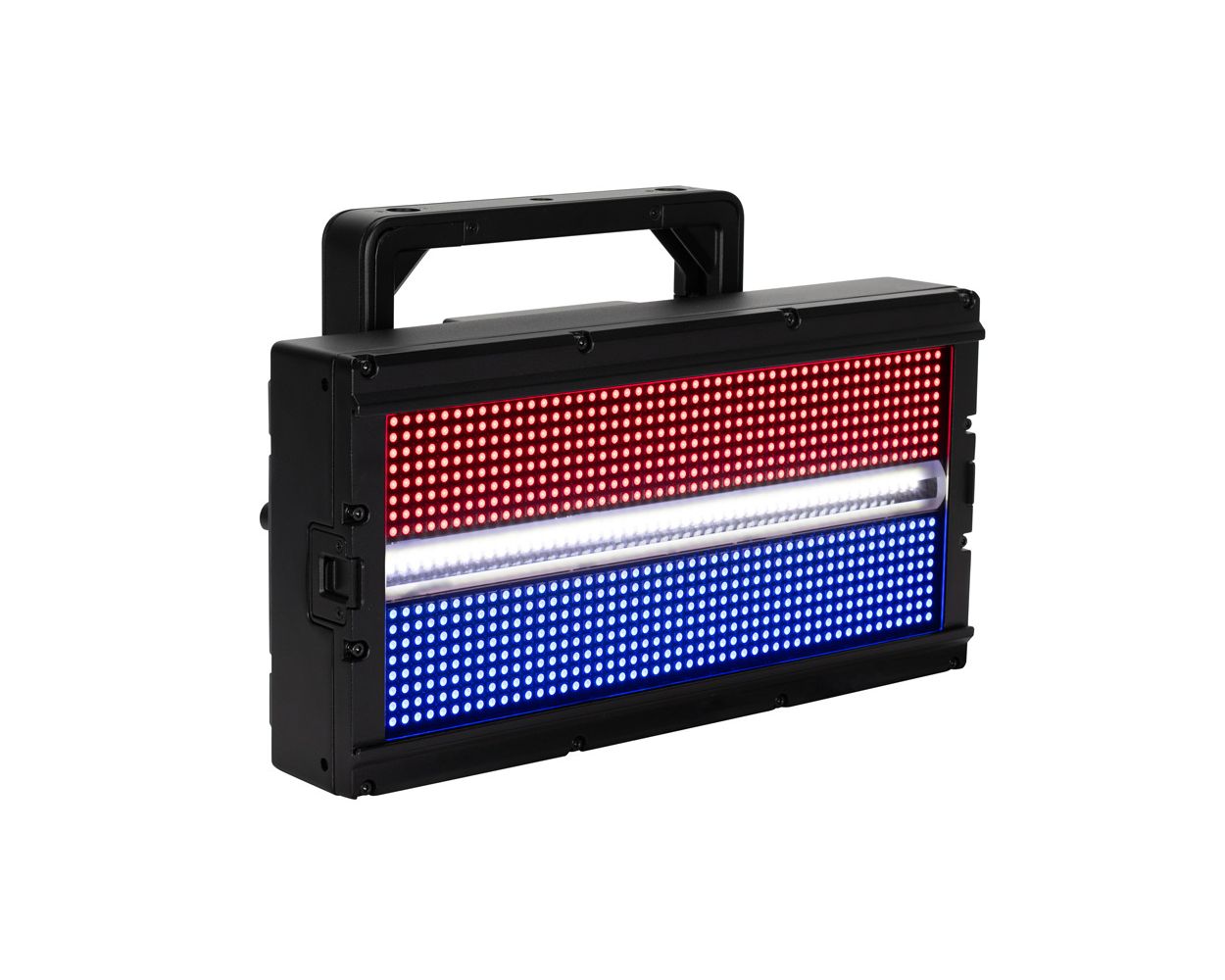

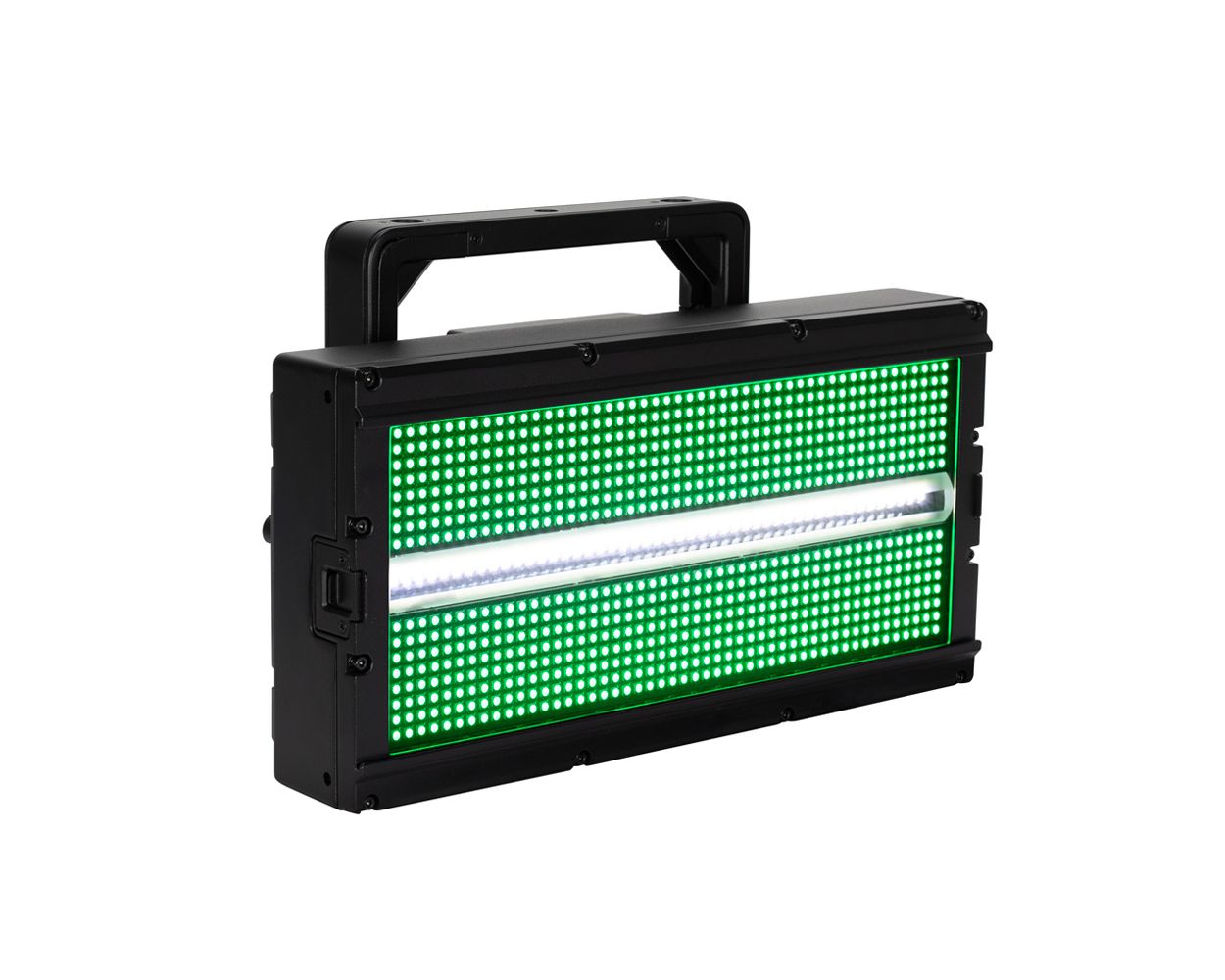

The ADJ Lighting Jolt Panel FXIP is an extremely bright and versatile fixture ideal for concert tours, one-off event production and permanent nightclub installations. It features a central strip of 48 x 5-Watt cool white SMD LEDs, surrounded on both sides by a total of 800 x 0.5-Watt RGB SMD LEDs. The Jolt Panel FXIP provides lighting designers with the creative potential of generating strikingly bright white strobe flashes, vibrant color washes, and animated ‘eye candy’ chase effects from the same compact fixture which can be used inside or outdoors in any weather.

Features

Light Source:

  • 800 x 0.5-Watt RGB SMD LEDs + 48 x 5-Watt Cool White SMD LEDs
  • 73° Beam Angle
  • 111° Field Angle
  • Color LEDs Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm. / Cool White LED: 6900-7400K Color Temperature
  • CRI: 69.4
  • 50,000 Hour Average LED Life

Features:

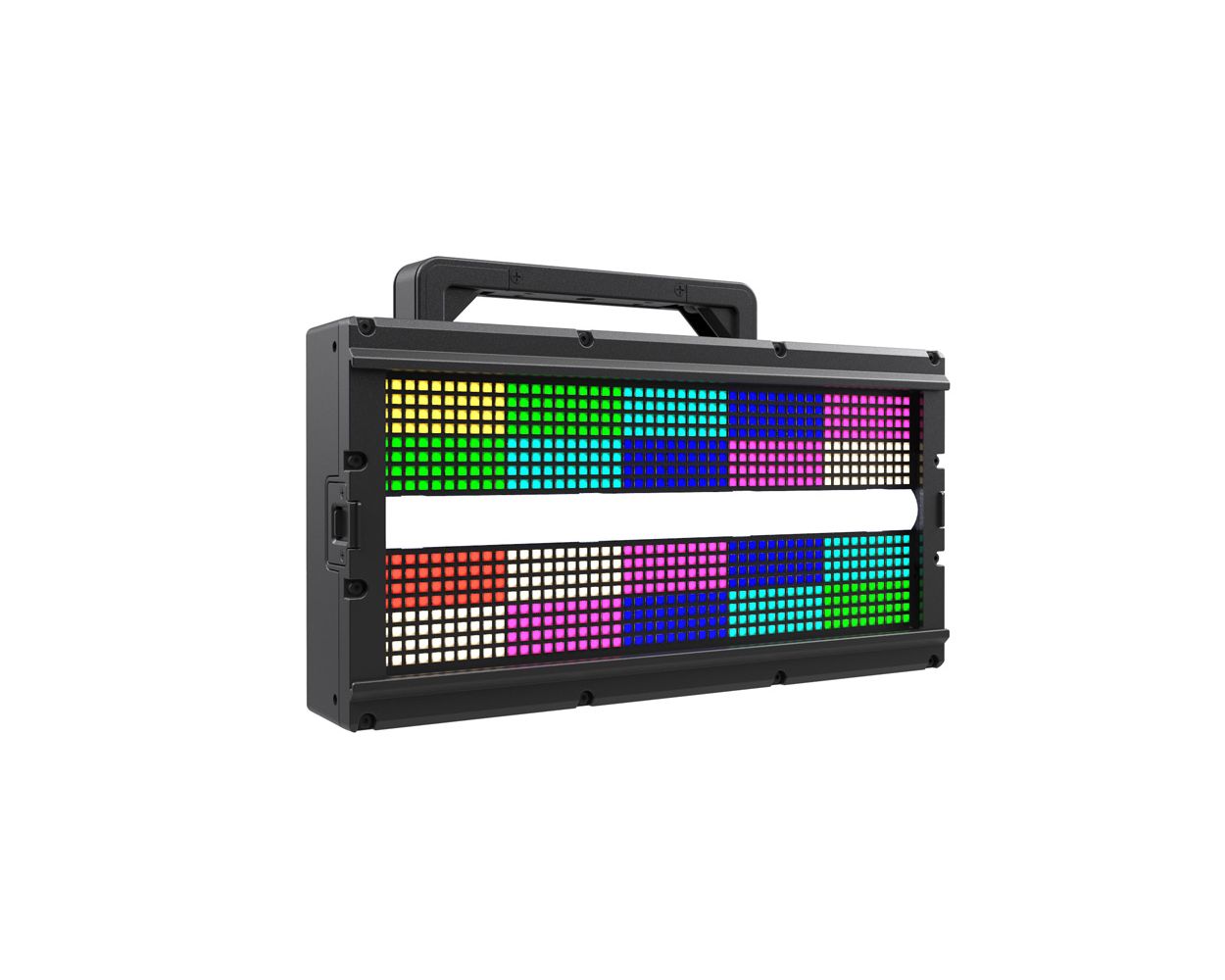

  • 40 x RGB LED Zones
  • 6 x Cool White LED Zones
  • 25 Built-in RGB LED Program Macros
  • 9 Built-in Cool White LED Program Macros
  • IP65-Rated for temporary outdoor and indoor use
  • Aria X2 Wireless DMX Built-in
  • Channel for Light Shaping Filters (to Blur Pixel Dots)
  • End Cap Locking Mechanism and Connecting Plat (for seamless fixture linking)
  • Built-in Holes to Connect an Omega Bracket (sold separately)

Control:

  • Control Protocols: DMX, Aria X2 and RDM
  • 10 DMX Channel Modes: 6, 9, 13, 18, 36, 41, 51, 81, 126 and 141 channel modes
  • Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
  • Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law & S Curve)
  • 0-100% Smooth Dimming
  • Strobe, Shutter & Pulse Control
  • Max Strobe Rate 20Hz; Min Strobe Rate: 1Hz.
  • Refresh Rate: 900Hz - 25kHz.
  • With Wired Digital Communication Network

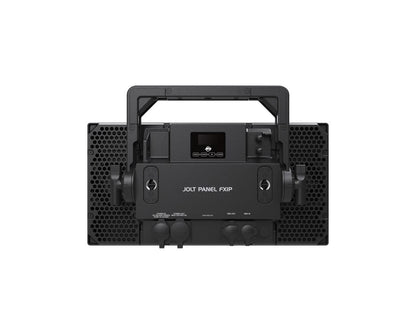

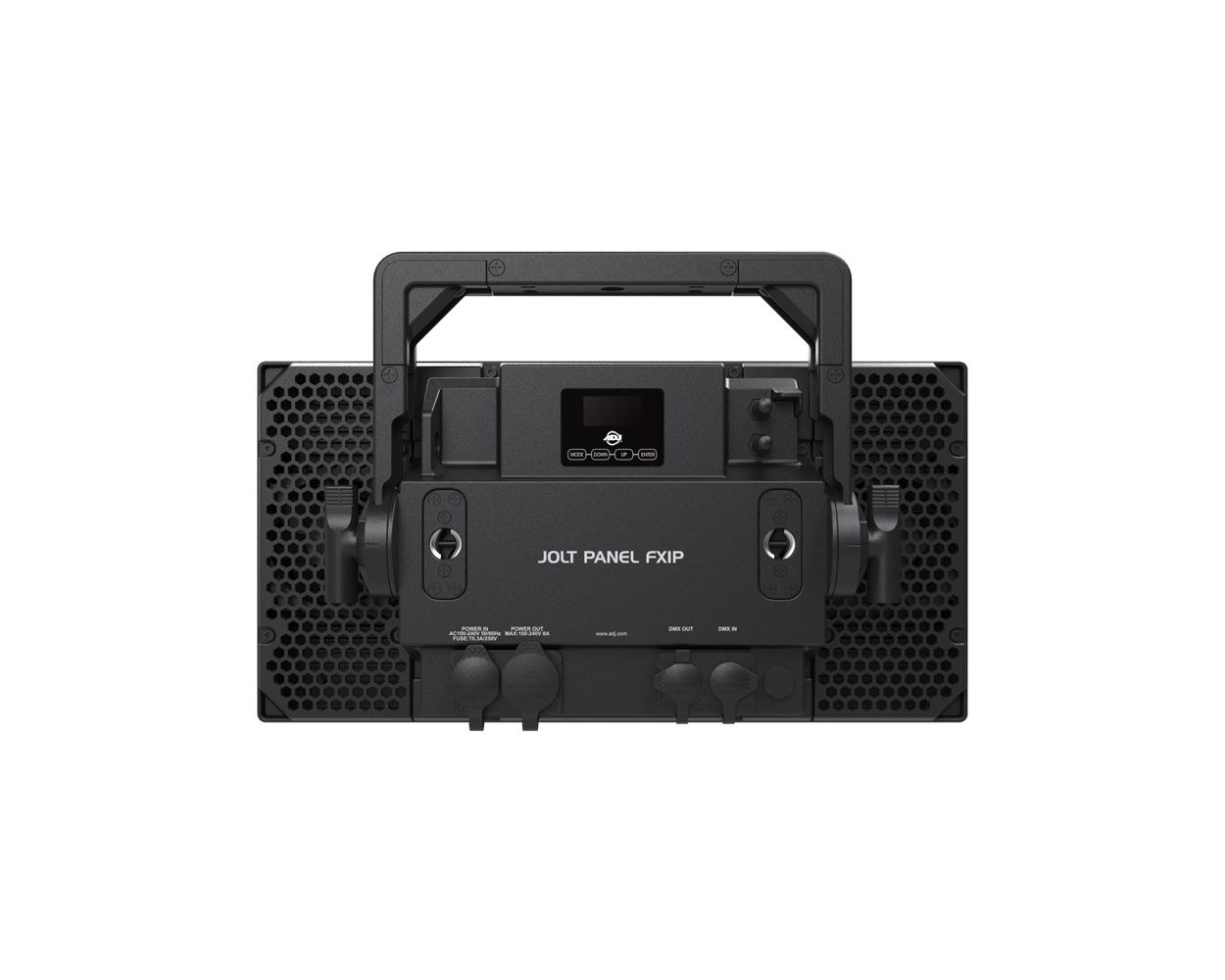

  • Display: OLED Display with 4-Button Touch Menu

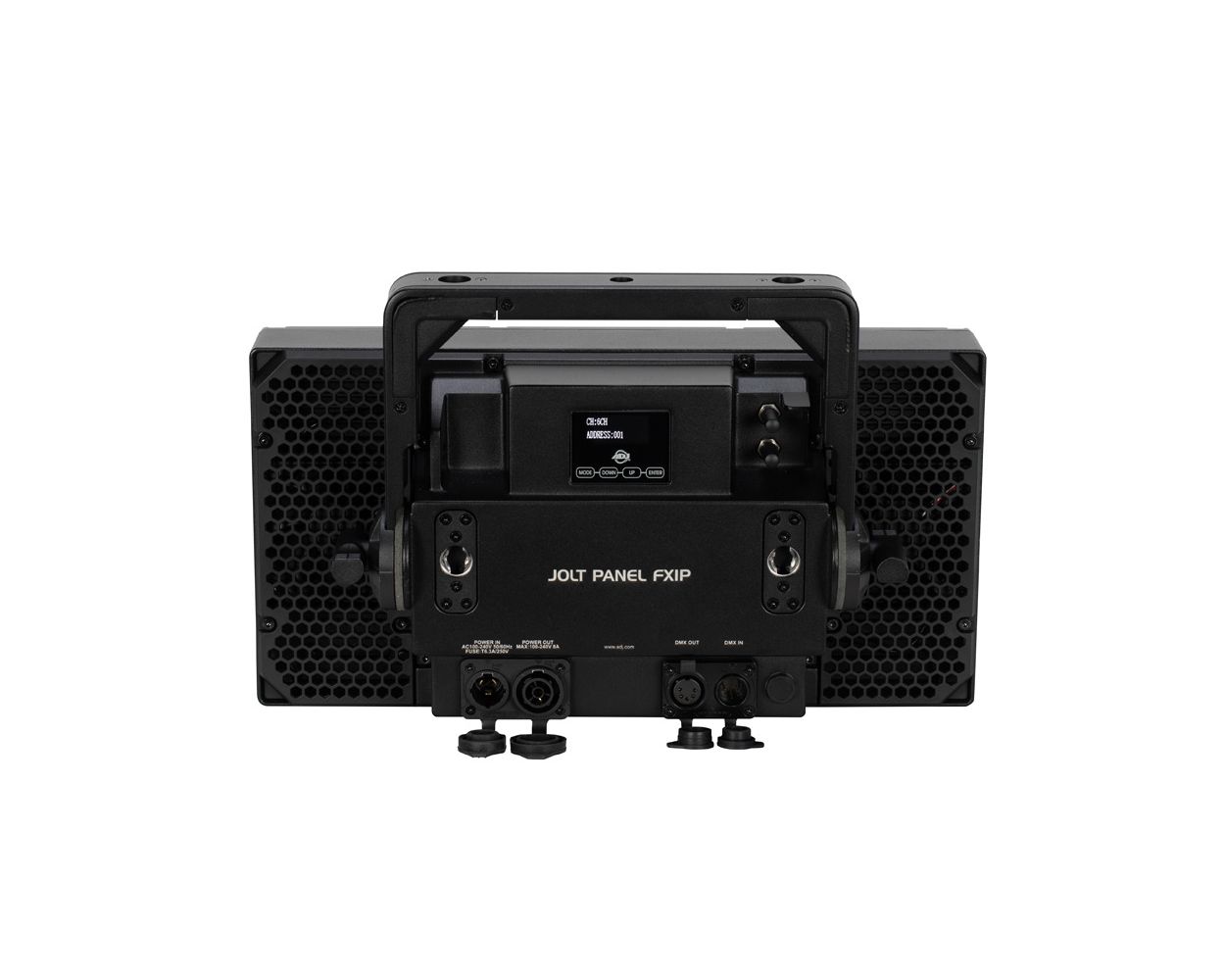

Connections:

  • Data: IP65-rated Outdoor Locking 5-pin DMX In/Out
  • Power: IP65-rated Outdoor Locking Power In/Out

Electrical:

  • 100-240V 50Hz/60Hz (Auto Sensing)
  • Max Power Consumption: 214W @120V; 208W @230V
  • Max Power Link: 6pcs @120V; 12pcs @230V
  • Fuse Protected: T5A/250V Glass Fuse (5*20MM)

Dimensions / Weight:

  • Length: 6.06" (153.8mm)
  • Width: 16.42” (417mm)
  • Height: 10.38” (263.5mm)
  • Weight: 13.67 lbs. (6.2kg)

What’s Included:

  • 1x IP65-rated, 6ft (1.83m) Power locking to Edison Power Cable (U.S.)
  • Frost Filter

Optional Accessories:

  • 180mm Omega Bracket
  • JPFXBLKF (Black Filter)
  • JPFXLINF (Linear Effect Filter)

Approvals and Ratings:

  • CE
  • cETLus (Pending)
  • IP65
