Sku:
CLM0118

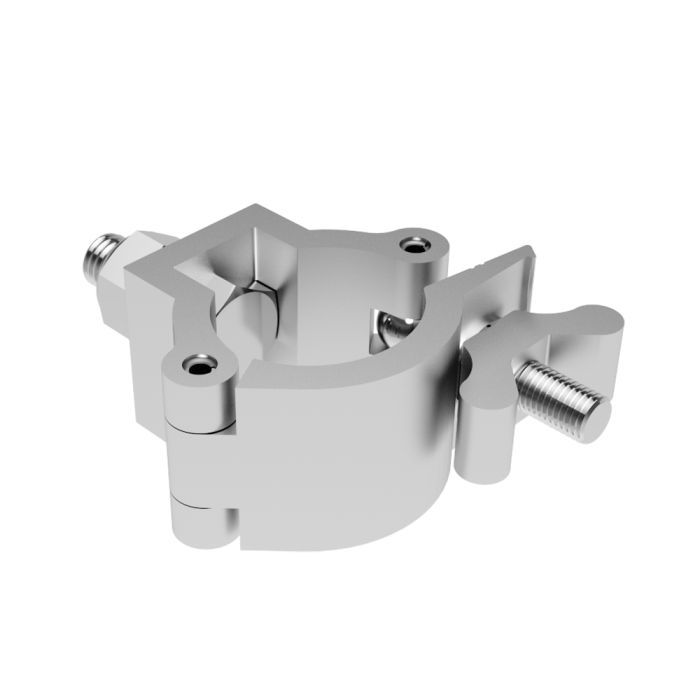

JR CLAMP M10SS (Silver)
Regular price
$16.00
Regular price
Sale price
$16.00
Unit price
per
Shipping calculated at checkout.
Vendor:
Global Truss
Truss and/or lifts are tricky to calculate shipping for. We recommended requesting a quote for lead times and shipping estimates. If you choose to checkout without requesting a quote, you will be given UPS Ground shipping rates. We may, however, choose to ship with another carrier.
Description
Description
The Jr Clamp M10SS is a High Grade 304 Stainless Steel Hardware.
From the Manufacturer:
Compatible with F23 & F24 Trussing
Minimum Tubing Diameter: 32mm
Maximum Tubing Diameter: 35mm
Profile Width: 30mm
Load Capacity: 75 Kgs/165lbs
M10 x 30mm Bolt with Nylon Locknut
Pitch Thread: 1.5 coarse
Minimum Tubing Diameter: 32mm
Maximum Tubing Diameter: 35mm
Profile Width: 30mm
Load Capacity: 75 Kgs/165lbs
M10 x 30mm Bolt with Nylon Locknut
Pitch Thread: 1.5 coarse
Unit Weight: 0.28 Lbs
In the Box:
- 1 item
Tech Specs
View full details
