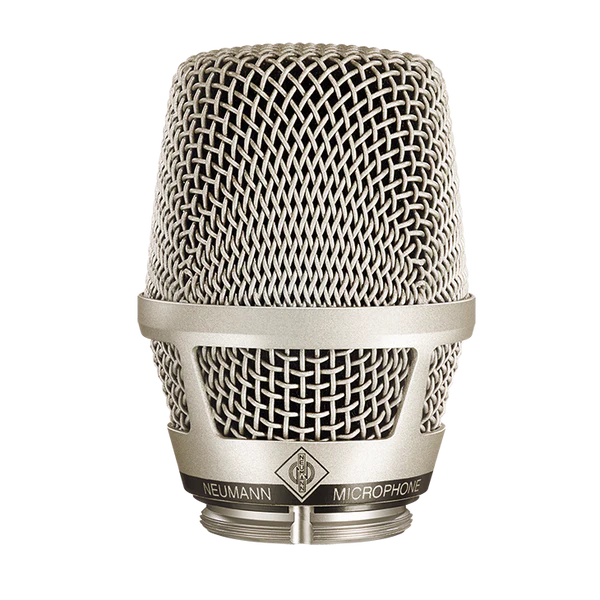

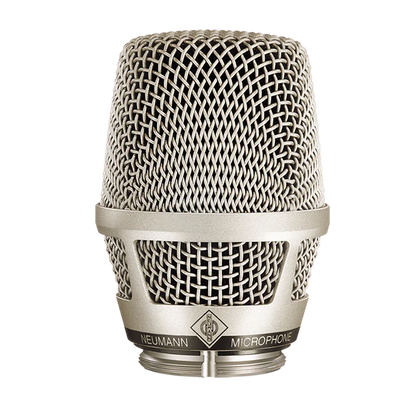

KK 105 HD

High-end heavy-duty supercardioid condenser wireless capsule designed for professional live vocals, offering Neumann studio sound quality, extreme SPL handling, and enhanced pop protection for demanding stage environments.

Manufacturer Description

The KK 105 HD is a premium quality capsule head for Sennheiser SKM handheld transmitters. It combines Neumann’s renowned condenser microphone technology with the ruggedness required for live stage use. Based on the KMS 105 wired microphone capsule, it delivers exceptional clarity, smooth frequency response, and high feedback rejection.

The “HD” (Heavy Duty) version features an integrated foam windscreen for improved plosive protection and moisture resistance compared to the standard KK 105 version, making it especially suitable for demanding live performance conditions. It maintains extremely high SPL handling and a tight supercardioid polar pattern for maximum isolation and vocal focus.

Features

• True Neumann condenser capsule for wireless handheld systems

• Supercardioid polar pattern for maximum feedback rejection

• Heavy Duty version with integrated foam windscreen for superior pop protection

• Extremely high SPL handling up to 150 dB without distortion

• Studio-grade vocal clarity and transient response

• Very low handling noise design

• Smooth, airy high-frequency response for vocal presence

• Optimised for close-miking live vocal applications

• Compatible with Sennheiser SKM wireless transmitter systems (5000 / 5200 series and similar)

Specifications (List Format)

• Capsule Type: Condenser

• Polar Pattern: Supercardioid

• Frequency Response: 40 Hz – 20 kHz

• Sensitivity: ~1.3 mV/Pa

• Maximum SPL: 150 dB (0.5% THD) / 155 dB (3% THD)

• Equivalent Noise Level: ~33 dB(A)

• Dynamic Range: >117 dB(A)

• Connector Type: Sennheiser handheld wireless capsule interface

• Finish: Black / Nickel (depending on variant)

• Wind Protection: Integrated foam (HD version)

 Included Items

• 1 × Neumann KK 105 HD capsule head

• 1 × Protective transport pouch (road-style packaging depending on distributor)

• User documentation (if supplied)
