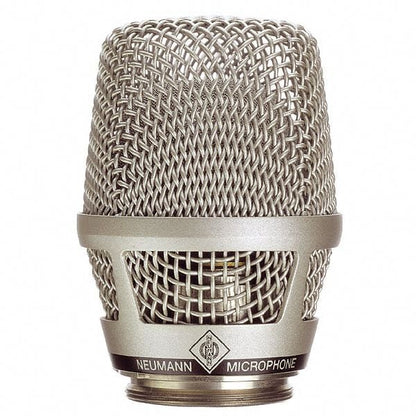

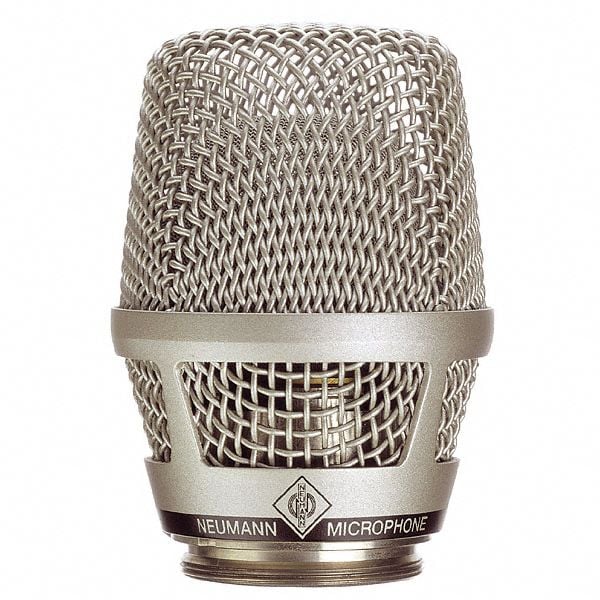

KK 105 S

High-end supercardioid condenser wireless capsule designed for Sennheiser handheld transmitters, delivering Neumann studio-grade vocal clarity, exceptional feedback rejection, and extremely high SPL handling for professional live performance.

Manufacturer Description

The KK 105 S is a premium quality capsule head for Sennheiser SKM 5000 and SKM 5200 handheld transmitters. Its precision-manufactured condenser capsule delivers authentic Neumann sound combined with the freedom of wireless operation and the ruggedness required for stage use.

Based on the renowned Neumann KMS series, the KK 105 S offers studio-quality clarity on stage, with a smooth frequency response, airy high end, and excellent transient response. Its tight supercardioid pattern ensures high gain before feedback and strong rejection of off-axis sound, making it ideal for demanding live environments.

Features

• True Neumann condenser capsule for wireless handheld systems

• Based on the KMS 105 studio vocal microphone design

• Supercardioid polar pattern for maximum feedback rejection

• Extremely high SPL handling up to 150 dB without clipping

• Smooth, natural vocal reproduction with airy top end

• Excellent transient response for detailed vocals

• Built-in pop protection and hardened steel grille

• Low handling noise design for stage use

• Optimised for close-miking live vocal performance

Specifications (List Format)

• Capsule Type: Condenser

• Polar Pattern: Supercardioid

• Frequency Response: 80 Hz – 20 kHz

• Sensitivity: 1.3 mV/Pa

• Maximum SPL: 150 dB (0.5% THD) / 155 dB (3% THD)

• Equivalent Noise Level: 33 dB(A)

• Signal-to-Noise Ratio: 61 dB(A)

• Weight: approx. 325 g (system reference weight; capsule-only not separately published)

• Diameter: 48 mm

• Length: 257 mm (with transmitter assembly)

 Included Items

• 1 × Neumann KK 105 S capsule head

• 1 × Protective padded pouch (varies by distributor)

• User documentation (if supplied)
