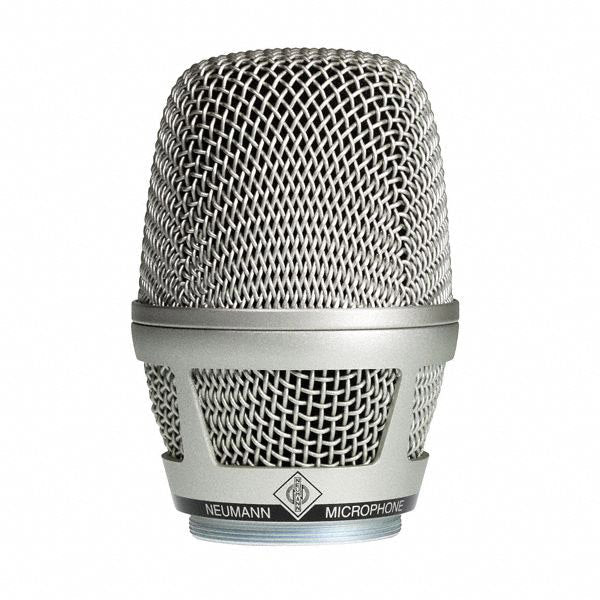

KK 204

High-quality cardioid condenser wireless capsule designed for professional live vocals, delivering transparent Neumann studio sound, excellent feedback rejection, and extreme SPL handling for stage performance.

Manufacturer Description

The KK 204 is a premium quality capsule head for Sennheiser handheld transmitters and wireless systems. Its precision-manufactured condenser capsule offers true Neumann sound, combined with the freedom of wireless operation and all the virtues of a rugged stage microphone: excellent pop protection, enormous SPL capability, and high feedback resistance. The capsule is optimized for vocal and speech applications in demanding live environments, delivering natural, transparent sound reproduction with very uniform polar response and excellent rear rejection.

It is based on Neumann’s KMS series microphone design and engineered specifically for Sennheiser wireless handheld systems.

Features

• True Neumann condenser capsule for wireless handheld systems

• Cardioid polar pattern with tight, consistent off-axis response

• High gain before feedback for live stage use

• Extremely high SPL handling up to 150 dB

• Built-in pop protection and moisture resistance

• Very low handling noise design

• Smooth, natural frequency response for vocals and speech

• Optimised for Sennheiser SKM wireless systems (2000 / 6000 / 9000 / EW G4 / EW-D)

• Easy servicing and robust stage construction

Specifications (List Format)

• Capsule Type: Condenser

• Polar Pattern: Cardioid

• Frequency Response: 40 Hz – 20 kHz

• Sensitivity: 2.8 mV/Pa

• Maximum SPL: 150 dB (0.5% THD)

• Equivalent Noise Level: 24 dB(A)

• Signal-to-Noise Ratio: 70 dB(A)

• Weight: approx. 150 g (capsule only) (system-dependent variations exist)

• Diameter: 55 mm

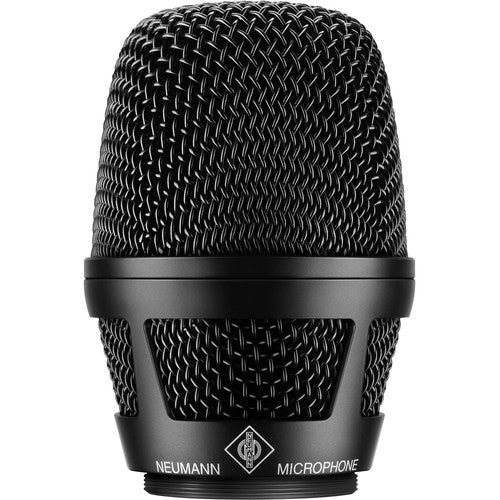

• Finish Options: Black / Nickel

 Included Items

• 1 × Neumann KK 204 capsule head

• 1 × Protective padded pouch

• User documentation (if supplied by distributor)
