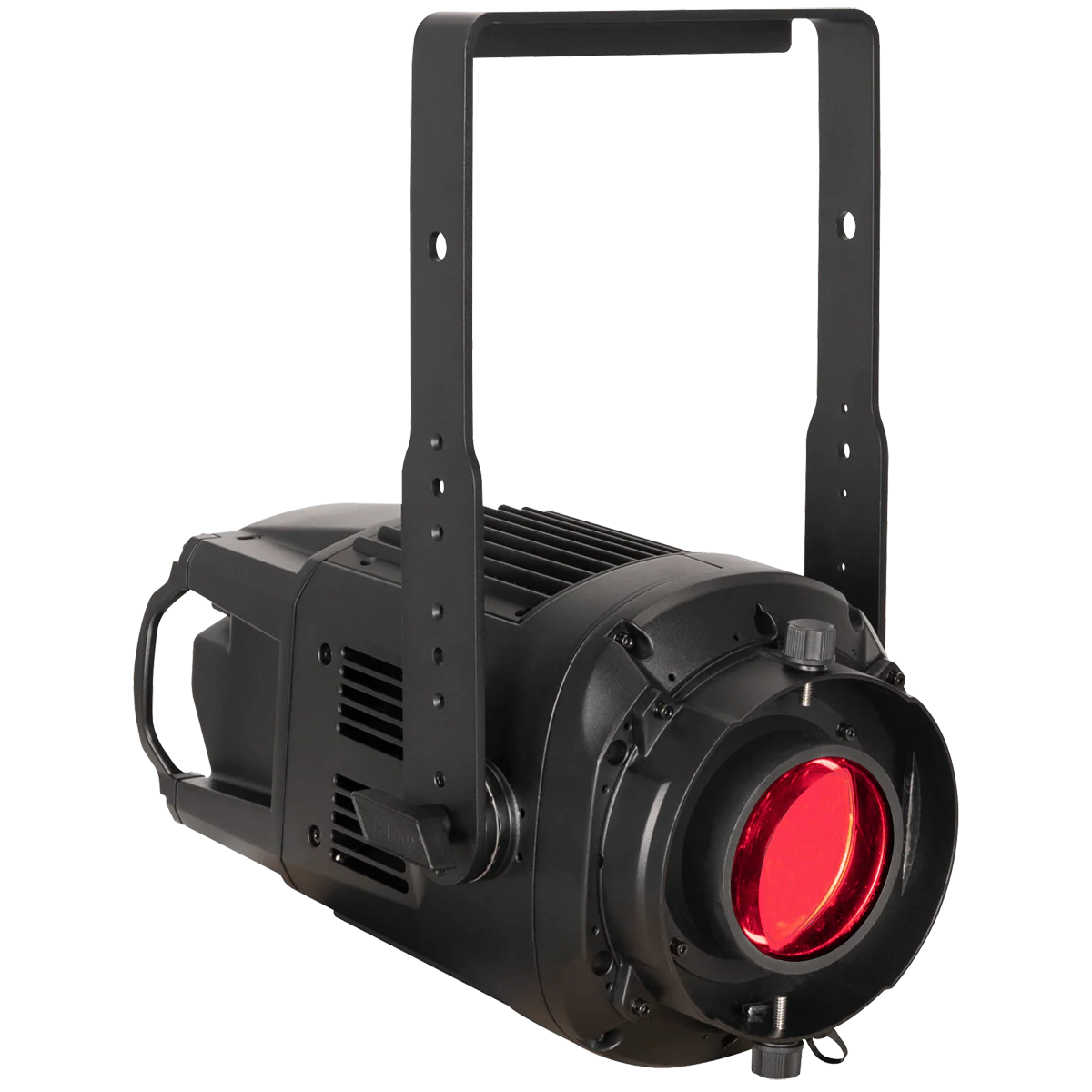

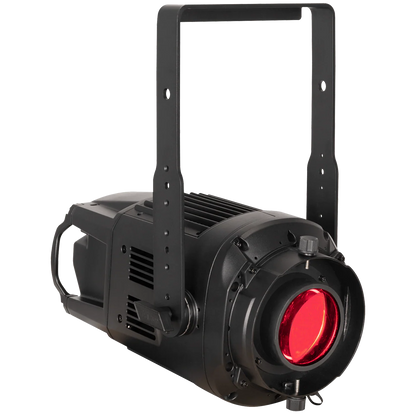

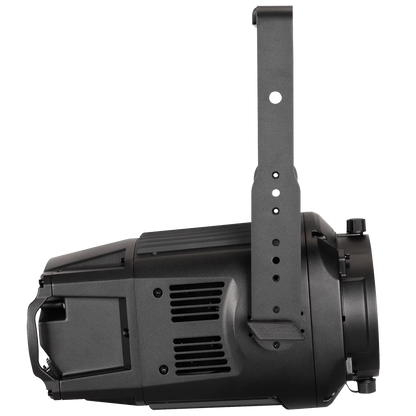

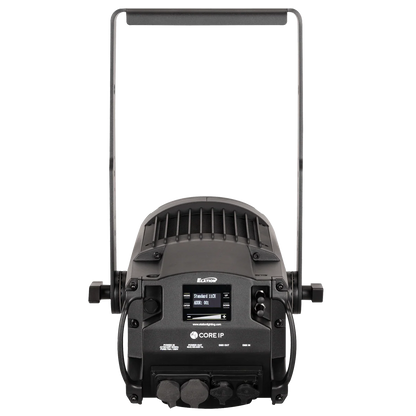

KL CORE IP

The Elation Professional KL Core IP fixture offers endless adaptability with its high-output 450W RGBMA LED engine, perfect for TV/film and other professional environments.

From the Manufacturer:

The KL CORE IP LED engine offers nearly endless functionality in a rugged and adaptable design. Central to the performance of the device is its high-output, 400W Full-Spectrum LED that is capable of delivering over 15,000 lumens of output.

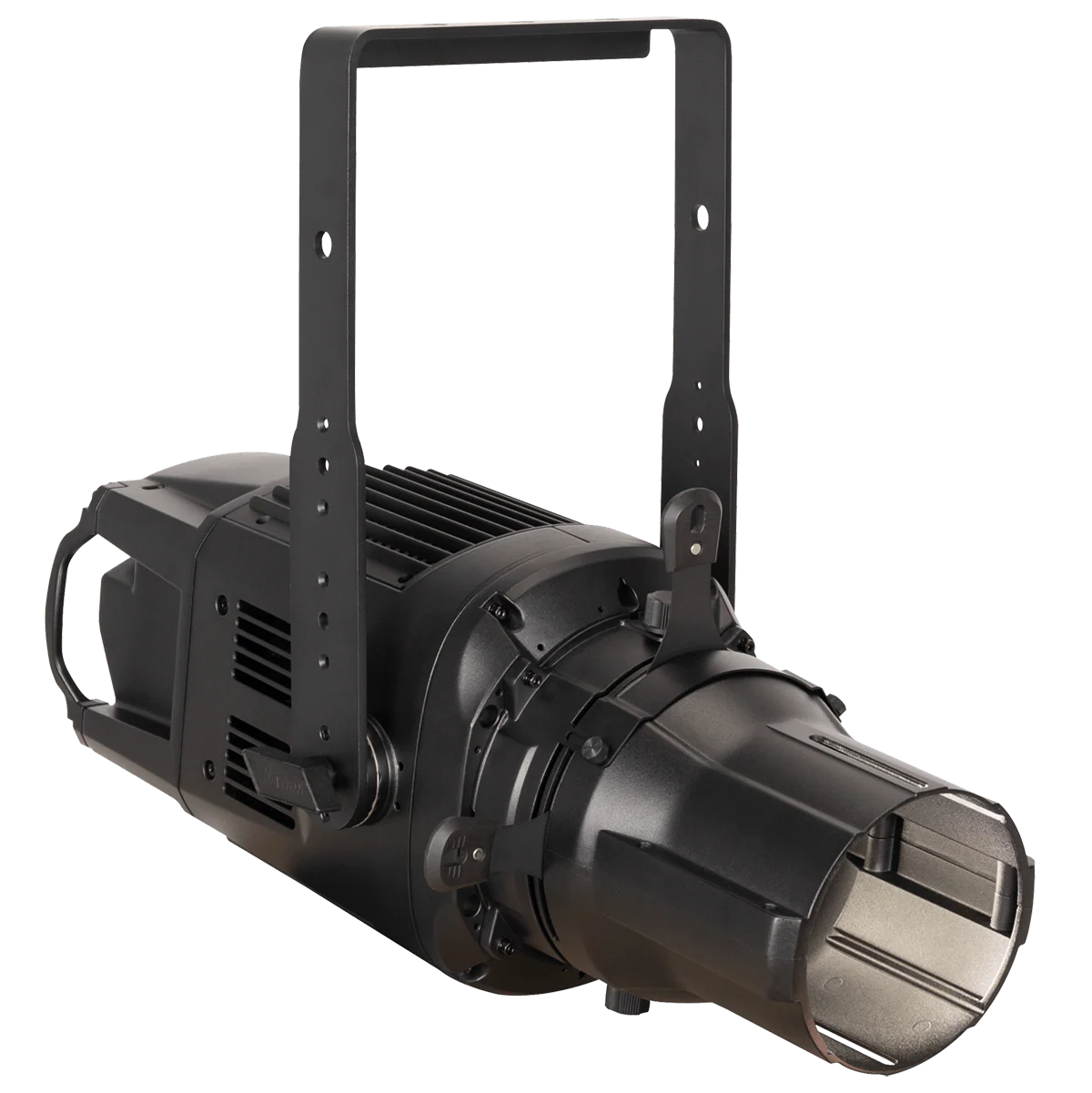

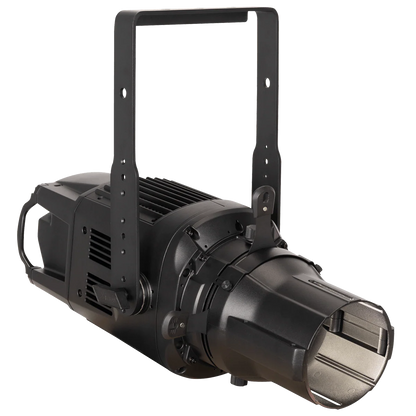

The KL CORE IP’s fully homogenized light source makes it incredibly adaptable. For ellipsoidal applications, the fixture can be paired with an optional KL CORE IP Shutter Barrel and used with any of the IP67-sealed lens tubes, functioning as a traditional LED ellipsoidal. The design is also compatible with most 3rd party shutter barrel assemblies, allowing seamless integration with existing setups. Further expanding its flexibility, the optional KL CORE IP Fresnel Lens transforms the fixture into a zoomable Fresnel, while the optional KL CORE IP Bowens Mount allows it to function as a monolight or lamp head for use with softboxes, lanterns, open-face reflectors, or other beam modifiers, making it ideal for TV/film and broadcast applications.

The KL CORE IPe offers outstanding color rendering with a high CRI of 94.9 and TLCI of 95, fully variable 16bit CCT control, and remotely adjustable LED refresh frequency. The integrated touch bar encoder allows the device to be easily controlled in stand-alone applications, and the Aria x2 wireless device management integration also offers additional control options. Configuration is made simple with the use of onboard NFC.

While the IP65-rating of the KL CORE IP keeps it safe in the harshest outdoor environments, it also ensures the device will work well for any indoor application too- helping to keep the fixture cleaner and dust free over long periods of time.

With its exceptional light quality, robust design, and unmatched flexibility, the KL CORE IP is the ultimate fixture for professionals who need a high-performance solution that adapts to a wide range of lighting requirements.

Features:

• 400W RGBMA LED Engine
• 15,588 Total Fixture Lumen Output (Sphere)

• Accepts 3rd Party Ellipsoidal Shutter Barrels

• Stand-Alone Control with Touch Encoder and OLED Display

• Direct Connection & Control for optional IP65 Gobo Rotator

• NFC & Aria x2 Wireless Device Management

• IP65 Rated

Specifications:

SOURCE

• 400W 6,000K RGBMA LED Engine
• 20,000 Hour Average LED Life*
  *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.

PHOTOMETRIC DATA

• Total Lumen Output: 15,588 (Integrating Sphere)
• CRI 94.9
• TLCI 95

EFFECTS

• Variable Strobe Rate: 1- 20Hz

• Dim-to-Warm/ Red Shift Emulation

• Variable 16-bit Dimming Modes and Curves

COLOR

• High Brightness and High Fidelity Output Options

• RGBMA Color Array

• CMY Emulation

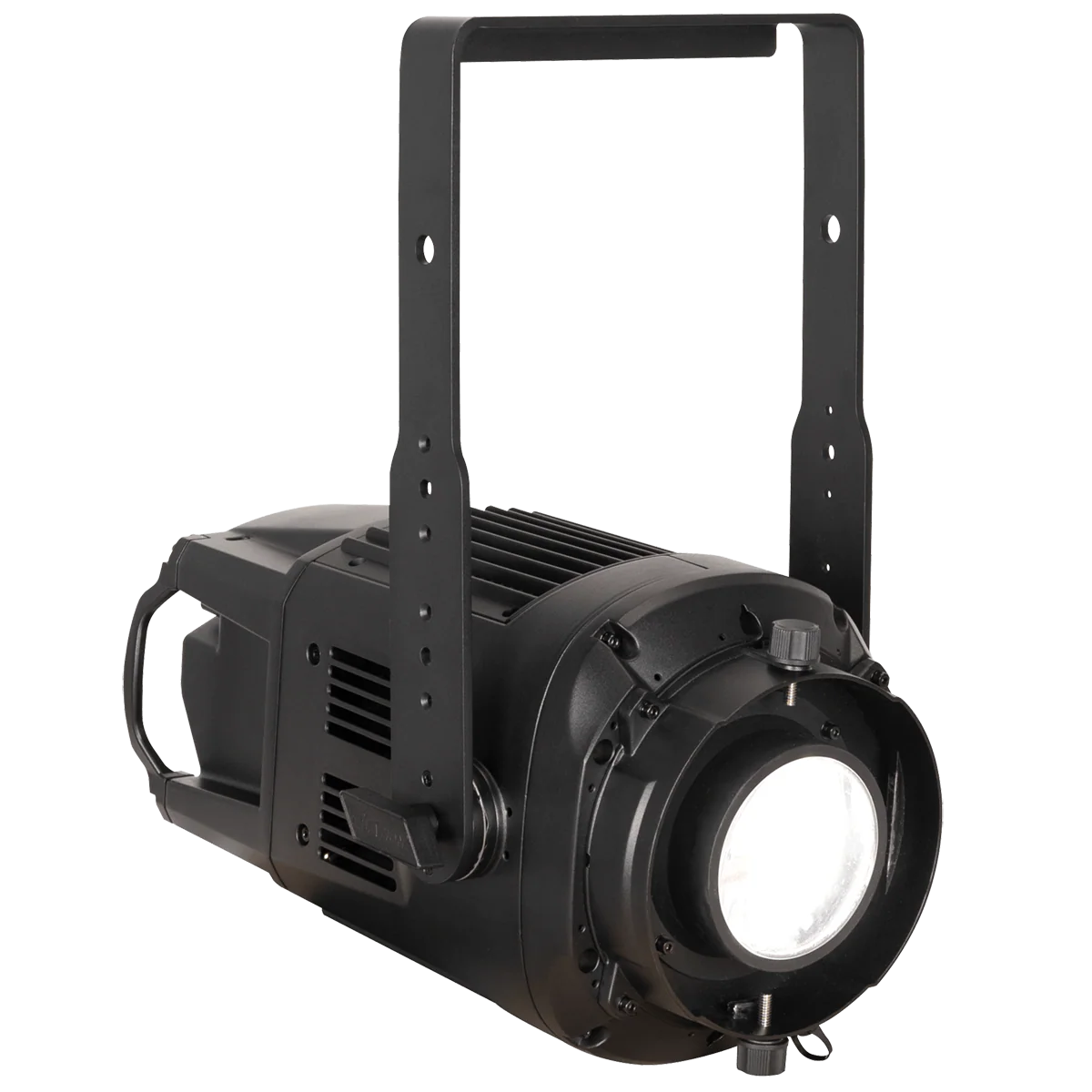

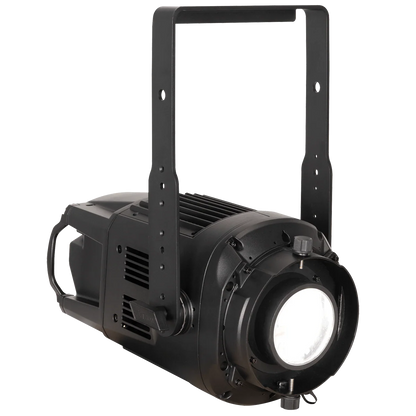

• 16bit Fully Variable CCT 2400K - 8500K

• Green/Magenta Shift

• Virtual Gel Swatch Book

CONTROL / CONNECTIONS

• 9 DMX Channel Modes (1, 4, 6, 10, 11 19, 9, 15, 13)

• Manual and DMX Controlled Dimmer and Color

• Single Touch Bar Encoder

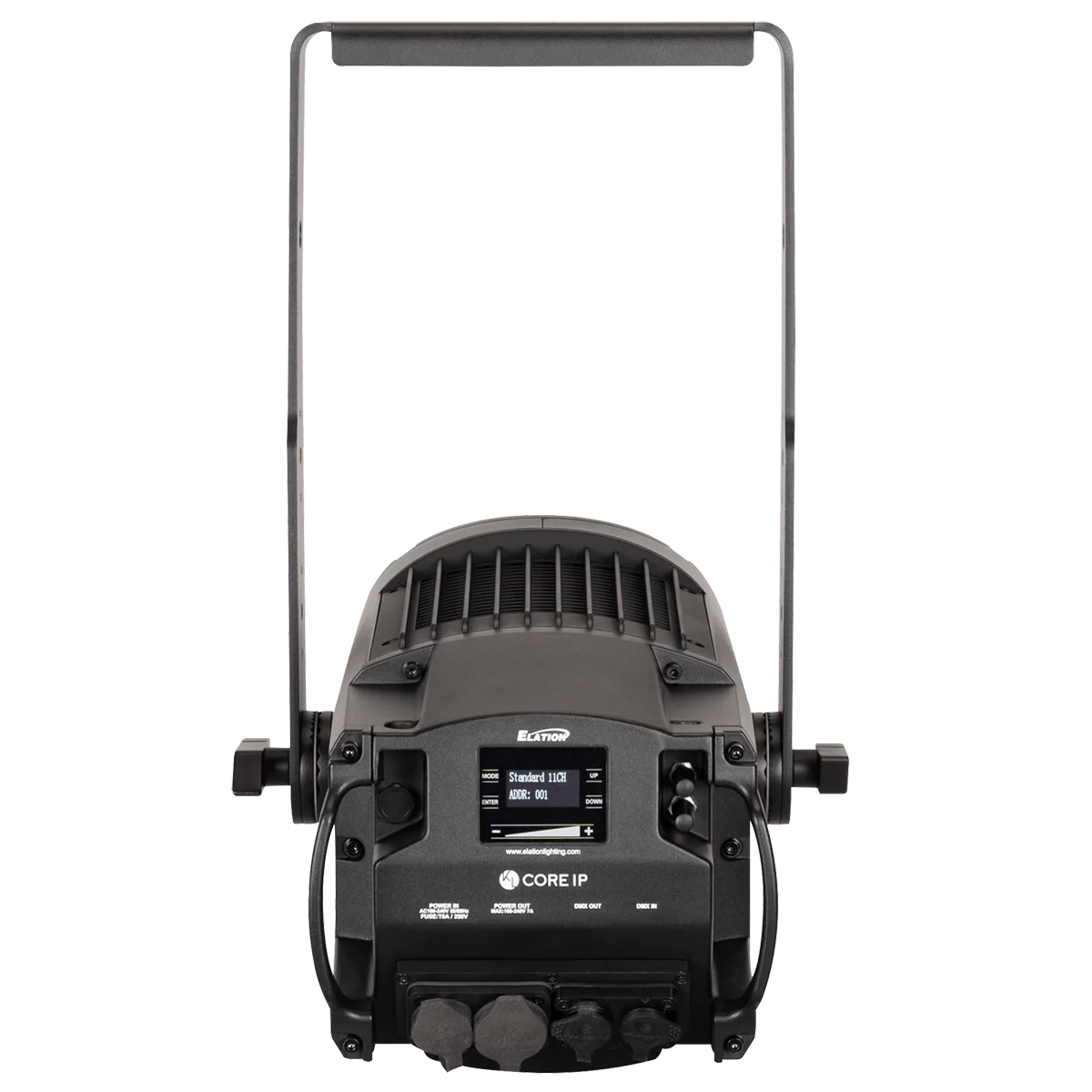

• 4 Button Control Panel, LED Display

• Integrated IP65 Gobo Rotator Connector and Control

• RDM (Remote Device Management)

• Aria x2 Wireless Device Management

• NFC Configuration

• IP65 5pin DMX and IP65 Locking Power Cable In/Out

SIZE / WEIGHT

• Engine Dimensions:
  • Length: 9.1” (230 mm)
  • Length (Yoke 0°): 18.5” (469.8 mm)
  • Width: 11.5" (292 mm)
  • Height (Fixture Body): 8.9" (227.5 mm)
  • Height (Yoke 90°): 18.5" (471 mm)
  • Weight: 22.0 lbs (10.0 kg)
• Assembled Dimensions:
  • KL CORE w/ Shutter & 14° Lens
    • Weight: 32.6 lbs (14.8 kg)
  • KL CORE w/ Shutter & 19° or 26° Lens
    • Weight: 31.5 lbs (14.3 kg)
  • KL CORE w/ Shutter & 36° Lens
    • Weight: 30.9 lbs (14 kg)
  • KL CORE w/ Shutter & 50° Lens
    • Weight: 30 lbs (13.6 kg)
  • KL CORE w/ Shutter & 70° Lens
    • Weight: 33.3 lbs (15.1 kg)

ELECTRICAL / THERMAL

• AC 100-240V - 50/60Hz
• 520W Max Power Consumption
• Power Thru Capacity: 7A (1 units @115V, 4 units @240V)
• 5°F to 113°F (-15°C to 45°C)
• BTU/hr (+/- 10%) 1773.2

INCLUDED ITEMS

• Size 'B' Metal Gobo Holder

• Safety Cable

• IP65 Locking Power Cable

OPTIONAL ACCESSORIES

• KL CORE IP Shutter Barrel (KLC113)

• KL CORE IP Bowens Mount (KLC136)

• KL CORE IP Fresnel Lens (KLC125)

• KL CORE IP with Shutter Barrel Kit (KLC124)
• 14deg IP Lens Tube (IPL014)

• 19deg IP Lens Tube (IPL119)

• 26deg IP Lens Tube (IPL226)

• 36deg IP Lens Tube (IPL336)

• 50deg IP Lens Tube (IPL450)

• 70deg IP Lens Tube (IPL570)

• IP65 Gobo Rotator (IPGR01)

• 4 Wire Hardwire Installation Plate (HWP404)

• 2 Wire Hardwire Installation Plate (HWP202)

APPROVALS / RATINGS

• CE | cETLus | IP65 | FCC | UKCA
