Sku:
KLC013
KL CYC L
Regular price
$2,140.00
Regular price
Sale price
$2,140.00
Unit price
per
Shipping calculated at checkout.
Vendor: Elation Professional
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description
The KL Cyc fixtures are great at lighting walls and curtains with seamless, high-color-quality light. We really like how small they are, and how they magnetically link together as they run silently.
From the Manufacturer:

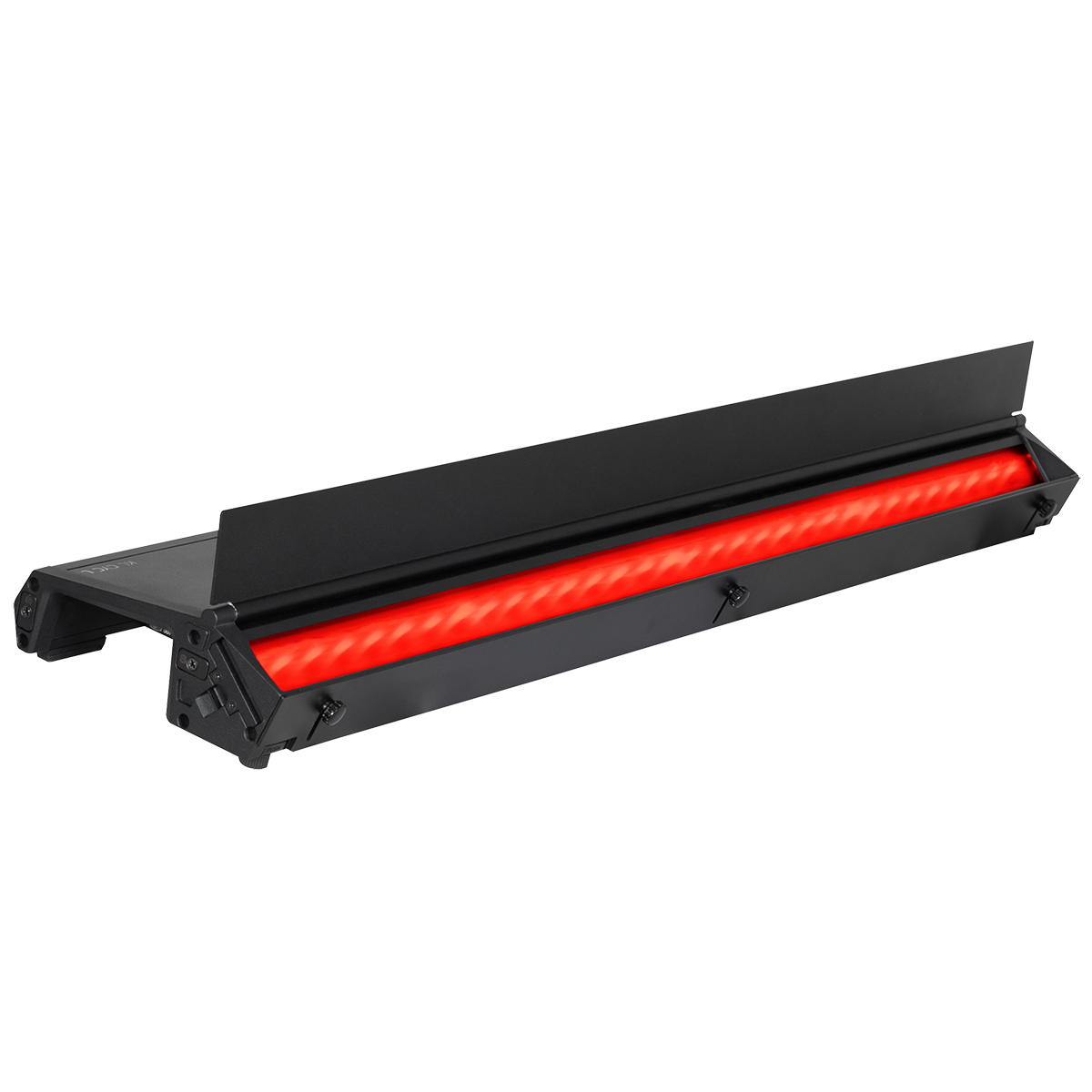

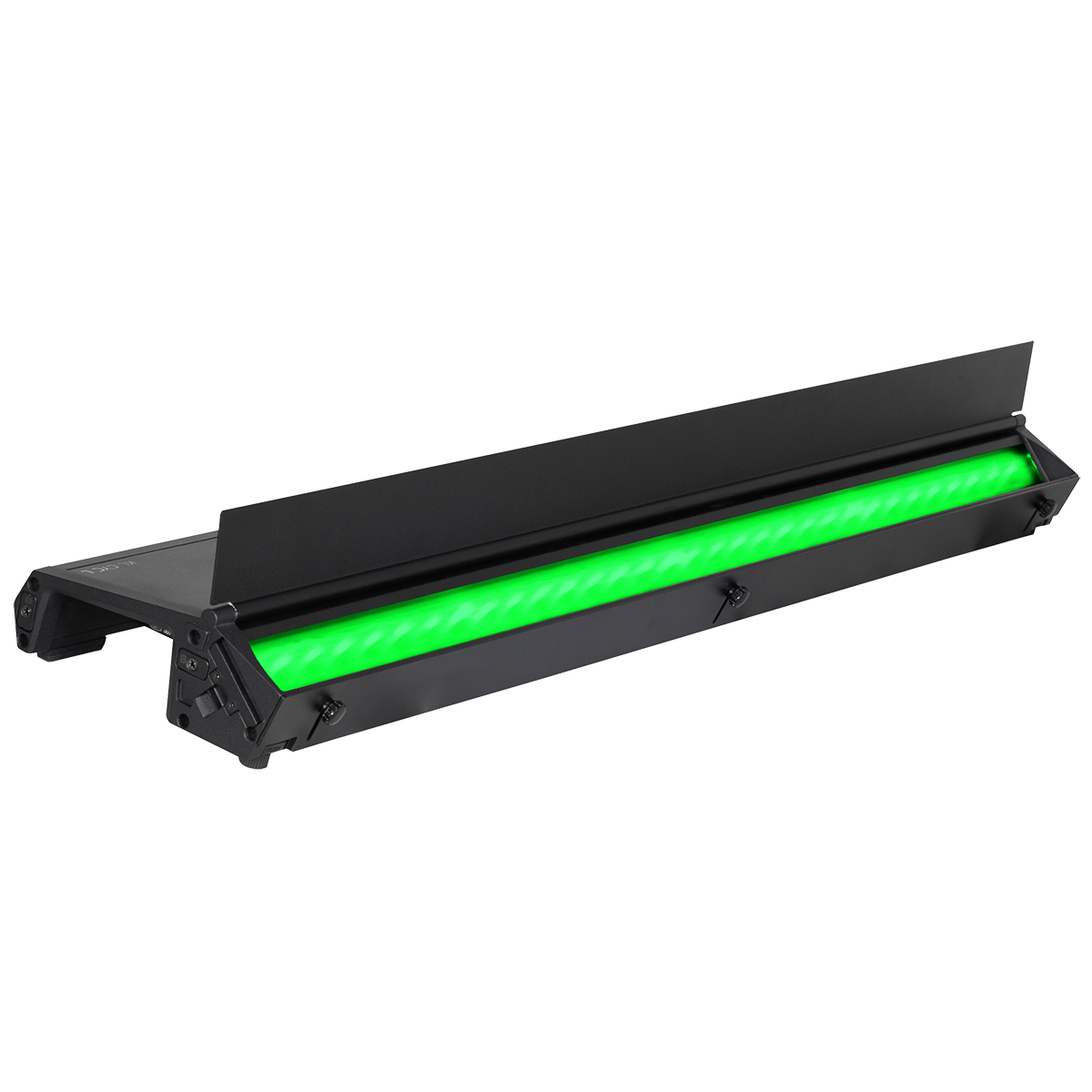

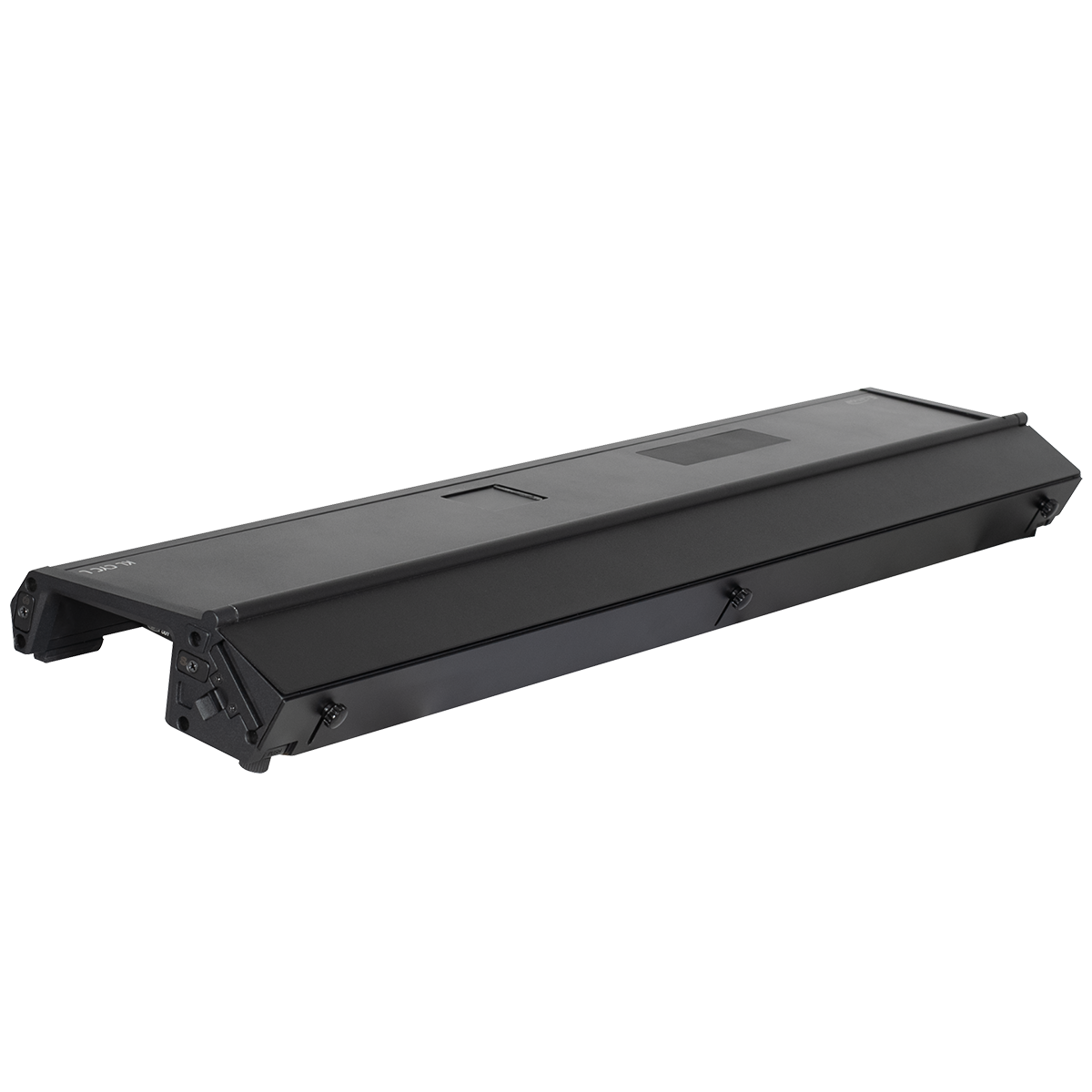

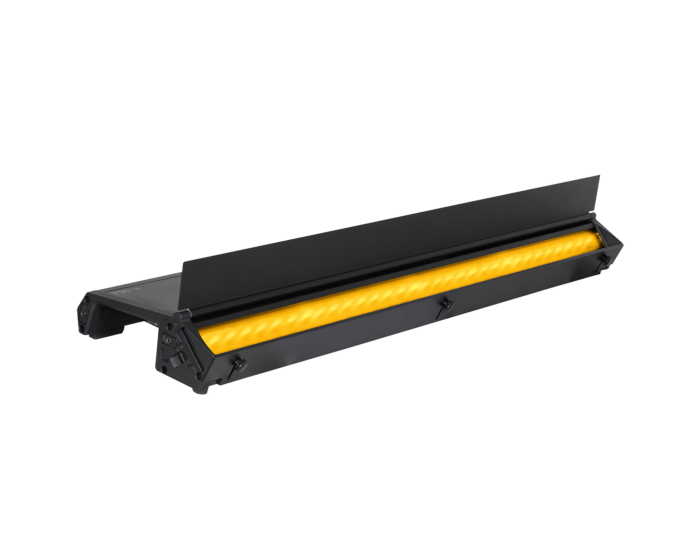

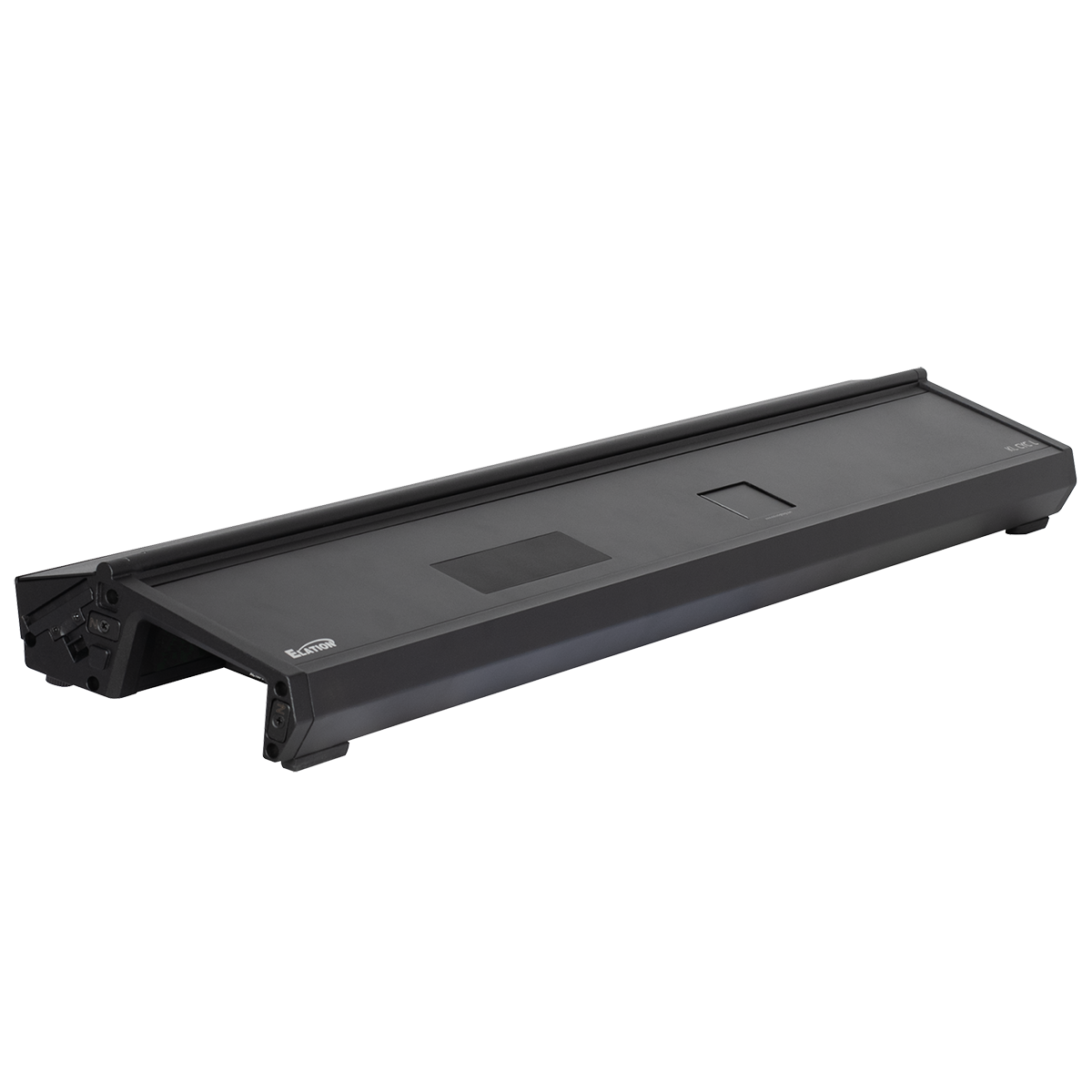

The KL CYC L is the perfect fixture for smooth and evenly illuminated cyclorama, set or wall washing application. It utilizes a carefully crafted asymmetrical reflector design to achieve perfect blends while covering significant heights with ease.
Designed with an incredibly low profile housing the KL CYC L is also the ideal choice for footlight positions, providing excellent versatility for stage, film, television and event lighting use.

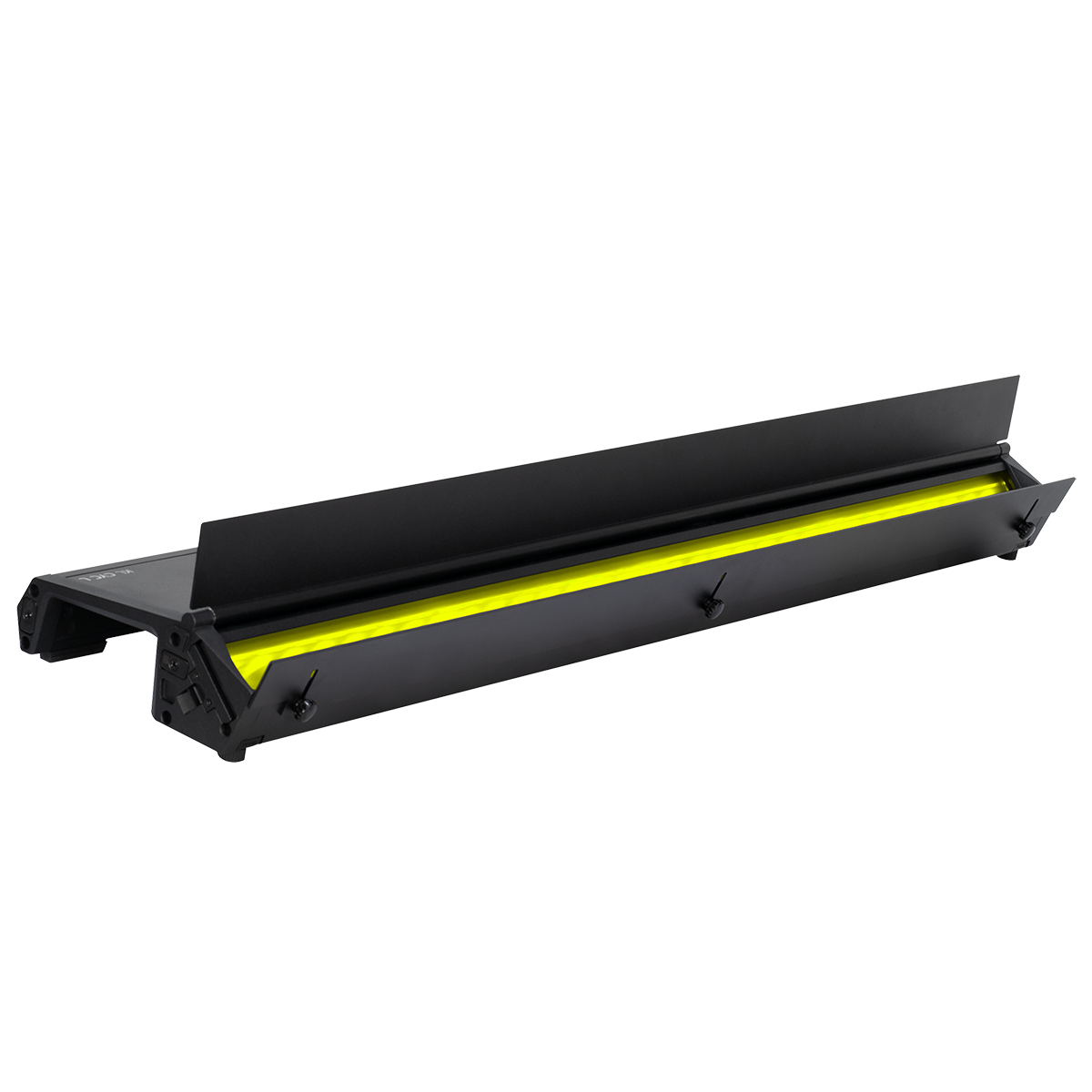

Seamless magnetic alignment, simple mounting bracket attachment and elegant power and data wire management make the KL CYC a breeze to integrate into new designs or upgrade traditional CYC fixtures or foot lights to a modern LED fixture without compromises. The fanless design ensures the fixture is always a perfectly silent performer. Adjustable front feet allow for angle changes when floor mounted. The top and bottom barndoors allow for a perfect framing of the light output along the surface or to avoid overshot in footlight applications.
The KL CYC L features Elation's proven RGBMA color system, allowing a perfect color match to many other fixtures in the KL and Fuze ranges. Calibrated color temperature control, greenshift adjustment and the CMY and RGB emulation modes provide the designer with powerful control to recall any color in up to two separate segments.
The newly developed EdgeLight feature allows the user to designate a safety light in red or blue to turn on whenever desired, or if DMX signal is lost. This new feature provides a guide for performers on stage to where the edge of the stage is located.
The KL CYC L is the ideal solution for Touring Applications, Theme Parks, Live Events, Theater or Houses of Worship.
In the Box:
- (2) Omega Bracket
- (1) Frost Filter
- (1) Barndoor
-
(1) IP65 Locking Power Cable
- 180W RGBMA LED Array
- Ultra-efficient assymetrical reflector design
- Replaceable Lens
- Fanless heat management
- Low profile housing
- Up to 4 control segments
- EdgeLight safety feature
- Magnetic fixture alignment
- Flicker Free Operation for TV and FILM
- RDM (Remote Device Management)
- DMX, Art-net and sACN support

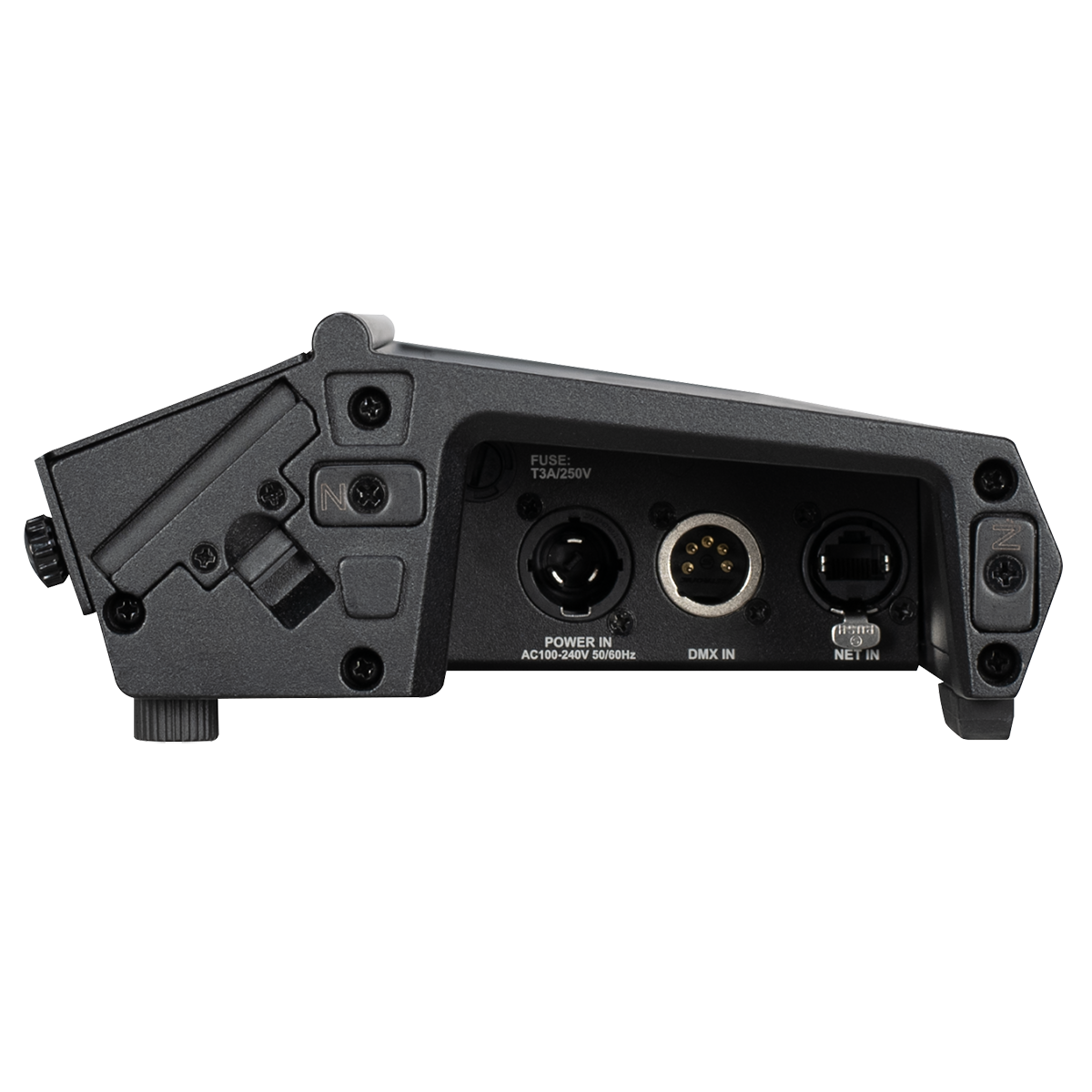

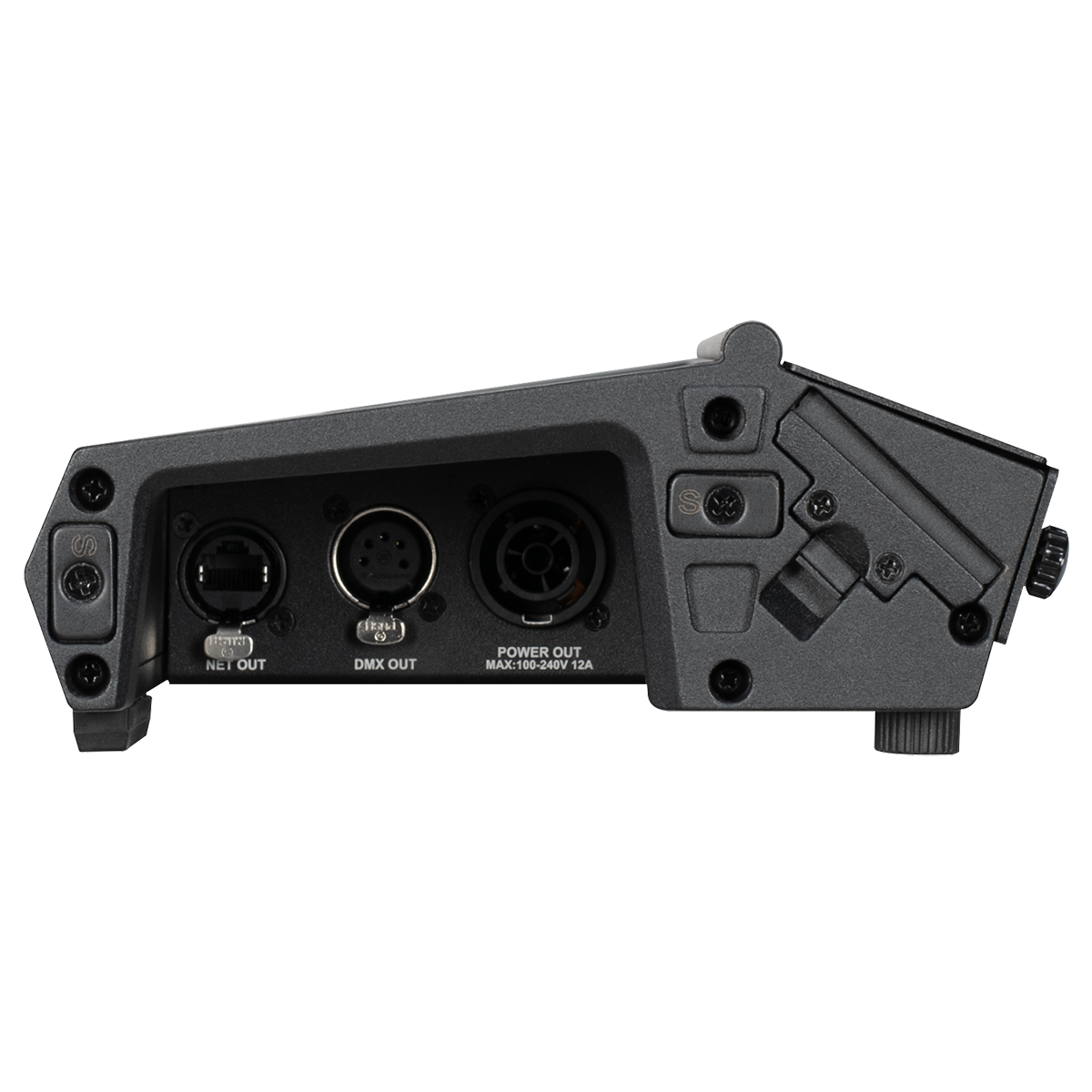

- Power and Data passthrough
Tech Specs
Optics:
Light Source Type: RGBMA
Light Source Wattage: 305w
Minimum Beam Angle: 7.0°
Maximum Beam Angle: 50.0°
Control
DMX Channel Modes: 1ch, 4ch, 4ch, 4ch, 11ch, 12ch, 13ch, 16ch, 19ch, 20ch, 31ch, 32ch, 56ch
DMX 5-Pin Connectors?: Yes
Physical:
Length: 39.37 in
Width: 7.8 in
Height: 3.35 in
Weight: 35.2 lb
Electrical
Voltage Range: 100 - 240 VAC 50/60Hz
Maximum Wattage: 196w
Power Cable Connector - Fixture Side: PowerCON True1
Main Power Connector on Included Cable: Edison
View full details
