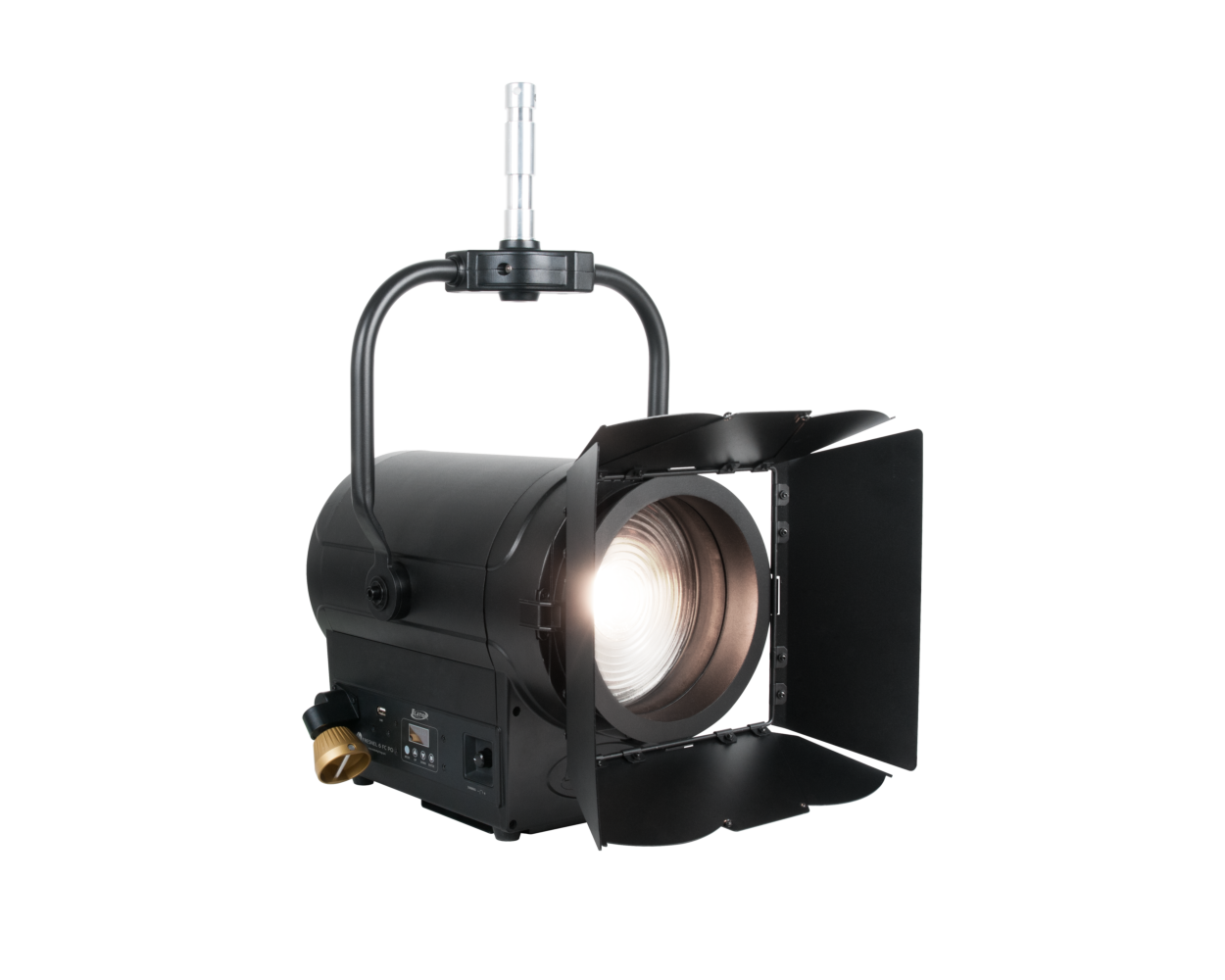

KL Fresnel 6 CW PO

The Elation KL Fresnel 6CW PO™ is a 150W cool white LED fresnel with pole mount and flicker free operation ideal for broadcast TV and film.

From the Manufacturer:

KL FRESNEL 6CW PO™ is a 150W 5,600K >97CRI Cool White LED fresnel, producing over 8,500 total lumen output. Features include manual and DMX control, 16° to 39° wide manual zoom, manual and DMX controlled dimmer and shutter, dimmer and zoom rotary dials, smooth 16-bit selectable dimming modes and curves, LED refresh rate frequency adjustment for flicker free operation for TV and FILM, removable barn doors (included), RDM (remote device management) protocol support, 3/5pin DMX and IP65 Locking Power Cable in/out connections, 4 button control panel, LCD menu display, multiple unit power linking, a universal auto switching power supply (100-240v), gel frame and rotating bar doors (included), and a 3 clamp position adjustable mounting yoke.

Features:

• 5,600K Cool White LED Fresnel Luminaire
• 150W Single Source LED
• Pole Operation for Pan and Tilt plus Zoom
• Manual and DMX Controlled Dimming
• Quick Single Press Light Output for Focusing
• 16° - 39° Manual Zoom
• Including 8-Leaf Barn Doors and Gel Frame Holder
• Adjustable Refresh Frequency
• Silent Operation
• Variable Dimming Curves, Dim Modes and Dimming Delays
• Flicker Free Operation for Broadcast TV and Film
• RDM (Remote Device Management)
• 3 Clamp Position Adjustable Mounting Yoke

Specifications:

• SOURCE
  • 150W Cool White LED Engine 5,600K, 97CRI
  • 50,000 Hour Average LED Life*
    *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
• PHOTOMETRIC DATA
  • 8,500+ Total Lumen Output
  • 9,269 LUX 861 FC @ 9.8’ (3m) (Min. Zoom)
  • 2,334 LUX 217 FC @ 9.8’ (3m) (Max. Zoom)
  • Zoom Range 16° - 39°
  • Beam Angle 16.1° - 38°
  • Field Angle 39.1° - 53.9°
• EFFECTS
  • Manual Zoom
  • Electronic Dimmer and Strobe
  • Variable 16-bit Dimming Modes and Curves
• COLOR
  • 5,600K Cool White LED
• CONTROL / CONNECTIONS
  • Manual and DMX Controlled Dimmer and Shutter
  • Dimmer and Zoom Rotary Dials
  • (5) DMX Channel Modes (1 / 2 / 3 / 4 / 5)
  • 4 Button Control Panel LCD Menu Display
  • RDM (Remote Device Management)
  • 3/5pin DMX and IP65 Locking Power Cable In/Out
  • With Wired Digital Communication Network
• SIZE / WEIGHT
  • Length: 13.5” (344mm)
  • Width: 10.75” (273mm)
  • Vertical Height: 15.47” (393mm)
  • Weight: 18.5 lbs. (8.4kg)
• ELECTRICAL / THERMAL
  • AC 100-240V - 50/60Hz
  • 180W Max Power Consumption
  • 5°F to 113°F (-15°C to 45°C)
  • Power Linking: 6Pcs @ 110V / 14Pcs @ 240V
• INCLUDED ITEMS
  • Gel Frame and Rotating Barn Doors
  • IP65 Locking Power Cable
  • Barn Doors
• APPROVALS / RATINGS: CE | cETLus | IP30
