KL Fresnel 6 FC PO

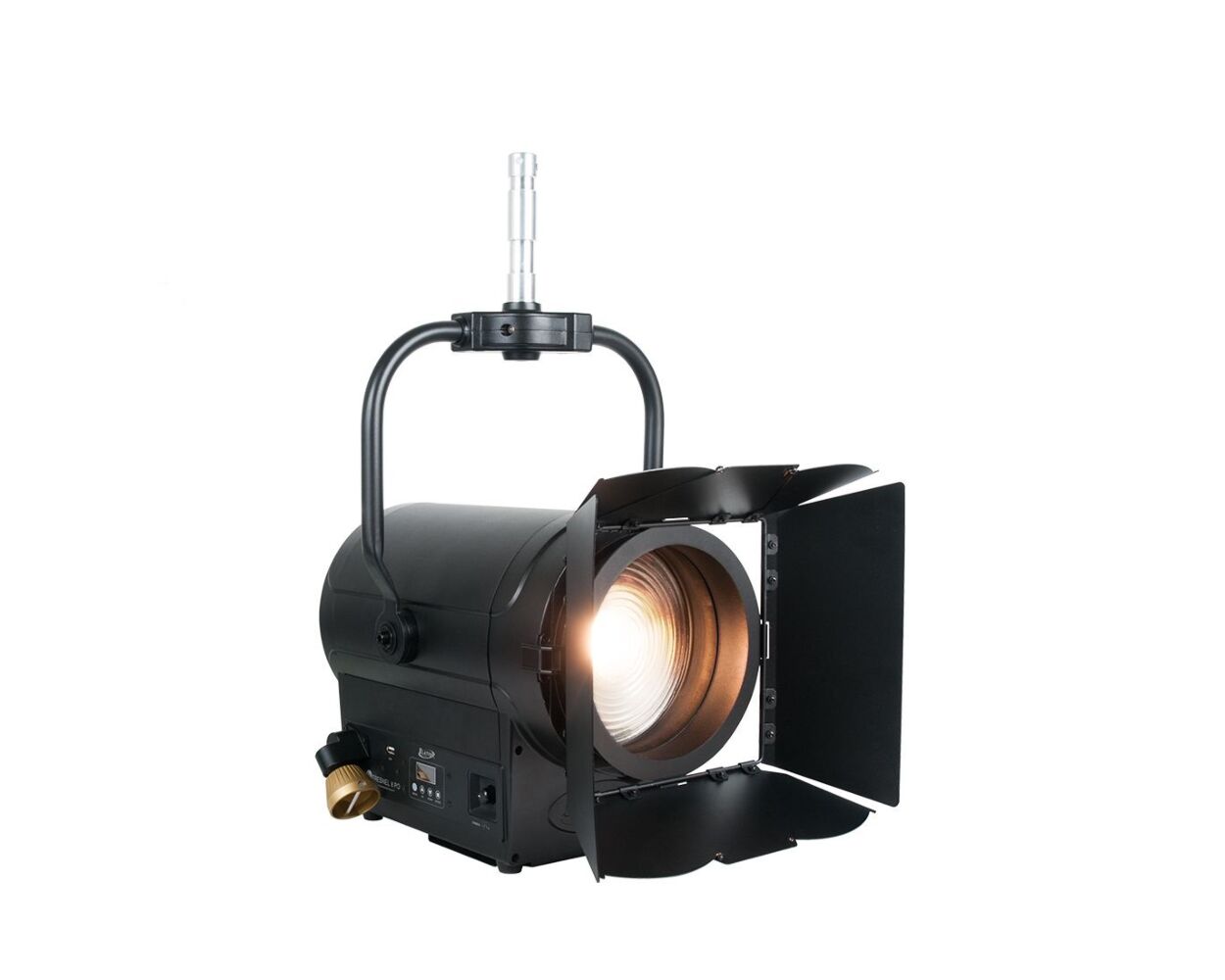

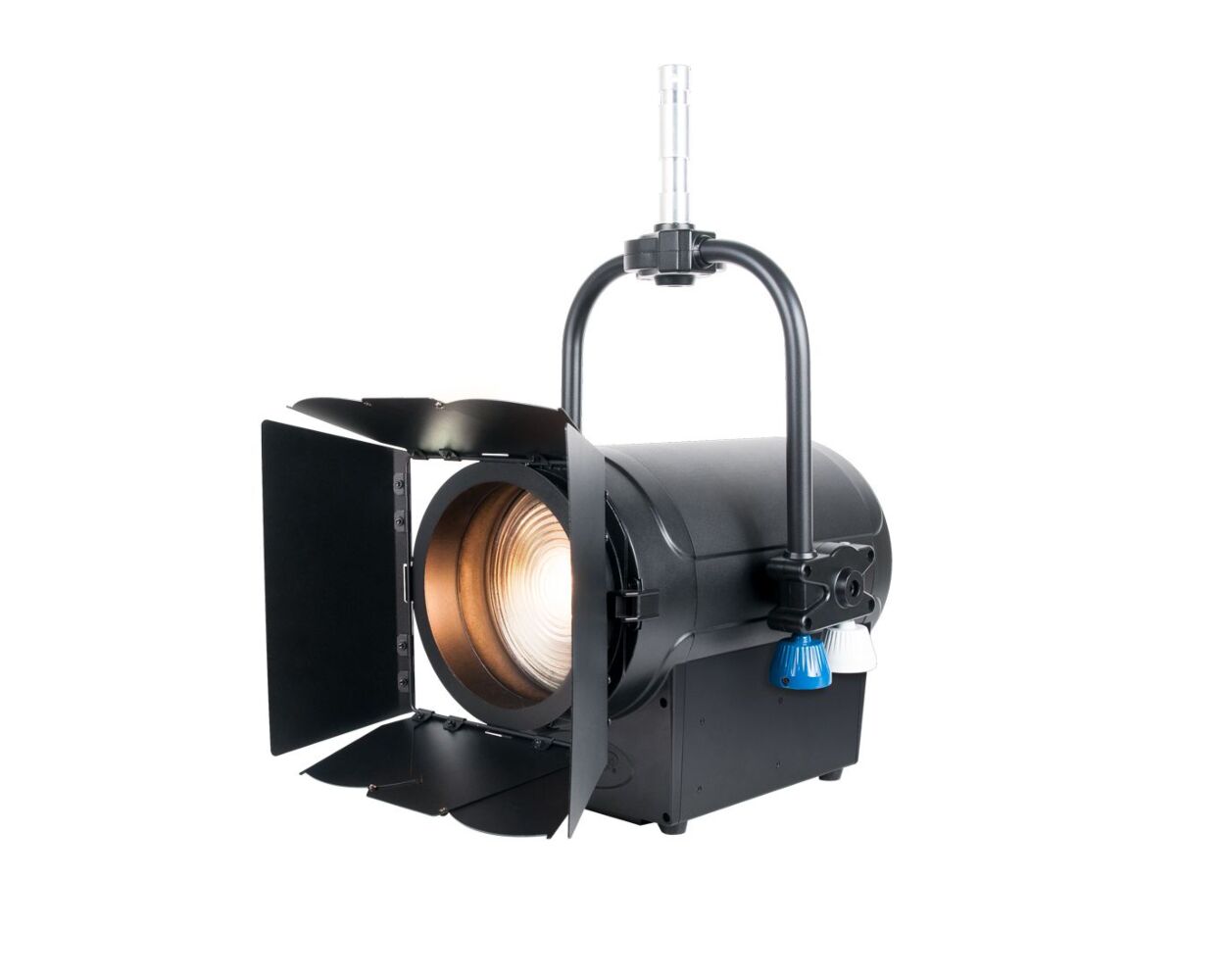

The Elation KL Fresnel 6 FC PO™ is a full-color-spectrum LED fixture, with pole operation and tunable white light optimized for broadcast studio and theater applications.

From the Manufacturer:

The KL FRESNEL 6 FC PO™ is a full-color-spectrum LED fixture that provides high output, precise color temperature control, full-spectrum color rendering, and even wash coverage.

Optimized for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and color quality, while offering a wide array of rich saturated colors and subtle pastels.

The KL FRESNEL 6 FC PO incorporates a highly efficient 5-in-1 (RGBMA) LED engine that produces up to 7,200 field lumens with a manual Zoom range of 10° to 32°.

Outstanding color rendering quality, precise CCT presets, and remotely adjustable LED refresh frequency makes this unit the perfect choice for today's fast-paced production environments. Rugged and portable, the fixture can be mounted on a stand or suspended using any standard clamp or the included Junior pin adapter. It is fully self-contained without the need for an external power supply and offers locking power pass-through for easy linking of multiple units.

The KL FRESNEL 6 FC PO can be operated through industry-standard DMX protocols and has full RDM support. In addition, it offers manual access using the included encoders and display, providing instant control of Intensity, Color temperature, Green shift, and other important settings. The display and encoders are conveniently positioned at the bottom side of the fixture to ensure unobstructed access while mounted on a stand.

The PO Series are pole operable units for broadcast studio and theater applications. Pole operation allows for easy pan, tilt and zoom maneuverability while avoiding having to access the fixture by climbing on a ladder.

Features:

• 220W RGBMA LED Engine
• Dynamic White + Full Spectrum Color Control
• 7,200 Total Fixture Lumen Output
• 10° to 32° Wide Manual Zoom
• Pole Operation for Pan and Tilt plus Zoom
• Stand-Alone control with Encoder and LED Display
• Smooth 16-bit Selectable Dimming Modes and Curves
• LED Refresh Rate Adjustment
• Flicker Free Operation for TV and FILM
• RDM (Remote Device Management)
• 8-leaf Barn Doors, Gel Frame and Junior Pin (1 1/8” - 28mm) included

Specifications:

• SOURCE
  • 220W 6500K RGBMA LED Engine
  • 50,000 Hour Average LED Life*
    *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
• PHOTOMETRIC DATA
  • 7,200 Total Lumen Output
  • CRI 92.5
  • Zoom Range 10° - 32°
  • Beam Angle 9.7° - 32.2°
  • Field Angle 18.7° - 49.3°
• EFFECTS
  • Manual Zoom
  • Electronic Dimmer and Strobe
  • Variable 16-bit Dimming Modes and Curves
• COLOR
  • RGBMA Color Array
  • CMY Emulation
  • Variable CCT 2400K - 8500K
  • Green/Magenta Shift
  • Virtual Gel Swatch Book
• CONTROL / CONNECTIONS
  • 6 DMX Channel Modes (1 to 18 channels)
  • Direct Access Encoder
  • 4 Button Control Panel, LED Display
  • RDM (Remote Device Management)

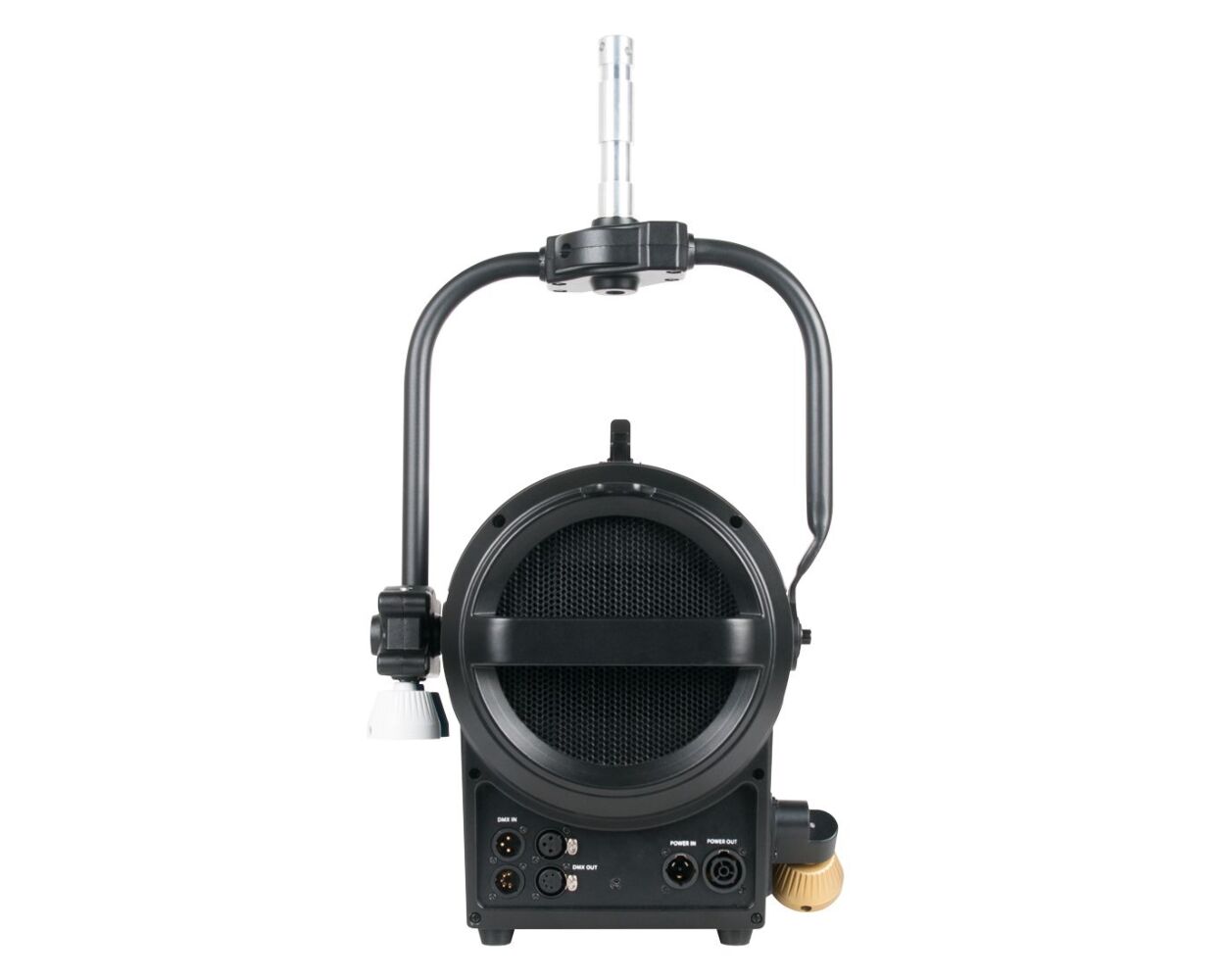

  • 3/5pin DMX and IP65 Locking Power In/Out Connection
• SIZE / WEIGHT
  • Length: 13.5” (344mm)
  • Width: 11” (280.6mm)
  • Vertical Height: 23” (584mm)
  • Weight: 18.5 lbs. (8.4kg)
• ELECTRICAL / THERMAL
  • AC 100-240V - 50/60Hz
  • 219W Max Power Consumption
  • Power Thru Capacity: 11A (5 units @110V; 12 units @240V)
  • 5°F to 113°F (-15°C to 45°C) BTU/hr (+/- 10%) 746.79
• INCLUDED ITEMS
  • Gel Frame and Rotating 8-leaf Barn Doors
  • Junior Pin (1 1/8" - 28mm)
  • IP65 Locking Power Cable
• APPROVALS / RATINGS: CE | cETLus | IP20
