Sku: KLF832

KL Fresnel 8 FC

Regular price
$2,068.00
Regular price
Sale price
$2,068.00
Shipping calculated at checkout.
Vendor: Elation Professional

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

The KL Fresnel 8 offers really high-quality whites and colors out of a 8" fresnel for mid to large size stages and video shoots.  No, this isn't a description of a washing machine, it's just a kick-butt full-color fresnel!

From the Manufacturer:

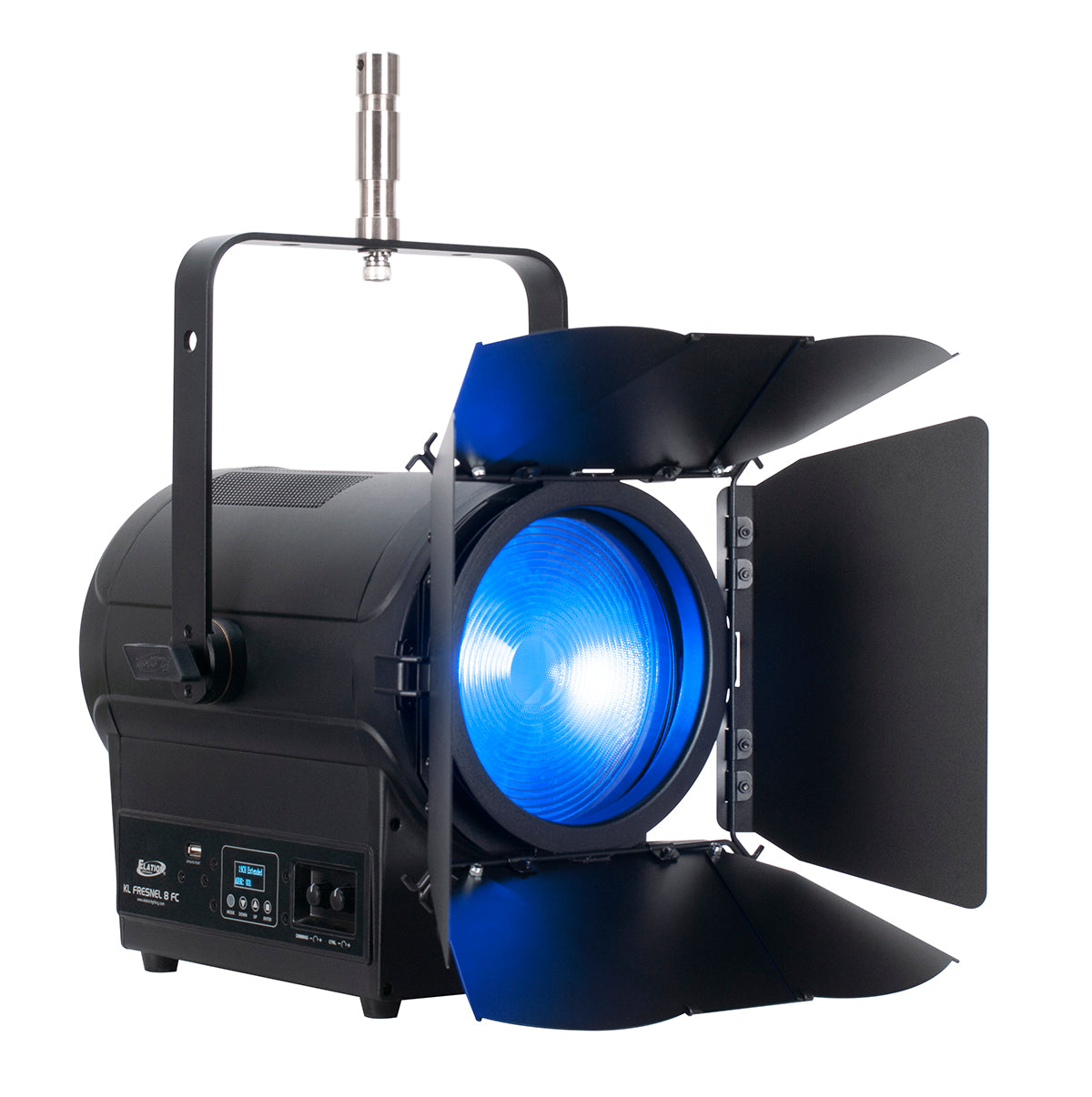

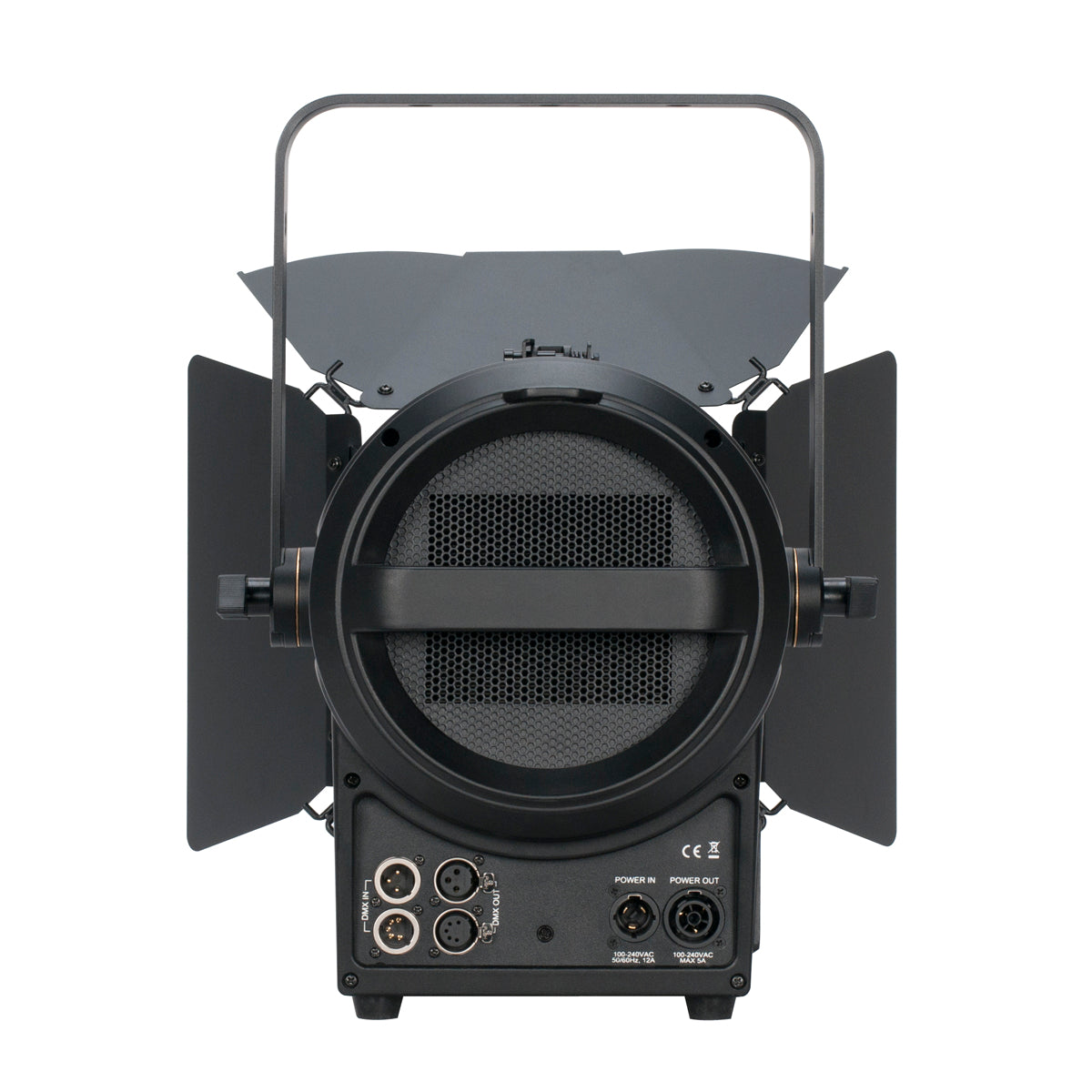

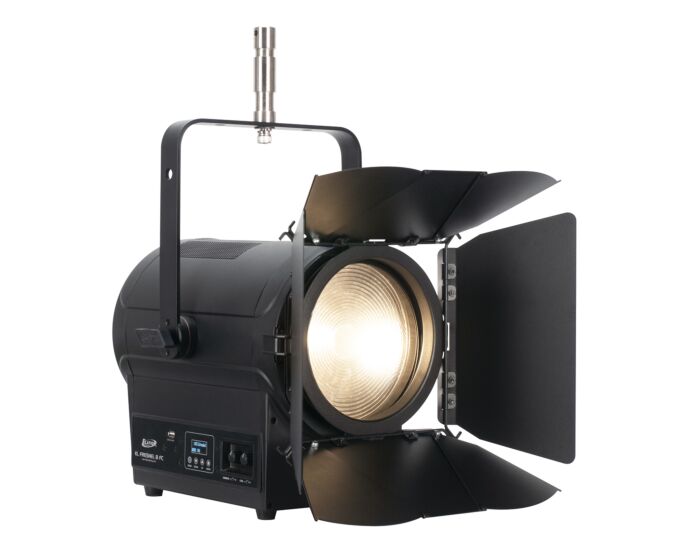

The KL Fresnel 8 FC™ is a full-color-spectrum LED fixture that provides high output, precise color temperature control, full-spectrum color rendering, and even wash coverage.

Optimized for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and color quality, while offering a wide array of rich saturated colors and subtle pastels.
The KL Fresnel 8 FC incorporates a highly efficient 5-in-1 (RGBMA) LED engine that produces up to 18,000 field lumens with a motorized Zoom range of 10° to 50°.

Outstanding color rendering quality, precise CCT presets, and remotely adjustable LED refresh frequency makes this unit the perfect choice for today's fast-paced production environments. Rugged and portable, the fixture can be mounted on a stand or suspended using any standard clamp or the included Junior pin adapter. It is fully self-contained without the need for an external power supply and offers locking power pass-through for easy linking of multiple units.

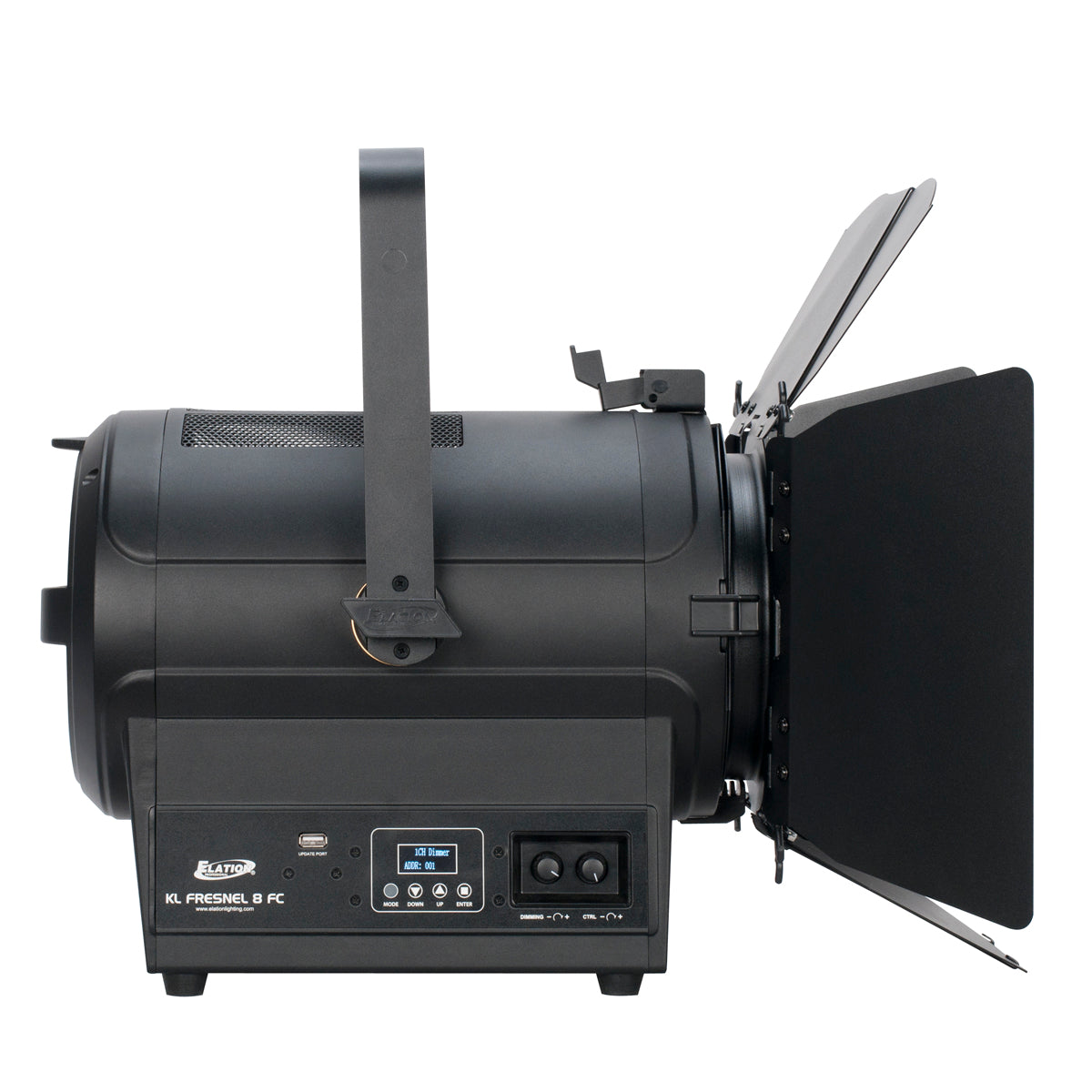

The KL Fresnel 8 FC can be operated through industry-standard DMX protocols and has full RDM support. In addition, it offers manual access using the included encoders and display, providing instant control of Zoom, Intensity, Color temperature, Green shift, and other important settings. The display and encoders are conveniently positioned at the bottom side of the fixture to ensure unobstructed access while mounted on a stand.


In the Box:

  • (1) KL Fresnel 8 FC
  • (1) Barndoors
  • (1) Gel Frame
  • (1) Locking Power Cable



Features:

  • Light Source: 500W RGBMA LED
  • Color Temperature: 2,400K - 8,500K
  • CRI: 94.5
  • Beam Angle: 10° to 50° Motorized Zoom
  • Dimming: Variable 16-bit Dimming Modes and Curves
  • Refresh Rate: Variable
  • Strobe: Variable
  • Color: RGBMA, CMY Emulation
  • Control Protocol: DMX, RDM
  • Operating Modes: DMX, Manual
  • IP Grade: IP20



Tech Specs

Optics:

Light Source Type: RGBMA LED

Light Source Wattage: 500w

Minimum Beam Angle: 10.0°

Maximum Beam Angle: 50.0°

Control

DMX Channel Modes: 1 / 7 / 12 / 19 / 10 / 15

DMX 3-Pin Connectors?: Yes

DMX 5-Pin Connectors?: Yes

Physical:

Length: 15.1 in

Width: 12.9 in

Height: 17.9 in

Weight: 23.15 lb

Electrical

Voltage Range: 100 - 240 VAC 50/60Hz

Power Cable Connector - Fixture Side: PowerCON True1

Main Power Connector on Included Cable: Edison
