Sku: KLP001

KL Panel

Regular price
$2,240.00
Regular price
Sale price
$2,240.00
Shipping calculated at checkout.
Vendor: Elation Professional

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

The KL Panel is a great, reasonably-priced (but high quality) alternative to the video panel with the blue edges!  It has a very full spectrum of light output, but at a price that doesn't make you shutter!

From the Manufacturer:

The KL PANEL™ is a full-color-spectrum LED soft light that provides high output, precise color temperature control, full-spectrum color rendering, and even wash coverage. Optimized for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and color quality.

The KL PANEL incorporates a highly efficient 6-in-1 LED package that produces up to 24,000 field lumens at a 100° half-peak angle. Compact and portable, the fixture can be mounted on a stand or suspended using any standard clamp or the included Junior pin adapter. Rugged housing with impact-resistant surrounds and base plate ensures the KL Panel can handle the rough handling on today's fast-paced sets.

It is fully self-contained without the need for an external power supply. It can also be remotely powered thru its integrated 4-pin XLR 24-36 VDC battery input. The KL Panel can be operated through industry-standard DMX, Art-NET, or sACN protocols. In addition, it can also be adjusted manually using the included encoders and OLED display, providing instant control of Intensity, Color temperature, Green shift, and other important settings.

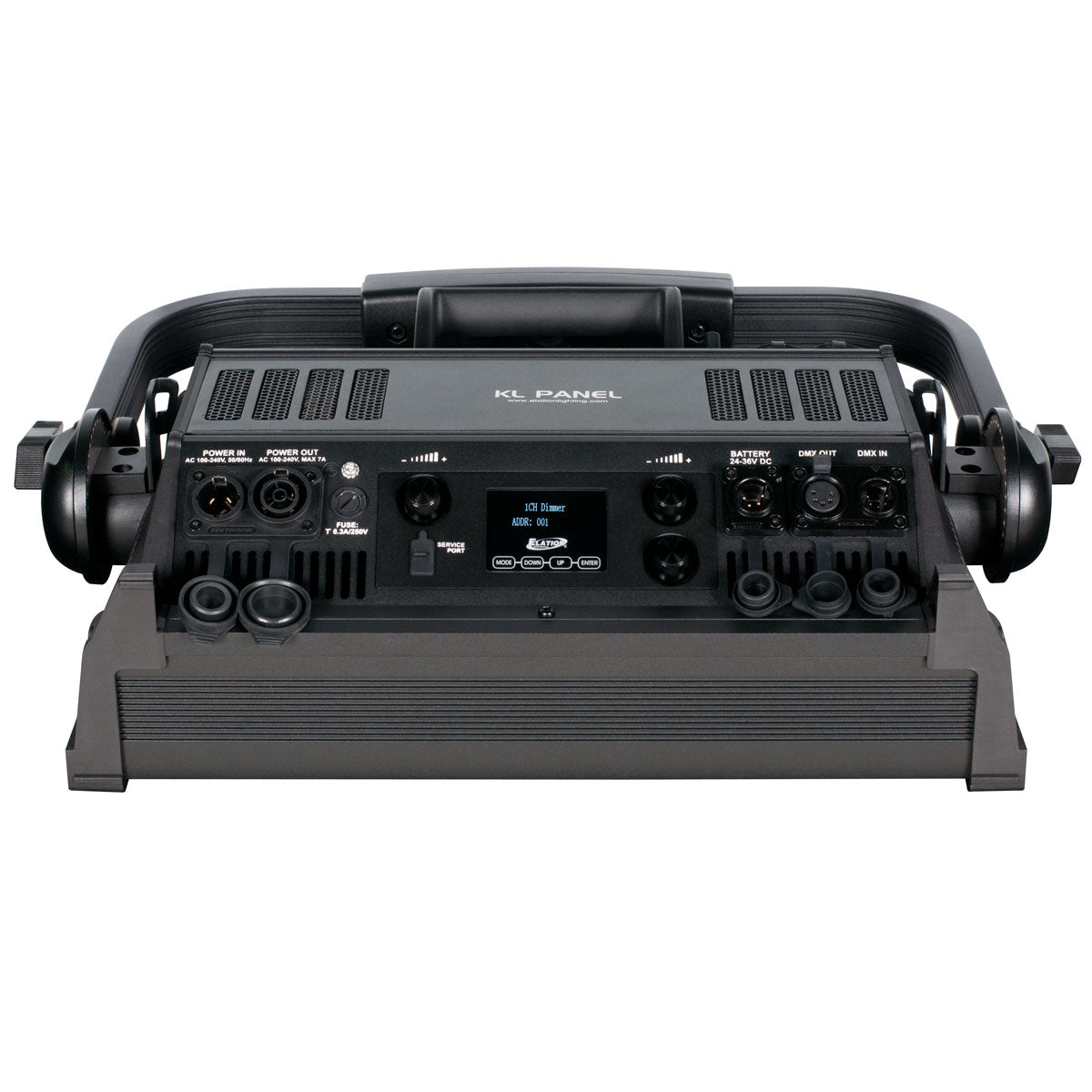

The display and encoders are conveniently positioned on the bottom of the fixture to ensure easy access while the KL Panel is mounted on a stand. The integration of Elation’s E-FLY™ wireless system allows for even more flexibility of use.

In the Box:

  • (1) KL Panel
  • (1) Diffuser
  • (1) Barndoor
  • (1) Junior Pin (1.125in. – 28mm) with Mounting Hardware
  • (1) Locking Power Cable

Features:

  • Light Source: 295W RGBWLC LED
  • Color Temperature: 2,000 to 10,000K
  • CRI: 95
  • Beam Angle: 101° with diffuser, 111° without diffuser
  • Dimming: Variable 16-bit Dimming Curve Modes
  • Refresh Rate: 900-25kHZ
  • Strobe: Variable
  • Color: RGBWLC
  • Control Protocol: DMX, RDM, Art-NET, sACN, and E-Fly
  • Operating Modes: DMX, Manual
  • IP Grade: IP20



Tech Specs

Optics:

Light Source Type: RGBWLC LED

Light Source Wattage: 295w

Minimum Beam Angle: 101.0°

Maximum Beam Angle: 111.0°

Control

DMX Channel Modes: 1 / 4 / 7 / 6 / 12 / 14 / 23

DMX 3-Pin Connectors?: No

DMX 5-Pin Connectors?: Yes

Physical:

Length: 20.8 in

Width: 5.5 in

Height: 12.2 in

Weight: 28.6 lb

Electrical

Voltage Range: 100 - 240 VAC 50/60Hz

Maximum Wattage: 295w

Power Cable Connector - Fixture Side: PowerCON True1

Main Power Connector on Included Cable: Edison

Warranty

Warranty: 2 Year
