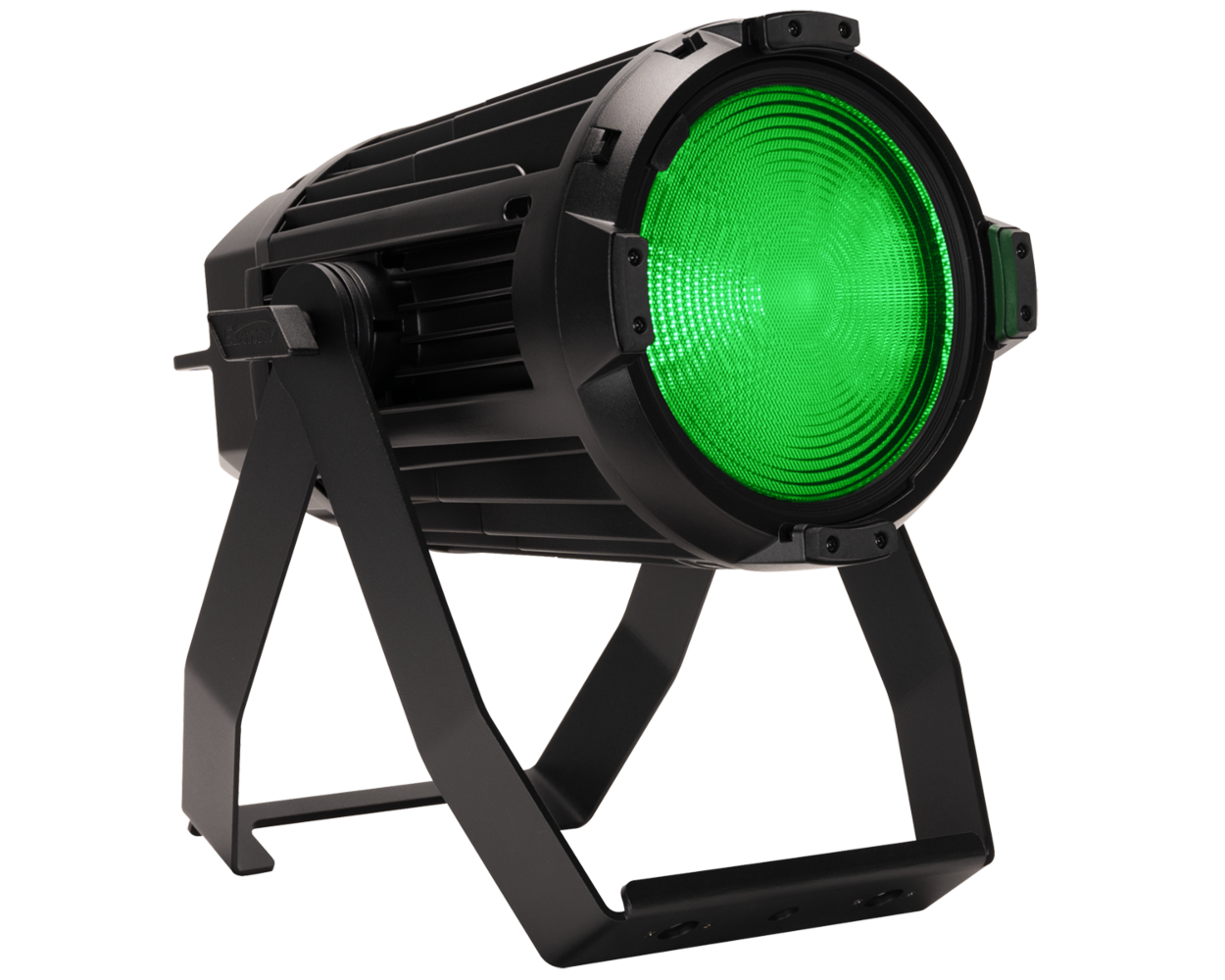

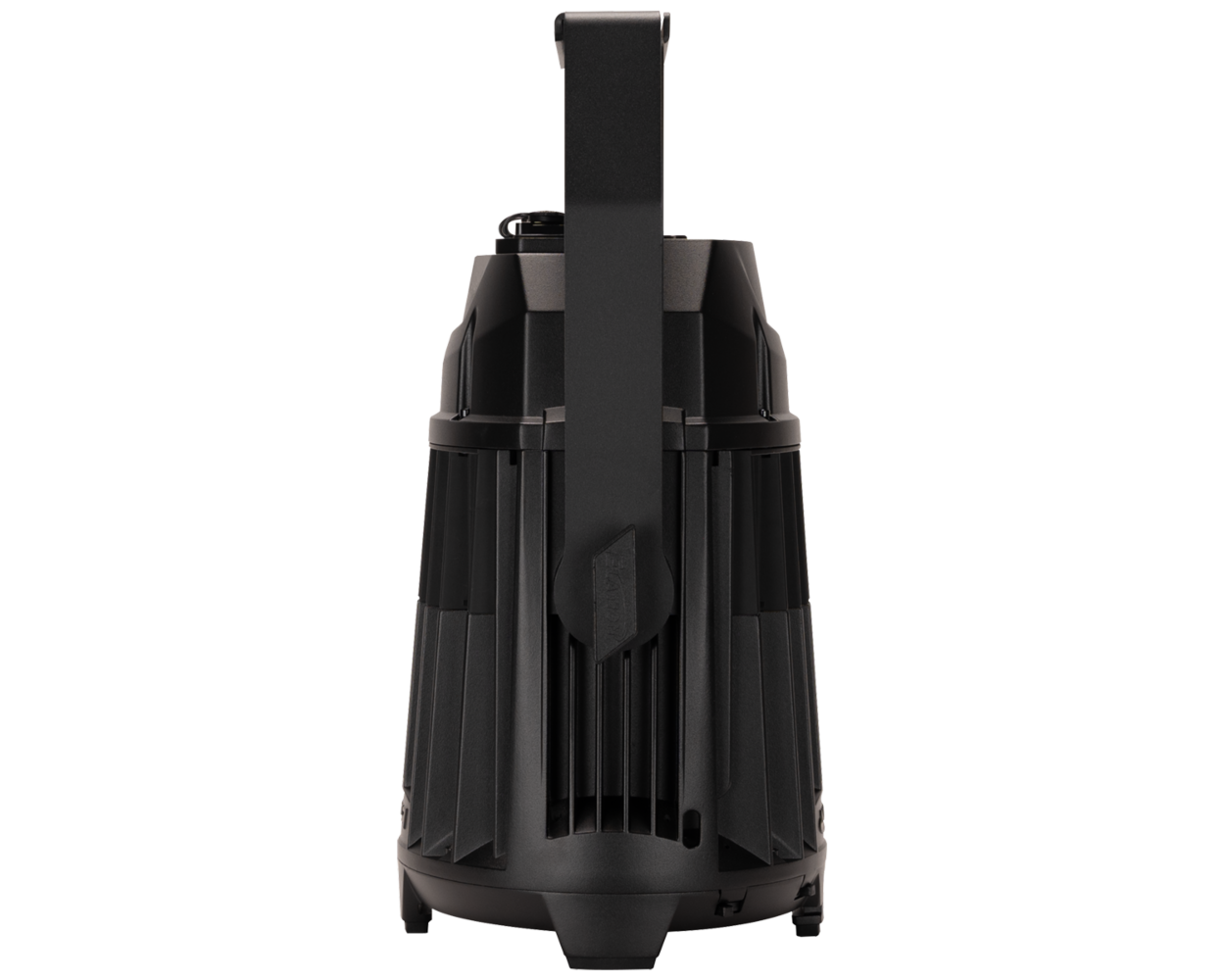

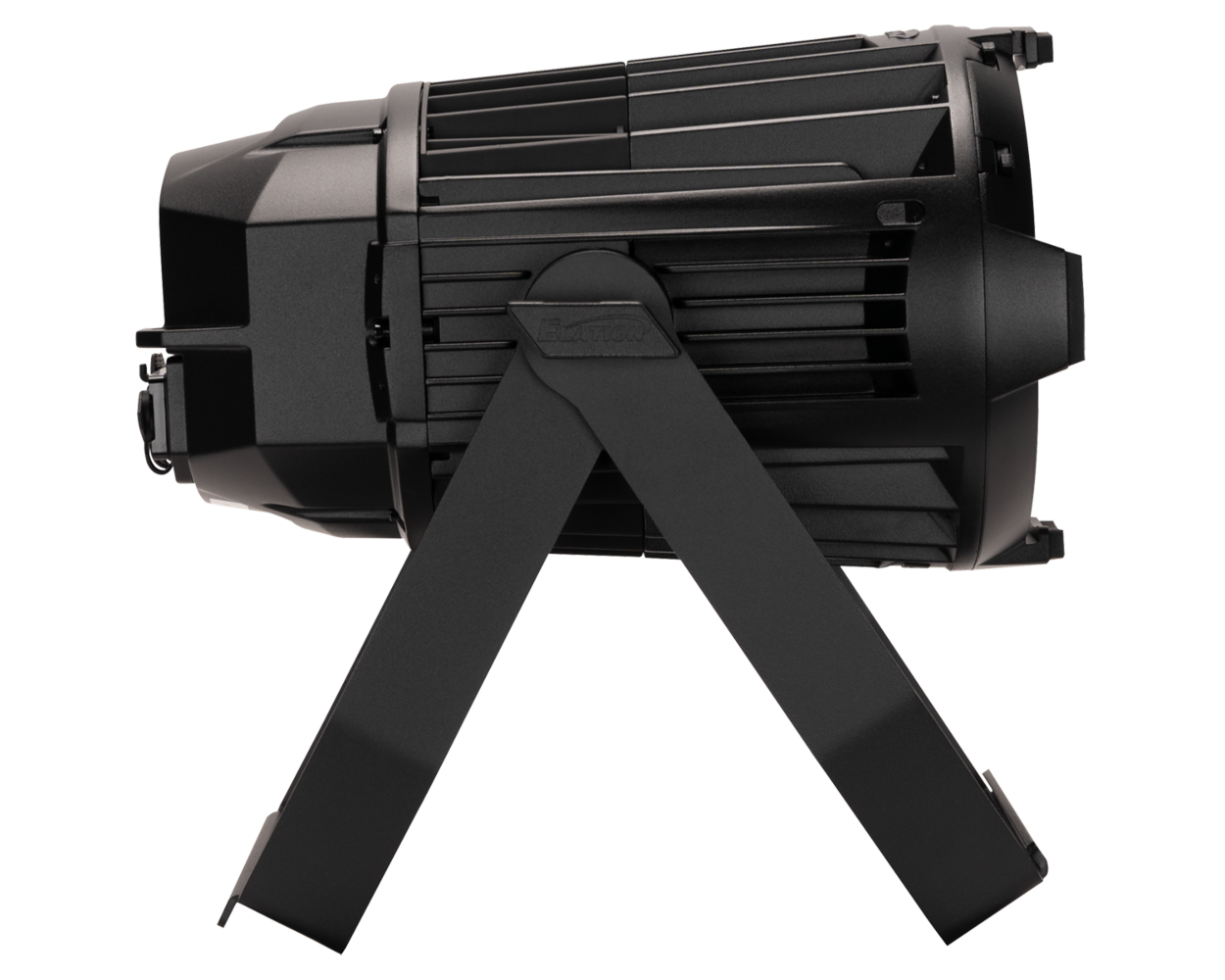

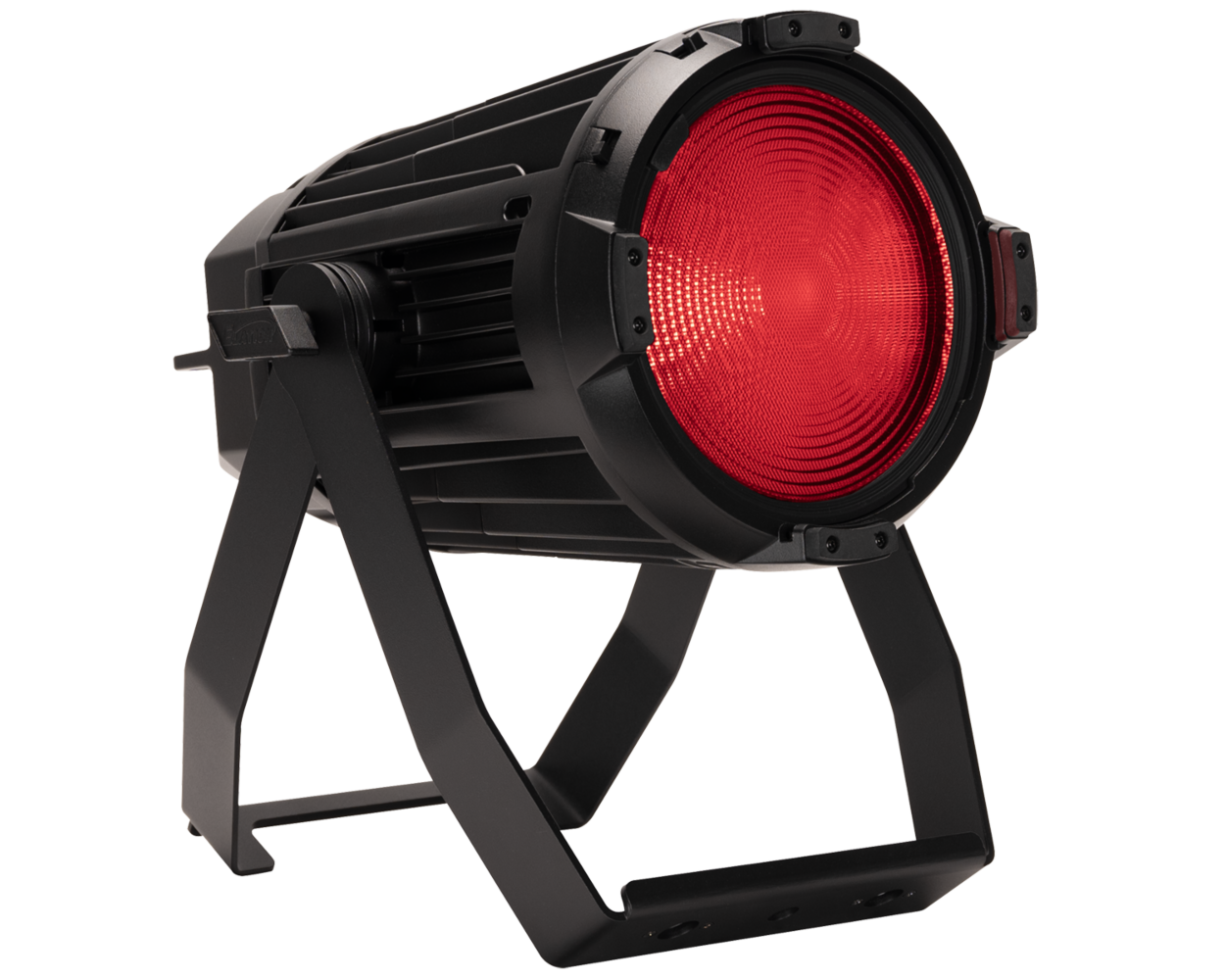

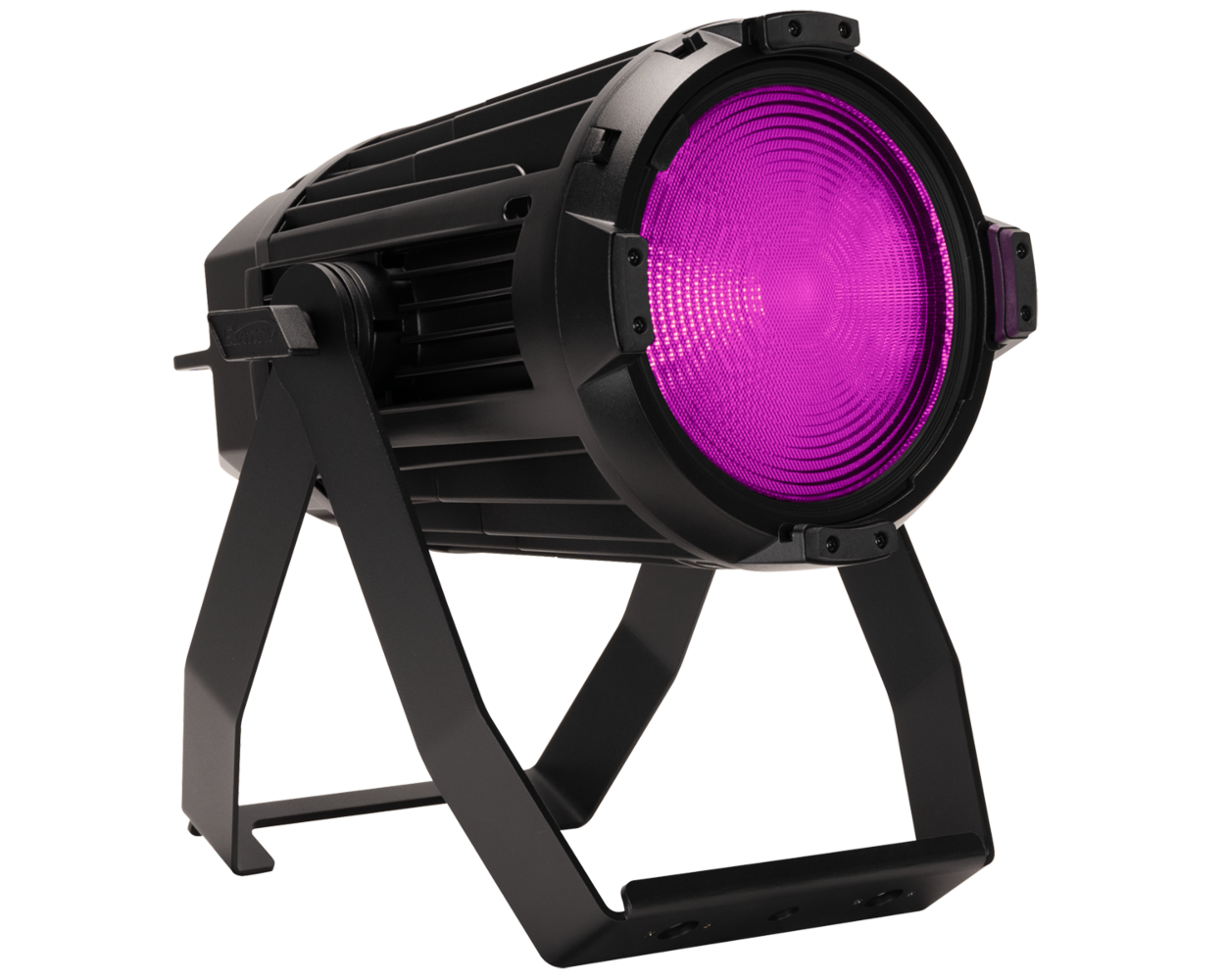

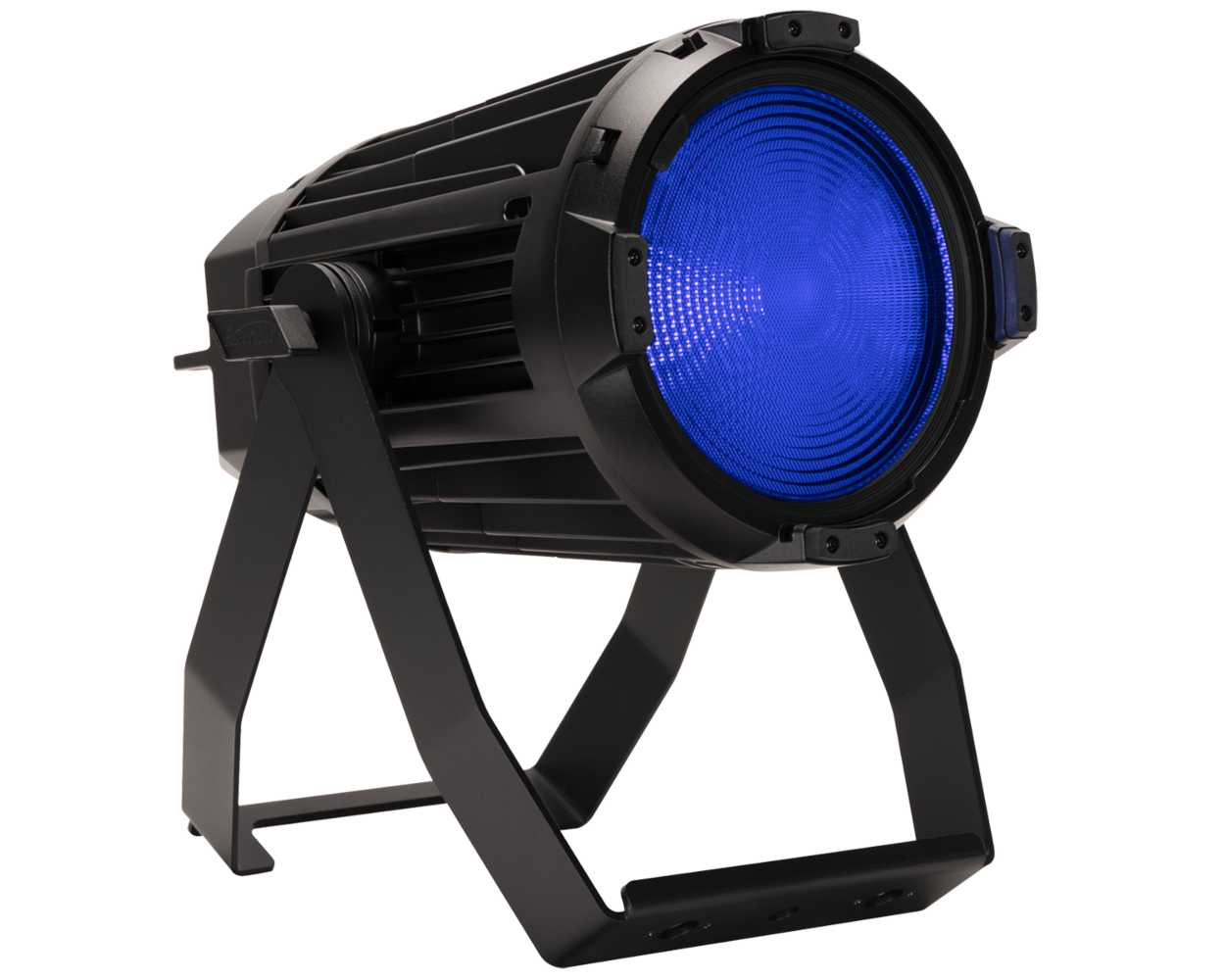

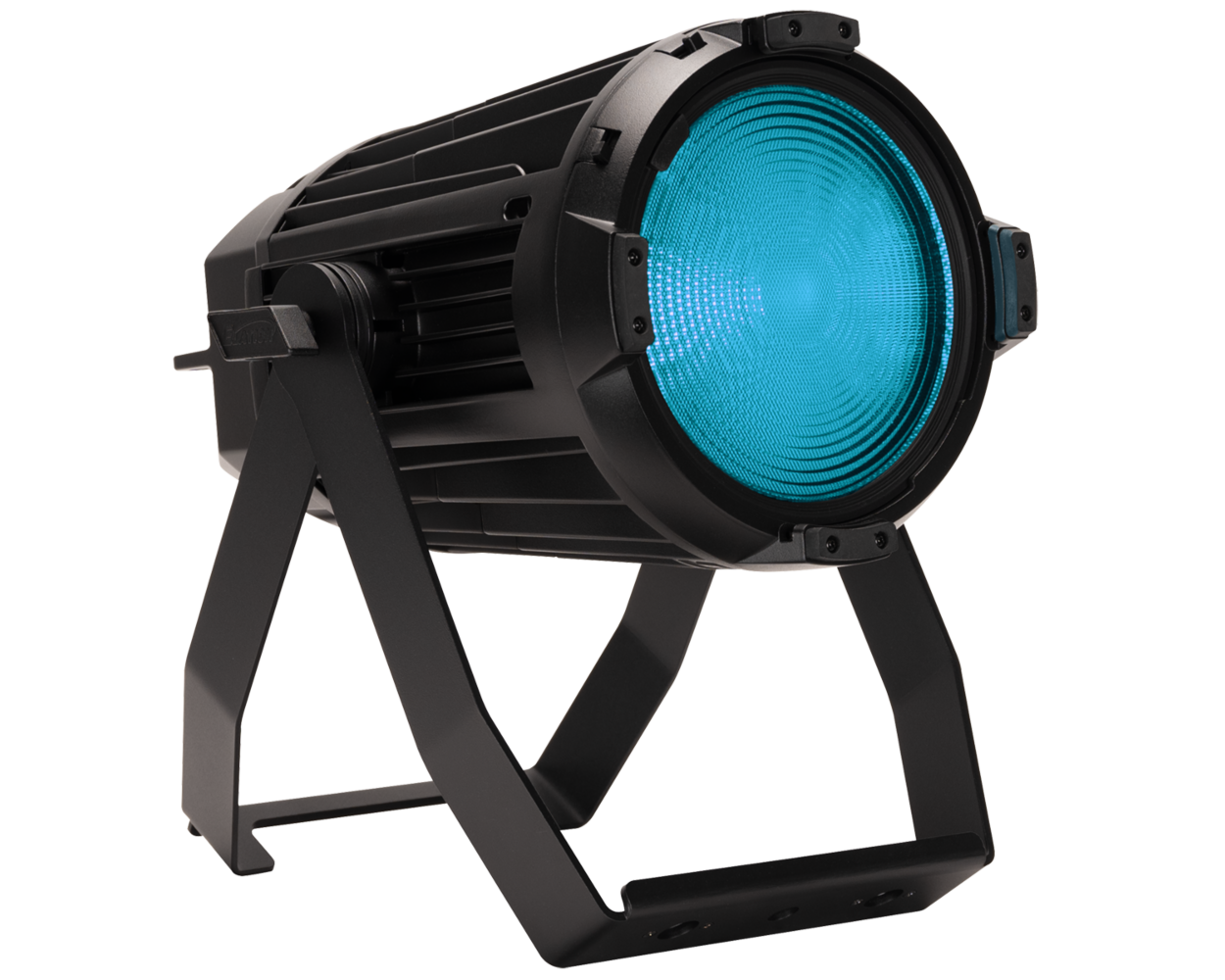

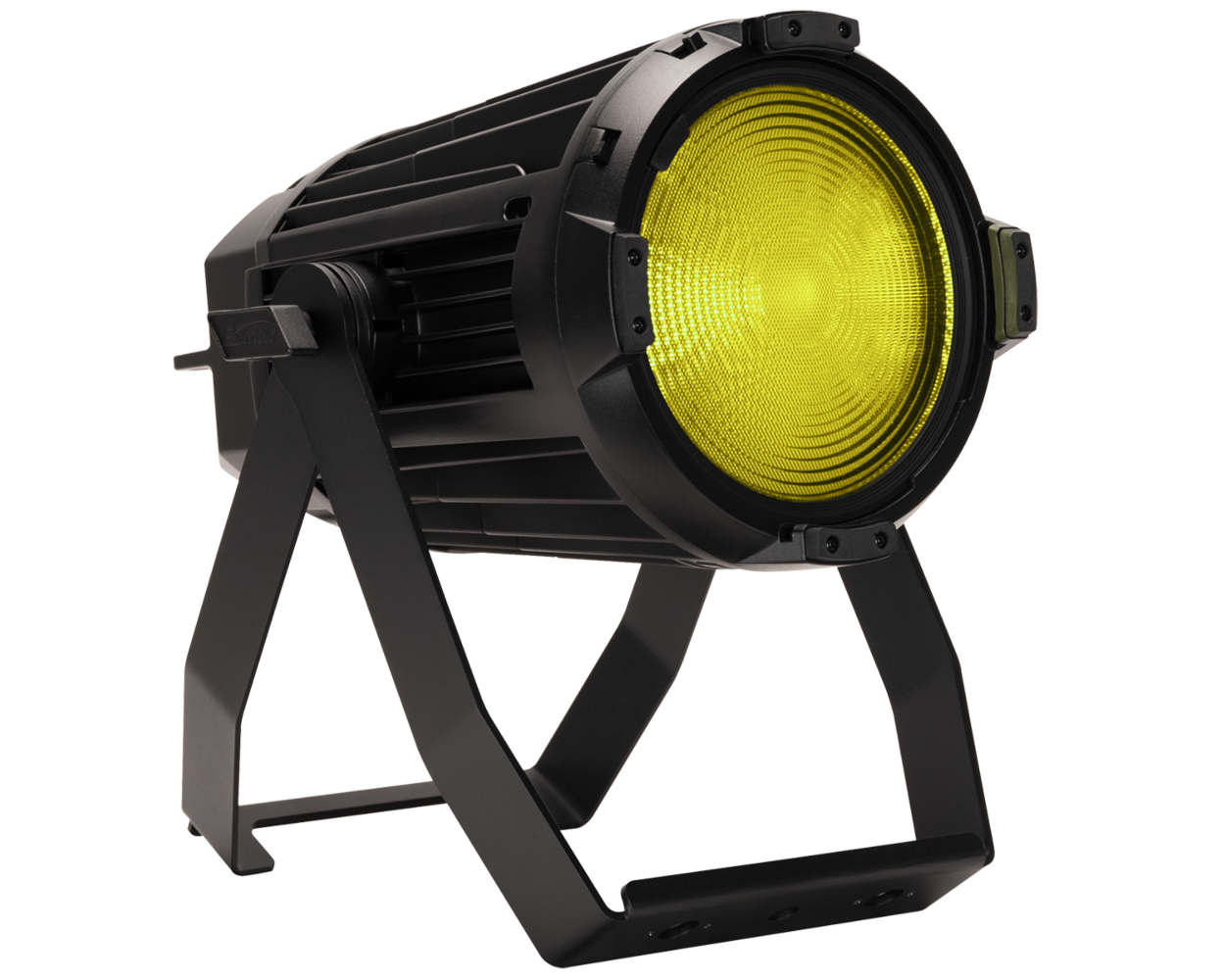

KL PAR FC IP

The KL Par FC IP is an outdoor rated full color par type fixture. It has a high output and can be used as a  wash type fixture.

From the Manufacturer:

The KL PAR FC IP™ is a full-color-spectrum IP65 rated LED fixture that provides high output, precise color temperature control, full-spectrum color rendering, and even wash coverage. Offering powerful color intensity and a wide array of saturated and pastel colors from its efficient RGBMA engine, it is also optimized for the tunable white light requirements of Film and Television.

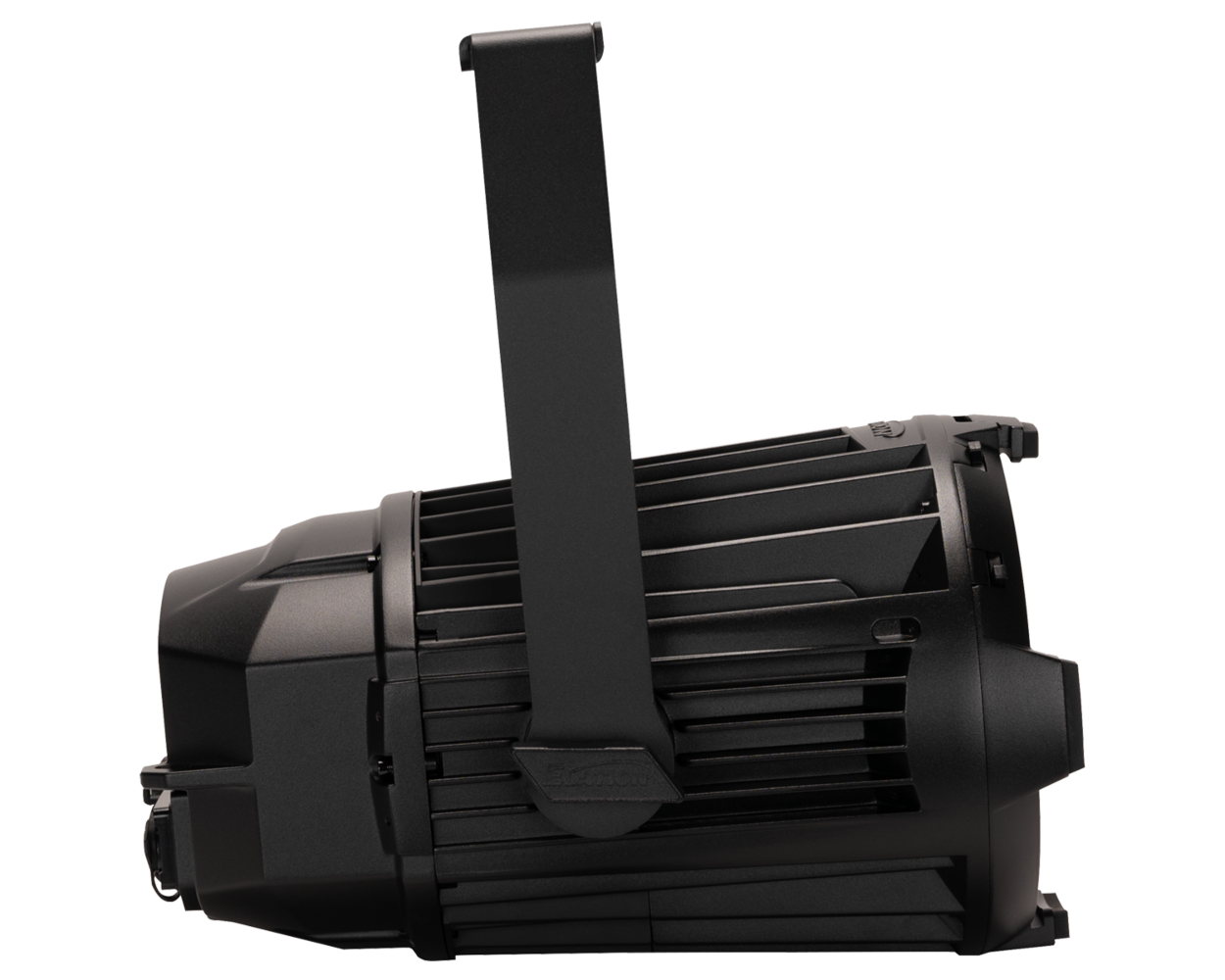

The KL PAR FC IP is an ideal key, fill, and area wash light source for outdoor events and any production requiring outstanding performance, color quality and weather protection. It incorporates a highly efficient 5-in-1 (RGBMA) LED engine that produces up to 11,263 field lumens, brighter than existing 750W Tungsten PAR fixtures, and is delivered with multiple lens choices that are easy to replace in the field. With the new ColourTune Technology software the fixture offers outstanding color rendering with a high CRI of 94.9 and TLCI of 95, fully variable 16bit CCT control, and remotely adjustable LED refresh frequency makes this unit the perfect choice for today's fast-paced production environments. Rugged and portable, the fixture can be suspended using any standard clamp or floor mounted using the integrated stand. It is fully self-contained without the need for an external power supply and offers locking power pass-through for easy linking of multiple units.

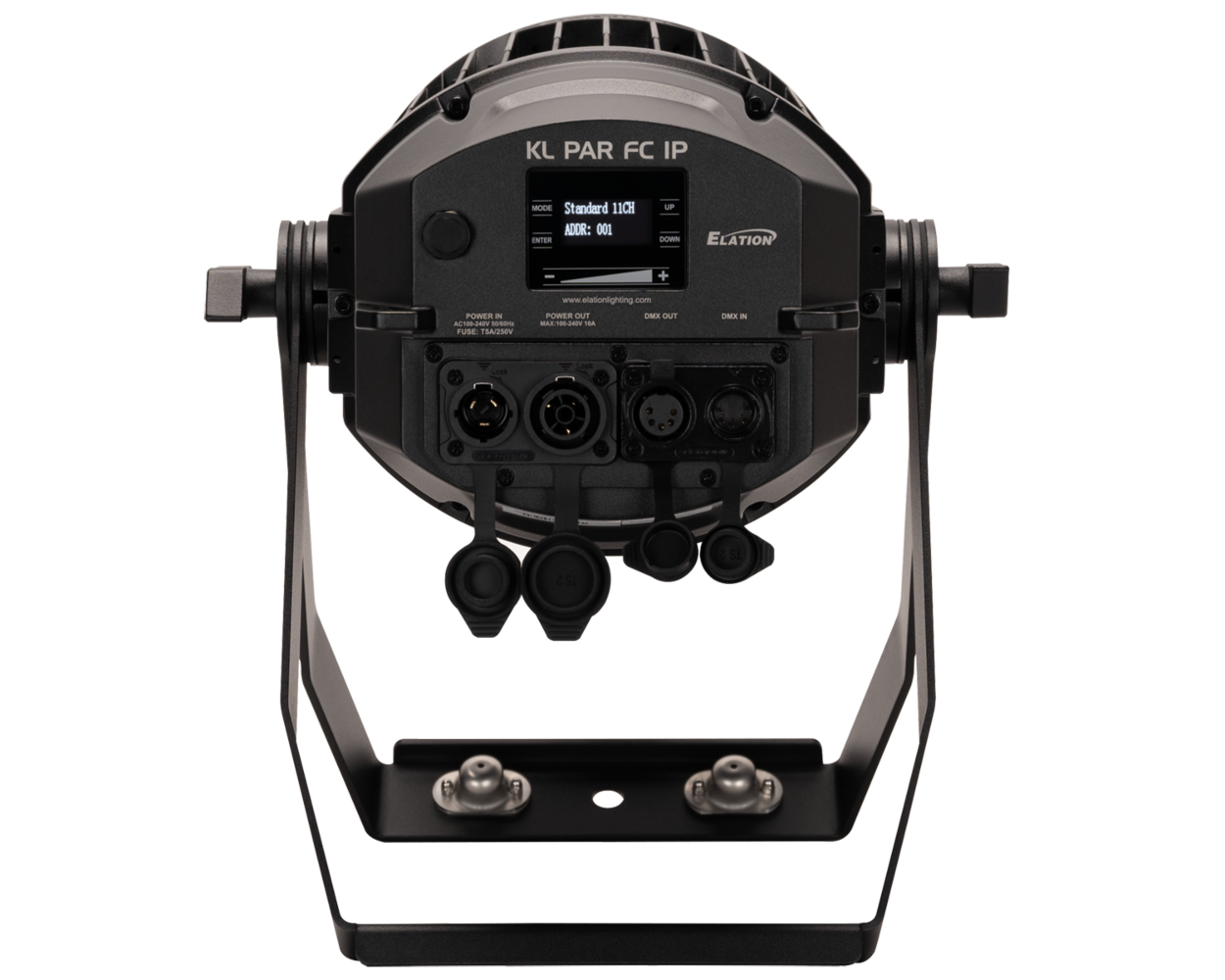

The KL PAR FC IP can be operated through industry-standard DMX protocols and has full RDM support. In addition, it offers manual access and standalone operation using the included touch bar encoder and display, providing instant control of Intensity, Color Temperature, Green shift, and other important settings. The display and encoder are conveniently positioned at the backside of the fixture to ensure unobstructed access when mounted.

Features:

• 360W RGBMA LED Engine

• ColourTune Technology Software Integration

• 11,263 Total Fixture Lumen Output (Sphere)

• Field Replaceable Lenses

• Stand-Alone Control with Touch Encoder and OLED Display

• Smooth 16-bit Selectable Dimming Modes and Curves

• Remote LED Refresh Rate and Fan Speed Adjustment

• Flicker Free Operation for TV and FILM

• RDM (Remote Device Management)

• 7.5" Gel Frame and Four Lenses (10°, 22°, 30°, 55°) Included

• IP65 Rated

Specifications:

• Source

• 360W 6000K RGBMA LED Engine

• 50,000 Hour Average LED Life*

• Photometric Data

• Total Lumen Output:

• 11,263 (Integrating Sphere)

• 10,900 (Goniometer)

• CRI 94.9

• TLCI 95

• Included Lenses

• VNSP (10°)

• NSP (22°)

• MFL (30°)

• WFL (55°)

• Effects

• Electronic Dimmer and Strobe

• Variable 16-bit Dimming Modes and Curves

• Color

• High Brightness and High Fidelity Output Options

• RGBMA Color Array

• CMY Emulation

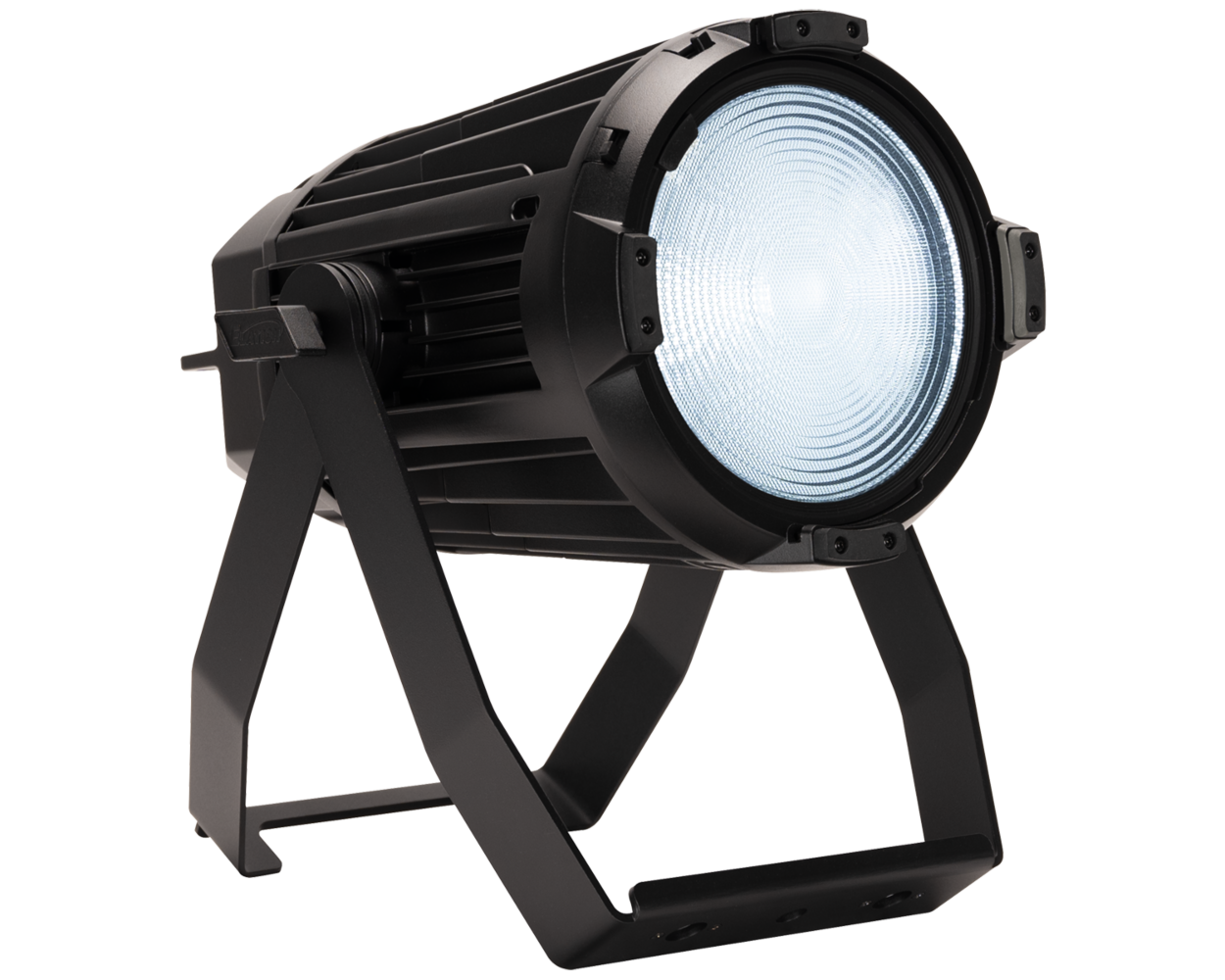

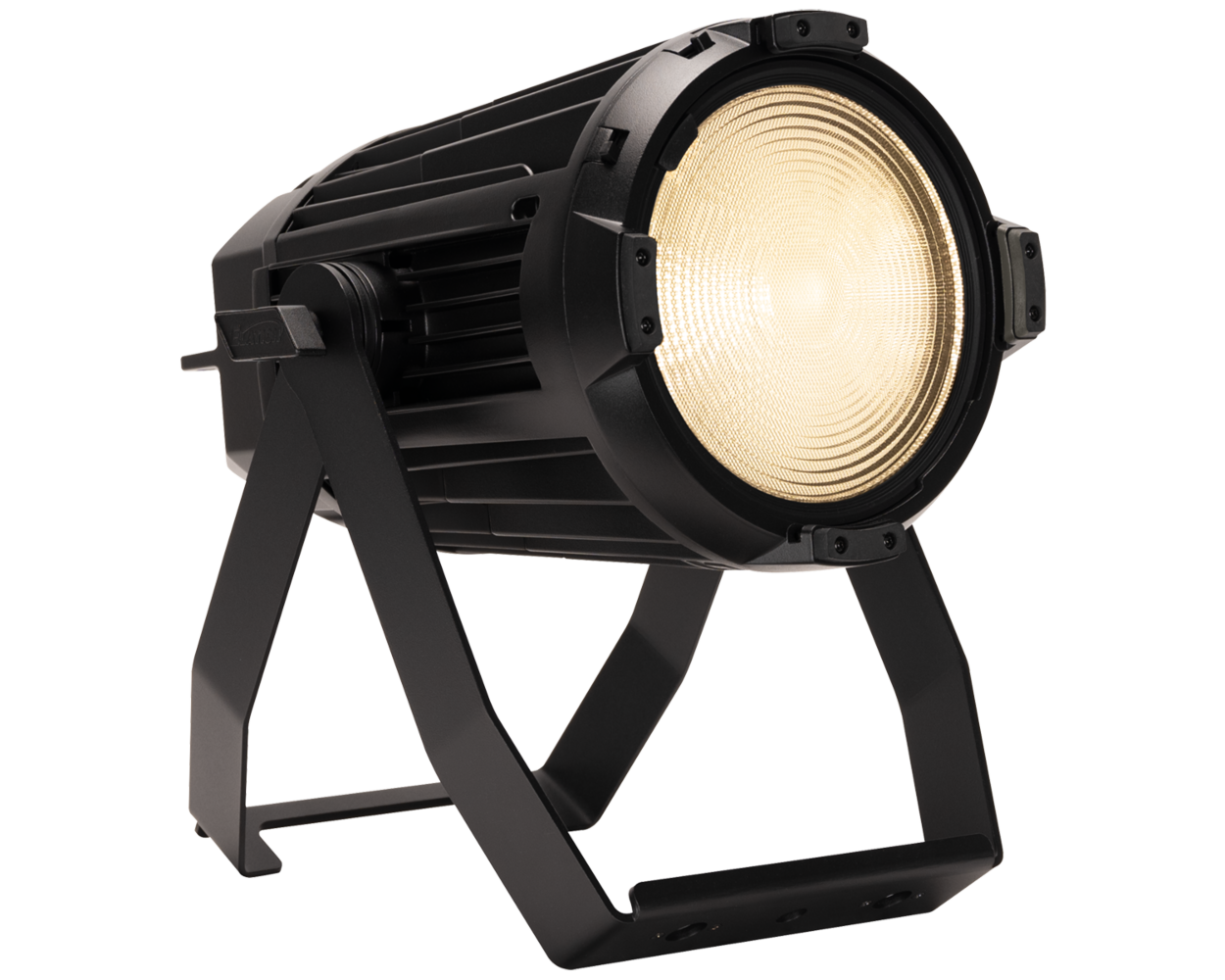

• 16bit Fully Variable CCT 2400K - 8500K

• Green/Magenta Shift

• Dim-to-Warm Fade

• Virtual Gel Swatch Book

• Control / Connections

• 8 DMX Channel Modes (1, 6, 11, 18, 19, 9, 14, 15)

• Manual and DMX Controlled Dimmer and Color

• Single Touch Bar Encoder

• 4 Button Control Panel, LED Display

• RDM (Remote Device Management)

• IP65 5pin DMX and IP65 Locking Power Cable In/Out

• Size/ Weight

• Length: 8.5" (217mm)

• Width: 12.0” (304mm)

• Vertical Height: 17.8” (453.3mm)

• Weight: 16.53 lbs. (7.5kg)

• Electrical / Thermal

• AC 100-240V - 50/60Hz

• 375W Max Power Consumption

• Power Thru Capacity: 10A (2 units @115V, 6 units @240V)

• 5°F to 113°F (-15°C to 45°C)

• BTU/hr (+/- 10%) 1278.75

• Approvals / Ratings

• CE | cETLus | IP65 | FCC | UKCA

Included Items:

• 7.5" Gel Frame

• 4 Lenses (10°, 22°, 30°, 55°)

• IP65 Locking Power Cable
