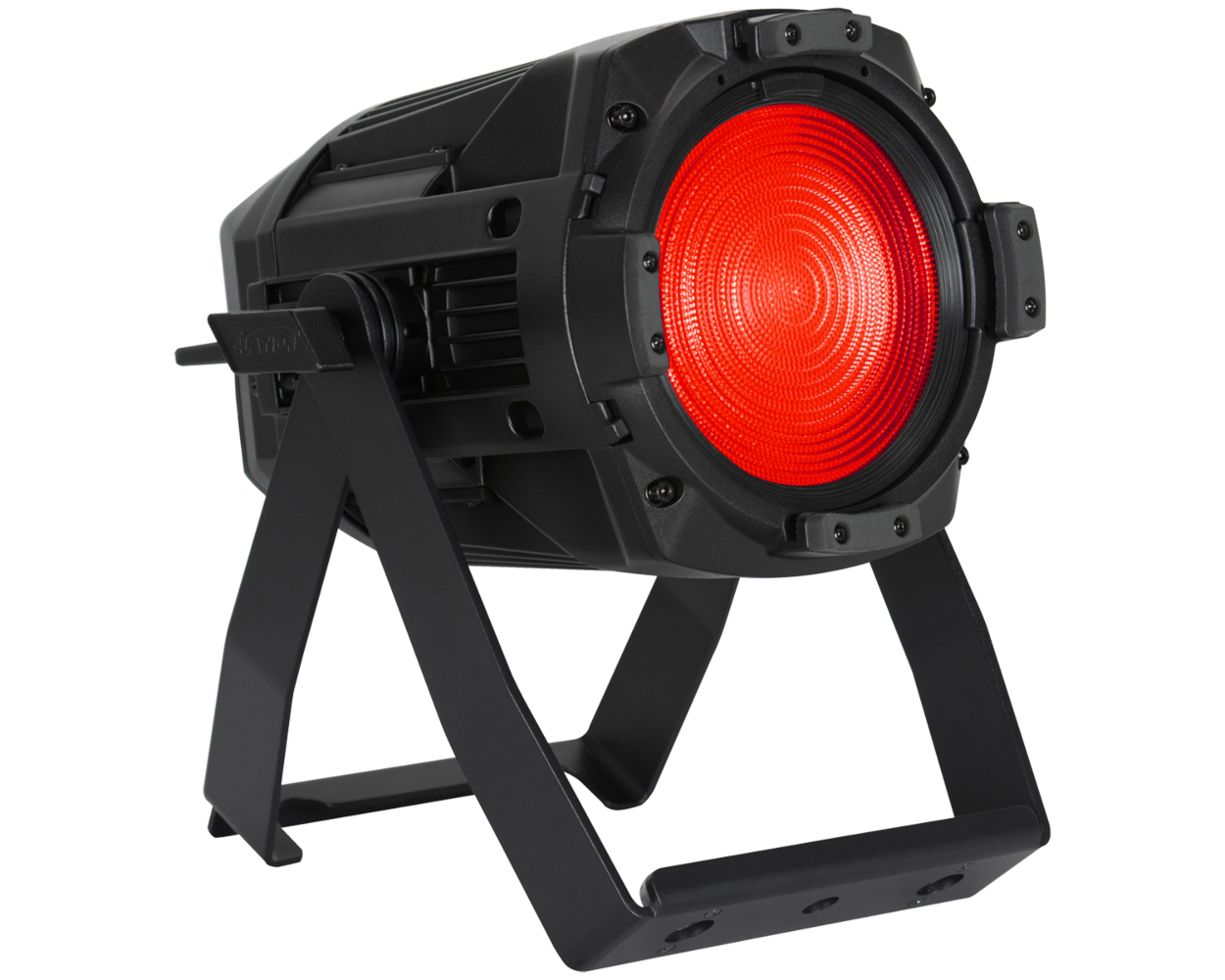

KL PAR IP Compact

The Elation KL Par IP Compact LED fixture offers excellent color accuracy and control with an adjustable LED refresh frequency, making it perfect for film, television, and live events.

From the Manufacturer:

Compact, powerful, and versatile, the KL PAR IP COMPACT delivers exceptional lighting performance in a small, rugged package. Designed for any environment, this IP65-rated LED fixture offers precise color temperature control, full-spectrum rendering, and consistent wash coverage, powered by a highly efficient RGBMA engine that provides up to 5,474 lumens.

Its advanced ColourTune Technology delivers exceptional color accuracy (CRI 94.9, TLCI 95), 16-bit variable CCT control, and adjustable LED refresh frequency, making it perfect for film, television, and live events. With multiple lens options, DMX/RDM compatibility, and a touch bar encoder for instant adjustments, it’s ready for any production need.

Streamline your lighting setup and discover how the KL PAR IP COMPACT can elevate your next production.

Features:

• 150W RGBMA LED Engine
• ColourTune Technology Software Integration
• 5,700 Total Fixture Lumen Output (Sphere)
• Field Replaceable Lenses
• Stand-Alone Control with Touch Encoder and OLED Display
• Smooth 16-bit Selectable Dimming Modes and Curves
• RDM (Remote Device Management)
• NFC & Aria x2 Wireless Device Management
• 6.25" Gel Frame and Four Lenses (10°, 22°, 30°, 55°) Included
• IP65 Rated

Specifications:

• SOURCE
  • 150W 6000K RGBMA LED Engine
  • 30,000 Hour Average LED Life*
    *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
• PHOTOMETRIC DATA
  • Total Lumen Output:
  • 5,700 (Integrating Sphere)
  • TBA (Goniometer)
  • CRI 94.9
  • TLCI 95
• INCLUDED LENSES
  • VNSP (10°)
  • NSP (22°)
  • MFL (30°)
  • WFL (55°)
• EFFECTS
  • Variable Strobe Rate: 1- 20Hz
  • Dim-to-Warm/ Red Shift Emulation
  • Variable 16-bit Dimming Modes and Curves
• COLOR
  • ColourTune Technology
  • High Brightness and High Fidelity Output Options
  • RGBMA Color Array
  • CMY Emulation
  • 16bit Fully Variable CCT 2400K - 8500K
  • Green/Magenta Shift
  • Virtual Gel Swatch Book
• CONTROL / CONNECTIONS
  • 8 DMX Channel Modes (1, 4, 6, 10, 11, 19, 9, 15)
  • Manual and DMX Controlled Dimmer and Color
  • Single Touch Bar Encoder
  • 4 Button Control Panel, LED Display
  • RDM (Remote Device Management)
  • Aria x2 Wireless Device Management
  • NFC Configuration

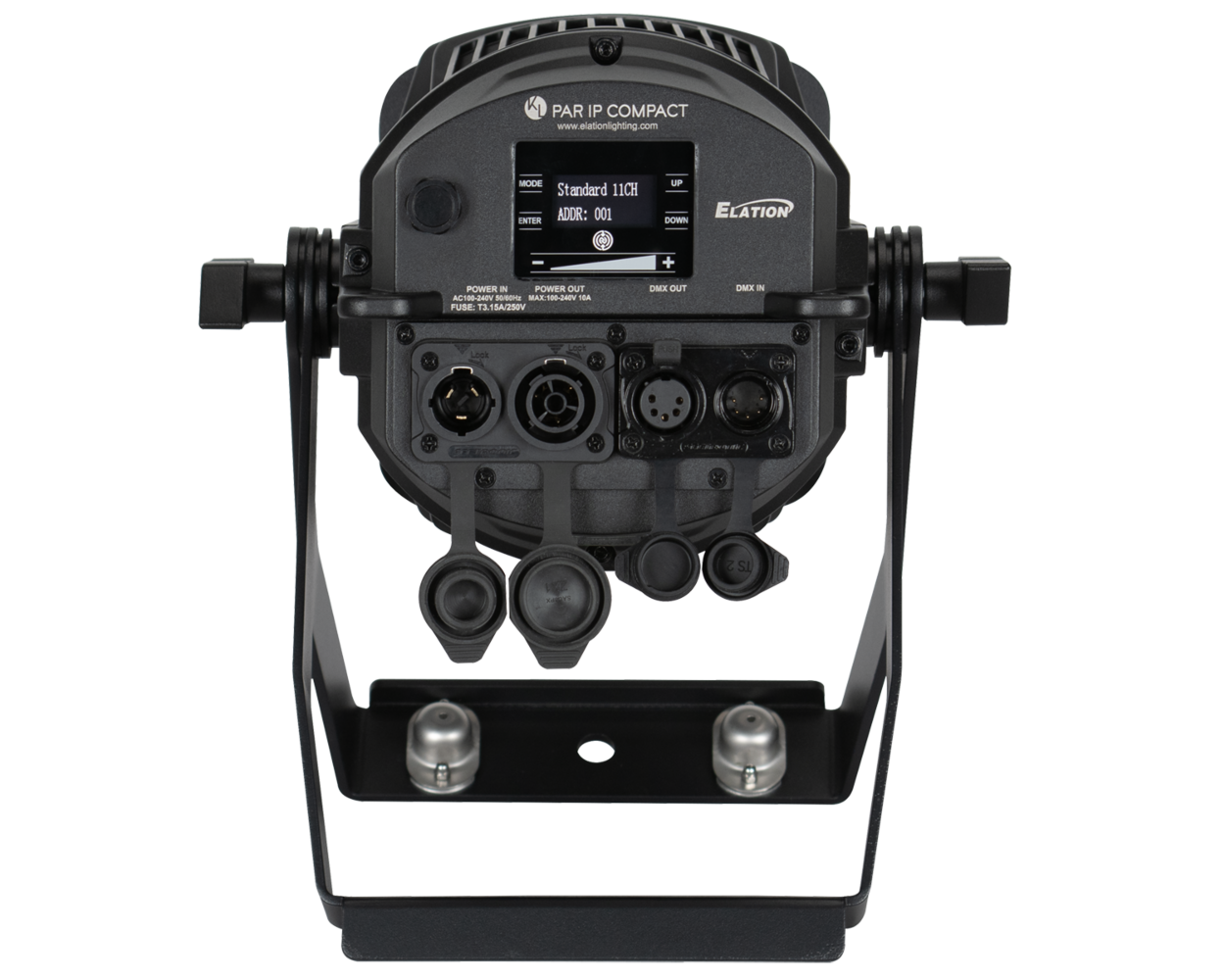

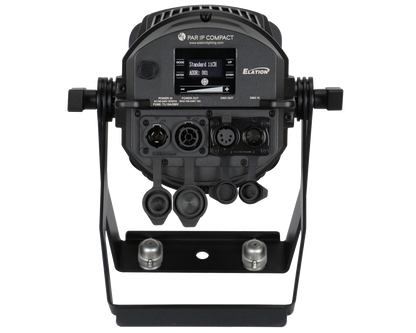

  • IP65 5pin DMX and IP65 Locking Power Cable In/Out
• SIZE / WEIGHT
  • Length: 7.2” (183mm)
  • Length (Yoke 0°): 14.25" (362mm)
  • Width: 10.1" (257mm)
  • Height (Fixture Body): 7.2" (183mm)
  • Height (Yoke 90°): 14.2" (361mm)
  • Weight: 12.1 lbs (5.5kg)
• ELECTRICAL / THERMAL
  • AC 100-240V - 50/60Hz
  • 200W Max Power Consumption
  • Power Thru Capacity: 10A (6 units @115V, 12 units @240V)
  • 5°F to 113°F (-15°C to 45°C)
  • BTU/hr (+/- 10%) 682

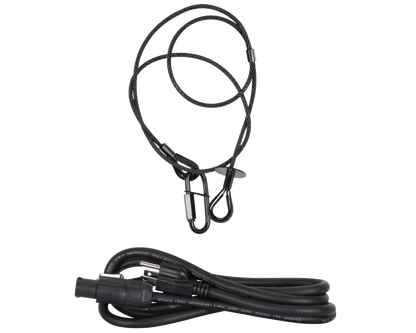

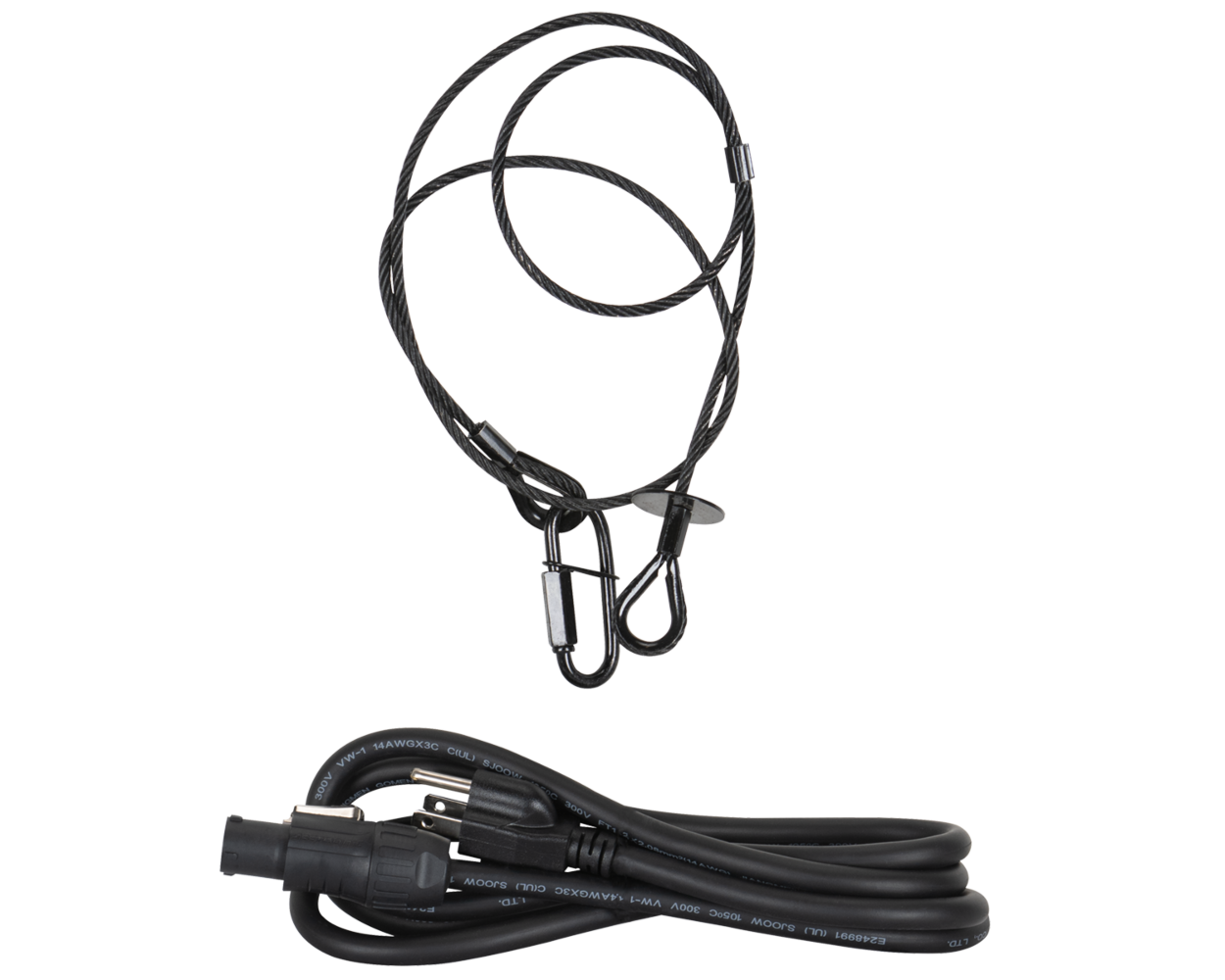

• INCLUDED ITEMS
  • Gel Frame
  • Safety Cable
  • 4 Lenses (10°, 22°, 30°, 55°)
  • IP65 Locking Power Cable
• OPTIONAL ITEMS
  • 6.25" Barndoors
  • Omega Bracket
  • 4 Wire Hardwire Installation Plate (HWP404)
  • 2 Wire Hardwire Installation Plate (HWP202)
• APPROVALS / RATINGS: CE | cETLus | IP65 | FCC | UKCA
