Sku:
KLP412
KL Profile FC
Regular price
$3,196.00
Regular price
Sale price
$3,196.00
Unit price
per
Shipping calculated at checkout.
Vendor: Elation Professional
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description

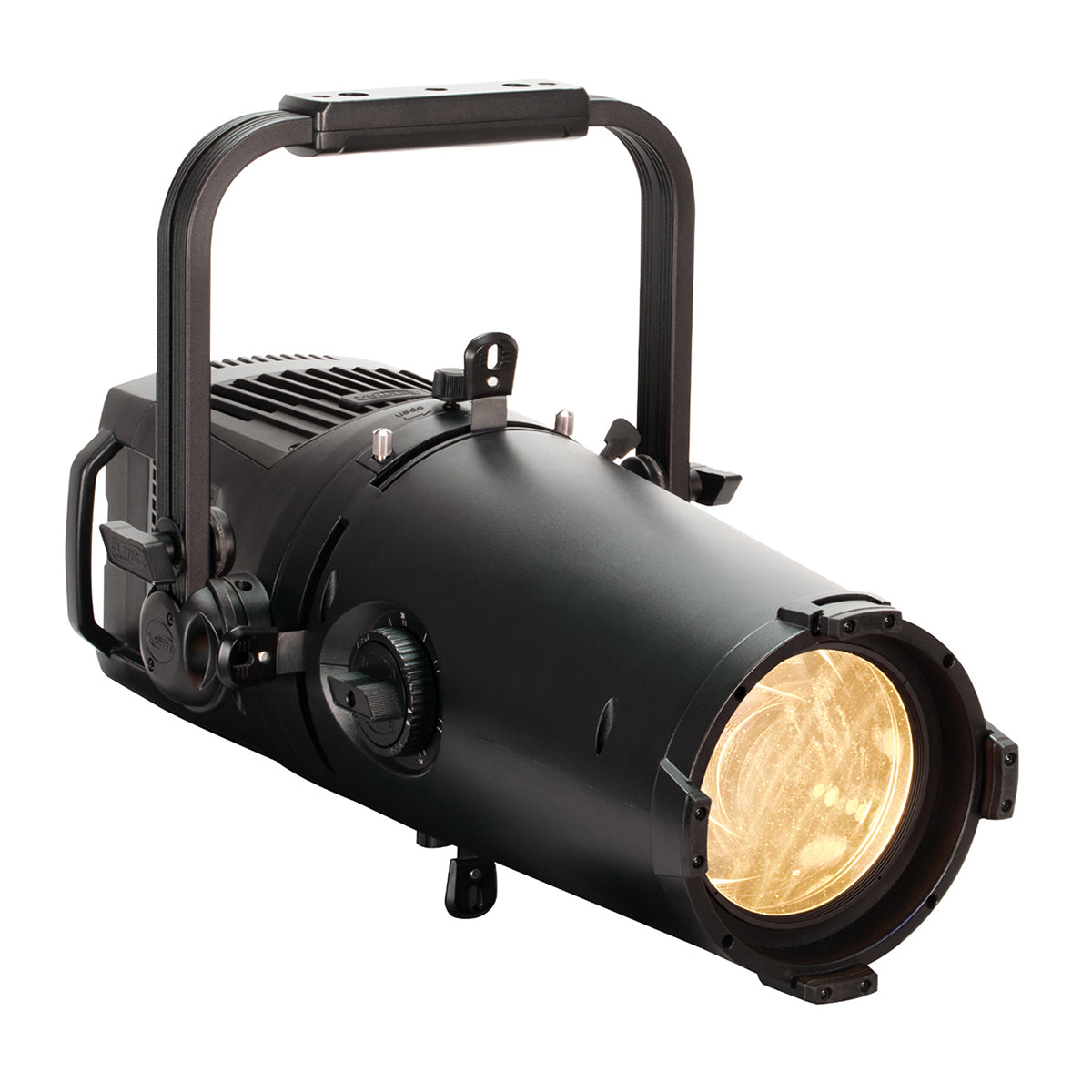

The KL Profile FC is really neat because it's a zoom-framing fixture for installations that offers a full color LED array, quiet cooling, and a set of built-in gobos that can rotate/change and be replaced.
There's a lot packed into this light, and it can be a perfect fit for situations where you'd park a moving light in one spot and change gobos and colors - like corporate events, installations, churches, retail, and more!
From the Manufacturer:
The KL PROFILE FC™ is a manual LED framing fixture designed for a wide array of precision lighting applications. With an integrated manual zoom range of 7 to 50 degrees the fixture requires no additional lens tubes, reducing cost, complexity and providing excellent flexibility for any theater, performance venue or show. The integrated manual Iris allows further beam control.
The 92 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources with a power of 305W. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of over 10,000 lumens. Virtual color temperature, Magenta / Green adjustment provide the designer with immediate access to the impressive LED color array. Exceptionally quiet, the fixture offers enhanced fan controls down to Elation’s Mute Mode which disables the internal cooling fan.
For ease of use, the fixture contains a 16bit rotating/indexing gobo slot and is shipped with the KL Profile Designer Gobo Set, containing 10 high resolution glass gobos. The gobo slot is easily accessible from the top of the fixture.
The optional Fresnel Lens Conversion Kit allows to utilize the fixture as a framing wash fixture while providing uniform appearance and fixture spacing.
The KL PROFILE FC is designed for any application where an ellipsoidal or wash fixture with outstanding and impactful color range and quality and a flexible zoom range is required.
The fixtures enhanced optical design and lens coatings ensure precise and razor-sharp projections, removing all unwanted color shifting and aberrations in all zoom, focus or framing positions.
The 92 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources with a power of 305W. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of over 10,000 lumens. Virtual color temperature, Magenta / Green adjustment provide the designer with immediate access to the impressive LED color array. Exceptionally quiet, the fixture offers enhanced fan controls down to Elation’s Mute Mode which disables the internal cooling fan.
For ease of use, the fixture contains a 16bit rotating/indexing gobo slot and is shipped with the KL Profile Designer Gobo Set, containing 10 high resolution glass gobos. The gobo slot is easily accessible from the top of the fixture.
The optional Fresnel Lens Conversion Kit allows to utilize the fixture as a framing wash fixture while providing uniform appearance and fixture spacing.
The KL PROFILE FC is designed for any application where an ellipsoidal or wash fixture with outstanding and impactful color range and quality and a flexible zoom range is required.
The fixtures enhanced optical design and lens coatings ensure precise and razor-sharp projections, removing all unwanted color shifting and aberrations in all zoom, focus or framing positions.
In the Box:
- (1) KL Profile FC
- (1) Locking Power Cable
- (10) Designer Gobos
- (1) Rotating Gobo Holder (installed)
- (1) 7.5" Gel Frame
Features:
- Light Source: 305W RGBMA LED
- Color Temperature: 2400K - 8500K
- CRI: 92
- Beam Angle: 7° - 50° Manual Zoom
- Dimming: Variable 16-bit Dimming Curve
- Refresh Rate: Variable
- Strobe: Variable
- Color: RGBMA Color Mixing
- Gobo: 1x 16bit Rotating Gobo
- Control Protocol: DMX, RDM
- Operating Modes: DMX, Standalone
- IP Grade: IP20
Tech Specs
Optics:
Light Source Type: RGBMA
Light Source Wattage: 305w
Minimum Beam Angle: 7.0°
Maximum Beam Angle: 50.0°
Control
DMX Channel Modes: 1/5/12/21) CMY(10/17) RGB(10/17
DMX 3-Pin Connectors?: No
DMX 5-Pin Connectors?: Yes
Physical:
Length: 25.11 in
Width: 15.35 in
Height: 18.35 in
Weight: 35.2 lb
Electrical
Voltage Range: 100 - 240 VAC 50/60Hz
Maximum Wattage: 358w
Power Cable Connector - Fixture Side: PowerCON True1
Main Power Connector on Included Cable: Edison
Warranty
Warranty: 2 Years
