Sku: LCU-1S

LCU-1S Smart Liquid Control Unit

Name: LCU-1S Smart Liquid Control Unit
Brand: Antari
SKU: LCU-1S
Price: 399.00 USD
Availability: InStock

$399.00

Sold out

Shipping calculated at checkout.

Vendor: Antari

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

Quantity

Description

From the Manufacturer:

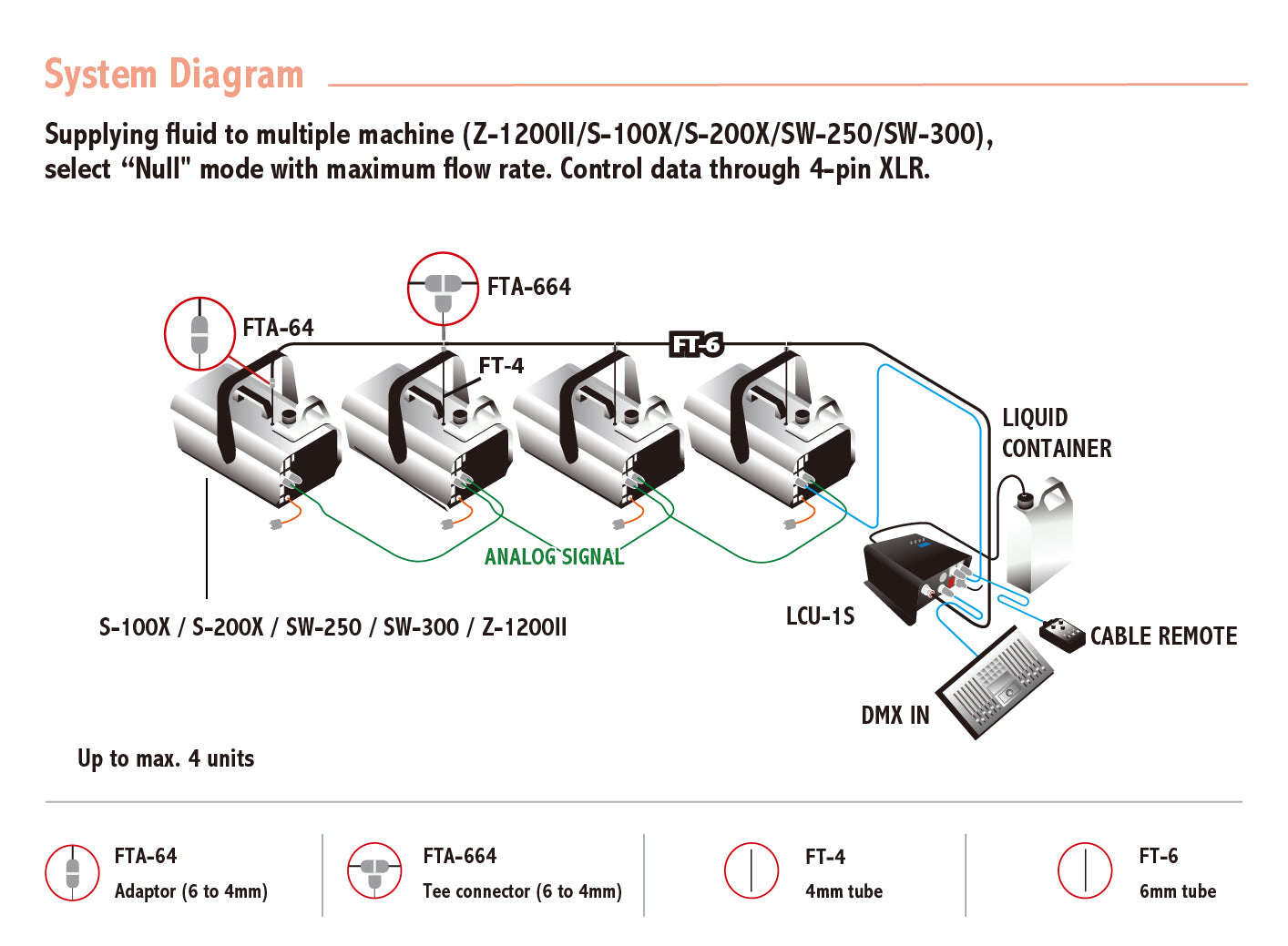

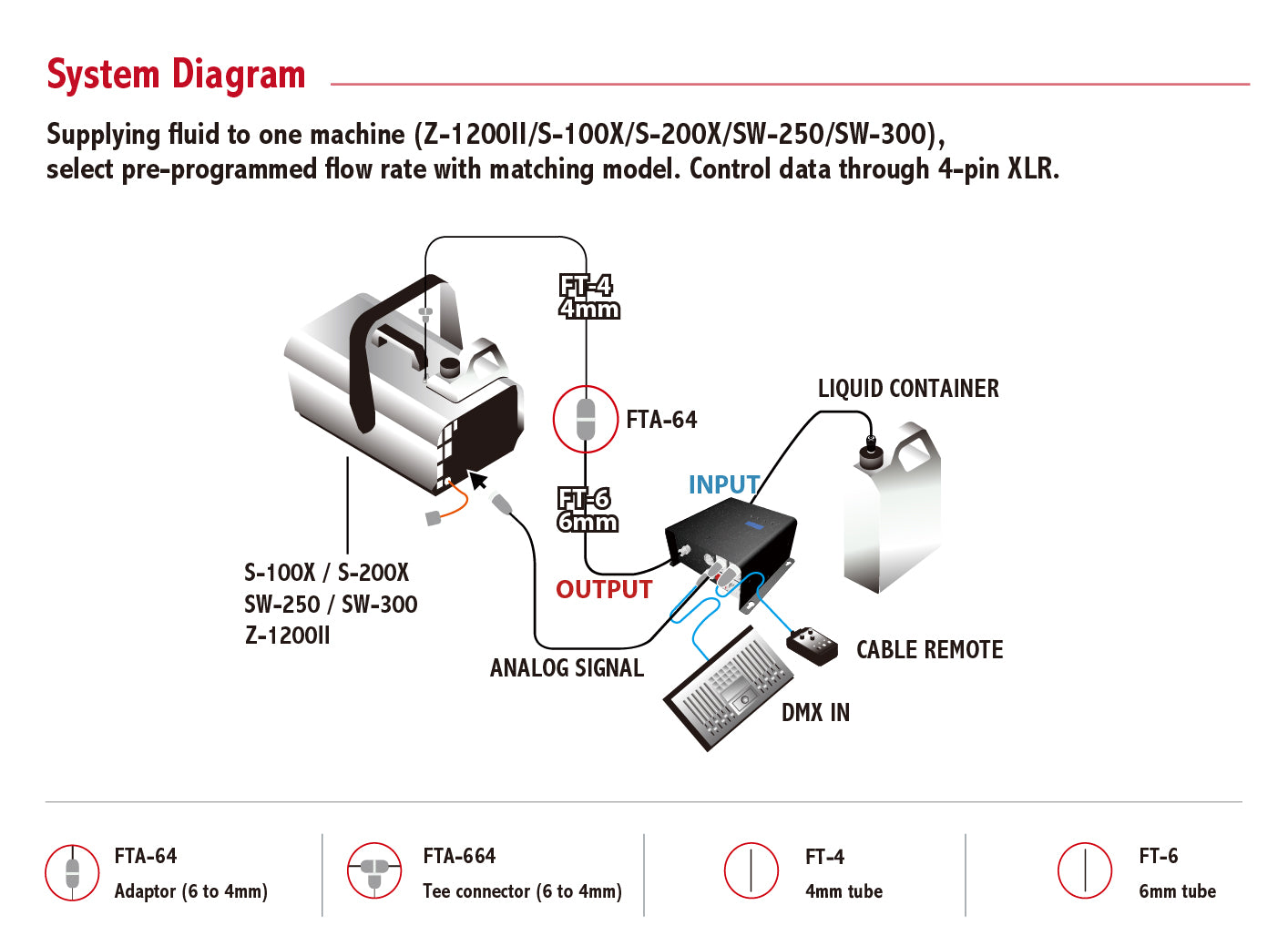

LCU-1S is preprogrammed for use with Z-1200II, S-100X, S-200X and SW-250, flow rate are adjusted to supply one unit at the time. An optional “Null” mode offers versatility for use with any model, running the pump at 100% output; enable it to supply up to maximum 4 units at a time.

LCU-1S can supply fluid to 35 meters long or 25 meters high at maximum, designed to meet most remote fluid supply application.

In the Box:

Features:

Fluid Consumption: 400 ml/min
Compatible Models: Z-1200II, S-100X, S-200X and SW-250
Compatible Fluids: Antari
Control Protocol: Manual, Timer, DMX

Tech Specs

Control

DMX Channel Modes: 1

DMX 3-Pin Connectors?: Yes

DMX 5-Pin Connectors?: No

Physical:

Length: 7.99 in

Width: 7.05 in

Height: 3.78 in

Weight: 7.28 lb

Electrical

Voltage Range: 100-120 VAC 50/60Hz

Maximum Wattage: 40w

Power Cable Connector - Fixture Side: IEC

Main Power Connector on Included Cable: Edison

Warranty

Warranty: 2 Years
