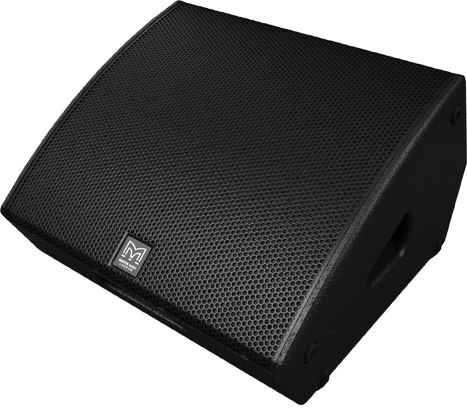

LE100 2-Way Passive Coaxial Stage Monitor, 12" LF, 1" Exit HF

The LE100 is a coaxial passive stage monitor. It is a great option for providing on stage sound to live performers.

From the Manufacturer:

The LE100 is an extremely compact, two-way passive monitor. It features a 12” (300mm) LF /1” (25mm) exit HF Coaxial Differential Dispersion driver to distribute sound evenly over the listening plane. The LF driver section has a 2.5” (65mm) voice coil and an efficient motor system with an aluminium demodulating ring to minimise distortion. The coaxial HF driver utilises a 1.75” (44mm) polyimide dome and features a low-compression phase-plug to reduce non-linearity associated with overly-high compression ratios.

Features:

• Compact, two-way stage monitor

• Coaxial ‘point-source’ performance

• Differential Dispersion™ technology for consistent coverage

• Defined, near-rectangular coverage plane at head-height

• Low-profile plywood enclosure

• Integral pole-mount with removable bung

• M8 rigging inserts

• Multiple connectors for flexible deployment

Applications:

• Stage monitor

• Pole-mounted fill/PA system

Specifications:

• Type

• Two-way passive, Coaxial Differential Dispersion stage monitor

• Frequency Response

• 78Hz-20kHz ± 3dB,

• -10dB @ 58Hz

• Drivers

• LF: 12” (300mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor system with HF

• HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver

• Rated Power

• 300W AES, 1200W peak

• Sensitivity

• 97dB

• Maximum SPL

• 129dB peak

• Nominal Impedance

• 8Ω

• Dispersion (-6dB)

• 110°-60° horizontal, 60° vertical

• Crossover

• 1.6kHz passive

• Enclosure

• Birch/poplar ply

• Finish

• Black textured paint

• Protective Grille

• Black perforated steel with scrim cloth backing

• Baffle Angle

• 27˚

• Connectors

• 5 x NL4 type

• PIN Connections

• 1+/1-

• Fittings

• 2 x pocket handles

• Protective rubber feet on base and sides

• 4 x M8 inserts

• Pole-mount socket

• Dimensions

• (W) 490mm x (H) 302mm x (D) 472mm

• (W) 19.3ins x (H) 11.9ins x (D) 18.6ins

• Dimensions  INCL Feet

• (W) 496mm x (H) 305mm x (D) 472mm

• (W) 19.5ins x (H) 12.0ins x (D) 18.6ins

• Weight

• 18kg

• 39.7lbs
