LIGHT PIPE, 90 DEGREE CURVE, 2FT RADIUS

The Mega-Lite 90-degree curved light pipe brings a whole new creative aspect to lighting installations, indoor or outdoor.

From the Manufacturer:

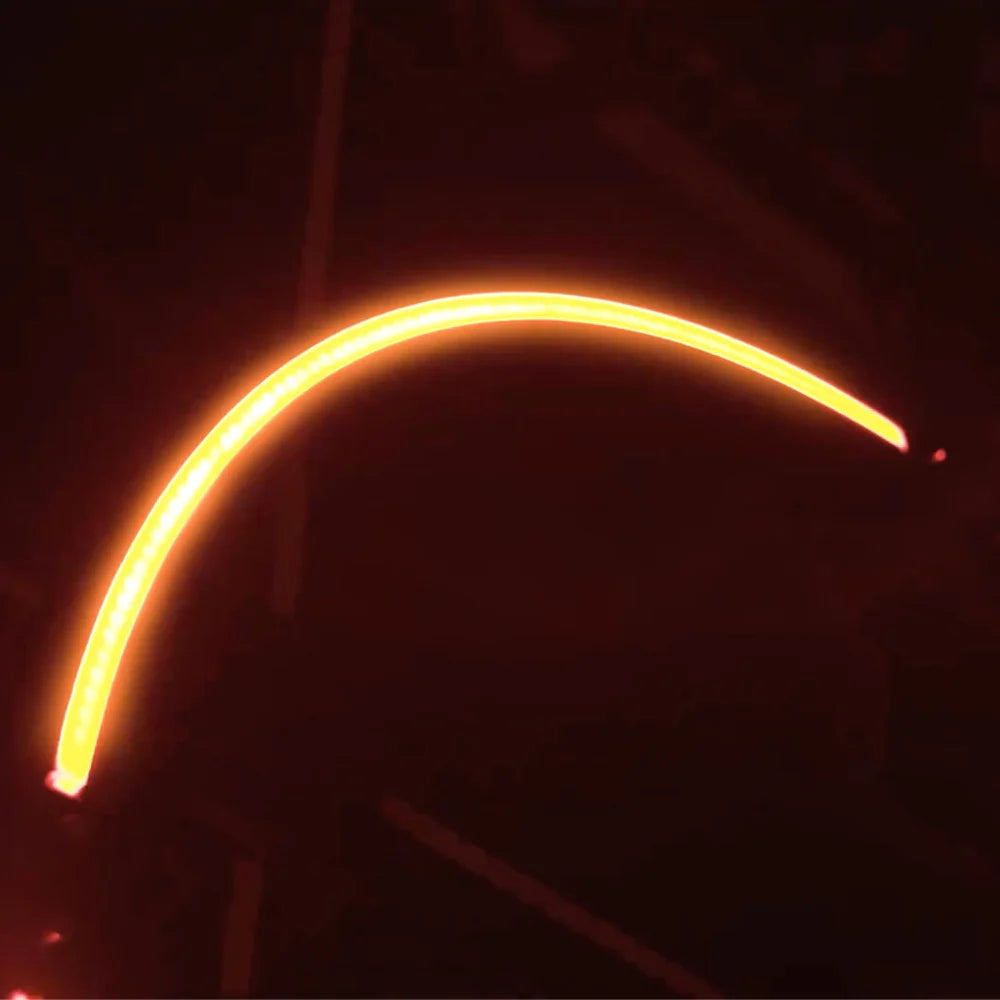

The Mega-Lite Light Pipe 90 is a structural 90-degree curved pipe that brings a mesmerizing glow to your installations. This innovative product combines functionality with an eye-catching aesthetic, its IP-65 rating makes it perfect for both indoor and outdoor applications. With a range of sizes available (2ft, 3ft, 4ft, and 5ft), the Light Pipe 90 offers versatility without compromising on simplicity.

This unit is constructed using high-quality metal anodized in black, ensuring durability and longevity. This versatile product opens up a world of creative possibilities. Use it to enhance architectural features, illuminate walkways, accentuate landscape designs, or create captivating visual displays.

Features:

• Anodized and powder-coated: This unit is constructed using high‑quality metal anodized in black and then powder‑ coated in black, ensuring durability and longevity. Its robust design guarantees reliable performance in various environments.
• Tetra Color: Designed to deliver bright and vibrant lighting, the Light Pipe is equipped with the Tetra Color system, a four color system using RGB and a Warm White. The 3000 Kelvin color temperature provides flexibility in creating a warm ambiance.
• IP Rated: With an IP‑65 rating, this unit can be installed indoors and/or outdoors to provide you the versatility you need.

Specifications:

• Radius: 2ft
• IP Rating꞉ 65
• LED Spacing꞉ .46'’ (11.9mm)
• LED Wattage꞉ .19w each
• LED Type꞉ SMD 5050 Red, Green, Blue and Warm White
• Color Temperature on WW꞉ 3000K Warm White
• Housing꞉ Aluminum
• Lens Angle꞉ 120°
• Operating Temperature꞉ 130° F
• Housing Coating꞉ Anodized Black & Powder Coated Black
• Fastening System꞉ Conical System
• Power Connection꞉ 5 Connector
• 5-Pin XLR Seetronics: SCWM5‑B‑67 for Input, SCWF5‑B‑67 for Output
• Voltage꞉ DC 24V Constant Voltage
• Power Consumption: 49 Watts
• Connection: RJ45 In and Out
• Channel Modes꞉ 3 Channel, 4 Channel, or 7 Channel
• Driver Compatibility꞉ Light Pipe Driver 4, Light Pipe Driver 16
