Sku: LLP301

Limelight Par S

Regular price
$995.00
Regular price
Sale price
$995.00
Shipping calculated at checkout.
Vendor: Elation Professional

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

A fixture that can be used indoors and outdoors, that is equipped with an efficient zoom lens and has a magnificent quality of color output with the RGBL engine.

Don't underestimate this compact fixture as it outputs 4200 lumens and has a zoom range of 5° to 42°.

From the Manufacturer:

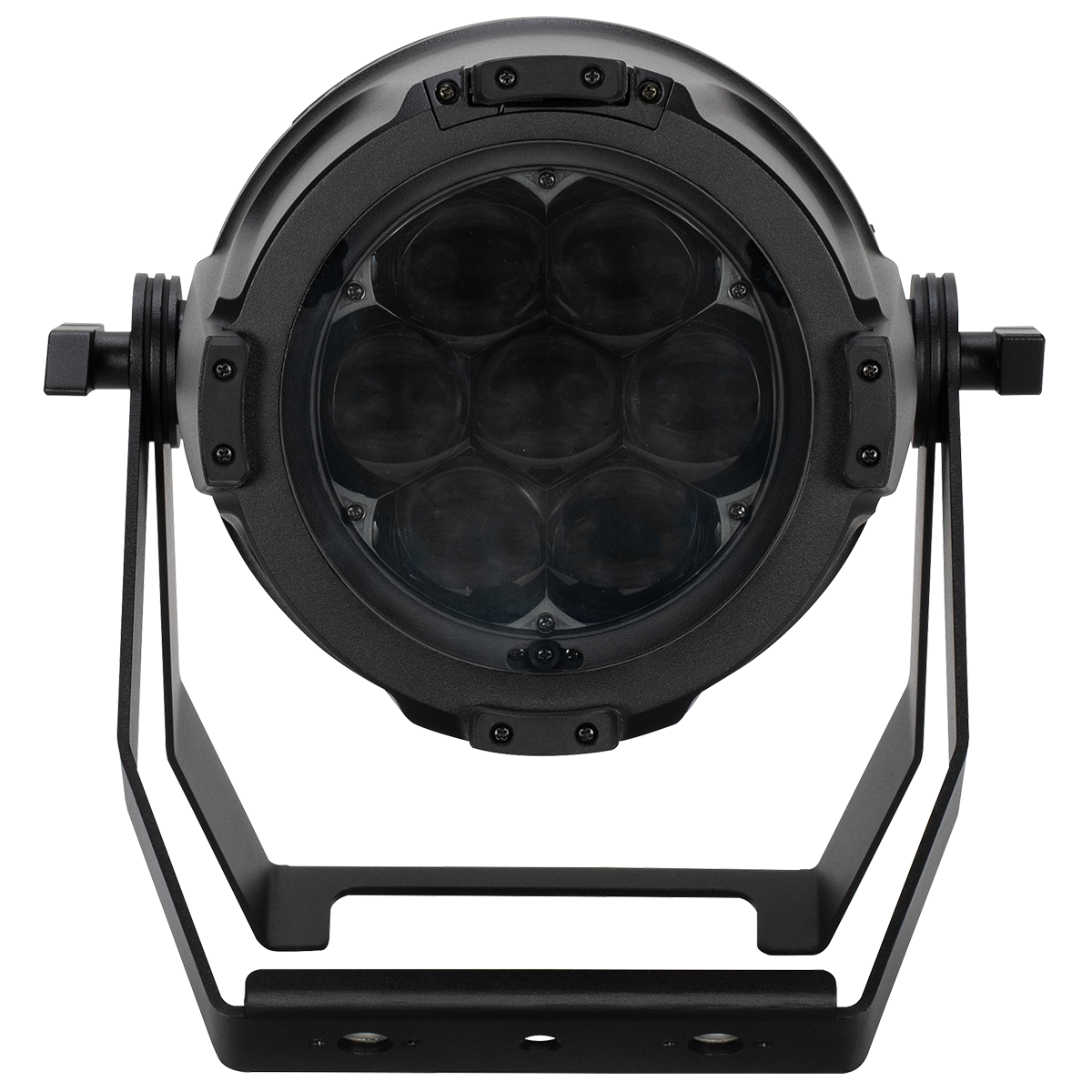

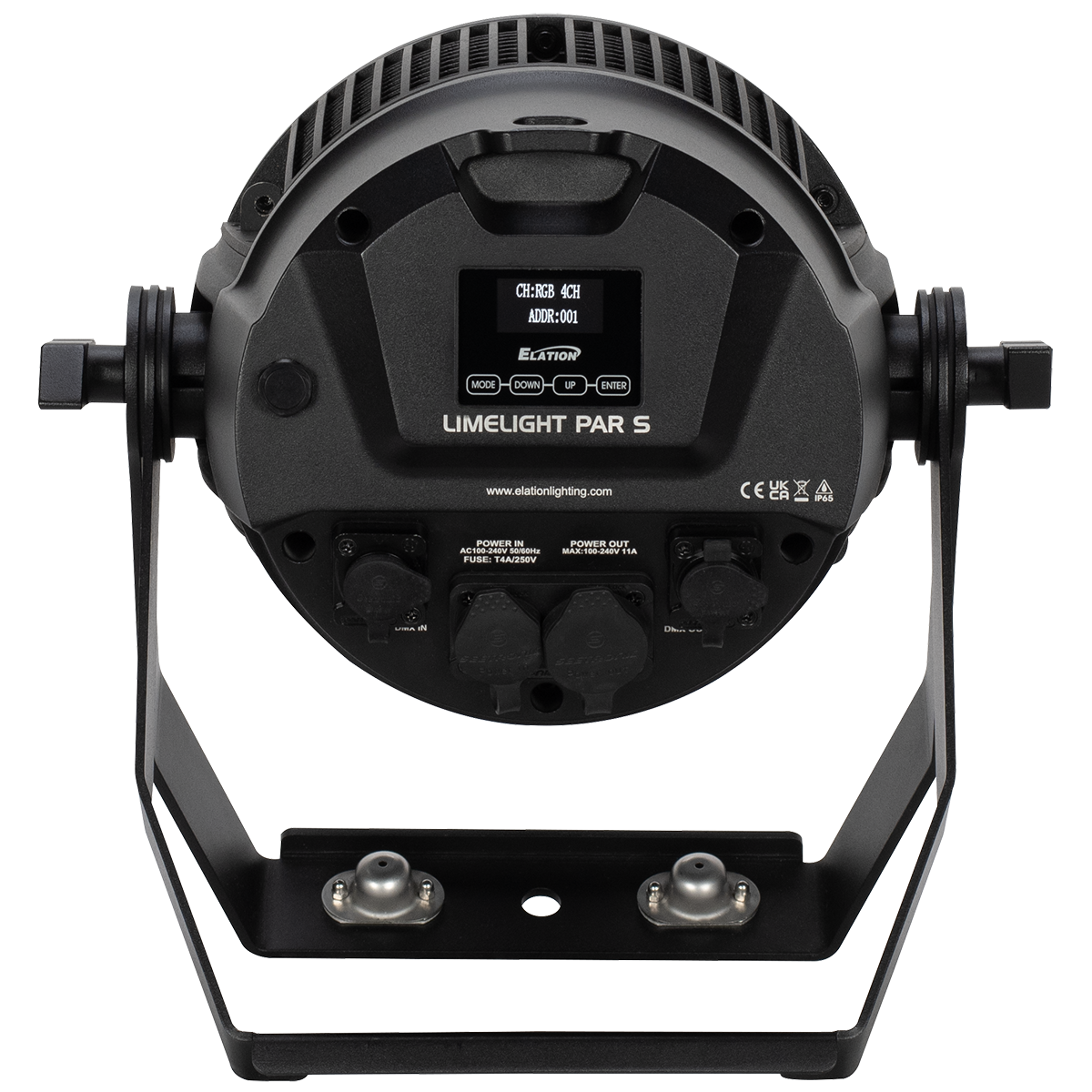

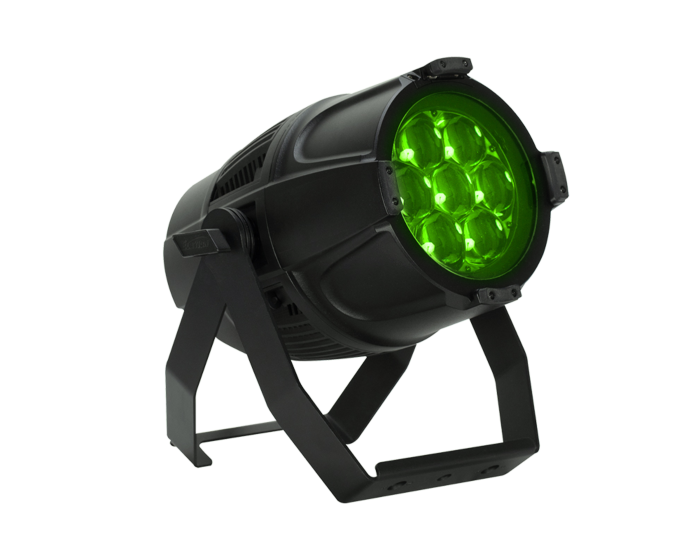

The Limelight Par S is a compact and robust LED fixture that offers a high quality of light and high output with its RGBL engine and efficient zoom lens optic. Its IP65 rating allows it to be used in any environment, indoors or out.

The Limelight Par S engine features (7) 60W RGBL LED’s, capable of producing 4200 lumens, provides high output for saturated colour mixing, and the wide colour spectrum and high CRI needed for the quality of light that key and fill light applications require. The newly designed optical system allows for a highly homogenized output with even colour and light distribution throughout the beam. The fixture also features a wide zoom range from 5° to 42°. The smooth and responsive effect provides a well-defined narrow beam for mid-air effects and long throw distances as well as a wide and even wash coverage at shorter distances. The LEDs can be controlled in two separate zones for additional eye candy effects.

To expand the control capabilities on the LIMELIGHT PAR S, precise colour temperature control via a dedicated variable CCT control channel has been integrated. A CMY emulation mode has also been added for users that are more familiar with that colour mixing system. Furthermore, an integrated library of calibrated colour presets that match the most popular gel filters has been included.

The IP65 housing includes an integrated gel frame holder that can accommodate industry standard 7.5” accessories. The dual yoke design allows the fixture to be mounted on the floor or it can be easily rigged to hang with a c-clamp or by using the included omega bracket receiver.

The Limelight Par S is the ideal solution for Touring Applications, Theme Parks, Live Events, Theater, Houses of Worship and Cruise ships.

Features:

  • (7) 60W RGBL LED Array
  • 4200 Lumens, (TBD) CRI
  • 5°- 42° Beam Angle
  • Smooth 16-bit Selectable Dimming Modes and Curves
  • Remote LED Refresh Rate
  • Flicker Free Operation for TV and Film
  • 7.5” Accessory Holder
  • IP65 Rated

EFFECTS

  • Dual Zone LED Control
  • Electronic Dimmer and Strobe
  • Variable 16-bit Dimming Modes and Curves

Photometric Data:

  • 4200 Total Lumen Output
  • CRI - TBD
  • TLCI - TBD
  • Zoom Range 5° - 42°
  • Beam Angle: 5° - 42°
  • Field Angle: 8° - 60°

Colour:

  • RGBL Colour Array
  • CMY Emulation
  • Variable CCT 2700K - 8500K
  • Virtual Gel Swatch Book

Control / Connections:

  • 7 DMX Channel Modes (4ch/13ch/16ch/14ch/18ch/18ch/26ch)
  • Manual and DMX Controlled Dimmer and Colour
  • 4 Button Control Panel, LED Display
  • Aria x2 Wireless Device Management
  • RDM (Remote Device Management)
  • 5pin DMX and IP65 Locking Power Cable In/Out

In the Box:

  • IP65 Locking Power Cable
  • Safety Cable

Optional Items:

  • 7.5" Gel Frame
  • 7.5" Black Barndoor

Approvals / Ratings:

CE | cETLus(pend) | UL | IP65c| FCC | UKCA

Tech Specs

Optics:

Light Source Type: RGBL

Light Source Wattage: 7x60w

Minimum Beam Angle: 5.0°

Maximum Beam Angle: 42.0°

Control

DMX Channel Modes: (4/13/16/14/18/18/26

DMX 3-Pin Connectors?: No

DMX 5-Pin Connectors?: Yes

Physical:

Length: 12.5 in

Width: 8.8 in

Height: 16.5 in

Weight: 18.74 lb

Electrical

Voltage Range: AC 100-240V - 50/60Hz

Maximum Wattage: 332w

Main Power Connector on Included Cable: IP65 Locking Power Cable In/Out
