Long Range Ready2Run Genius Controller (Genius LR)

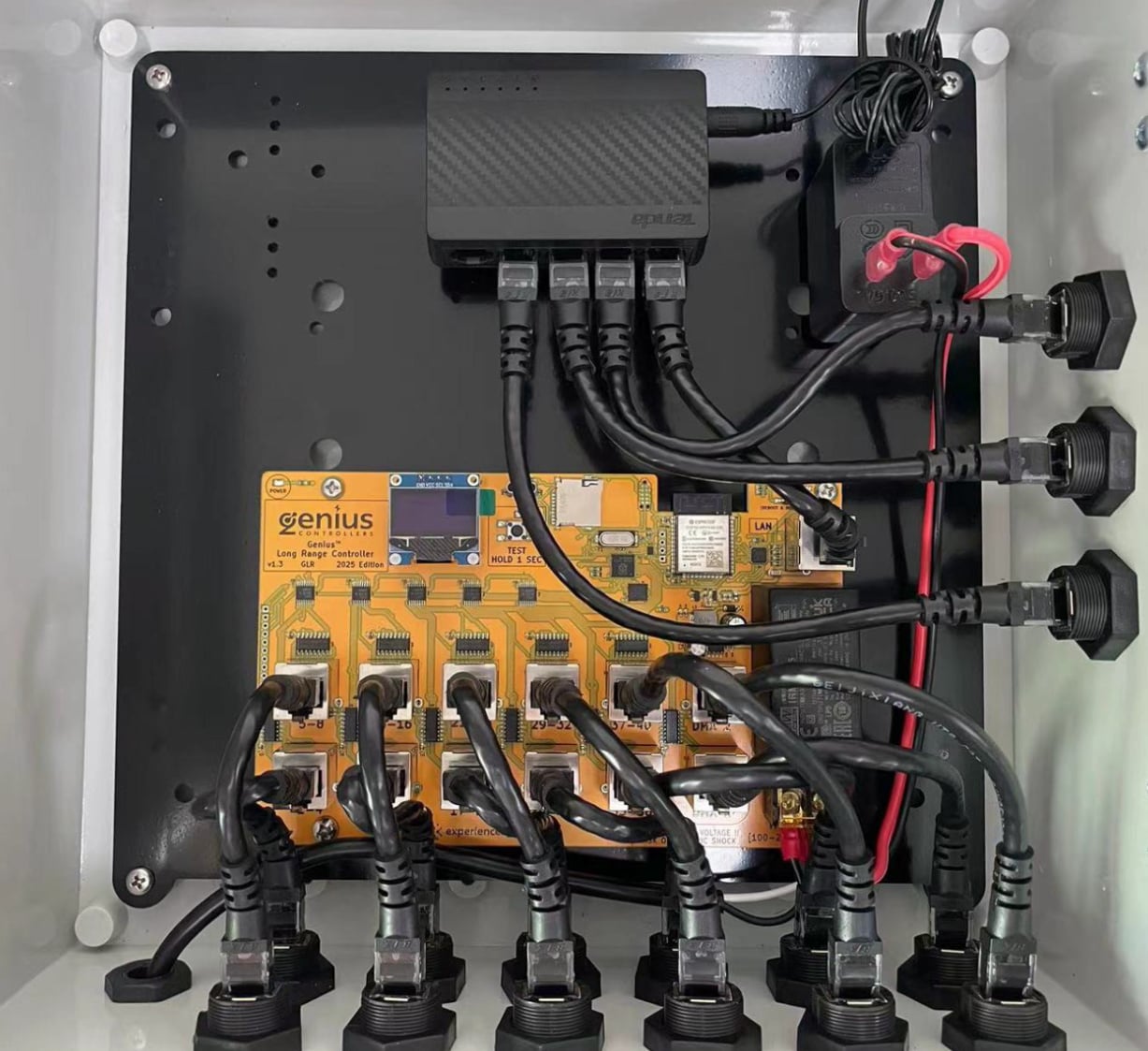

The Experience Lights Genius Long-range Pixel Controller makes setting up your light display easy to configure and simple to assemble with its built-in power supply.  These are fully-built, controllers in a weatherproof box, ready to run!

From the Manufacturer:

The new Genius Long Range Pixel Controller makes things easier than ever with a built in 5V 3A Mean Well power supply. This saves you time and money when putting together your enclosure.

Features:

• 2024 Edition Updates:
  • RJ45 jacks changed from plastic to stronger Metal RJ45.
  • USB jack changed from USB Micro to USB-C
  • Backside of AC connections covered in thick protective layer.
• Built in 5V 3A Mean Well Power supply.  Hooks up directly to high voltage power.
• 1 Ethernet Port

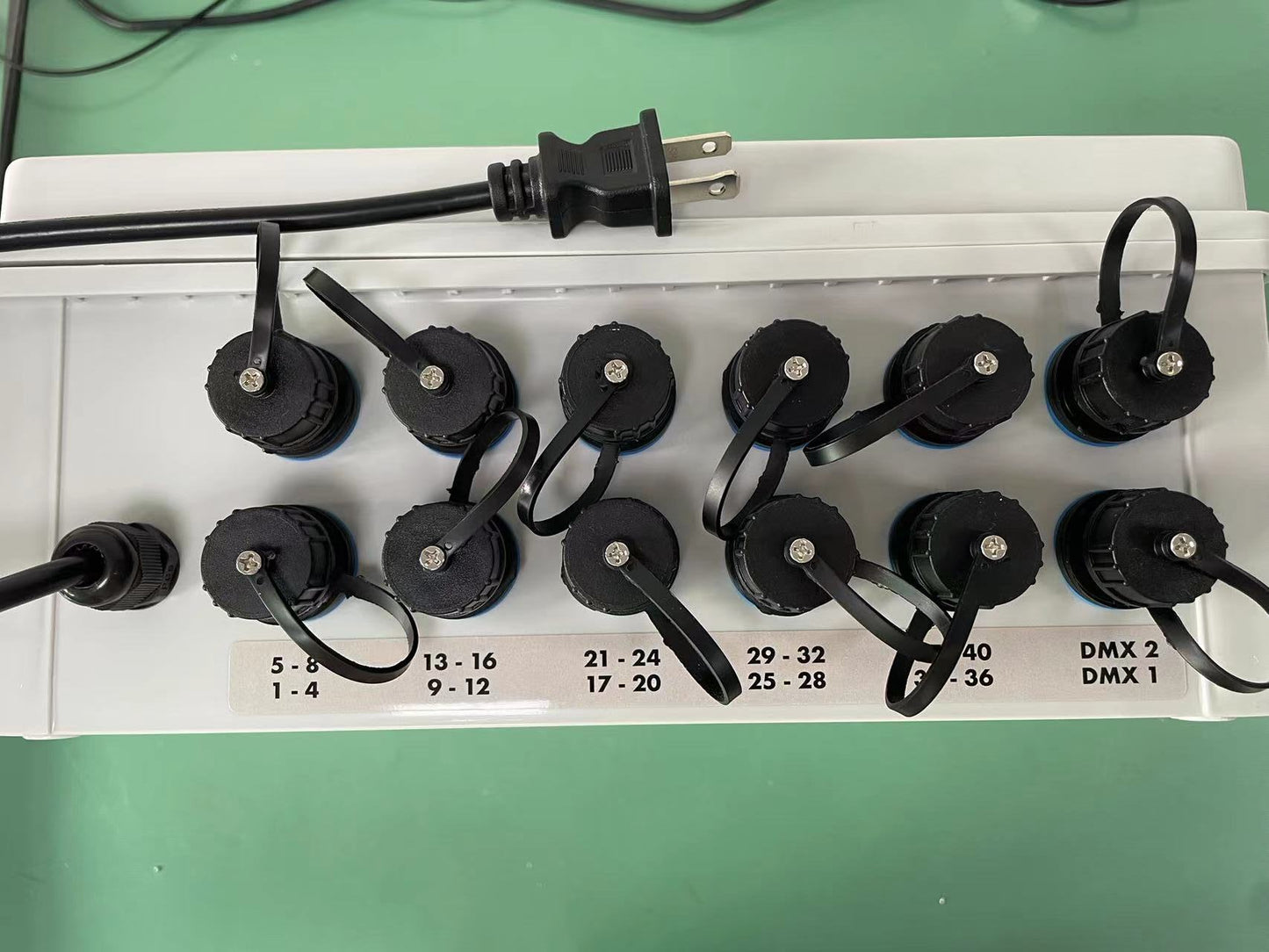

• 10 x RJ45 ports for long range receivers (WS281X differential signals only)
• 2 x RJ45 ports for DMX output
• Supported protocols: DDP, E1.31, ArtNet
• Configuration can be done via your smartphone, tablet or PC over a wifi or wired connection
• SD card slot for standalone operation or to operate as FPP remote.
• Simple & fast over-the-air updates; with ability to easily roll back to previous firmware versions
• Rich JSON API
• Built-in test mode animations
• Seamlessly control up to ~10,000 pixels using E1.31/ArtNet, or ~20,000 pixels using DDP.
• No banks or groups.  Pixels can be distributed however you'd like on any outputs, with any number of pixels assigned to each port.
• Works with xLights, Light-O-Rama, Vixen, and stage lighting apps like ELM, Madrix, Resolume and more!

User Manual

Find our Ready2Run User Manual here: https://www.dropbox.com/scl/fi/lnksgcai9pqc3kpskpyzk/Genius-Ready-To-Run-User-Manual_.pdf?rlkey=exdpmo67vls0rg9h8t5fyxeqj&dl=0

This manual contains instructions particular to the Ready2Run itself, refer to the Genius User Manual from Experience Lights for all other instructions.

Firmware Updates

For a demonstration of the firmware update process, check out this video: https://www.youtube.com/watch?v=xJCJddnTn1U

Instructions
https://experiencelights.com/firmware

Master Genius Firmware List
https://docs.google.com/spreadsheets/d/1EpIc1IoBcz8VZ_v9NqO6HwNh3JkDPr5gPylhlOVwKck/edit?usp=sharing
