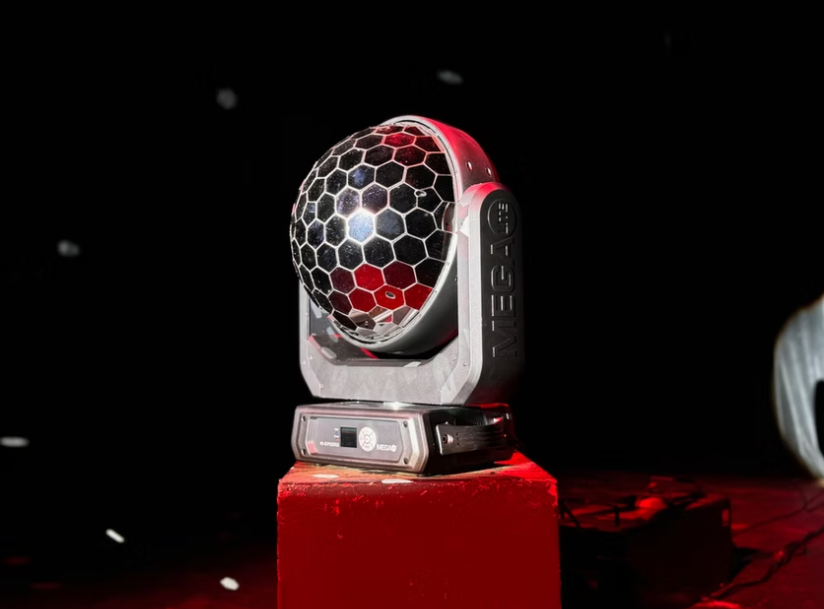

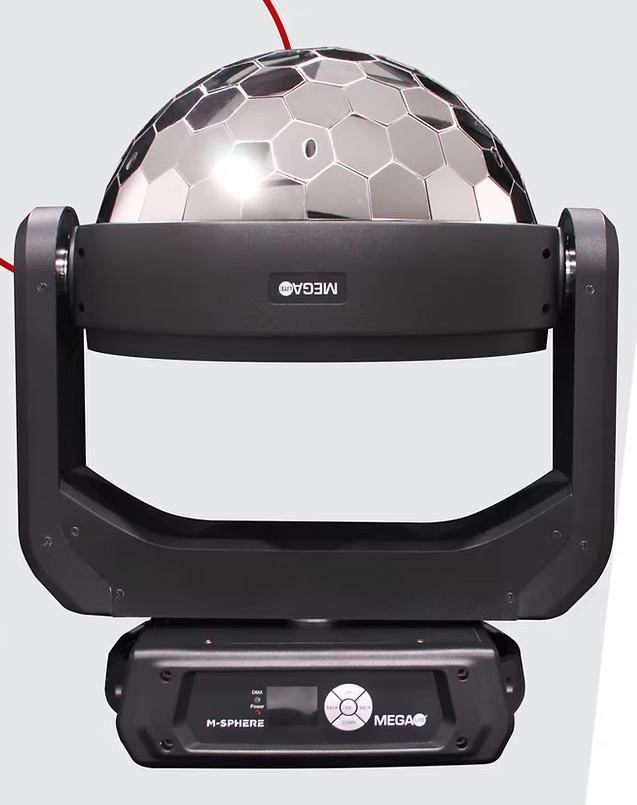

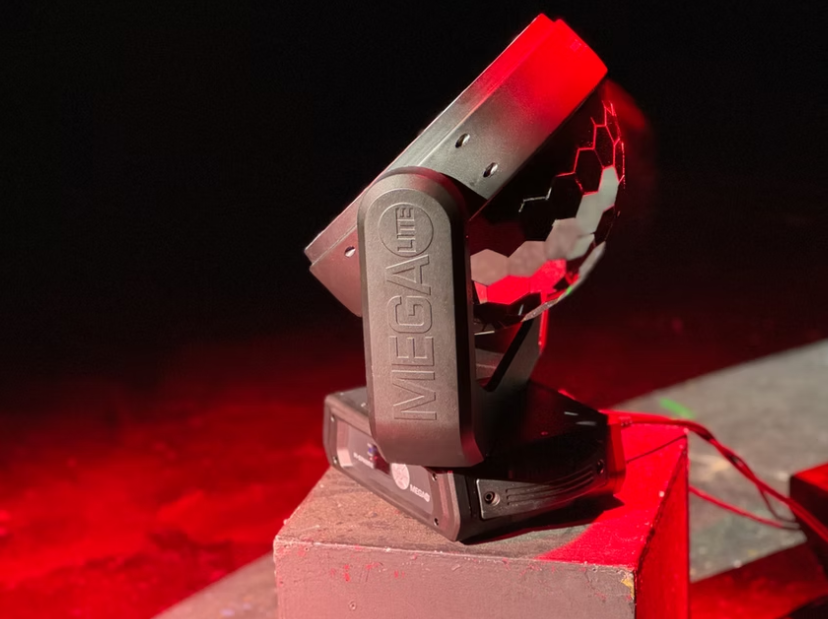

M-Sphere

The M-Sphere is a rotating mirror type fixture. It has a flat beam reflecting face and a rotating half mirror ball.

From the Manufacturer:

The M-sphere: our advanced moving head mirror fixture, featuring a flat beam reflecting mirror on one side and a rotating half mirror ball on the other. This combination, along with its continuous rotation capability, produces a multitude of unique lighting effects.

Specifications:

• Housing:

• High Temp, Low flammability, Plastic

• Fastening System:

• 2 Quick Release Clamp Mounts

• Power Connection:

• Input: Seetronics SAC3MPX

• Output: Seetronics SAC3FX

• Cable: Seetronics SAC3FX to Nema 5/15

• Signal Connection:

• 3 and 5 Pin XLR In and Out

• Pan Movement:

• 560 Degree Pan with Infinity Pan Rotation

• Tilt Movement:

• 360 Degree Tilt with Infinity Tilt Rotation

• Mirror Ball Rotation:

• Infinity Mirror Ball Rotation in 2 directions,

• Large Hexagon Reflectors:

• 101 Large Hexagon high polished metal reflectors

• Large Mirror:

• 13” high polished metal reflector

• Power Link:

• 60 units@110V 20 Amps

• Light Source:

• 62 X .25W RGB

• Signal Support:

• DMX 512, RDM

• Power:

• Electronic 100-240V AC 50/60

• Power Consumption:

• 28 Watts / .25 Amps @110V

• Protocol:

• DMX 512

• Channel Modes:

• 18 Channel Mode

• 66 Channel Mode W/pixel control

• Operating Mode:

• Programmable single scene via manual memory settings Settings Via Display
