Sku: MA4011702

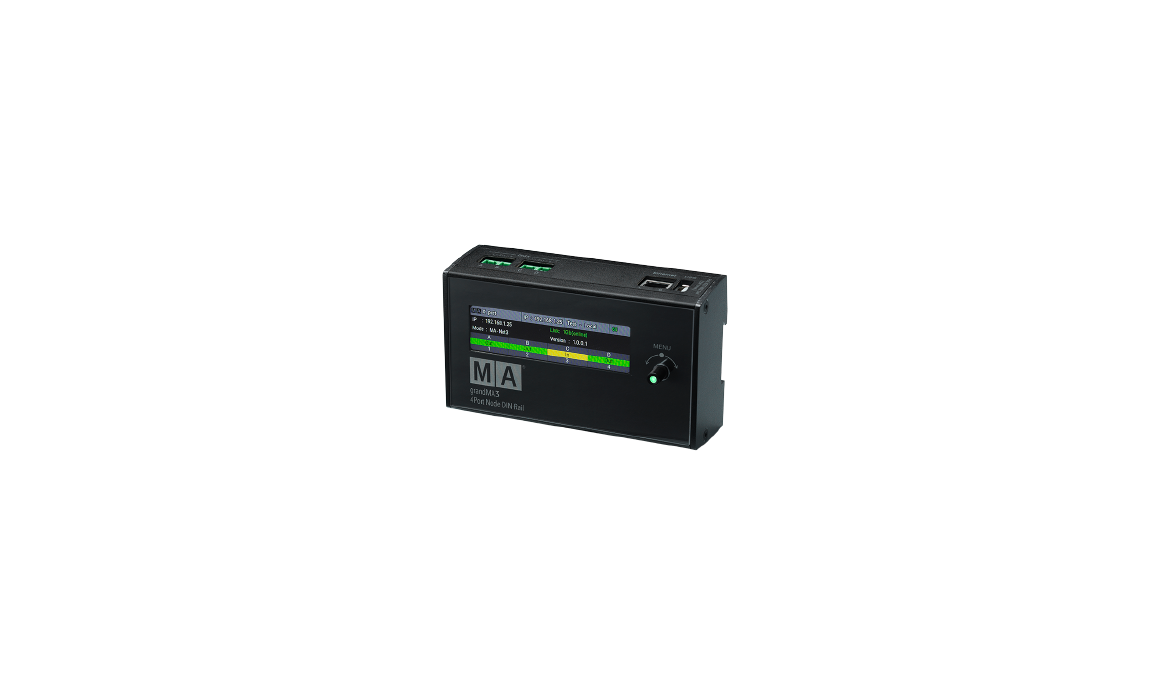

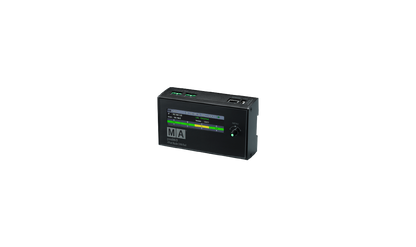

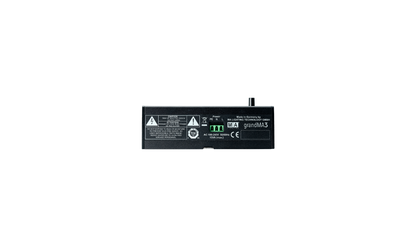

MA grandMA3 4Port Node DIN-Rail

$2,682.50
$2,682.50
Sold out
Shipping calculated at checkout.
Vendor: MA Lighting

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • USDC
  • Visa

Description

Caret Down

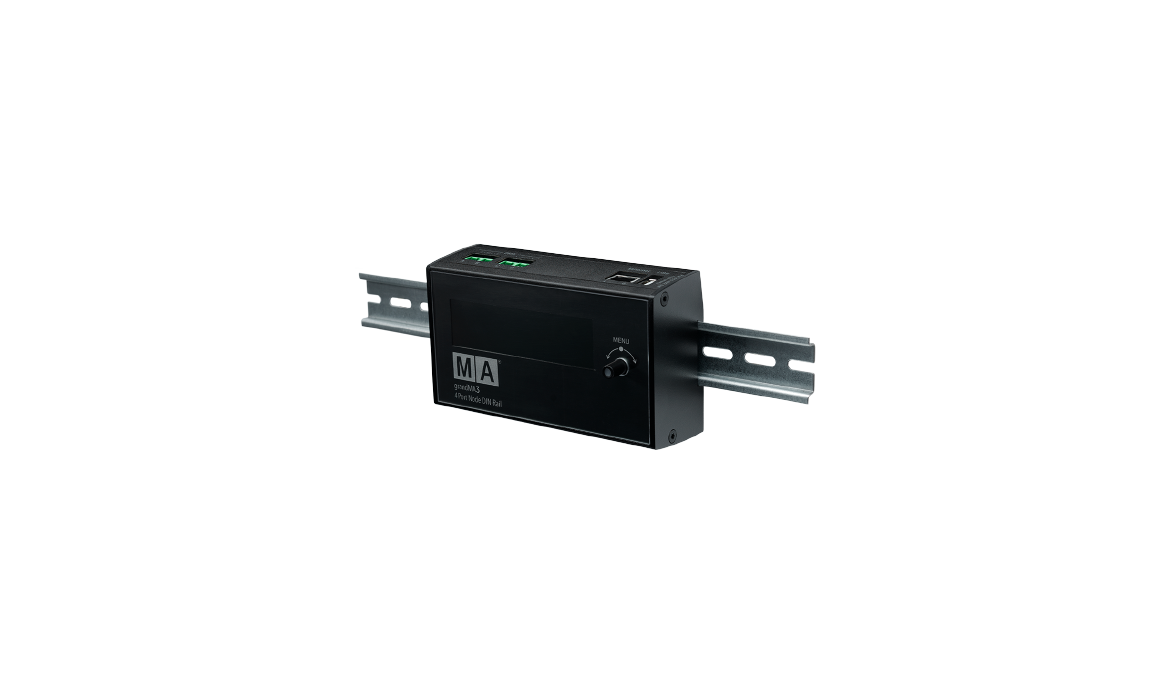

The MA Lighting grandMA3 4Port Node DIN-Rail is a compact, PoE-powered DMX distribution node for fixed installations.

From the Manufacturer

The grandMA3 4Port Node DIN-Rail is the installation allrounder within MA Lighting´s range of Nodes. It ensures optimal DMX distribution in any theatre, television, or house of worship installation. For venues that need DMX lines in many different places, the grandMA3 4Port Node DIN-Rail is the ideal solution.

The grandMA3 4Port Node DIN-Rail synchronously outputs four DMX universes from any grandMA3 session and can be entirely powered by PoE (Power over Ethernet). It is perfectly suited for any kind of fixed installation due to its modern and easy-to-mount DIN rail housing design.

To ensure optimal performance, the Node is equipped with a high-performance processor and a 1 Gb/s Ethernet connection, guaranteeing reliable and stable Ethernet to DMX (and vice versa) conversion. It is remotely configurable from any grandMA3 console or onPC station within the network. The Node is capable of handling MA-Net3, MA-Net2, sACN, and Art-Net data and is fully RDM compliant. A 3.9" color display on the front face allows for simple configuration and a quick status overview.

Features

  • Synchronously outputs four DMX universes from any grandMA3 session
  • Can be entirely powered by PoE (Power over Ethernet)

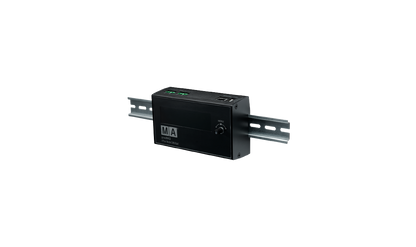

  • Modern, easy-to-mount DIN rail housing design ideal for fixed installations
  • High-performance processor with 1 Gb/s Ethernet connection for reliable, stable Ethernet-to-DMX (and vice versa) conversion
  • Remotely configurable from any grandMA3 console or onPC station within the network
  • Handles MA-Net3, MA-Net2, sACN, and Art-Net data
  • Fully RDM compliant

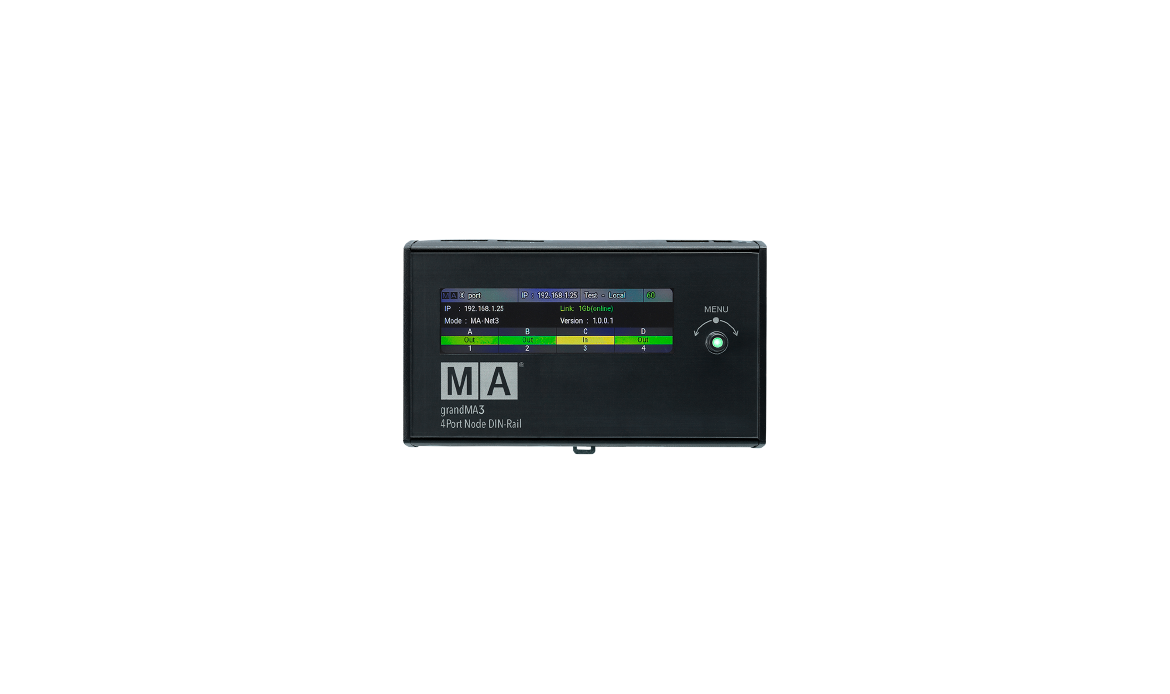

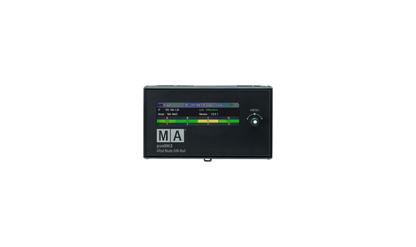

  • 3.9" color display on the front face for simple configuration and quick status overview
  • Recommended use: Theatre, television, house of worship installations, and other fixed AV installations requiring distributed DMX

Specifications

  • Operating/Supply Voltage: AC 100–240 V, 50/60 Hz; PoE (IEEE 802.3af; 48 V DC/max. 12 W)
  • Power: Max. 15 VA
  • Operating Temperature: -10°C up to 50°C (14°F up to 122°F)
  • Dimensions (W x D x H): 150 x 50 x 90 mm (6 x 2 x 4 in.)
  • Net Weight: 1 kg (3 lbs.)

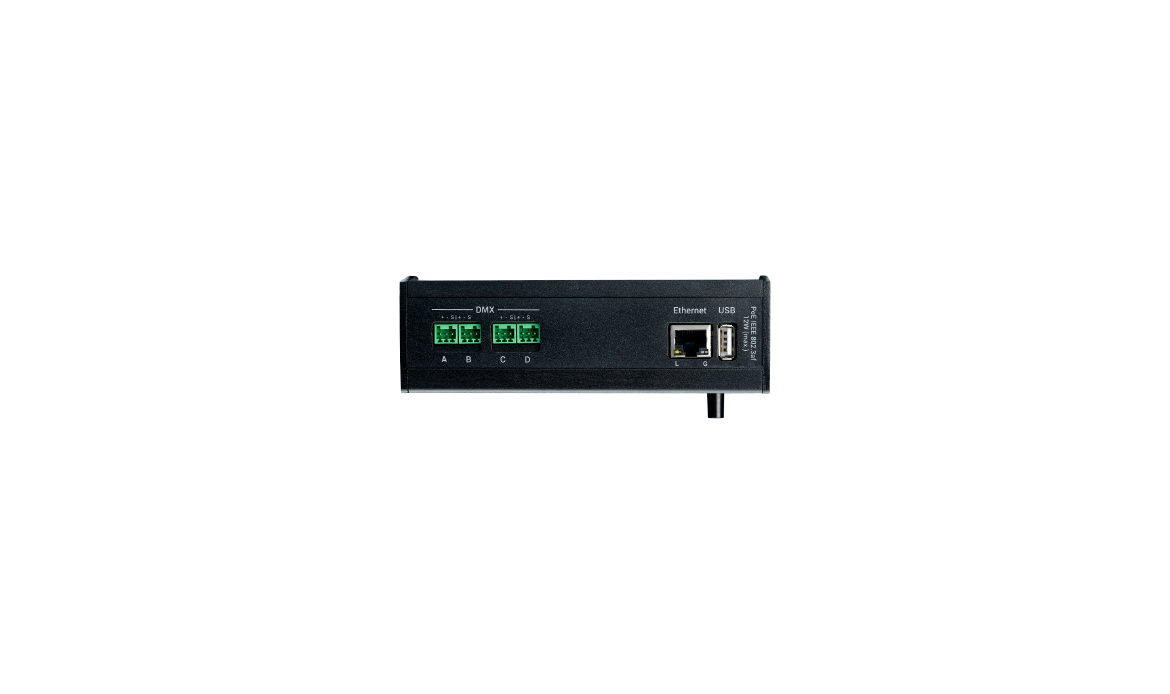

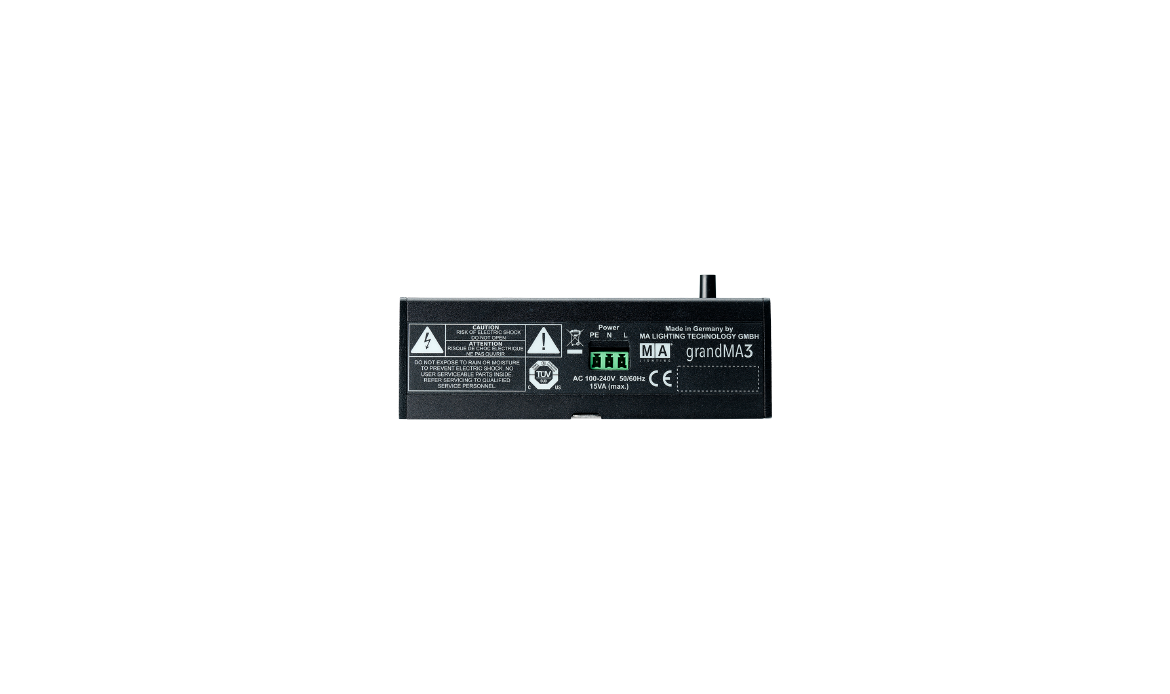

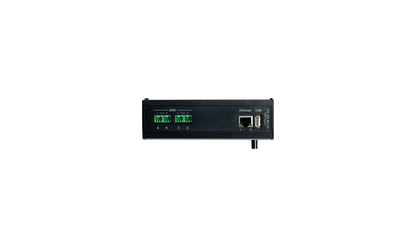

  • Connectors: 1x Power (3-pin PCB connector), 1x Ethernet/RJ45, 4x DMX512-A Out (3-pin PCB connector), 1x USB 2.0 (Type A)

Optional Accessories

  • Adapter Cable Set, DMX via XLR 5-pin (4x cable DMX/XLR5, 0.5 m; 1x cable RJ45; 1x built-in socket etherCON/RJ45 to RJ45): Art.No. 4021730
  • Adapter Cable Set, DMX via RJ45 (4x cable DMX/RJ45, 0.5 m; 1x cable RJ45; 1x built-in socket etherCON/RJ45 to RJ45): Art.No. 4021733

What's in the Box

  • grandMA3 4Port Node DIN-Rail
  • 1x MA Quick Manual for grandMA3 Nodes DIN-Rail (Art.No. 4025837)
  • 1x Connector for power supply (MC 1,5/ 3-ST1-5,08), Art.No. 4022468
  • 4x Connector for DMX/MIDI/LTC (FK-MC 0,5/ 3-ST-2,5), Art.No. 4022469
