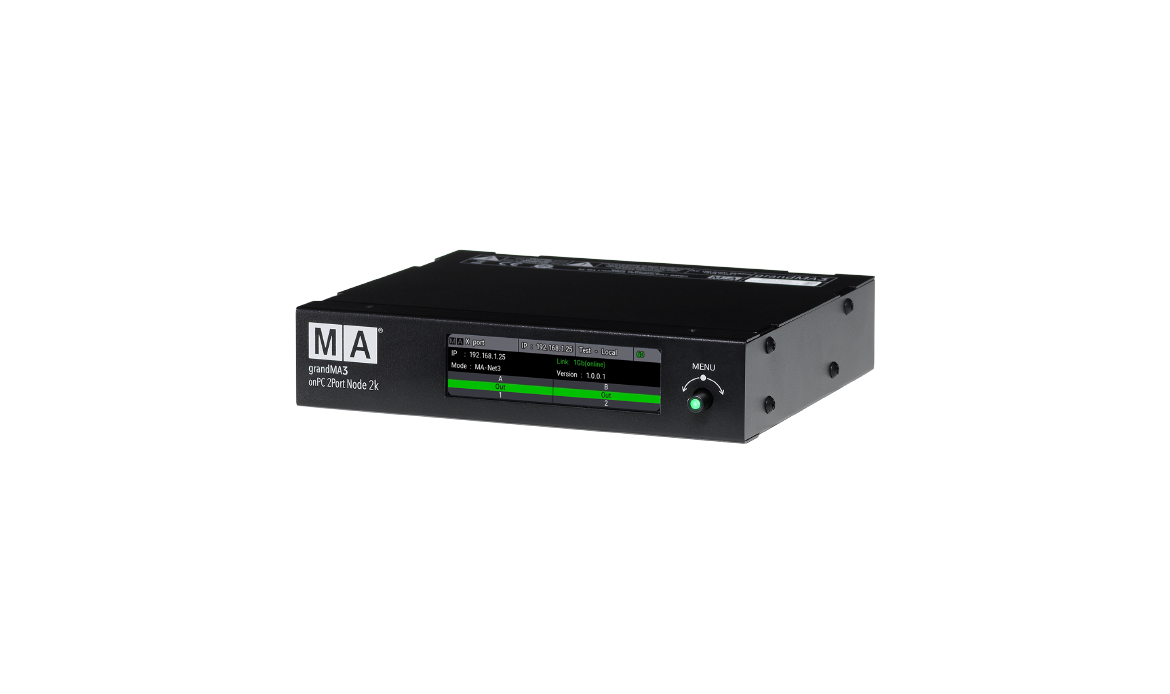

MA grandMA3 onPC 2Port Node 2k PoE

The MA Lighting grandMA3 onPC 2Port Node 2k PoE is a smart, cost-effective solution for DMX distribution with grandMA3 onPC software.

From the Manufacturer:

The grandMA3 onPC 2Port Node 2k PoE is the smartest solution within MA Lighting’s range of Nodes. It is cost-effective – and just as powerful as its larger models. The Node is the perfect entry-level for the grandMA3 onPC software - just connect it with a PC and control your fixtures directly. It is also the most flexible device to distribute the DMX lines in many different places in your installation. Might it be theatre, TV or house of worship, you can get your DMX in- and outputs wherever you need them.

The grandMA3 onPC 2Port Node 2k PoE comes in a 9.5” 1RU housing and is designed to synchronously output two DMX universes in any grandMA3 system. To ensure optimal performance, the Node is equipped with a high-performance processor and a 1 Gb/s Ethernet connection, guaranteeing reliable and stable Ethernet to DMX (and vice versa) conversion. It can be fully powered by PoE (Power over Ethernet) to reduce additional cabling. A wide range of accessories allows for alternative fixing methods and customization if required.

All grandMA3 onPC Nodes enable 4.096 parameters for the grandMA3 onPC software directly. To initiate a compact and cost-effective control system, simply download the grandMA3 onPC software, connect the Node, and you're ready to control your fixtures. As the grandMA3 onPC software offers the same features as the larger consoles of MA Lighting, there will be no compromises on features for your show.

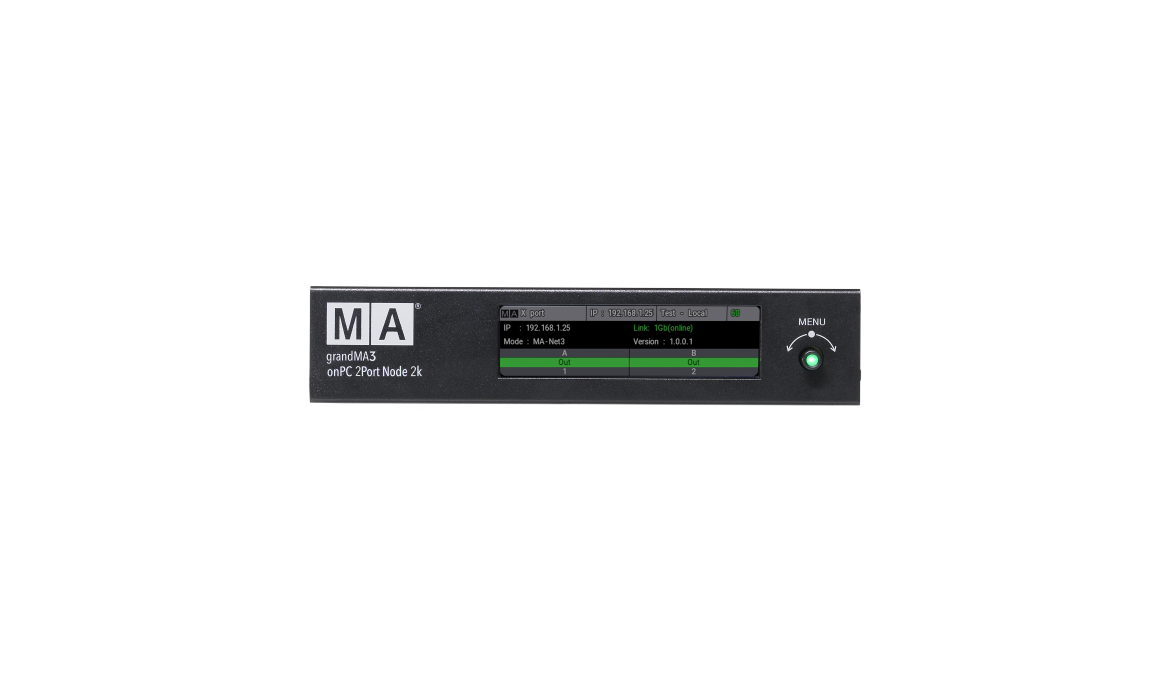

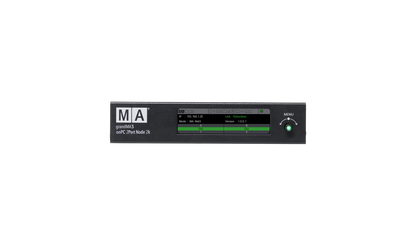

Some more facts to know? All grandMA3 Nodes are remotely configurable from any grandMA3 console or onPC station within the network session. They are capable of handling MA-Net3, MA-Net2, sACN and Art-Net data. They are fully RDM compliant. A 3.9" color display on the front face allows for simple configuration and a quick status overview.

Features:

• Parameters: 4 096 (HTP/LTP)
• Parameters Mode2: 1 024 (HTP/LTP)
• Operating voltage/ Supply voltage:
  • AC 100 - 240 V; 50/60 Hz
  • PoE (IEEE 802.3af; 48 V DC/max. 12 W)
• Power: max. 15 VA
• Operating Temperature: 0 °C up to 40 °C / 32 °F up to 104 °F
• Dimensions: 207 x 184 x 43 mm / 9 x 8 x 2 in (width x depth x height)
• Net weight: 2 kg / 5 lbs

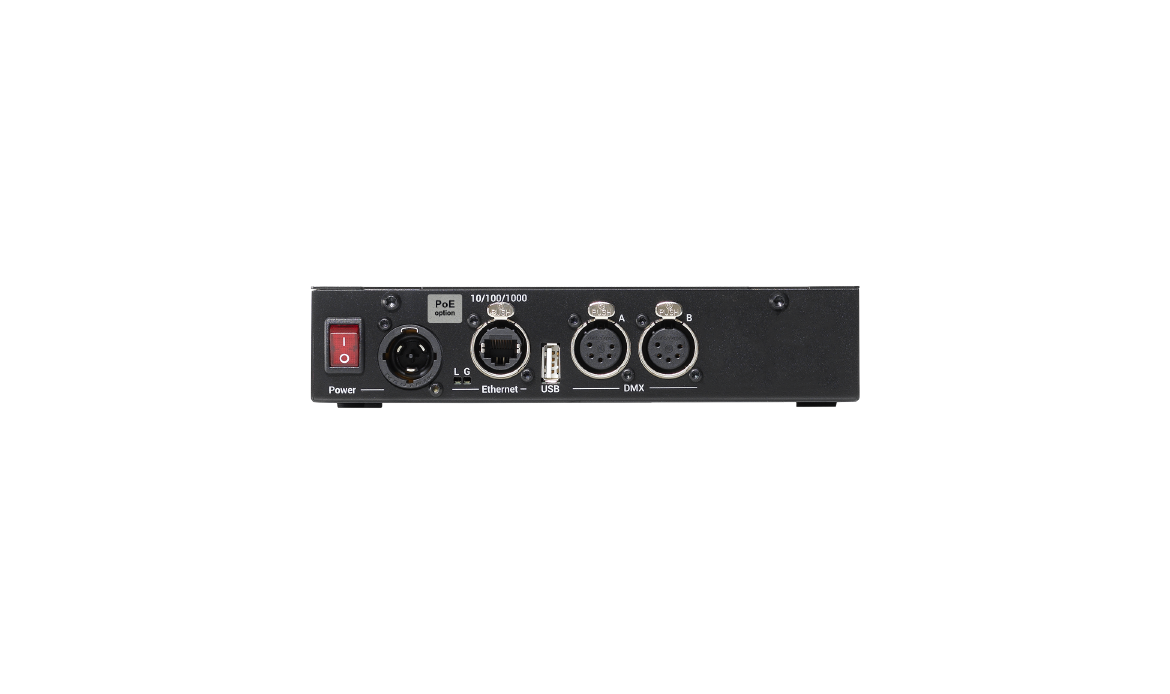

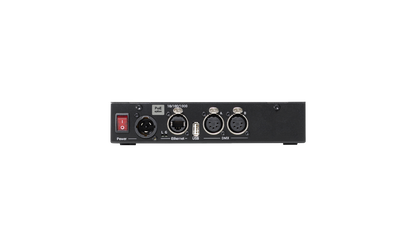

• Connectors: 1 x powerCON TRUE1
  • 1 x etherCON/RJ45
  • 2 x DMX512-A Out (5pin XLR female)
  • 1 x USB 2.0 (type A)1 x USB 2.0 (type A)
