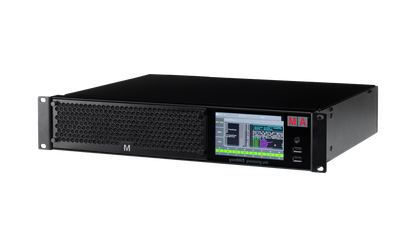

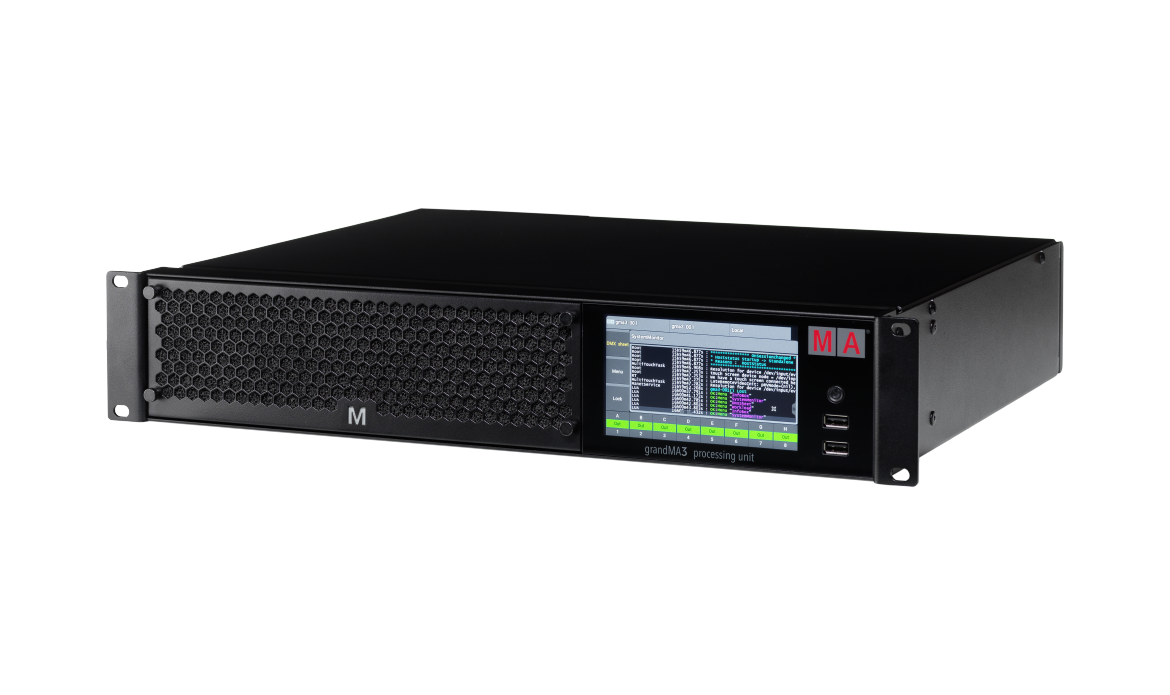

MA grandMA3 processing unit M

The MA Lighting grandMA3 processing unit M expands the grandMA3 system by 4,096 parameters, allowing for easy, incremental system expansion.

From the Manufacturer:

Expanding the grandMA3 system is simple with addition of grandMA3 processing units! The grandMA3 processing unit M increases the overall grandMA3 system by 4 096 parameters and enables the system designer to expand the lighting control system in small steps. Besides the powerful CPU for frame-synchronous calculation, the grandMA3 processing unit M additionally offers a Mode2 to expand existing grandMA2 systems by 4 096 parameters.

The grandMA3 processing units are designed for rack mounting and all models are only 2RU, allowing for efficient touring solutions. Each model is equipped with 8 DMX outputs for frame-synchronous DMX output throughout the network. Additional frame-synchronous DMX outputs are available with the addition of grandMA3 xPort Nodes.

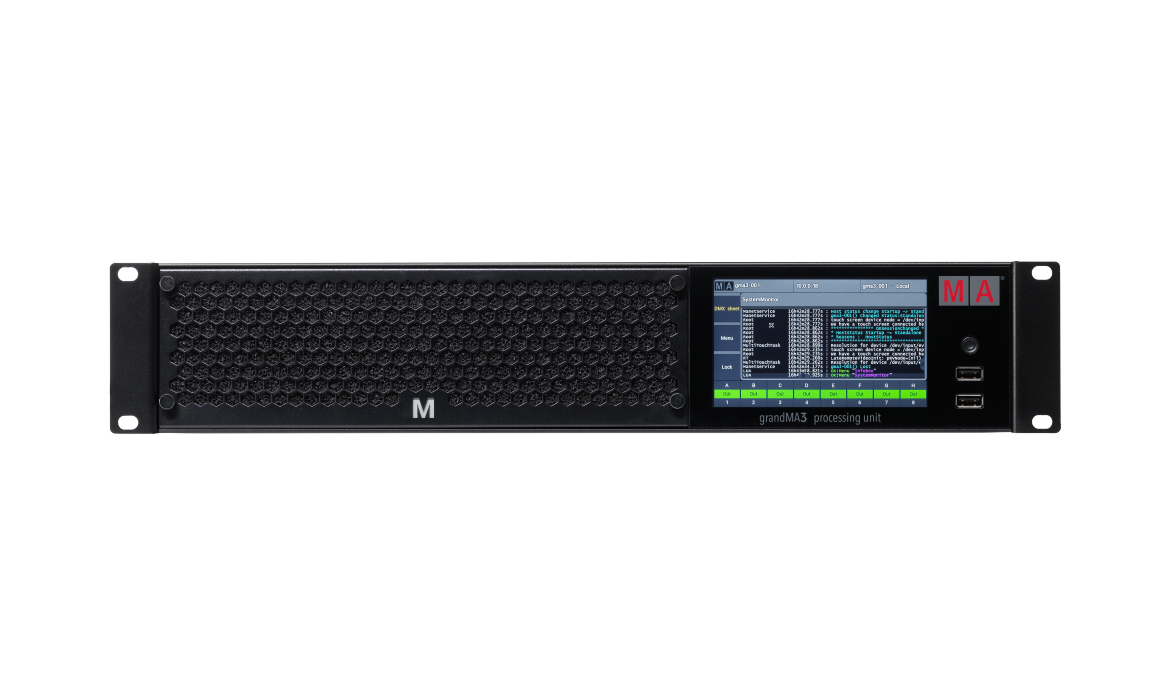

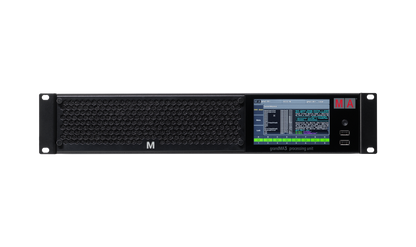

grandMA3 processing units offer a perfect system overview on the integrated touchscreen. This easy access to important functions allows for best maintenance if installed in a dedicated rack whilst every function can be monitored from the grandMA3 session.

For larger systems it is suggested to keep the grandMA3 processing units in a centralized position for parameter expansion and to use grandMA3 xPort Nodes to distribute and output the frame-synchronous DMX data.

Features:

• Parameters: 4 096 (HTP/LTP)
• Parameters Mode2: 4 096 (HTP/LTP)
• Operating voltage/ Supply voltage: AC 100 - 240 V; 50/60 Hz
• Power: max. 200 VA
• Operating Temperature: 0 °C up to 40 °C / 32 °F up to 104 °F
• Dimensions: 482 x 372 x 87 mm / 19 x 15 x 4 in (width x depth x height)
• Net weight: 5 kg / 12 lbs

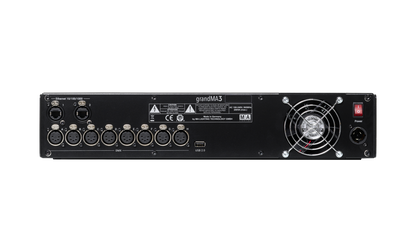

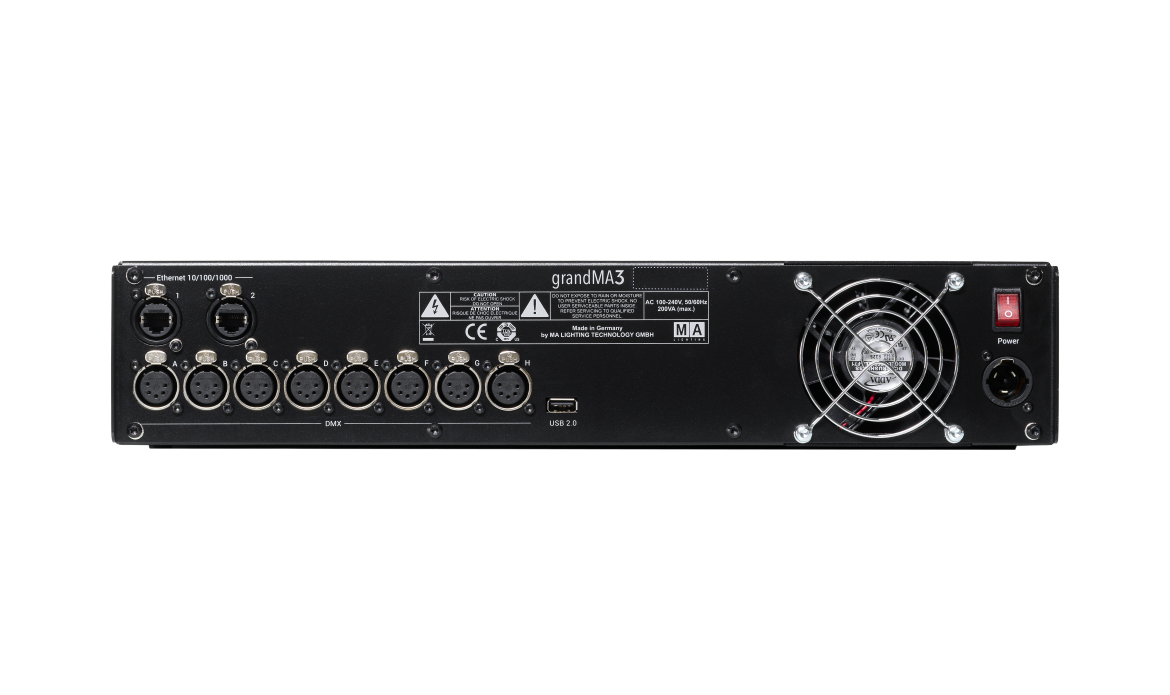

• Connectors:
  • 1 x powerCON TRUE1
  • 2 x etherCON/RJ45
  • 8 x DMX512-A Out (5pin XLR female)
  • 3 x USB 2.0 (type A)
