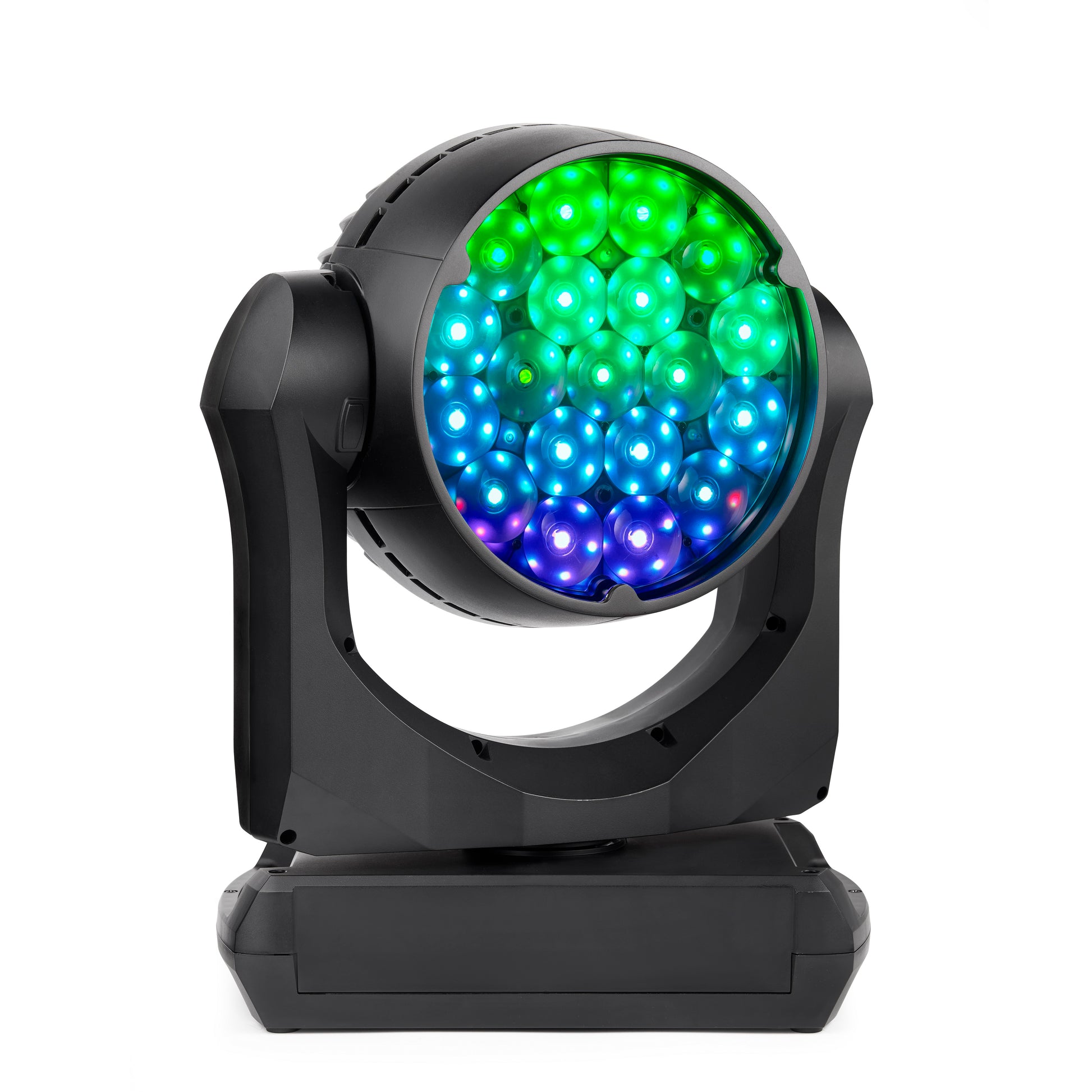

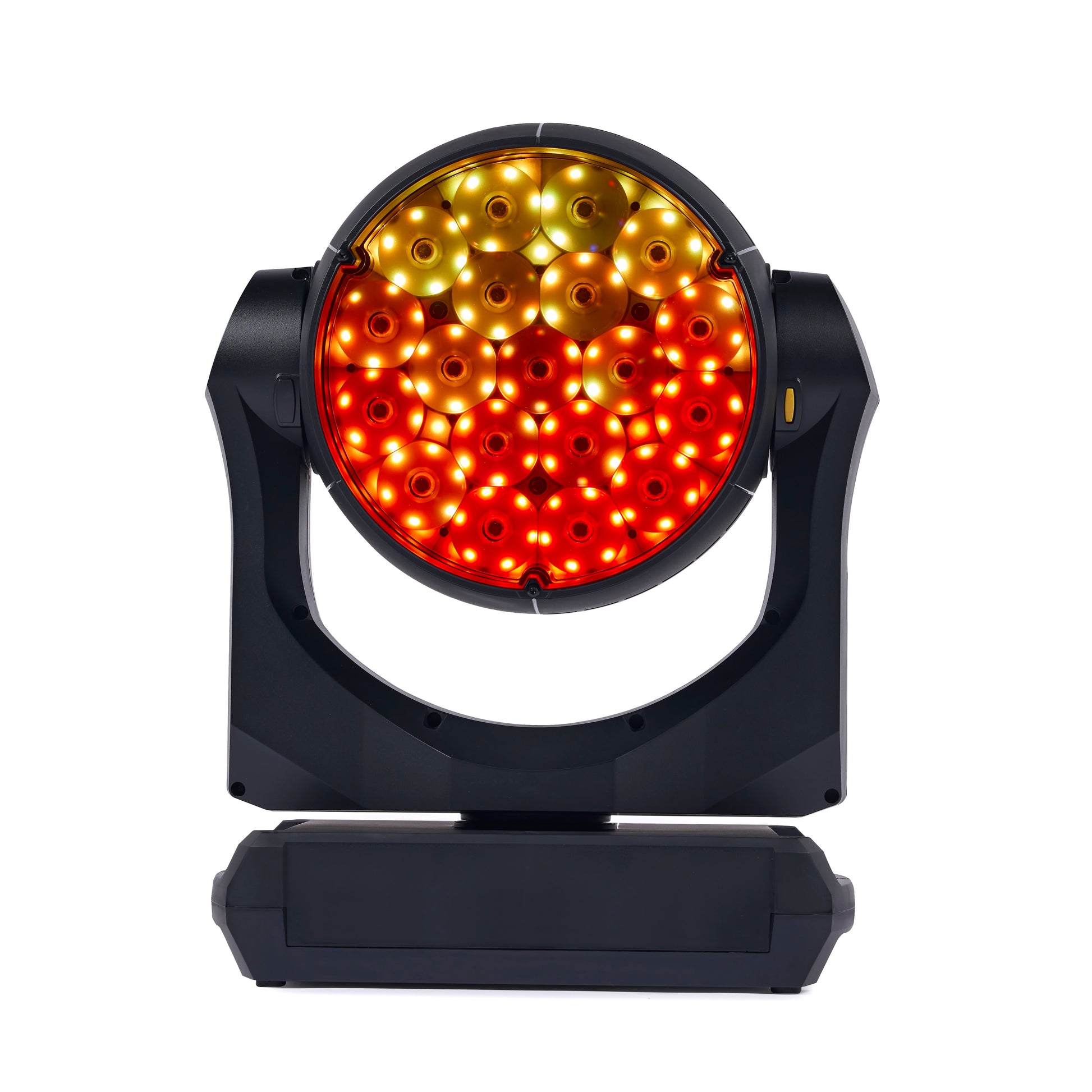

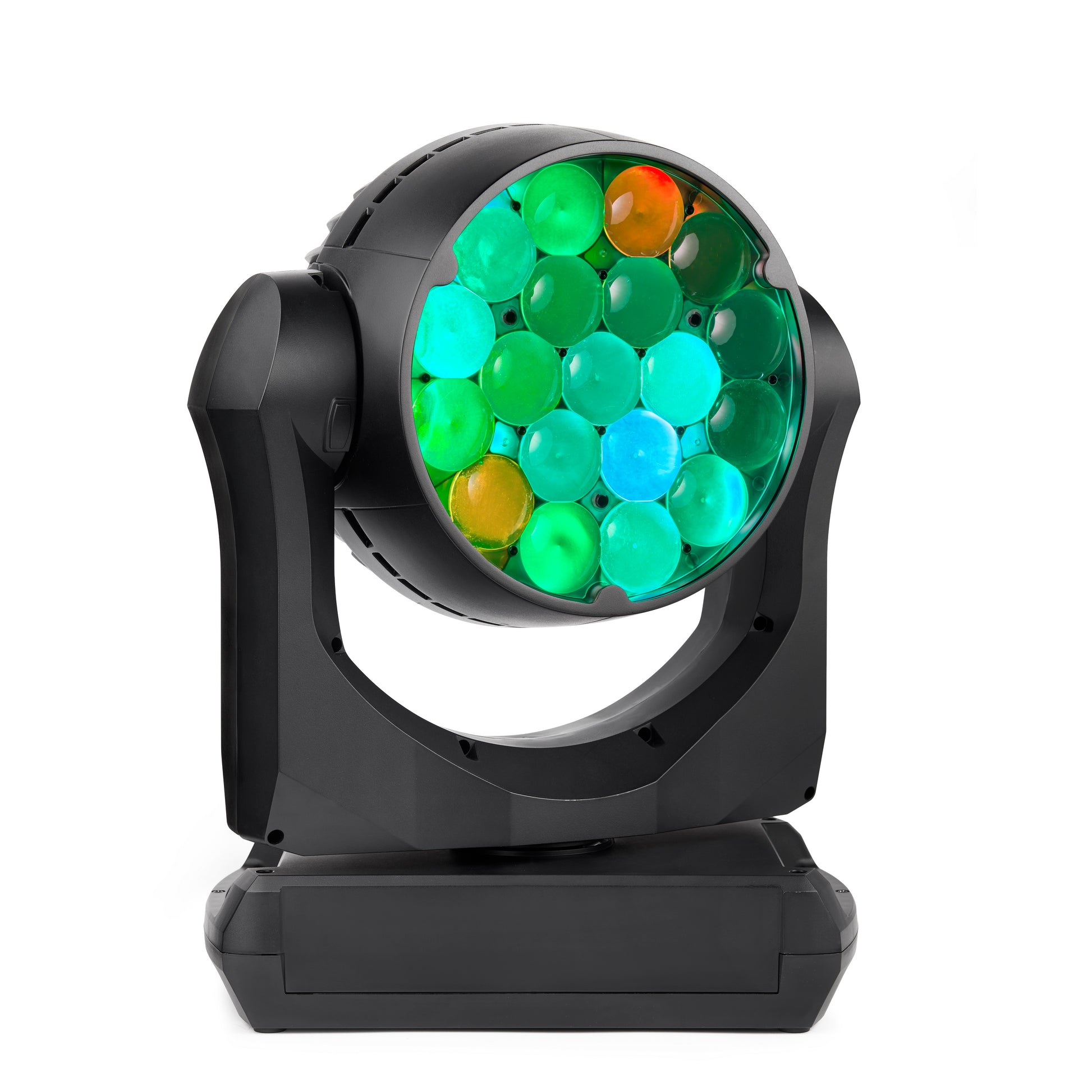

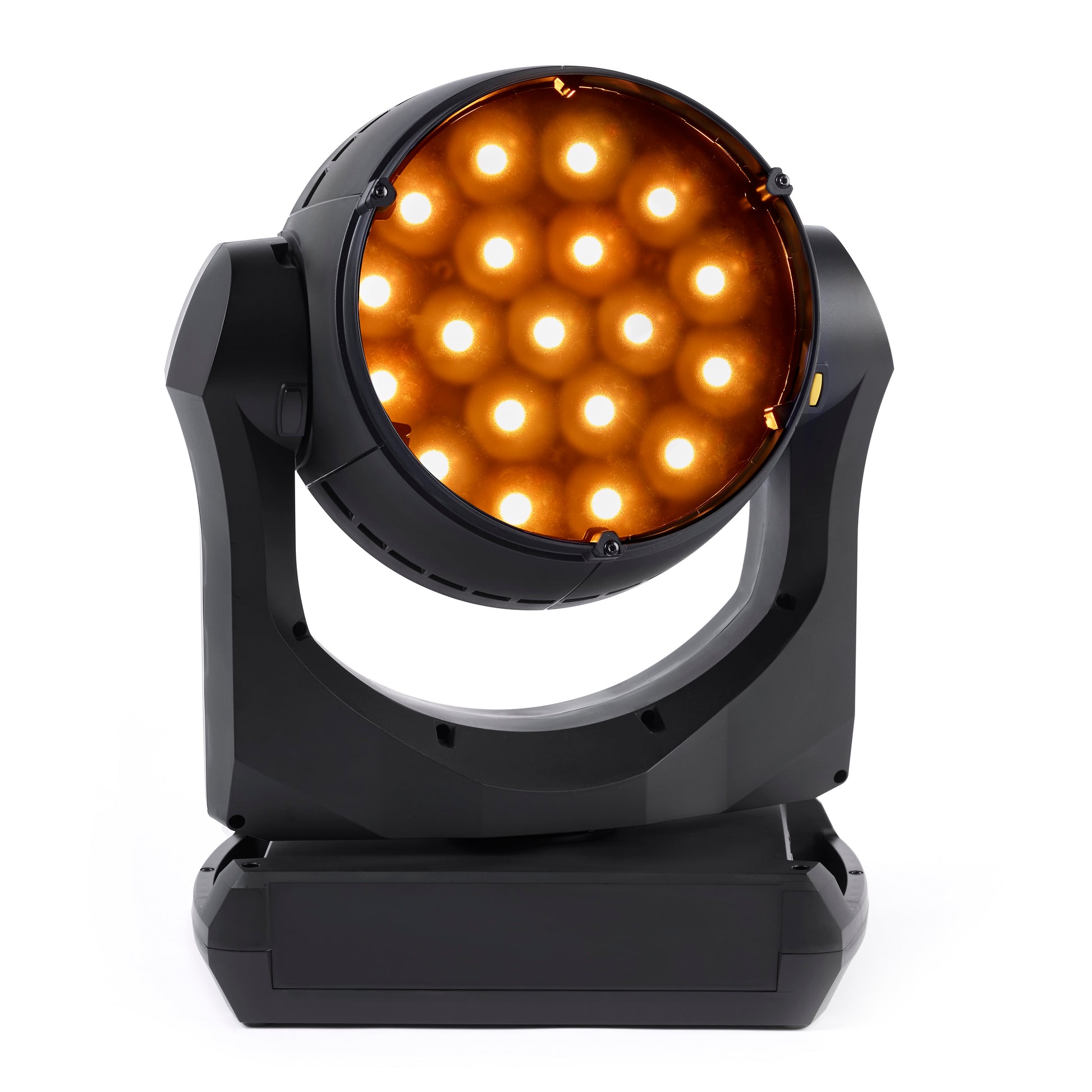

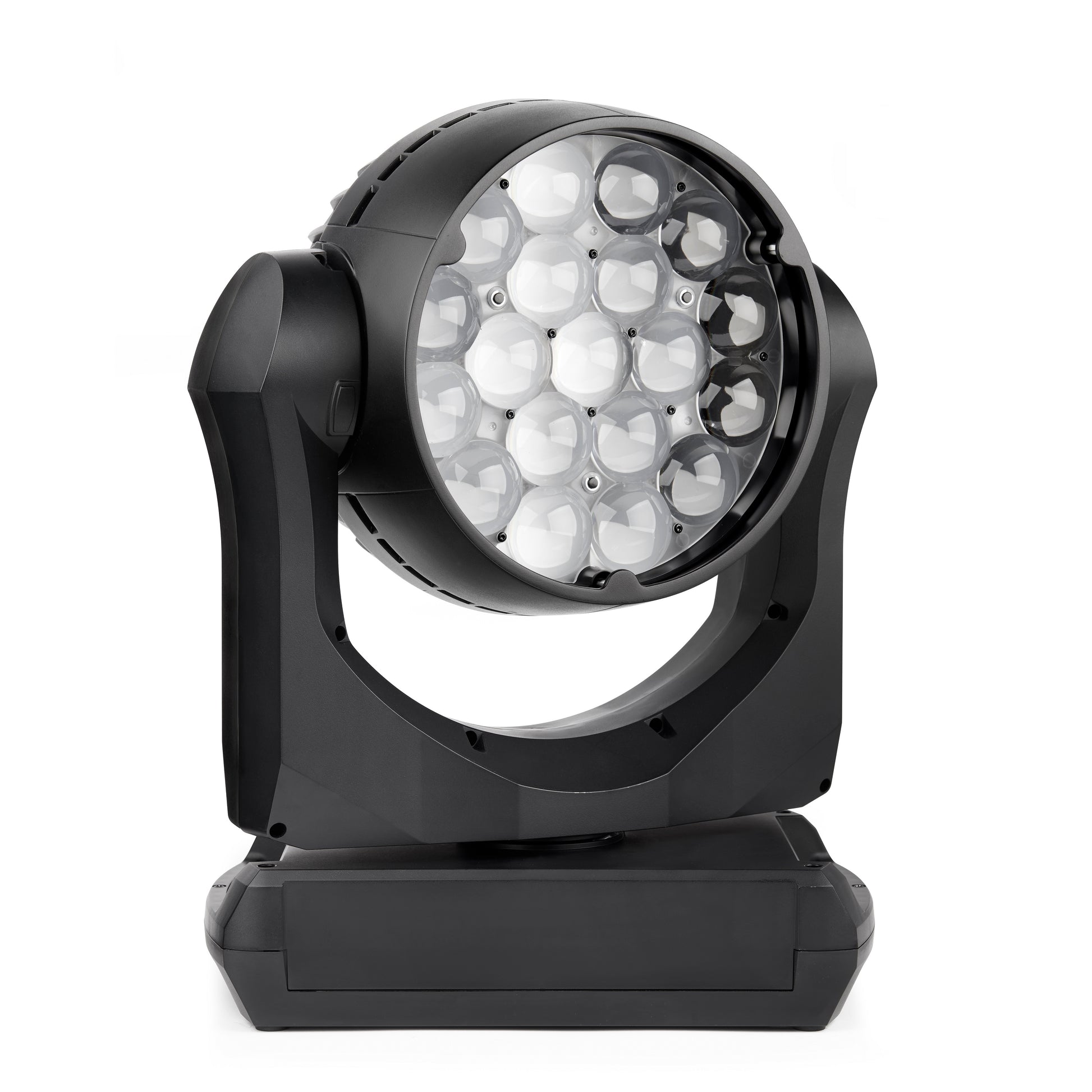

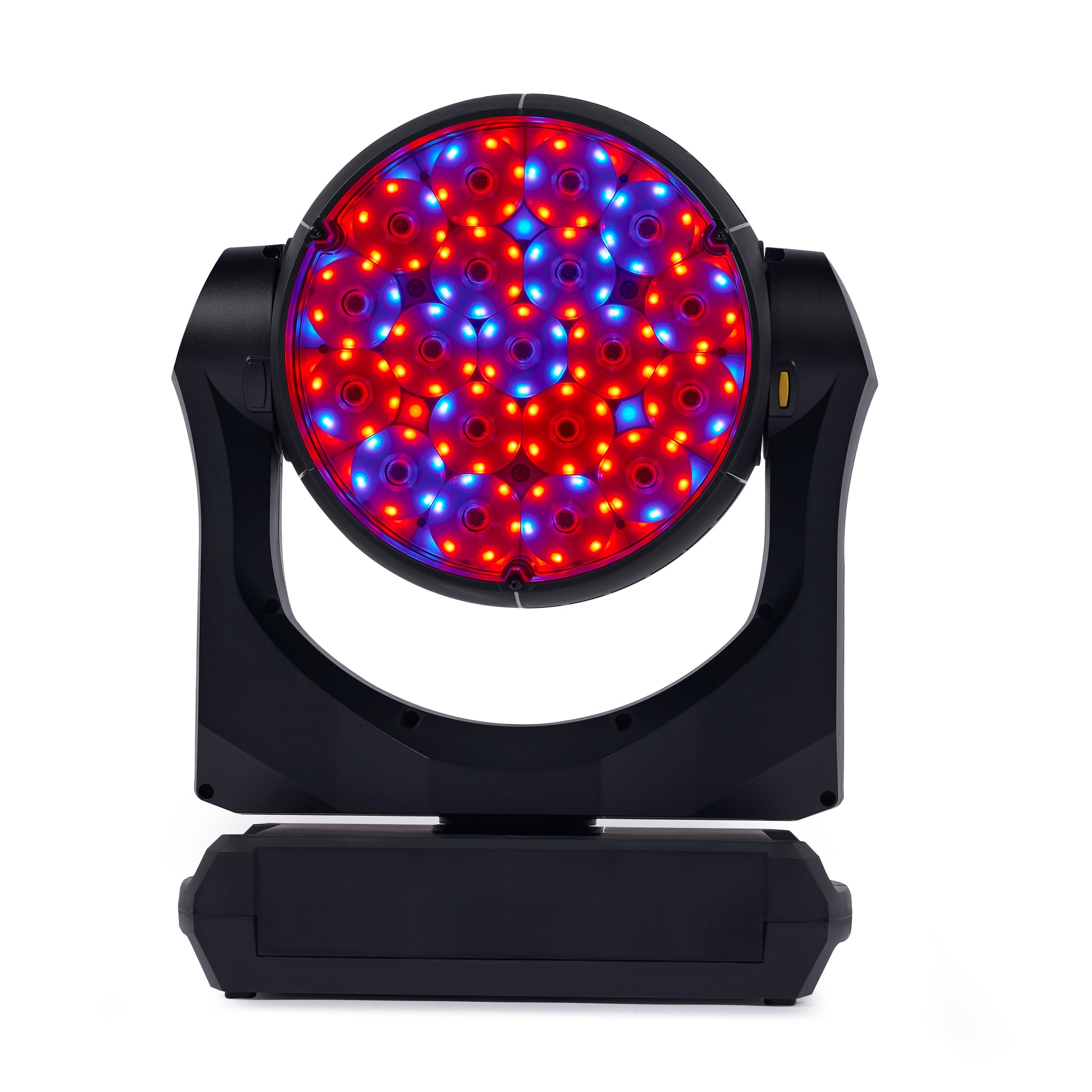

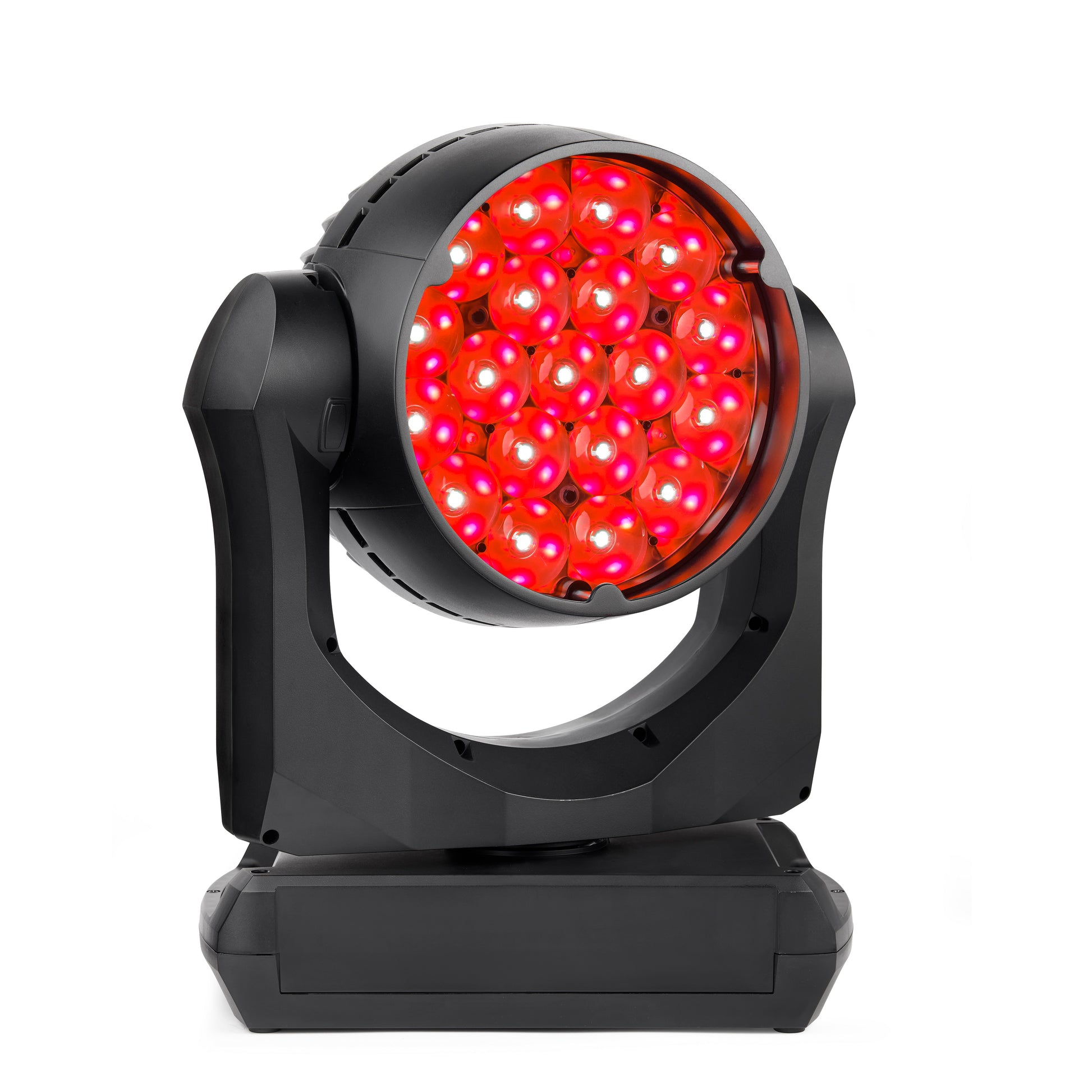

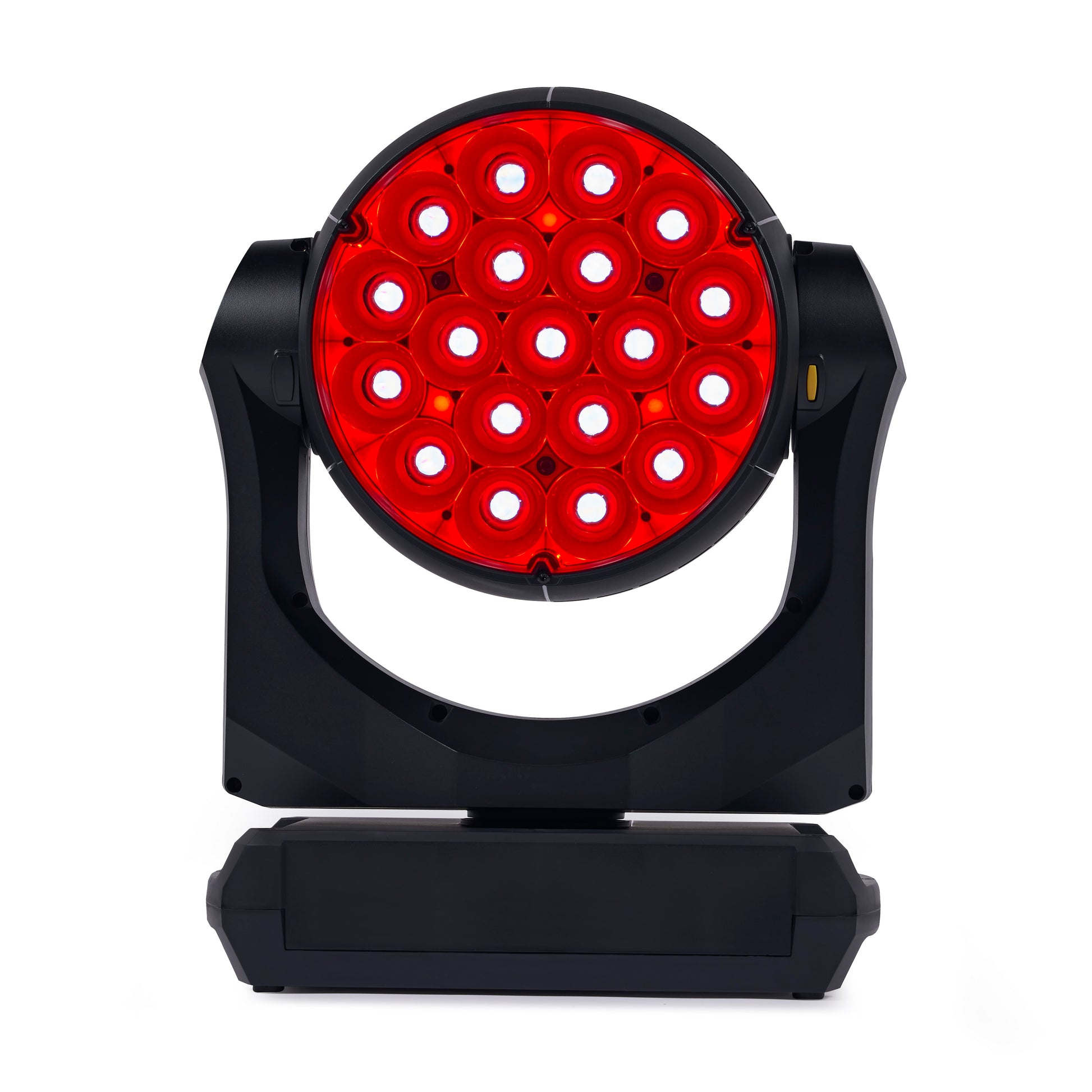

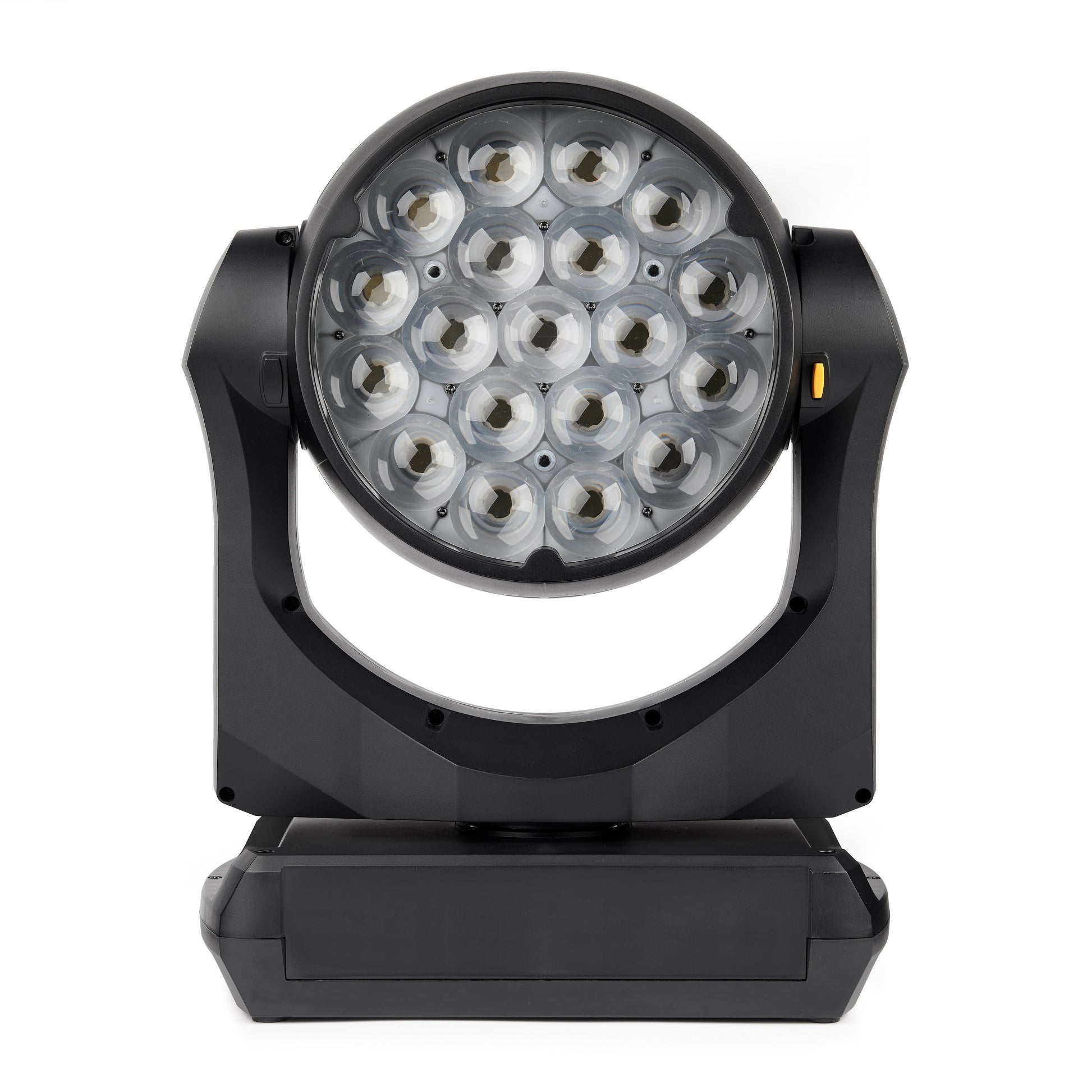

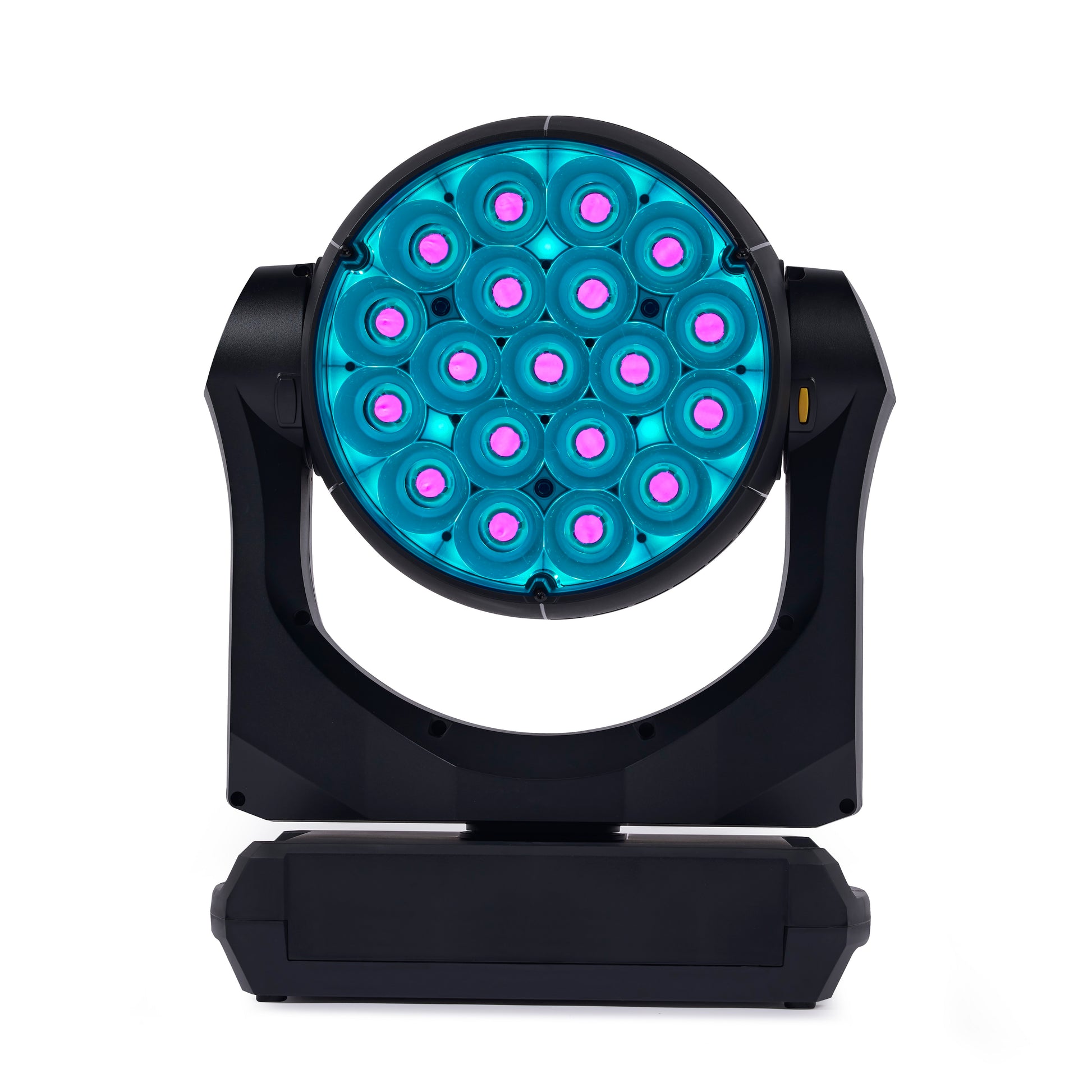

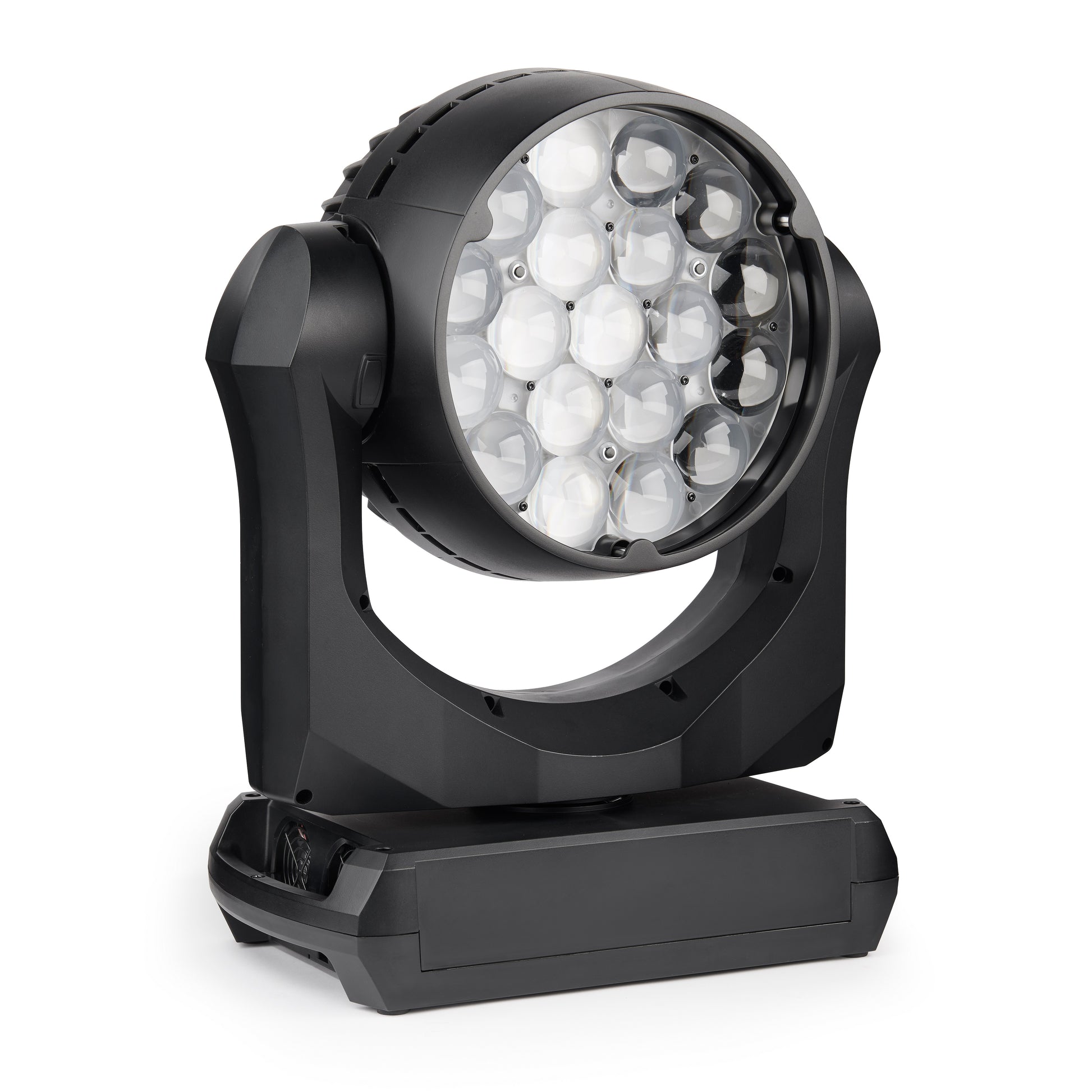

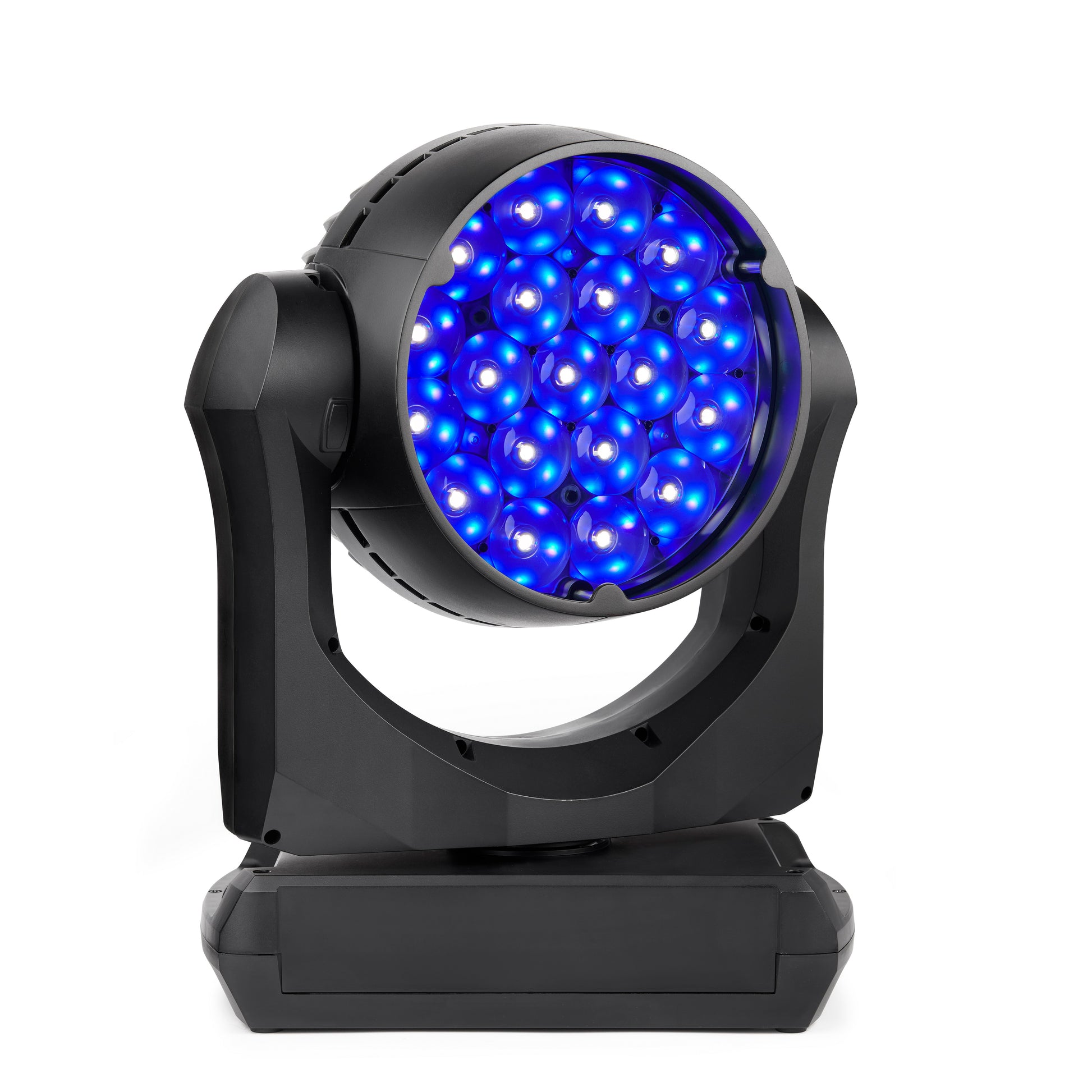

MAC Aura PXL

MAC Aura PXL EPS is a  high quality professional moving wash fixture. It is a great option for larger stages.  It is a versatile fixture capable of creating frontlight, backlight, and beam effects.

From the Manufacturer:

The Martin MAC Aura PXL adds to the industry standard line of Martin wash lights with multi-lens and Aura backlight technology. Bigger and brighter than the MAC Aura, the PXL features significantly higher intensity and a tighter beam as well as a smaller face and less busy lens look compared to the MAC Quantum Wash. The MAC Aura PXLs bigger “bubbles” provide a more appealing look and beautiful wide wash fields.

It is also the first wash light in the market to feature individual pixel control for main beam pixels and Aura backlight with full control via DMX, Art-Net and sACN, as well as with Martin´s very own creative P3 video protocol.

The compact size and low weight, trusted Martin build quality and feature set, and simple and clever setup and control options make the MAC Aura PXL ideal for rental customers and lighting designers working in concert/touring, TV shows and corporate, as well as customers supporting the high-end nightclub market.

Features:

• Light Source:

• 10,500 lumens RGBW light output

• High narrow intensity: 940,000 cd

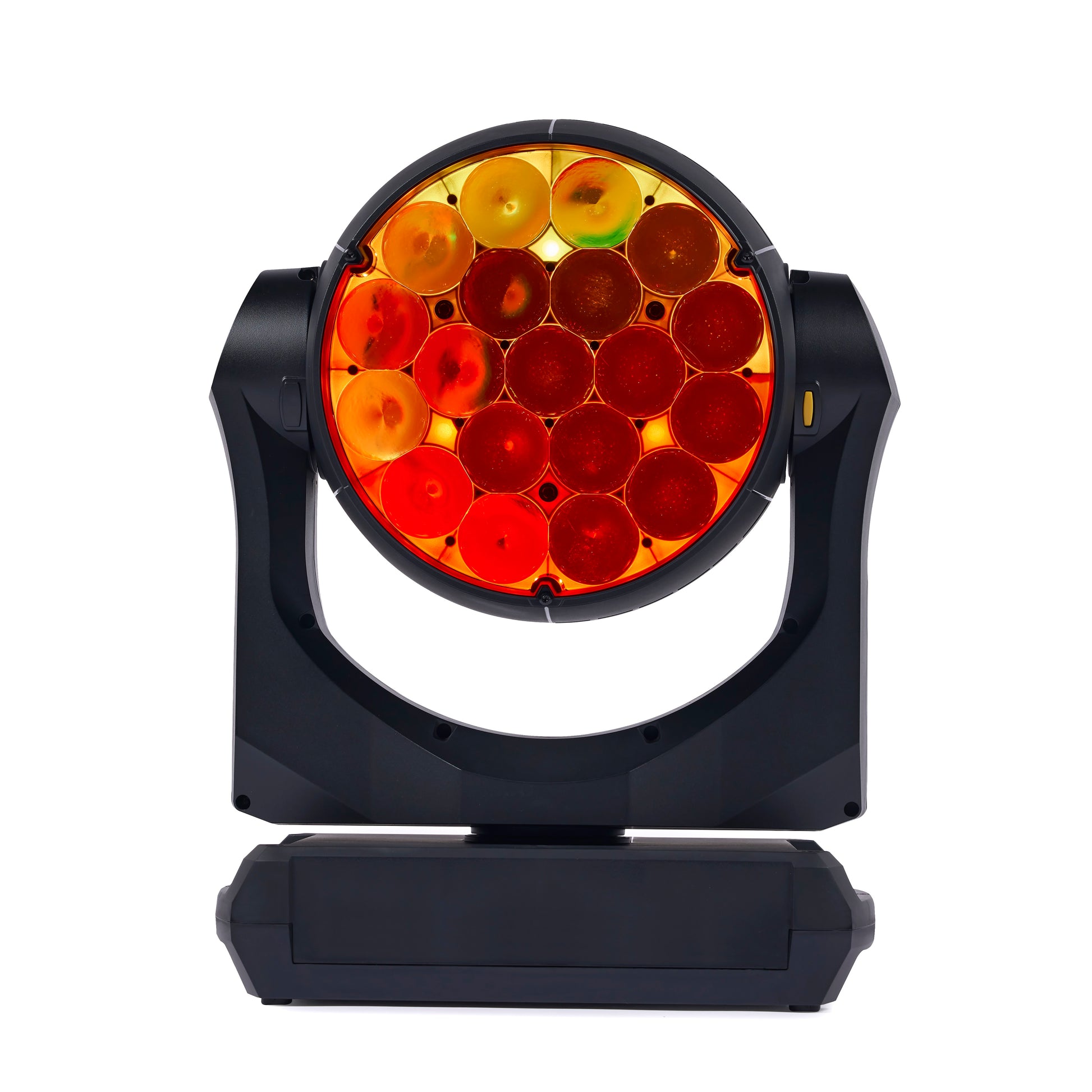

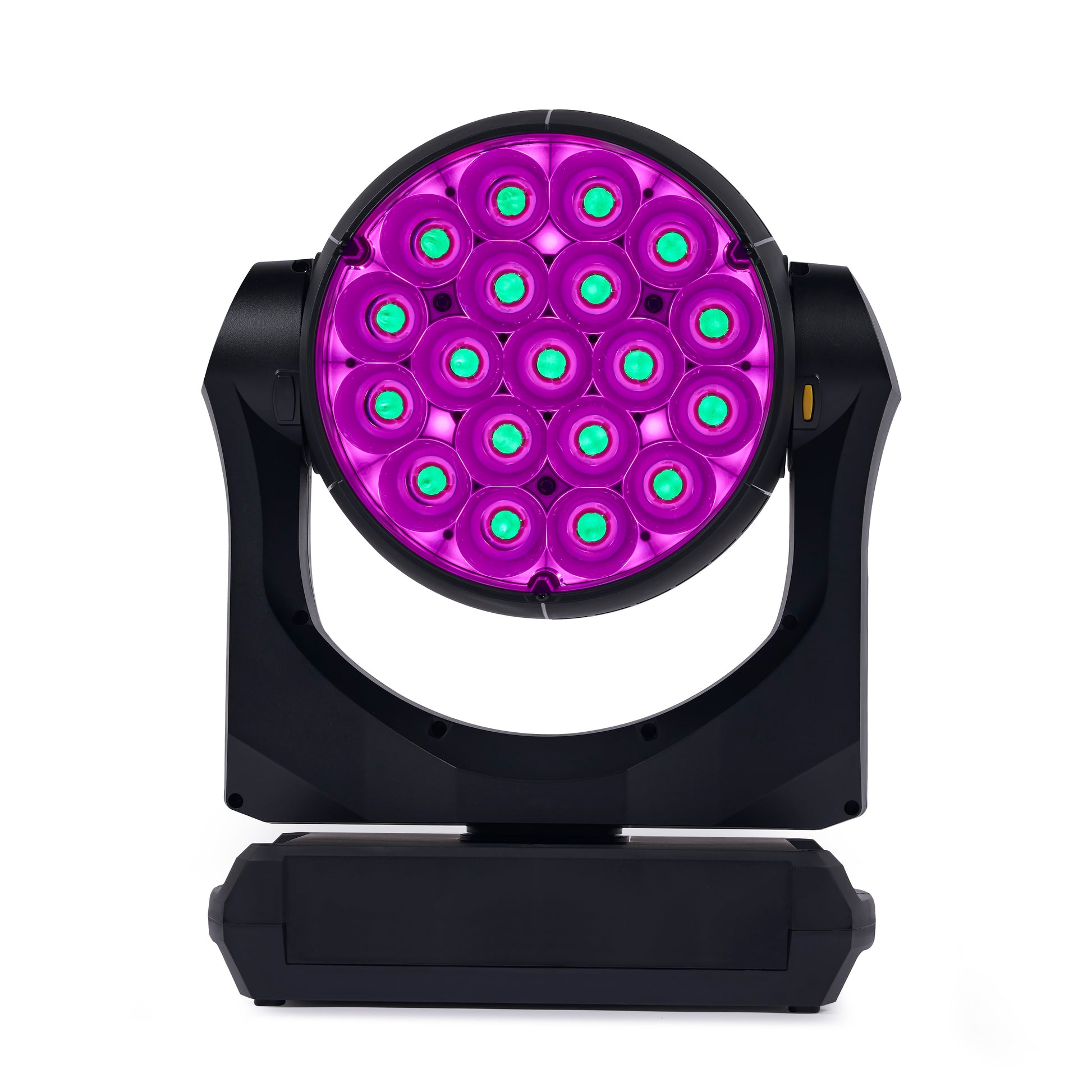

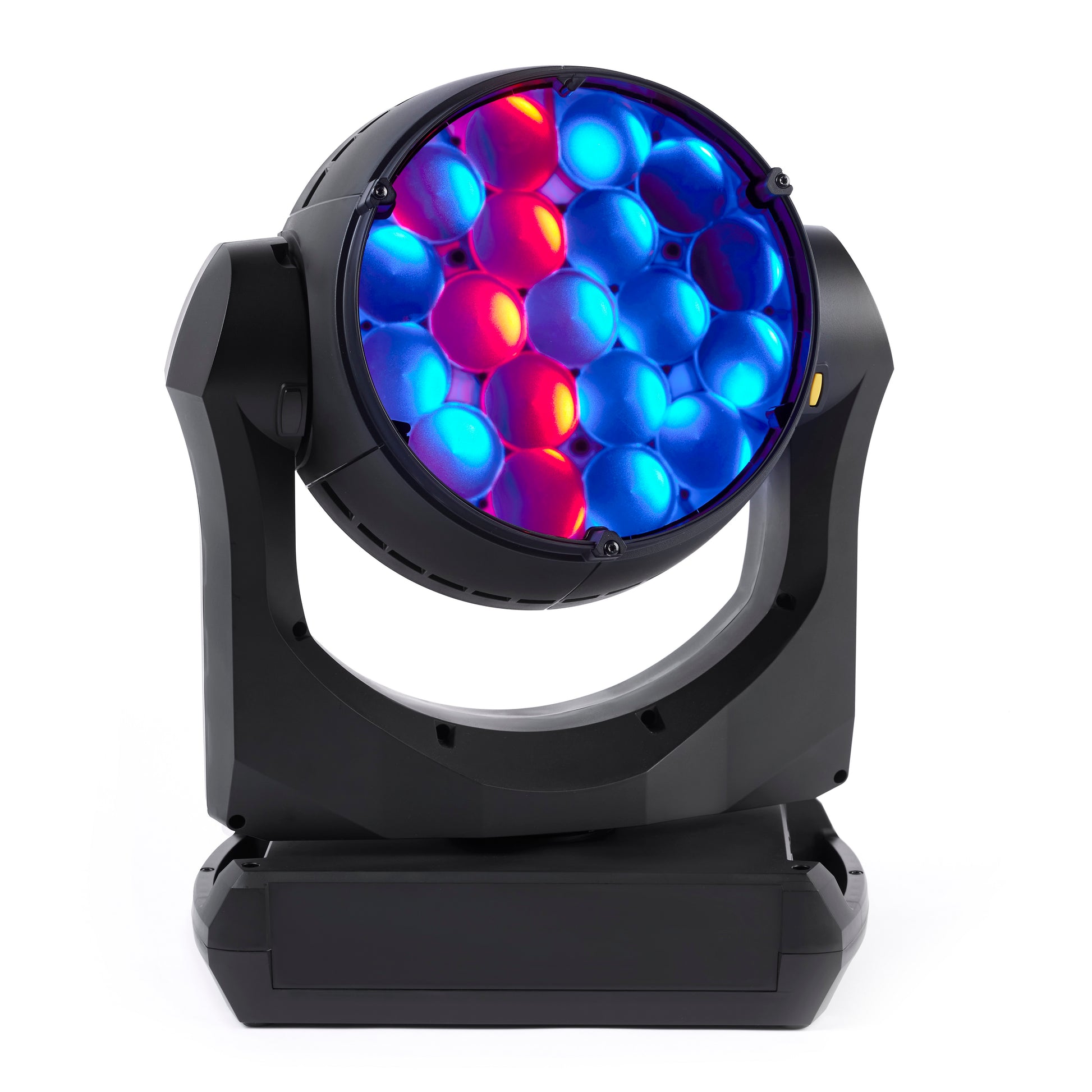

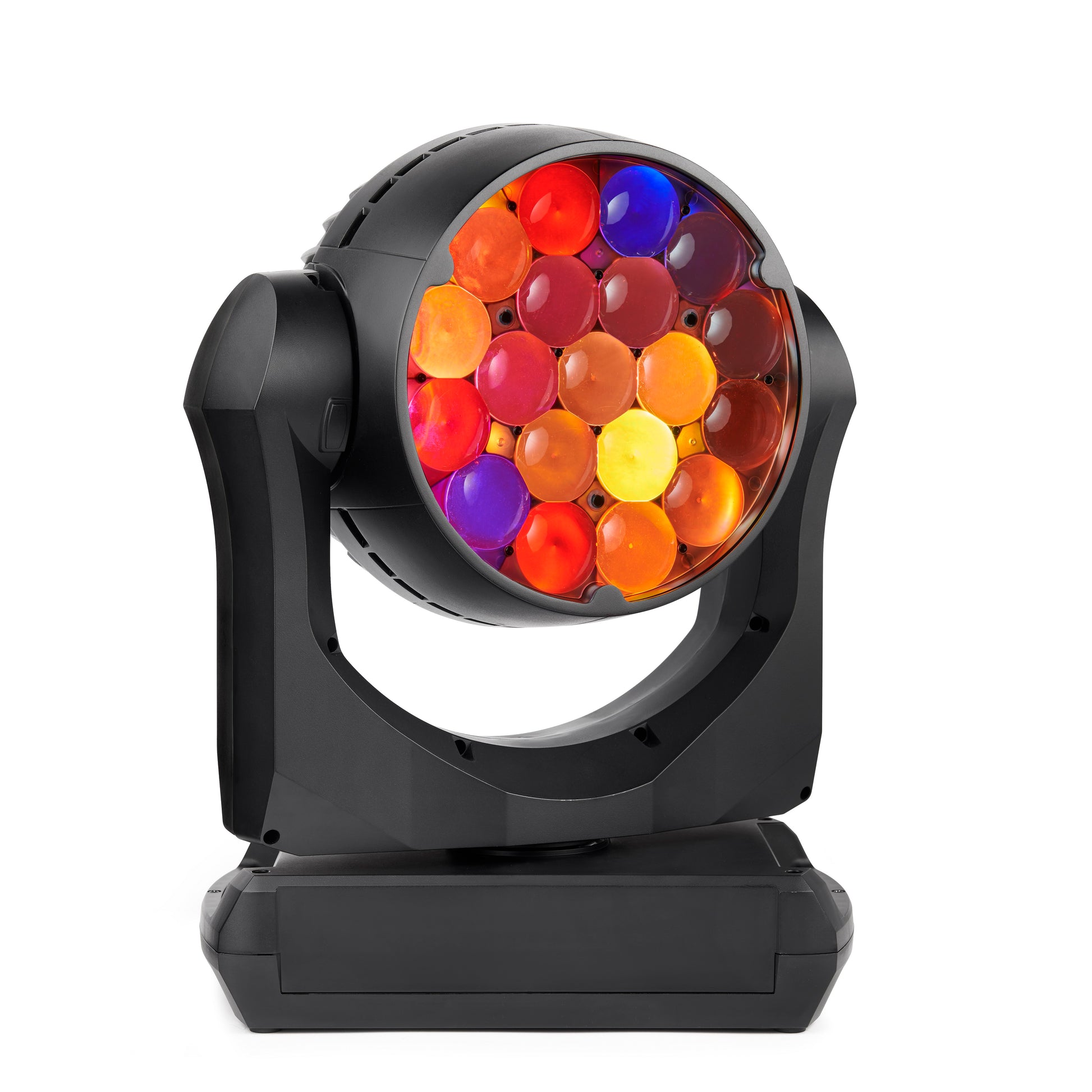

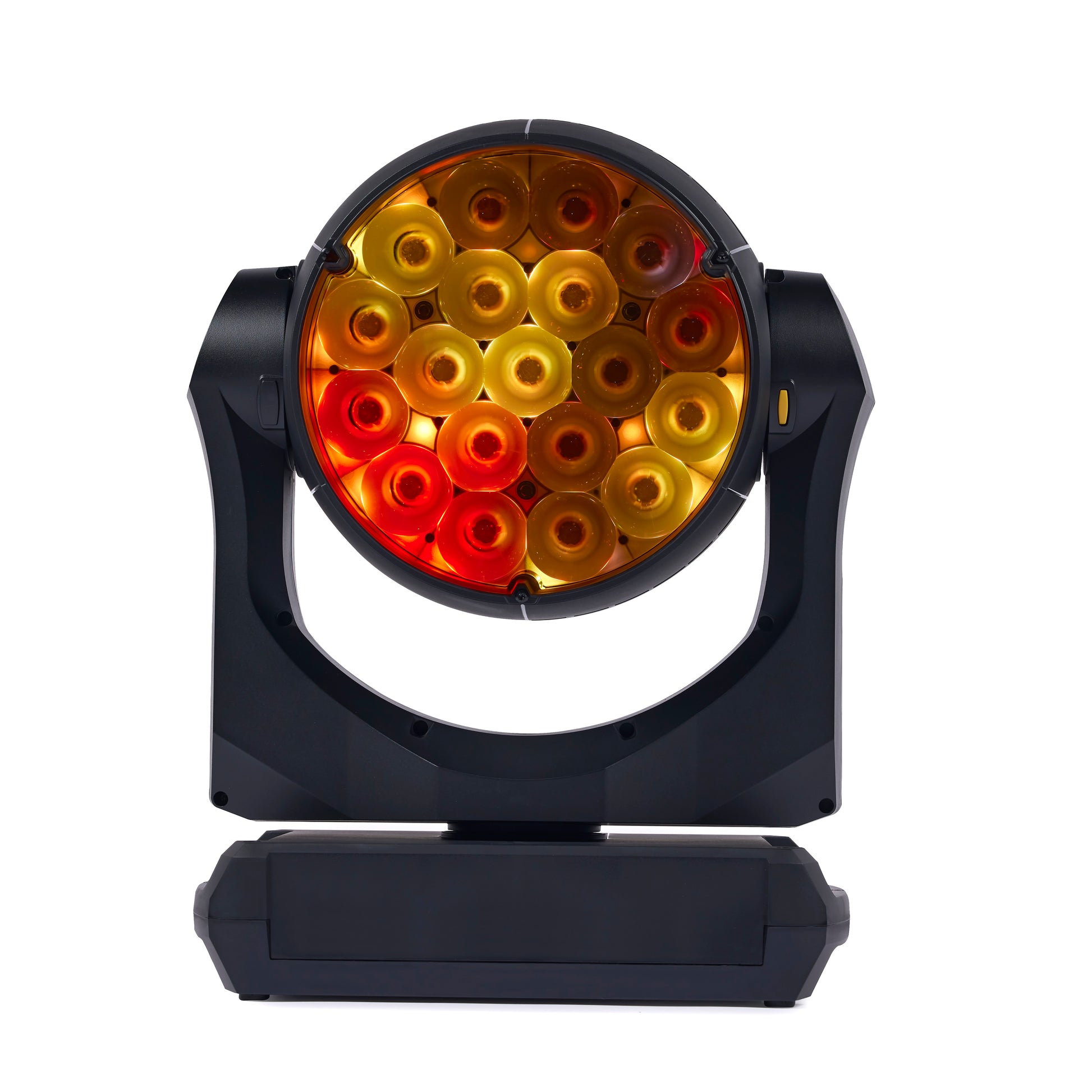

• Pixelated Beam: 19x 40W RGBW LEDs

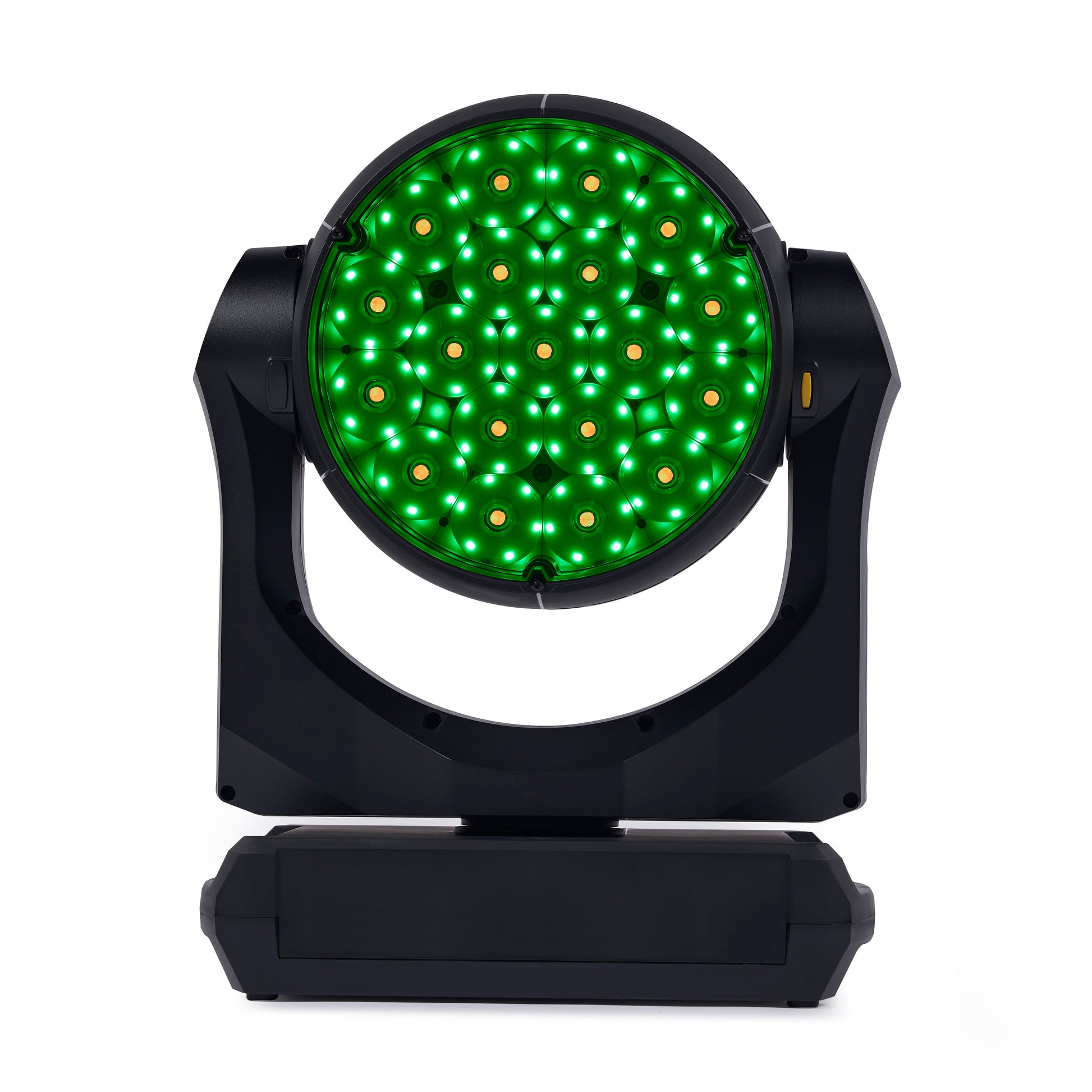

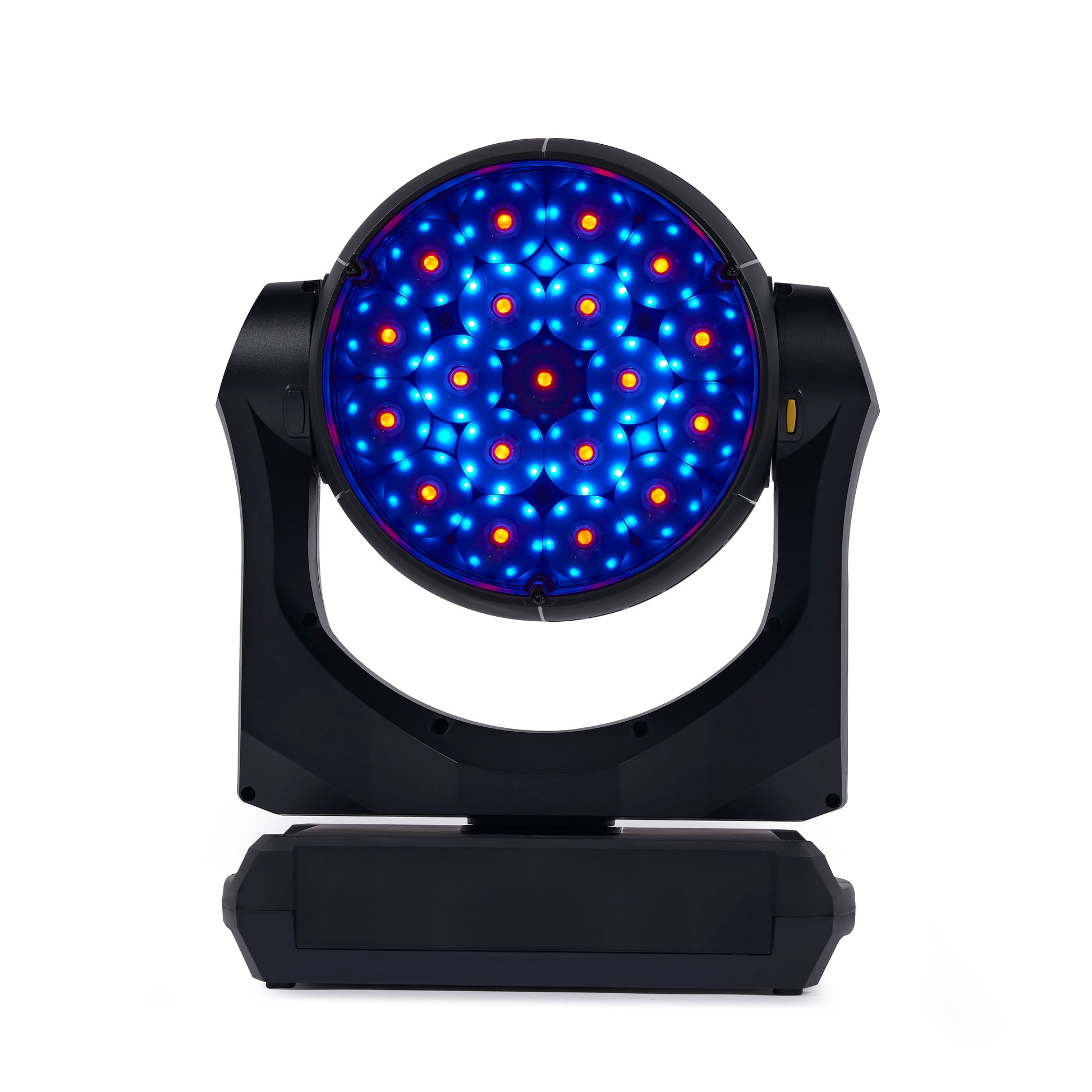

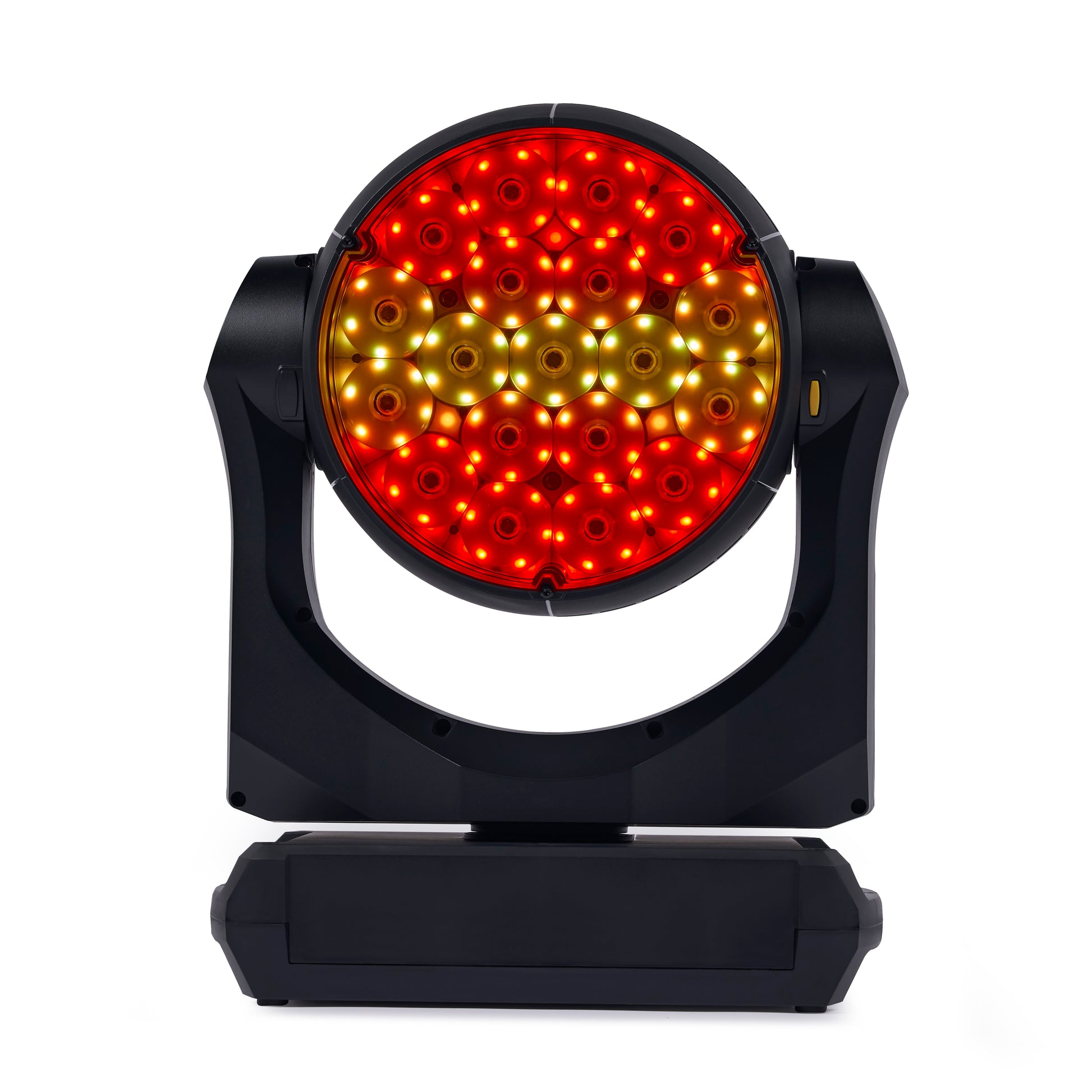

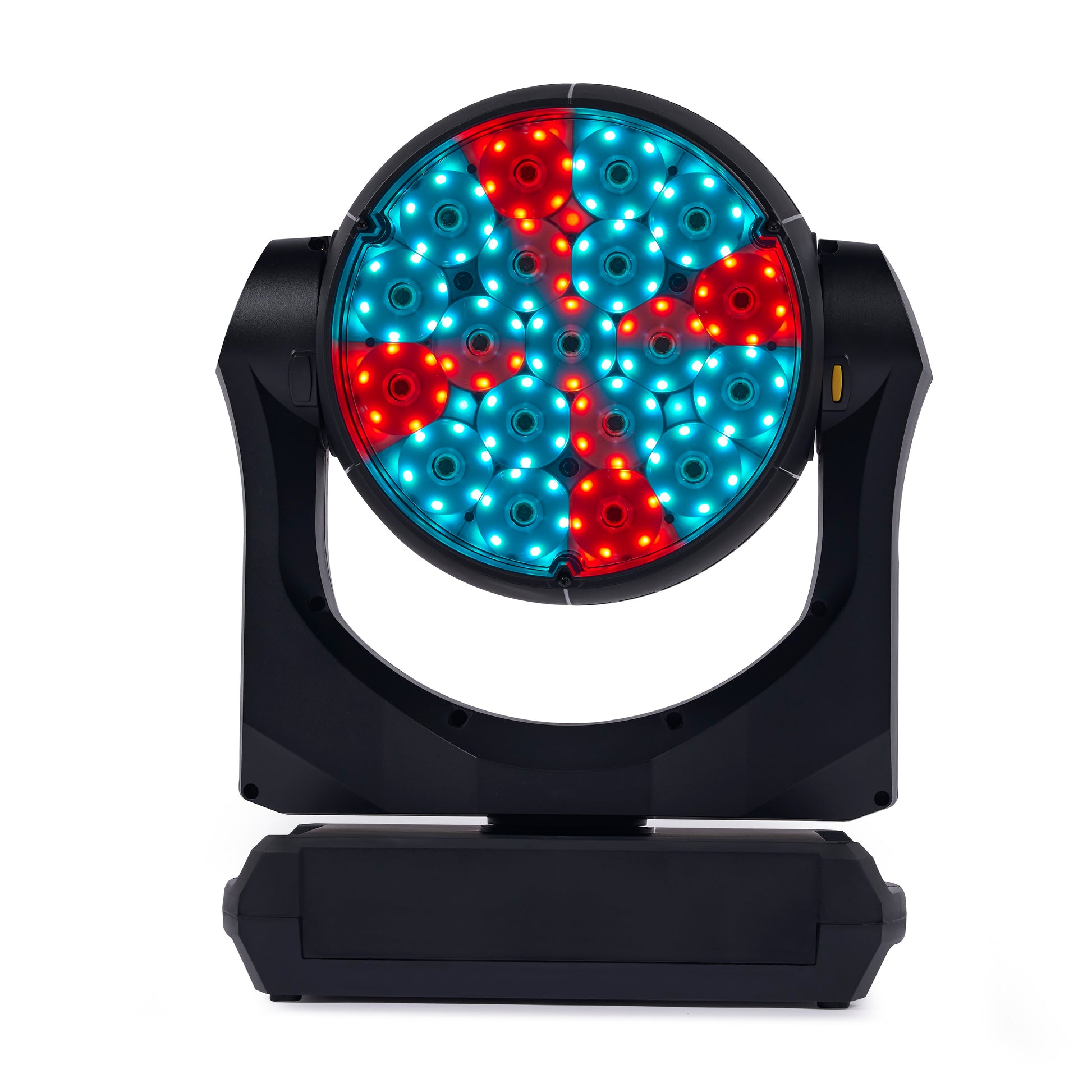

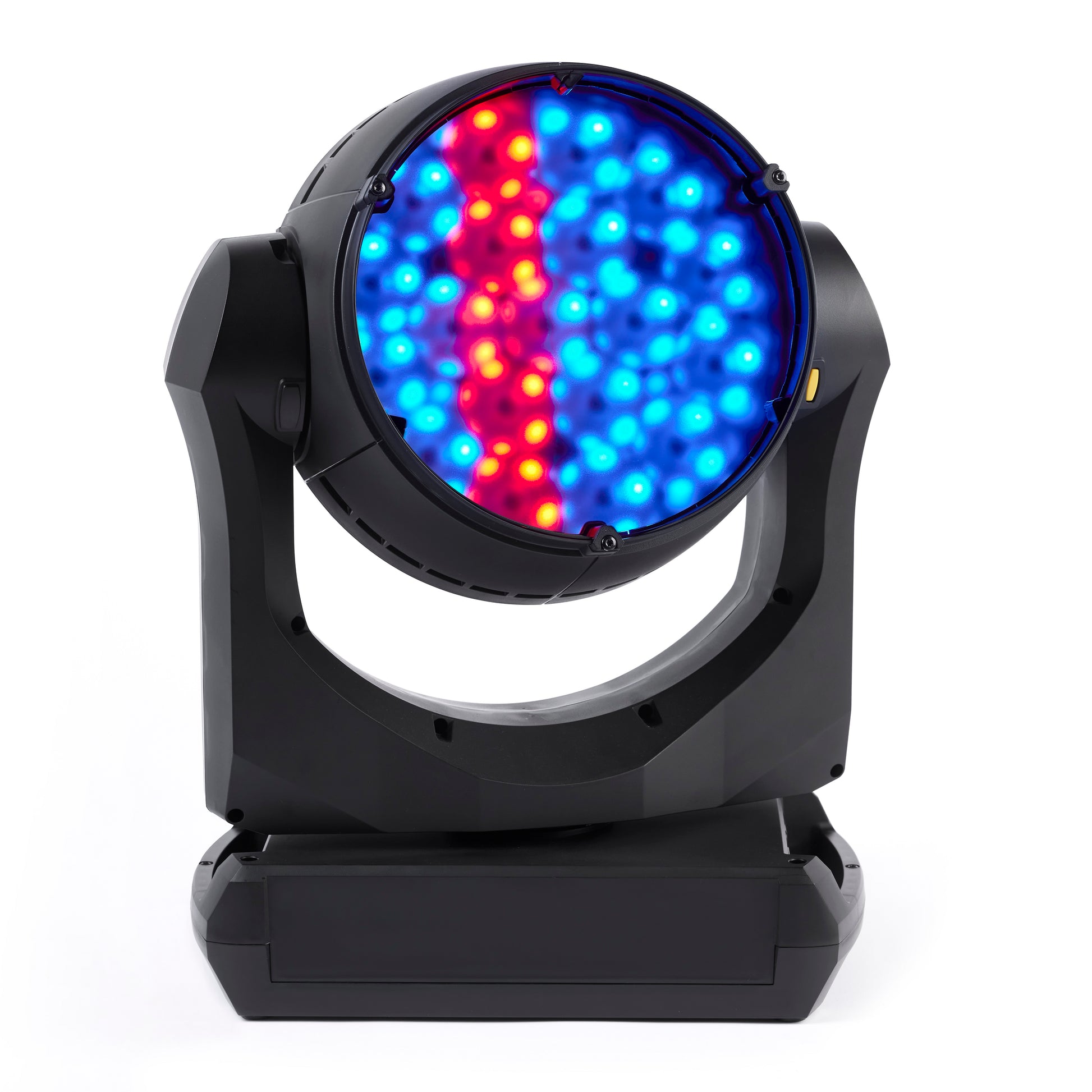

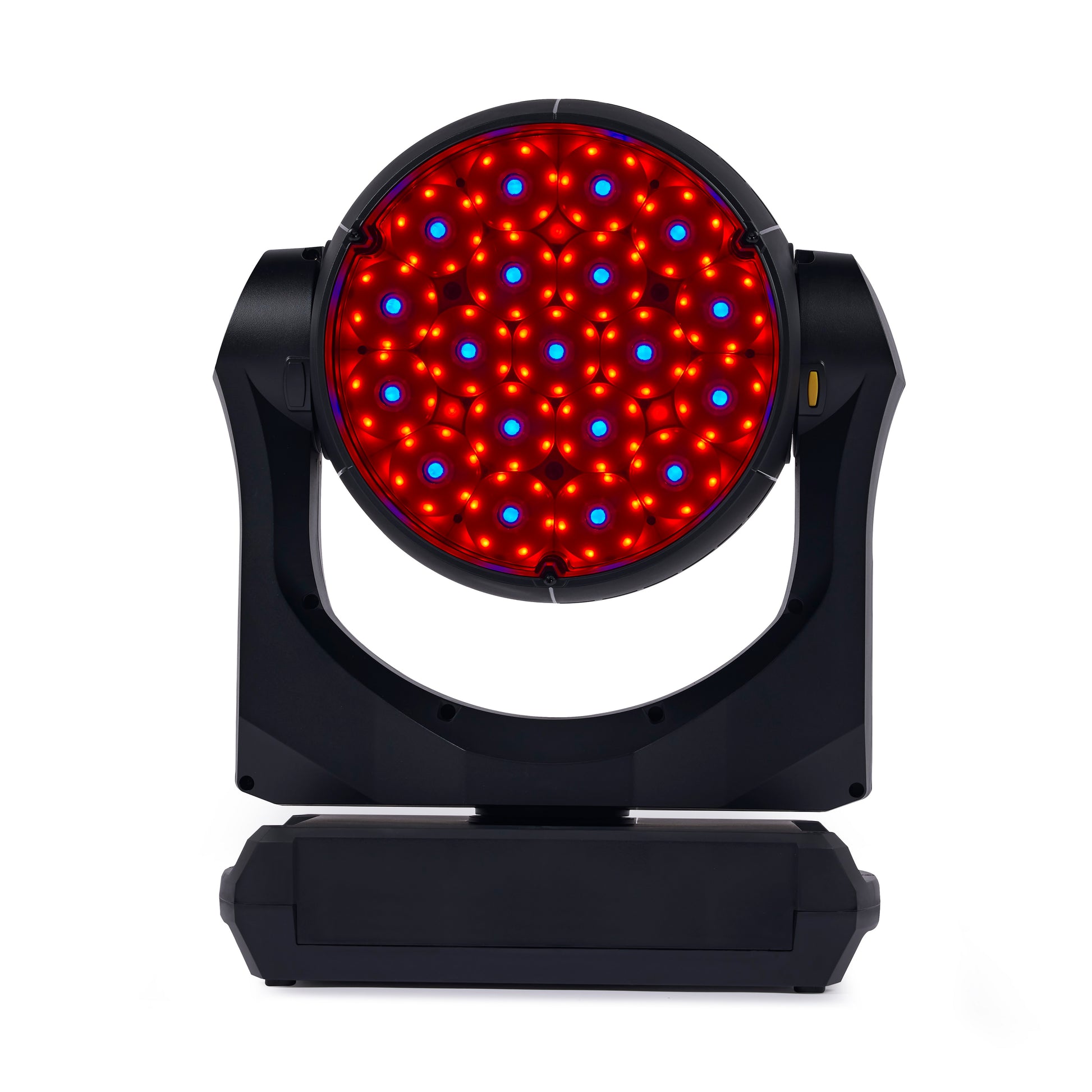

• Pixelated Aura: 141x 0.3W RGB LEDs

• Fully calibrated using Martin's Full Gamut Color Calibration

• Flicker-Free operation – LED driver frequency suitable for all kinds of camera applications

• LED Driver frequency adjustable for demanding applications

• Optics

• Tight beam and beautiful wash field

• 6 - 59° zoom – Precise, silent and fast zoom

• Even wash field with zero hotspot

• High intensity mid-air beams

• Minor color temperature shift from center to edge

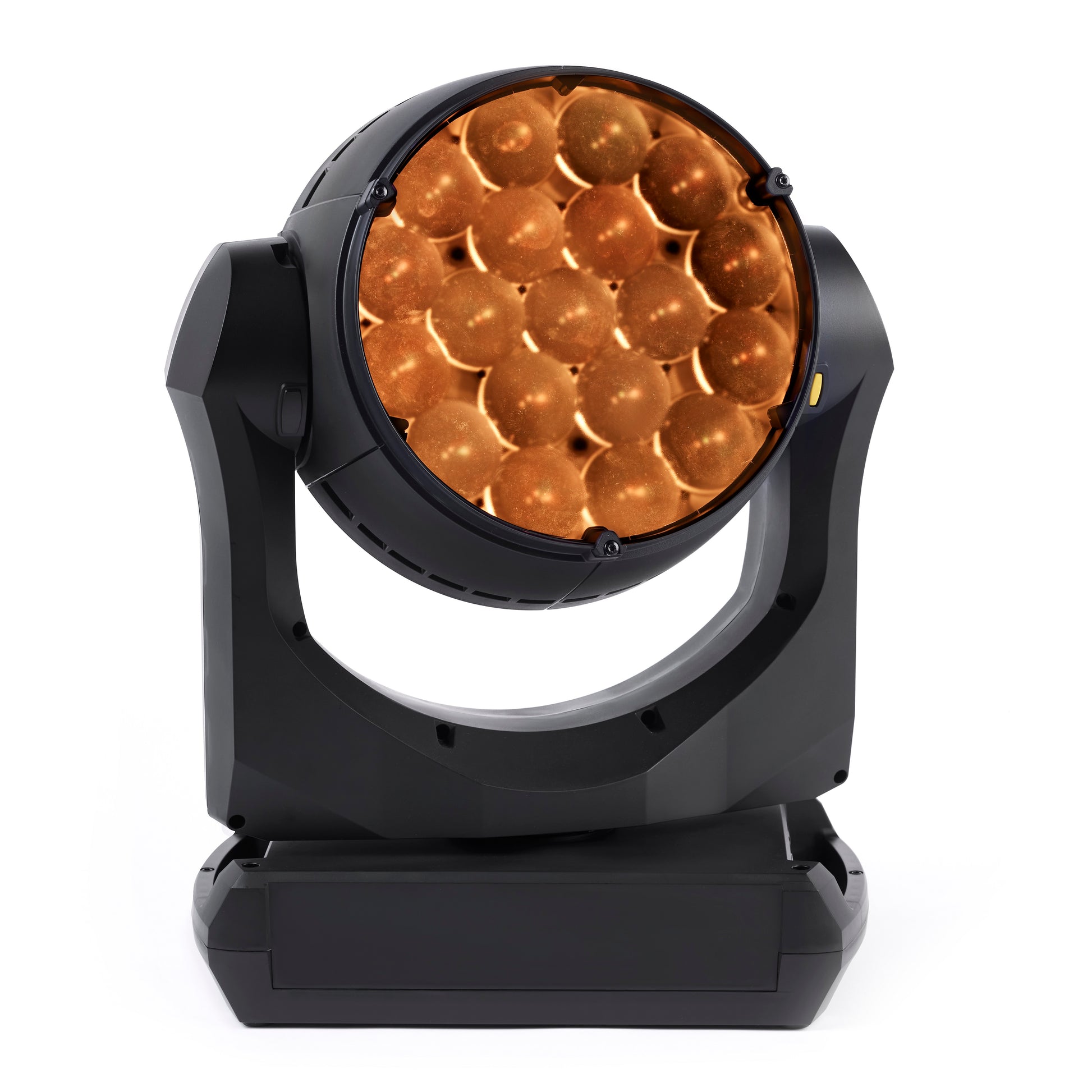

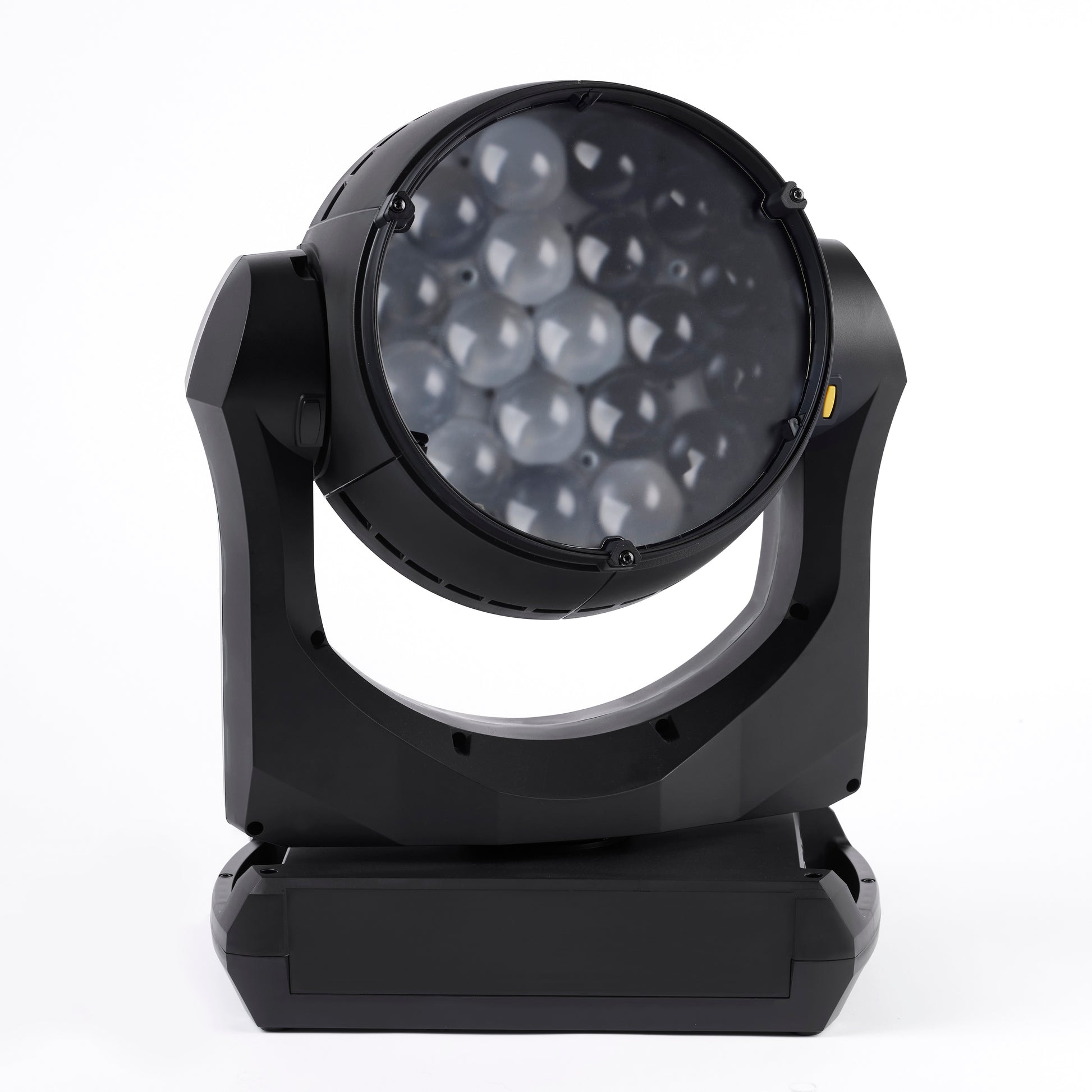

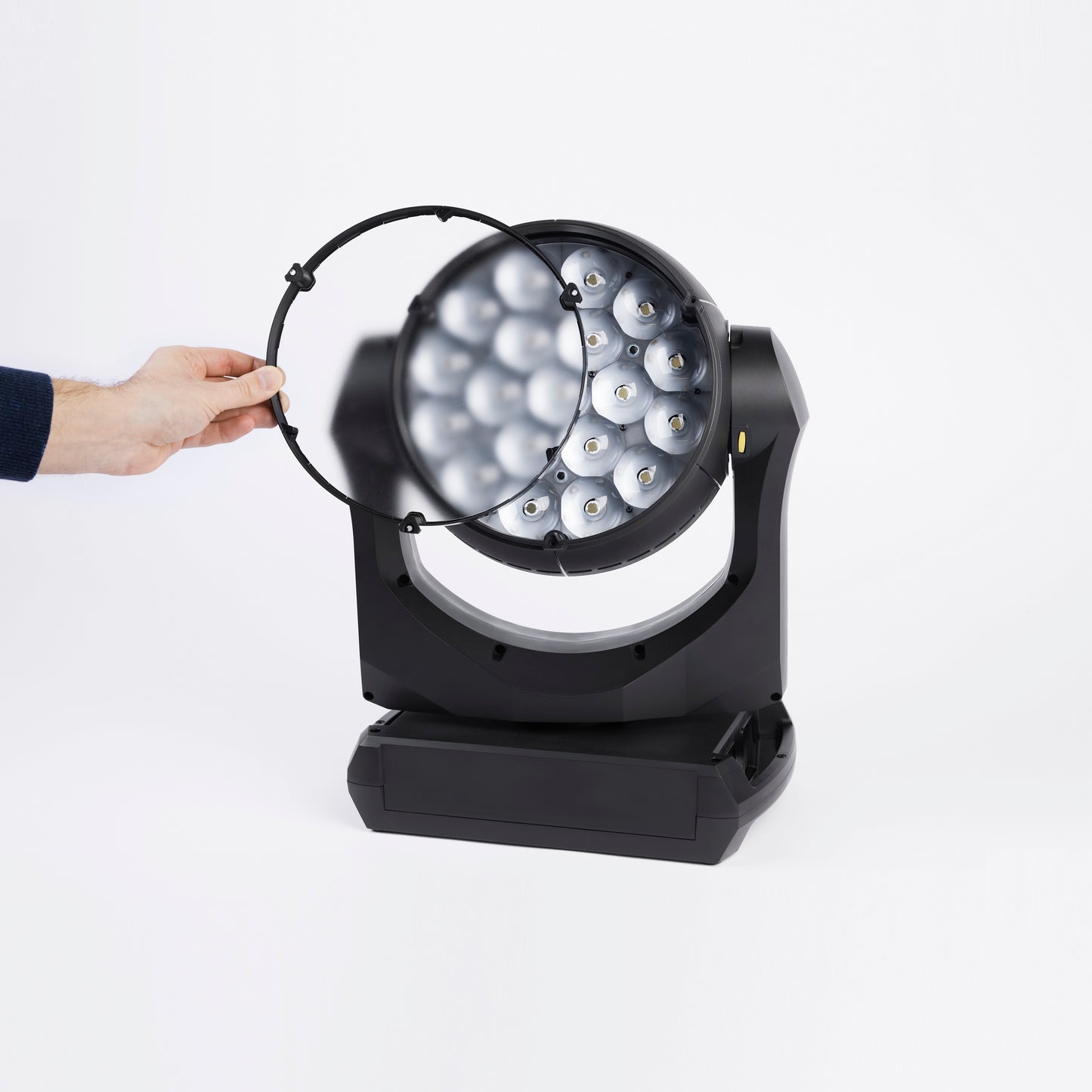

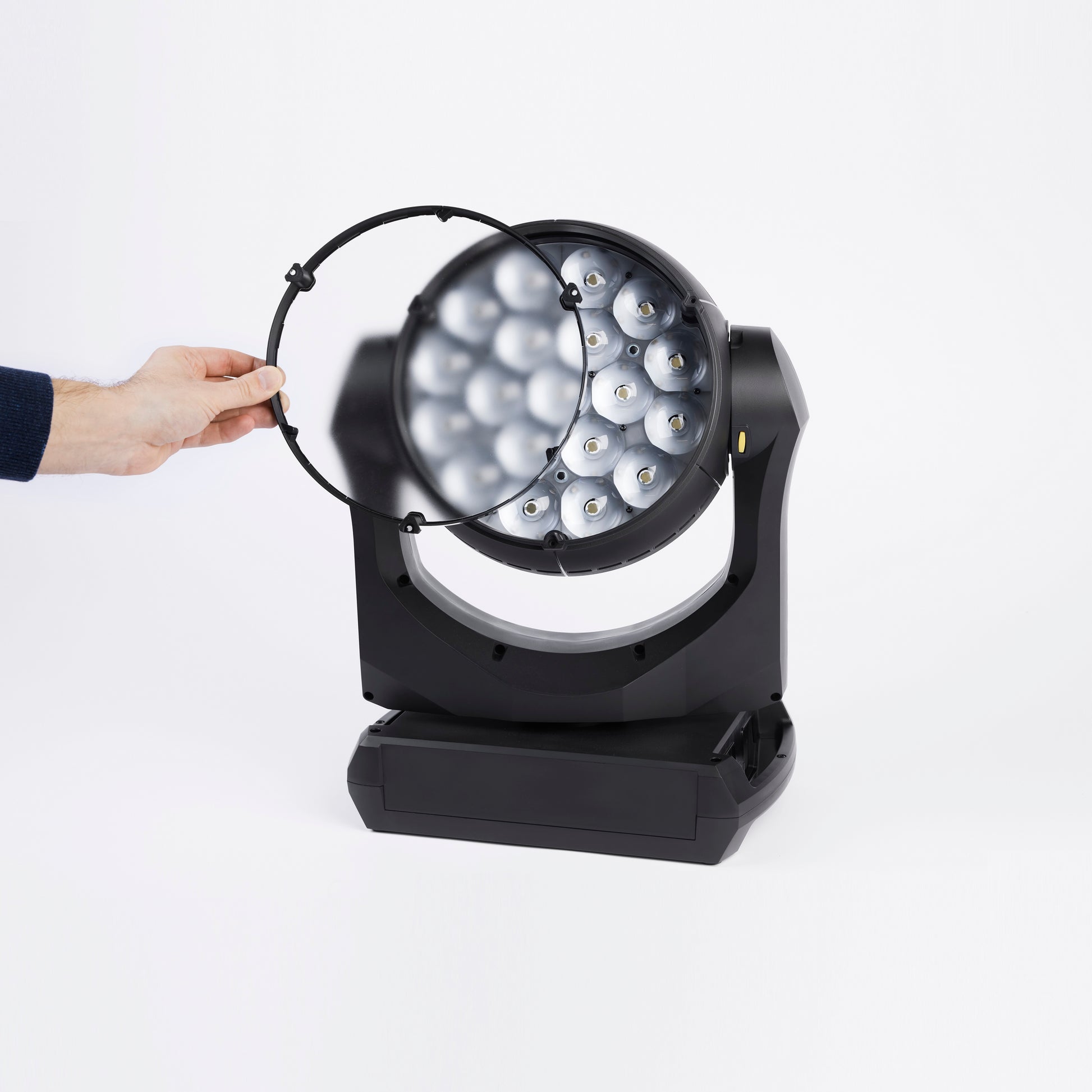

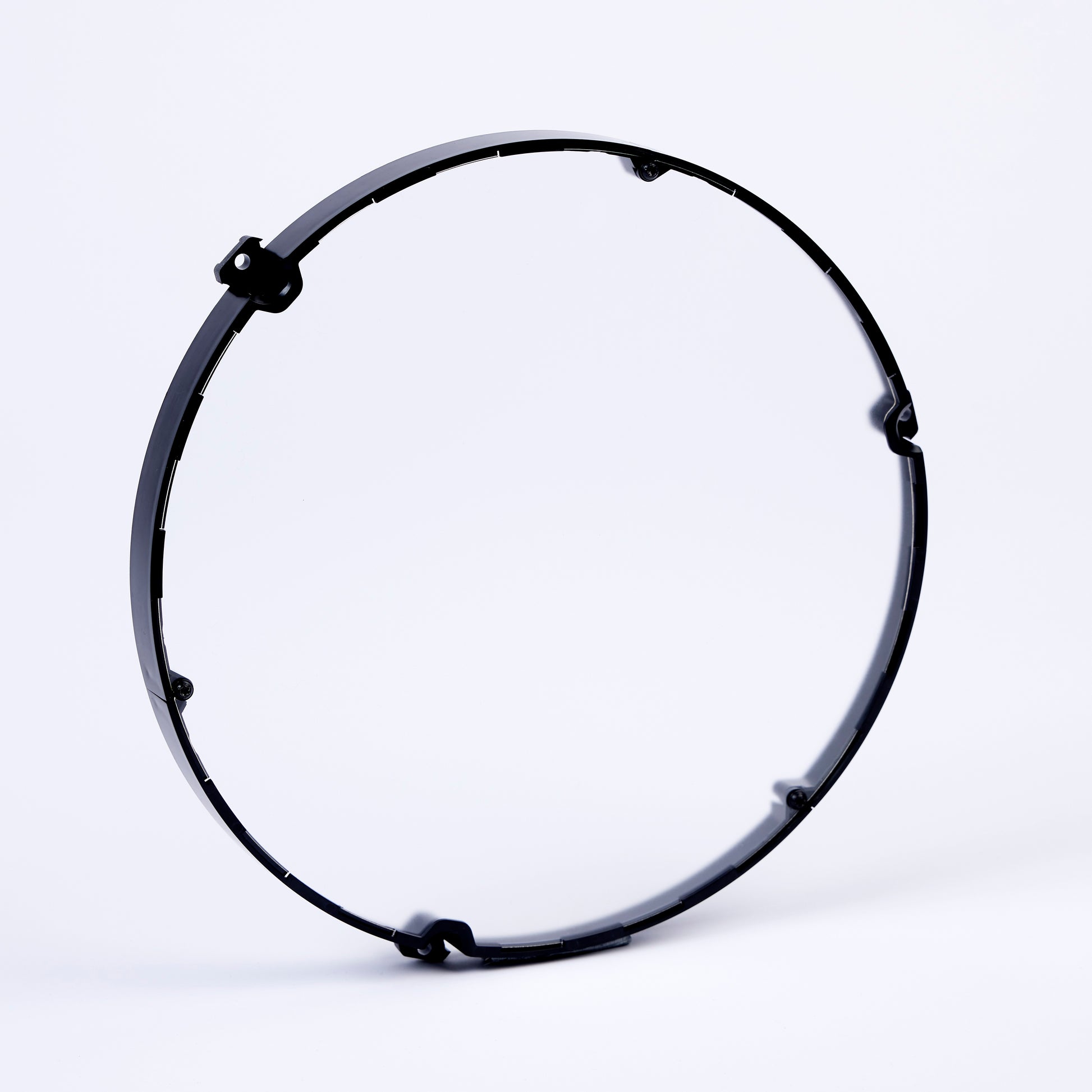

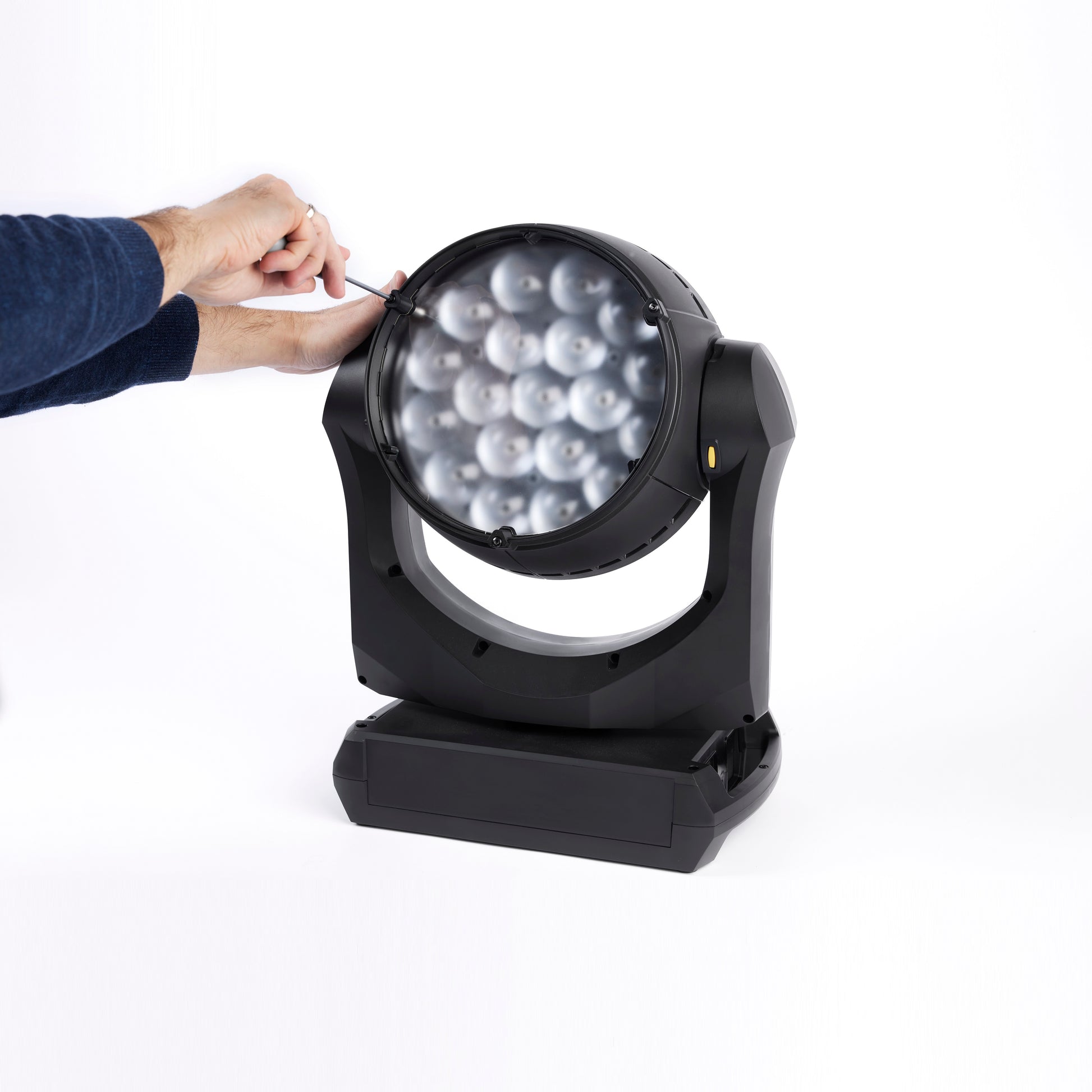

• Softlens Accessories:

• Creates a softer edge wash field

• Reduces glare from fixture lens

• Minimal impact to Aura pixel effects

• Attaches to front of fixture

• Can remain attached to fixture inside flightcase SiP

• Color Pallete

• RGBW color mixing with very bright and vibrant saturated colors, as well as nice pastels and white tones

• Calibrated and Extended Color Modes

• Calibrated CTC control: 2,000 -  10,000 K

• Tungsten Emulation Option

• Virtual Color Wheel

• Dynamic Effects:

• More than 150 built-in FX macros with control of foreground color, background color, speed and direction

• P3 video mapping of fixture Beam pixels and/or Aura pixels

• P3 Mix allowing crossfade between video looks and DMX looks

• High-speed pan, tilt and zoom

• Cooling and Noise

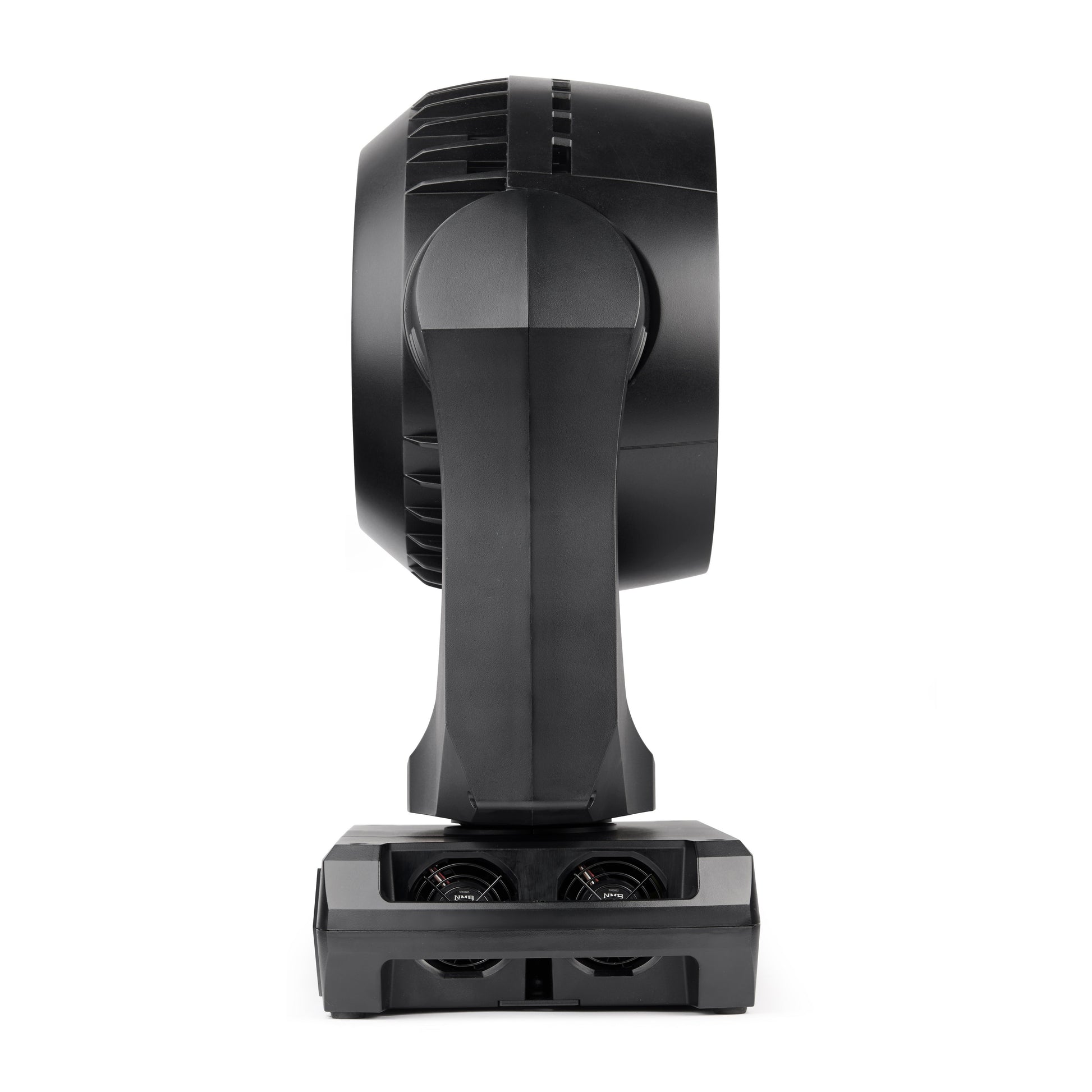

• Ultra-quiet cooling system

• Theater / Broadcast mode at just 24.6 dB(A)

• Low noise pan/tilt and effects operation

• Construction

• Weight:15.60 kg (34.39 lbs.)

• Dimensions: 410 x 489 x 232 mm

• Control:

• Battery-powered control panel on the base

• DMX in & thru

• Ethernet in & thru, supporting Art-Net, sACN & Martin P3

• Fail-safe bypass on Ethernet ports

• RDM over DMX and RDM over Art-Net

Specifications:

• Physical

• Width (across yoke): 410 mm (16.14 in.)

• Width (base): 385 mm (15.16 in.)

• Height (head straight up): 489 mm (19.25 in.)

• Height (maximum): 544 mm (21.42 in.)

• Depth (head): 216 mm (8.50 in.)

• Depth (base): 232 mm (9.13 in.)

• Minimum center-to-center distance in side-by-side installation: 440 mm (17.32 in.)

• Weight: 15.60 kg (34.39 lbs)

• Dynamic Effects

• eam Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout

• Beam Dimming options: Choice of four dimming curves

• Beam Color Mixing: RGB, independently variable 0 - 100%

• Beam Color Temperature Control: Variable 2,000 – 10,000 K

• Beam Virtual Color wheel: 48 color presets, continuous rotation & random color

• Zoom: Motorized with 1:8 zoom ratio

• Pan: Motorized 540°

• Tilt: Motorized 268°

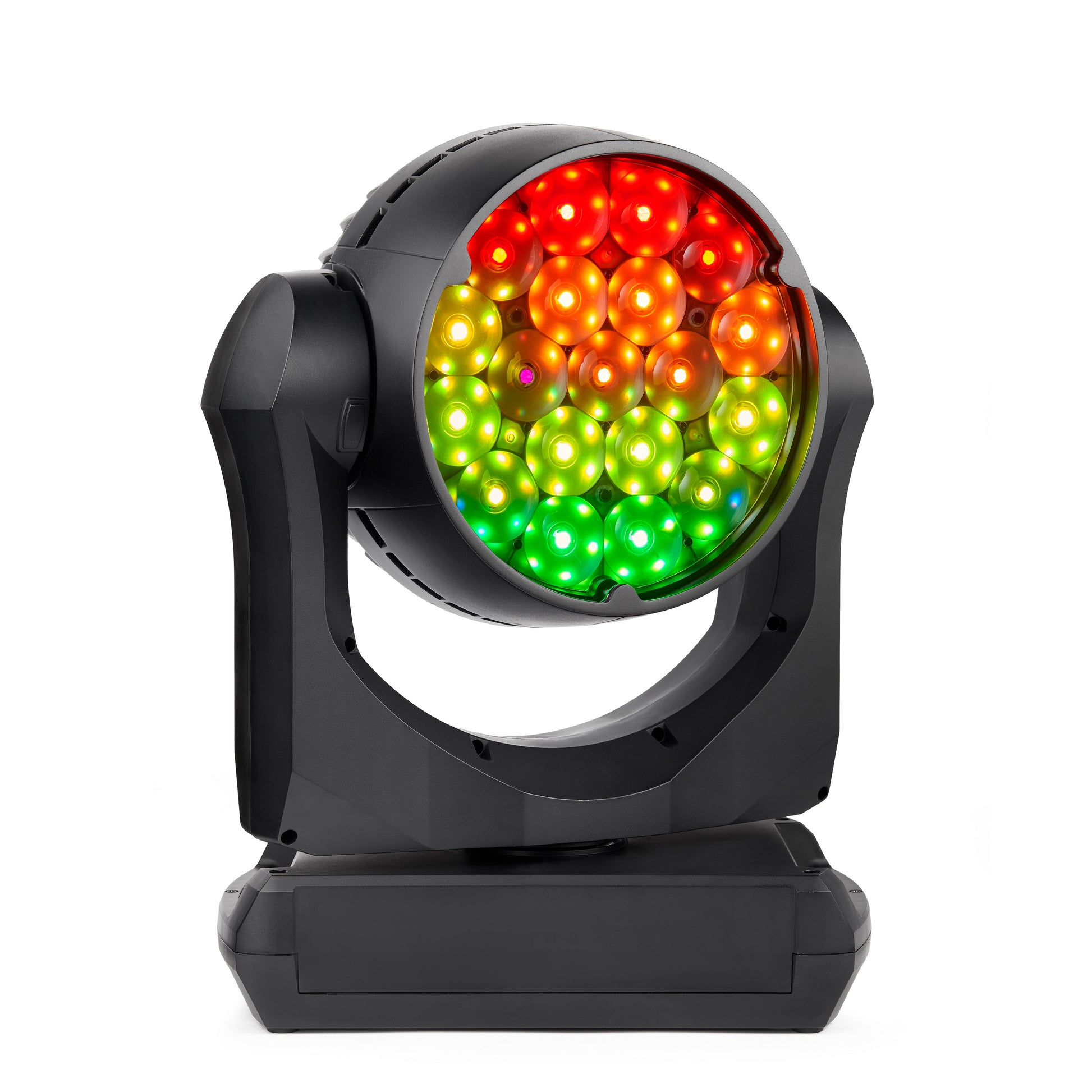

• Beam PixelMapping: individual RGB control of each of the 19 Beam pixels

• Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control

• Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe effects, instant open and blackout

• Aura Dimming options: Choice of four dimming curves

• Aura Color Mixing: RGB, independently variable 0 - 100%

• Aura Color Temperature Control: Variable 2,000 – 10,000 K

• Aura Virtual Color wheel: 48 color presets, continuous rotation & random color

• Aura PixelMapping: individual RGB control of each of the 141 Aura pixels

• Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control

• Pre-programmed effects: Two ranges of FX on Beam, Aura or Combination; independent or synchronized/combined

• Control and Programming

• Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3

• Protocol Detection: Automatic

• DMX Modes: Compact, Basic, Extended & Ludicrous

• DMX Channels: 17, 32, 89 & 512

• 16-bit Controllable Parameters: Beam & Aura Dimming, Beam Color Mixing, Pan and Tilt

• Setting and Addressing: Display Menu, RDM, RDM over Art-Net or P3

• Local User Interface: Backlit LCD Display with battery-powered operation

• Fixture identification: User-settable ID number

• DMX Compliance: USITT DMX512-A

• RDM Compliance: ANSI/ESTA E1.20

• Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net

• sACN Compliance: ANSI E1.31 - 2016

• Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer

• DMX/RDM Transceiver: Galvanic-isolated RS-485

• Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)

• Firmware Update: via USB type A memory device, via DMX using Martin Companion or via Ethernet using P3 System Controller

• Optics

• Front Lens Diameter: 255 mm (10.04 in.)

• Zoom Range: 1:8

• Full Zoom Range at Half Peak (Beam Angle): 6° - 40°

• Full Zoom Range at Tenth Peak (Field Angle): 7° - 59°

• Beam Light Source: 19 x 40 W RGBW LED

• Aura Light Source: 141 x 0.3 W RGB LED

• Max. Total Beam LED Engine Power: 570 W

• Max. Total Aura LED Engine Power: 50 W

• Minimum LED lifetime: > 50.000 hours (to > 70% luminous output)*

• Photometric Data

• Light Engine Luminous Output: 19,000 lumens

• Fixture Luminous Output Wide: 10,500 lumens

• Fixture Luminous Output Narrow: 8,500 lumens

• Peak Luminous Intensity Narrow: 940,000 cd

• CCT: Variable 2,000 K – 10,000 K (+/- 200 K)

• CRI (Color Rendering Index): ≥ 73

• CQS (Color Quality Scale): ≥ 85

• TM-30 Rf (IES TM-30-15 Fidelity Index): ≥ 77

• TM-30 Rg (IES TM-30-15 Gamut Index): ≥ 117

• TLCI (Television Lighting Consistency Index): ≥ 61

• Beam LED Refresh Rate: 1,200 Hz and 19,200 Hz mode

• Aura LED Refresh Rate: 1,200 Hz and 4,004 Hz mode

• Binning: Tight color and flux binning

• Calibration: Full Gamut Color Calibration of Beam and Aura

• Construction

• Housing: High-impact flame-retardant thermoplastic

• Color: Black

• Protection rating: IP 20

• Installation

• Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets

• Location: Indoor

• Orientation: Any

• Minimum distance to combustible materials: 0.2 m (7.87 in.)

• Minimum distance to illuminated surfaces: 2.4 m (94.49 in.)

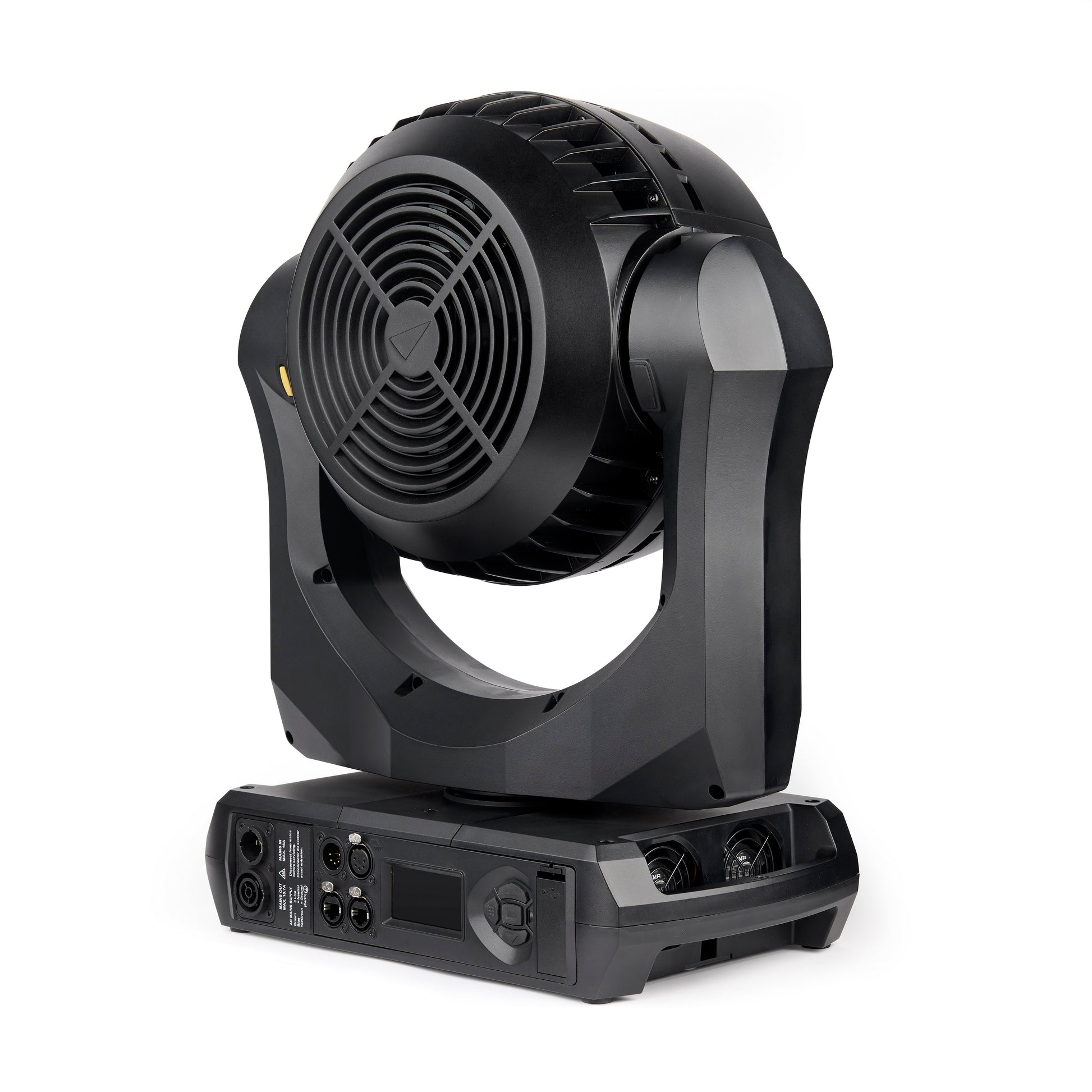

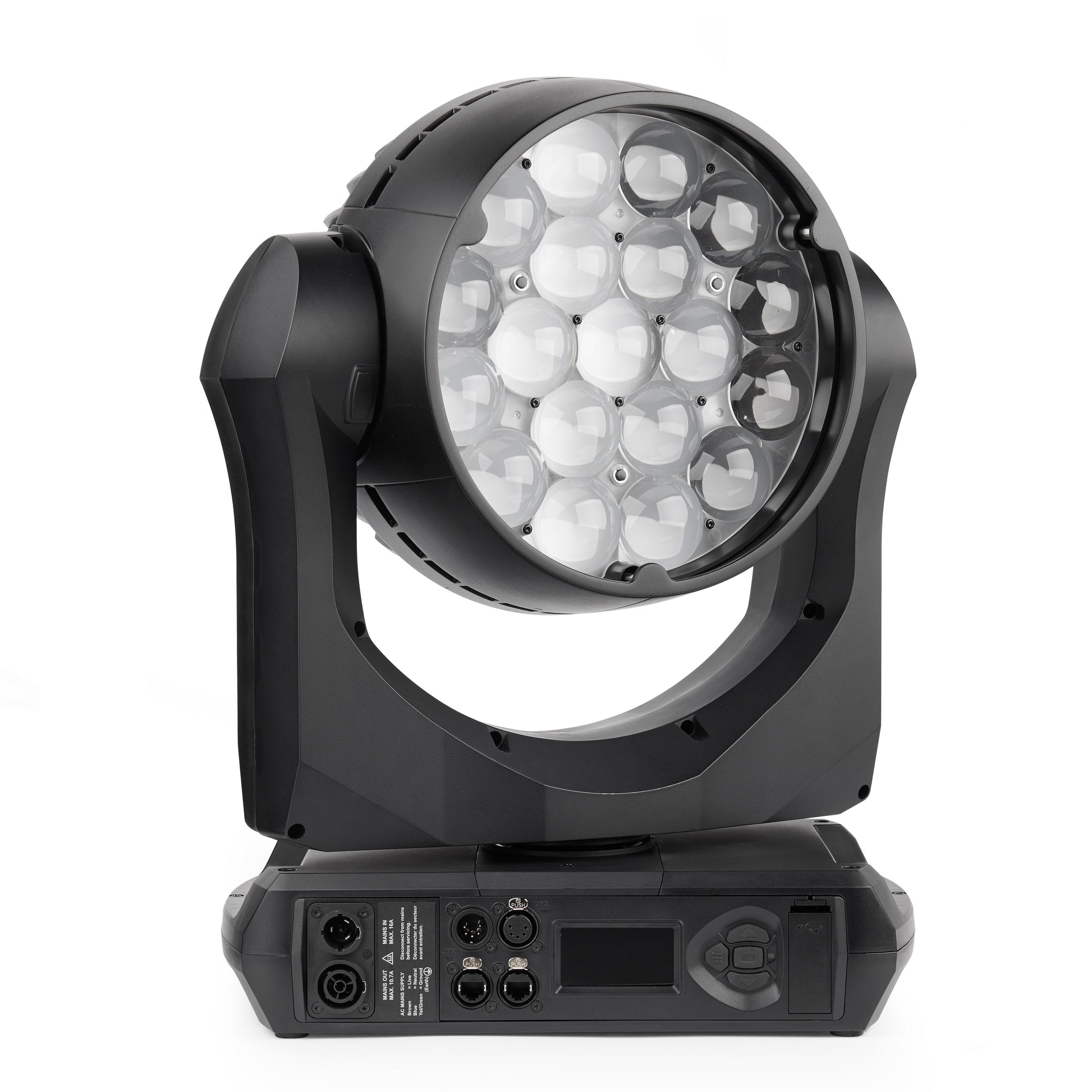

• Connections

• AC mains power in/thru: Neutrik powerCON TRUE1

• Firmware from flash memory: USB 2.0 type A port

• DMX and RDM data in/thru: Neutrik 5-pin locking XLR

• Ethernet (Art-Net, sACN and P3) in/thru, including fail-safe bypass: Neutrik etherCON

• Electrical

• AC power: 100-240 V AC nominal, 50/60 Hz

• Power supply unit: Auto-ranging electronic switch mode

• Typical half-cycle RMS inrush current at 230 V, 50 Hz: 15.9 A

• Typical earth-leakage current: 0.36 mA

• Power Factor: 0.99 @ 100 V / 120 V , 0.97 @ 208 V / 230 V / 240 V

• Max current draw: 6.4 A @ 100 V / 120 V , 2.8 A @ 208 V / 230 V / 240 V

• Typical current draw: 5.0 A @ 100 V , 4.1 A @ 120 V , 2.4 A @ 208 V , 2.2 A @ 230 V , 2.1 A @ 240 V *

• Power Consumption

• AC power: 100-240 V AC nominal, 50/60 Hz

• Power supply unit: Auto-ranging electronic switch mode

• Typical half-cycle RMS inrush current at 230 V, 50 Hz: 15.9 A

• Typical earth-leakage current: 0.36 mA

• Power Factor: 0.99 @ 100 V / 120 V , 0.97 @ 208 V / 230 V / 240 V

• Max current draw: 6.4 A @ 100 V / 120 V , 2.8 A @ 208 V / 230 V / 240 V

• Typical current draw: 5.0 A @ 100 V , 4.1 A @ 120 V , 2.4 A @ 208 V , 2.2 A @ 230 V , 2.1 A @ 240 V *

• Thermal

• Cooling: Forced air (temperature regulated, low noise, user-definable levels)

• Maximum ambient temperature (Ta max.): 40° C (104° F)

• Minimum ambient temperature (Ta min.): 5° C (41° F)

• Maximum surface temperature, steady state, at 40° C ambient: 53° C (128° F)

• Total heat dissipation (calculated, +/- 10%): 1563 BTU/hr.

• Acoustic Data

• Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 32.6 dB(A)

• Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 24.6 dB(A)

• Environmental

• RoHS: Compliant

• REACH: Compliant

• WEEE: Compliant

• Proposition 65: Compliant

• Efficacy (max output): 25.4 lm/W

• LWR*: 705 lm/kg (320 lm/lb)

• LWR = Lumen-to-Weight Ratio

• Approvals

• Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)

• EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493

• EU EMC: EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3

• US safety: UL 1573

• US EMC: FCC Part 15 Class B

• Canadian safety: CSA C22.2 No. 166

• Canadian EMC: ICES-003 Class B, ICES-005 Class B

• Australia/NZ: RCM

• United Kingdom: UKCA

What’s Included:

• Two omega brackets with 1/4 turn fasteners for rigging clamp attachment

• Safety and Installation Manual in Eng/Fre/Ger
