Description
Description

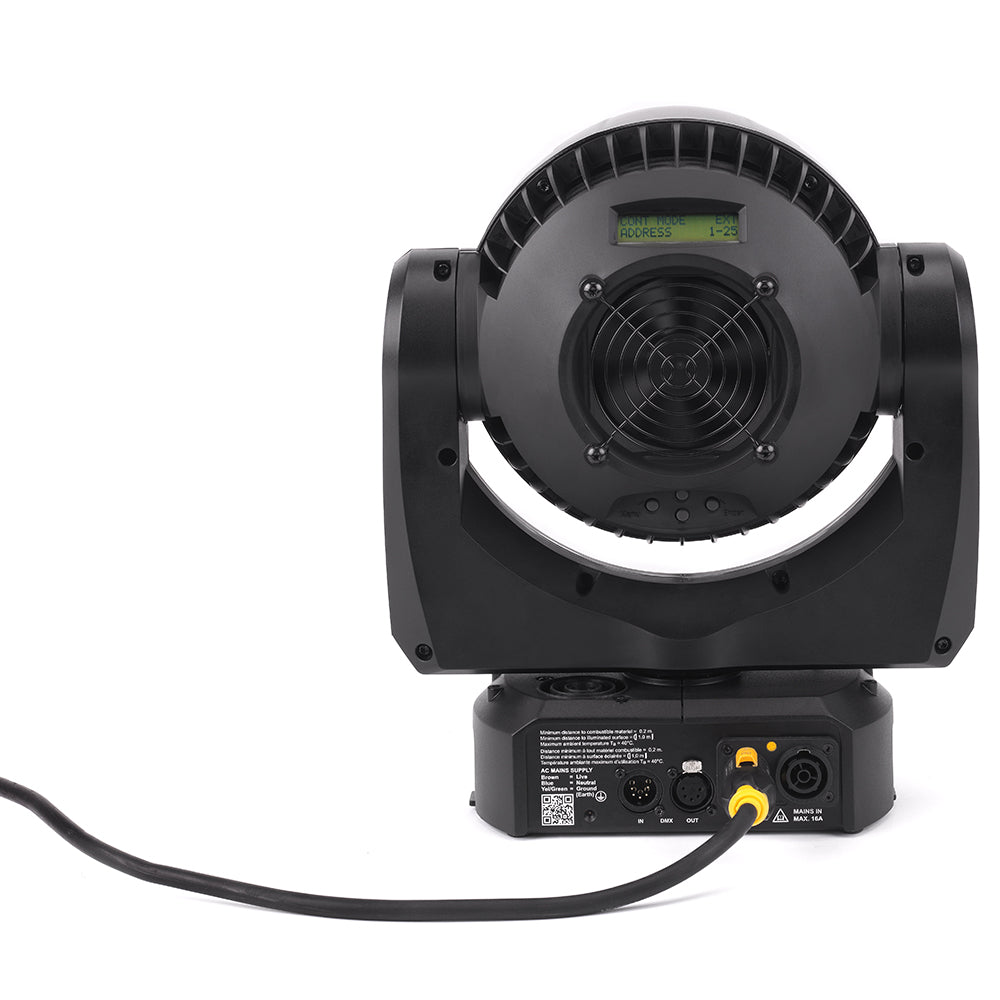

The MAC Aura XB is an award-winning LED wash light that takes innovation to the next level with increased brightness, superior color mixing, and optimized lens design. Its compact size, low weight, and energy efficiency make it a versatile and practical choice for various lighting needs.
From The Manufacturer:
The MAC Aura XB takes an award-winning, innovative, compact LED wash light to the next level, incorporating many new features first introduced with the MAC Quantum Wash™. Not only does the MAC Aura XB offer additional brightness, it also features a new superior color mixing system and an optimized lens design for tighter beams and more even washes. Martin's unique and patented Eye-candy Aura Effect™ is also part of the package.
- Super bright single lens wash with fully premixed color
- Compact design and low weight
- High efficiency, low power consumption, long service life
Features:
- Light Source:
- 6,000 lumens RGBW light output
- High narrow intensity: 220,000 cd
- Beam: 19x 15W RGBW LEDs
- Aura: 30x 0.3W RGB LEDs
- Fully calibrated using Martin's Full Gamut Color Calibration
- Flicker-Free operation – LED driver frequency suitable for all kinds of camera applications
- Optics
- Tight beam and beautiful wash field
- 9.0 – 59.1˚ zoom – Precise, silent and fast zoom
- Even wash field with zero hotspot
- High intensity mid-air beams
- Minor color temperature shift from center to edge
- Softlens Accessories:
- Creates a softer edge wash field
- Reduces glare from fixture lens
- Attaches to front of fixture
- Can remain attached to fixture inside flightcase SiP
- Color Palette:
- RGBW color mixing with very bright and vibrant saturated colors, as well as soft pastels and white tones
- Calibrated, Extended & Raw Color Modes
- Calibrated CTC control: 2,500 – 10,000 K
- Virtual Color Wheel
- Dynamic Effects:
- Built-in FX macros
- High-speed pan, tilt and zoom
- Cooling and Noise:
- Ultra-quiet cooling system
- Low noise pan/tilt and effects operation
- Construction:
- Weight 6.5 kg (14.4 lbs.)
- Dimensions: 302 x 332 x 163 mm
- Control:
- Control panel on the back of the head
- DMX in & thru
- RDM over DMX
Physical:
- Width (across yoke): 302 mm (11.89 in.)
- Width (base): 222 mm (8.74 in.)
- Height (head straight up): 332 mm (13.07 in.)
- Height (maximum): 390 mm (15.35 in.)
- Depth (head): 163 mm (6.42 in.)
- Depth (base): 138 mm (5.43 in.)
- Minimum center-to-center distance in side-by-side installation: 330 mm (12.99 in.)
- Weight: 6.5 kg (14.4 lbs)
Electrical:
- AC power: 100-240 V AC nominal, 50/60 Hz
- Power supply unit: Auto-ranging electronic switch mode
- Typical half-cycle RMS inrush current at 230 V, 50 Hz: 10.7 A
- Power Factor: 0.99 @ 100 V / 120 V , 0.97 @ 208 V , 0.95 @ 230 V / 240 V
- Max current draw: 3.8 A @ 100 V / 120 V , 1.8 A @ 208 V / 230 V / 240 V
- Typical current draw: 3.8 A @ 100 V , 3.2 A @ 120 V , 1.8 A @ 208 V , 1.7 A @ 230 V , 1.6 A @ 240 V *
- Power Consumption:
- Maximum: 400 W
- Typical: 359 W *
- Idle: 25 W *
Certifications / Qualifications:
- EU safety: EN 60598-2-17 (EN 60598-1), EN 62471
- EU EMC: EN 55103-1, EN 55103-2, EN 55015, EN 61547
- US safety: UL 1573
- US EMC: FCC Part 15 Class A
- Canadian safety: CSA E598-2-17 (CSA E60598-1)
- Canadian EMC: ICES-003 Class A
- Australia/NZ: C-TICK N4241
- United Kingdom: UKCA
What’s Included:
- M12 bolt suitable for use with Martin rigging clamps
- User Manual in Eng/Fre/Ger
Optional Accessories:
- Professional Clamps: CTC-50HC, CTC-50HCN
- Safety Cable: SC-07
- Neutrik® powerCON® cables
- DMX Cables
- Flight Case: CP6CASER1W
- Upload 08 software uploader
