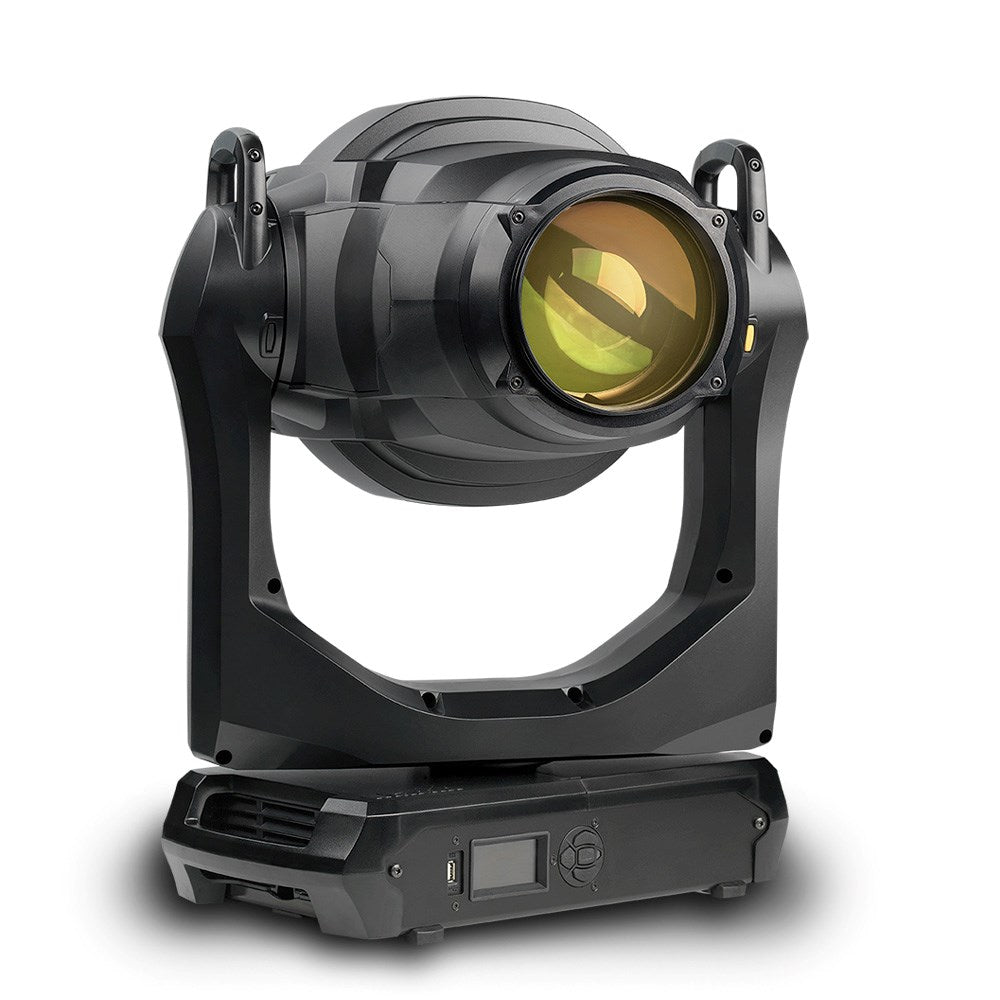

MAC Encore Performance

A high quality professional fixture great for medium sized stages. It provides good color quality and  fast movement speeds.

From the Manufacturer:

MAC Encore™ Performance CLD integrates cutting-edge LED technology with a proprietary and innovative light engine carefully engineered to generate pristine, full spectrum light with ultra-high color rendition.

The feature-packed moving head offers unparalleled 6000 K crisp, neutral daylight. Its advanced color mixing system delivers the full palette from smooth and subtle pastels to rich and vibrant saturated colors. Moreover, it offers a fully variable color correction to tungsten/orange.

Features:

• Unparalleled 6000 K cold white light quality

• Super silent cooling and effects operation

• Best-in-class size/weight/performance ratio

• Pure white LED engine with 6000 K CCT

• A flat field without color temperature variation during zoom and dimming.

• Flicker-free operation—LED driver frequency suitable for all camera applications.

• Ultra-low noise—Combines convection and forced air cooling with user-selectable output vs. sound level control.

• Fully electronic dimmer/shutter control with various dimming curves and tungsten red-shift emulation.

• Vibrant CMY color mixing with a superior palette of colors ranging from light and smooth pastel shades to rich, saturated primaries.

• Variable CTO—daylight to tungsten CCT control and expansion of the CMY palette that stays true to the black body curve.

• Color wheel—6 interchangeable dichroic filters + open.

• 1:4 zoom—precise and fast, silent zoom with auto- linked focus.

• Four framing shutter blades with individual +/- 30° adjustment and entire system rotation of +/- 55° allow for high-precision cue repeats.

• Five rotating glass gobos with next to zero focal separation from the framing system.

• Animation wheel with continuous multi-directional rotation and indexing with variable angle, speed and direction.

• Animotion™ FX System—internal dimming effect macros for stunning 3D mid-air and projection effects.

• Precise and tight iris with adjustable dynamic effects.

• Soft frost—a light frost that leaves gobo artwork and framed images visible with a beautiful soft edge.

• Heavy frost available as an optional accessory.

• Super precise and silent pan/tilt movement and positioning due to 3-phase stepper motor technology and absolute position monitoring.

• Compact size—L: 452 mm x W: 480 mm x H: 733 mm (L: 17.8 in x W: 18.9 in x H: 28.9 in).

• Low weight—31 kg/68 lbs.

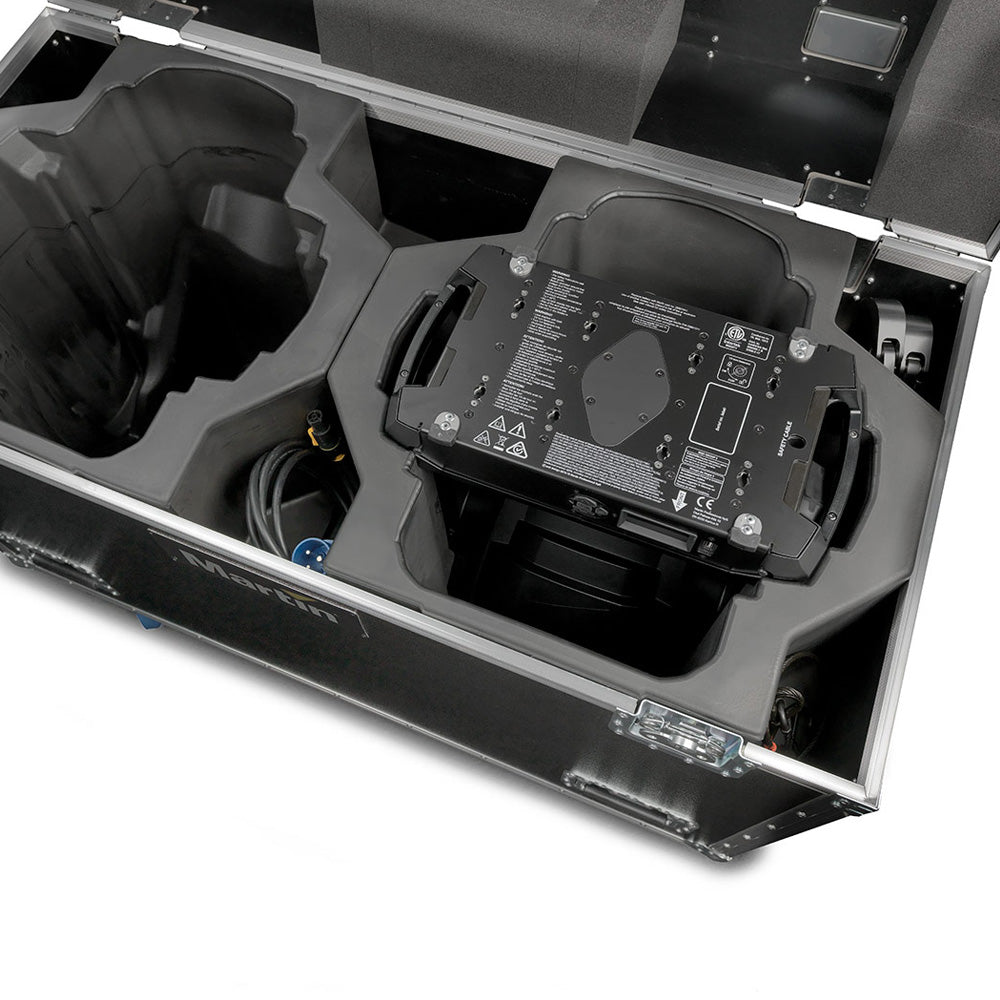

• Foam rubber (SiP) flightcase insert for secure shipment.

Specifications:

• Physical

• Length: 452 mm (17.8 in.)

• Width: 480 mm (18.9 in.) across yoke

• Height:

• 740 mm (29.2 in.) maximum

• 731 mm (28.8 in.) head straight up

• Weight: 31 kg (68.4 lbs.)

• Dynamic Effects

• Pre-programmed effects: Two ranges of FX, independent or synchronized/combined

• Color mixing: CMY, independently variable 0 - 100%

• Color wheel: 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random color

• Gobo animation: Interchangeable animation wheel, indexing, continuous rotation with variable speed and direction

• Rotating gobo wheel: 5 x interchangeable texture/breakup gobos + open, indexing, continuous rotation and shake

• Iris: Variable 0 - 100%

• Zoom: Motorized

• Color temperature control: Variable 6000 - 2700 K

• Framing: Rotatable framing module, +/- 55°, 4 x individually controllable blades with variable angle and position

• Frost: Variable 0 - 100%

• Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout

• Dimming options: Choice of four dimming curves

• Pan: 540°

• Tilt: 268°

• Position correction system: Absolute position monitoring

• Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity

• Control and Programming

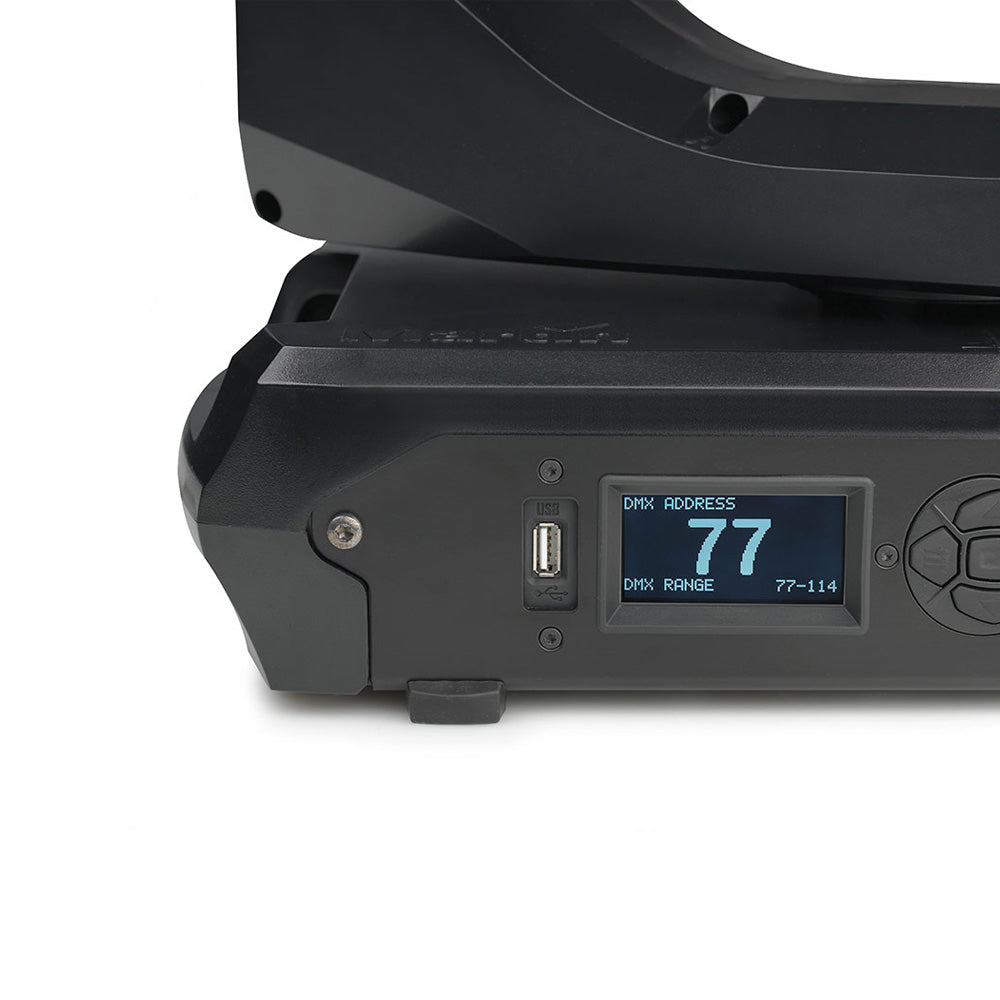

• Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX

• 16-bit control: Dimming, rotating gobos, zoom, focus, pan and tilt

• Movement control options: Tracking and vector

• DMX channels: 38

• Fixture Identification: User-settable ID number

• DMX compliance: USITT DMX512-A

• RDM compliance: ANSI/ESTA E1.20

• Transceiver: Opto-isolated RS-485

• Fixture software update: USB memory device or over DMX lin

• Optics

• Zoom range: 12° - 48° one-tenth peak (1:4)

• Light source: 468 W custom Martin LED engine

• Minimum LED lifetime: 50,000 hours (to >80% luminous output)*

(Figure obtained under manufacturer's test conditions

• Photometric Data

• Light engine luminous output: ≥ 39,400 lumens

• Fixture luminous output: 11,600 lumens

• CRI (Color Rendering Index) : >80

• CQS (Color Quality Scale): >80

• TM-30 Rf (IES TM-30-15 Fidelity Index): >80

• TM-30 Rg (IES TM-30-15 Gamut Index): >95

• TLCI (Television Lighting Consistency Index): >70

• CCT: 6000 K (+/- 250 K)

• Construction

• Housing: High-impact flame-retardant thermoplastic

• Color: Black

• Protection rating: IP20

• Installation

• Mounting points: 4 pairs of 1/4-turn locks

• Location: Dry location only, must be fastened to surface or structure

• Orientation: Any

• Minimum distance to combustible materials: 0.2 m (8 in.)

• Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)

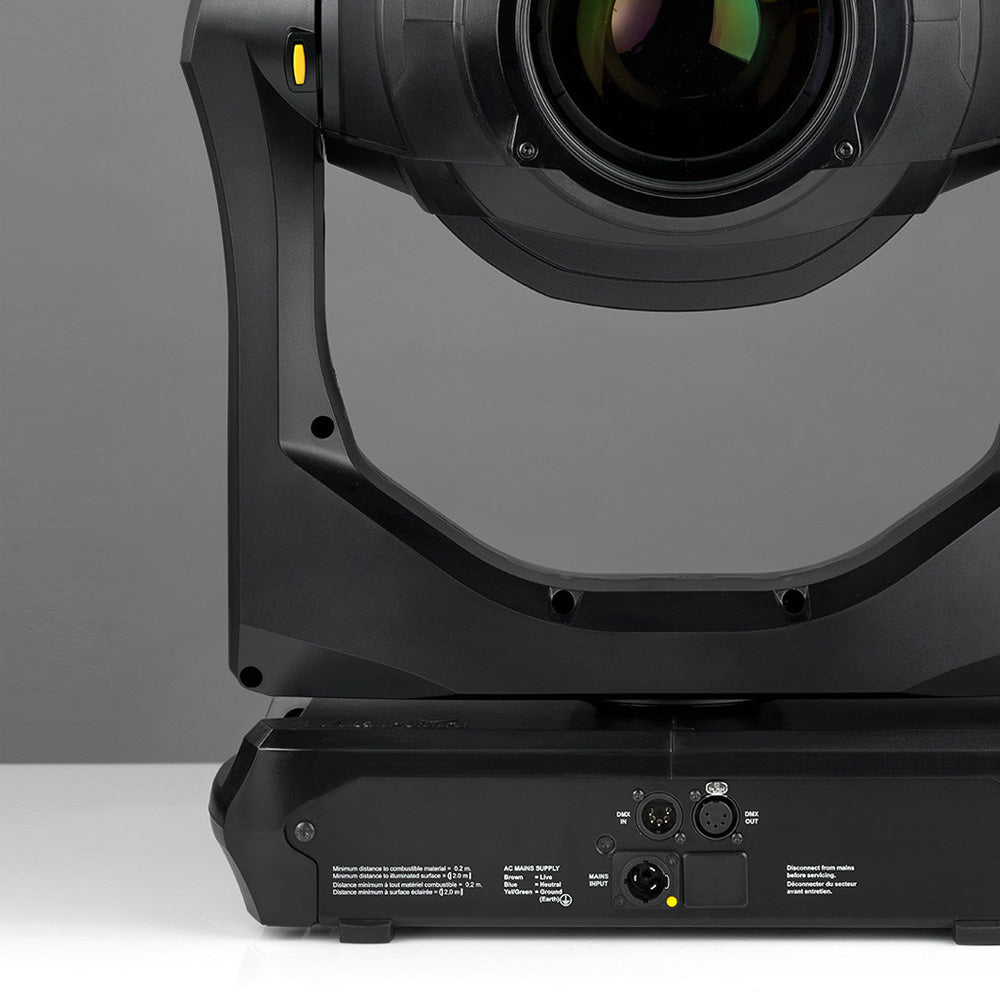

• Connections

• AC power input: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector)

• DMX and RDM data in/out: 5-pin locking XLR

• Electrical

• AC power: 120-240 V AC nominal, 50/60 Hz

• Power supply unit: Auto-ranging electronic switch mode

• Typical half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A

• Power Factor: 0.99 @ 120 V / 208 V , 0.98 @ 230 V / 240 V

• Typical current draw: 5.0 A @ 120 V , 2.9 A @ 208 V , 2.6 A @ 230 V , 2.2 A

• Power Consumption

• Typical: 596 W

• Idle: 64 W

• Thermal

• Cooling: Combined convection and forced air (temperature-regulated, low noise, user-definable levels)

• Maximum ambient temperature (Ta max.): 40° C (104° F)

• Minimum ambient temperature (Ta min.): 5° C (41° F)

• Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F)

• Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.

• Environmental

• RoHS: Compliant

• REACH: Compliant

• WEEE: Compliant

• Proposition 65: Compliant

• Efficacy (max output): 20 lm/w

• LWR*: 297 lm/kg (169 lm/lb)

• LWR = Lumen-to-Weight Ratio

• Approvals

• EU safety: EN 60598-2-17, EN 62471, EN62493

• EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547

• US safety: UL 1573

• US EMC: FCC Part 15 Class A

• Canadian safety: CSA C22.2 No. E598-2-17

• Canadian EMC: ICES-003 Class A

• Australia/NZ: RCM

What’s Included:

• Two omega brackets with 1/4 turn fasteners for rigging clamp attachment

Accessories:

• Gelframe MAC Encore: P/N 91001000

• Set of Followspot Handles MAC Encore: P/N 91001001HU

• Heavy Frost Assy MAC Encore Performance: P/N 91001002HU

• SIP Packaging MAC Encore Family: P/N 91616115HU

• Static GOBO Wheel MAC Encore Performance: P/N 91001003

• Top Hat MAC Encore Performance: P/N 91001004

• Cables and connectors:

• Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797

• Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786

• Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173

• Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174

• Cable Connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789
