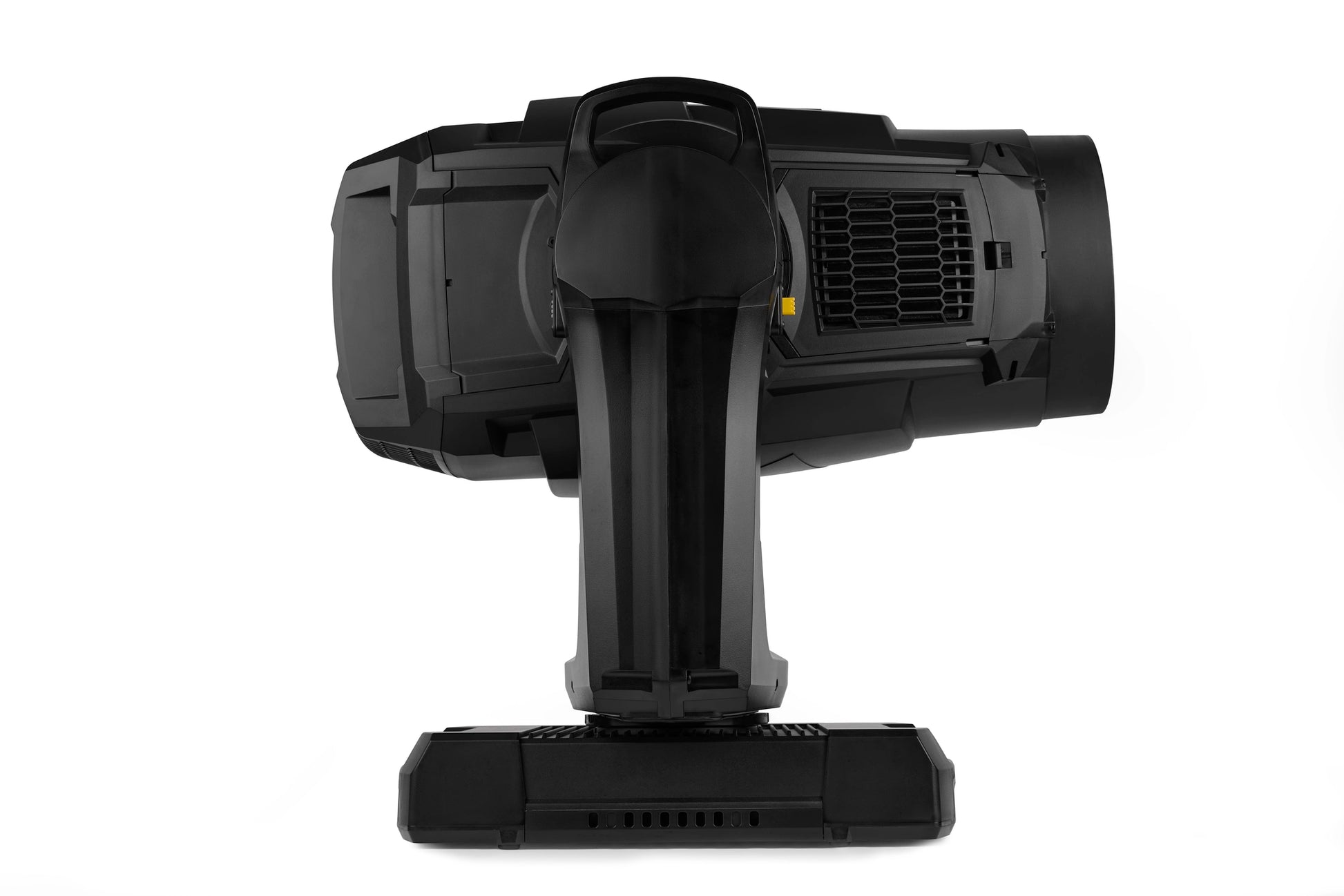

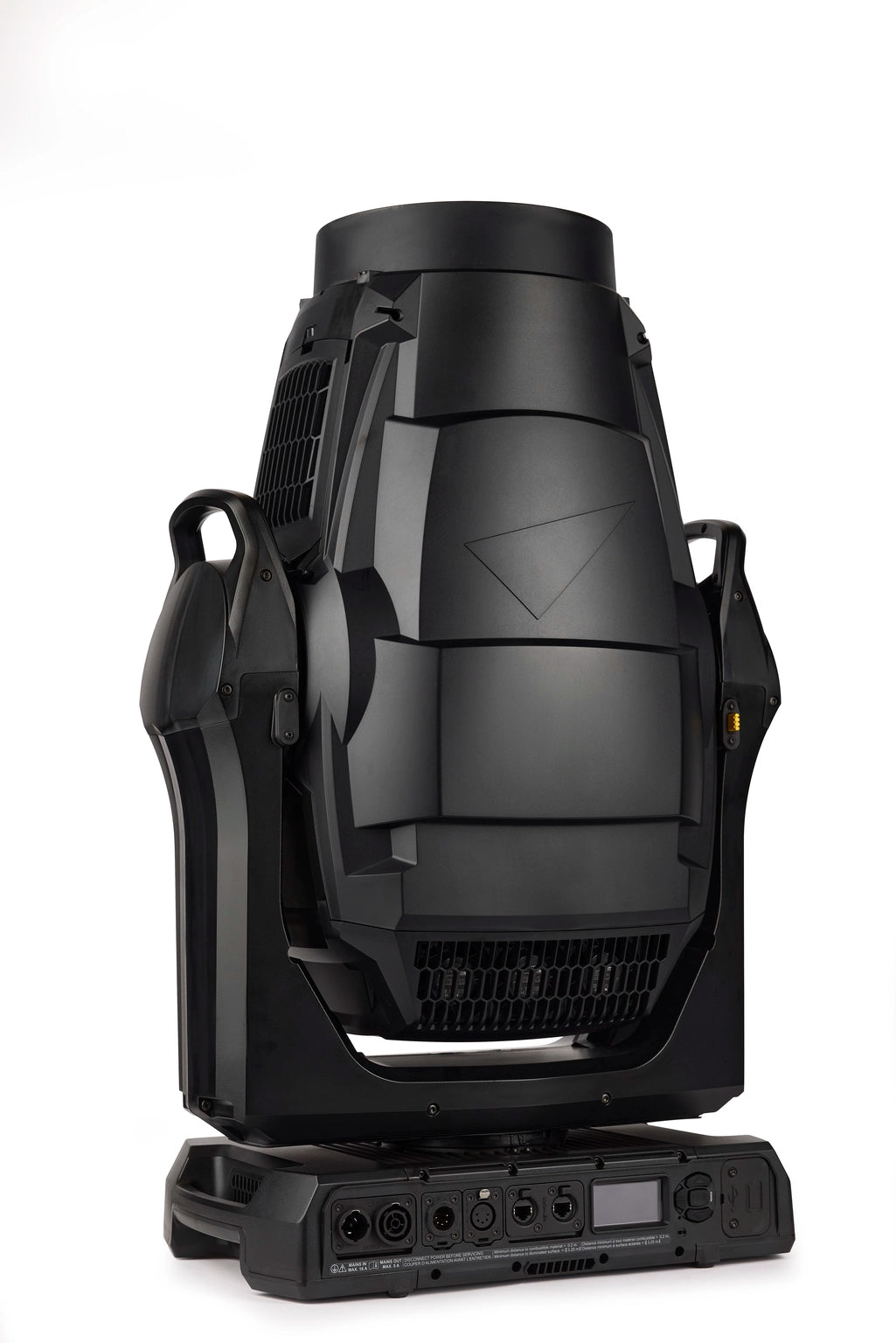

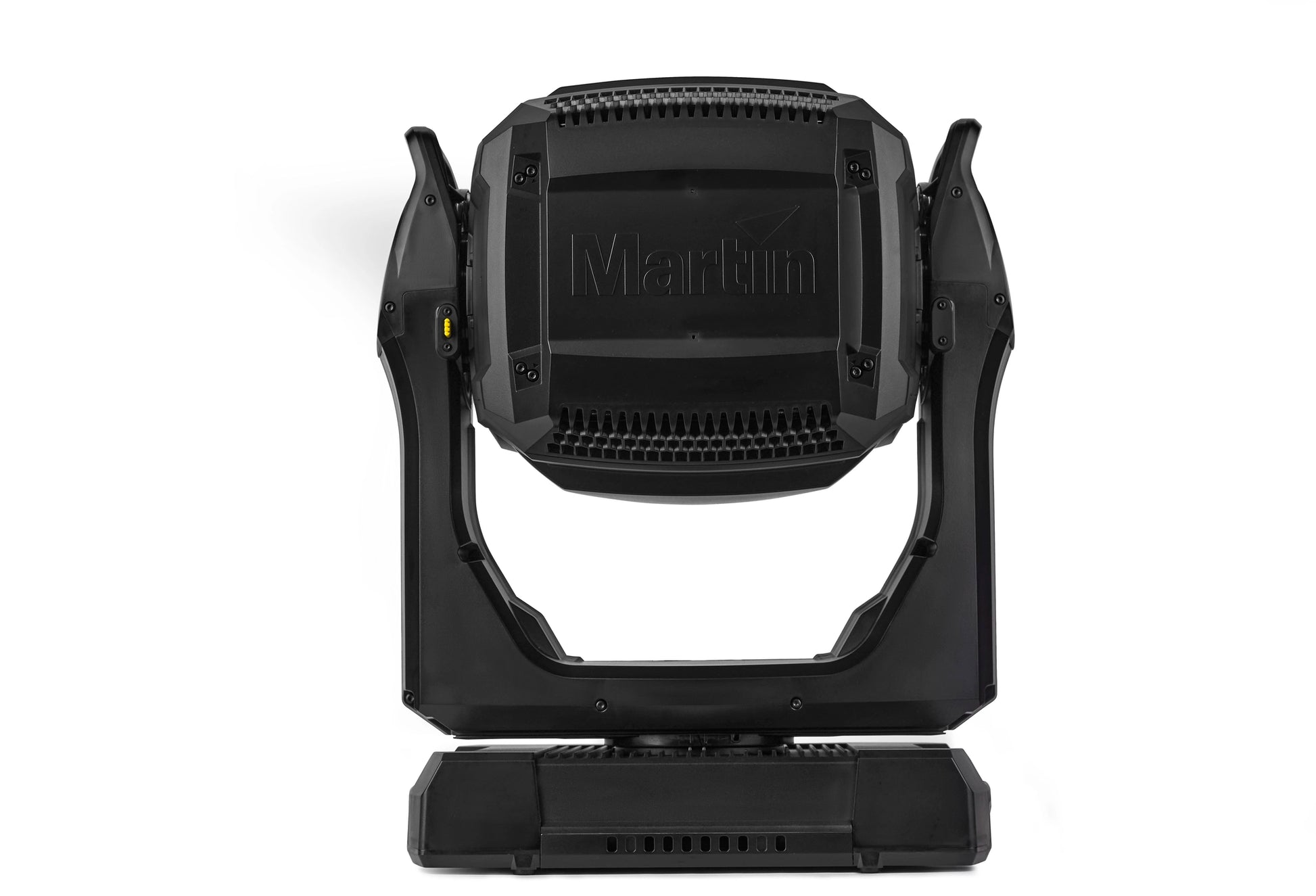

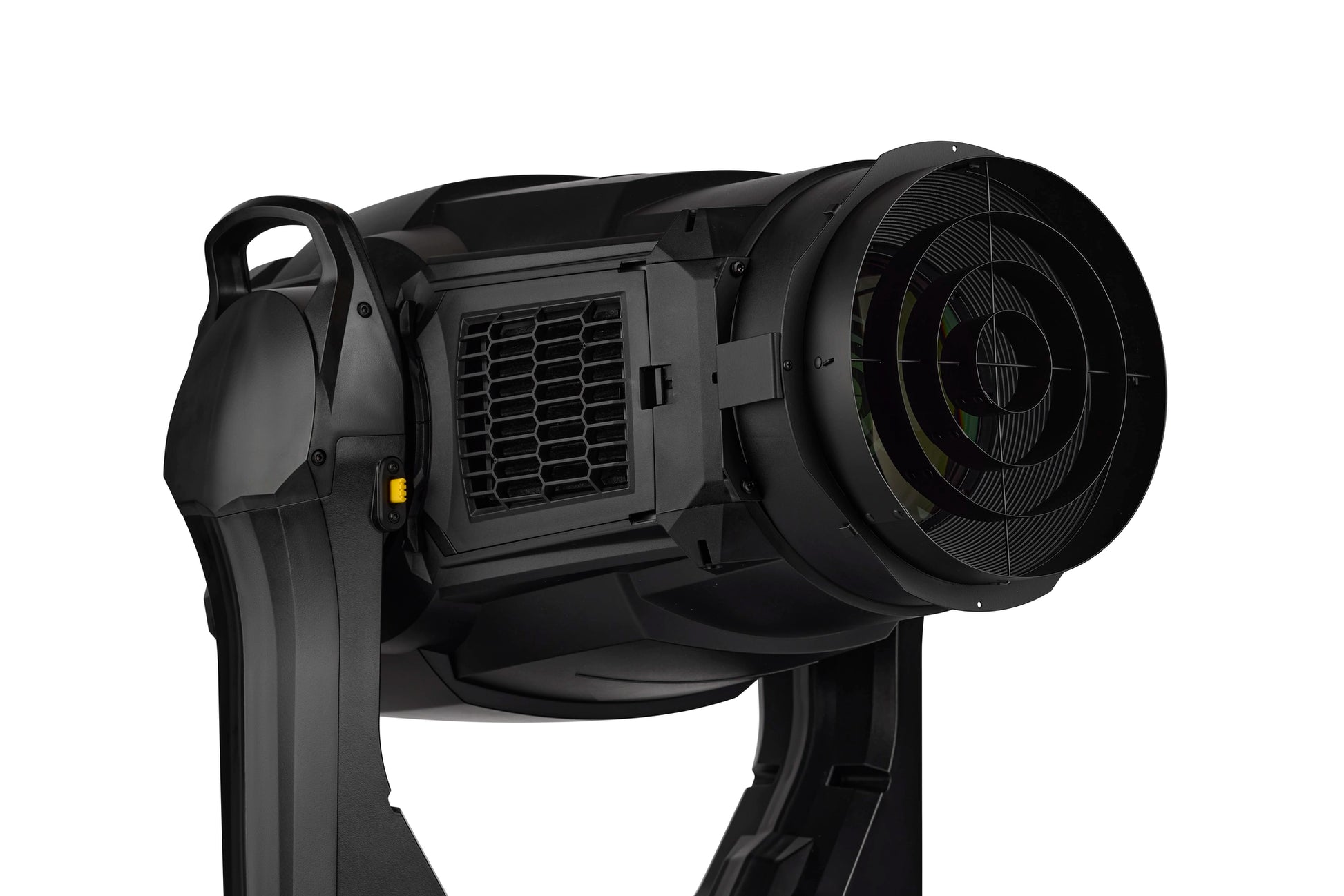

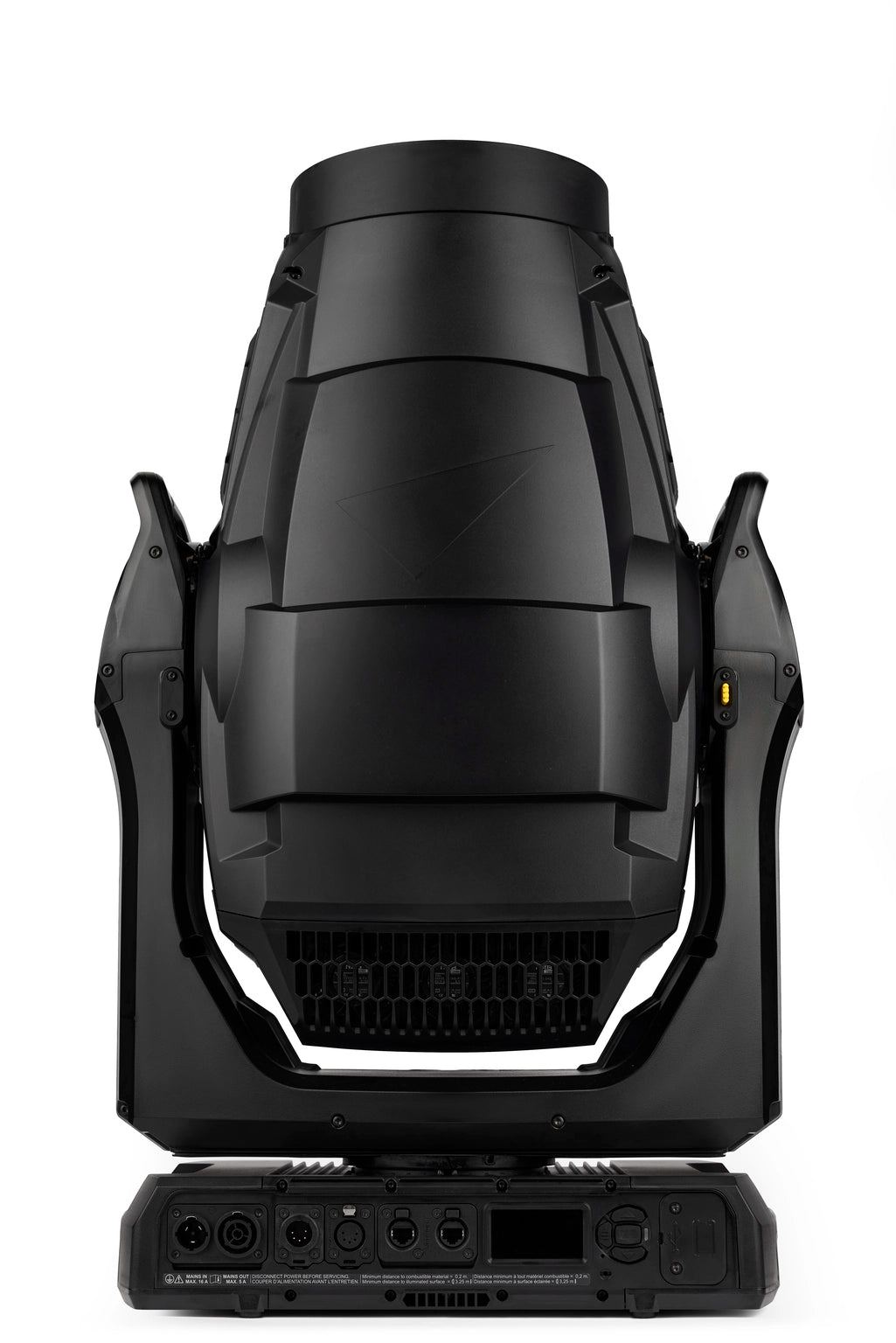

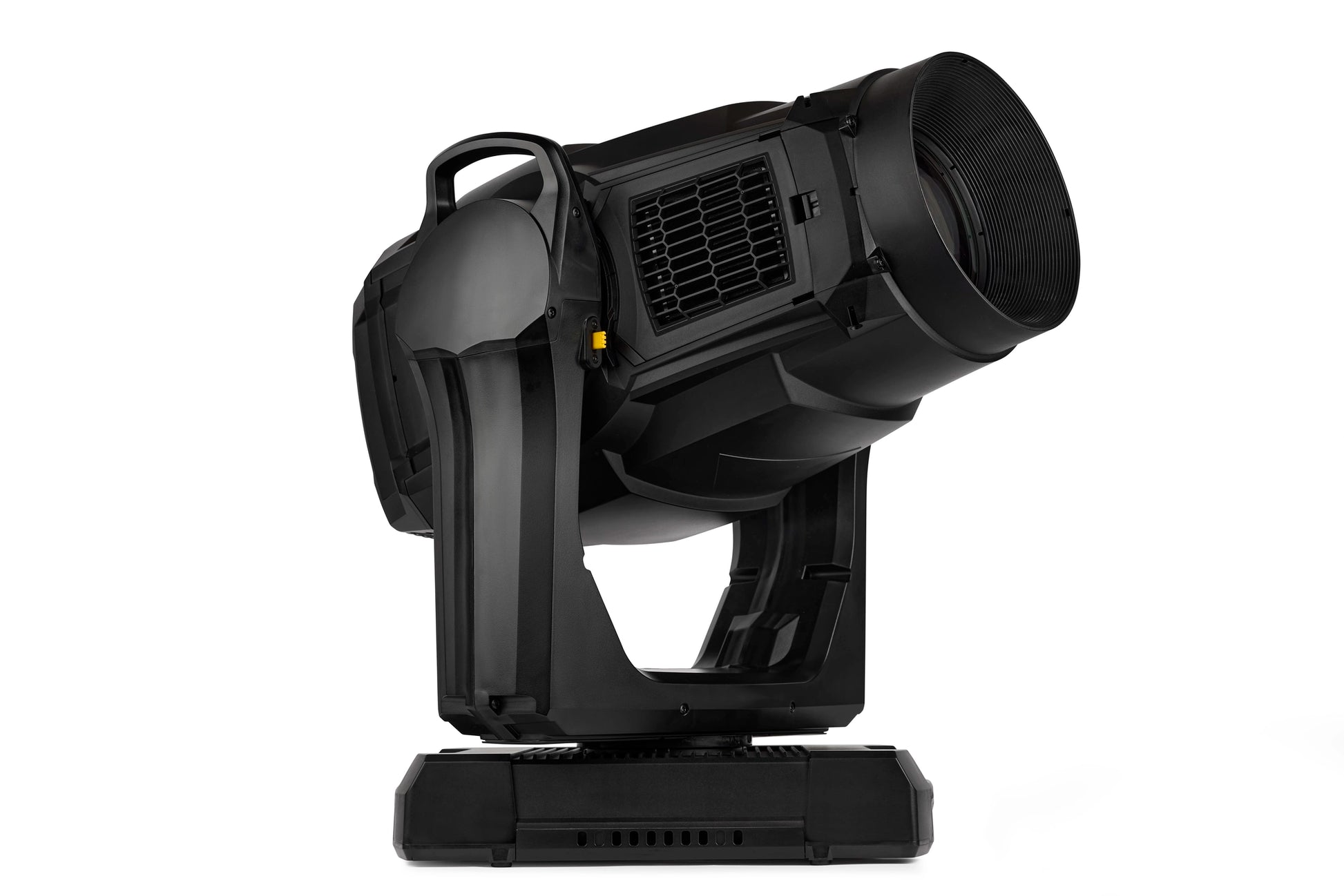

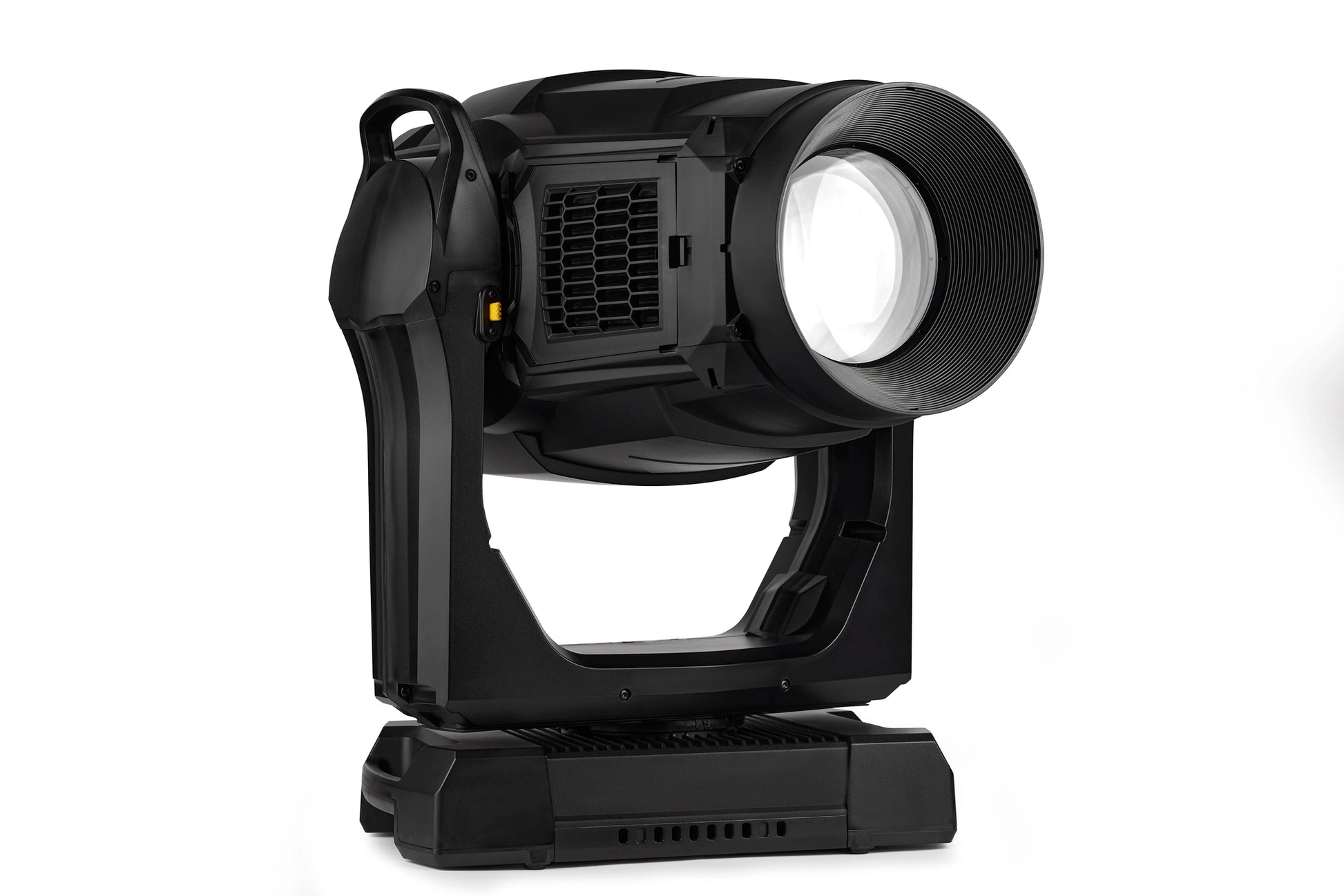

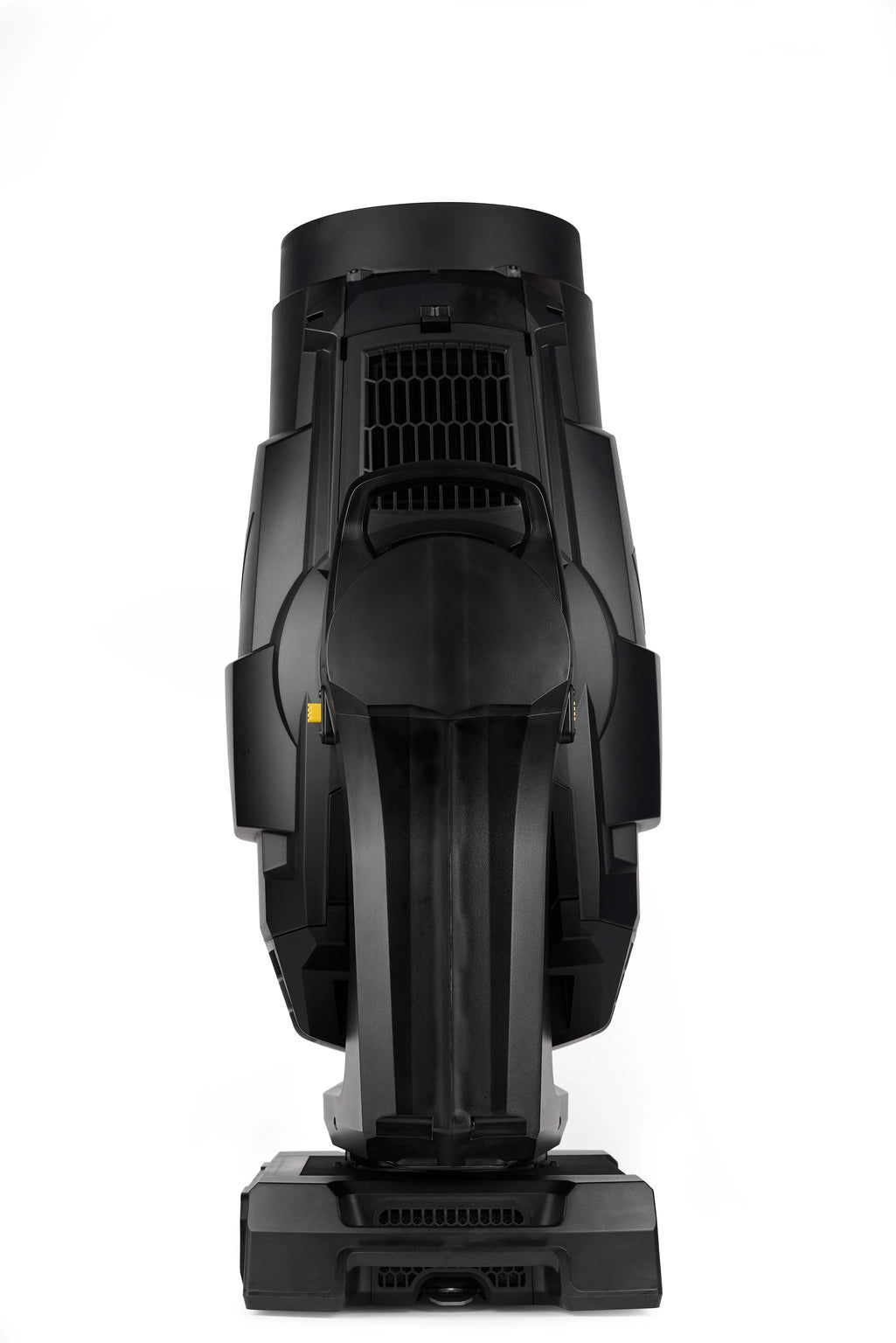

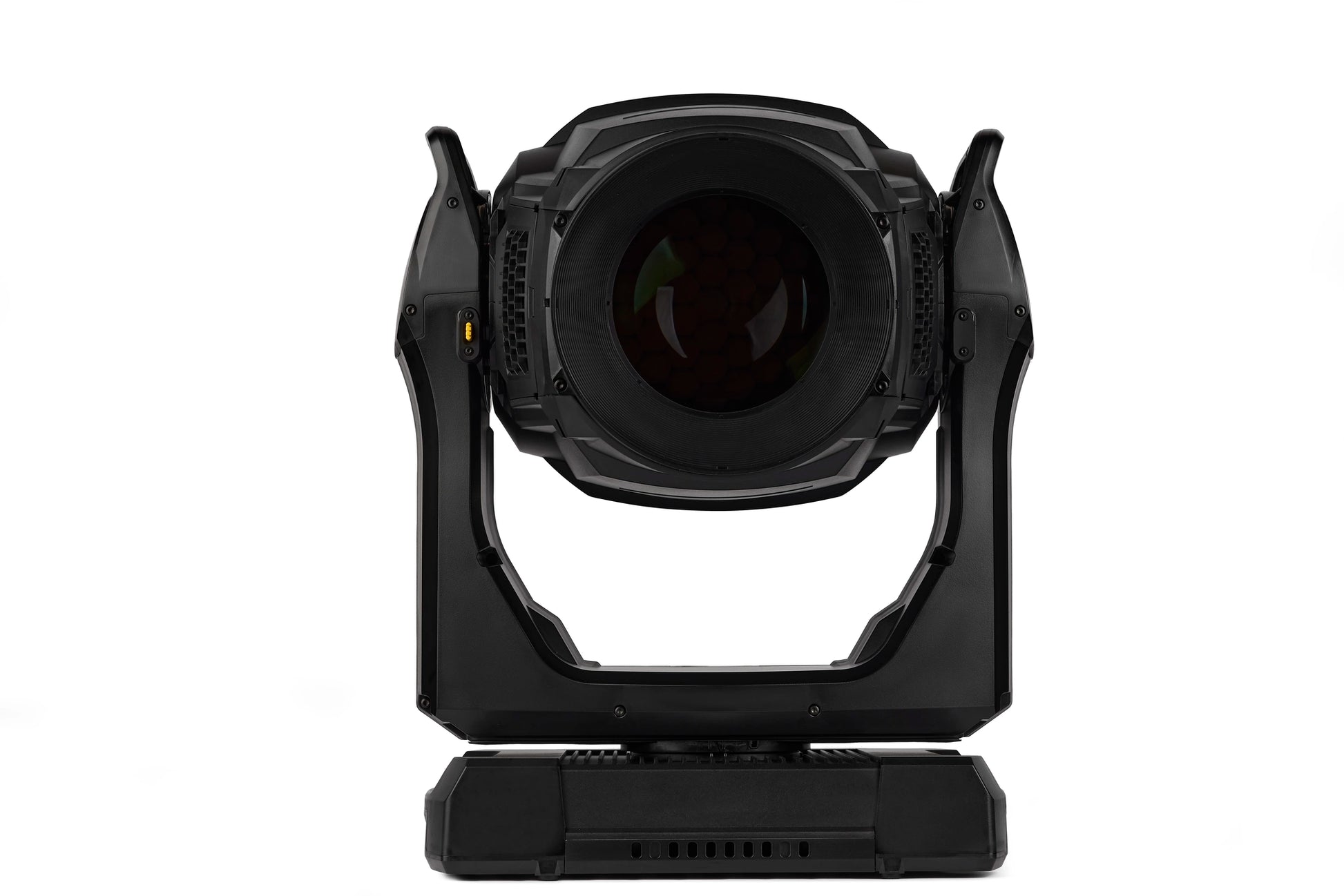

MAC Encore Two

The Martin MAC Encore Two is a full-featured, high-output LED moving head profile delivering 21,000 lumens with exceptional color accuracy, a 1:10 zoom, advanced framing, and near-silent operation for stage, broadcast, and touring applications.

From the Manufacturer

MAC Encore Two redefines performance lighting for contemporary stage, broadcast, and touring environments. As a single, fully featured evolution of the Martin MAC Encore lineup, it maximizes ROI and streamlines inventory management for installed and rental applications alike. It features a proprietary 760 W LED white light engine producing 21,000 lumens — a 75% increase over its predecessor — with a beautifully rich 5,600 K neutral white output. Despite its remarkable output, MAC Encore Two is quieter than its predecessor, making it ideal for noise-sensitive theater, broadcast, and corporate environments. Selectable output levels with noise optimization ensure performance can be tailored to the most demanding acoustic conditions.

With native CRI, TM-30, and TLCI scores of 90 — boosted to 95 with the integrated Spectrum Enhancement Filter — MAC Encore Two's enhanced CMY system produces saturated colors with superior depth, especially in amber and yellow, while maintaining pure white on the blackbody curve. Two gobo wheels (7 rotating and 11 static), a 1:10 zoom with 150 mm front lens, a rotatable 4-blade framing module, dual frost, prism, iris, and animation wheel round out a comprehensive effects package. Highly responsive pan and tilt movement and high-resolution, low-level dimming make it equally capable as a key light or automated followspot.

Features

• 21,000 lm output — a 75% increase over MAC Encore — from a proprietary 760 W LED white light engine at 5,600 K neutral white
• Native CRI, TM-30, and TLCI of 90 (boosted to 95 with Spectrum Enhancement Filter) for rich, natural skin tone and color rendering
• 1:10 zoom range (5.7°–54.0°) with 150 mm front lens — up to 6x the intensity at narrow vs. MAC Encore, ideal for followspot and long-throw applications
• High-definition optics maintain uniform beam focus across the entire projection field for precision gobo work
• Rotating gobo wheel — 7 interchangeable gobos + open, with indexing, shake, and continuous rotation
• Static gobo wheel — 11 gobos + open, with indexing, shake, and continuous rotation
• CMY color mixing — independently variable 0–100% with enhanced depth in amber and yellow
• 5-slot color wheel — including Spectral Enhancement Filter, with indexing, shake, and continuous rotation
• Variable CTO — 5,600 K to 2,600 K, stays true to the blackbody curve
• Rotatable framing module — +/- 83°, 4 individually controllable blades with full variable angle (+/- 30°) through the entire insertion path
• Dual frost — light and heavy frost, variable 0–100%, available across the entire zoom range
• 4-facet prism with indexing, shake, and continuous rotation
• Interchangeable animation wheel with indexing, shake, bounce, continuous rotation, and variable insertion angle
• Iris — variable 0–100% with opening and closing pulse effects
• Pan: 540° / Tilt: 268° — highly responsive, smooth movement with absolute position monitoring
• P3 video mapping — crossfade between DMX and video control for color and/or intensity
• Multi-protocol control — DMX, RDM, Art-Net, sACN, Martin P3, plus Universal Connect Module slot for additional protocols including wireless
• Three DMX modes: Basic (52ch), Extended (62ch), Ludicrous (68ch)
• 36 kg footprint with best-in-class weight-to-size-to-output ratio
• Recommended use: Theater, broadcast/TV, corporate events, concert touring, installed productions

Specifications

Light Source

• Light Source: 55 x 18 W High Light Quality White LED in a custom Martin engine
• Max. Total LED Engine Power: 760 W
• Minimum LED Lifetime: >50,000 hours (to >80% luminous output) / >20,000 hours (to >90% luminous output)

Photometric Data (Without Spectral Enhancement Filter)

• Fixture Luminous Output (Wide): 21,000 lm
• Peak Luminous Intensity (Narrow): 2,000,000 cd
• CCT: 5,600 K (+/- 300 K)
• CRI: 90 (+/- 3)
• CQS: 88 (+/- 3)
• TM-30 Rf: 90 (+/- 3)
• TM-30 Rg: 100 (+/- 3)
• TLCI: 90 (+/- 3)

Photometric Data (With Spectral Enhancement Filter)

• Fixture Luminous Output (Wide): 13,600 lm
• Peak Luminous Intensity (Narrow): 1,300,000 cd
• CRI: 95 (+/- 3)
• CQS: 91 (+/- 3)

Optics

• Zoom Range: 1:10 — 5.7° to 54.0° (full zoom range at tenth peak)
• Focus: Motorized, approx. 4.5 m (14.8 ft.) to infinity, with focus tracking

Dynamic Effects

• Color Mixing: CMY, independently variable 0–100%
• Color Wheel: 5 x dichroic filters + open (incl. Spectral Enhancement Filter), indexing, shake, continuous rotation, random color
• Color Temperature Control: Variable 5,600–2,600 K
• Rotating Gobo Wheel: 7 interchangeable gobos + open, indexing, shake, continuous rotation, random gobo; automatic color temperature correction
• Static Gobo Wheel: 11 gobos + open, indexing, shake, continuous rotation, random gobo
• Animation Wheel: Interchangeable, indexing, shake, bounce, continuous rotation, variable insertion angle
• Framing: Rotatable module +/- 83°, 4 x individually controllable full curtain blades, variable angle +/- 30°, 0–100% insertion
• Light Frost: Variable 0–100%
• Heavy Frost: Variable 0–100%
• Prism: 4-facet, indexing, shake, continuous rotation
• Iris: Variable 0–100%, with pulse effects
• Dimmer/Shutter: 0–100% continuous dimming, regular and random strobe, instant open and blackout
• Dimming Curves: Choice of four
• Pan: 540°
• Tilt: 268°

Control

• Protocols: DMX, RDM, Art-Net (incl. RDM over Art-Net), sACN, Martin P3
• DMX Modes: Basic (52ch), Extended (62ch), Ludicrous (68ch)
• DMX Compliance: USITT DMX512-A
• RDM Compliance: ANSI/ESTA E1.20

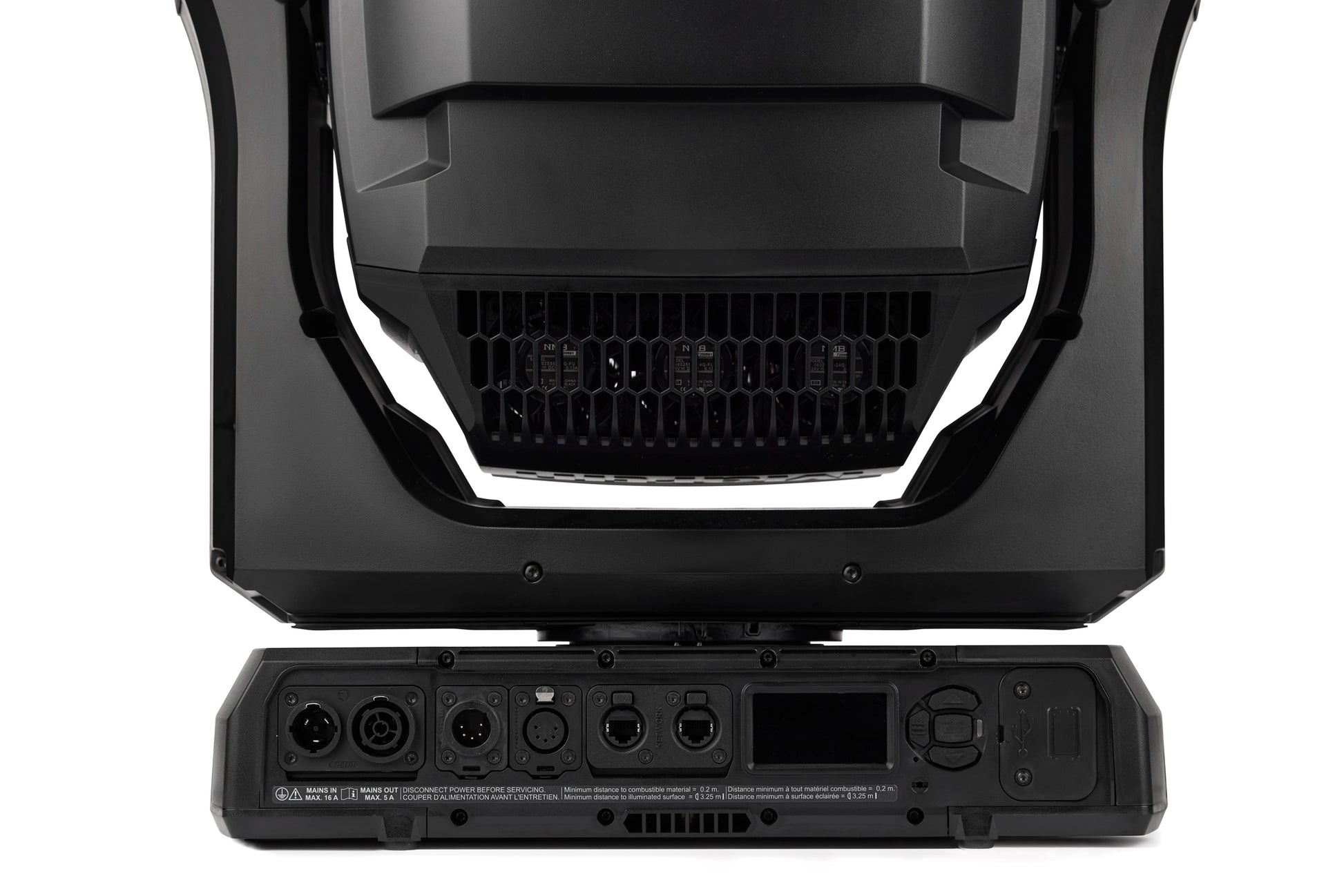

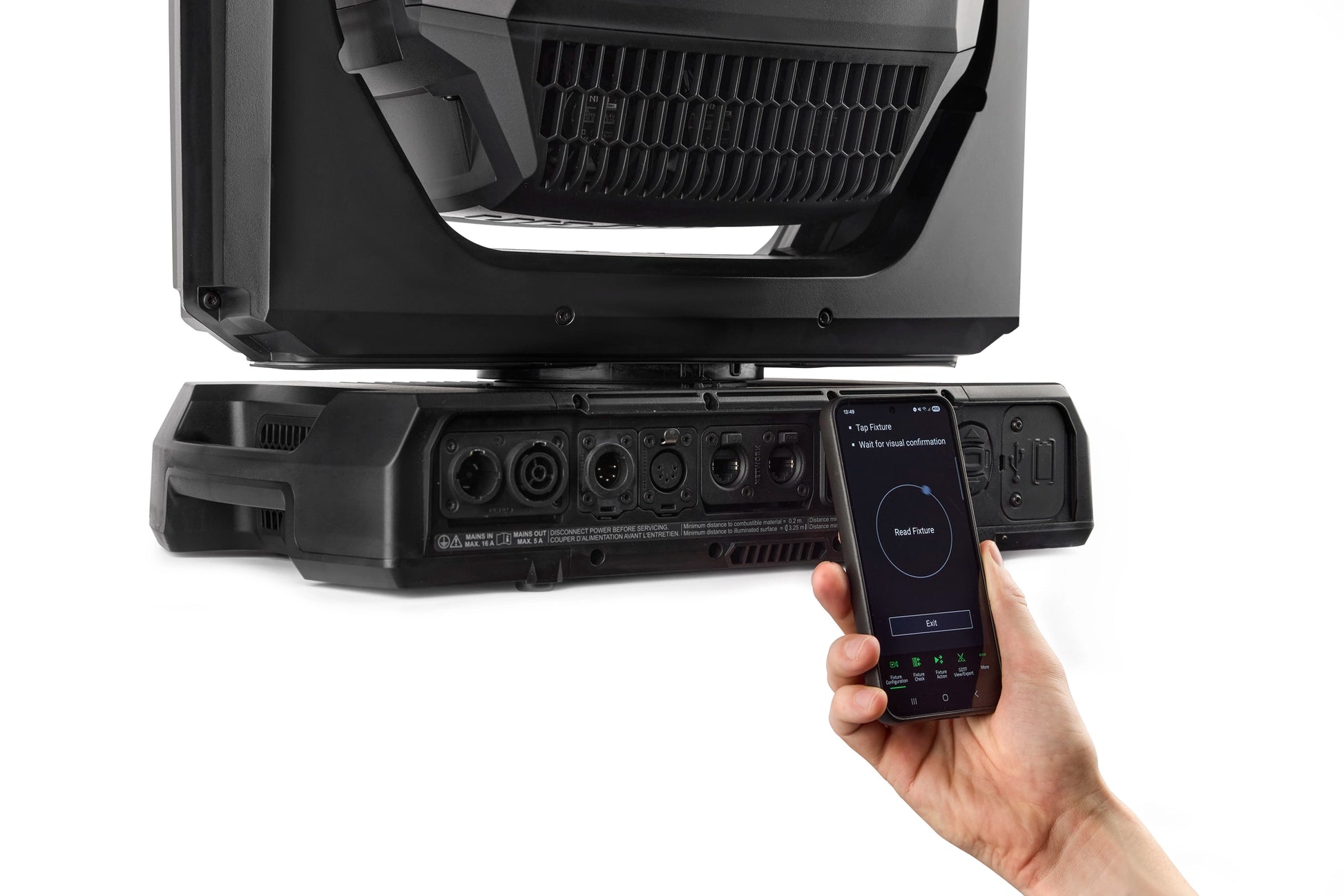

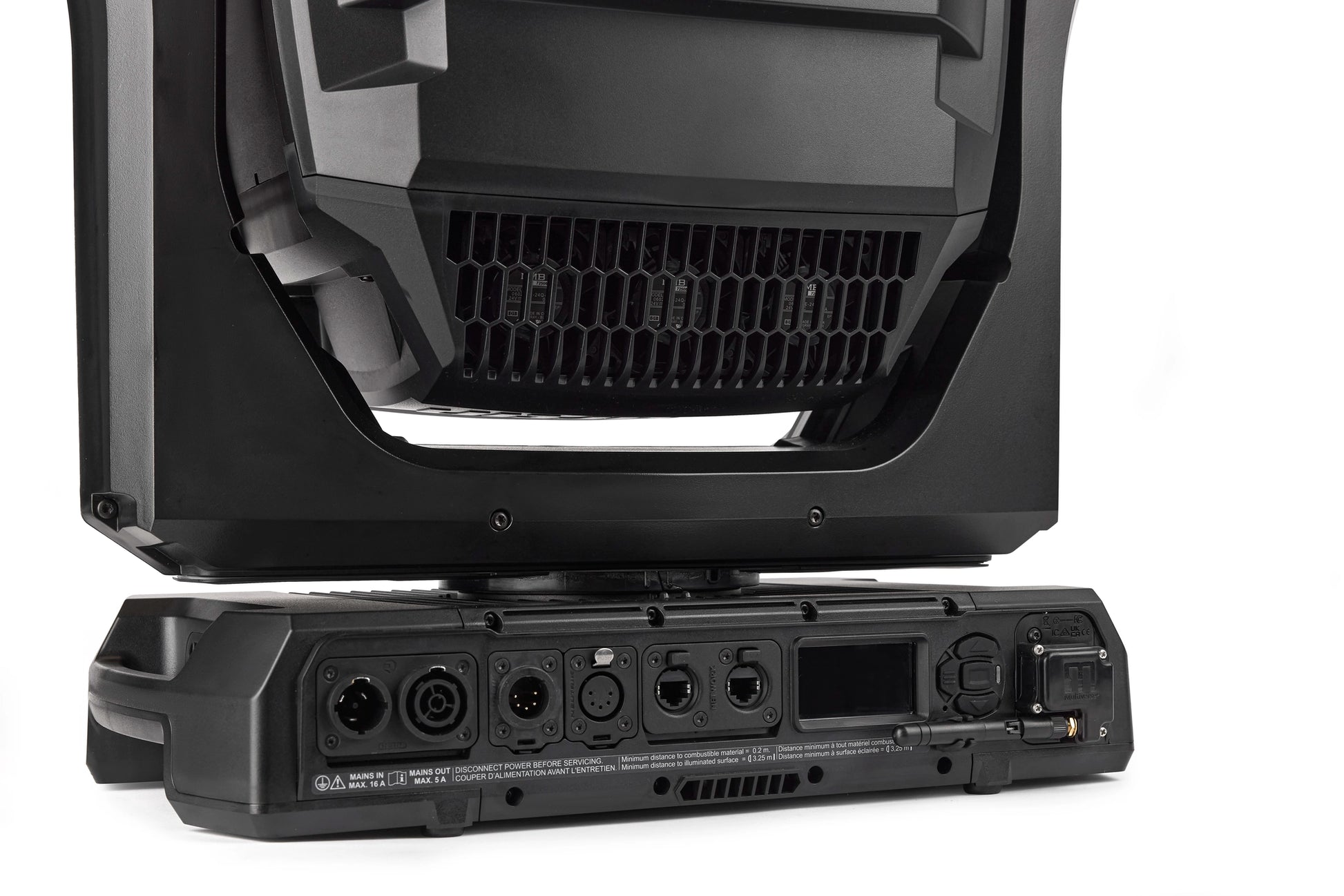

• Connections: Neutrik Rean powerCON TRUE1 (power in/thru), Neutrik 5-pin locking XLR (DMX/RDM in/thru), Neutrik etherCON (Ethernet in/thru), USB-C (firmware), Universal Connect Module slot
• Firmware Update: USB-C port or Ethernet

Electrical

• AC Power: 100–240 V AC nominal, 50/60 Hz
• Power Consumption Maximum: 1,040 W
• Power Consumption Typical: 945 W
• Power Consumption Idle: 68 W
• Power Consumption Hibernation: 6 W

Physical

• Weight: 36 kg (79.4 lbs.)
• Housing: High-impact thermoplastic
• Color: Black
• Protection Rating: IP20

What's in the Box

• Martin MAC Encore Two fixture
• Two omega brackets with 1/4-turn fasteners
• User documentation
