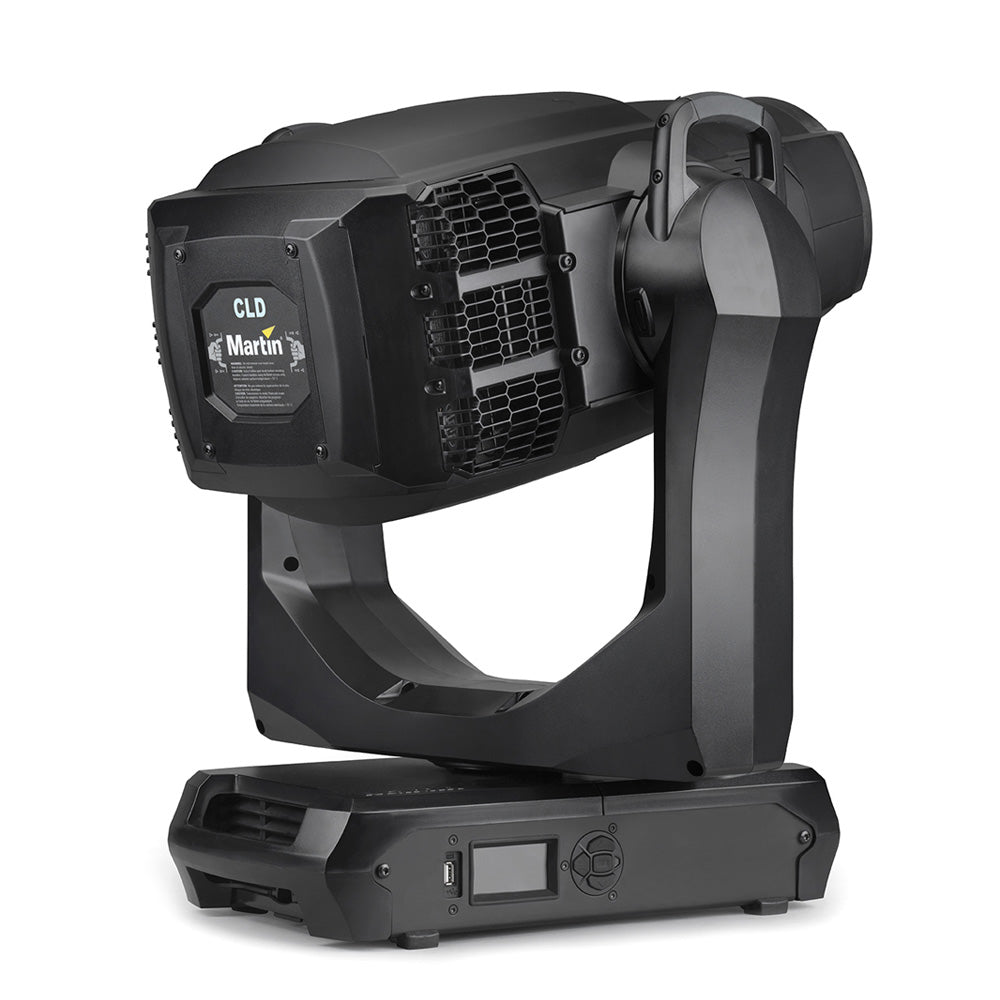

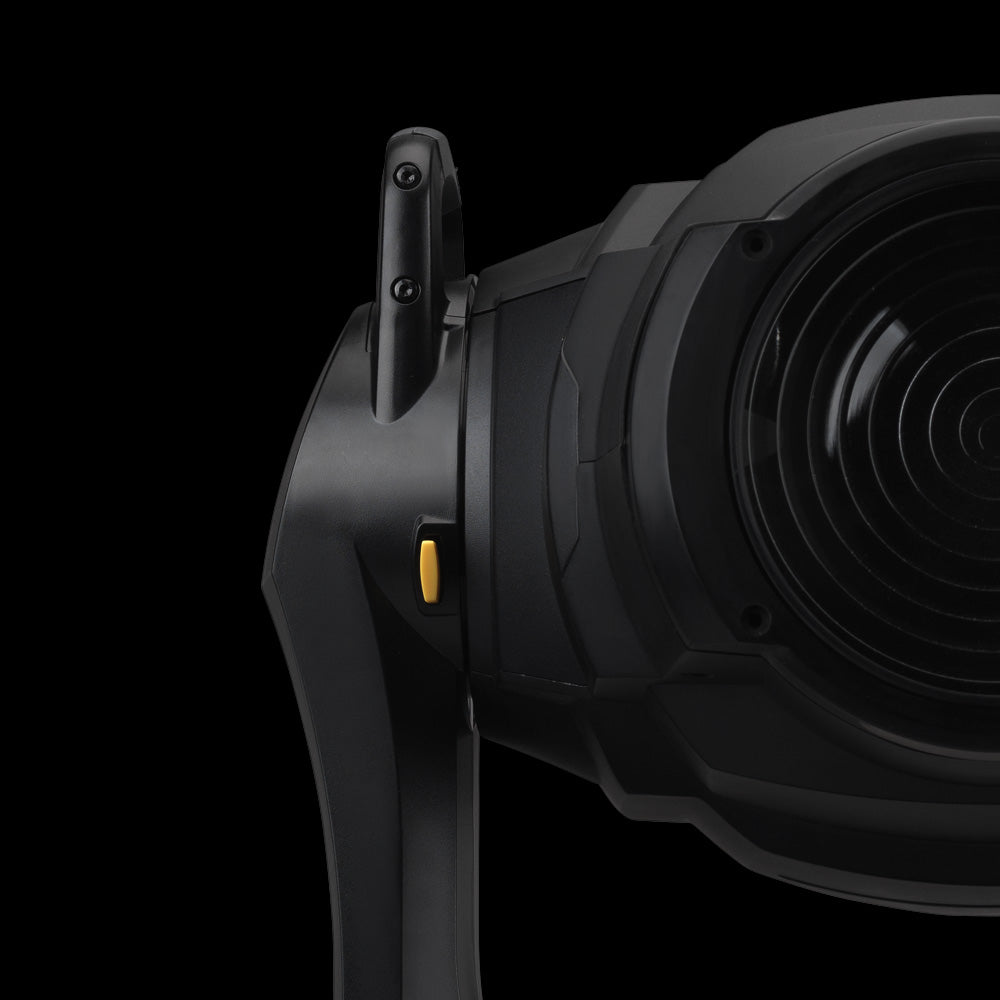

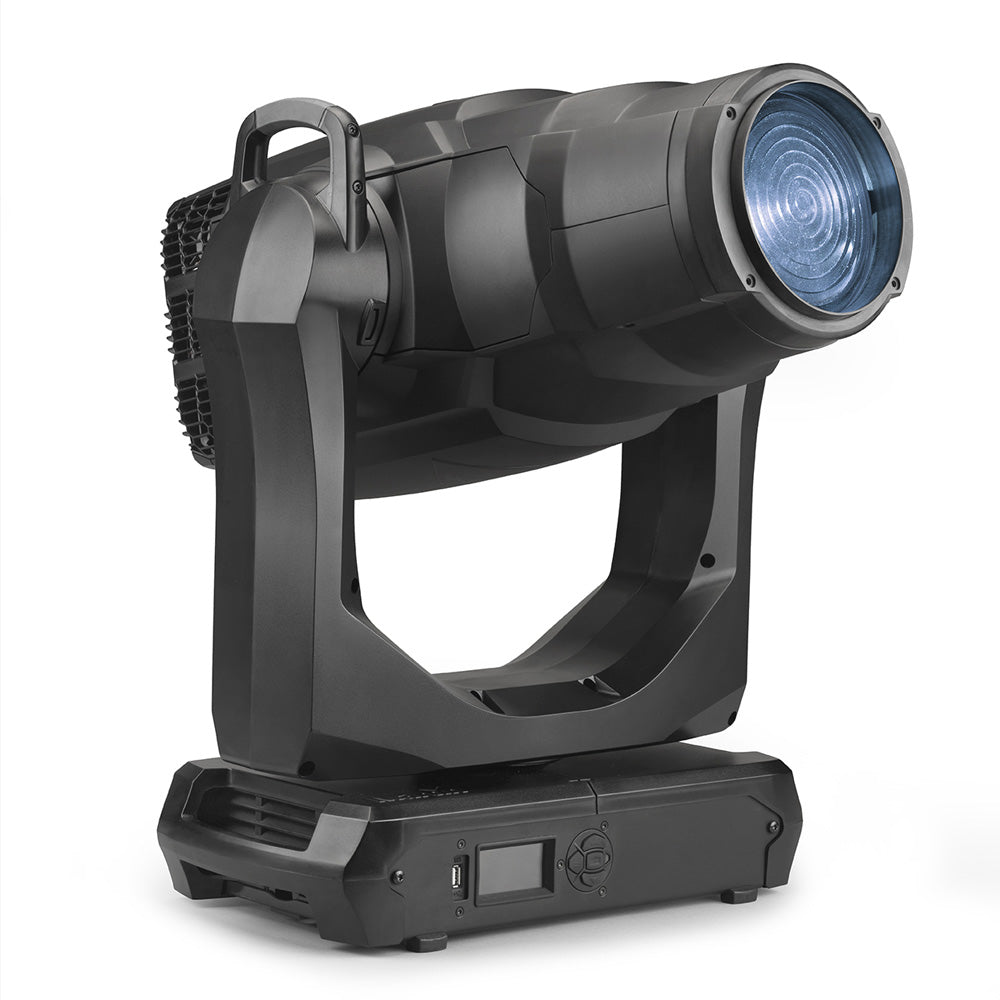

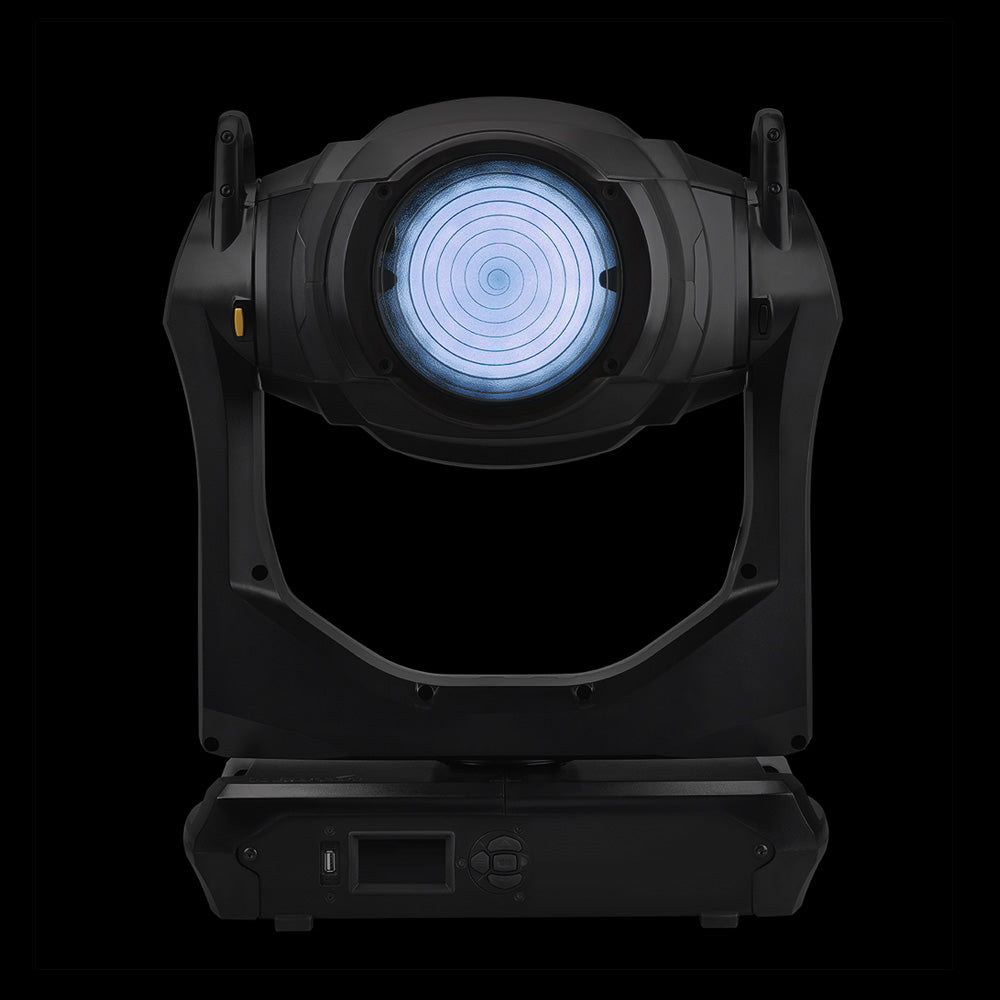

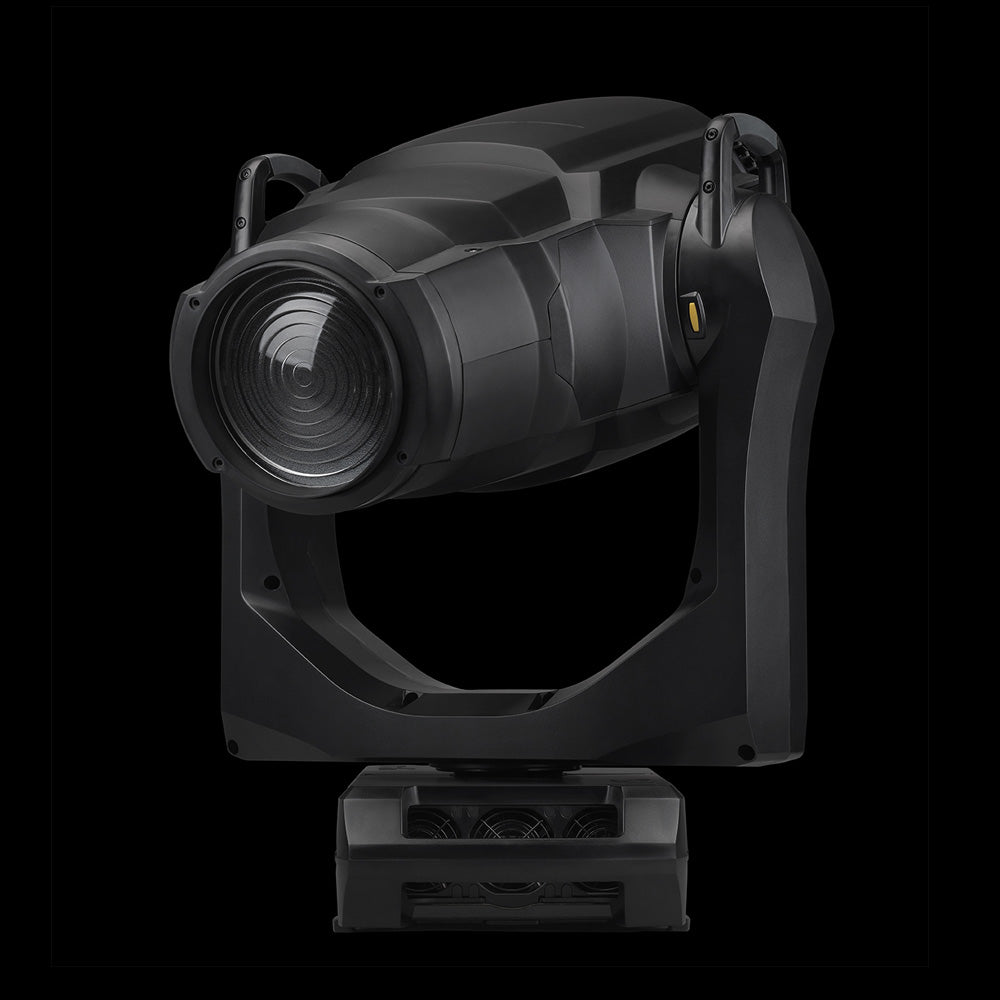

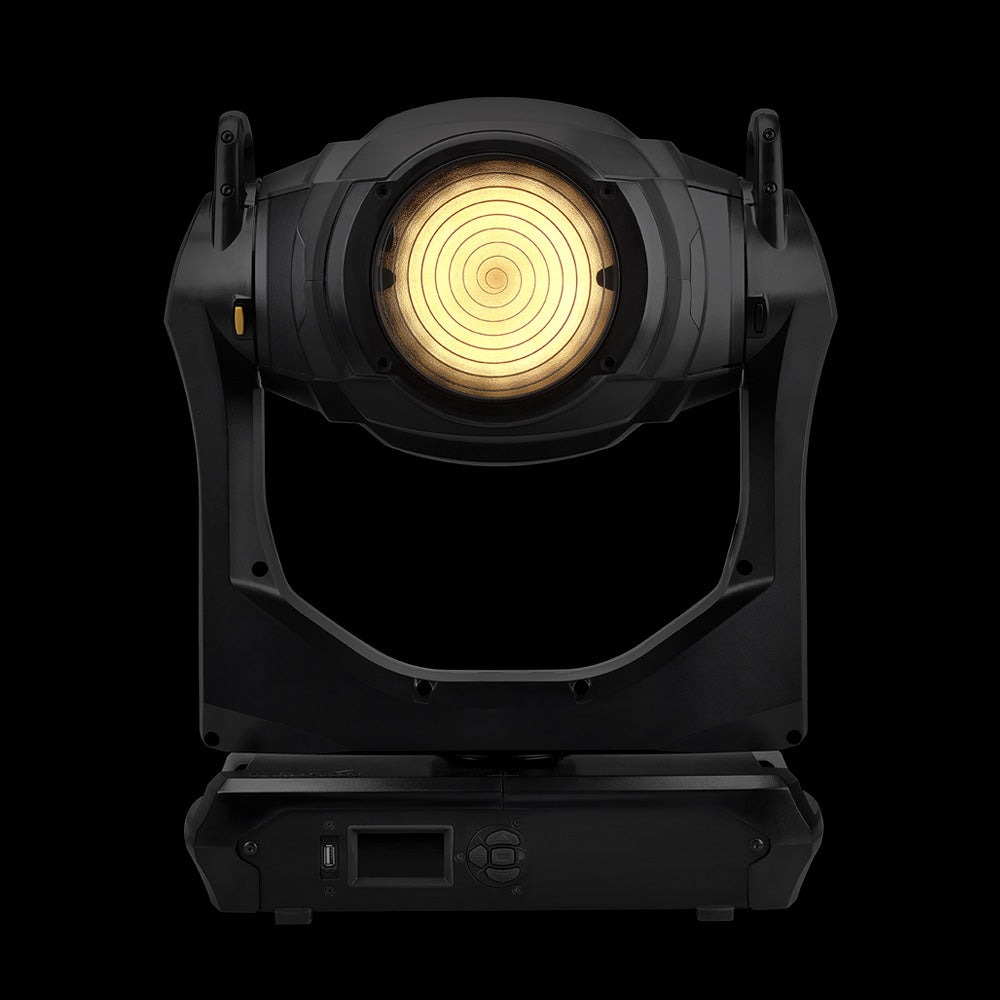

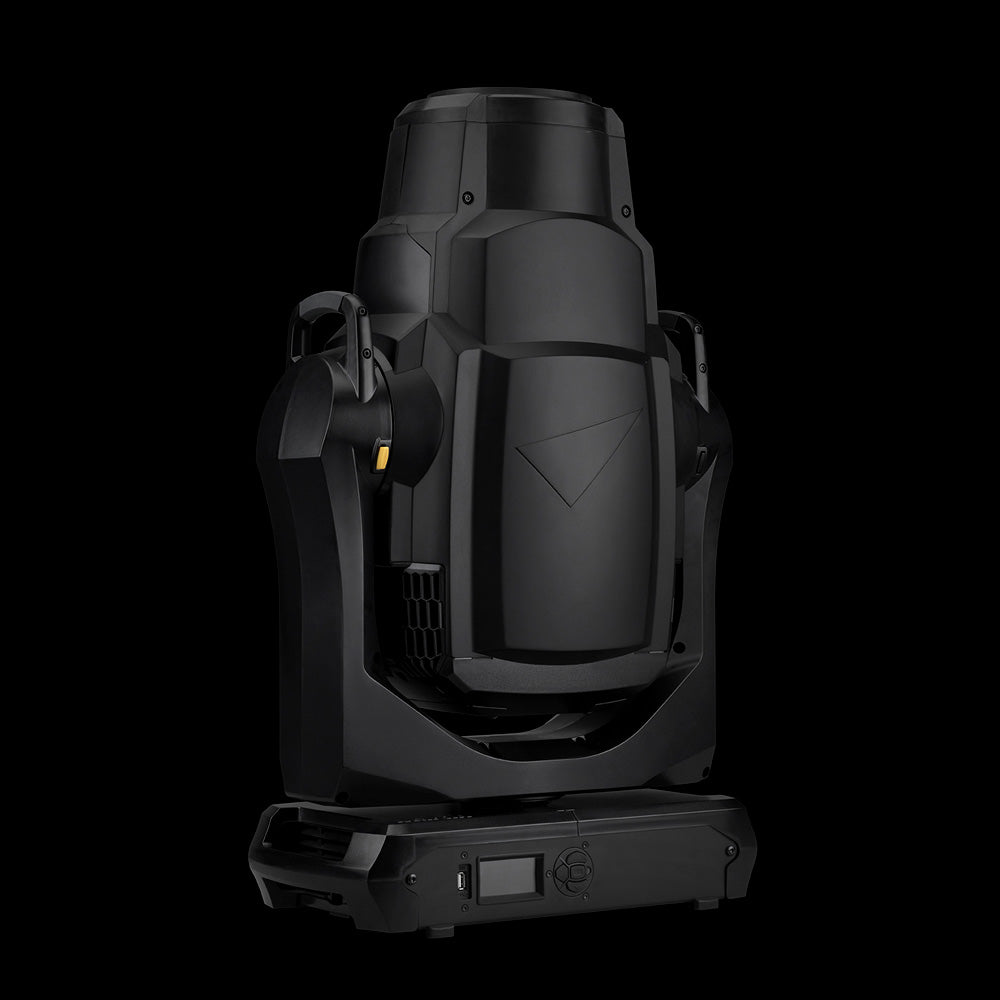

MAC Encore Wash

A fixture that produces a high quality white frontlight.  It is an alternative to the Mac Viper Wash DX. This is a great option for medium to large sized events.

From the Manufacturer:

Designed to produce rich color and premium white light in a wide variety of applications where light quality is critical, the MAC Encore™ Wash CLD is an LED-based alternative to the MAC Viper Wash DX. The feature-packed soft edge moving head offers unparalleled 6000 K crisp, neutral daylight, and doubles as a modern replacement for generic fixtures like HMI based Fresnel fixtures, with the additional benefit of color mixing and movement.

Features:

• Pure white LED engine with 6000 K CCT.

• No color temperature variation during zoom and dimming.

• Flicker-free operation—LED driver frequency suitable for all camera applications.

• Whisper-silent—Combines convection and forced air cooling with user-selectable output vs. sound level control.

• Fully electronic dimmer/shutter control with various dimming curves and tungsten red-shift emulation.

• Vibrant CMY color mixing with a superior palette of colors ranging from rich, saturated primary colors to light and smooth pastel shades.

• Variable CTO—daylight to tungsten CCT control and expansion of the CMY palette that stays true to the black body curve.

• Color wheel—6 interchangeable dichroic filters + open.

• Fresnel lens: 1:4 zoom—precise, silent and fast zoom.

• PC lens (optional): 1:5 zoom—precise, silent and fast zoom.

• Internal barndoor system with two shutter blades and iris. Shutter blades can overlap for full blackout and the entire system rotates +/- 100°. Repeats cues with great precision.

• Precise and tight iris with adjustable dynamic effects.

• Animotion™ FX System—Internal dimming effect macros for stunning 3D mid-air and projection effects.

• Super precise and silent pan/tilt movement and positioning due to 3-phase stepper motor technology and absolute position monitoring.

• Compact size—L: 452 x W: 480 x H: 745 mm / L: 17.8 x W: 18.9 x H: 29.3 in.

• Low weight—28.5 kg/62.9 lbs

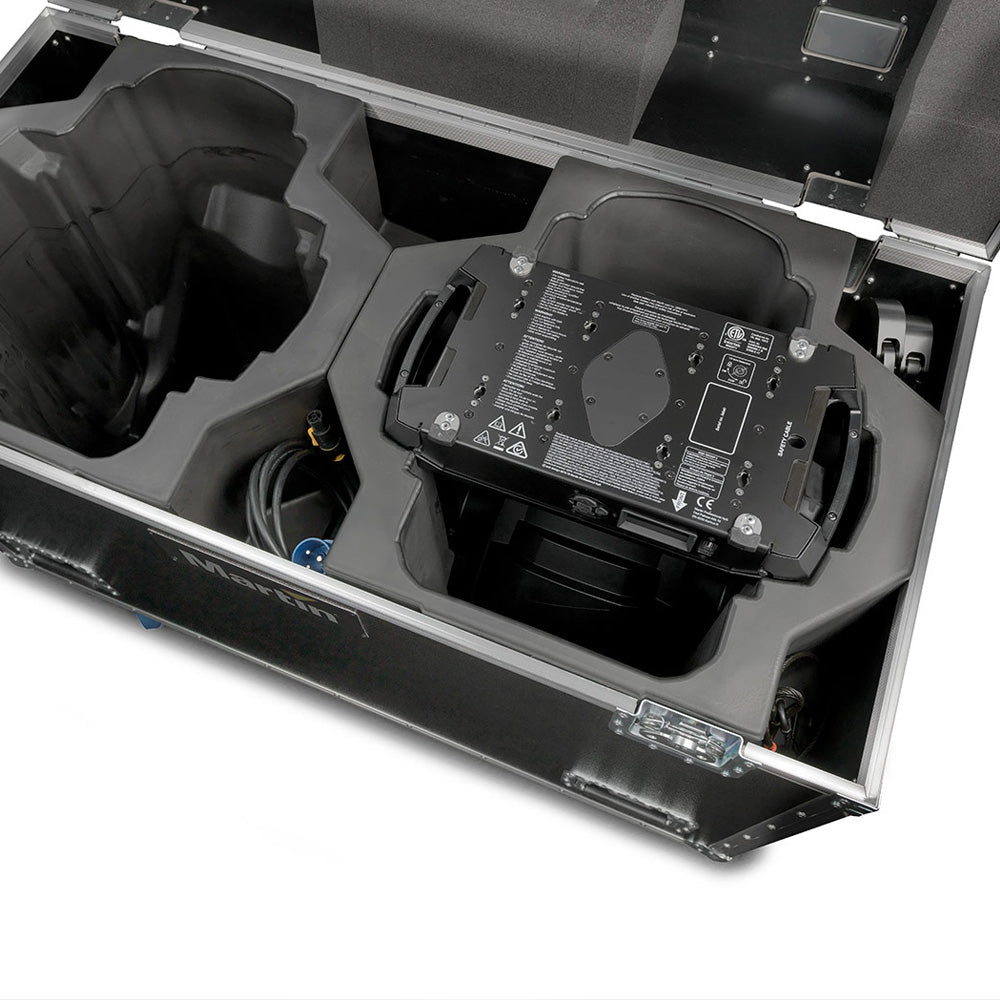

• Foam rubber (SIP) flight case insert for secure shipment.

Specifications:

• Physical

• Length: 452 mm (17.8 in.)

• Width: 480 mm (18.9 in.) across yoke

• Height:

• 755 mm (29.8 in.) maximum

• 745 mm (29.4 in.) head straight up

• Weight: 28.5 kg (62.9 lb.)

• Minimum center-to-center distance in side-by-side installation: 730 mm (28.8 in.)

• Dynamic Effects

• Pre-programmed effects: Two ranges of FX, independent or synchronized/combined

• Color mixing: CMY, independently variable 0 - 100%

• Color wheel: 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random color

• Iris: Variable 0 - 100%

• Zoom: Motorized

• Color temperature control: Variable 6000 - 2700 K

• Barn doors: Internal, two blades with individually controllable insertion, +/- 100° module rotation

• Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout

• Dimming options: Choice of four dimming curves

• Pan: 540°

• Tilt: 268°

• Position correction system: Absolute position monitoring

• Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity

• Control and Programming

• Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX

• 16-bit control: Dimming, pan and tilt

• Movement control options: Tracking and vector

• DMX channels: 24

• Fixture Identification: User-settable ID number

• DMX compliance: USITT DMX512-A

• RDM compliance: ANSI/ESTA E1.20

• Transceiver: Opto-isolated RS-485

• Fixture software update: USB memory device or over DMX link

• Optics

• Light source: 468 W custom Martin LED engine

• Minimum LED lifetime: 50,000 hours (to >80% luminous output)*

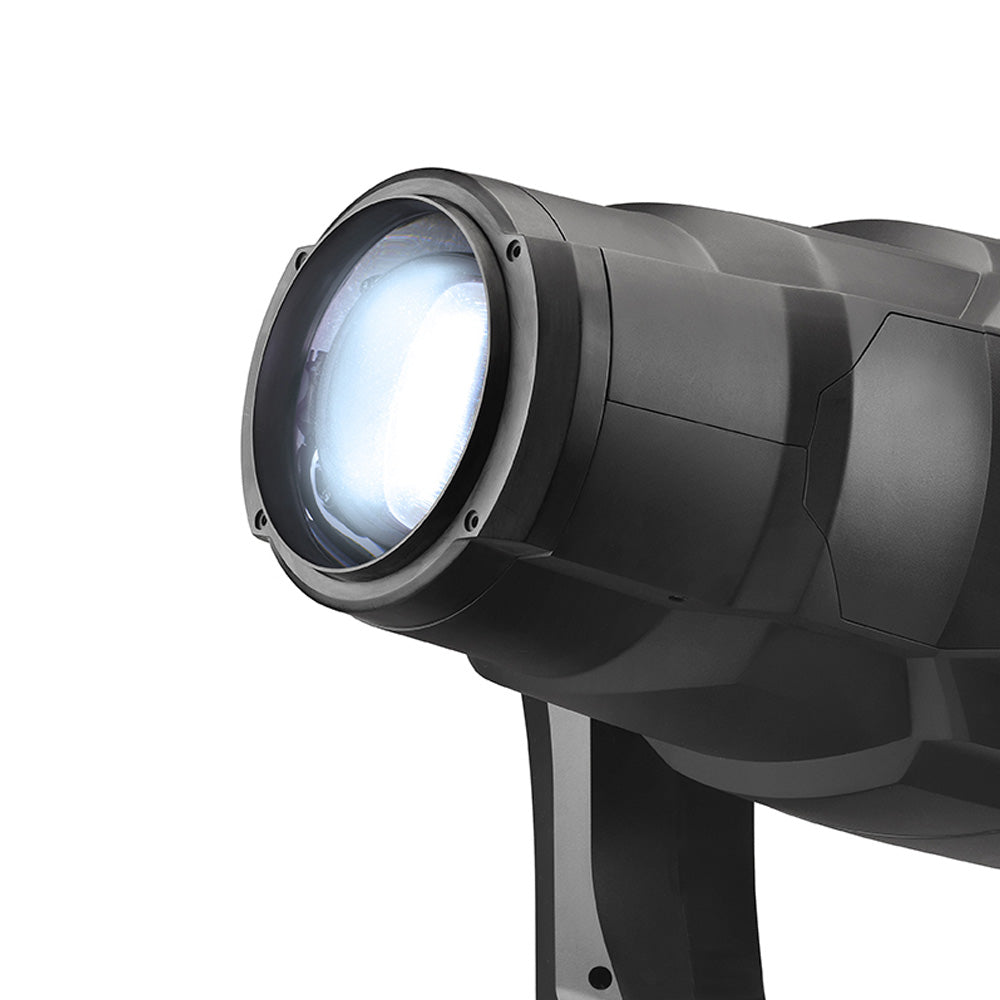

• Zoom range with Fresnel lens (standard): 14° - 60° one-tenth peak (1:4)

• Zoom range with PC lens (optional): 11° - 58° one-tenth peak (1:5)

(Figure obtained under manufacturer's test conditions)

• Photometric Data

• Light engine luminous output: ≥ 39,400 lumens

• Fixture luminous output with Fresnel lens (standard): 11,000 lumens

• Fixture luminous output with PC lens (optional): 12,000 lumens

• CRI (Color Rendering Index) : >80

• CQS (Color Quality Scale): >80

• TM-30 Rf (IES TM-30-15 Fidelity Index): >80

• TM-30 Rg (IES TM-30-15 Gamut Index): >96

• TLCI (Television Lighting Consistency Index): >70

• CCT: 6000 K (+/- 250 K)

• Construction

• Housing: High-impact flame-retardant thermoplastic

• Color: Black

• Protection rating: IP20

• Installation

• Mounting points: 4 pairs of 1/4-turn locks

• Location: Dry location only, must be fastened to surface or structure

• Orientation: Any

• Minimum distance to combustible materials: 0.2 m (8 in.)

• Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)

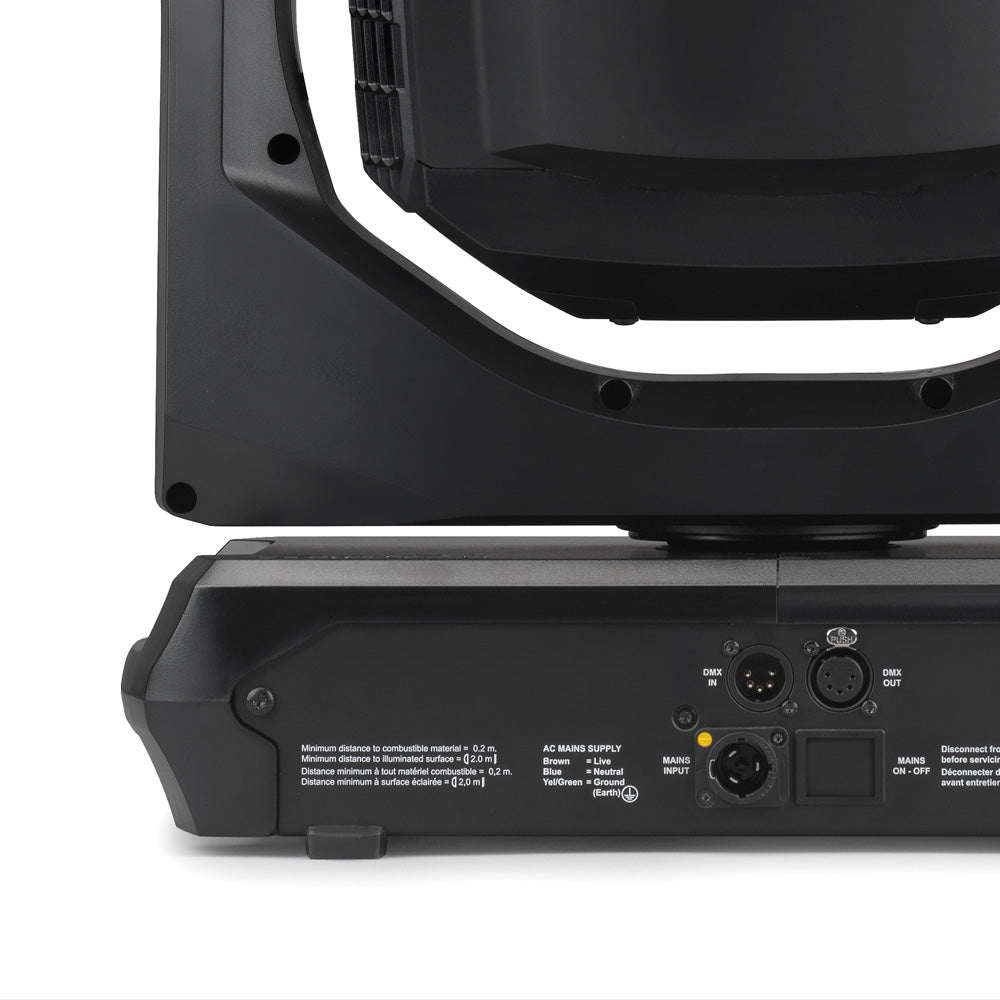

• Connections

• AC power input: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector)

• DMX and RDM data in/out: 5-pin locking XLR

• Electrical

• AC power: 120-240 V AC nominal, 50/60 Hz

• Power supply unit: Auto-ranging electronic switch mode

• Typical half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A

• Power Factor: 0.99 @ 120 V / 208 V , 0.98 @  230 V / 240 V

• Typical current draw: 5.0 A @ 120 V , 2.9 A @ 208 V , 2.6 A @ 230 V , 2.2 A @ 240 V *

• Power Consumption

• Typical: 596 W *

• Idle: 64 W *

(Measurements made at nominal voltage. Allow for a deviation of +/- 10%.)

• Thermal

• Cooling: Combined convection and forced air (temperature-regulated, low noise, user-definable levels)

• Maximum ambient temperature (Ta max.): 40° C (104° F)

• Minimum ambient temperature (Ta min.): 5° C (41° F)

• Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F)

• Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.

• Environmental

• RoHS: Compliant

• REACH: Compliant

• WEEE: Compliant

• Proposition 65: Compliant

• Efficacy (max output): 17 lm/w

• LWR*: 386 lm/kg (175 lm/lb)

• LWR = Lumen-to-Weight Ratio

• Approvals

• EU safety: EN 60598-2-17, EN 62471, EN62493

• EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-11, EN 61547

• US safety: UL 1573

• US EMC: FCC Part 15 Class A

• Canadian safety: CSA C22.2 No. E598-2-17

• Canadian EMC: ICES-003 Class A

• Australia/NZ: RCM

What’s Included:

• Two omega brackets with 1/4 turn fasteners for rigging clamp attachment

Accessories:

• Gelframe MAC Encore: P/N 91001000

• Set of Followspot Handles MAC Encore: P/N 91001001HU

• PC Lens Assy MAC Encore Wash: P/N 91616110HU

• SIP Packaging MAC Encore Family: P/N 91616115HU

• Cables and connectors:

• Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797

• Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786

• Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173

• Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
