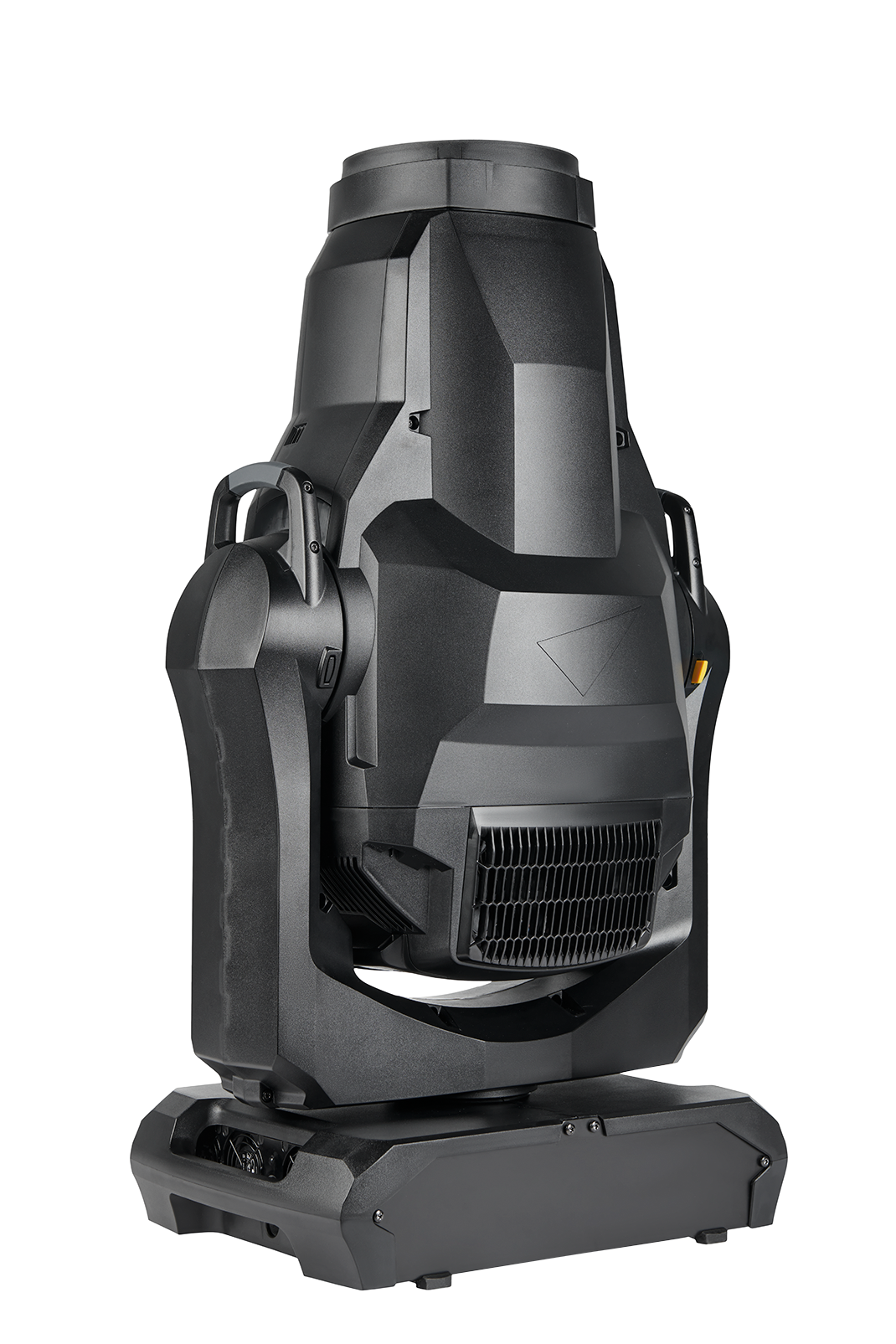

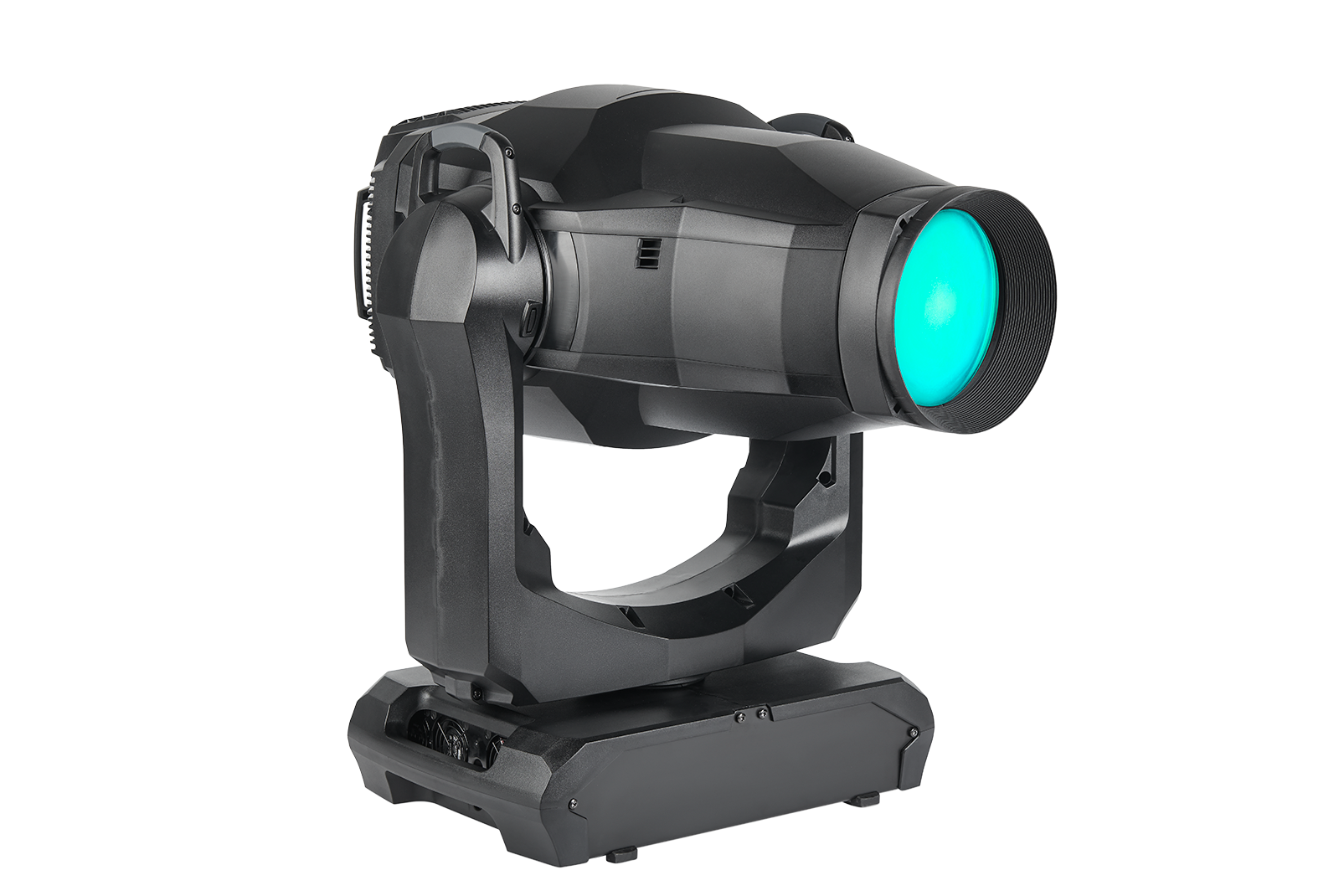

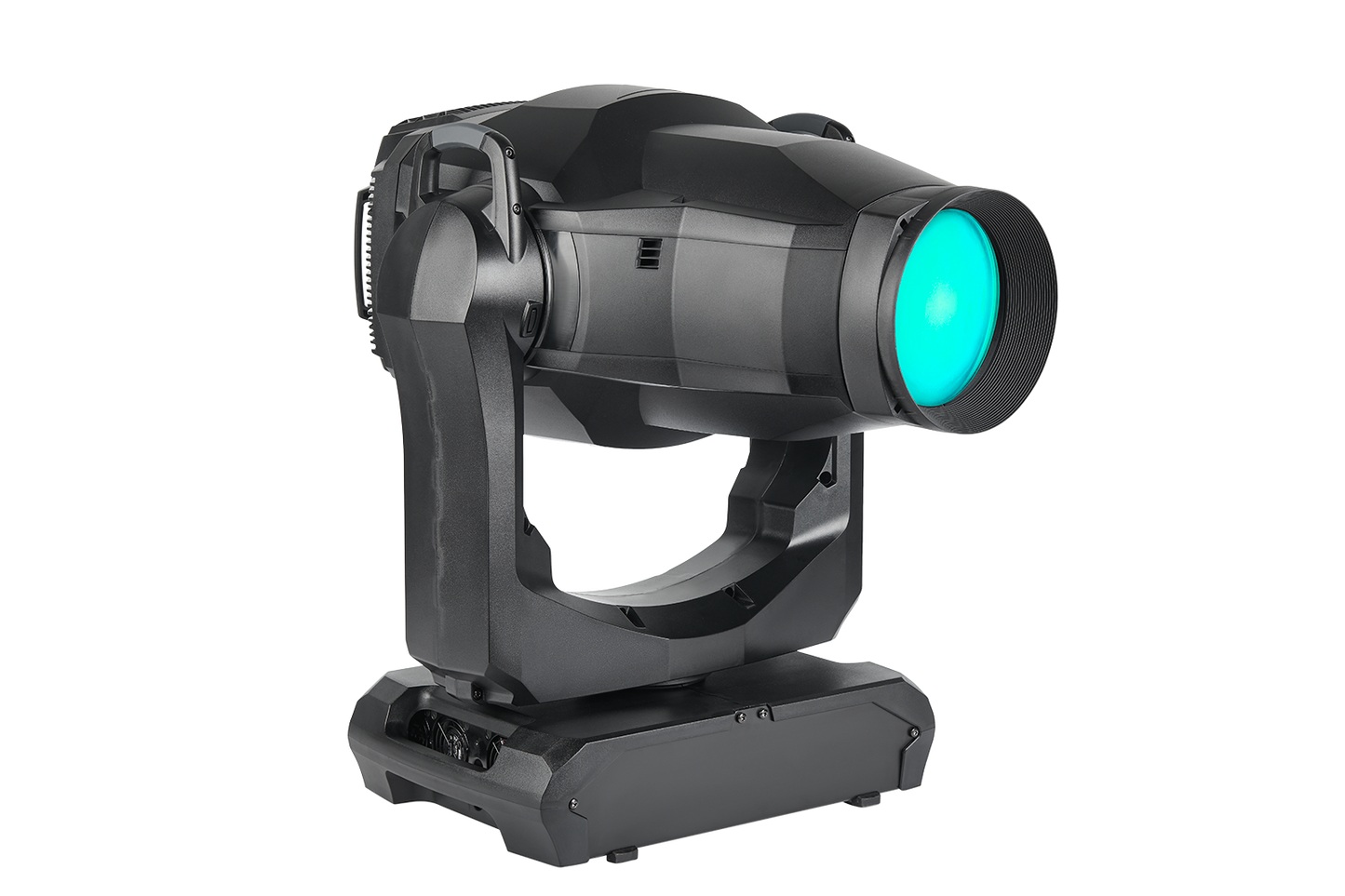

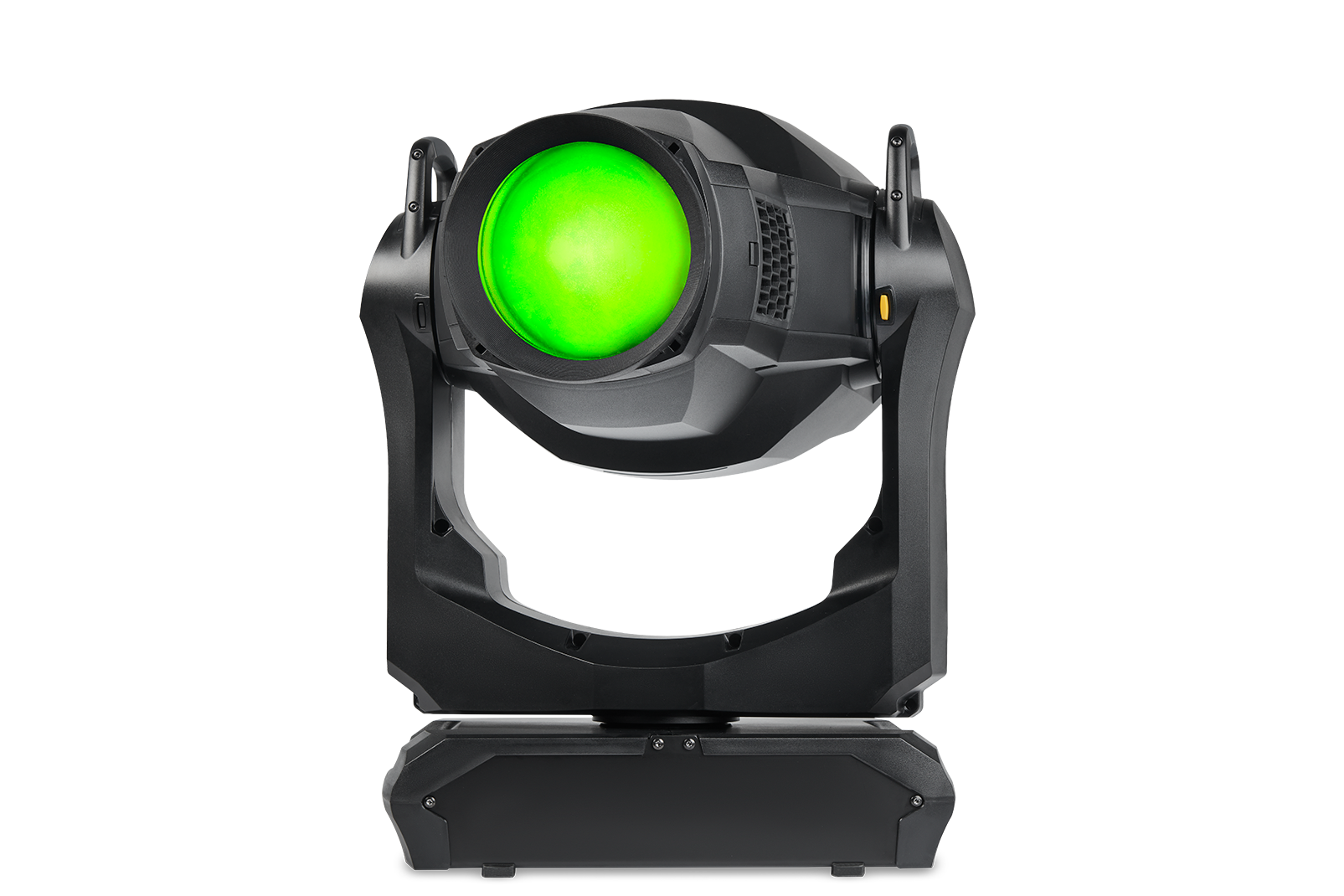

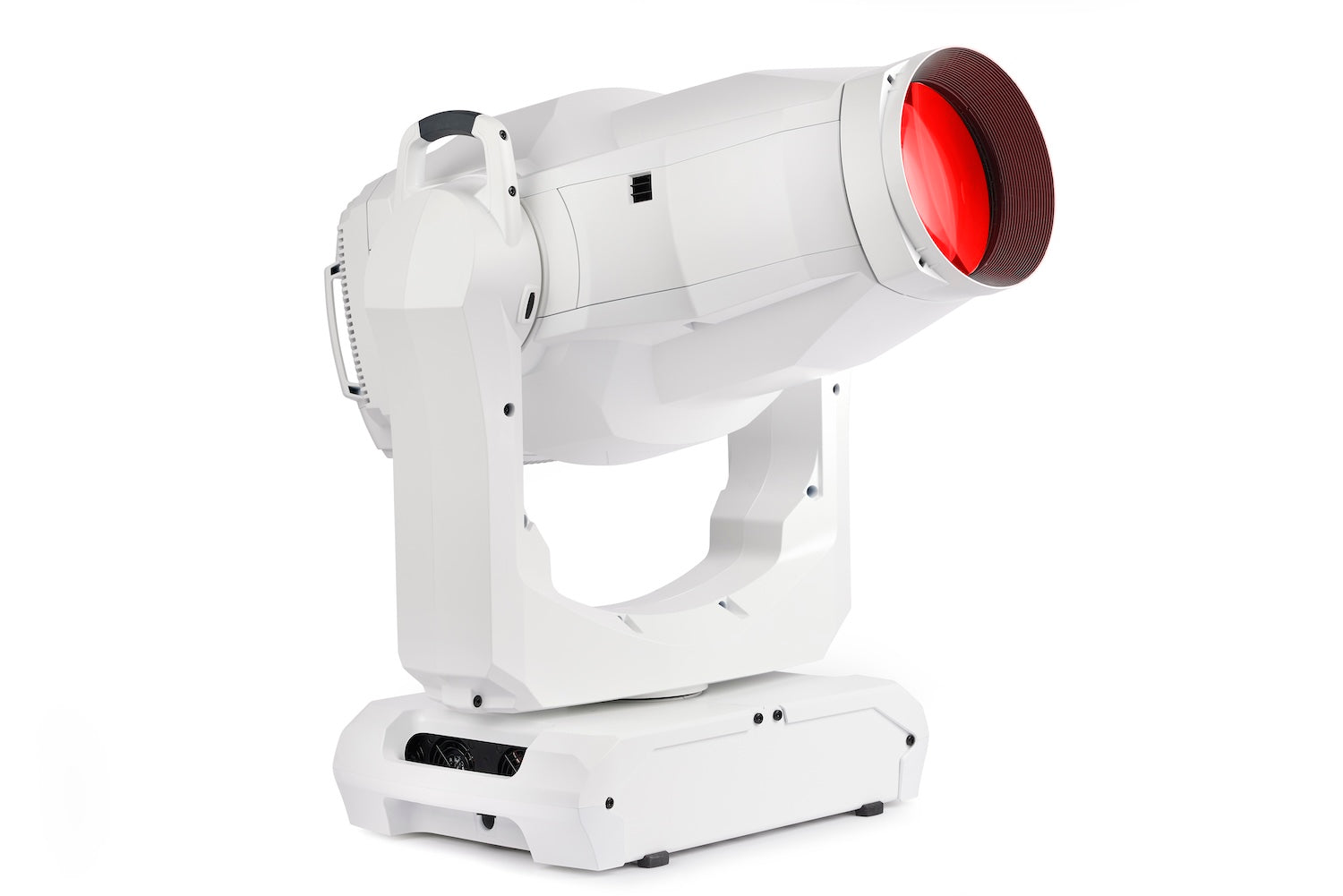

MAC Ultra Performance

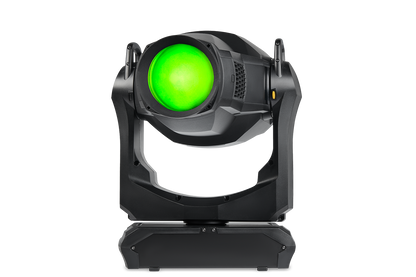

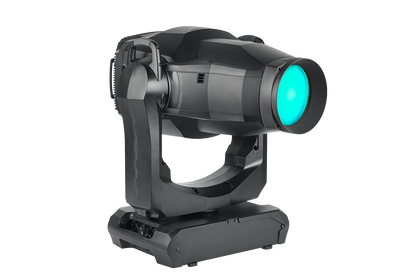

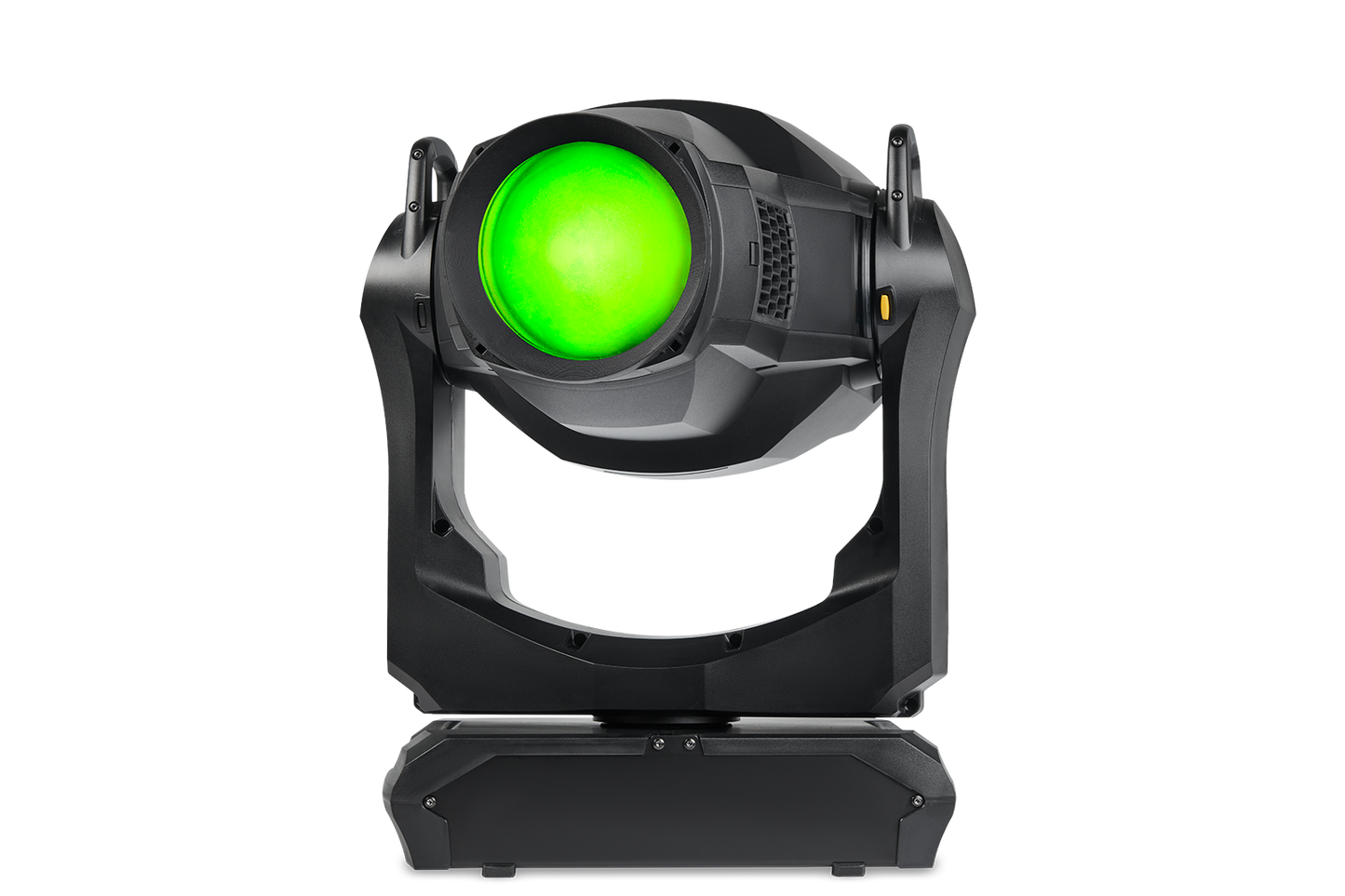

The Martin MAC Ultra Performance is a bright moving head fixture intended for use on larger stages. It is versatile and can be used for several different purposes. This fixture can be a great addition for a professional production company.

From the Manufacturer:

The MAC Ultra Performance has raised the bar for extremely bright moving lights and features benchmark output across the zoom range, a true next generation framing system, higher definition optics and astoundingly low noise levels.

Built to support the biggest live events, this powerful workhorse is based on our all new 1150 W, 5800 K proprietary LED light engine and the fixture pushes an incredible 46,500 lumens in projection. The 50,000+ hour light engine also provides high resolution dimming, strobing and Martin’s unique Animotion™ effect.

A 1:7 zoom-range and precision focus-control is provided from the refined optical system. The extensive feature package includes uniform color mixing, variable CTO, additional color and spectral correction filters, Martin’s innovative Extended Framing system, two layers of rotating gobos, full function animation wheel, iris, frost and prism effects, and truly responsive and accurate pan and tilt. And, these features are all packed into a compact, sturdy and legendary Martin design.

The MAC Ultra Performance is perfect for a wide range of concert and touring productions but is equally applicable for noise-sensitive broadcast and theater stage lighting applications. Simply put, when it comes to workhorse fixtures that push the boundaries of output and performance execution, the MAC Ultra Performance stands boldly in a class all its own.

Effects:

• Pre-programmed effects: Two ranges of FX, independent or synchronized/combined

• Color mixing: CMY, independently variable 0 - 100%

• Color wheel: 6 x interchangeable dichroic filters + open (incl. Spectral Enhancement Filter), indexing, continuous rotation, random color

• Gobo animation: Interchangeable animation wheel, indexing, continuous rotation with variable angle, speed and direction

• Iris: Variable 0 - 100%, pulse effects

• Zoom: Motorized

• Color temperature control: Variable 5800 - 2850 K

• Framing: Rotatable framing module, +/- 83°, 4 x individually controllable full curtain blades with full variable angle (+/- 30°) through the entire insertion path from 0 - 100%

• Prism: 4-facet, indexing and continuous rotation

• Frost: Variable 0 - 100%, second (heavy) frost available as optional replacement for Prism

• Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout

• Dimming options: Choice of four dimming curves

• Pan: 540°, coarse & fine control and speed

• Tilt: 268°, coarse & fine control and speed

• P3: Videomapping of fixture color and/or intensity with variable crossfade between DMX control and video control

• Focus: Motorized, range varies with zoom angle, from approx. 4.5 m (14.8 ft.) to infinity

• Rotating gobo wheel 1: 5 x interchangeable gobos + open, indexing, continuous rotation and shake

• Rotating gobo wheel 2: 5 x interchangeable gobos + open, indexing, continuous rotation and shake

• Gobo Color Temperature Correction: Automatic

Specifications:

• Source

• 1150 W proprietary LED light engine

• 84 x 20 W white LEDs

• Minimum LED lifetime: >50,000 hours (see specs for further details)

• Photometric Data

• Light Engine Luminous Output: 90,000 lumens

• Fixture Luminous Output: 46,500 lumens

• Peak Luminous Intensity: 3,000,000 cd

• CCT: 5800 K (+/- 250 K)

• Optics

• 160 mm front Lens

• 1:7 zoom range (8.0° - 54° field angle)

• High resolution projection system

• Dynamic Effects

• 0 - 100% continuous dimming and strobe effects

• Choice of four dimming curves

• CMY color mixing

• Color temperature control (5800 - 2850 K)

• Color wheel with 6 x interchangeable dichroic filters, including Spectral Enhancement Filter

• Rotating gobo wheel 1 includes 5 interchangeable gobos + open

• Rotating gobo wheel 2 includes 5 interchangeable gobos + open

• Gobo animation wheel, indexing, continuous rotation with variable angle

• Frost (fade in)

• 4-facet prism

• Iris

• Zoom

• Focus with auto tracking

• Extended Framing module with individual +/- 30° across entire beam and +/- 83° rotation

• Pan: 540°

• Tilt: 268°

• P3 video mapping of fixture color and/or intensity (10 segments)

• Pre-programmed effects: Two ranges of pre-programmed FX

• Cooling and Noise

• Low noise cooling system

• User-selectable output vs. sound level control

• Construction

• Height (head straight up): 864 mm (34.1 in.)

• Height (maximum): 876 mm (34.5 in.)

• Weight: 44.0 kg (97.0 lbs.)

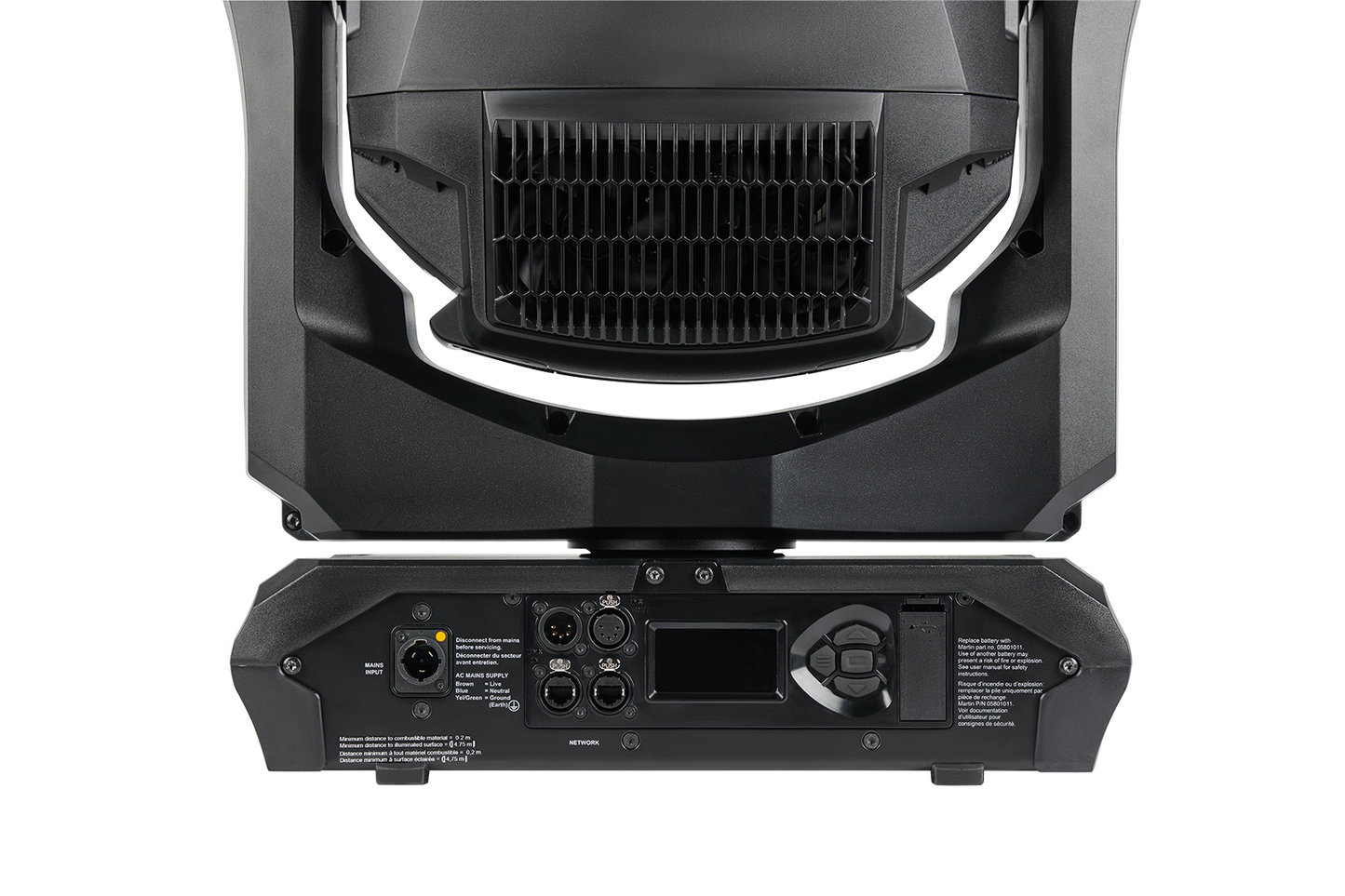

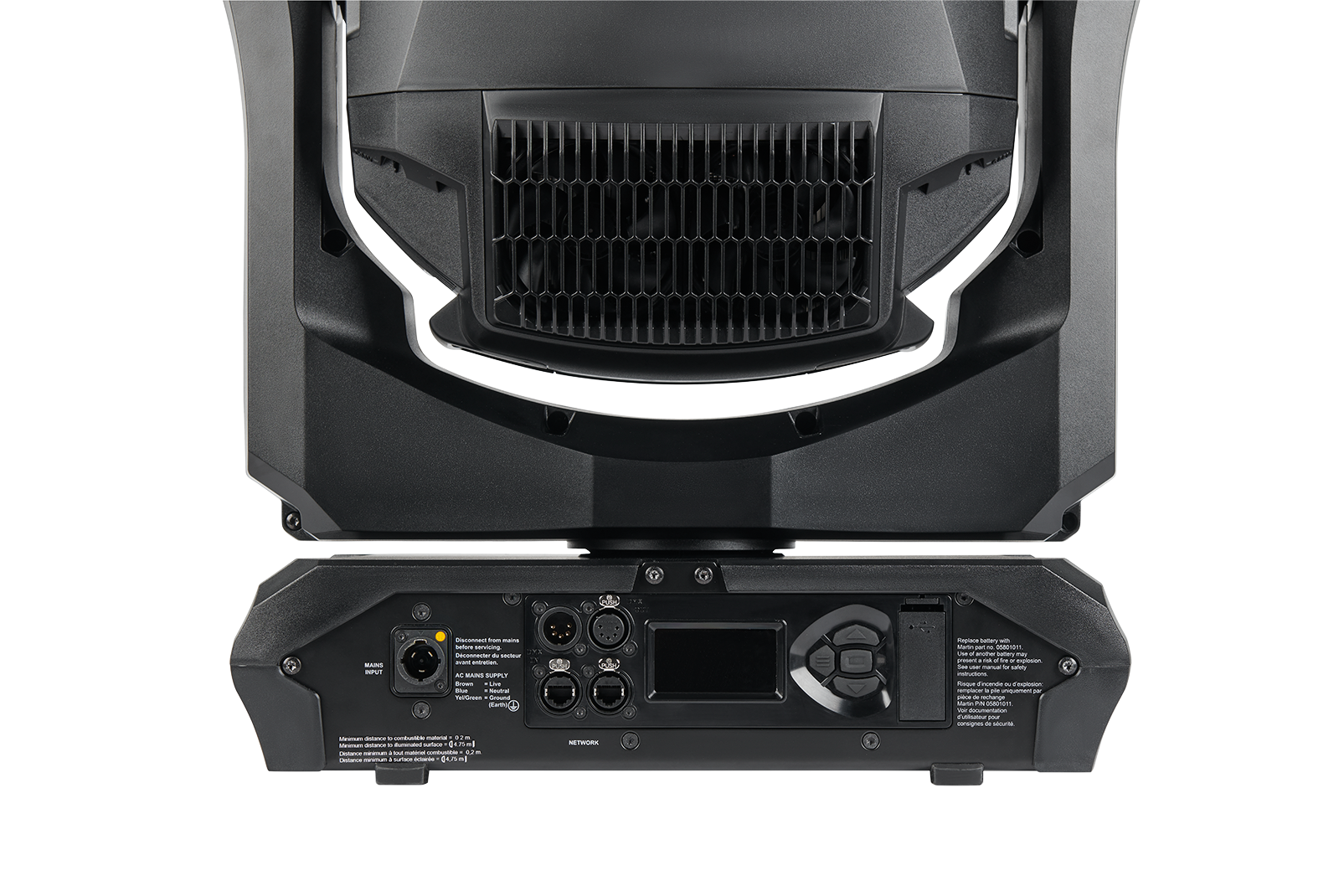

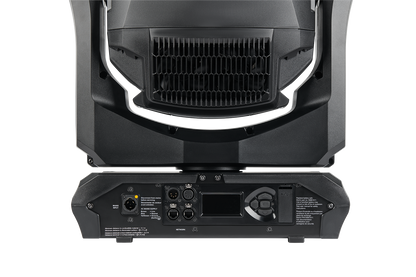

• Control

• DMX-512 in/out

• Ethercon in/out for P3, Art-Net, sACN

• Built in Ethernet switch with fail-safe bypass

• Physical

• Weight: 44.0 kg (97.0 lbs.)

• Minimum center-to-center distance in side-by-side installation: 830 mm (32.7 in.)

• Length (head): 660 mm (26.0 in.)

• Length (base): 468 mm (15.5 in.)

• Width (base): 312 mm (12.3 in.)

• Width (across yoke): 520 mm (20.5 in.)

• Height (head straight up): 864 mm (34.1 in.)

• Height (maximum): 876 mm (34.5 in.)
