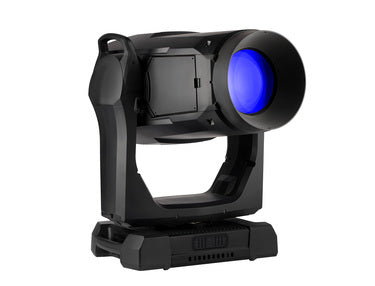

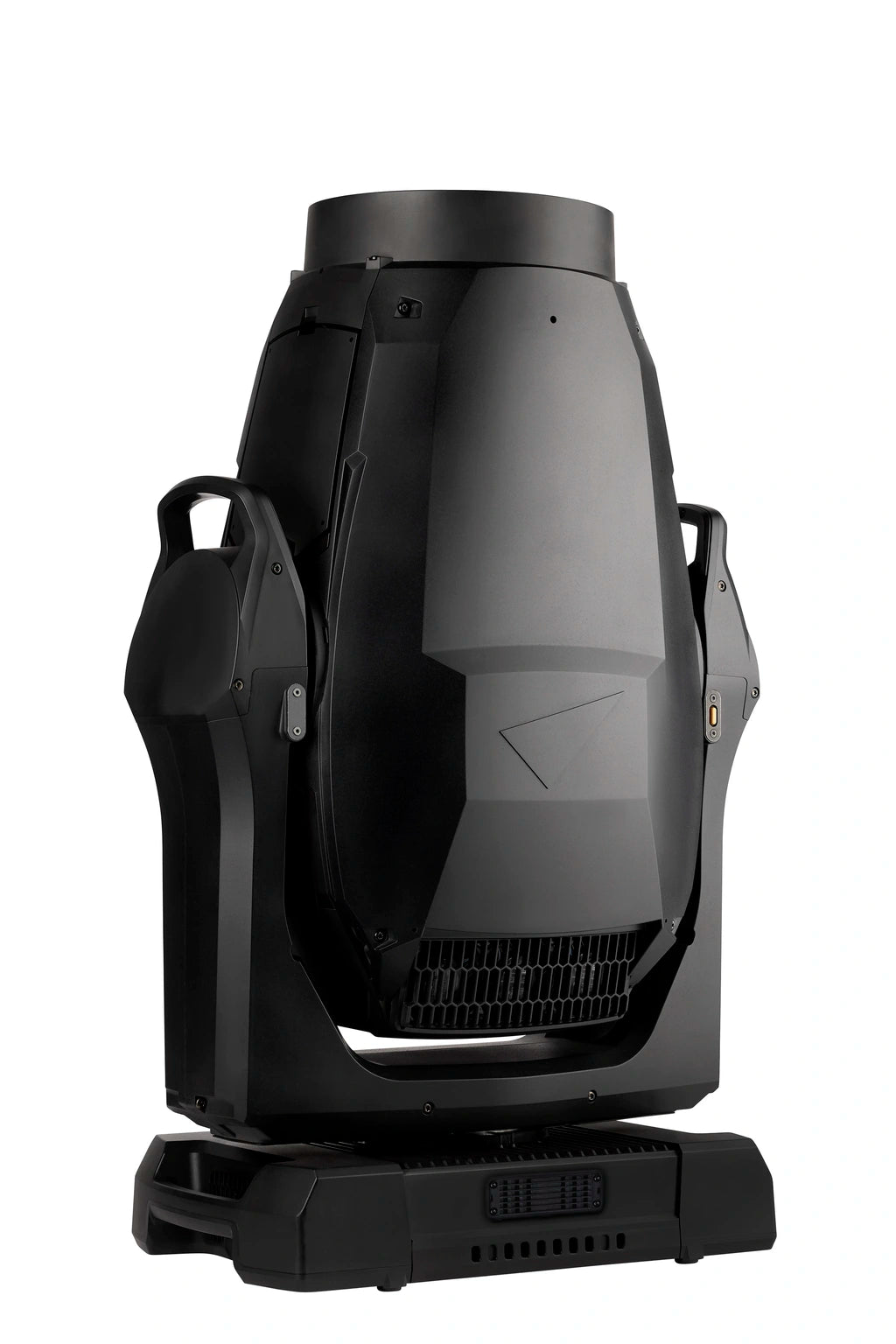

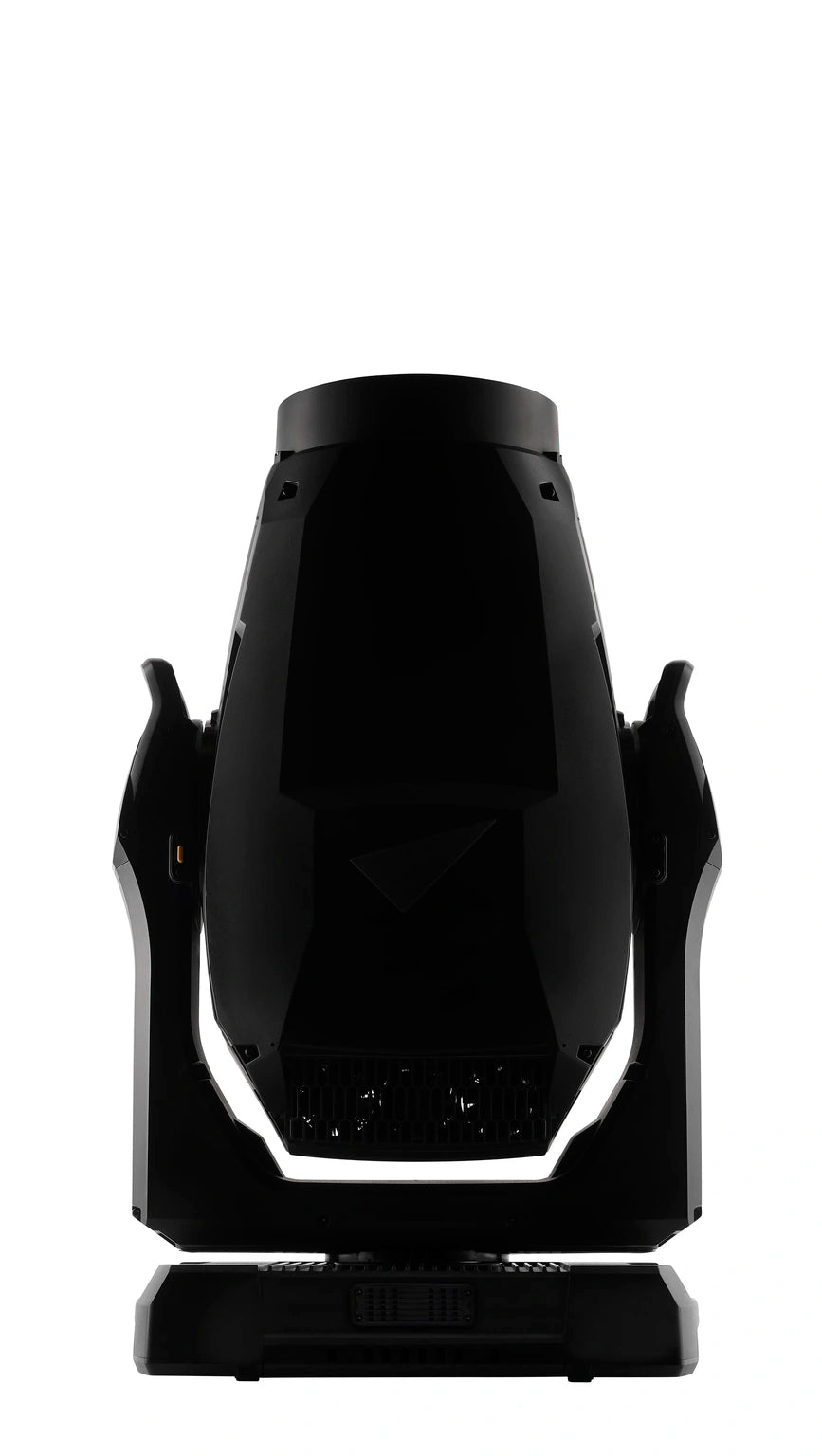

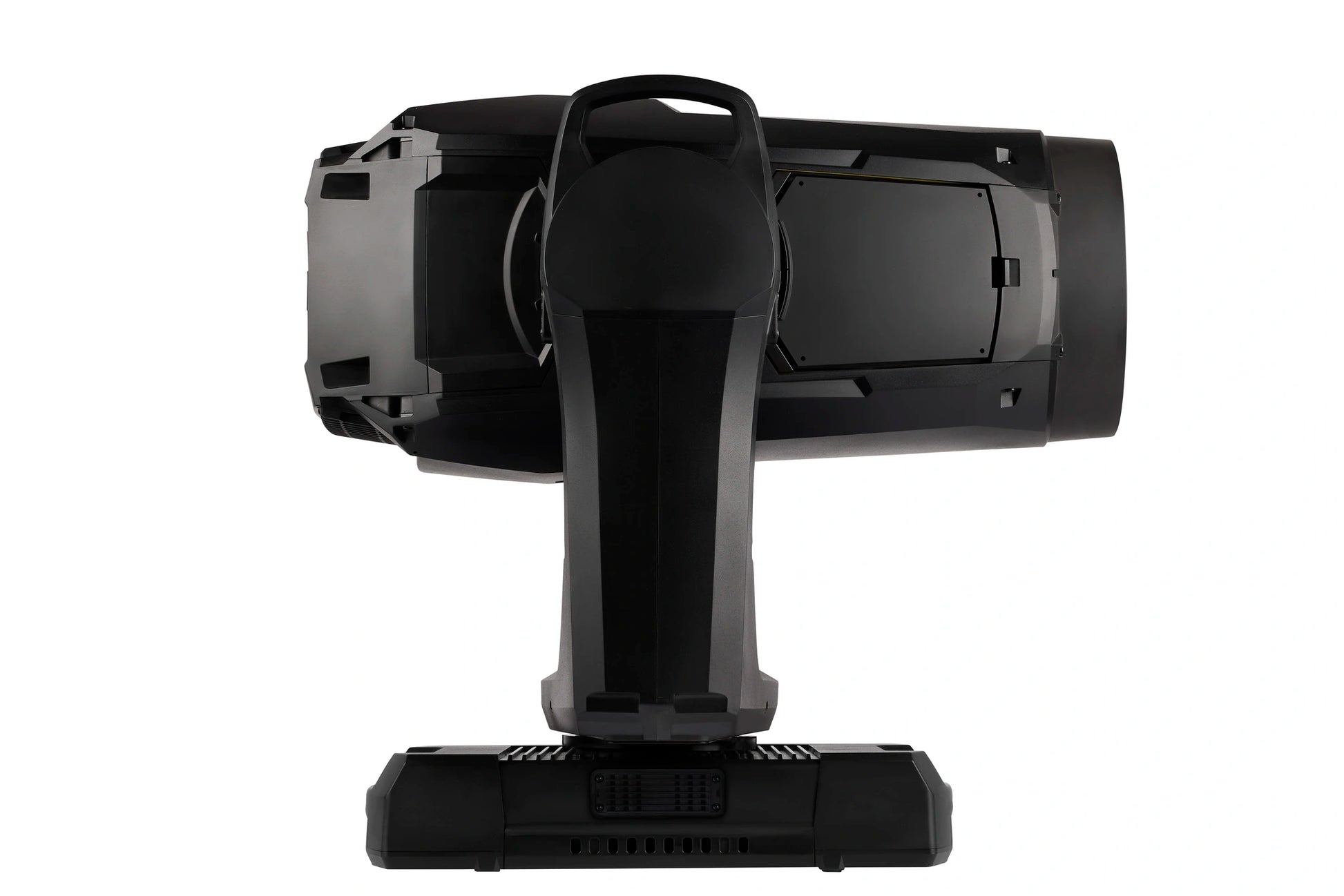

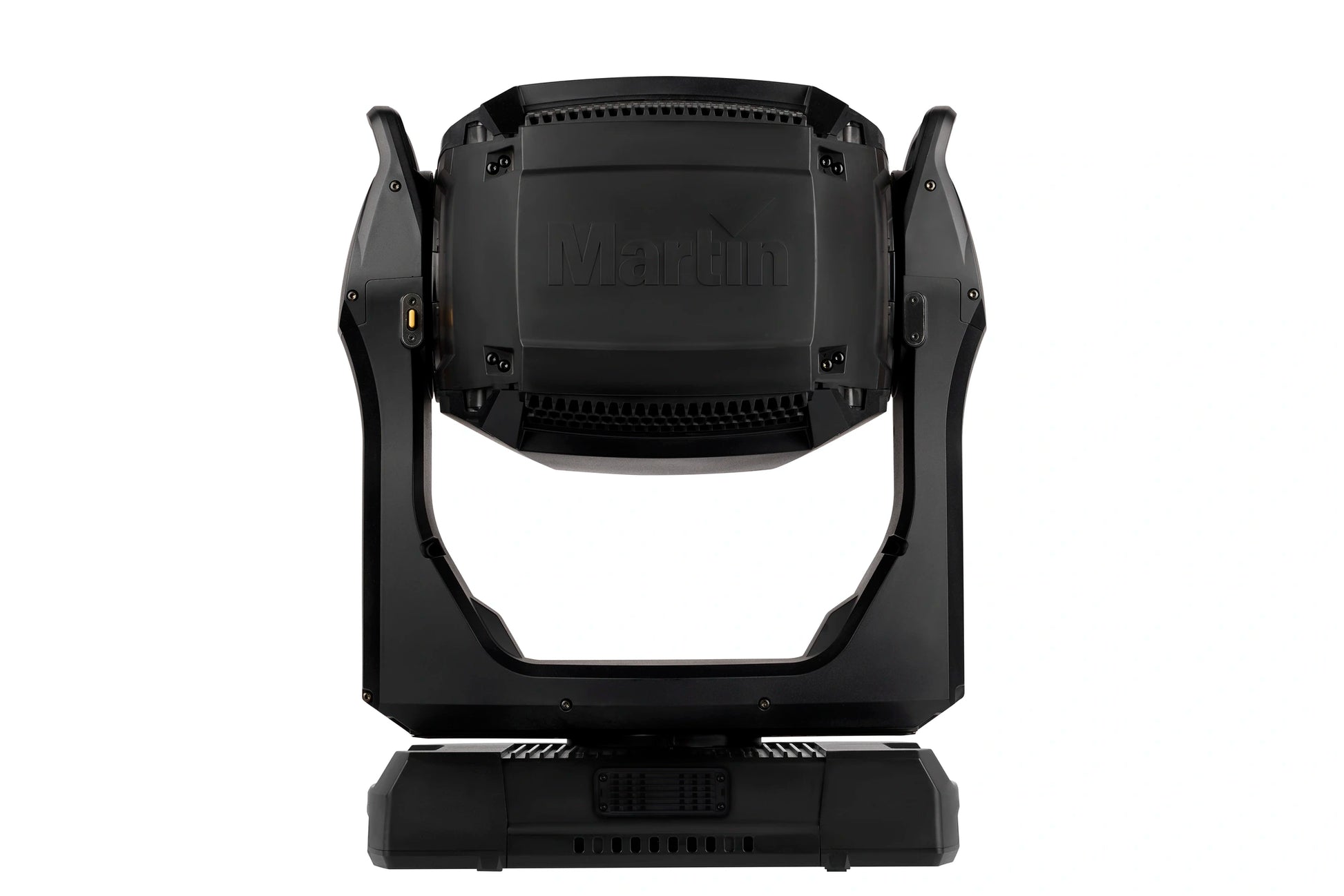

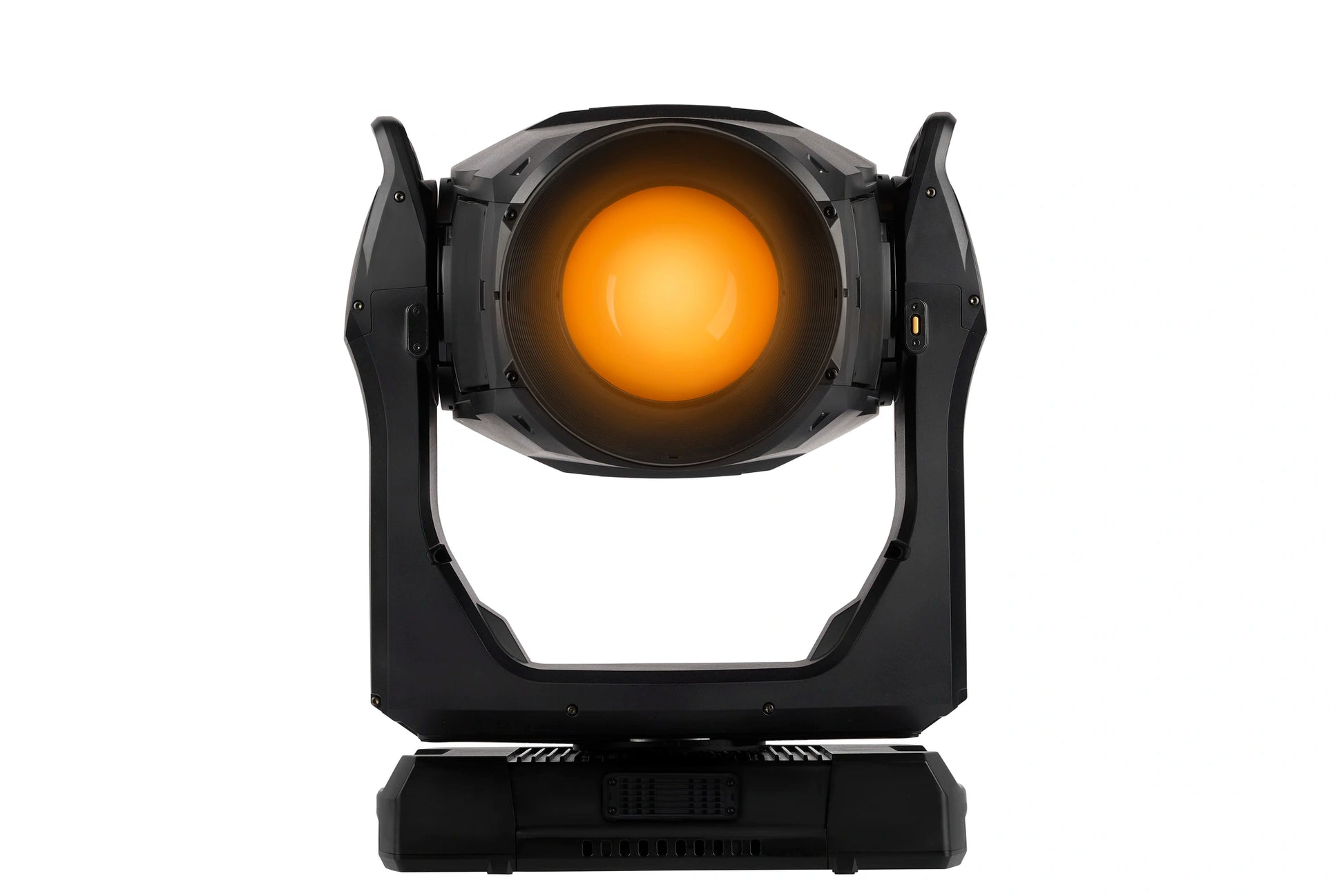

MAC VIPER XIP

The Martin MAC Viper XIP is a high-output, full-featured outdoor moving head for delivering legendary Viper-class performance with XIP smart weatherproofing technology for temporary indoor and outdoor use.

From the Manufacturer

The Martin MAC Viper XIP is the next-generation Viper-class moving head that combines legendary Viper performance, Martin XIP smart weatherproofing technology, and the most robust feature set Martin has ever developed. Drawing on best-in-class features that defined the iconic Viper lineup — including Viper Profile, Performance, Wash, and Wash DX — MAC Viper XIP builds on its heritage, setting a new standard for all-in-one performance, innovation, and reliability.

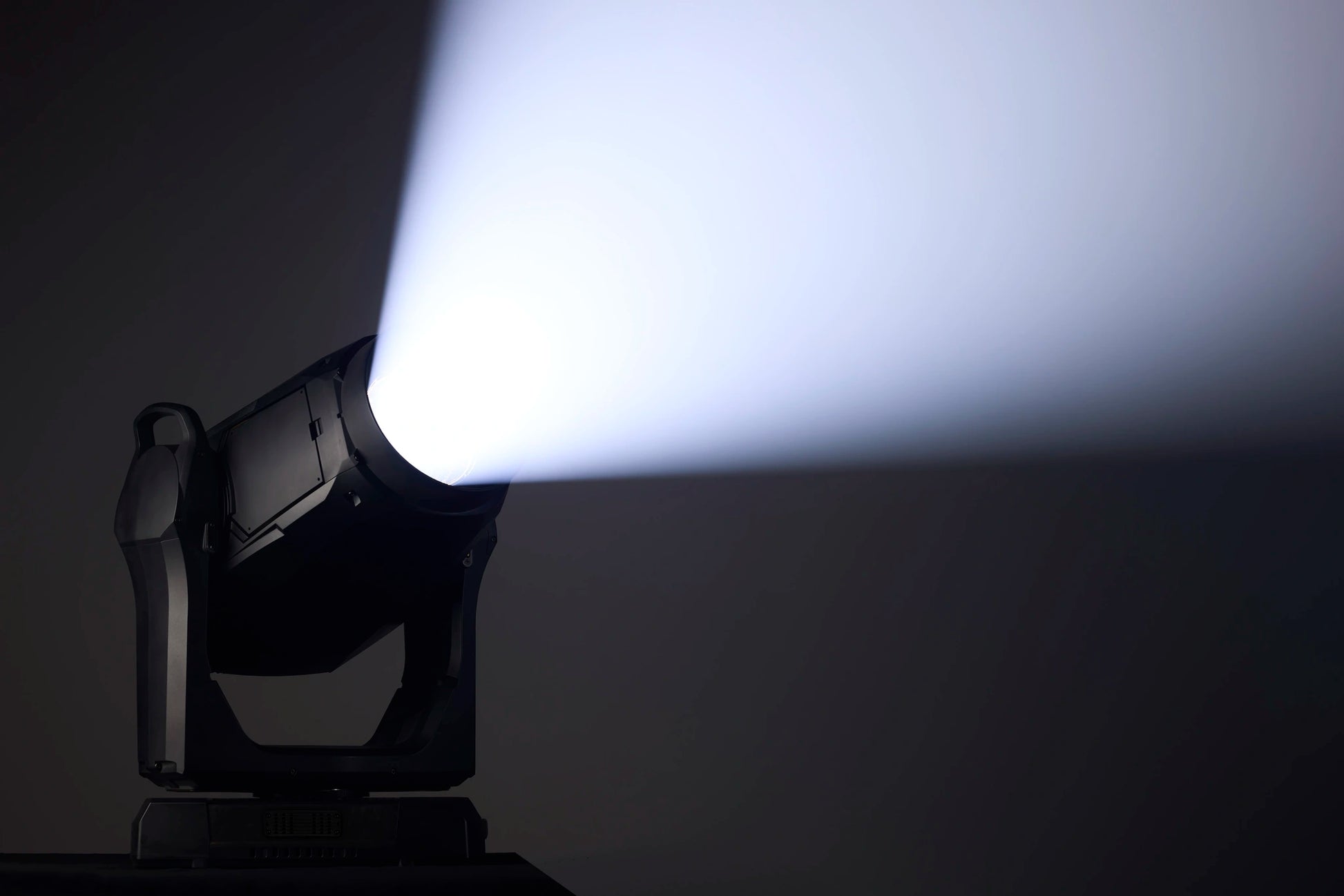

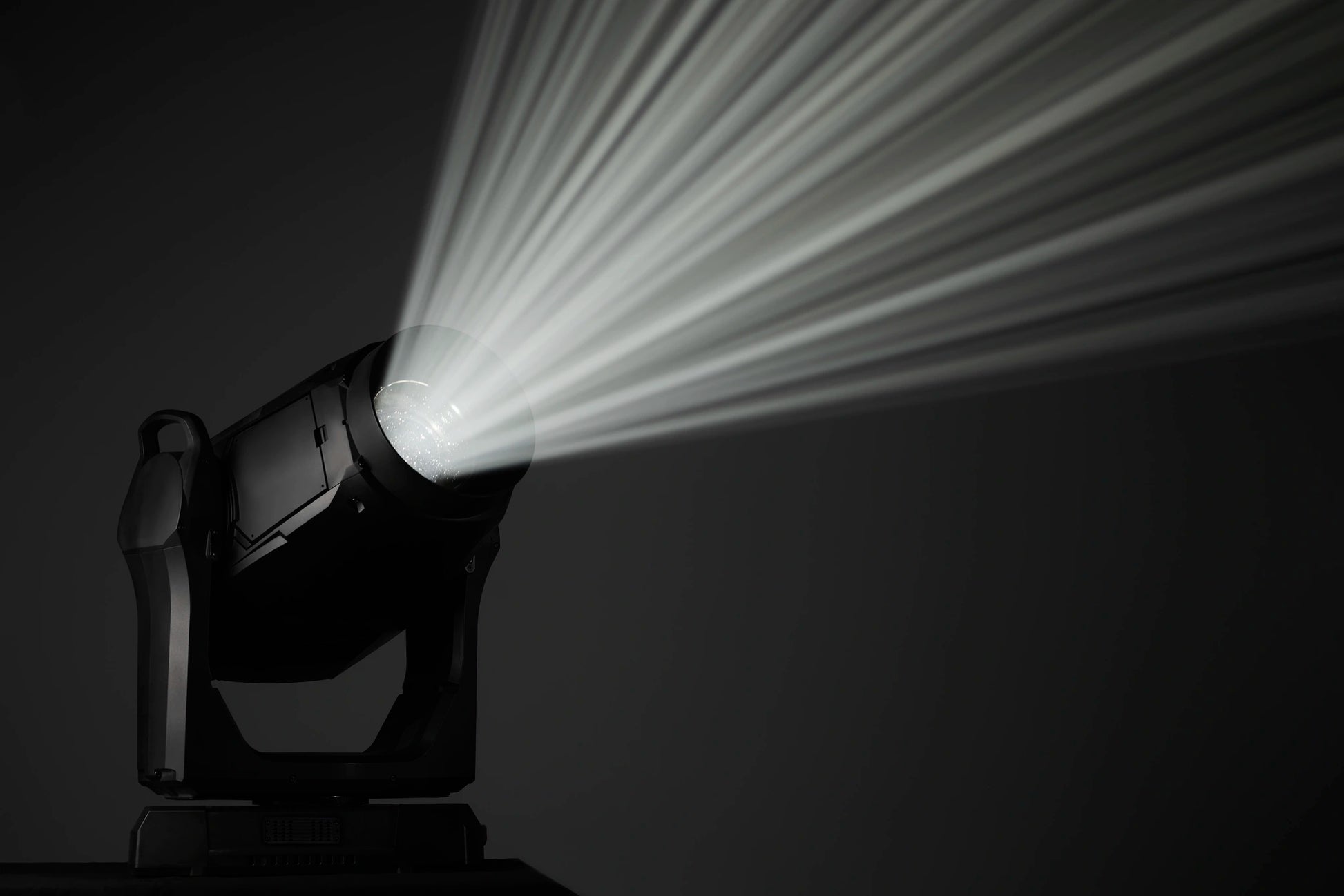

The combination of the MAC Viper XIP's powerful lumen output and innovative patent-pending XIP water and dust ingress protection make it not only ideal for a wide range of temporary, year-round outdoor applications, but also ensures exceptionally low noise levels for indoor use — similar to the whisper-silent Martin MAC Encore. Featuring Martin Professional's proprietary tailor-made light engine, the MAC Viper XIP unleashes an impressive 5-degree narrow, high-definition, and high-contrast beam, ensuring unprecedented lumen maintenance over the zoom range.

Martin's tailor-made light engine and XIP weatherproofing allow the MAC Viper XIP to deliver a consistent 28,000 lumens. Smart, efficient cooling maintains full output with colors, gobos, and effects — and gobo light recycling boosts output by an additional 25%. The MAC Viper XIP's optical system features 14 precision-coated lenses and incredible center-to-edge clarity. Uniquely high contrast produces razor-sharp mid-air effects, and the shutter system's enhanced depth of field ensures well-defined gobo framing. As Martin's most feature-rich product ever made, the MAC Viper XIP has been engineered to elevate the most demanding shows and events — giving designers maximum creative freedom while ensuring uncompromising performance.

Packaging Options

• Cardboard (SKU: MAR-90250300HU): Fixture shipped in a cardboard box with EPS foam (recycled material)
• SiP (SKU: MAR-90250305HU): Fixture shipped in a cardboard box with SiP foam flight case insert for enhanced transport protection

Features

• Martin XIP smart weatherproofing technology (IP54) for temporary outdoor use without the size, noise, or weight penalties of IP65 fixtures
• 28,000 lumens fixture output from a 760W proprietary LED light engine (55 x 20W white LEDs), outperforming much larger products on the market
• Native 5,800K color temperature precisely on the black body curve with no green or magenta shifts for crisp, vibrant white light
• Outstanding optics with 14 precision-coated lenses, a 150 mm front lens, and a 1:9 zoom range (5.7°–54° field angle) for razor-sharp center-to-edge clarity
• Gobo light recycling boosts output by 25% when inserting gobos for increased performance and efficiency
• Lumen maintenance over the entire zoom range that exceeds industry standards
• Whisper-quiet low-noise cooling system comparable to the Martin MAC Encore, ideal for theater, broadcast, and noise-sensitive applications
• Exceptional pan (540°) and tilt (268°) speed with coarse and fine control for followspot systems and high-precision programming
• CMY color mixing with color temperature control (5,800–2,850 K) and Virtual CTC Control (2,000–12,850 K)
• Green Magenta Shift Control for fine-tuning on-camera or when matching other fixtures
• Color wheel with 5 dichroic filters including Spectral Enhancement Filter for improved color rendering (CRI ≥90)
• Two rotating gobo wheels with 7 interchangeable gobos + open each, plus a gobo animation wheel with indexing and variable-angle continuous rotation
• Extended framing module with 4 individually controllable full-curtain blades at ±30° and ±83° module rotation for precise beam shaping
• Two frost effects (Light and Heavy with fade-in), 4-facet prism, motorized iris, motorized zoom, and motorized focus with auto tracking
• High-resolution low-end dimming with four selectable dimming curves and 16-bit control over key parameters
• No dimming on any features, ensuring consistent brightness regardless of gobos, color, or effects
• P3 videomapping of fixture color and/or intensity with 6 segments and variable crossfade between DMX and video control
• Full control suite: DMX, RDM, Art-Net, RDM over Art-Net, sACN, and Martin P3 with automatic protocol detection
• EtherCON in/out with built-in Ethernet switch and fail-safe bypass; 54, 64, and 70 DMX channel modes
• NFC interface for smartphone configuration and diagnostics via the Martin Companion iOS and Android app
• Wireless DMX module connectivity slot for future-ready control via City Theatrical Multiverse UCM Node
• Firmware updates via USB memory device, DMX using Martin Companion, or Ethernet using P3 System Controller
• Minimum LED lifetime of >50,000 hours (to >80% luminous output)
• 2-year fixture warranty; 5-year light engine warranty
• Recommended use: Concert stages, EDM festivals, theater, opera houses, TV studios, broadcast, touring, temporary outdoor events

Specifications

Light Source

• Light Engine: 760W proprietary LED, 55 x 20W white LEDs
• Light Engine Luminous Output: 56,000 lumens
• Fixture Luminous Output: 28,000 lumens
• Fixture Output (with Spectral Enhancement Filter): 18,700 lumens
• Peak Luminous Intensity: 2.4 Mcd
• CCT: 5,800 K (±250 K)
• CRI (Standard): 68 (±3)
• CRI (with Spectral Enhancement Filter): ≥90
• TM-30 Rf (Standard): 66 (±3)
• TM-30 Rg (Standard): 94 (±3)
• TLCI (Standard): 44 (±3)
• LED Refresh Rate: 2,400 Hz
• Minimum LED Lifetime: >50,000 hours (to >80% luminous output)

Optics

• Front Lens Diameter: 150 mm
• Zoom Range: 1:9 (5.7°–54° field angle)
• Pan Range: 540°
• Tilt Range: 268°

Control

• Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN, Martin P3
• DMX Modes: Basic (54 ch), Extended (64 ch), Ludicrous (70 ch)
• DMX Compliance: USITT DMX512-A
• RDM Compliance: ANSI/ESTA E1.20
• Art-Net Compliance: Art-Net 1, 2, 3, and 4 (including RDM over Art-Net)
• sACN Compliance: ANSI E1.31-2016
• Addressing: Display menu, RDM, RDM over Art-Net, or P3

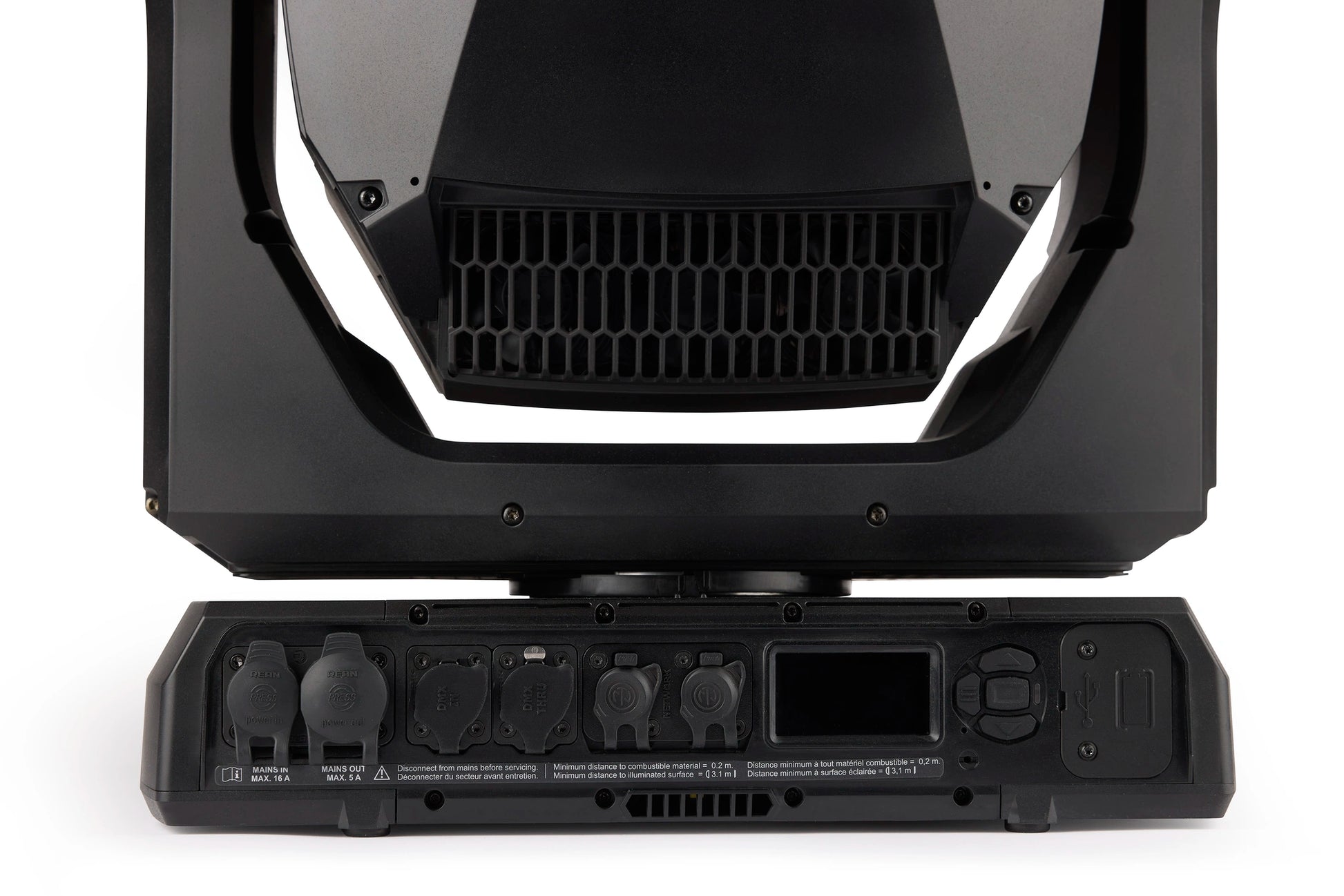

Connections

• DMX/RDM: Neutrik 5-pin locking XLR TOP in/out
• AC Power: Neutrik Rean powerCON TRUE1 TOP in/thru
• Ethernet: Neutrik etherCON TOP in/out (with fail-safe bypass)
• Firmware: USB 2.0 port
• Wireless Module: City Theatrical Multiverse 900 MHz and 2.4 GHz UCM Node slot

Electrical

• AC Power: 100–240 V AC nominal, 50/60 Hz (auto-ranging)
• Power Consumption (Maximum): 1,040 W
• Power Consumption (Typical): 945 W
• Power Consumption (Idle): 68 W
• Power Consumption (Hibernation): 6 W
• Max Current Draw: 11.0 A @ 100/120 V; 5.2 A @ 200 V; 4.6 A @ 240 V
• Power Factor: 0.99 @ 100/120/208/230 V

Thermal & Acoustic

• Cooling: Forced air, temperature-regulated, low noise
• Sound Pressure Level (Default Regulated Fan Mode): 37.7 dB(A) @ 1m
• Sound Pressure Level (Ultra Low Constant Fan Mode): 31.9 dB(A) @ 1m
• Maximum Ambient Temperature: 40°C (104°F)
• Minimum Ambient Temperature: -10°C (14°F)
• Total Heat Dissipation: 3,550 BTU/hr

Physical

• Housing: High-impact flame-retardant thermoplastic
• Color: Black
• Protection Rating: IP54
• Weight: 37.0 kg (81.5 lbs.)
• Width (across yoke): 479 mm (18.9 in.)
• Width (base): 281 mm (11.1 in.)
• Length (base): 429 mm (16.9 in.)
• Length (head): 594 mm (23.4 in.)
• Height (head straight up): 758 mm (29.8 in.)
• Height (maximum): 776 mm (30.6 in.)
• Location: Indoor or temporary outdoor use

What's in the Box

• MAC Viper XIP Moving Head

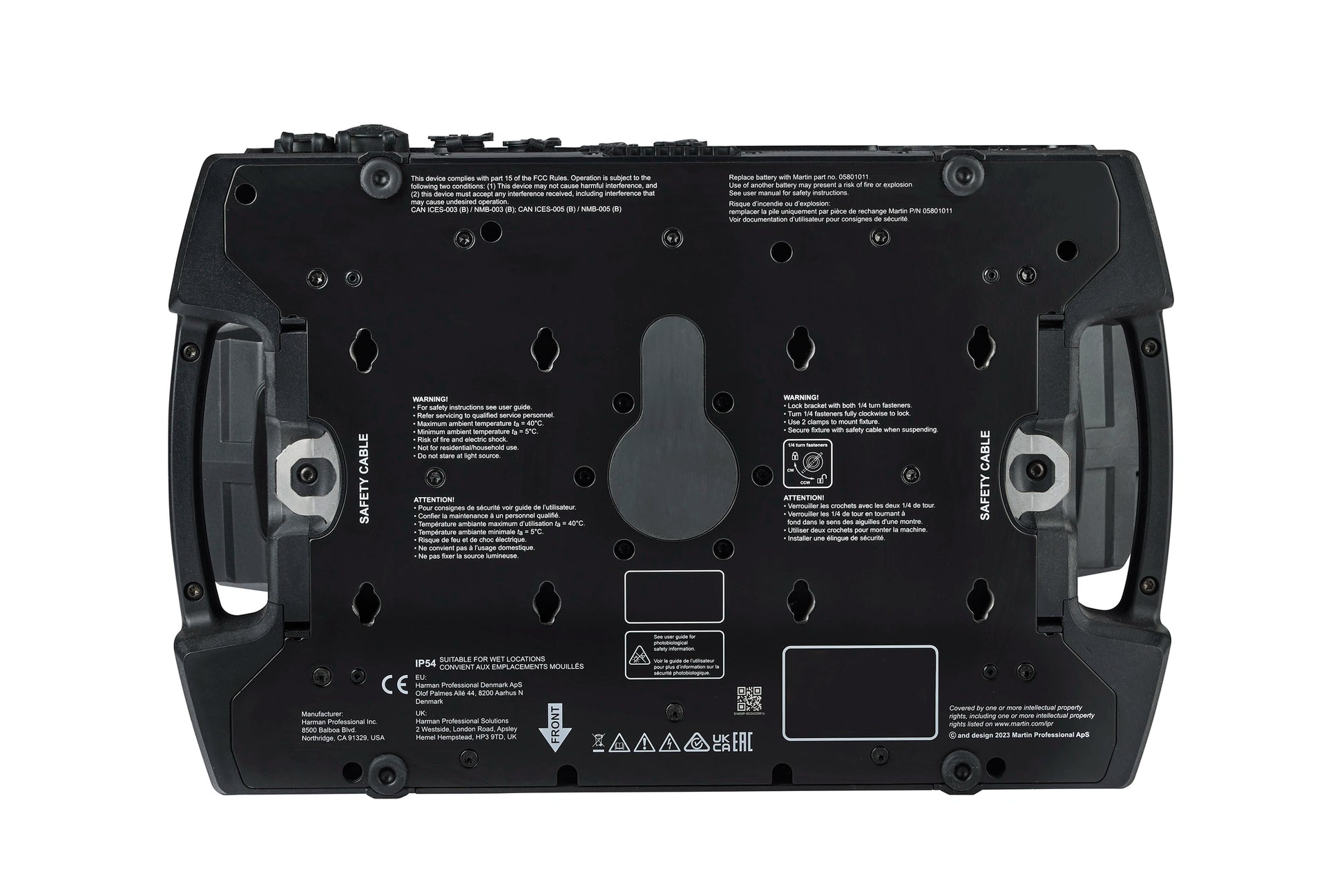

• Two omega brackets with 1/4-turn fasteners
• Martin Companion Cable (for firmware update over DMX)
• Safety and installation manual
