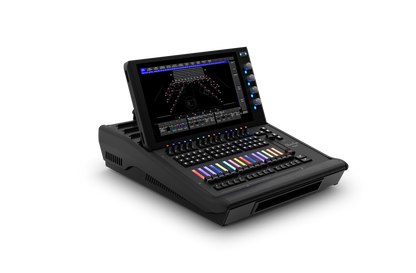

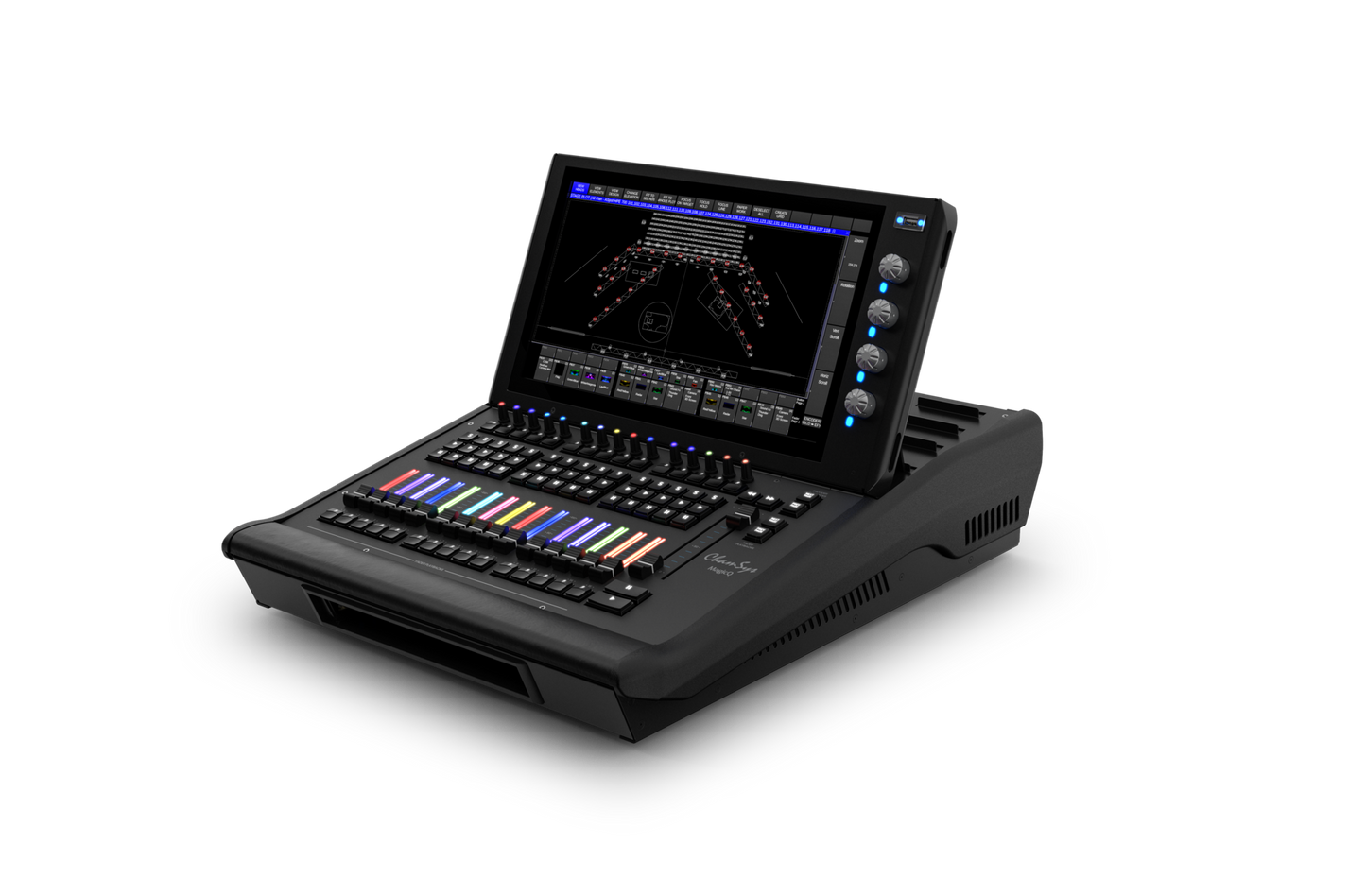

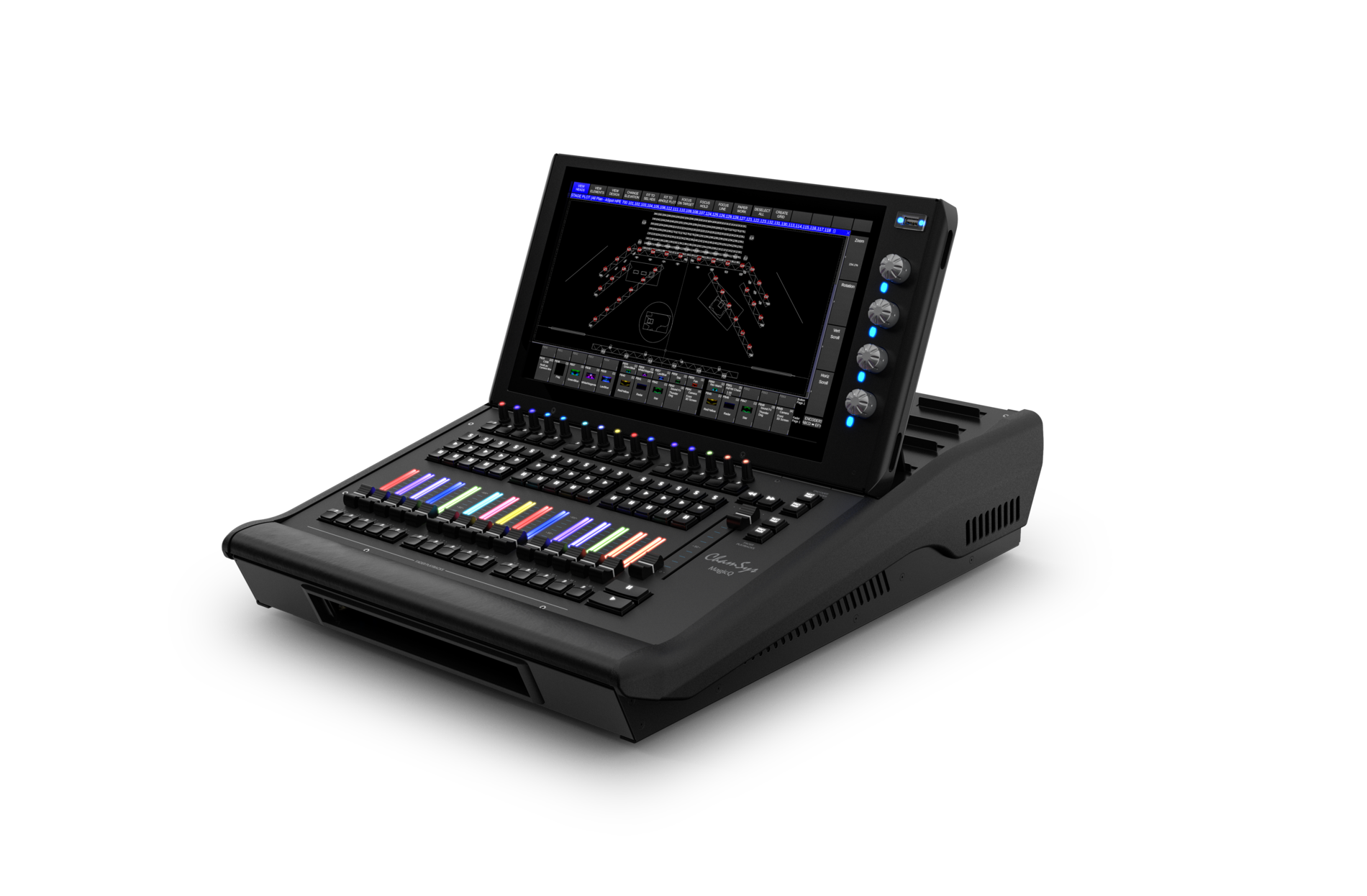

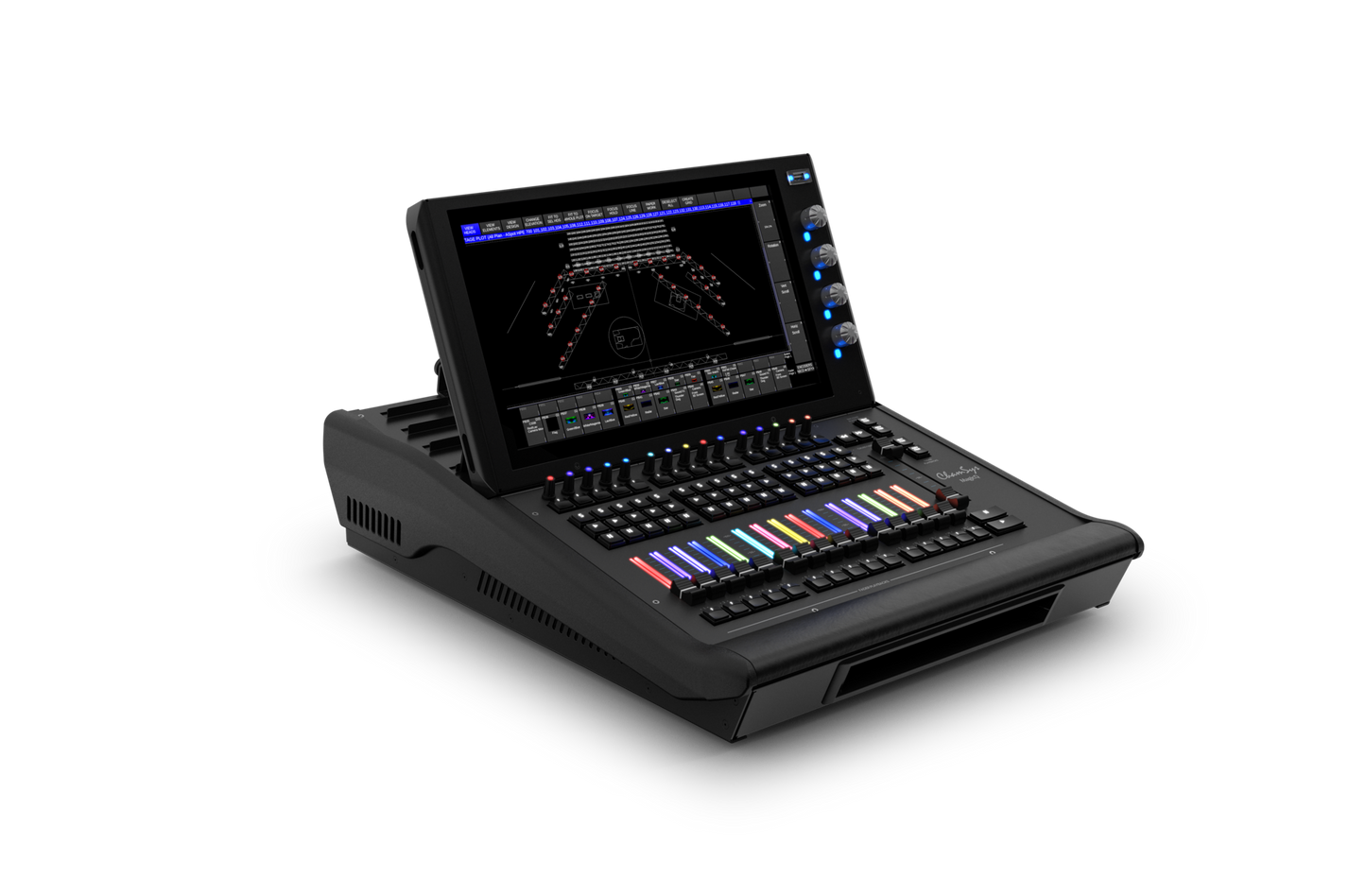

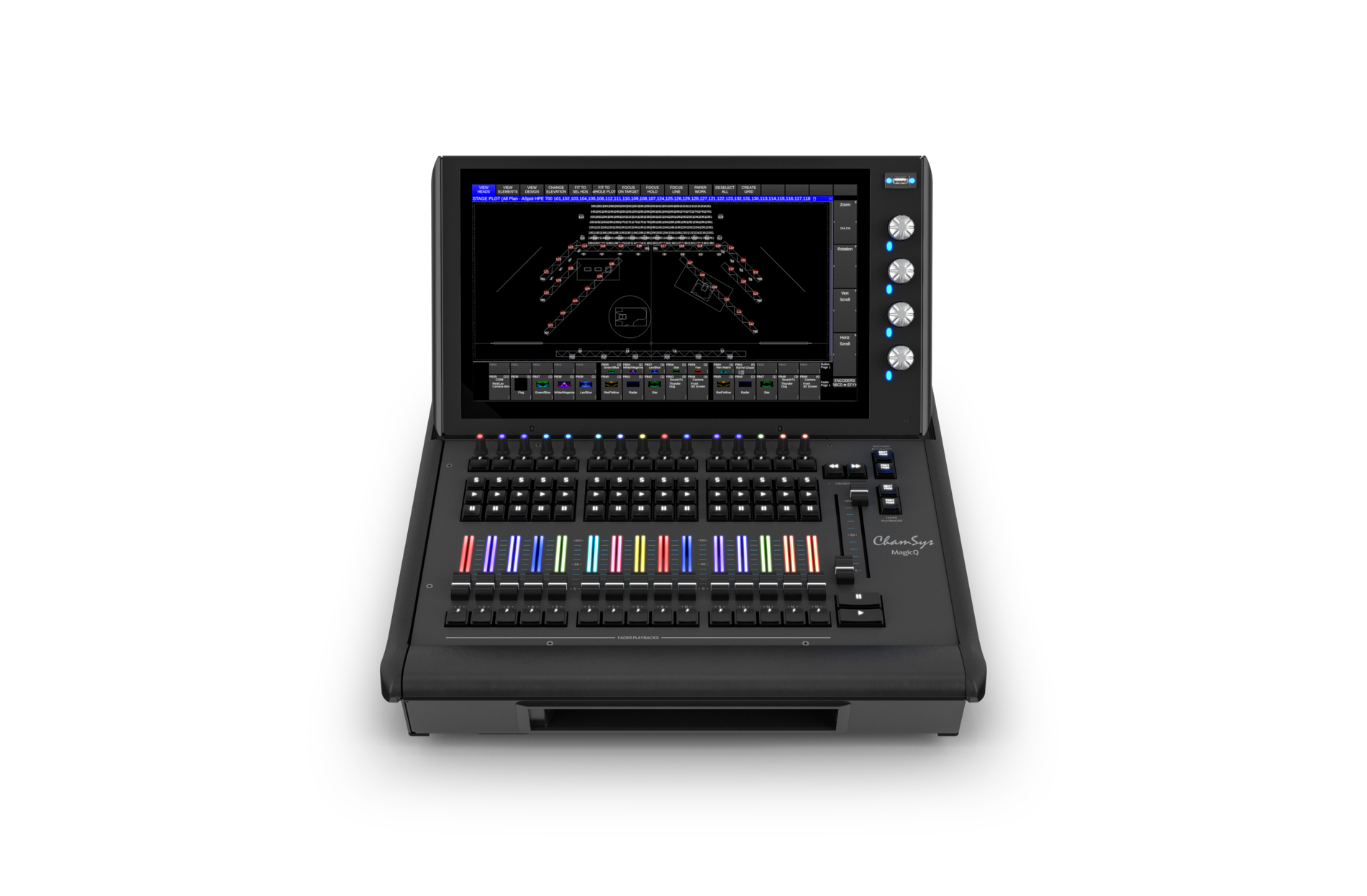

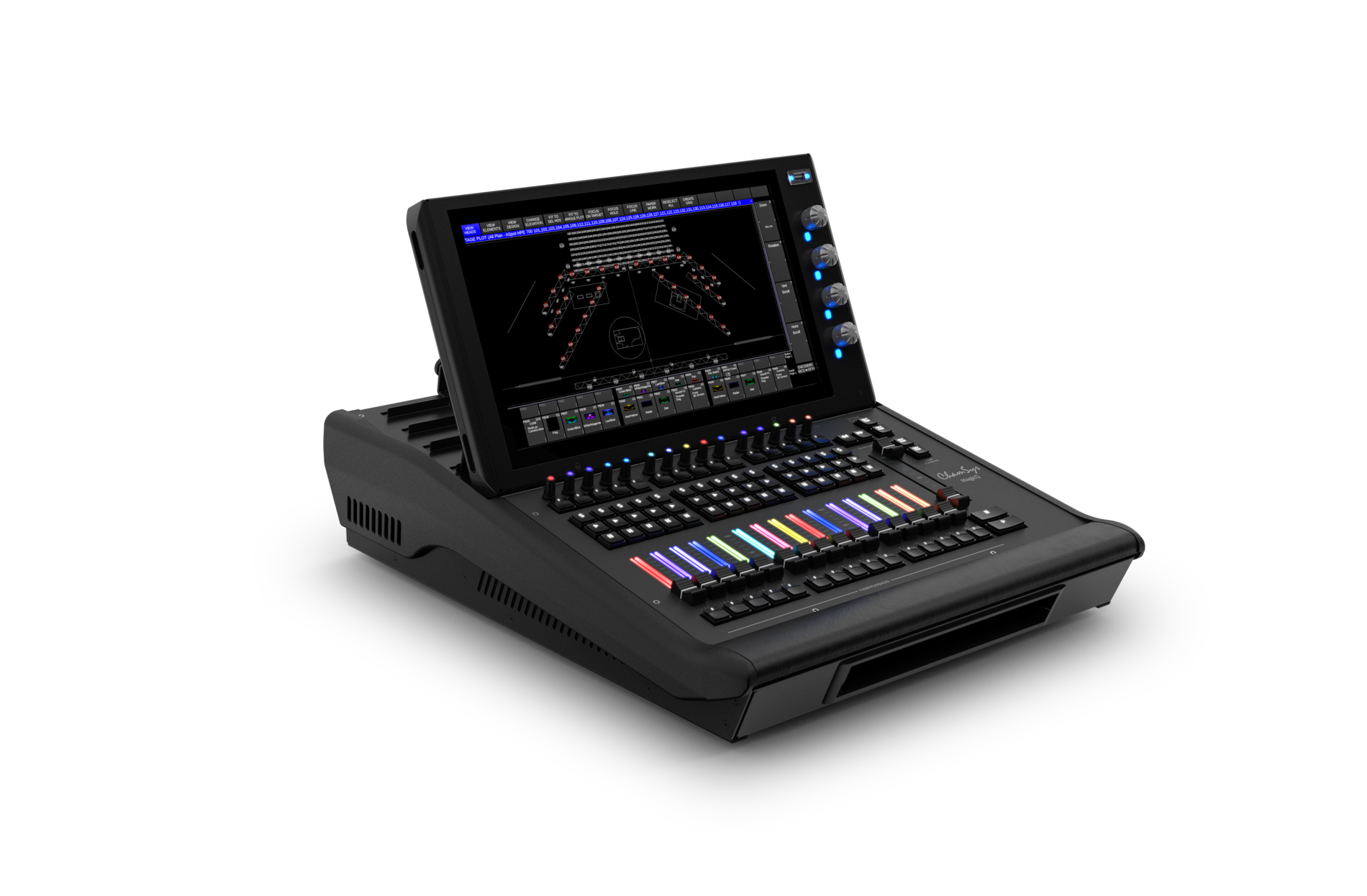

MagicQ MQ500M Stadium Wing

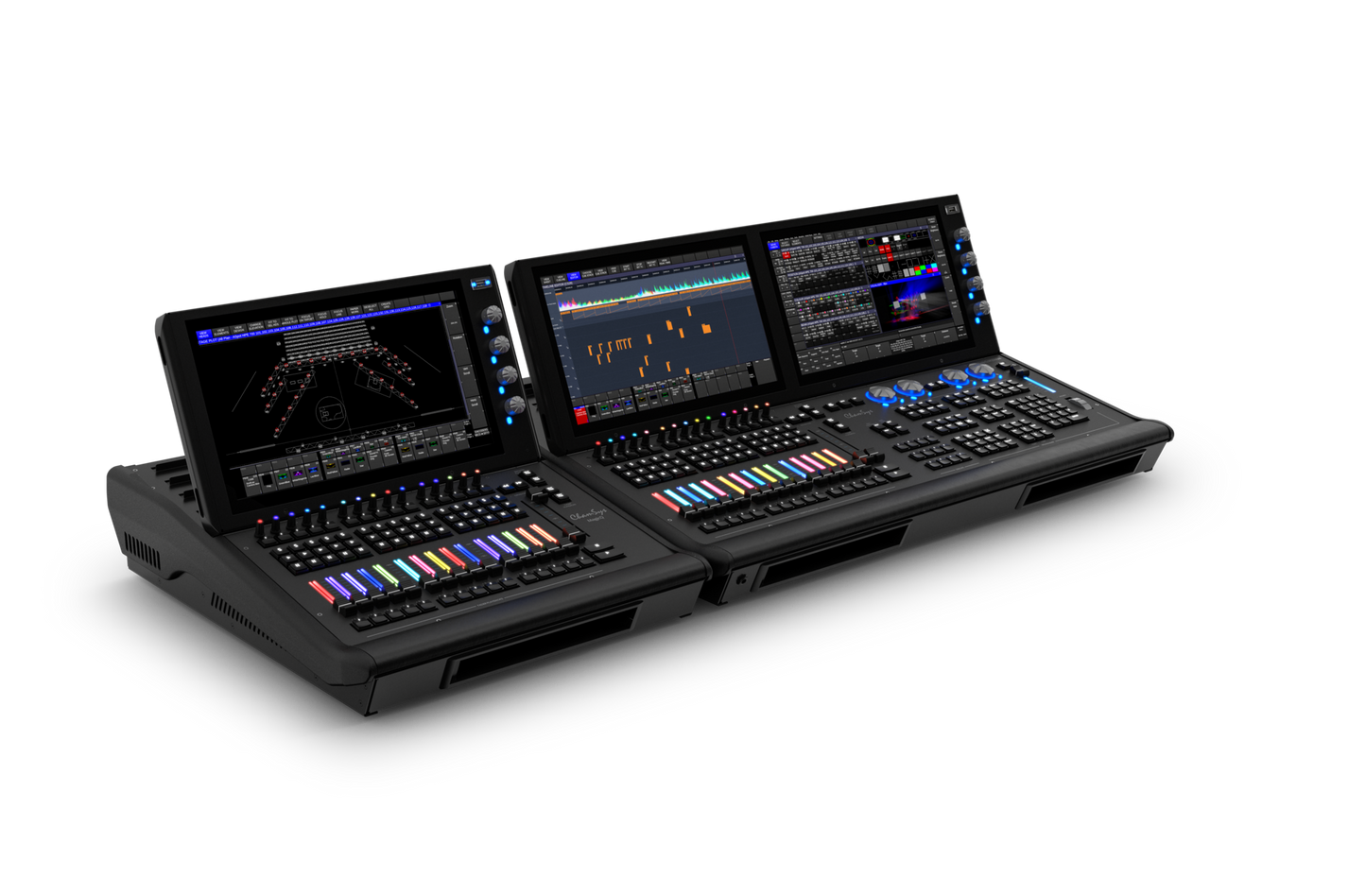

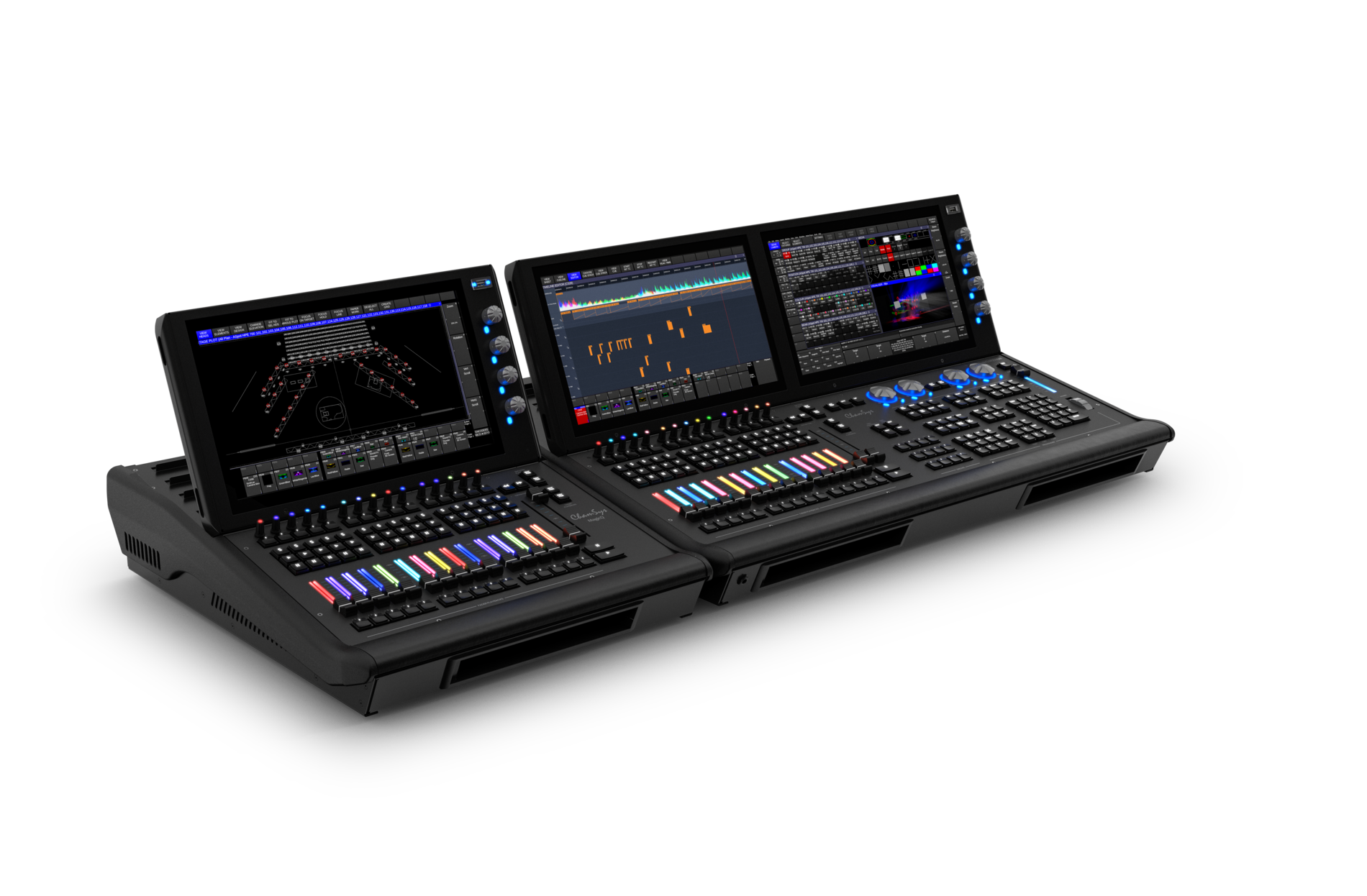

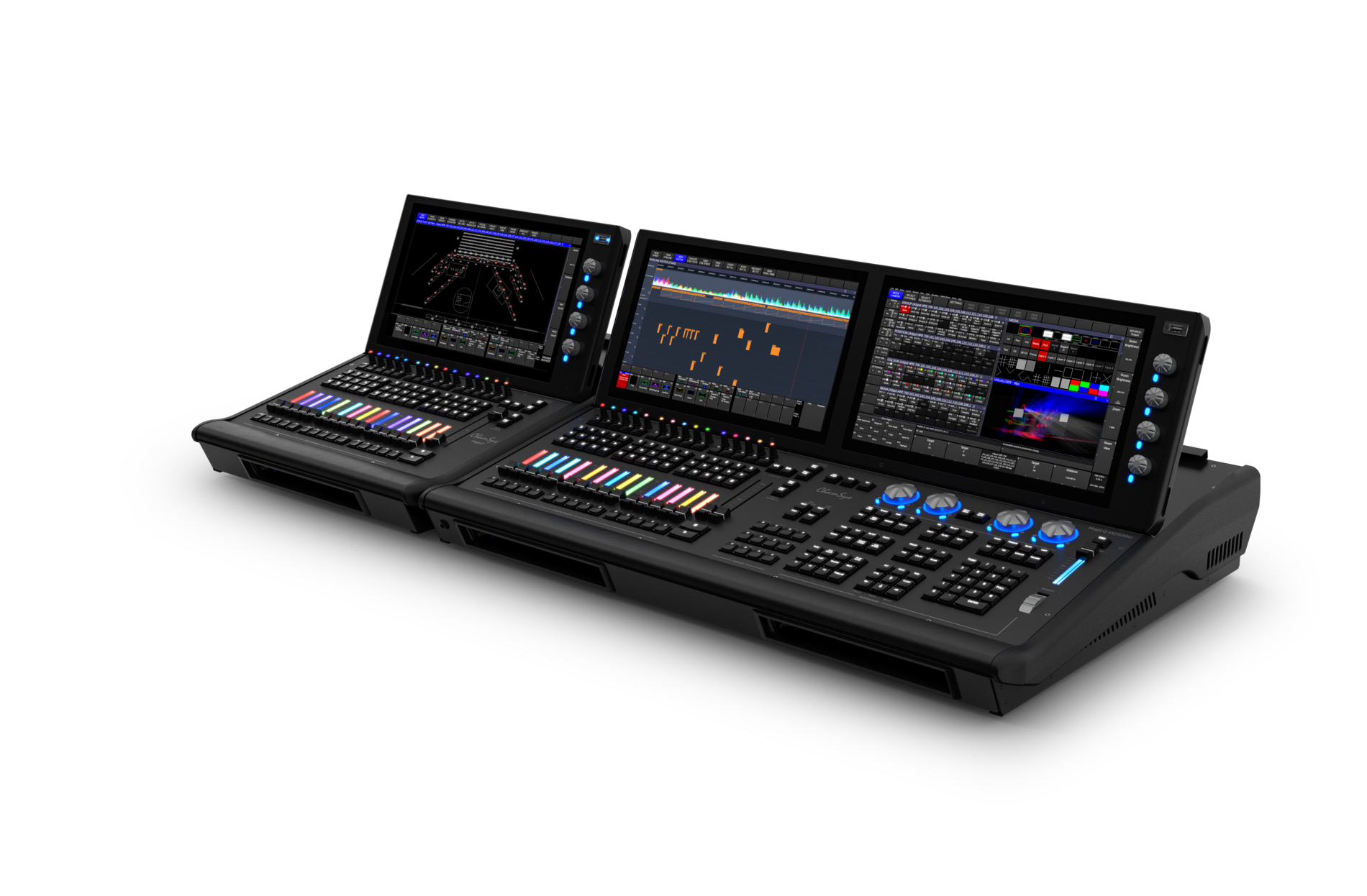

The MagicQ MQ500M is a wing is designed to be used with the MagicQ MQ500M Stadium Console. It is a good option for large professional events.

From the Manufacturer:

MagicQ MQ500M Stadium Wing is designed to operate with the MagicQ MQ500M Stadium console at the highest level of show control. MQ500M Stadium Wing features 30 playbacks in total: 15 motorised faders and 15 encoder playbacks all with RGB illumination. The wing also incorporates a full HD multitouch display, 4 DMX outputs, and in-built UPS.

Overview:

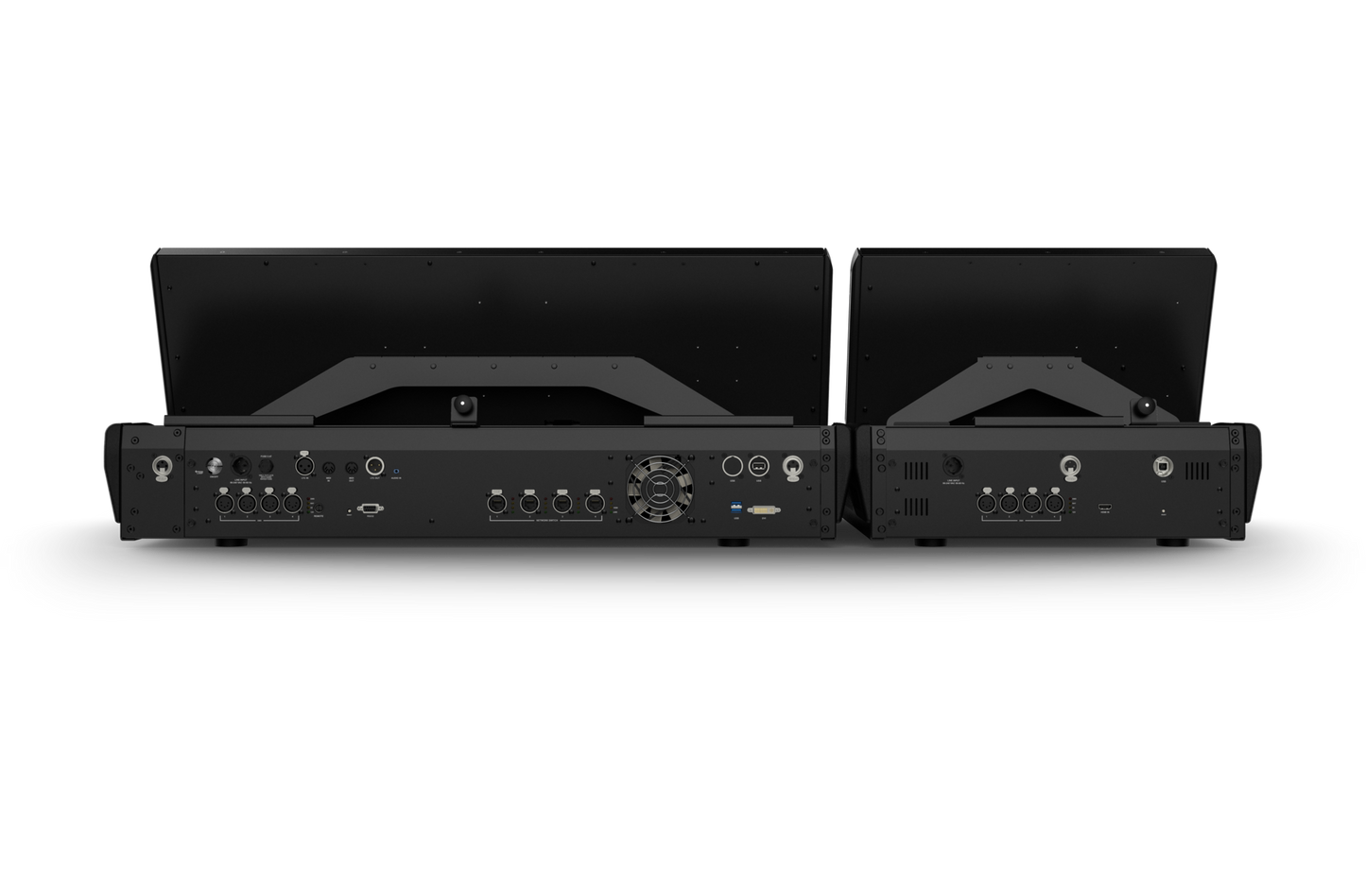

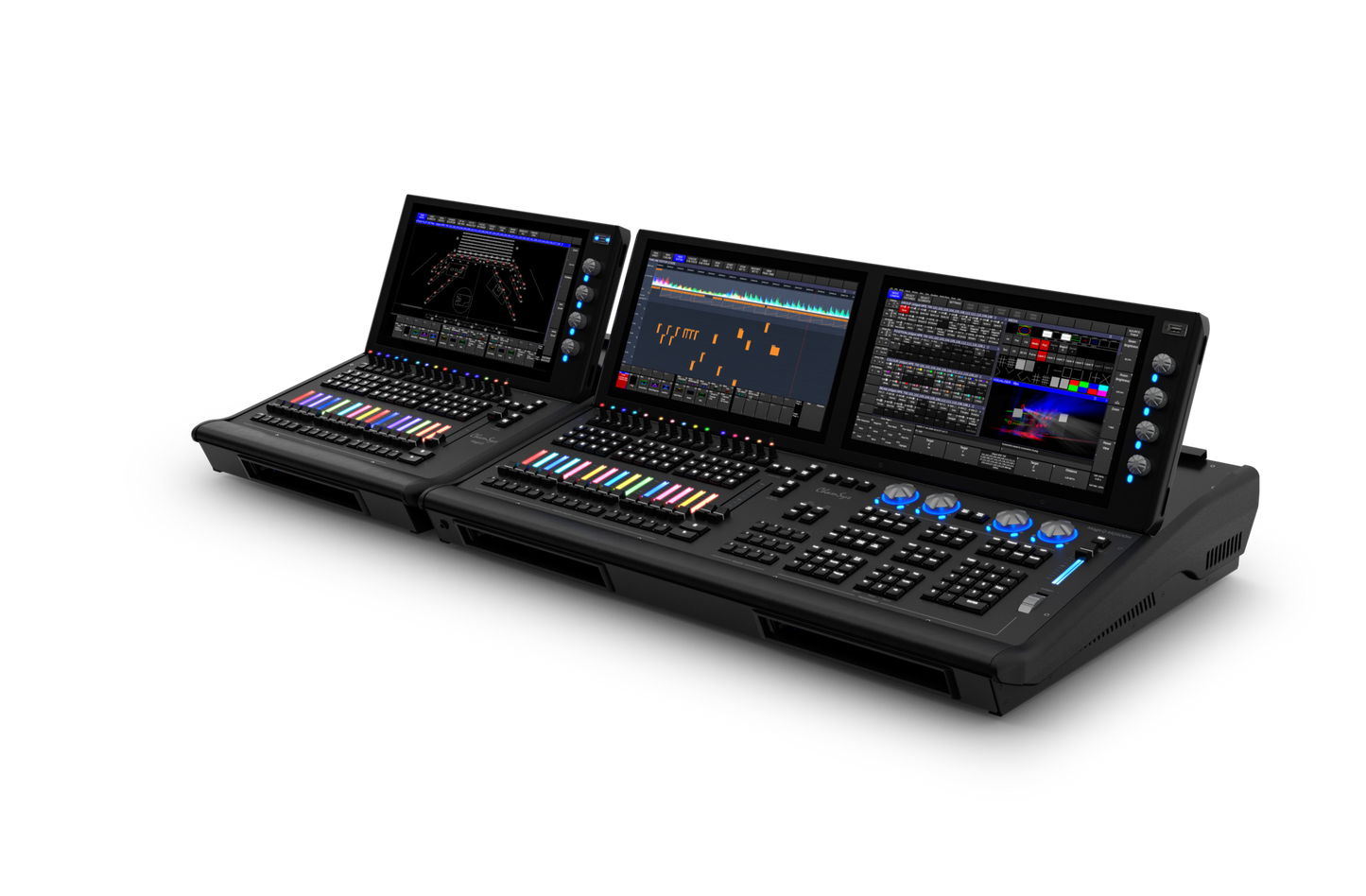

• Compatible with MagicQ MQ500M Stadium console

• 15 fully motorised fader playbacks

• 15 encoder playback with RGB indicators

• RGB illumination of playbacks

• Backlit buttons

• 15″ Multi touch HD display

• Dual motorised 100mm crossfaders ideal for Theatre

• 4 assignable DMX ports

Hardware Specifications:

• Motorised Playbacks: 15

• Encoder Playbacks: 15

• Total no of Playbacks: 30 (15+15)

• Dual Motorised Cross Faders: Yes

• Execute Encoders: 4

• Backlit Keys: Yes

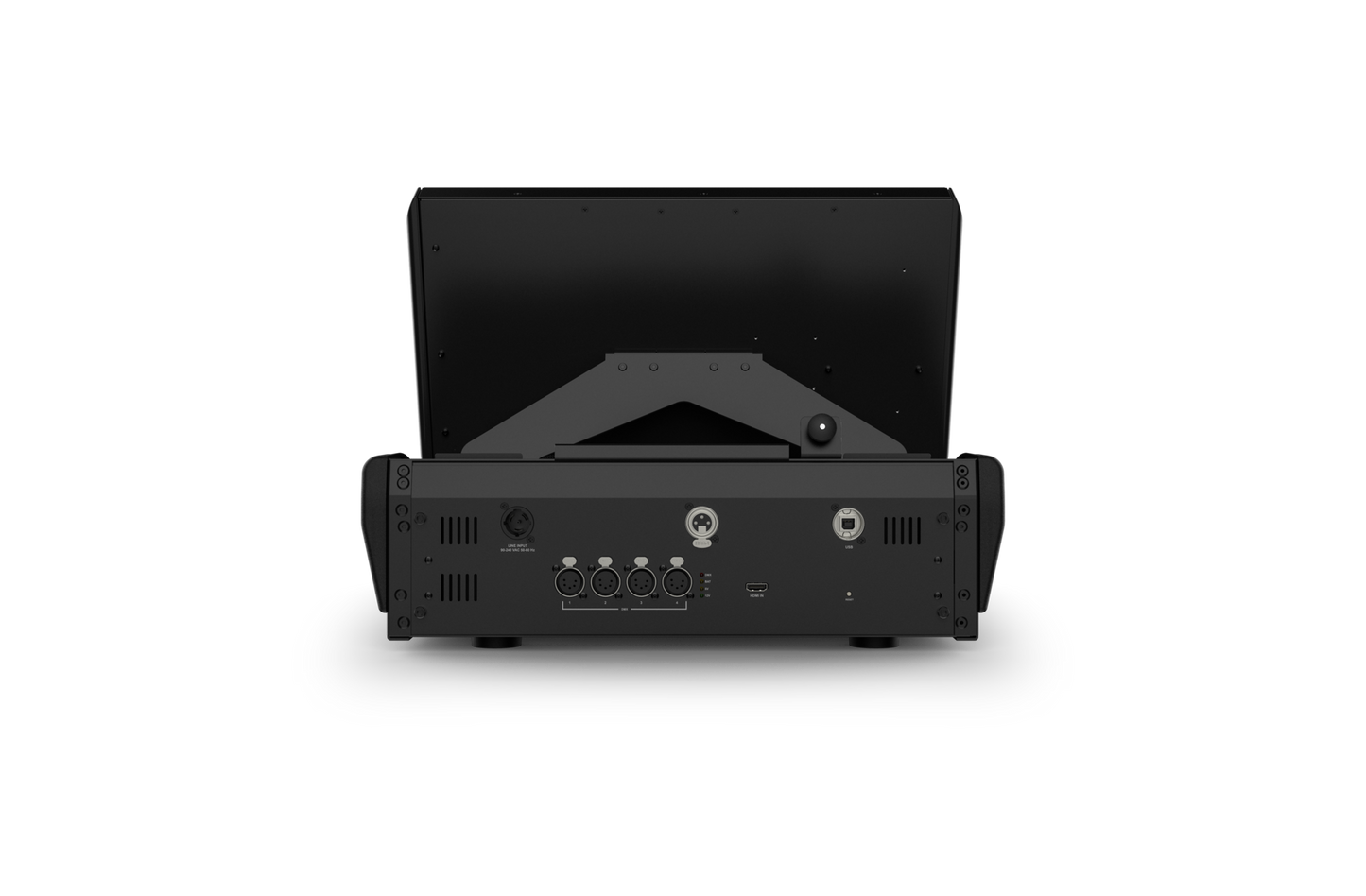

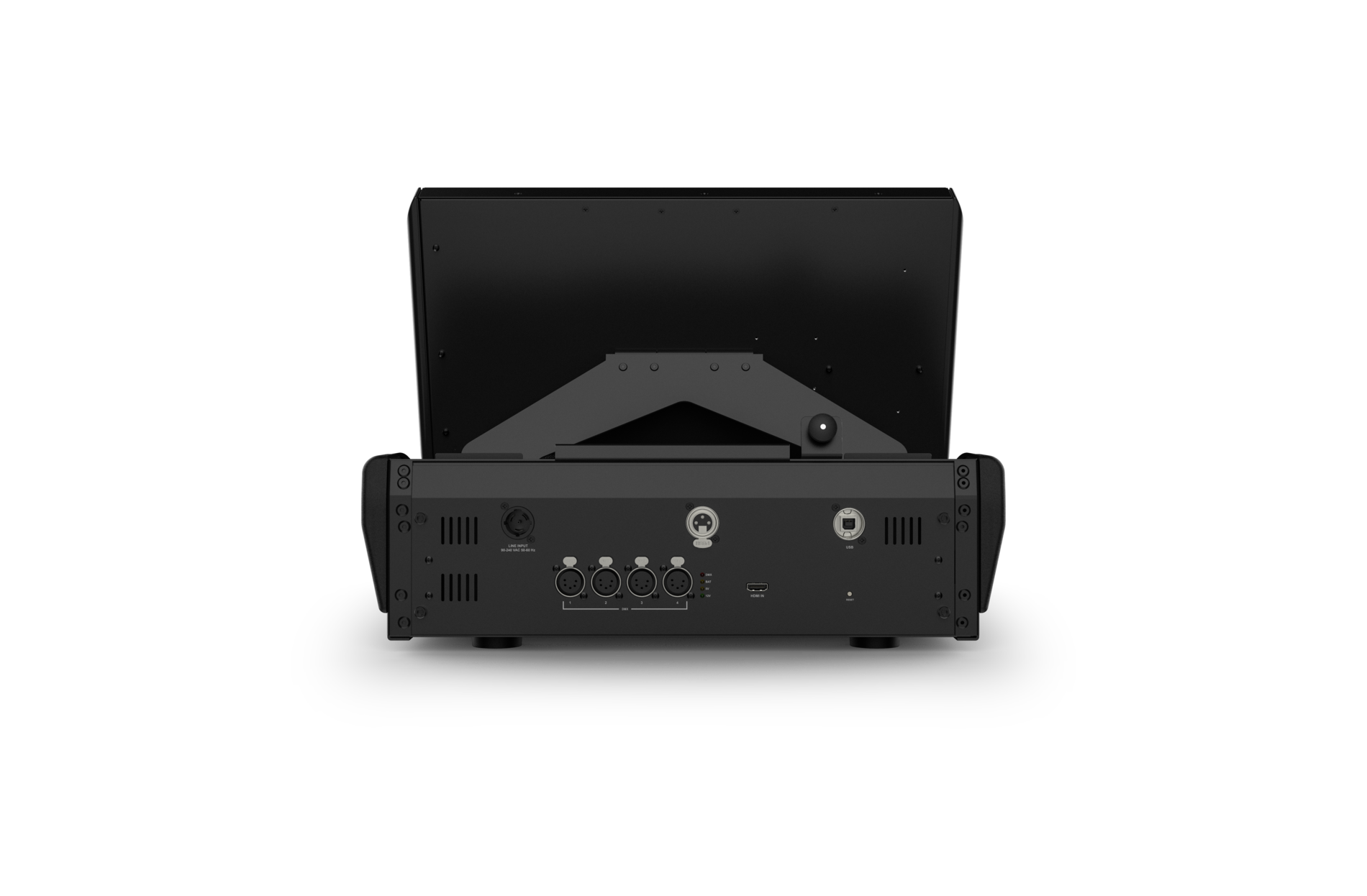

• Direct DMX Outputs: 4

• Illuminated Playback/Encoders with RGB control: Yes

• Inbuilt 15″ HD Multi-Touch Display: 1

• High Power USB Port: 1

• Inbuilt UPS: Yes, uses 12v Lead-Acid Battery

• Front Storage Pocket: 1

• Power Input, Neutrik powerCON TRUE1 110 to 240 VAC

• Width: 690mm (21 inches)

• Depth: 590mm (23.3 inches)

• Height: 340mm (13.3 inches)

• Weight: 21kg (46.2 lb)
