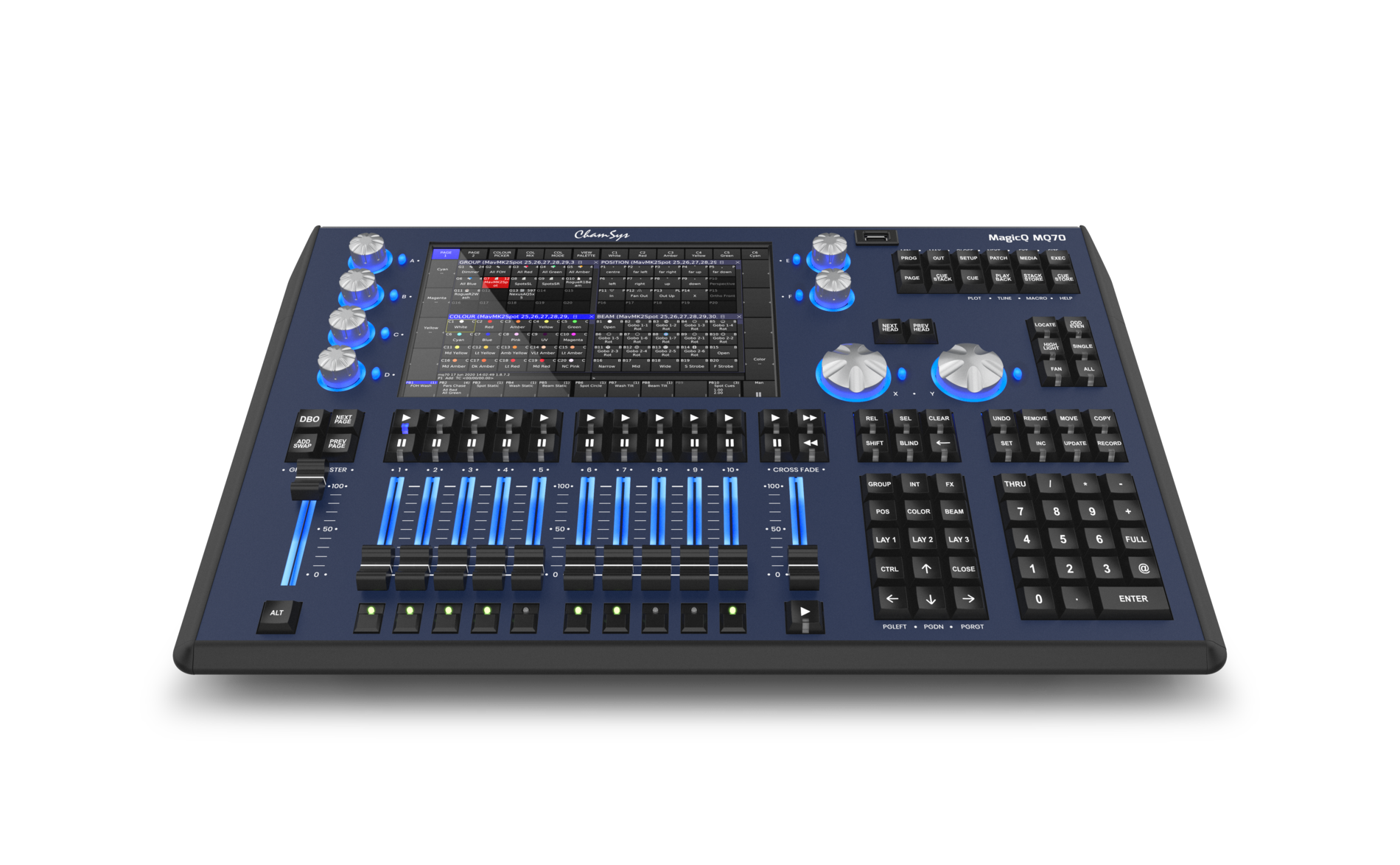

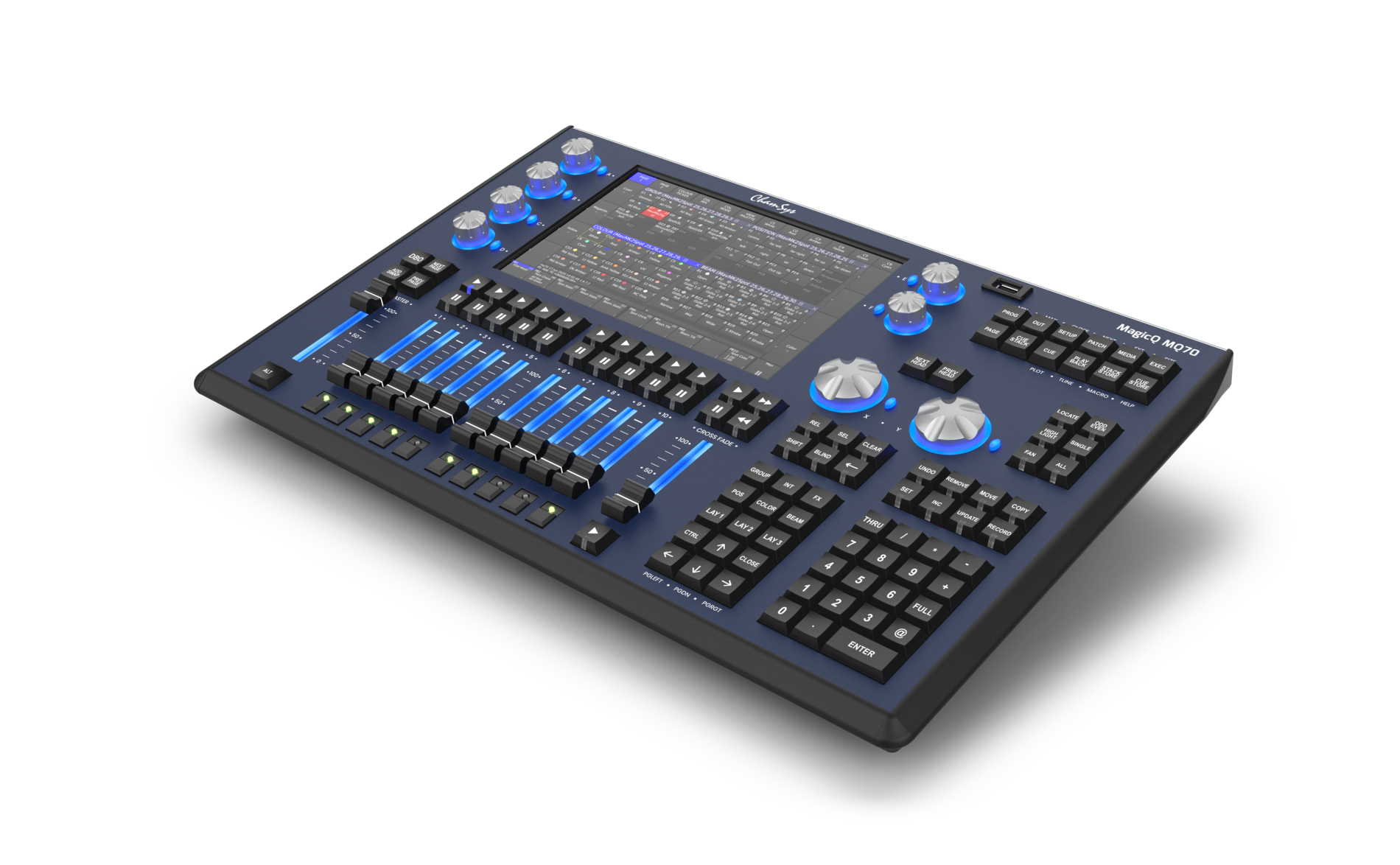

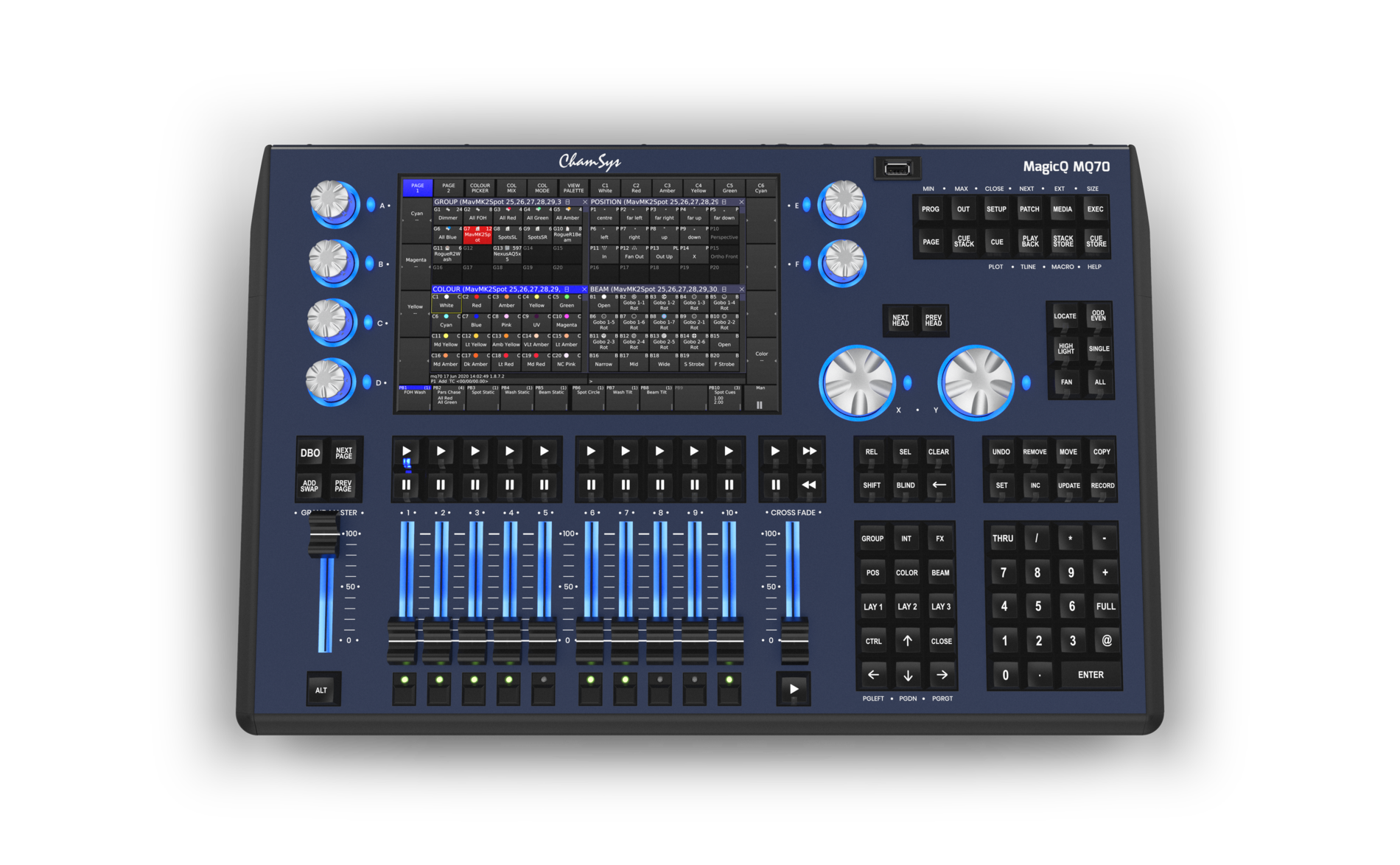

MagicQ MQ70 Compact Console

The MagicQ MQ70 Compact Console is a very portable lighting console. It is made to fit within your hand luggage carry on of  all major budget airlines. It is a great option for a freelance lighting technician.

From the Manufacturer:

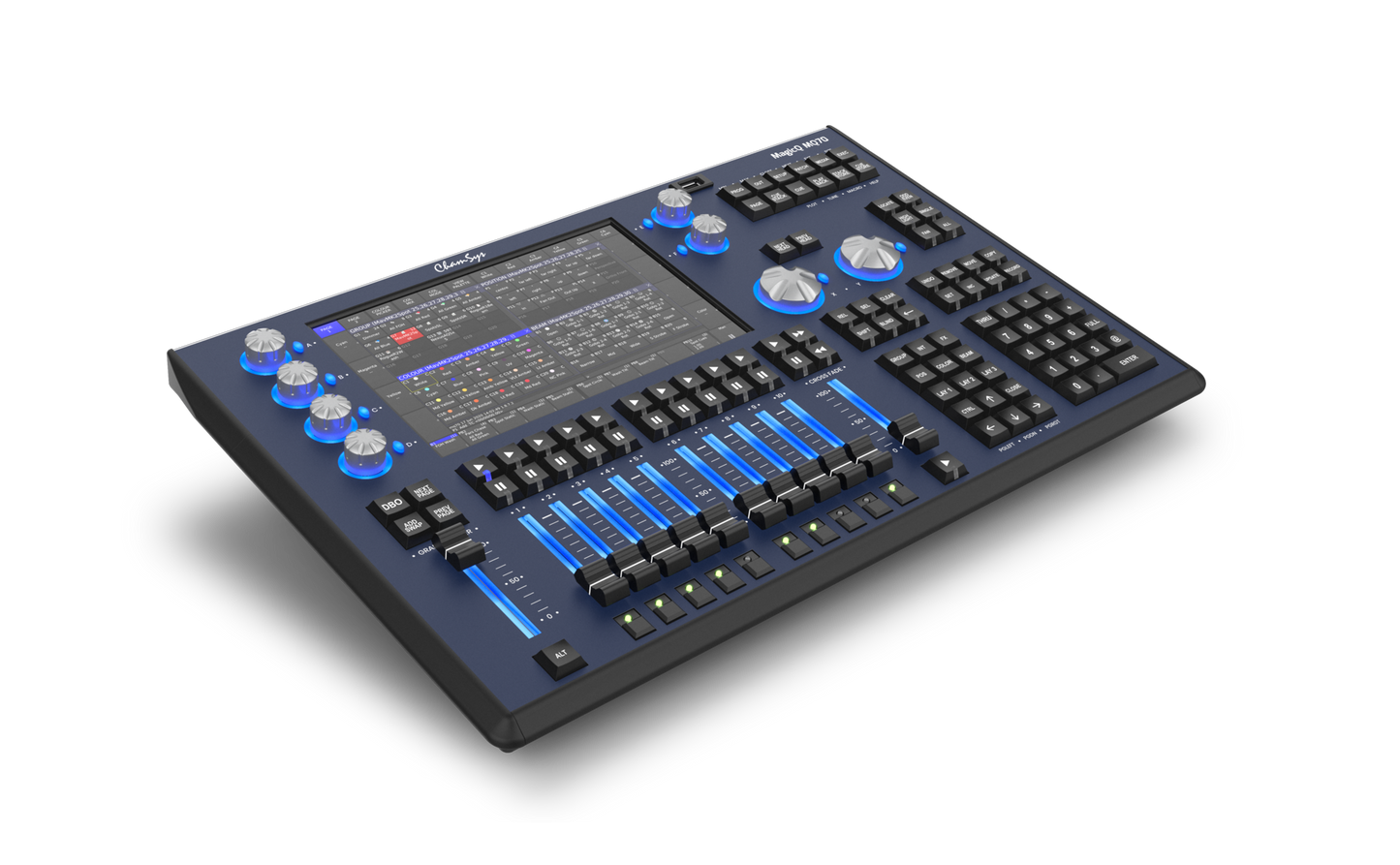

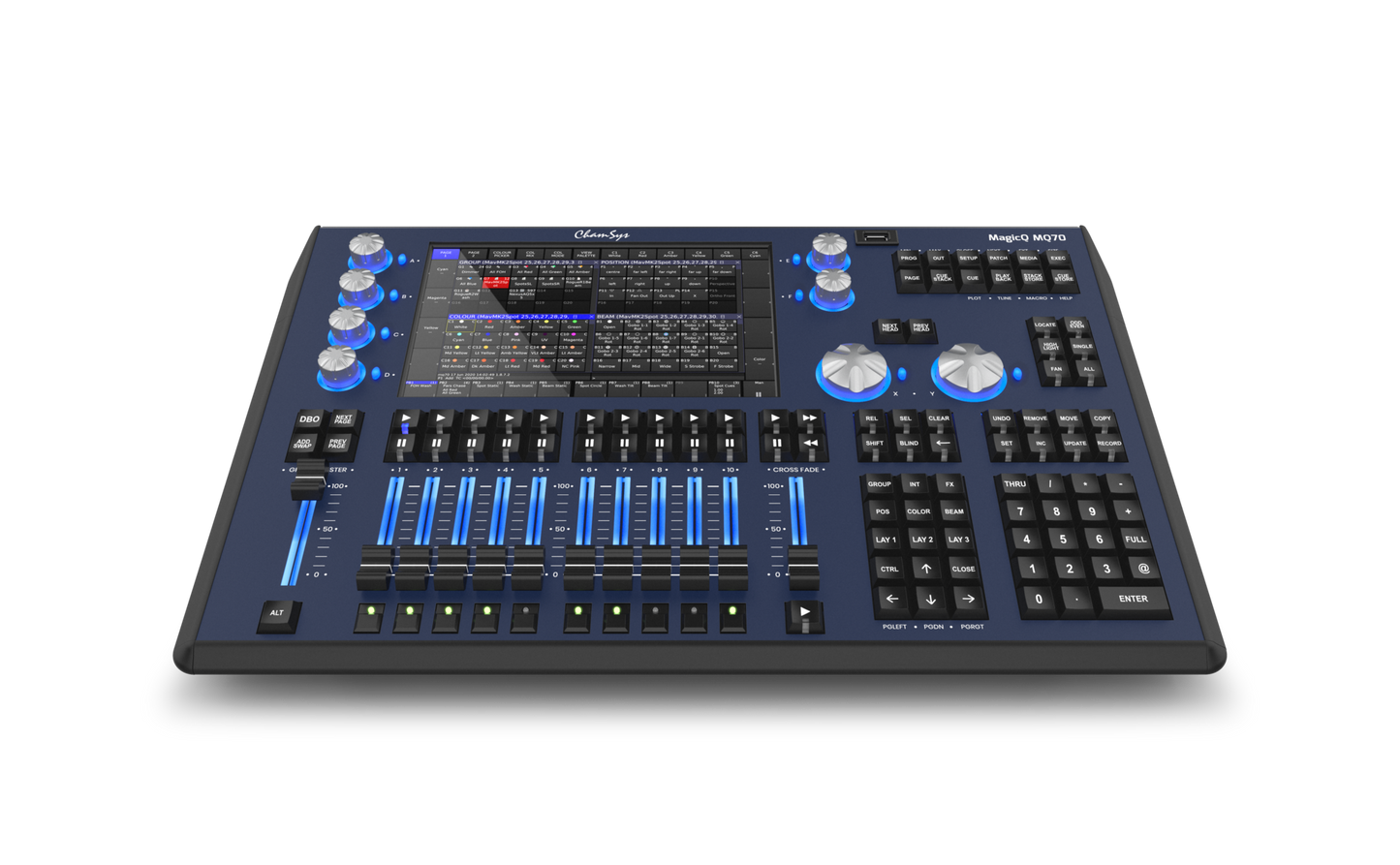

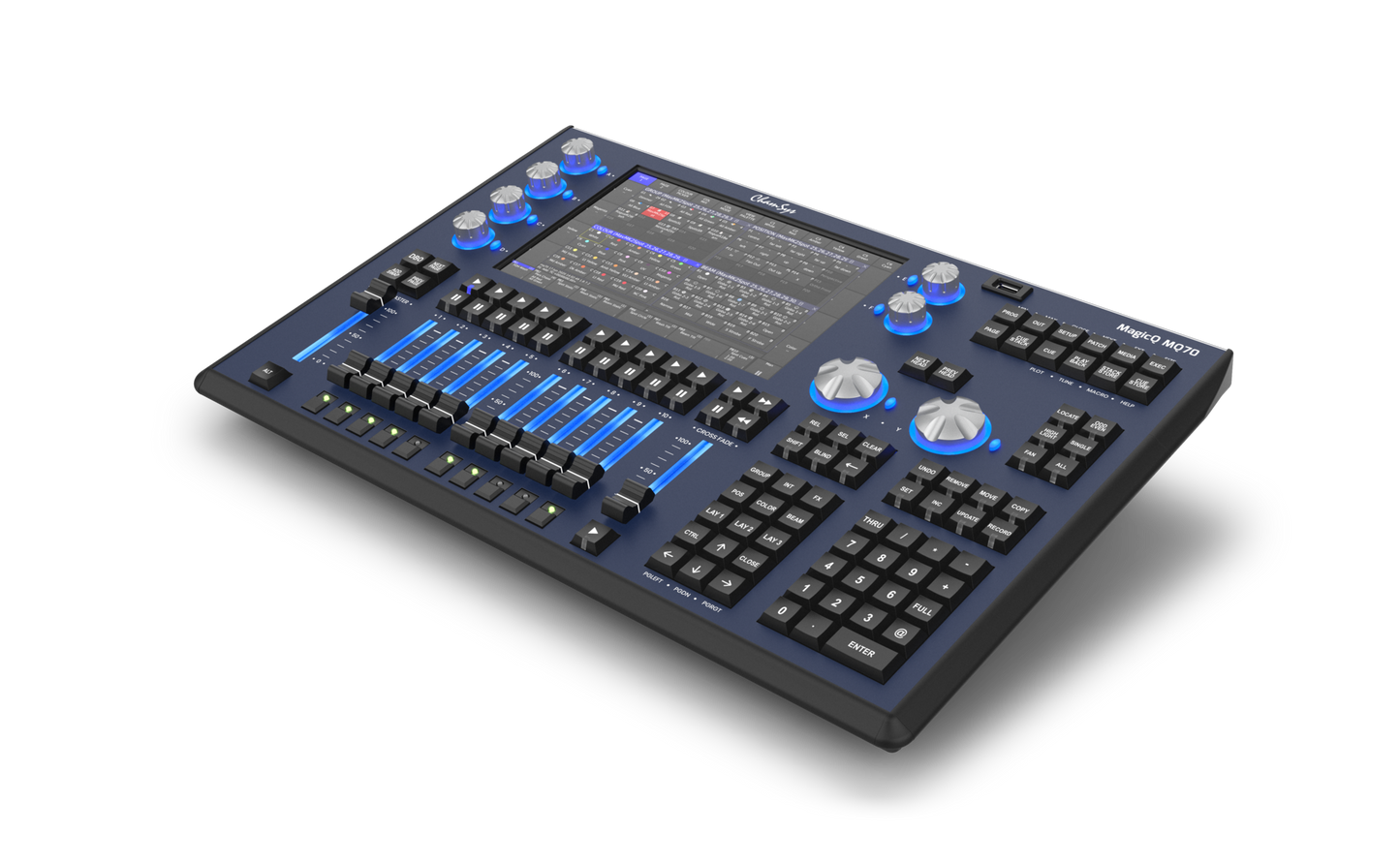

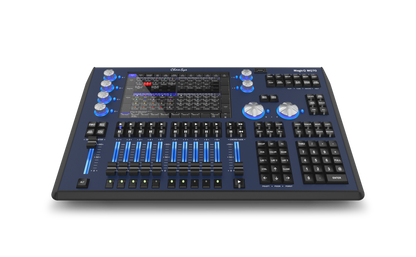

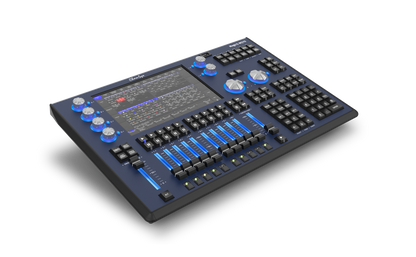

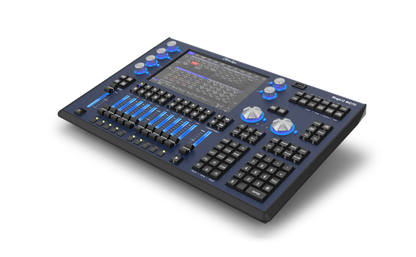

MagicQ MQ70 is the latest offering in the Compact Console range of small and lightweight consoles that you can fly with. The MagicQ MQ70 fits within hand luggage carry on restrictions of all the major budget airlines including, Southwest, Easyjet and Ryanair. The console features a 10.1” Multi touch display, with illuminated encoder and fader tracks.

The console supports 24 universes with an option to expand to 48. The console has 3 network ports enabling ArtNet and sACN direct from the console, whilst also having 4 assignable physical DMX ports supporting RDM. This feature packed console also includes WIFI inbuilt to the console for quick connection to ChamSys MagicQ Remote focus application without the need for external networking hardware.

The MQ70 features an inbuilt UPS which protects both the console and the Ethernet switch in case of power fail. It has low power consumption and does not require a cooling fan – enabling silent operation making it the ideal choice for touring shows, broadcast, theatrical and corporate shows.

With built in MIDI input and output, LTC and audio input for synchronization, the MagicQ MQ70 provides many options for integration with show control and audio systems.

The MagicQ MQ70 runs the same MagicQ software as other MagicQ consoles, meaning that shows programmed on it can be loaded and ran on any other MagicQ console (within the universe limits).

Overview:

• 24 universes direct from the console, expandable to 48

• Fits as carry on luggage for all major budget airlines

• High resolution 10.1″ multi touch display

• In built WiFi for quick connection to MagicQ Remote App

• UPS inbuilt to the console

• RDM support via direct DMX Ports and Network

• Silent operation, ideal for theatres

Hardware Specifications:

• Universes direct from the console (via Artnet/sACN/Pathport): 24 *Expandable to 48

• Direct DMX Outputs: 4

• RDM Support: Yes

• In-built WiFi: Yes

• Playbacks: 10

• Grand Master Fader: 1

• Crossfade Master Fader: 1

• Attribute Encoders: 8

• Dual Colour Illuminated Playbacks: Yes

• Illuminated Encoders: Yes

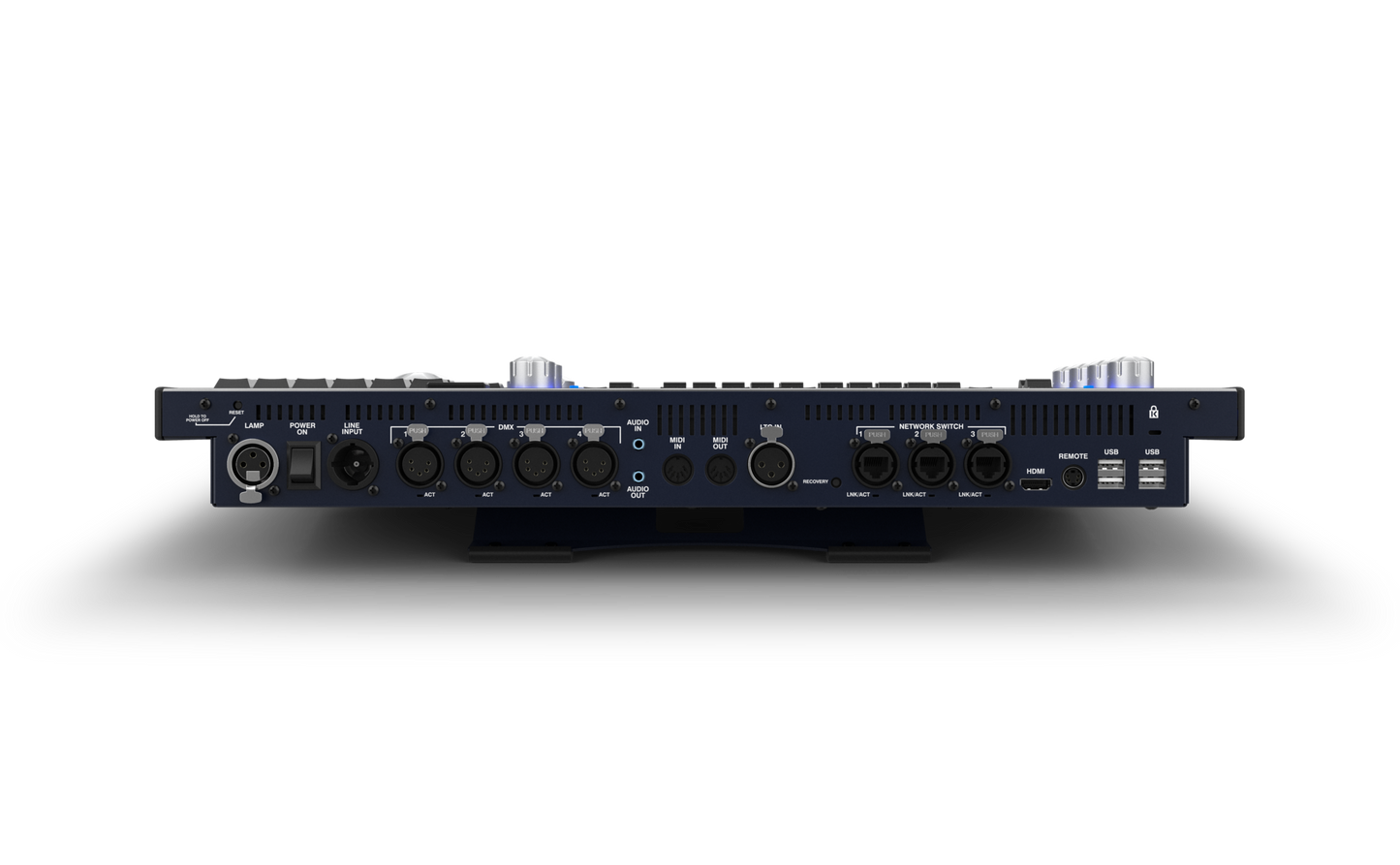

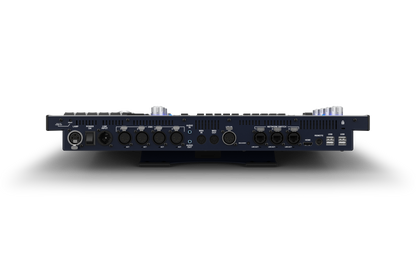

• Network Ports: 3

• Inbuilt 10.1″ HD Multi-Touch Display: 1

• External Monitor up to 1920×1200 Resolution – HDMI: 1

• USB Ports: 5

• Audio Input (1 channel, 7 band): Yes

• Audio Output: Yes

• MIDI Ports: 1 in, 1 out

• LTC Timecode In Port: 1

• Remote Input Port: 1

• Inbuilt UPS: Yes, uses 12v Lead-Acid Battery

• Power Input, Neutrik powerCON TRUE1 110 to 240 VAC

• Width: 680mm (26.7 inches)

• Depth: 290mm (11.4 inches)

• Height: 500mm (19.6 inches)

• Weight: 10kg (22 lb)

Included Accessories:

• Dual Colour Desk light: 1

• Dust cover: 1

• Neutrik powerCON TRUE1 Power Cable: 1
