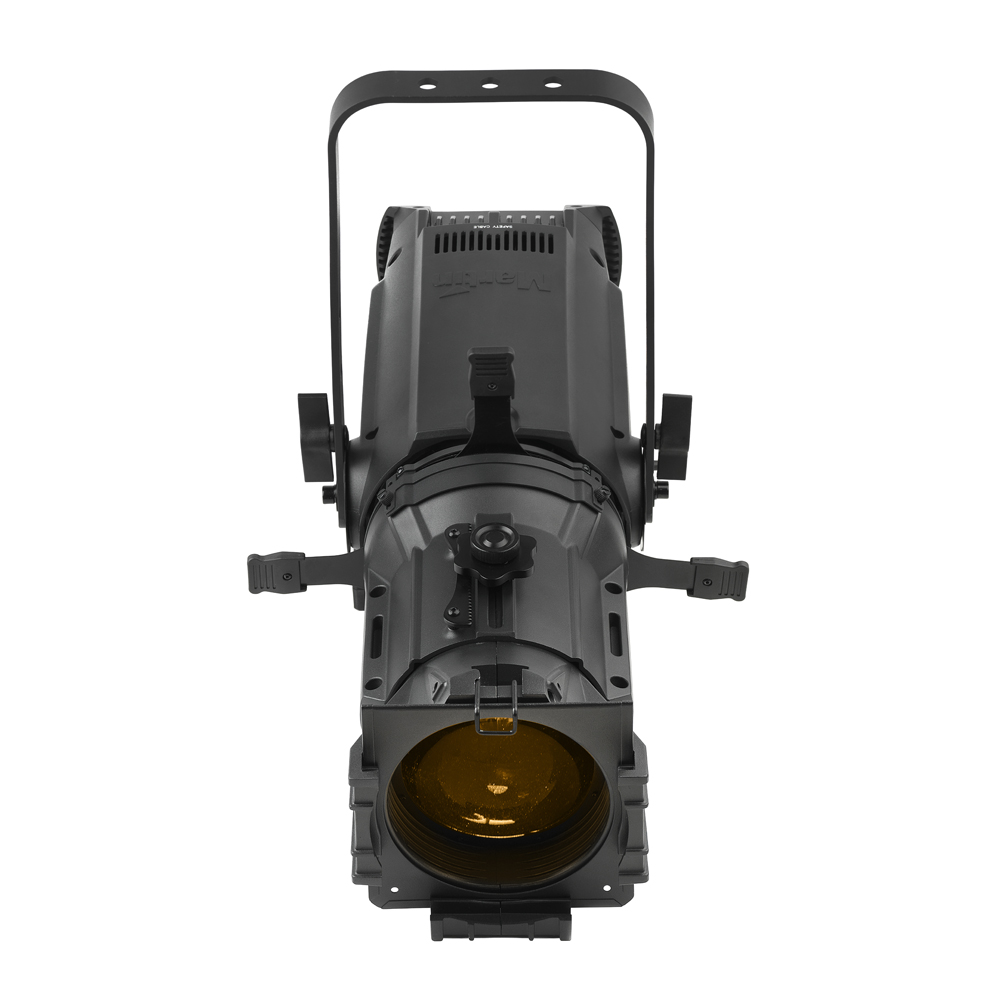

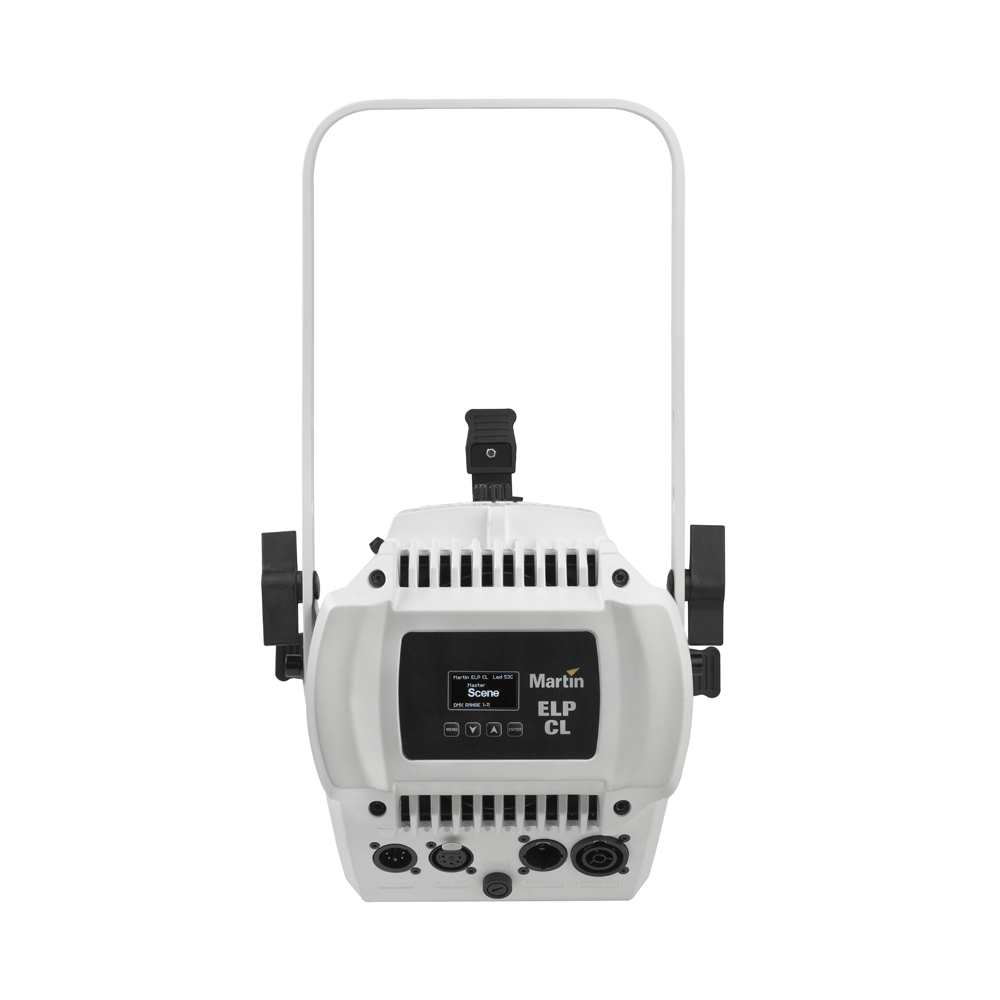

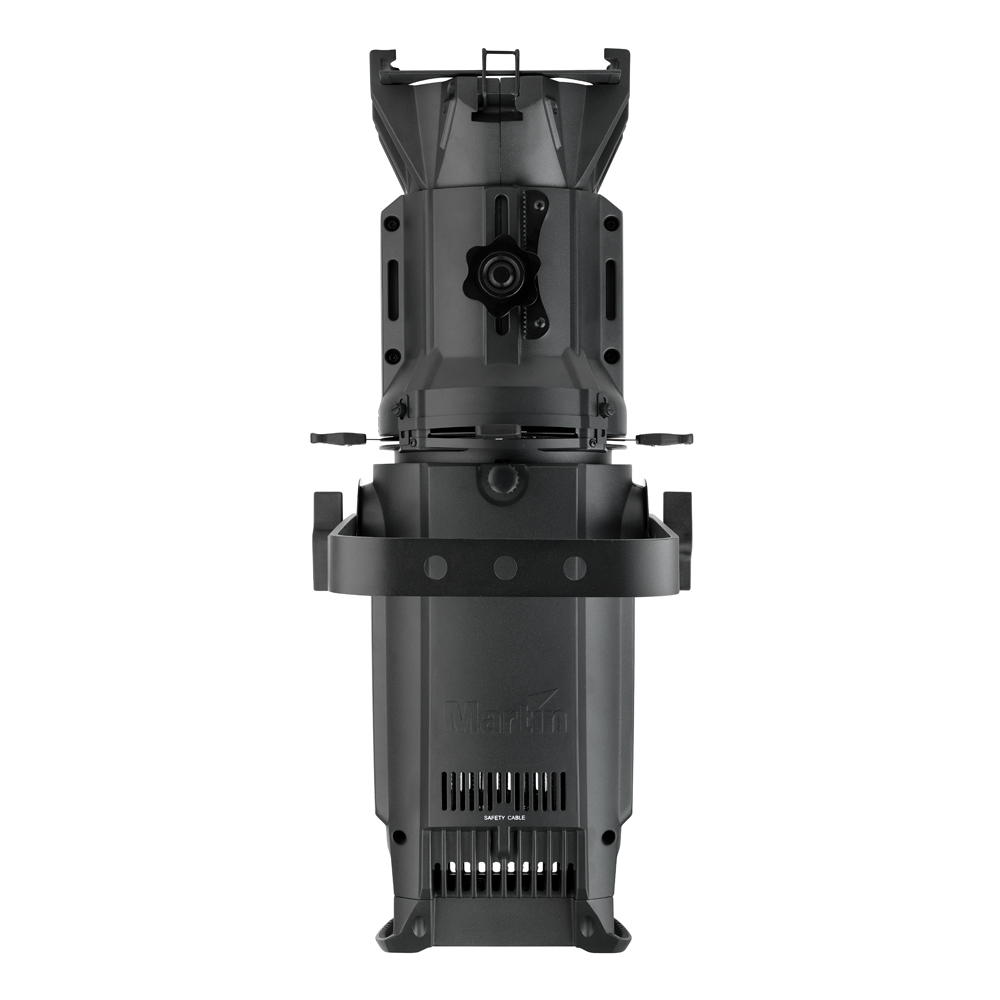

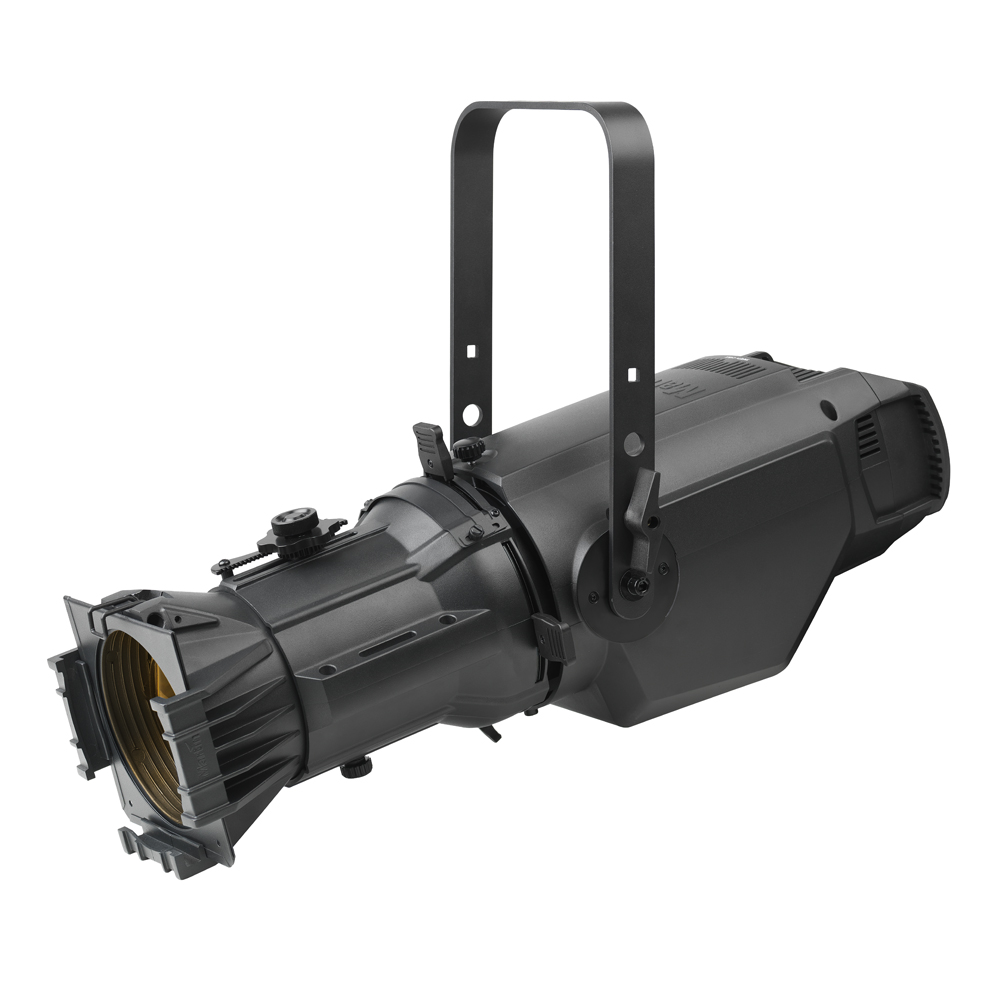

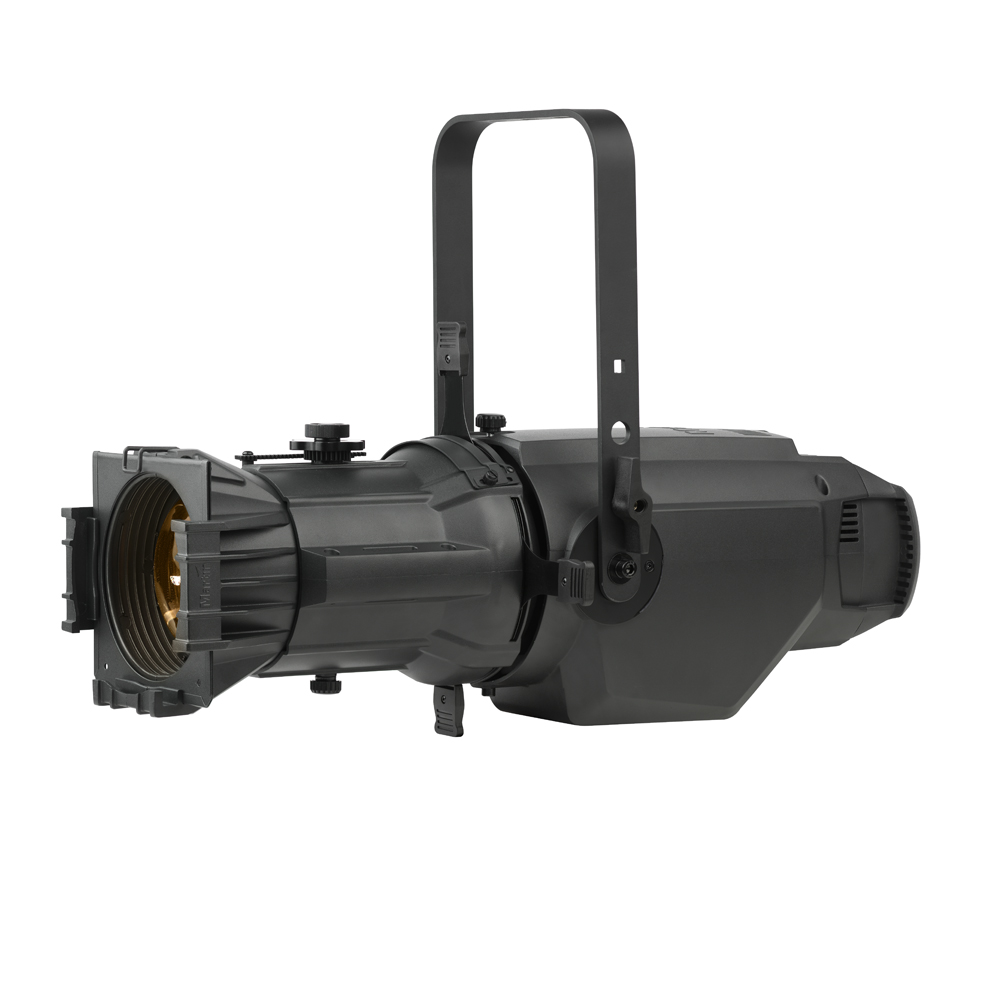

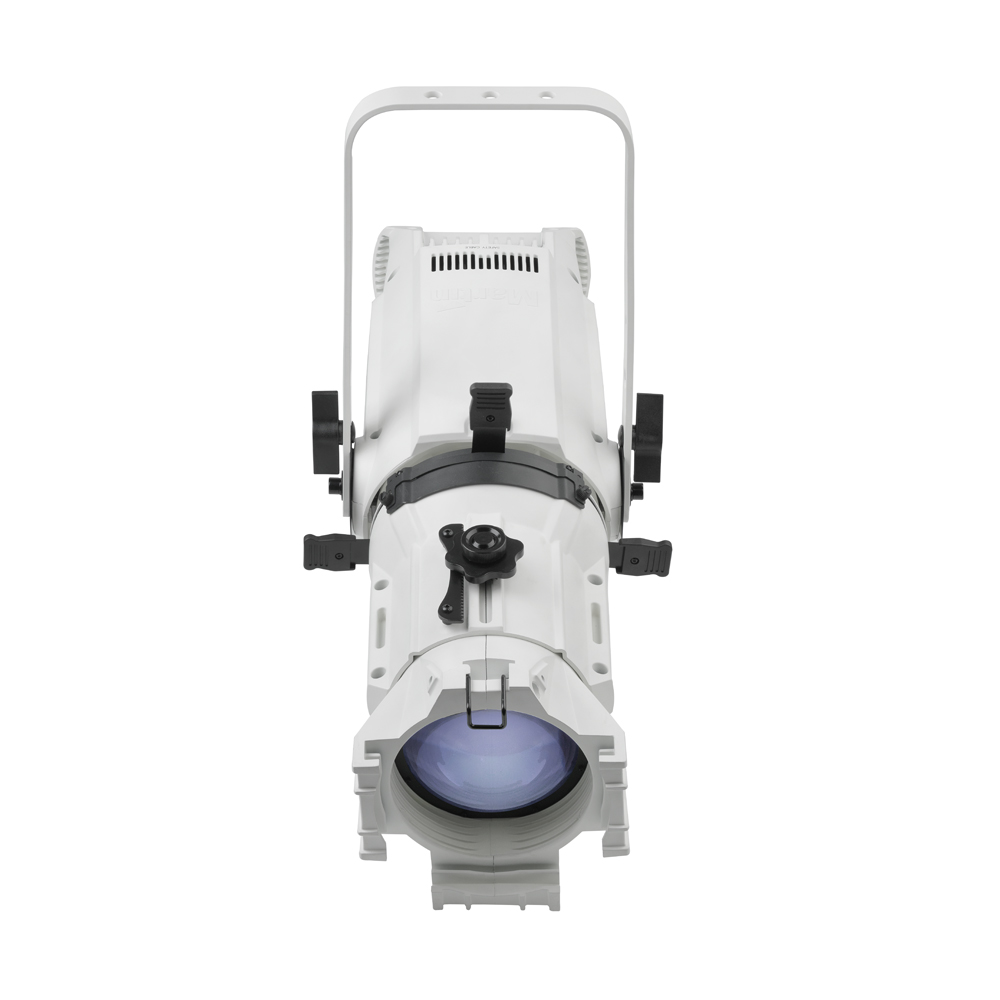

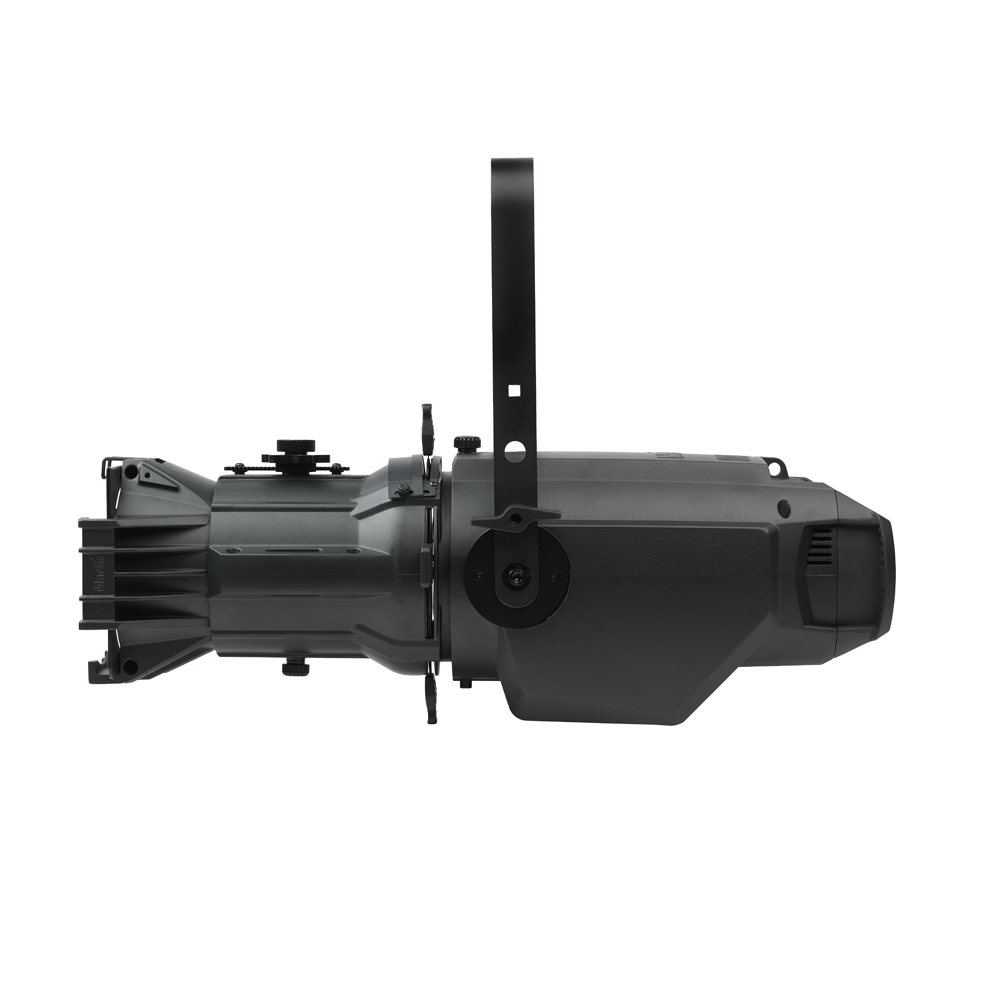

ELP CL Body

The ELP ellipsoidals are a top-end light with very good output and light quality, but at a better price than you may think!

This fixture is a body-only, lens sold separately.

From The Manufacturer:

Martin ELP CL (Color) LED ellipsoid fixtures deliver the class-leading luminance, output and vivid color rendering that you’ve come to expect from Martin. Ergonomic Danish engineering offers advances in lighting functionality that include the highly efficient gear-based Fine Focus—an industry first; and Fast Focus which allows focusing of the fixture without data flowing to it. ELP also offers 16-bit dimming with 4 selectable curves and 26 color presets that match industry-standard color filters. ELP fixtures can be configured with one of four Martin lens tubes in 19, 26, 36 and 50-degree beam angles and are compatible with third-party lens tubes along with a wide range of accessories including gel frames and gobos for flexibility in lighting design and inventory management.

Superior output, optics and color rendering, combined with unparalleled ease-of-use and convenience, make Martin ELP CL the leading Color LED ellipsoidal fixture in its class. ELP Zoom Lenses expand the versatility of the line with two industry-standard beam ranges and two housing color variants available in 15-30 degree and 25-50 degree beam ranges, in black or white housing.

Martin recommends using official Martin-branded ELP accessories for the highest possible performance. While we strive to ensure compatibility with third-party accessories, we cannot guarantee optimal performance and recommend that the user makes an evaluation of such an accessory before purchasing.

Features:

• Impressive light output rating of 6,900 lumens (in High Output mode).
• Superior CRI rating of 90 (in High Quality mode).

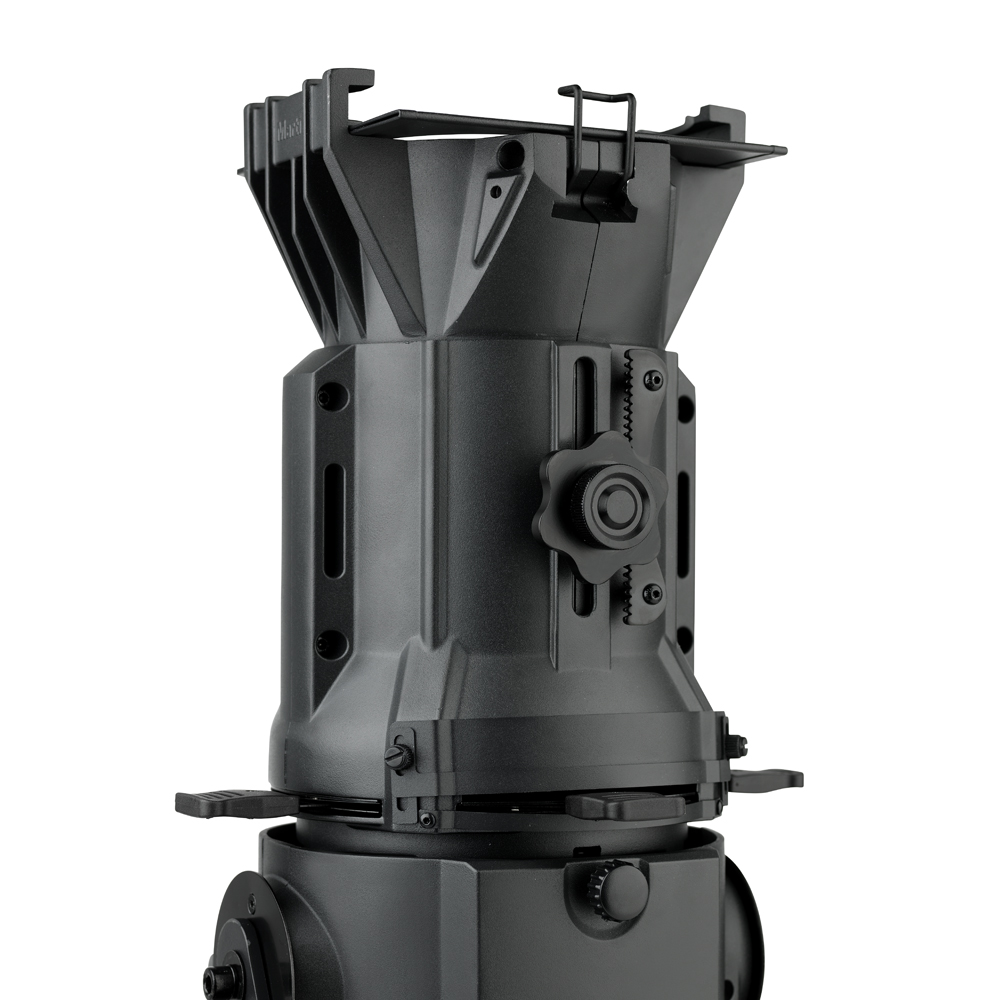

• Revolutionary focus and functionality—industry’s first gear-driven Fine Focus, Fast Focus for data-free focusing, and more.
• Compatible with universal accessories—use existing lens tubes, gel frames, gobo holders and rotators

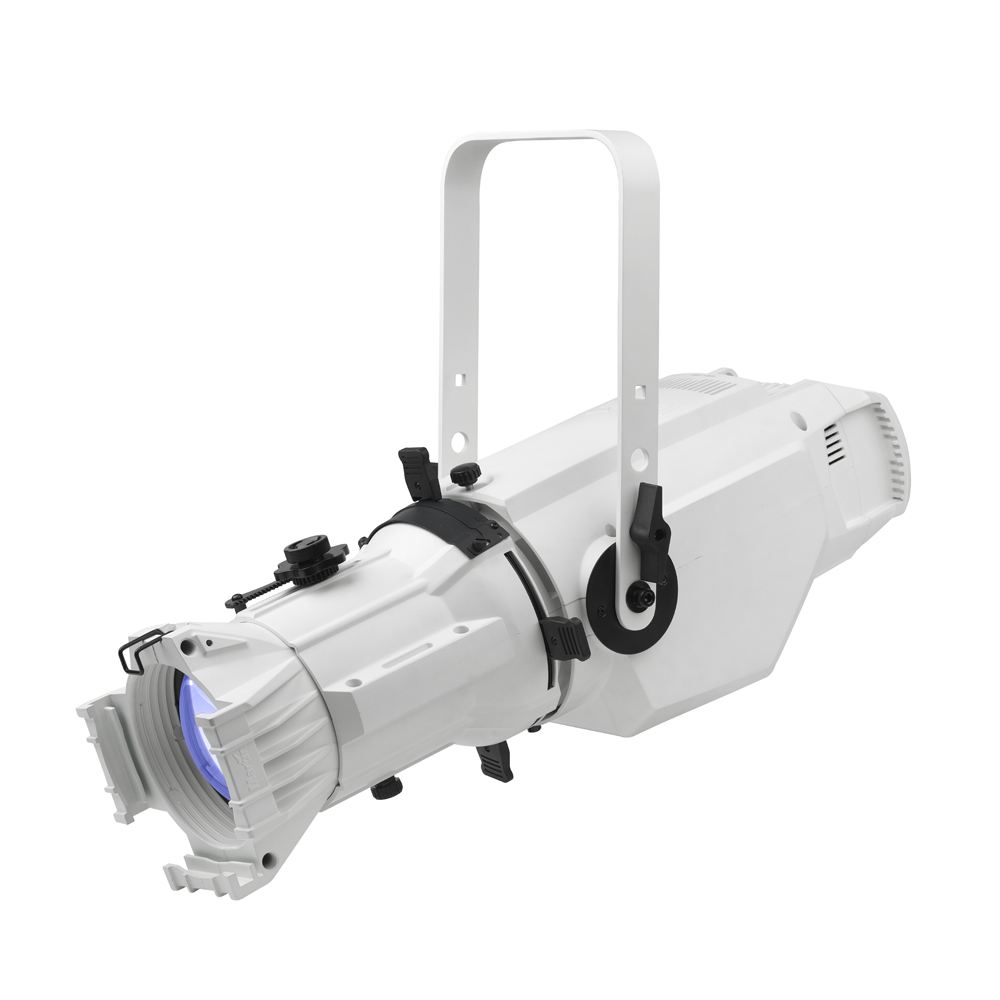

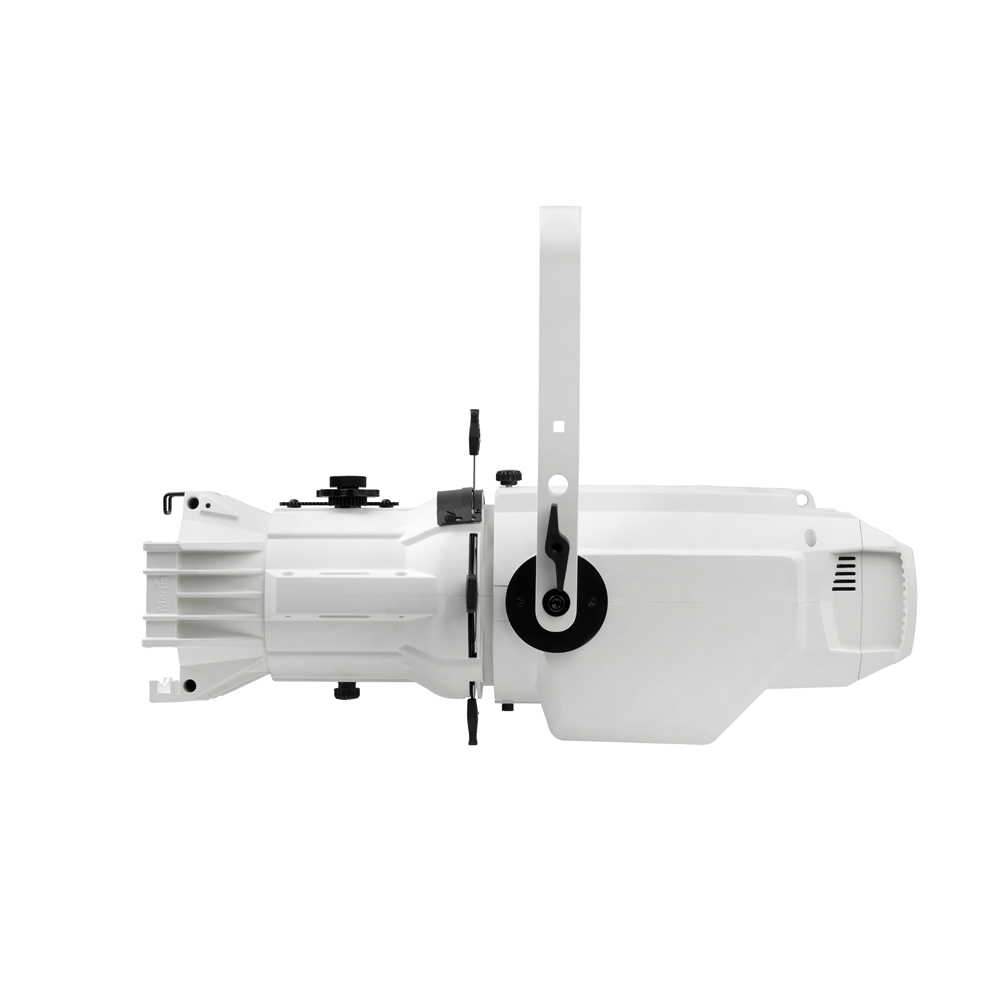

• 15-30 degree and 25-50 degree beam Zoom lenses available in black and white
• Advanced optics engineered in Denmark
• RGBAL Luxeon Rebel LED engine delivers vibrant, saturated colors
• 26 color presets match industry-standard filters
• 16-bit dimming with 4 selectable dimming curves
• Flicker-free operation
• 5-pin DMX/RDM and Neutrik True1 In/Thru connectivity

Physical:

• Length: 648 mm (25.5 in.)
• Width: 259 mm (10.2 in.)
• Height: 254 mm (10 in.), 427 mm (16.8 in.) with bracket
• Weight: 7.7 kg (17 lbs) body only

Electrical:

• AC power: 100-240 V AC nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch mode
• Typical half-cycle RMS inrush current at 230 V, 50 Hz: 15.0 A
• Power Factor: 0.99 @ 110 V , 0.96 @ 208 V , 0.95 @ 230 V / 240 V
• Typical current draw: 2.4 A @ 110 V , 1.3 A @ 208 V / 230 V , 1.1 A @ 240 V *
• Power Consumption:
• Typical: 259 W *
• Idle: 5 W *
