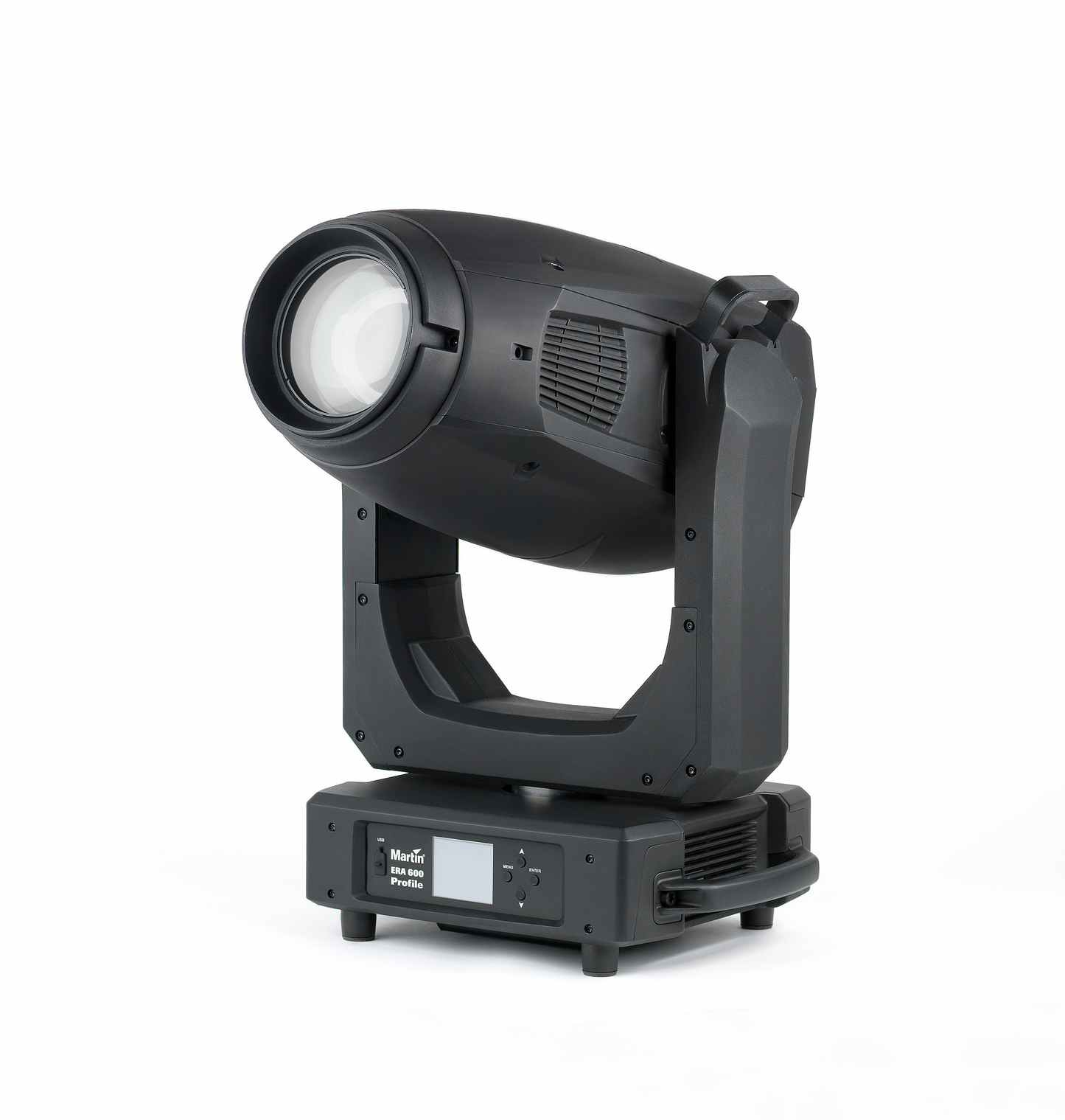

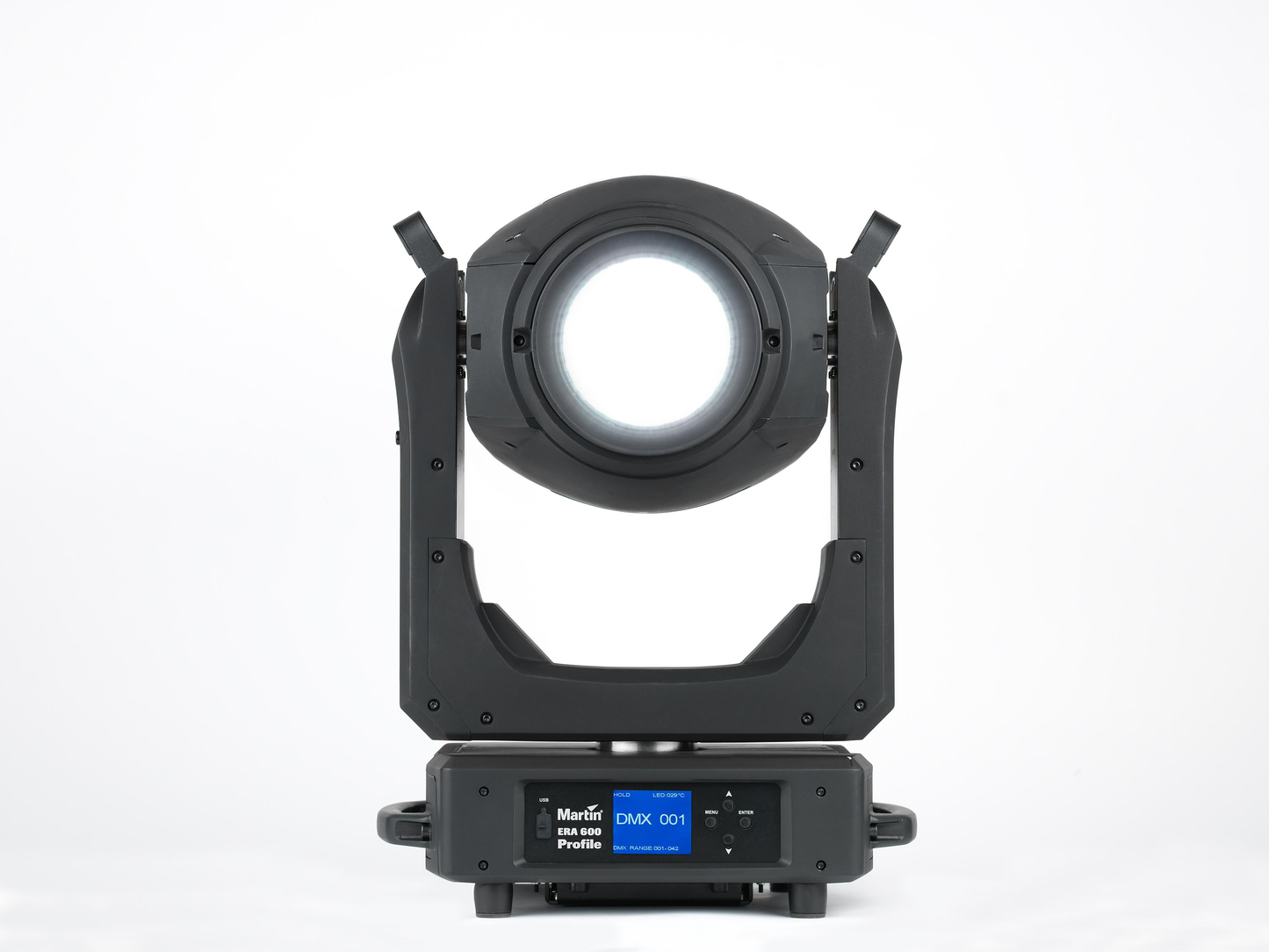

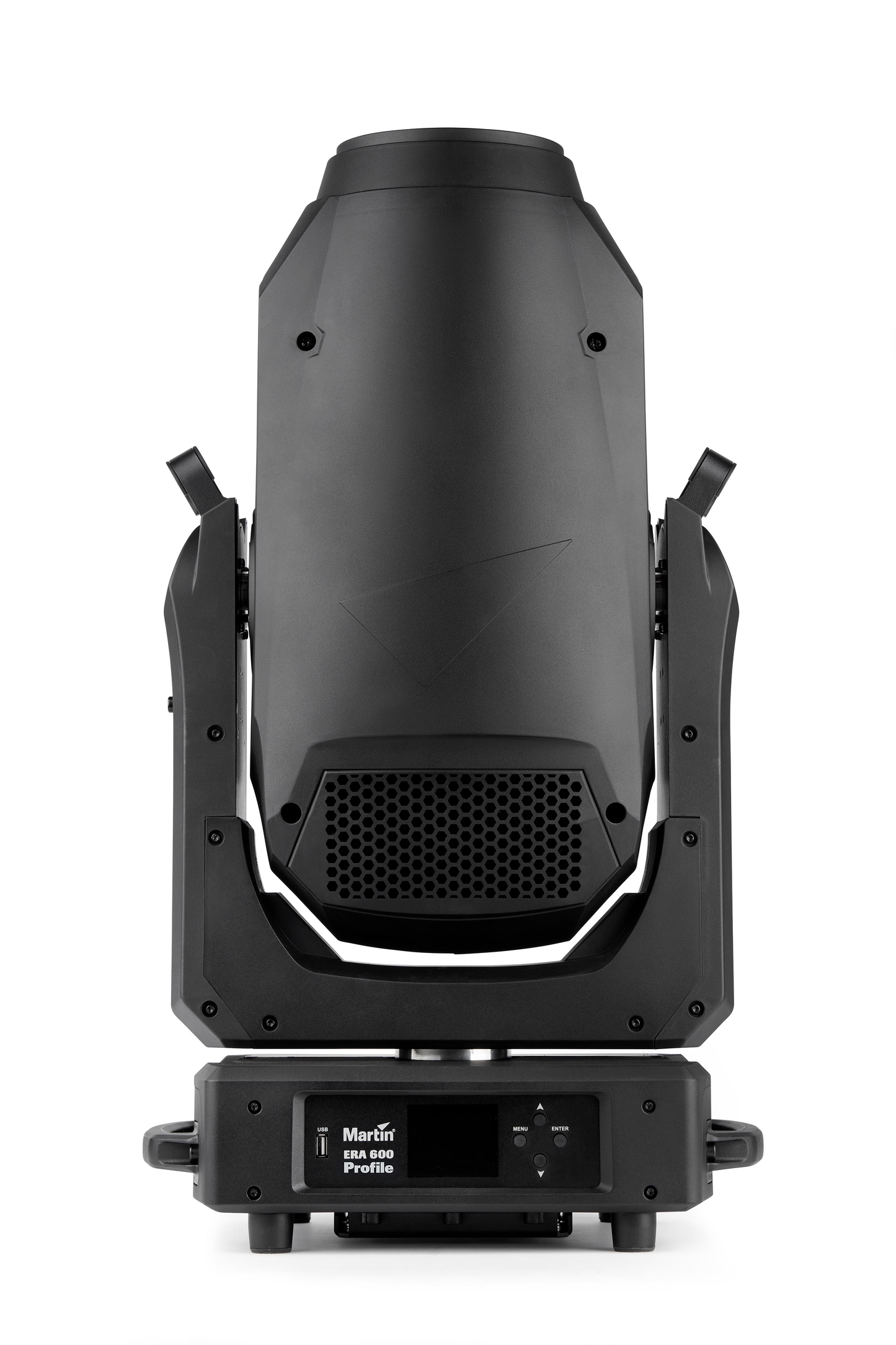

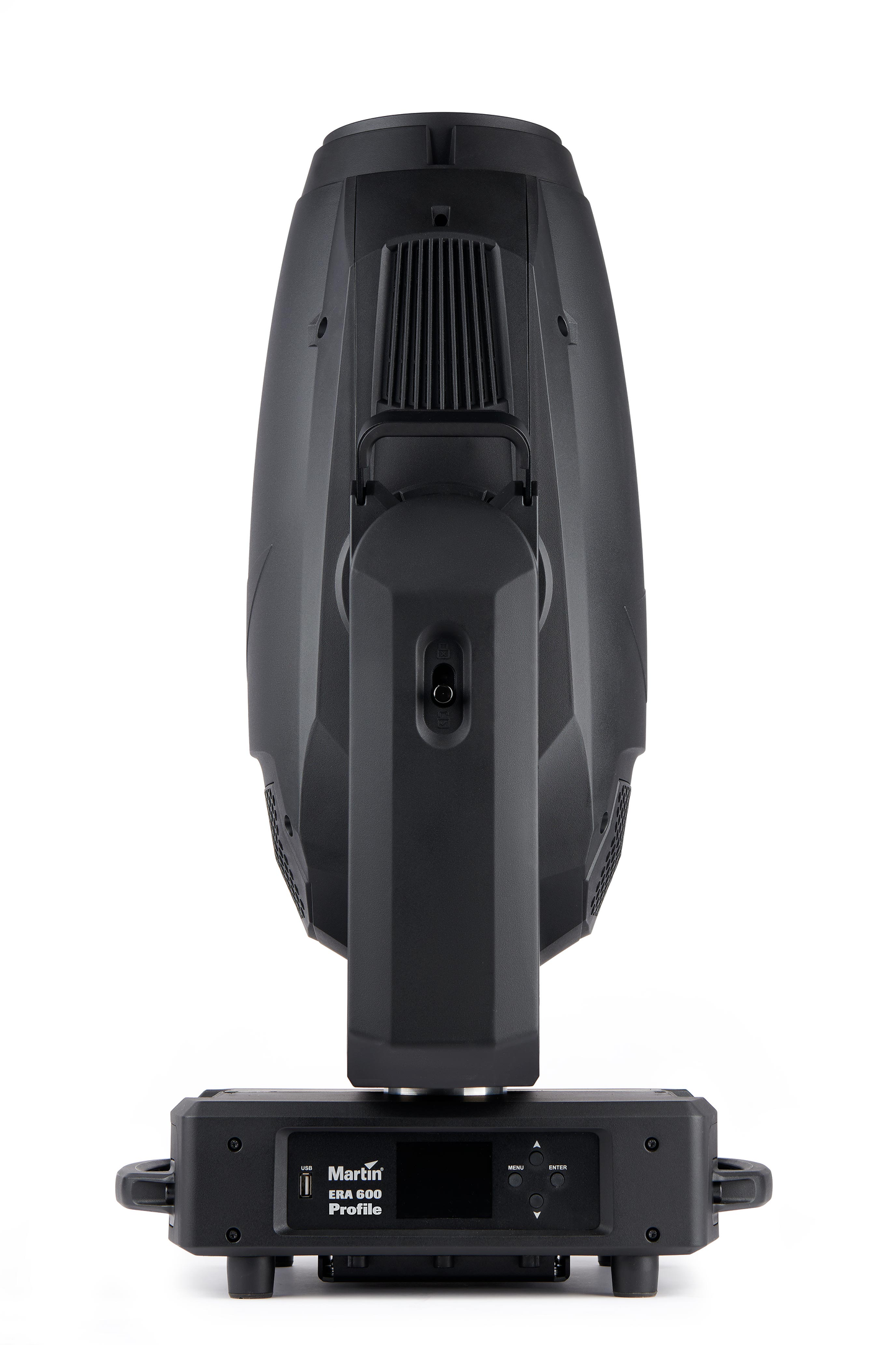

Martin ERA 600 Profile

This is an amazing, compact LED profile moving head that is ideal for any scenario because of the near limitless design and usage potential. This is made possible by it's 1:8 Fast Zoom and CMY/CTO color mixing and the rotating gobo wheels. This is a great fixture when you are looking for a versatile LED profile that can be used at any event.

From the Manufacturer:

Designed to fulfill the demand for a compact, tour-worthy, LED profile moving head with enhanced gobo load-out, the Martin ERA 600 Profile combines a no-nonsense, feature-loaded and cost-efficient profile that’s perfect for entertainment and rental applications. It bundles an incredibly efficient 550 W, 6,500 K LED engine that produces 19,000 lumens and delivers sharp image projection with a flat field. Additional benefits include 1:8 zoom, electronic dimming and strobe, CMY/CTO, iris for beam adjustment and dual rotating gobo wheels plus an additional static wheel, loaded with user-favorite gobos from the renowned Martin MAC range that include a wide variety of effects, especially when combined with the included rotating prisms.

Whether being used for large concerts and touring or corporate shows, cruise lines, houses of worship, and live TV, the ERA 600 Profile is ideal for a long list of scenarios, requiring a truly versatile LED profile that offers near limitless design and usage potential.

Features:

• Bright 550 W / 6,500 K LED light source
• 19,000 lumen output
• Crisp optics with flat field
• 1:8 Fast zoom
• CMY color mixing - vibrant color mixing with a superior palette of colors matching the MAC range
• Linear CTO - daylight to tungsten CCT control and expansion of the CMY palette
• 7-slot color wheel - for added color choice and split color effects
• 14 rotating/indexing gobos - all renowned Martin glass gobos
• 8 static gobos for great morphing effects
• Animation wheel with continuous bi-directional rotation
• Two prisms - 4-facet and linear – rotation and index control for dynamic effects
• Heavy frost - For wash effects
• Compact and low weight design

Physical:

• Weight: 31.3 kg (69.0 lbs.)
• Minimum center-to-center distance in side-by-side installation: 660 mm (26.0 in.)
• Length (head): 544 mm (21.5 in.)
• Length (base): 416 mm (16.4 in.)
• Width (base): 290 mm (11.4 in.)
• Width (across yoke): 390 mm (15.4 in.)
• Height (head straight up): 734 mm (28.9 in.)
• Height (maximum): 745 mm (29.4 in.)

Electrical:

• AC power: 100-240 V AC nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch mode
• Typical half-cycle RMS inrush current at 230 V, 50 Hz: 21.8 A
• Power Factor: 0.99 @ 120 V , 0.97 @ 230 V
• Typical current draw: 6.5 A @ 120 V , 3.2 A @ 230 V *
• Power Consumption
• Maximum: 856 W
• Typical: 778 W *
• Idle: 64 W *
