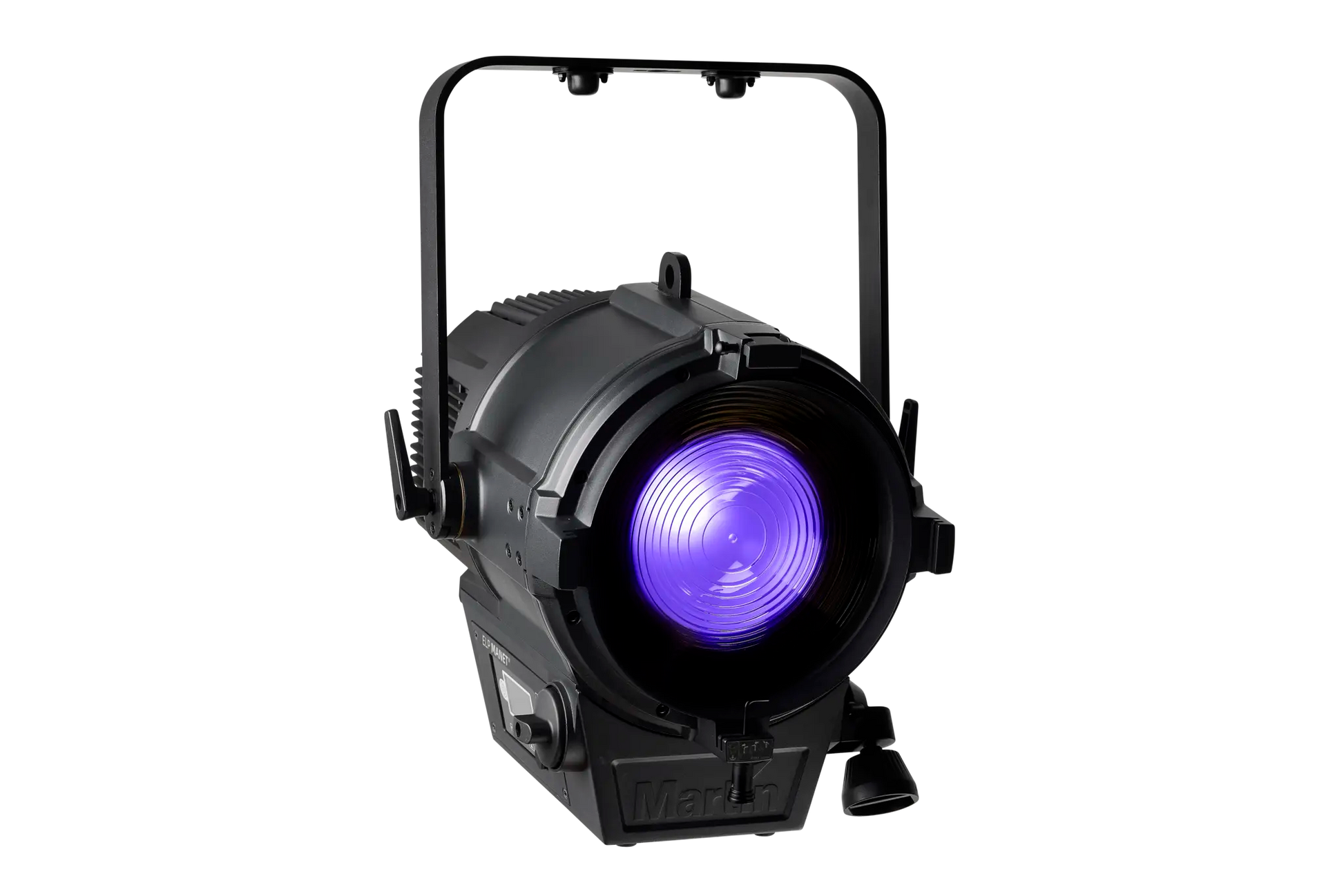

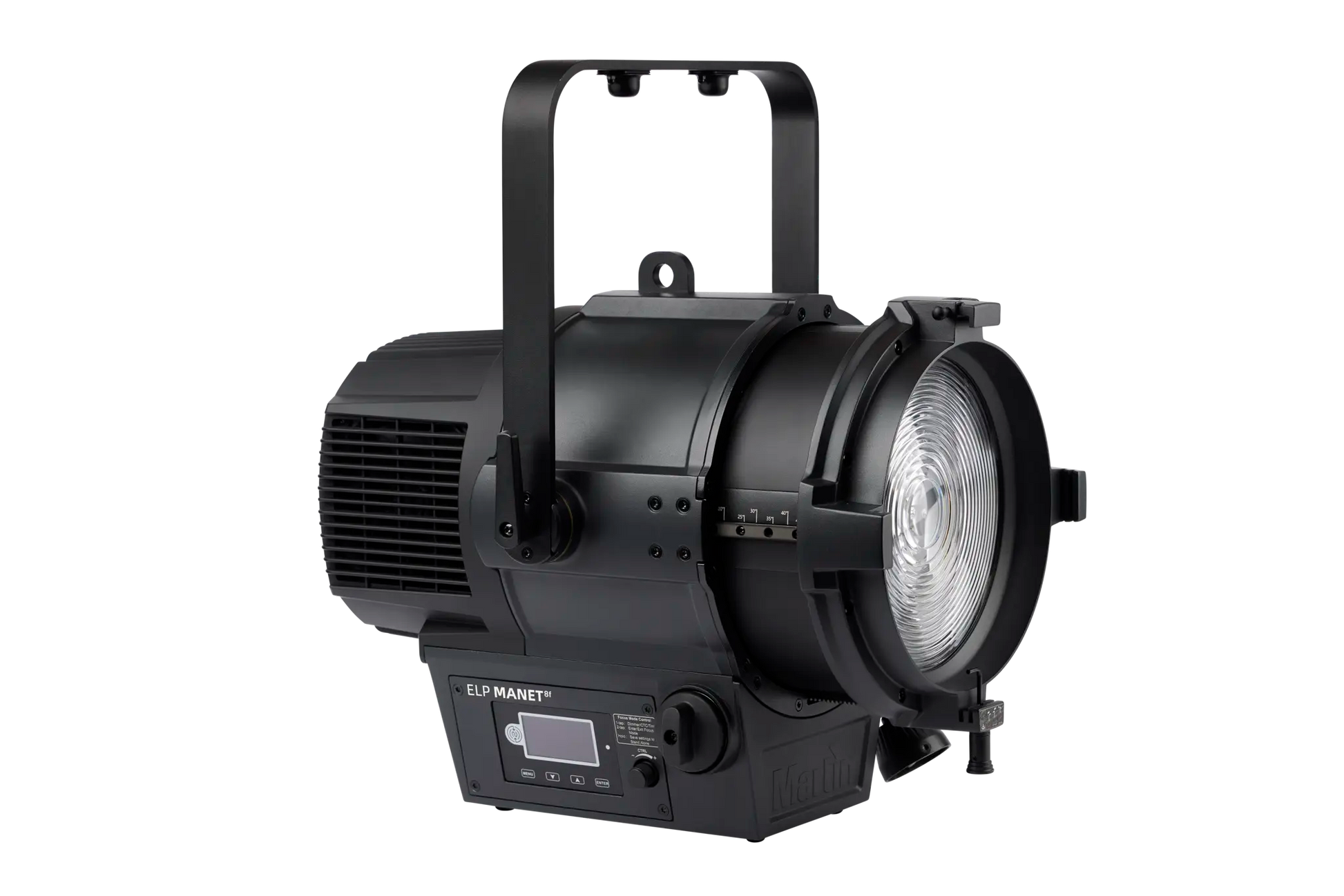

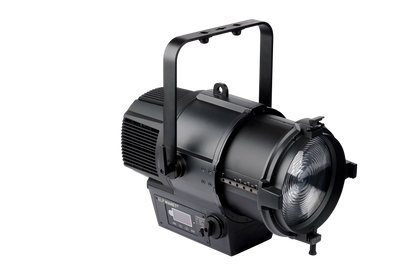

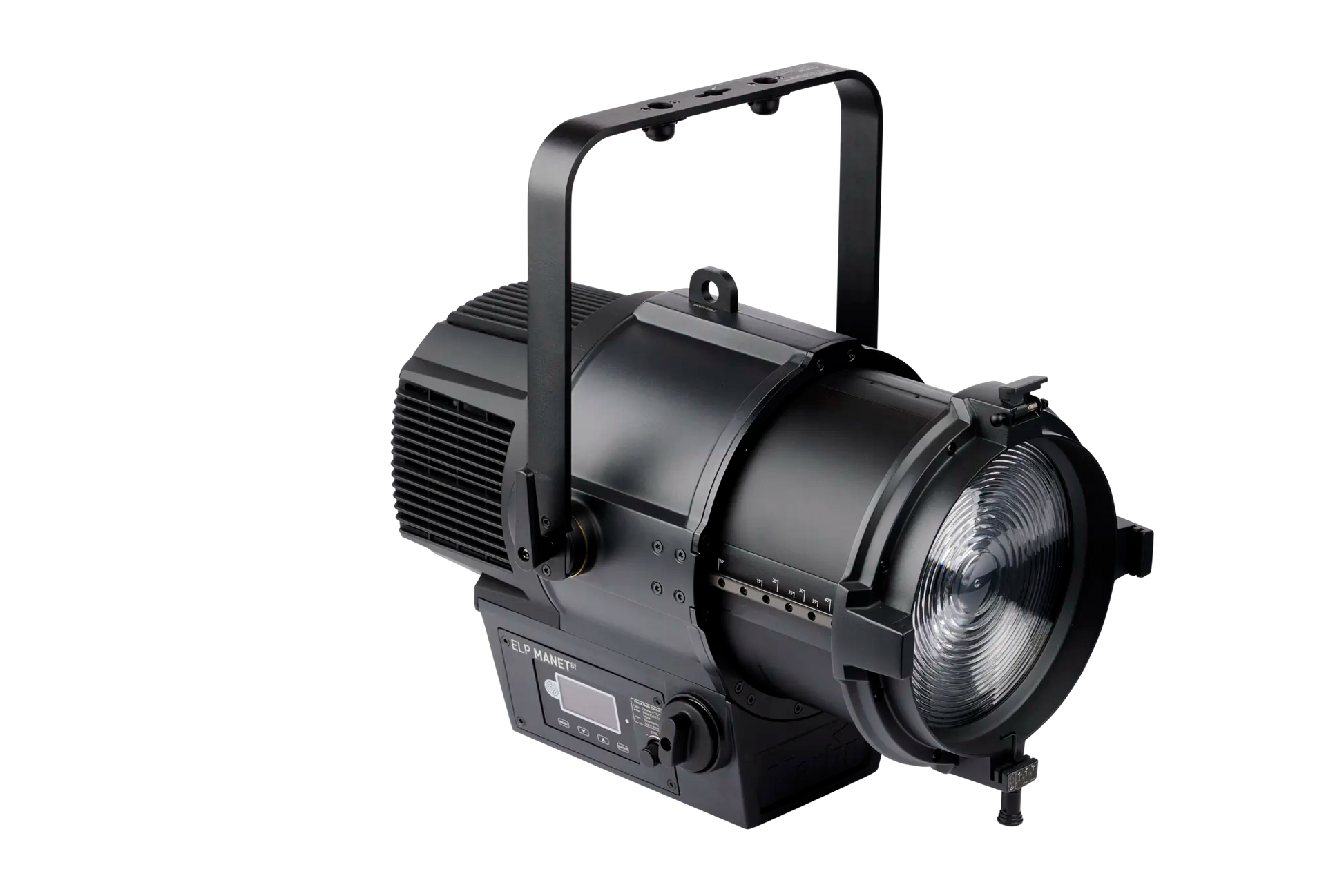

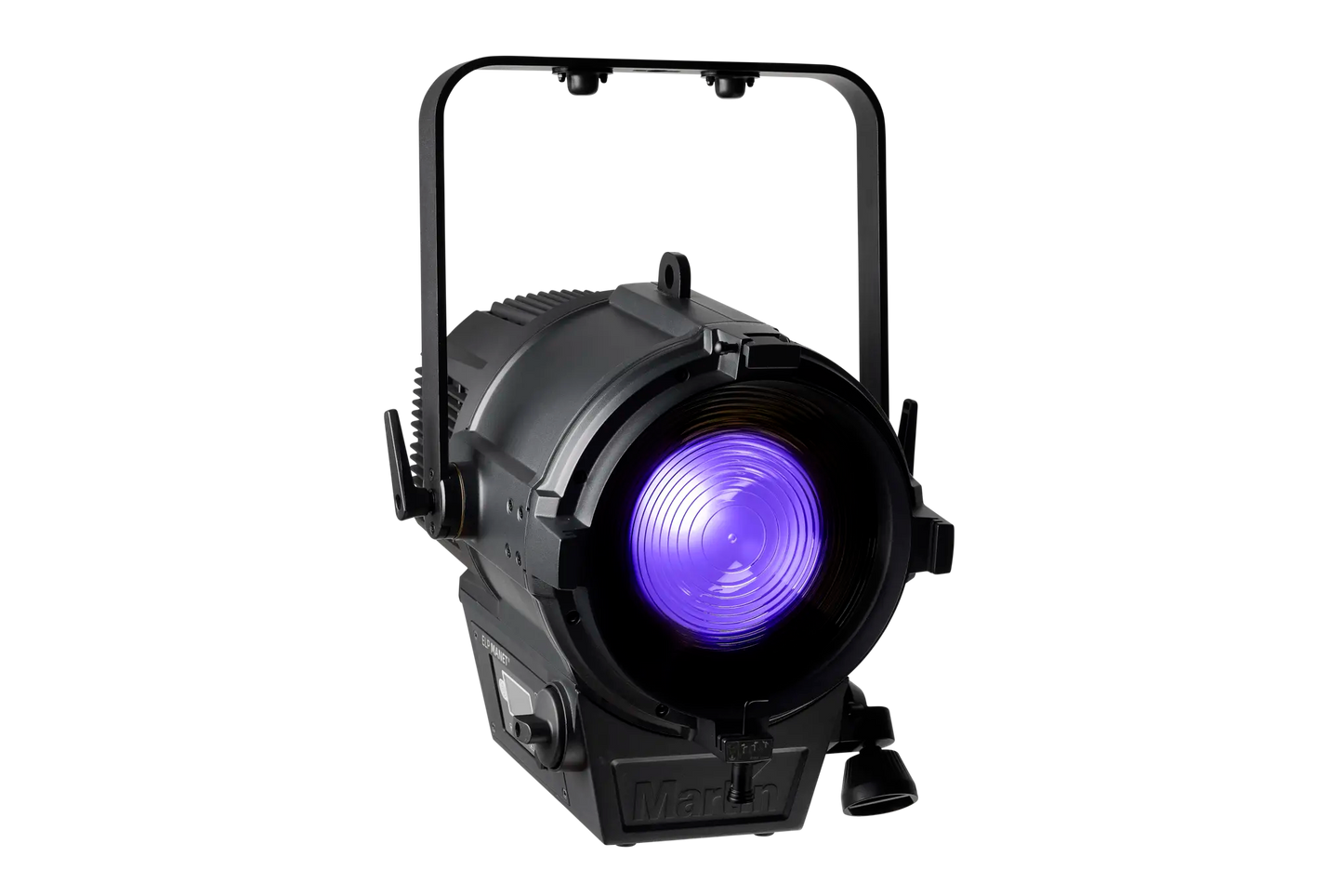

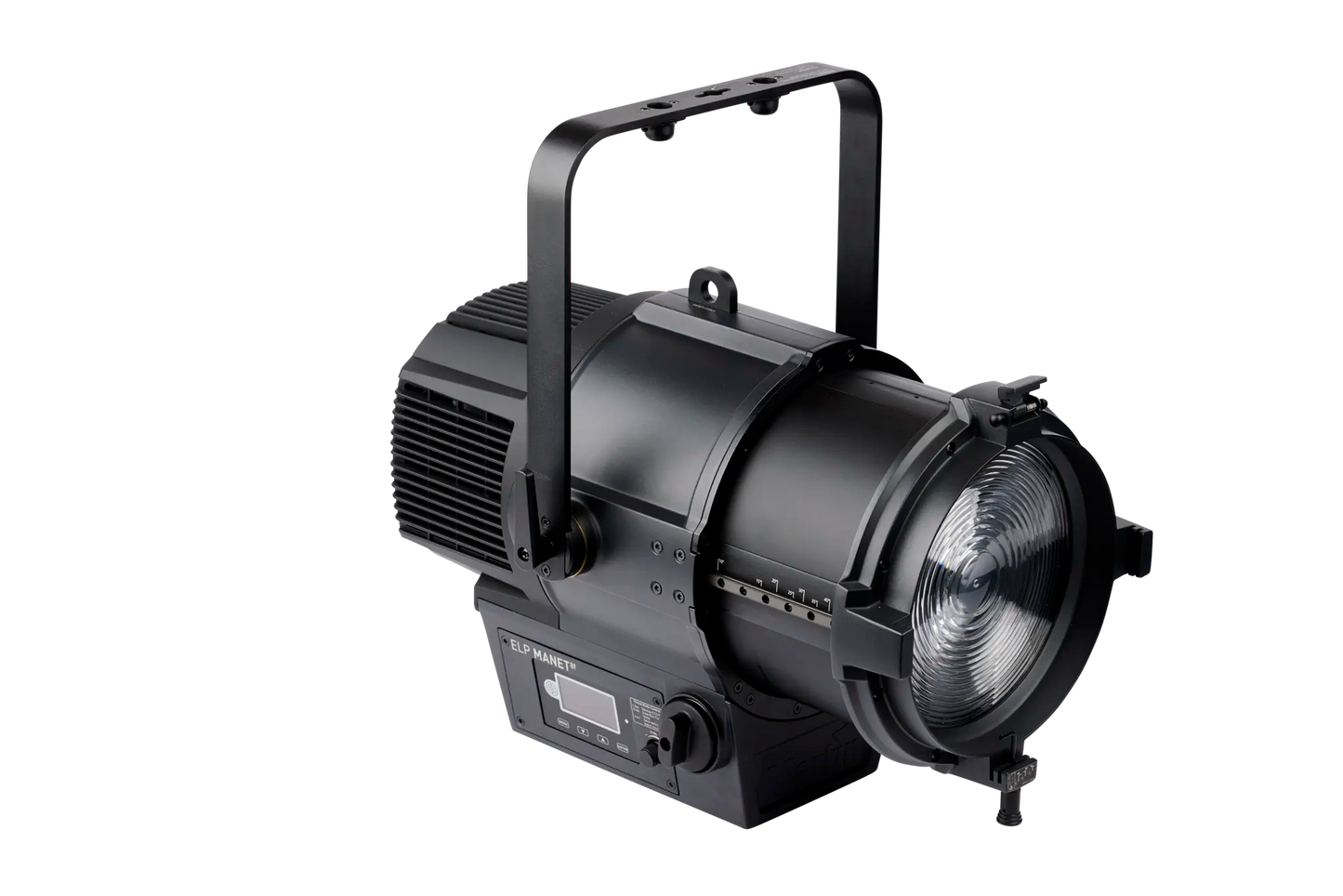

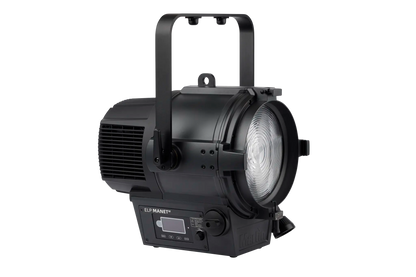

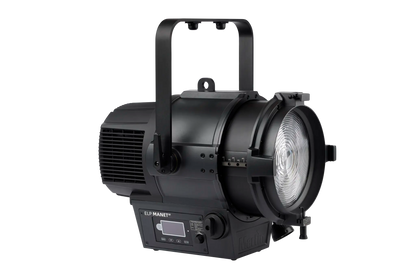

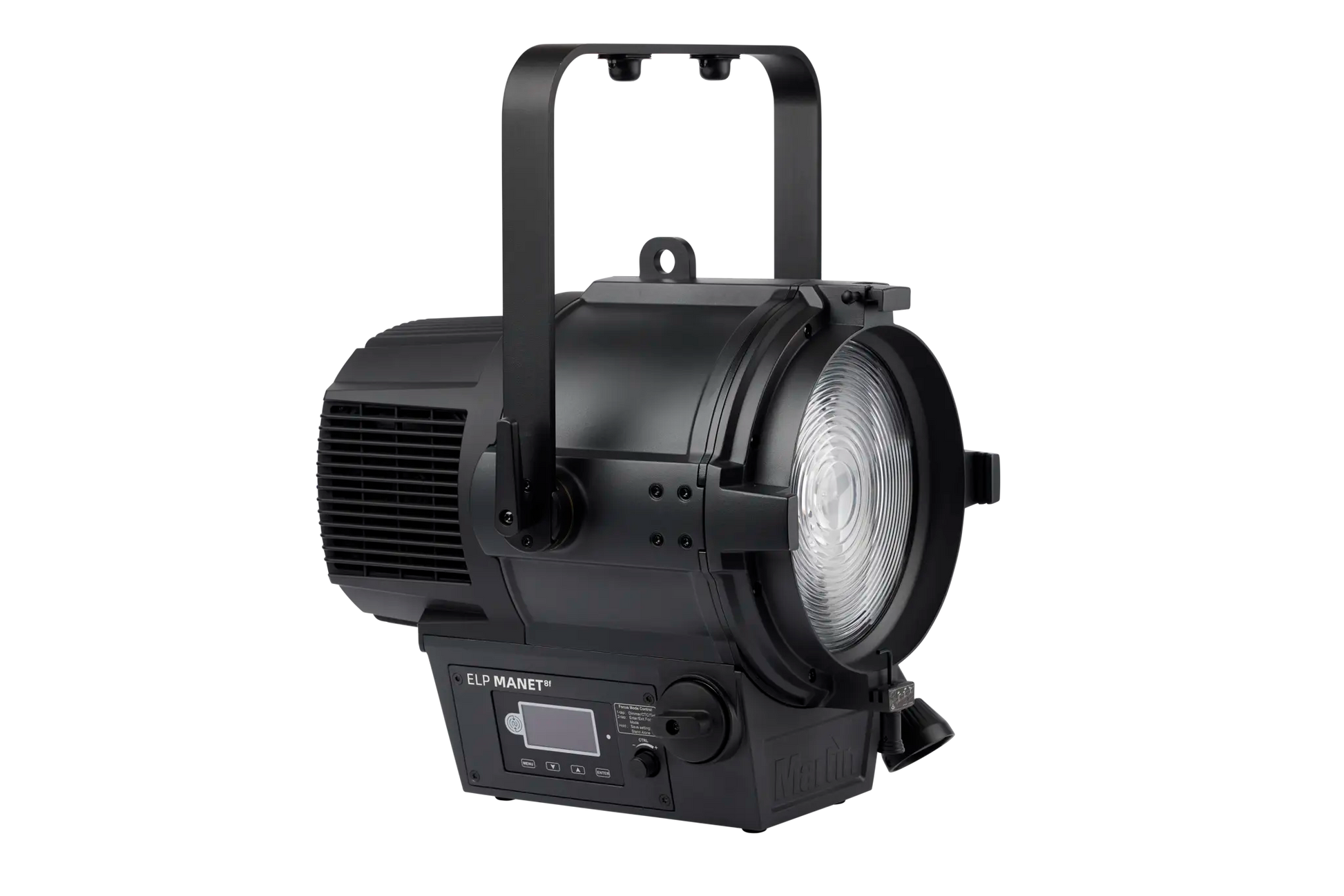

MARTIN ELP MANET 8F

The Martin ELP MANET 8f is an LED stage and studio Fresnel fixture for delivering precision beam control with class-leading color accuracy in theater, broadcast, and live production environments.

From the Manufacturer

The ELP MANET 8f from Martin Professional redefines static fixture lighting with precision beam control. Inspired by the Latin stage direction "it remains," it pays tribute to Shakespearean theater and timeless storytelling. Combining classic tungsten-style output with modern LED efficiency, it features a six-color LED light engine for a rich, refined palette and a TM-30 Rf of 95 and a CRI score of 98. A carefully designed 8-inch (200 mm) Fresnel lens, 9° to 50° zoom, and anti-reflective barn doors deliver smooth, artifact-free fades. With ultra-quiet operation, intuitive controls, and wireless configuration via Martin's Companion App, the ELP MANET 8f offers unmatched performance, flexibility, and artistry—ensuring every moment remains unforgettable.

The innovative six-color light engine featuring red, green, blue, amber, lime, and cyan LEDs delivers a best-in-class TM-30 Rf of 95 and a CRI score of 98 for consistent, vibrant color from saturated primaries to delicate pastels across the full color-temperature spectrum. Precise color-temperature adjustment from 1,850 K to 12,500 K in 50 K increments ensures seamless transitions between warm and cool whites, fully tracking the blackbody line via the onboard calibration system. Despite delivering over 13,000 lumens of output, the ELP MANET 8f's ultra-quiet cooling system makes it ideal even for the most noise-sensitive theaters, opera houses, and broadcast studios.

Features

• Over 13,000 lumens of output from a 500W RGBALC COB LED light engine

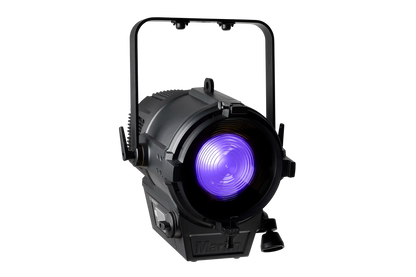

• 6-color light engine with red, green, blue, amber, lime, and cyan LEDs for a wide, refined color gamut
• Class-leading color accuracy with a TM-30 Rf of 95, CRI of 98, and TLCI of 98 in high quality mode
• Fully linear 1,850–12,500 K color temperature control system in 50 K increments

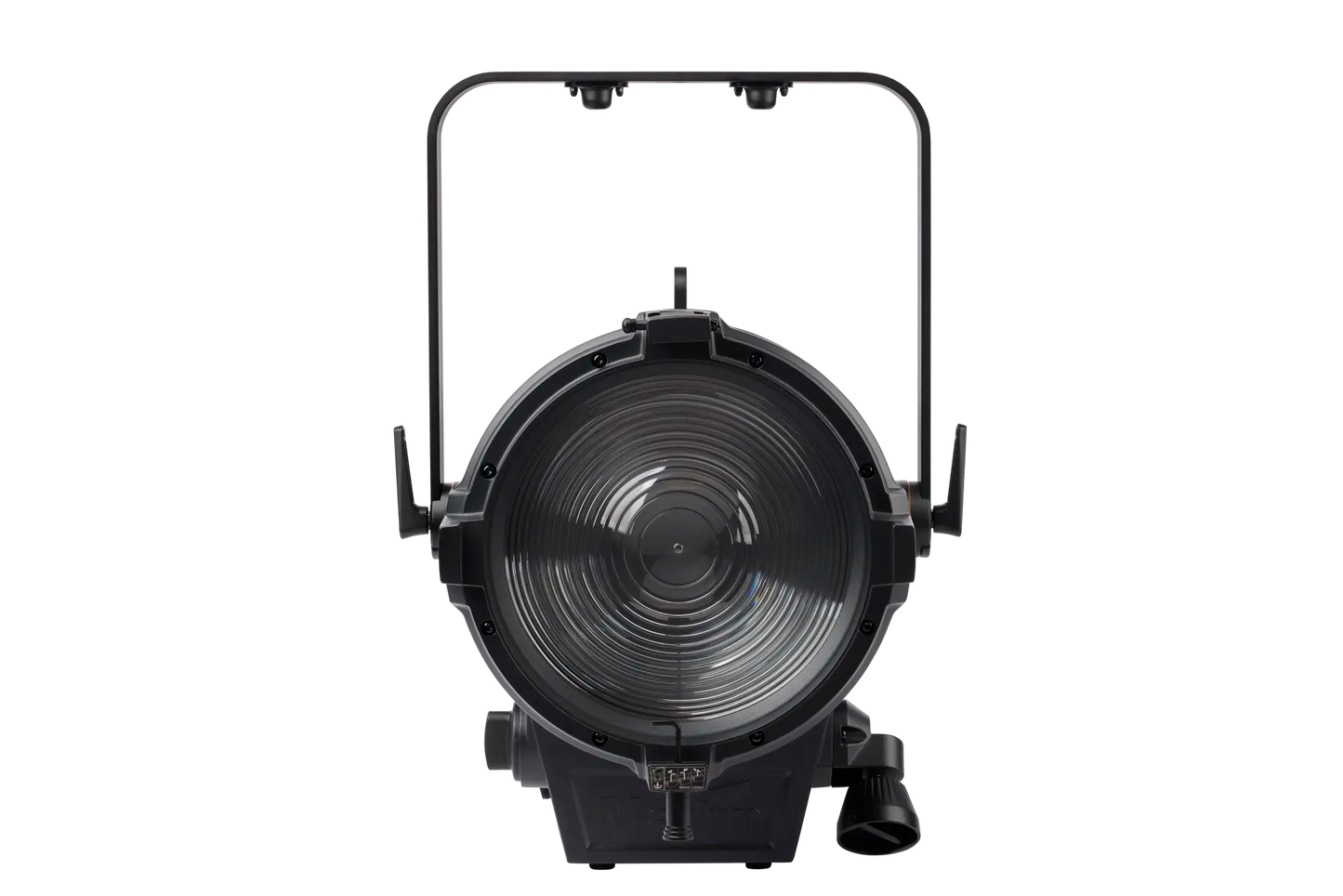

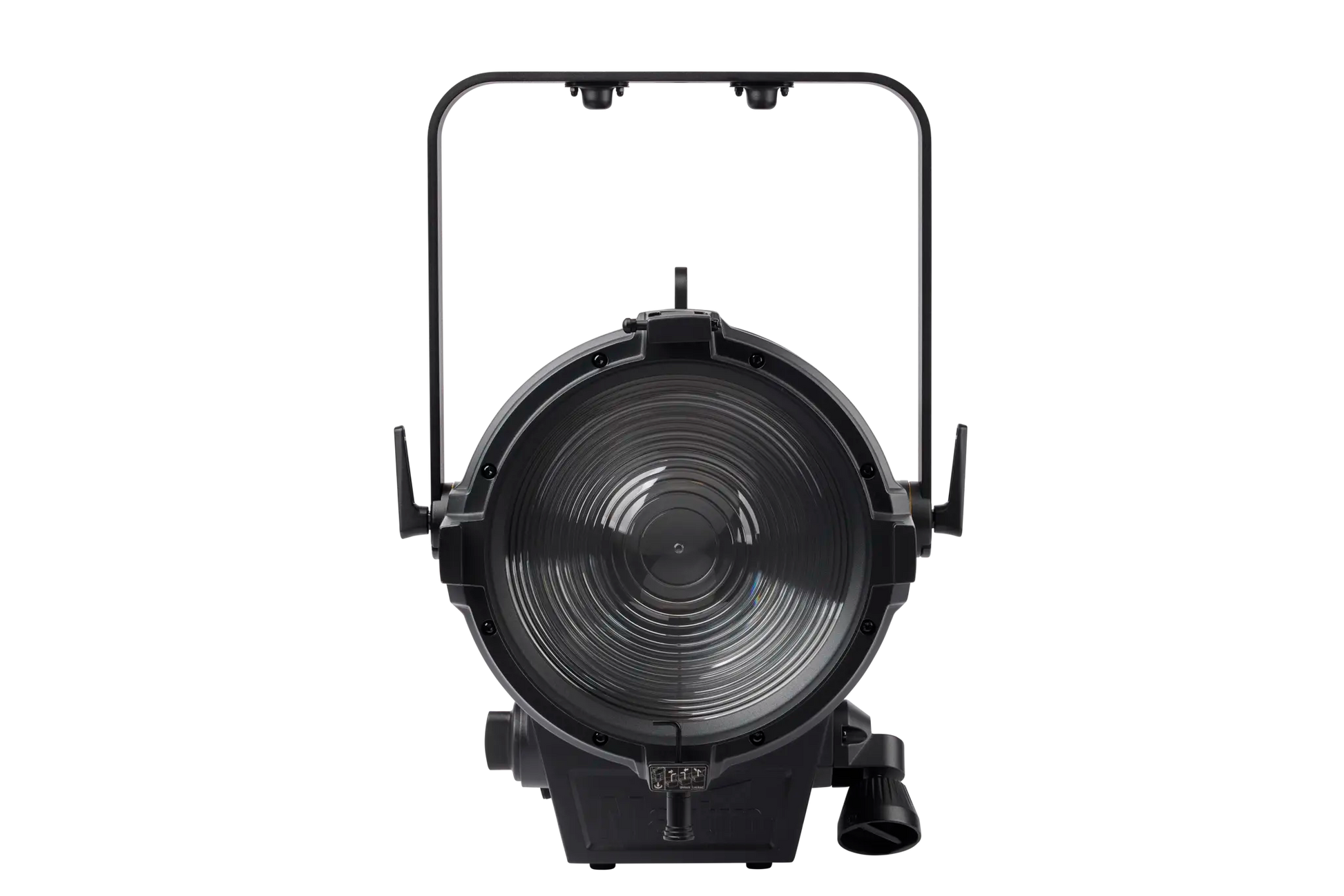

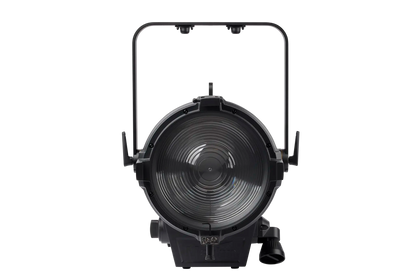

• Carefully designed 8-inch (200 mm) Fresnel lens producing signature soft-edge, artifact-free fades
• 9°–50° manual zoom lens for precise lumen control across narrow throws and wide washes
• High-resolution low-end dimming with four selectable dimming curves and smooth 16-bit control

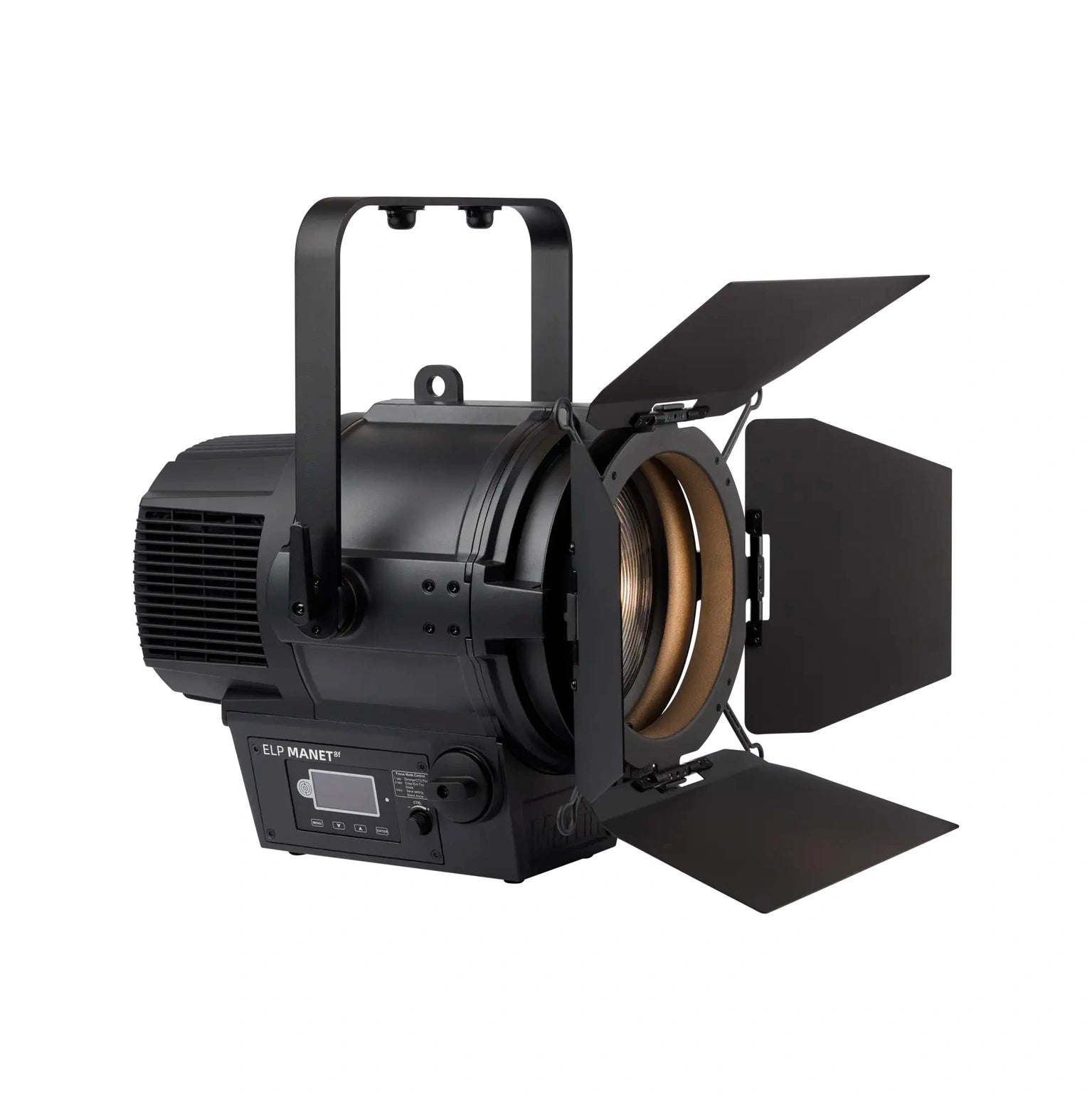

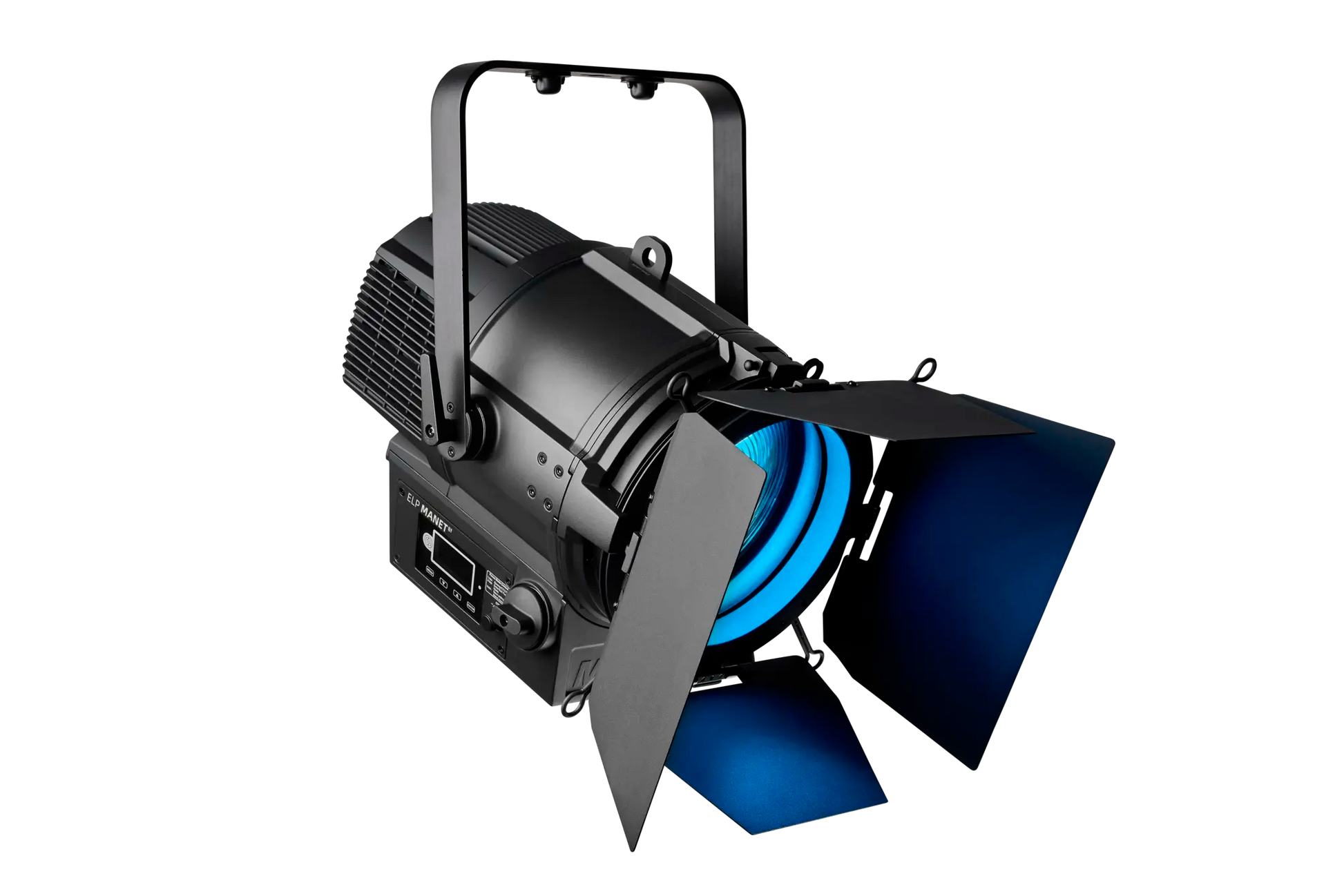

• Anti-reflective 4-leaf barn door system for exact beam shaping and glare elimination
• Ultra-quiet cooling system with user-definable fan speed levels (as low as 18.9 dB at low fan mode)
• Simple RGB control with linear CTC and tint channels, plus 48 virtual color wheel presets

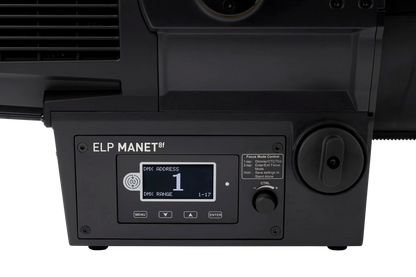

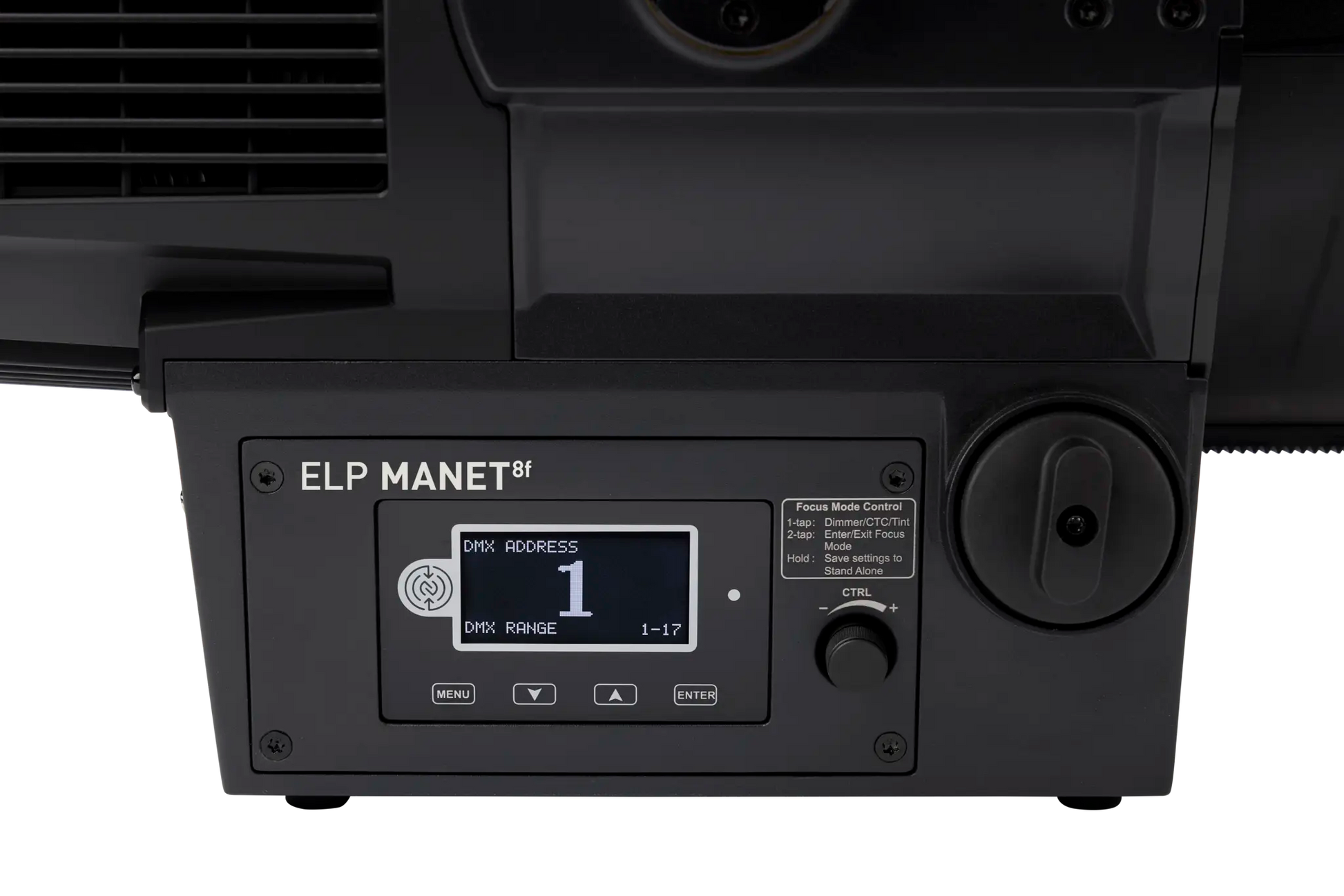

• Intuitive control interface with backlit LCD display and single-encoder quick focus control
• DMX/RDM control with 11 or 17 channel modes and 16-bit controllable dimming and color mixing
• NFC interface for configuration and diagnostics via the Martin Companion Mobile App
• Flexible mounting options including omega bracket, M12 rigging clamp hole, and 28mm spigot compatibility
• Optional pole-operated yoke for quick, effortless re-rigging from stage to studio
• Recommended use: Theater, broadcast studios, live production, opera, film, studio lighting

Specifications

Light Output

• Light Engine Luminous Output: 15,500 lumens
• Fixture Luminous Output (Wide): 13,100 lm @ 6500K white
• Fixture Luminous Output (Narrow): 5,600 lm @ 6500K white
• Efficiency: 24.5 LM/W

Color

• Light Source: 500W RGBALC COB LED
• Color Temperature Range: Variable 1,850 K–12,500 K
• CRI (High Quality Mode): ≥98
• CRI (High Output Mode): ≥90
• TM-30 Rf (High Quality Mode): ≥95
• TM-30 Rg (High Quality Mode): ≥104
• TLCI (High Quality Mode): ≥98
• LED Refresh Rate: 3,600 Hz with fine adjustment (±2%)
• Minimum LED Lifetime: >20,000 hours (to >70% luminous output)

Optics

• Front Lens Diameter: 200 mm (7.87 in.)
• Beam Angle (Full Zoom Range at Half Peak): 9°–50°
• Field Angle (Full Zoom Range at Tenth Peak): 17°–66°
• Zoom Range: 1:5.6

Control

• Control Protocols: DMX, RDM
• DMX Modes: Compact, Basic, Direct
• DMX Channels: 11 or 17
• DMX Compliance: USITT DMX512-A
• RDM Compliance: ANSI/ESTA E1.20
• Addressing: Display menu, RDM, NFC
• Firmware Update: Via DMX using Martin Companion

Connections

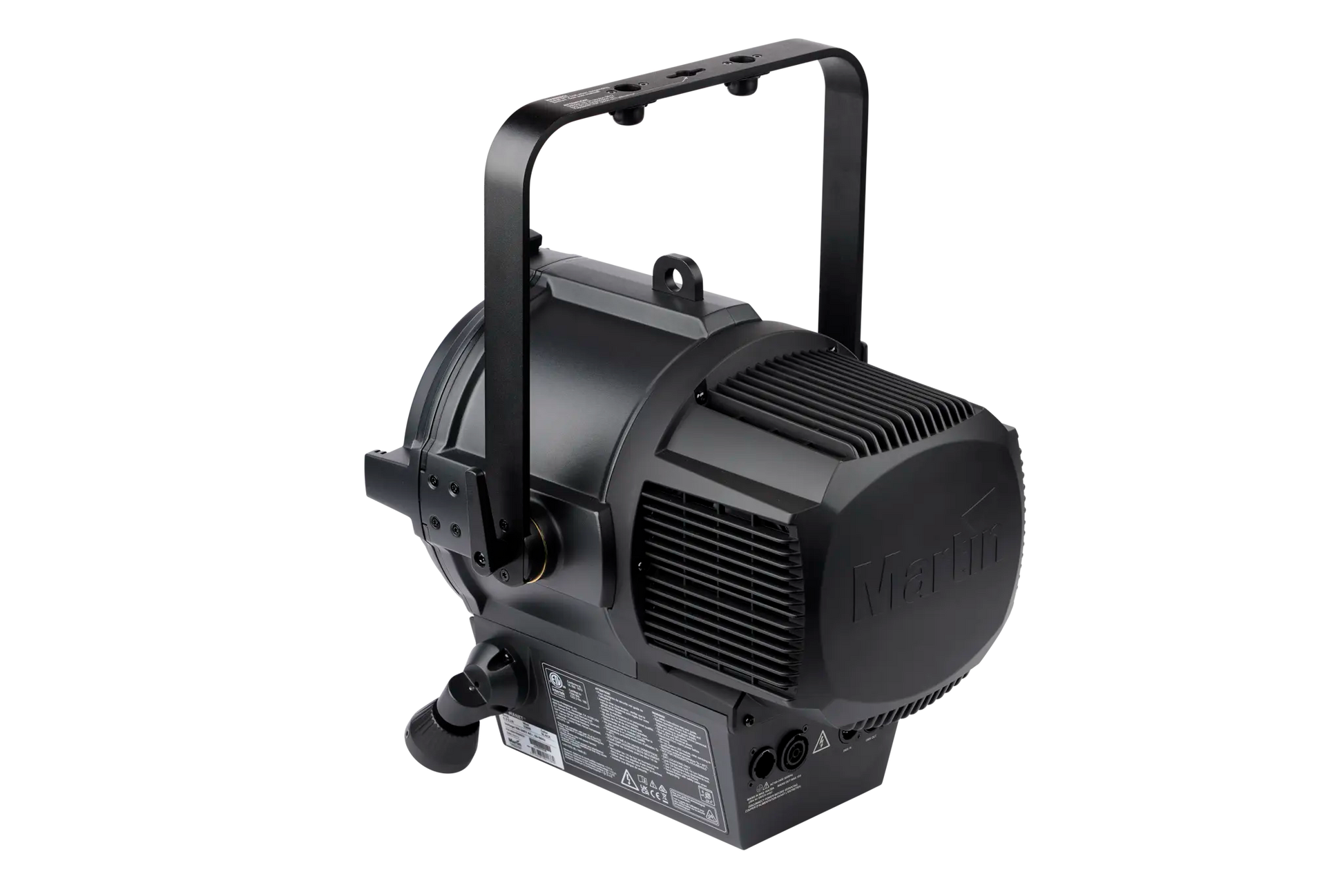

• AC Mains Power In/Thru: Neutrik PowerCON TRUE1 TOP
• DMX/RDM Data In/Thru: Neutrik 5-pin locking XLR TOP

Electrical

• AC Power: 100–240 V AC nominal, 50/60 Hz
• Power Consumption (Typical): 530 W
• Power Consumption (Idle): 3.8 W
• Maximum Current (100–120 V): 5.3 A
• Maximum Current (200–240 V): 2.2 A

Thermal & Acoustic

• Cooling: Forced air, temperature-regulated, user-definable levels
• Sound Pressure Level (High Fan Mode): 26.7 dB(A) @ 1m
• Sound Pressure Level (Medium Fan Mode): 21.1 dB(A) @ 1m
• Sound Pressure Level (Low Fan Mode): 18.9 dB(A) @ 1m
• Maximum Ambient Temperature: 40°C (104°F)

Physical

• Housing Material: Steel/aluminum
• Color: Matte black
• Width: 372.3 mm (14.66 in.)
• Height: 499.30 mm (19.66 in.)
• Depth: 404.90 mm (15.94 in.)
• Weight: 14.0 kg (30.86 lb)
• Protection Rating: IP20
• Location: Indoor

What's in the Box

• ELP MANET 8f LED Fresnel Fixture
• Adjustable mounting bracket
• 4-leaf anti-reflective manual barn door system
• Color filter frame
• Multi-language safety and installation manual
