48 VDC Power Suppply

The Martin P3-300 System Controller simplifies fixture management by supporting Full HD video input and enabling mapping, addressing, and configuration without direct fixture access. It offers seamless integration with lighting desks, video sources, and third-party software, ensuring synchronized operation and real-time previews for accurate rendering.

From The Manufacturer:

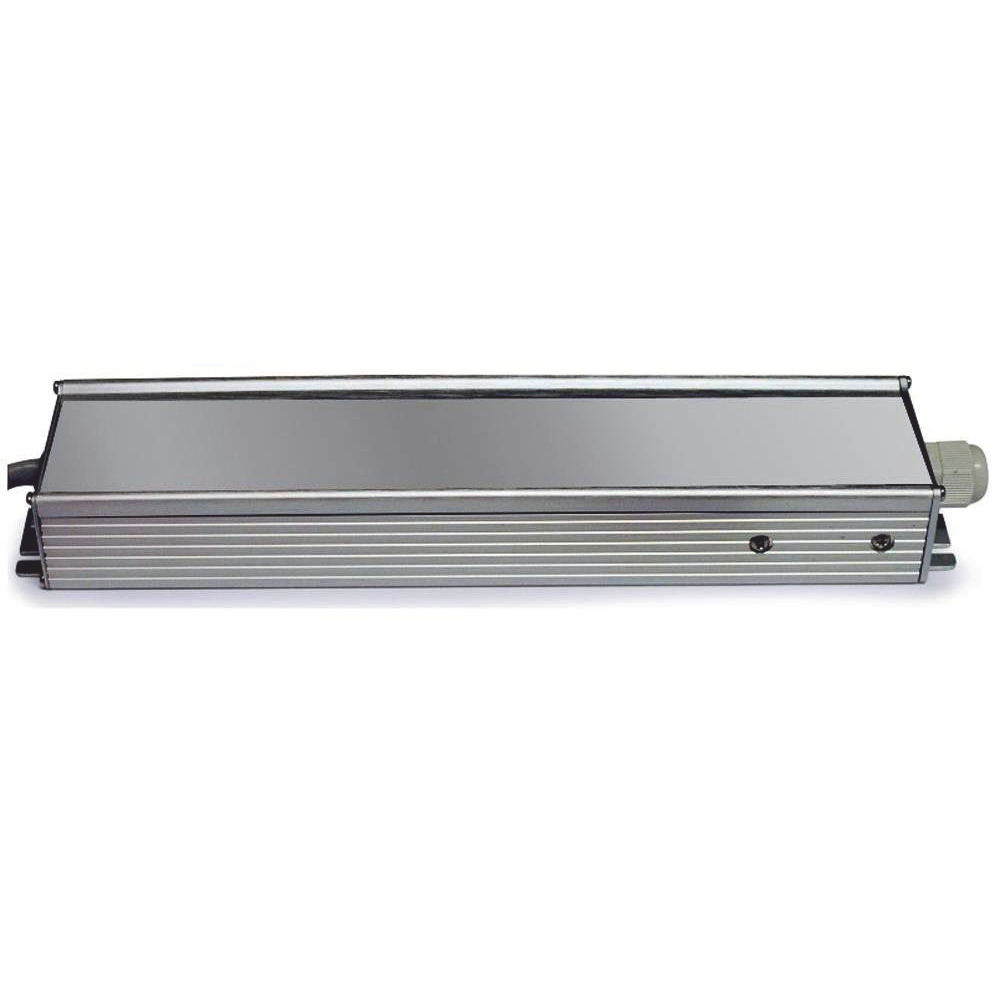

The Martin™ IP66 PSU 240W is an IP66-rated external power supply unit that can supply 48 VDC power to various Martin™ lighting and LED Video products, including the Exterior PixLine, Exterior Dot-HP and VC-Dot.

It provides an alternative to the P3 PowerPort in supplying power to fixtures in a DMX-controlled system.

• Rugged extruded aluminum housing
• Auto-ranging 100-240 VAC power input
• Full protection with auto-recovery

Features:

• IP66-rated
• Wall-mountable
• Can be located up to 50 m (164 ft.) away from the creative LED video products
• No configuration or addressing required

Physical:

• Length: 314 mm (12.4 in.)
• Width: 68 mm (2.7 in.)
• Height: 39 mm (1.5 in.)
• Weight: 1.5 kg (3.3 lbs.)

Electrical:

• AC mains power input: Hard-wired (terminal block) via cable gland
• Power supply unit: Auto-sensing multi-voltage switch-mode
• DC power output: 48 V
• Maximum DC output power: 240 W
• Maximum DC output current draw: 5 A
• Protection: Overvoltage, overcurrent, short circuit, over-temperature, all with auto-recovery
