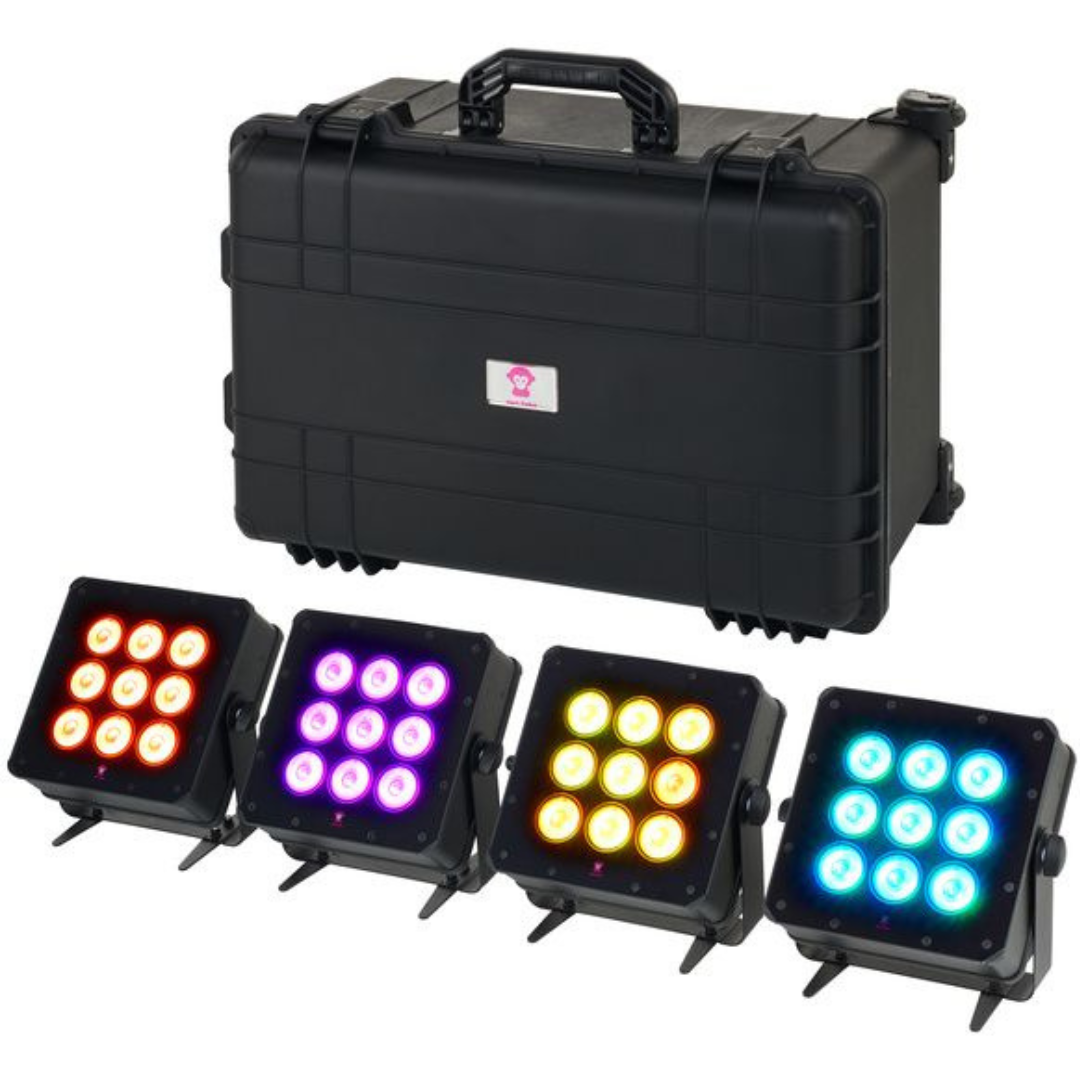

Marvel Pix IP65

The Ape Labs Marvel Pix is a 9-LED, 162W battery-powered fixture available as a spotlight or wash for professionals looking for ultimate flexibility and power in a compact fixture.

From the Manufacturer:

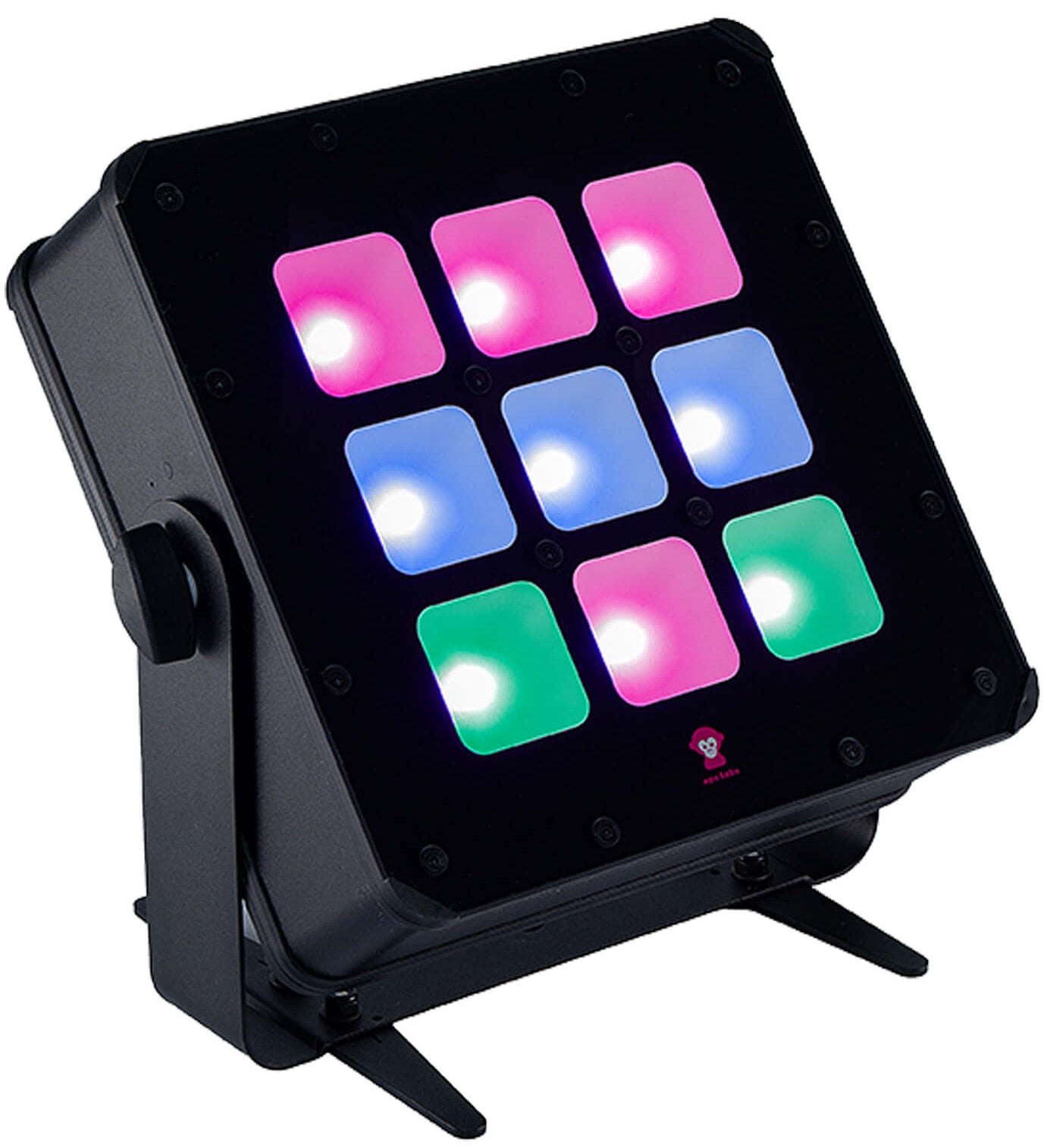

Marvel Pix Spotlight:

The Marvel Pix is a 162 Watt, super high-output, production-grade spotlight designed for precision uplighting, pixel effects, stage washes, and architectural lighting, indoors or out. With 9 individually controllable 18W pixel LEDs, the Marvel Pix offers perfectly homogeneous color mixing, app-based control, and CRMX wireless DMX integration, all inside a rugged, fanless IP65-rated housing.

Marvel Pix Spotlight Features:

• Battery-powered outdoor LED spotlight (IP65)
• 9 x 18W RGB + WW (2700K) + cW (6000K) + Lime LEDs with full pixel control
• LED Type: 7mm 6-in-1 RGBLwWcW chips
• Color rendering index (CRI): 90
• Integrated 15 degree optics (swappable to 10, 25, or 45 degree)
• Perfectly homogeneous light output and color mixing
• 8-hour battery runtime (Li-Ion 96Wh)
• True1 main input for continuous operation with auto power-fail backup
• Flicker-free LED control with DUAL-DRIVE (no PWM)
• 360 degree rotatable bracket with locking feet
• Mounting via bracket or dual M6 eyelets for safety
• Automatic signal repeater (up to 0.75 mile range)
• Full group management (4 groups) via remote, app, or 4 DMX universes
• Cloud-based lamp setting storage
• Fanless, solid-state design
• Free software updates for fixture, CONNECT, and app
• Theft protection with motion sensor & audible alarm

Marvel Pix Spotlight Specifications:

• Number of LEDs: 9
• LED Power: 18W per LED (162W total)
• Color Temperatures: Warm White 2700K, Cool White 6000K
• CRI (Ra): 90
• Beam Angle: 15 degree (default); swappable to 10, 25, 45 degree
• Dimmable: Yes
• Battery Type: Li-Ion 96Wh
• Battery Runtime: 8 hours on standard output, up to 48 hours on power-save mode
• Fanless: Yes
• Flicker-Free: Yes (DUAL-DRIVE, no PWM)
• Housing: Aluminum with scratch-resistant acrylic glass (Optial HC)
• Protection Class: IP65 (waterproof and UV-resistant)
• Mounting Options: 360 degree bracket w/ fold-out feet and 2x M6 eyelet safety points

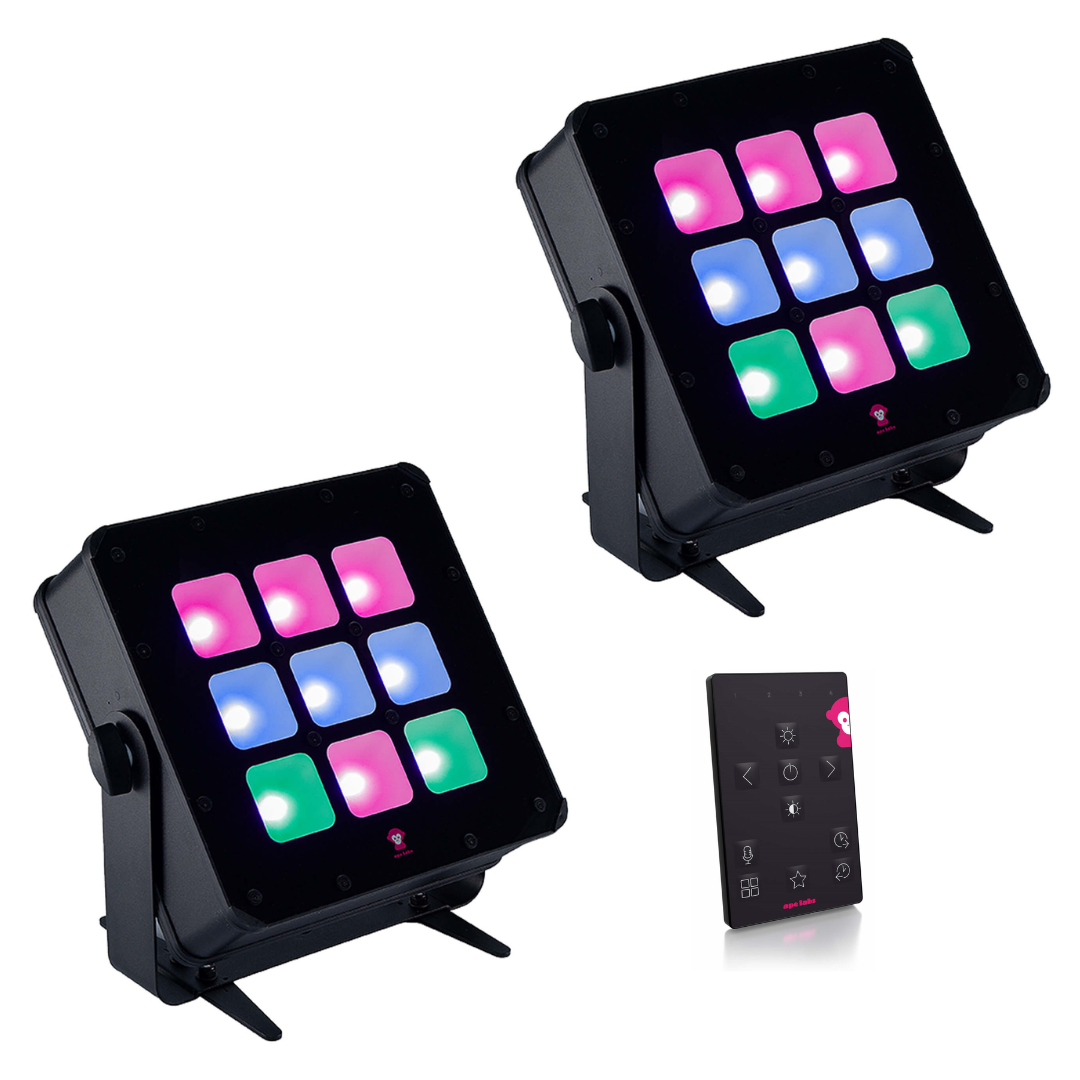

• Control Methods: App (via CONNECT), RF remote, CRMX, Wireless DMX
• Control Range: Up to 1-mile (app & DMX), 200ft (remote)
• Signal Repeater: Yes (up to 0.75 mile range)
• Radio Frequency: 2.400 - 2.485 GHz
• Output Power: Max. 20 dBm (~100mW EIRP)
• DMX Channel Modes:
  • 6ch- 8-bit: R,G,B,wW,cW,L
  • 7ch- R,G,B,wW, Dimmer, Speed, MusikMode
  • 12ch- 16-bit: R,R-fine,G,G-fine,B,B-fine,wW,wW-fine,cW,cW-fine,L,L-fine
  • 36ch- 9-pixel: RGBwW
  • 54ch- 9-pixel: RGBwWcWL
• Power Input: TRUE1 Loop (100-240 VAC, 50/60Hz)
• Operating Voltage: 12V (lamp), 16-19V (charging), ~1A charging current
• Color: Black
• Made in Germany
• Size: 11.2 x 10.4 x 3.1 in (28.5 x 26.5 x 8.0 cm)
• Weight: 8.2 lbs (3.7 kg)

NOTE: Brightness settings for battery operation during event use is 80% or less. Max brightness on battery is only recommended for film use, due to battery consumption.

• 100% Max Brightness = 2hr Battery Life
• 80% Brightness = 6hr Battery Life
• 75% Brightness = 8hr Battery Life
• 60% Brightness = 12.5hr Battery Life
• 40% Brightness = 20hr Battery Life
• 20% Brightness = 26hr Battery Life
• Up to 48 Hour Battery Life on Power Save Mode
• 100% Brightness While Plugged in is Fully Operational All Day

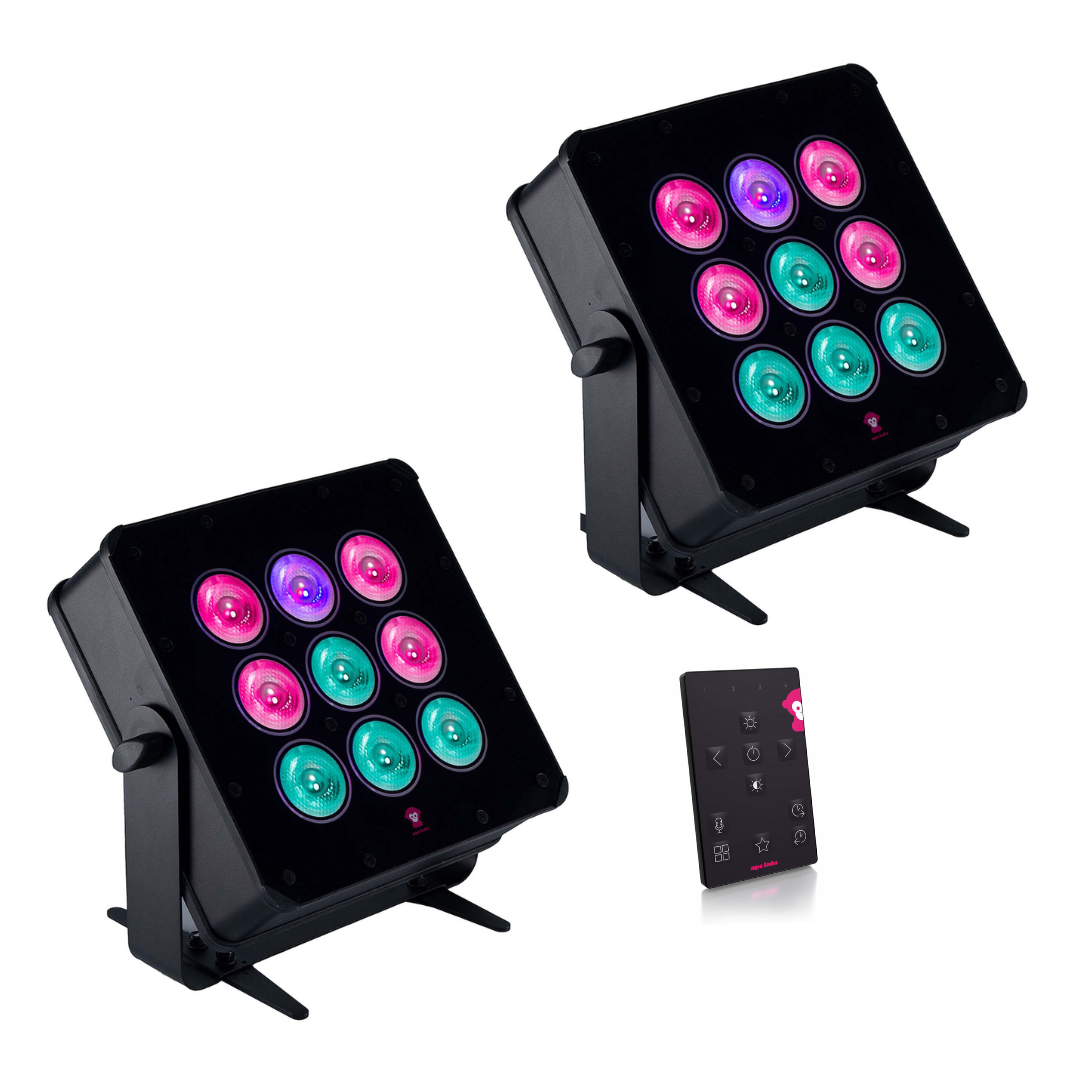

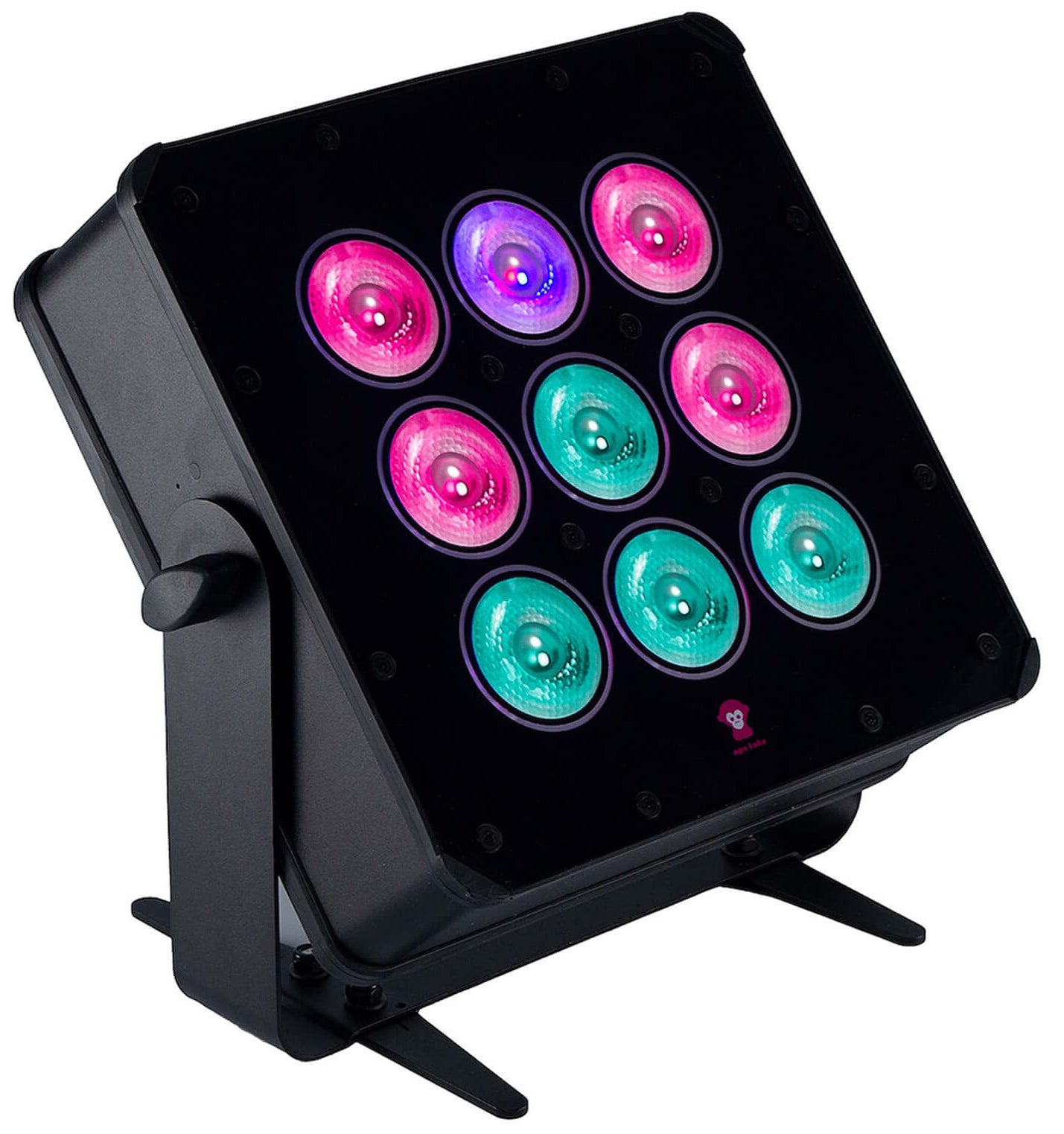

Marvel Pix Wash:

The Marvel Pix Wash is a powerful, professional LED wash fixture built for wide coverage on cycs, stages, and dance floors - both indoors and outdoors. Equipped with 9 individually controllable 18W pixel LEDs and 150 degrees wash optics, the Pix Wash produces smooth color blends, app-based control, and CRMX wireless DMX in a durable, fanless IP65-rated housing.

Marvel Pix Wash Features

• Outdoor-ready LED wash light with IP65 rating
• 9 x 18W RGB + Warm White (2700K) + Cool White (6000K) + Lime pixel LEDs
• 7 mm 6-in-1 RGBLwWcW LED chips
• CRI rating: 90
• 150 degrees wash optics
• Even, smooth light output and color blending
• 8-hour runtime from 96Wh Li-Ion battery
• TRUE1 input for continuous operation with power-fail backup
• DUAL-DRIVE flicker-free LED control
• 360 degrees bracket with locking legs and safety eyelets
• Signal repeater extends control range up to approx 0.75 mile (1200 m)
• Manage up to 4 groups via app, remote, or DMX universes
• Cloud storage for lamp settings
• Silent, fanless design
• Ongoing free software upgrades
• Built-in theft protection system

Marvel Pix Wash Specifications

• LEDs: 9 x 18W (162W total)
• Color temps: Warm White 2700K, Cool White 6000K
• CRI: 90
• Beam angle: 150 degrees
• Dimmable: Yes
• Battery: 96Wh Li-Ion, 8-hour runtime on standard output (up to 48 hours with power-save)
• Cooling: Fanless
• Flicker-free: Yes, DUAL-DRIVE system
• Housing: Aluminum, scratch-resistant acrylic (Optial HC)
• Protection: IP65 (waterproof, UV-resistant)
• Mounting: 360 degrees bracket, fold-out feet, dual M6 eyelets
• Control: App (via CONNECT), RF remote, CRMX, Wireless DMX, on-unit button backup
• Control range: Up to 1 mile (app and DMX), approx 200 ft (remote)
• Signal repeater: Yes, up to approx 0.75 mile (1200 m)
• Frequency: 2.400 - 2.485 GHz
• Output power: 20 dBm (approx 100 mW EIRP)
• DMX channel modes:
  • 6ch - 8-bit: R,G,B,wW,cW,L
  • 7ch - simplified mode
  • 12ch - 16-bit fine control
  • 36ch - 9-pixel RGBwW
  • 54ch - 9-pixel RGBwWcWL
• Power input: TRUE1 Loop (100 - 240 VAC, 50/60 Hz)
• Operating voltage: 12V
• Charging voltage: 16 - 19V
• Charging current: approx 1A
• Finish: Black
• Origin: Made in Germany
• Dimensions: 11.2 x 10.4 x 3.1 in (28.5 x 26.5 x 8.0 cm)
• Weight: 8.2 lb (3.7 kg)

NOTE: Brightness settings for battery operation during event use is 80% or less. Max brightness on battery is only recommended for film use, due to battery consumption.

• 100% Max Brightness = 2hr Battery Life
• 80% Brightness = 6hr Battery Life
• 75% Brightness = 8hr Battery Life
• 60% Brightness = 12.5hr Battery Life
• 40% Brightness = 20hr Battery Life
• 20% Brightness = 26hr Battery Life
• Up to 48 Hour Battery Life on Power Save Mode
• 100% Brightness While Plugged in is Fully Operational All Day
