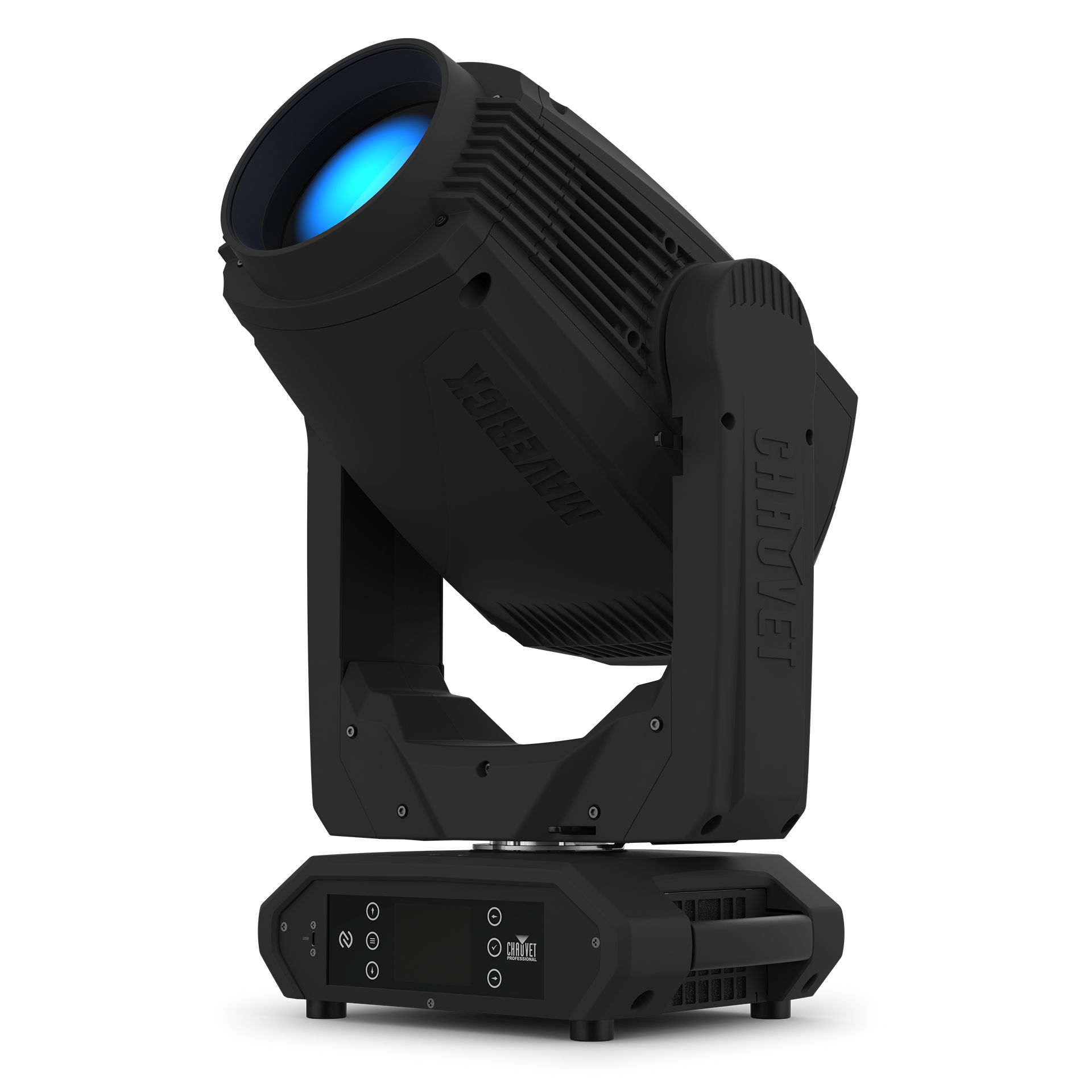

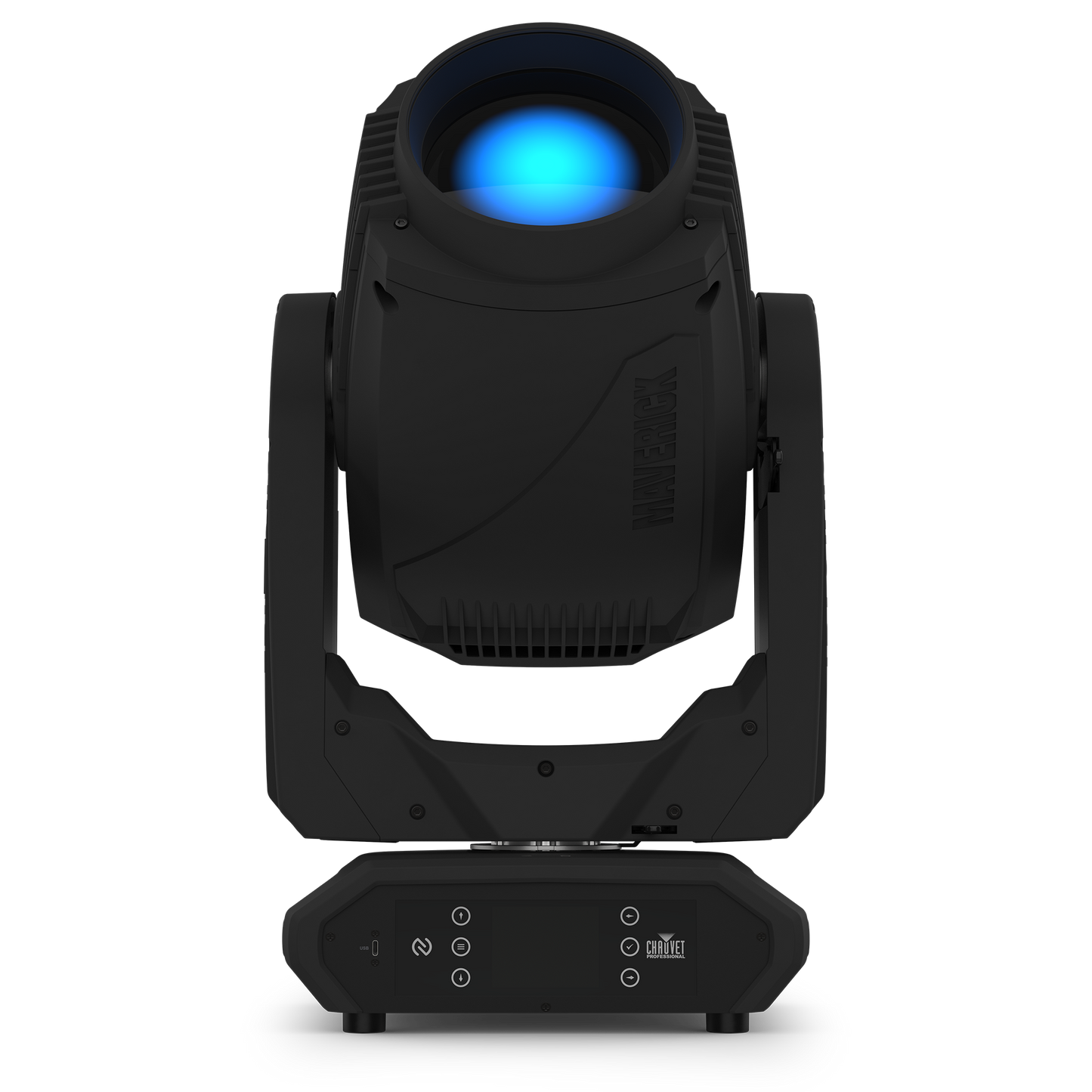

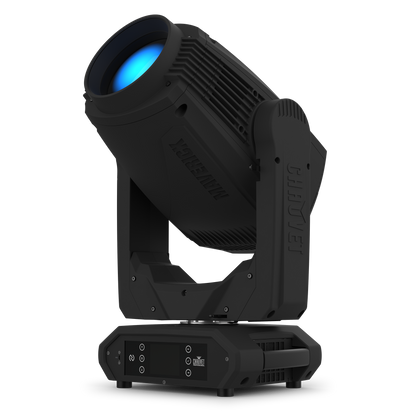

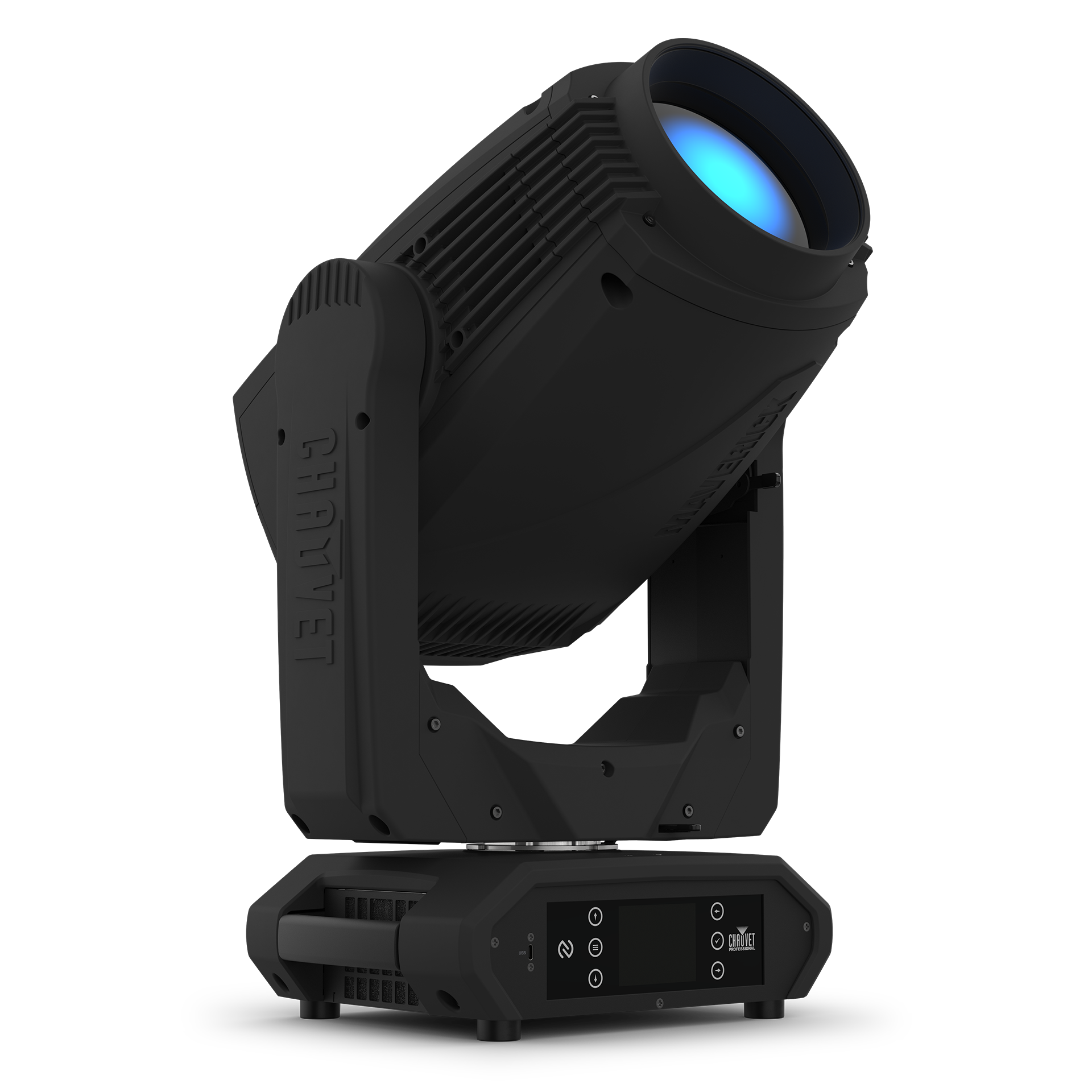

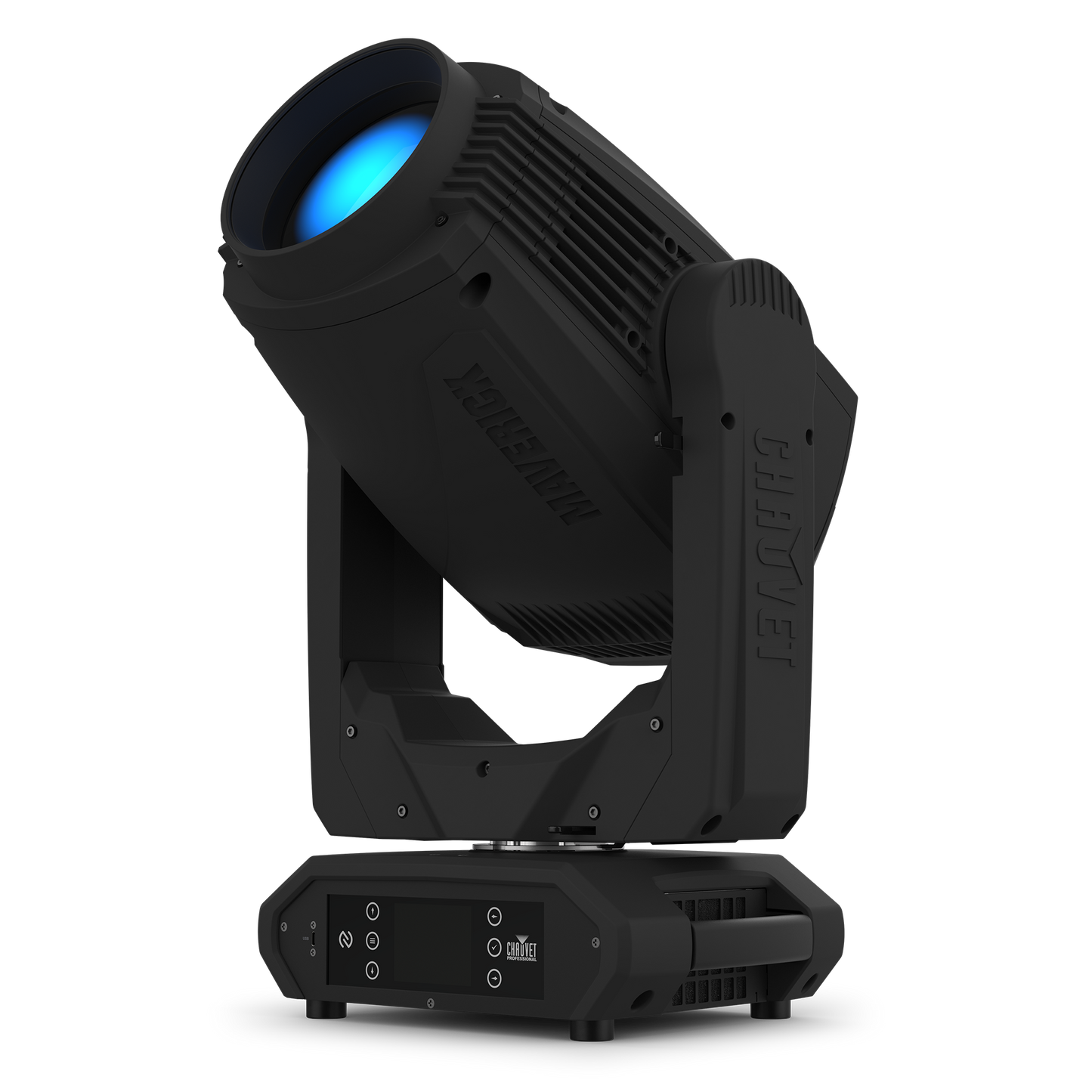

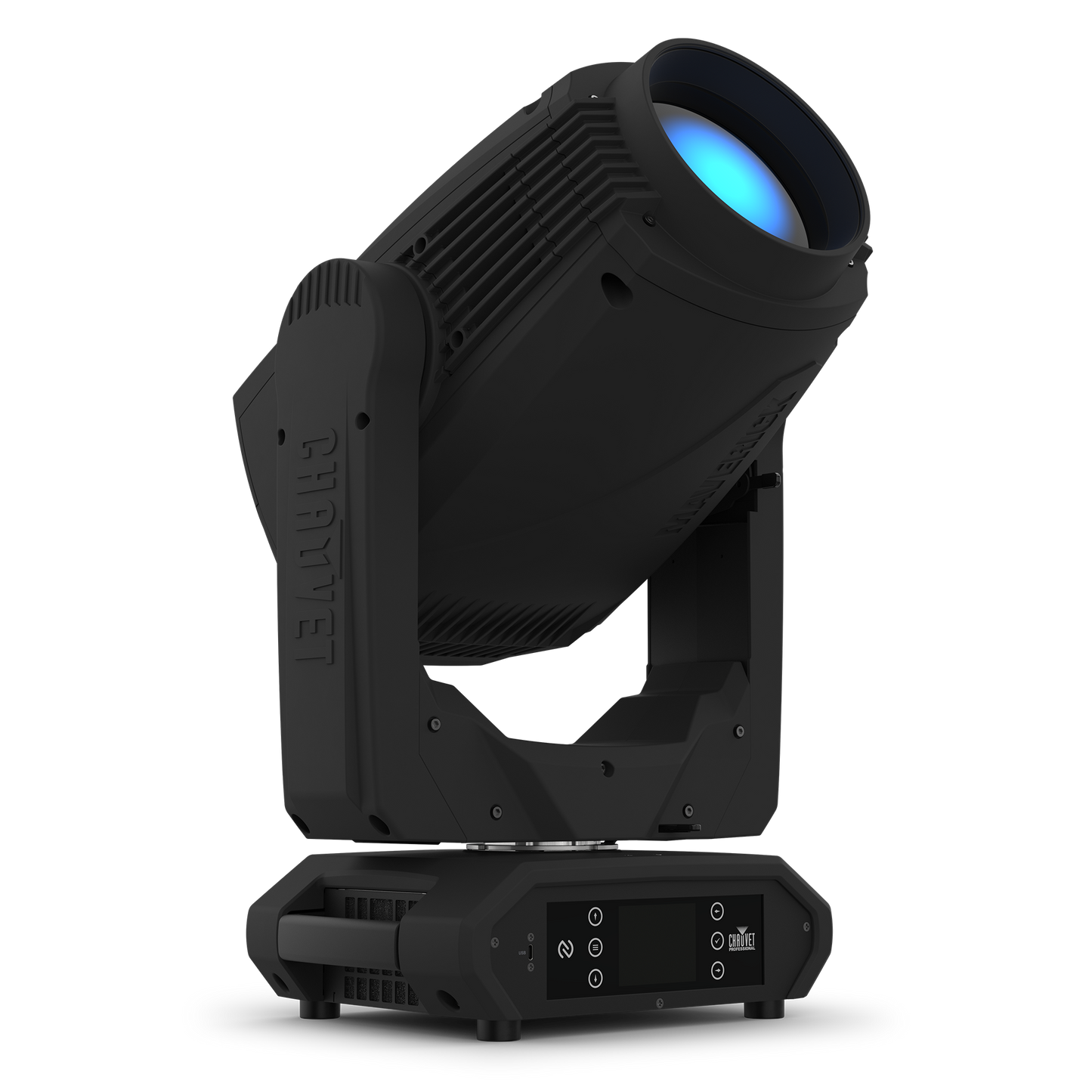

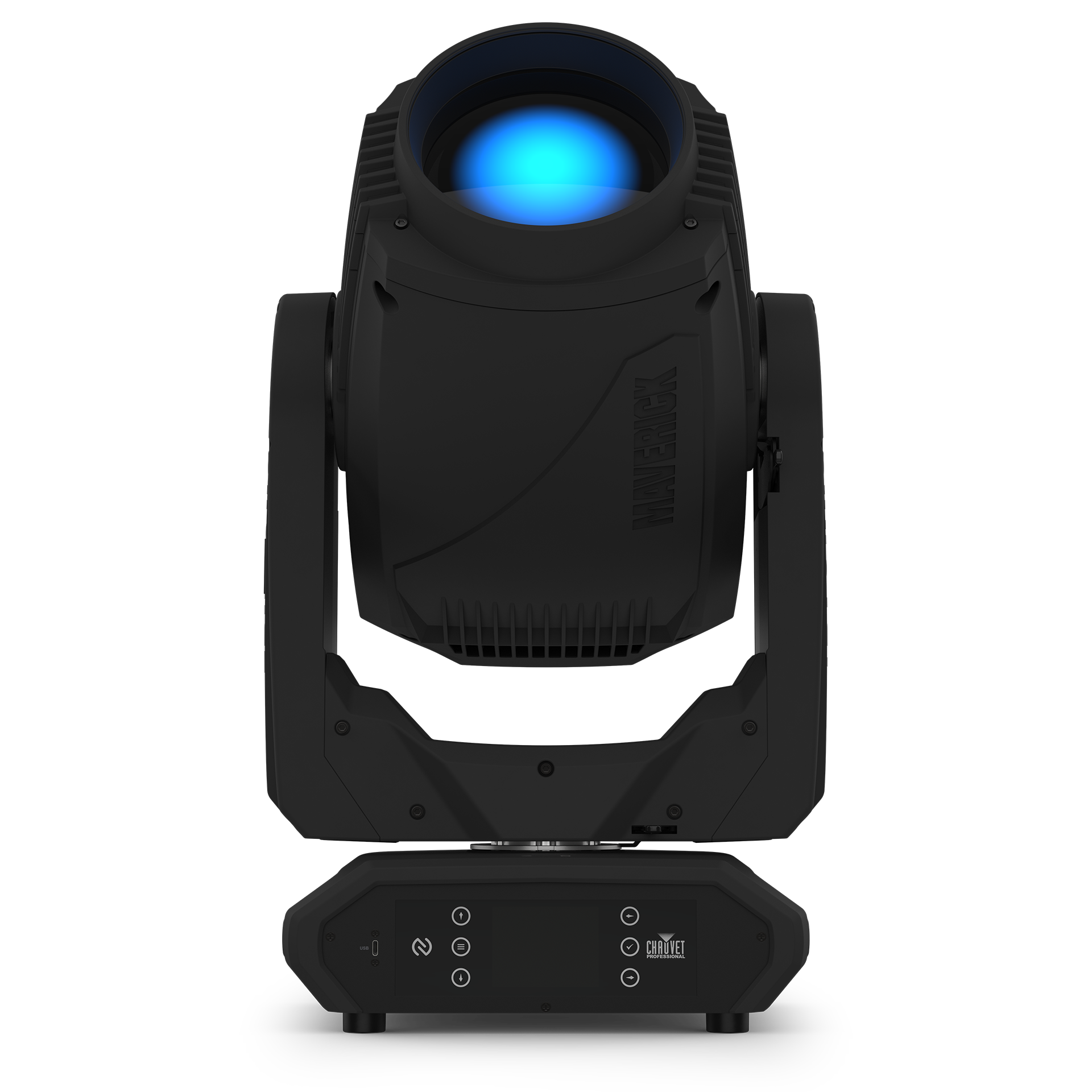

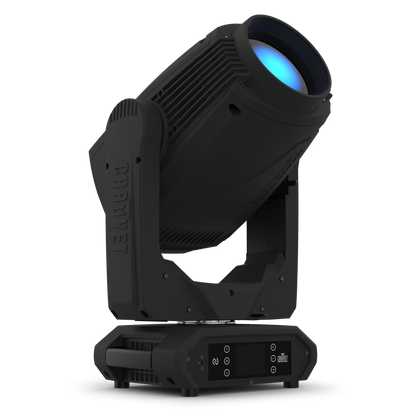

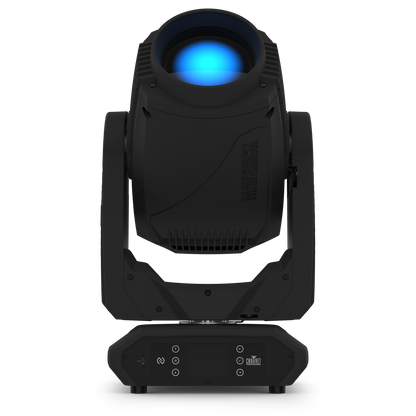

Maverick Force X Profile

The CHAUVET Professional Maverick Force X Profile is a compact, lightweight LED moving profile delivering 18,963 lumens of output with a four-blade framing system for touring, theatre, and broadcast applications.

From the Manufacturer

With superb dimming performance, an expansive 18:1 zoom, and a full armory of features, the Maverick Force X Profile is a compact LED moving profile ready for a wide range of short- and long-throw applications. This fast, lightweight powerhouse combines the latest Maverick series technical advancements to achieve 18,963 lumens of output in a design that maintains a flat field of focus all the way from its narrow 3.5° beam to a broad 57.3° spot.

Color calibration and gobo selection come matched to other Force fixtures in the rig, along with an advanced 4-blade shutter framing system and a wheelhouse that includes a variable CMY color mixing system renowned for its true reds, a color wheel with CRI and CTB filters, static and rotating gobo wheels, a five-facet prism, iris, and frost. Control is available via DMX, RDM, sACN, Art-Net, or CRMX.

Features

• Compact 520W LED yoke profile fixture with a full professional feature set in a lightweight design
• 18,963-lumen output with a flat field of focus maintained across the full zoom range
• Variable CMY color mixing system delivers a wide palette of colors with smooth transitions and true reds
• Color wheel with 7 colors including CTO 4300K, CTO 3200K, CRI filter, and CTB filter, plus split colors and continuous scroll
• Dual gobo wheels: one rotating wheel (7 + open, glass and metal, indexing, slot-n-lock) and one static wheel (9 + open, metal)
• Advanced 4-blade framing shutter system with dual-axis movement, full wipe, and 120° module rotation
• Wide 18:1 zoom range from 3.5° to 57.3° for flexible short- and long-throw applications
• Five-facet motorized rotating prism, motorized iris, and motorized frost for advanced beam shaping and effects
• 16-bit dimming with 5 selectable dim curves for exceptionally smooth intensity control
• High-speed 65,000 Hz PWM rate ensures flicker-free operation for use with the fastest frame cameras
• Supports DMX, RDM, sACN, Art-Net, and onboard CRMX (WDMX) control protocols
• Failsafe Ethernet connectivity maintains data pass-through even if the fixture loses power
• NFC fixture setup for fast configuration directly from a compatible mobile device
• Battery-powered display with auto-rotation for menu access without main power
• USB software update slot for quick firmware uploads
• Three menu presets with preset sync function for easy cross-loading to multiple fixtures
• True-1 compatible power input; power-linkable (2 units @ 120V, 4 units @ 230V)
• Certifications: CE, MET, FCC, UKCA | IP20, dry location
• Recommended use: Touring, theatre, broadcast, short- and long-throw applications

Specifications

Optical

• Light Source: 1 LED (CW), 520W, 6966K, 50,000-hour rated life
• Color Temperature: 6966K (at full); 8200K with CTB filter
• Lumens Output: 18,963
• Beam Angle: 3.4° to 52.2°
• Field Angle: 3.7° to 55.3°
• Zoom Range: 3.5° to 57.3° (18:1)
• Front Lens Diameter: 145 mm
• CRI: 72.2 (91.9 with CRI filter)
• Illuminance (3.4°): 104,429 lux @ 5 m
• Illuminance (57.3°): 1,219 lux @ 5 m
• PWM Selectables: 600 Hz, 1500 Hz, 2000 Hz, 65,000 Hz

Dynamic Effects

• Pan / Tilt: 540° / 270° (selectable ranges: 540°/360°/180° pan; 270°/180°/90° tilt)
• Colors: 7 + white, split colors, continuous scroll at variable speeds
• CMY Mixing: Variable CMY wheels
• Gobos (Wheel 1 – Rotating): 7 + open (1 metal + 6 glass), indexing, slot-n-lock, continuous scroll
• Gobos (Wheel 2 – Static): 9 + open (9 metal), continuous scroll
• Gobo Size (Wheel 1): 23.9 mm OD / 14 mm image / 1.1 mm max thickness
• Framing Shutters: 4-blade system with dual-axis movement, full wipe, 120° module rotation
• Prism: 5-facet, motorized, rotating
• Strobe Rate: 0–25 Hz
• Dimmer: Electronic, 16-bit, 5 dim curves
• Frost / Iris / Focus / Zoom: All motorized
• Move-in-Black: Yes

Electrical

• Input Voltage: 100–240 VAC, 50/60 Hz (auto-ranging)
• Power Consumption: 595W / 5.98A @ 120V | 576W / 2.82A @ 208V | 580W / 2.58A @ 230V
• Power Linking: 2 units @ 120V; 4 units @ 208V; 4 units @ 230V

Control

• DMX Channels: 31 or 47
• Personalities: 2 (31ch, 47ch)
• Protocols: DMX, RDM, sACN, Art-Net, CRMX (WDMX), NFC

Construction / Physical

• Dimensions: 14.21 x 9.40 x 25.43 in (361 x 239 x 646 mm)
• Weight: 50 lbs (23.1 kg)
• Housing Material: Aluminum alloy, aluminum die-cast, high-impact flame-retardant polymer, steel
• Exterior Color: Black
• IP Rating: IP20, dry location
• Operating Temperature: -4°F to 113°F (-20°C to 45°C)

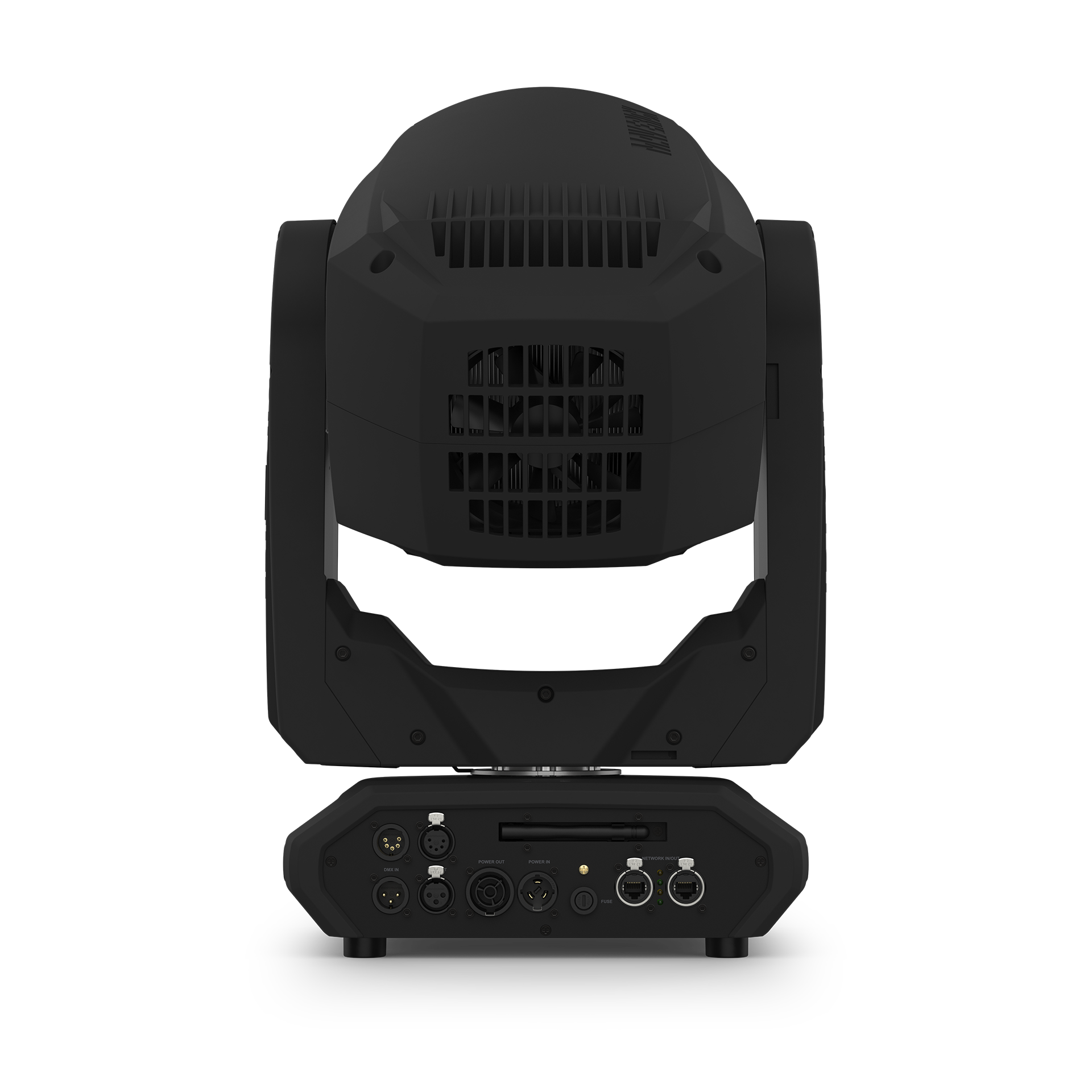

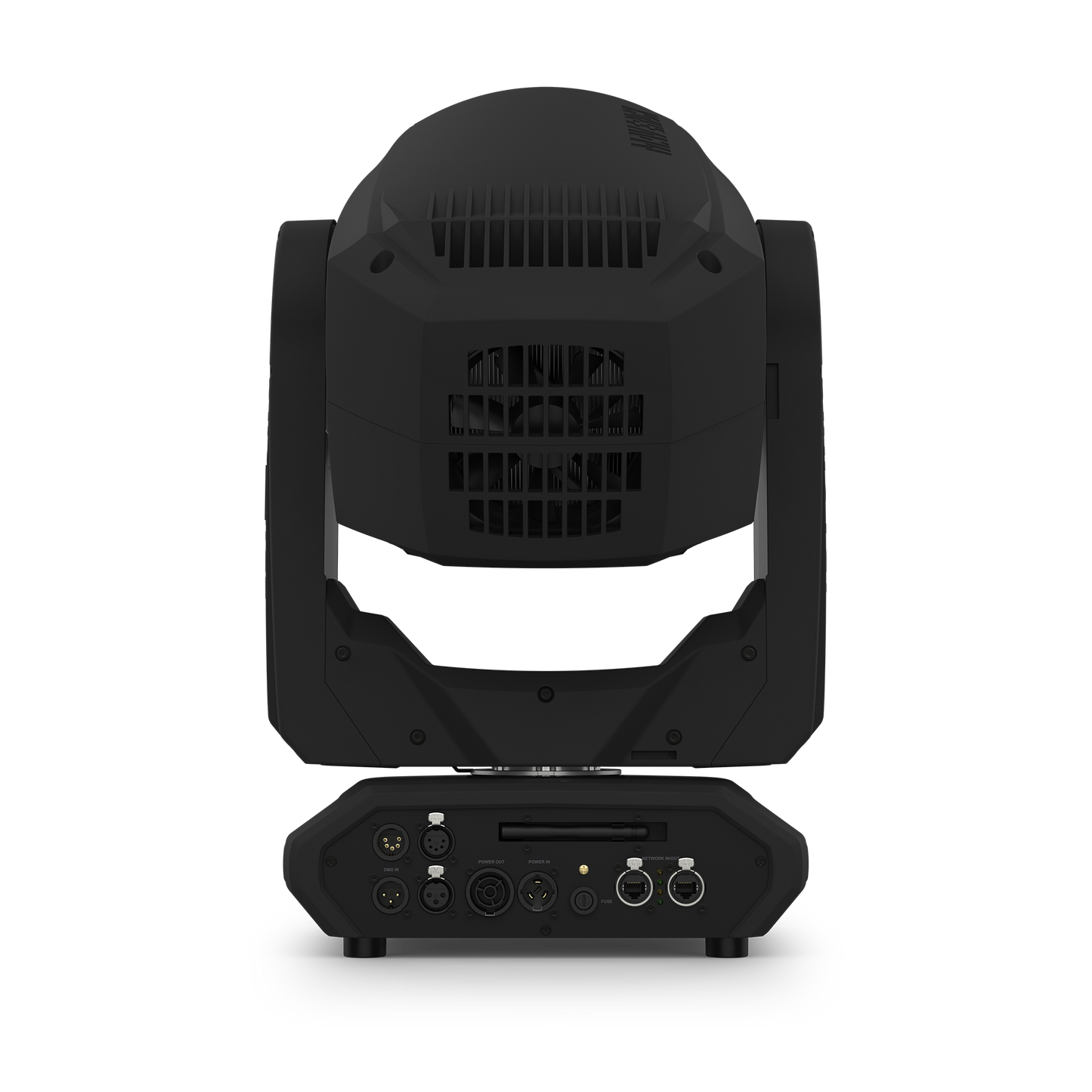

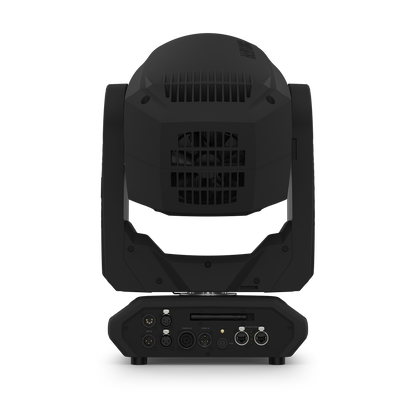

Connections

• Power Input / Output: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin IP65 XLR, Seetronic etherCON
• Power Cable Length: 5 ft (1.5 m)

Noise Levels

• Idle: 34.4 dB(A) @ 1 m
• Auto: 36.6 dB(A) @ 1 m
• ECO / TV modes: 35.0 dB(A) @ 1 m
• Full: 39.1 dB(A) @ 1 m
• Max: 38.8 dB(A) @ 1 m

Certifications

• Certifications: CE, MET, FCC, UKCA

What's in the Box

• Maverick Force X Profile fixture
• Seetronic Powerkon power cord
• Omega brackets with mounting hardware
