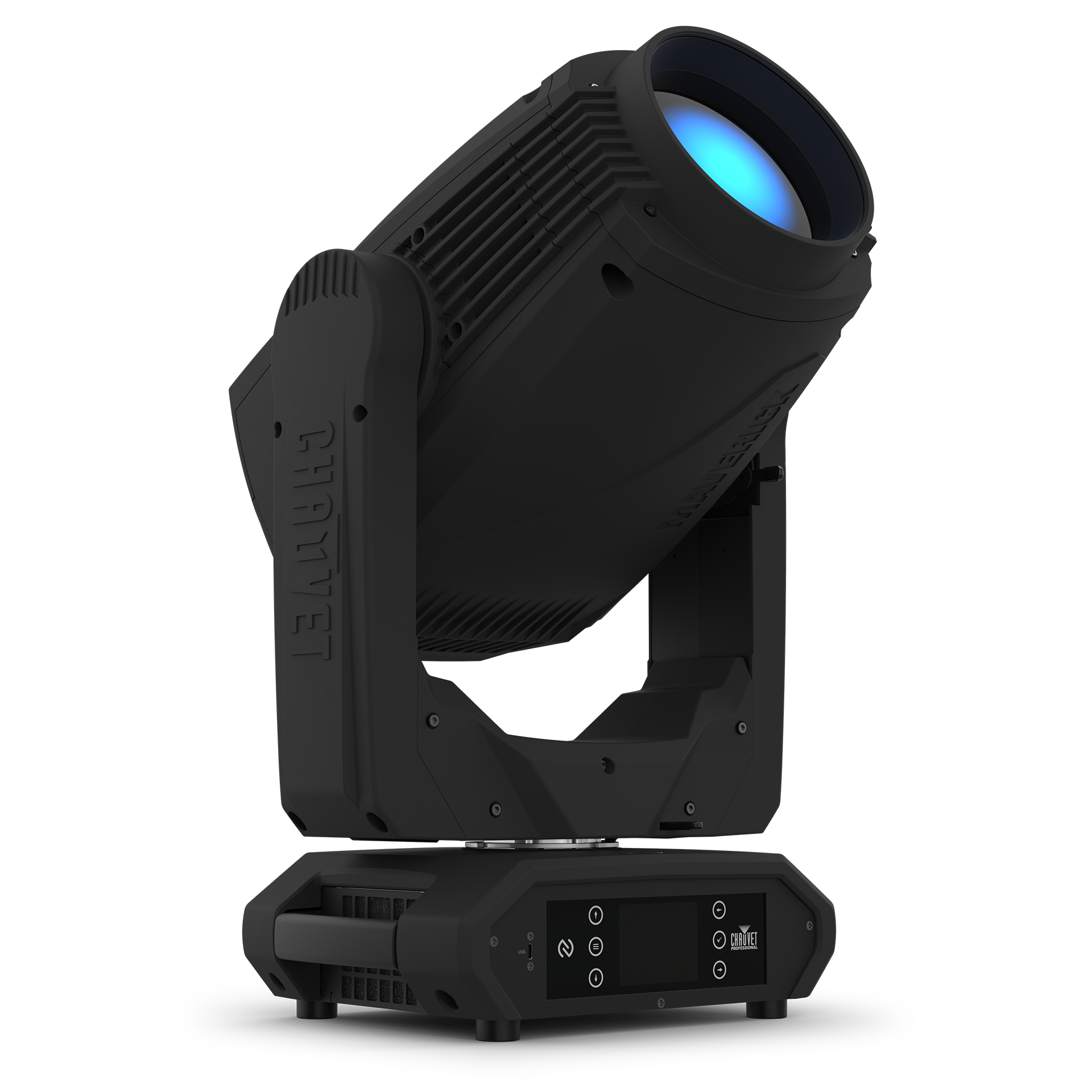

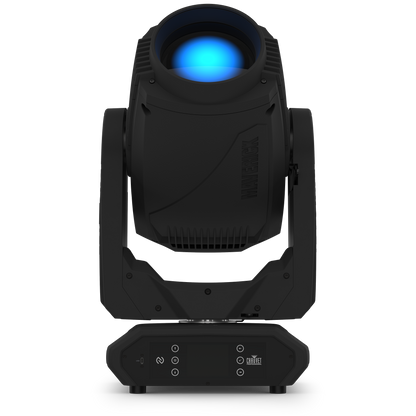

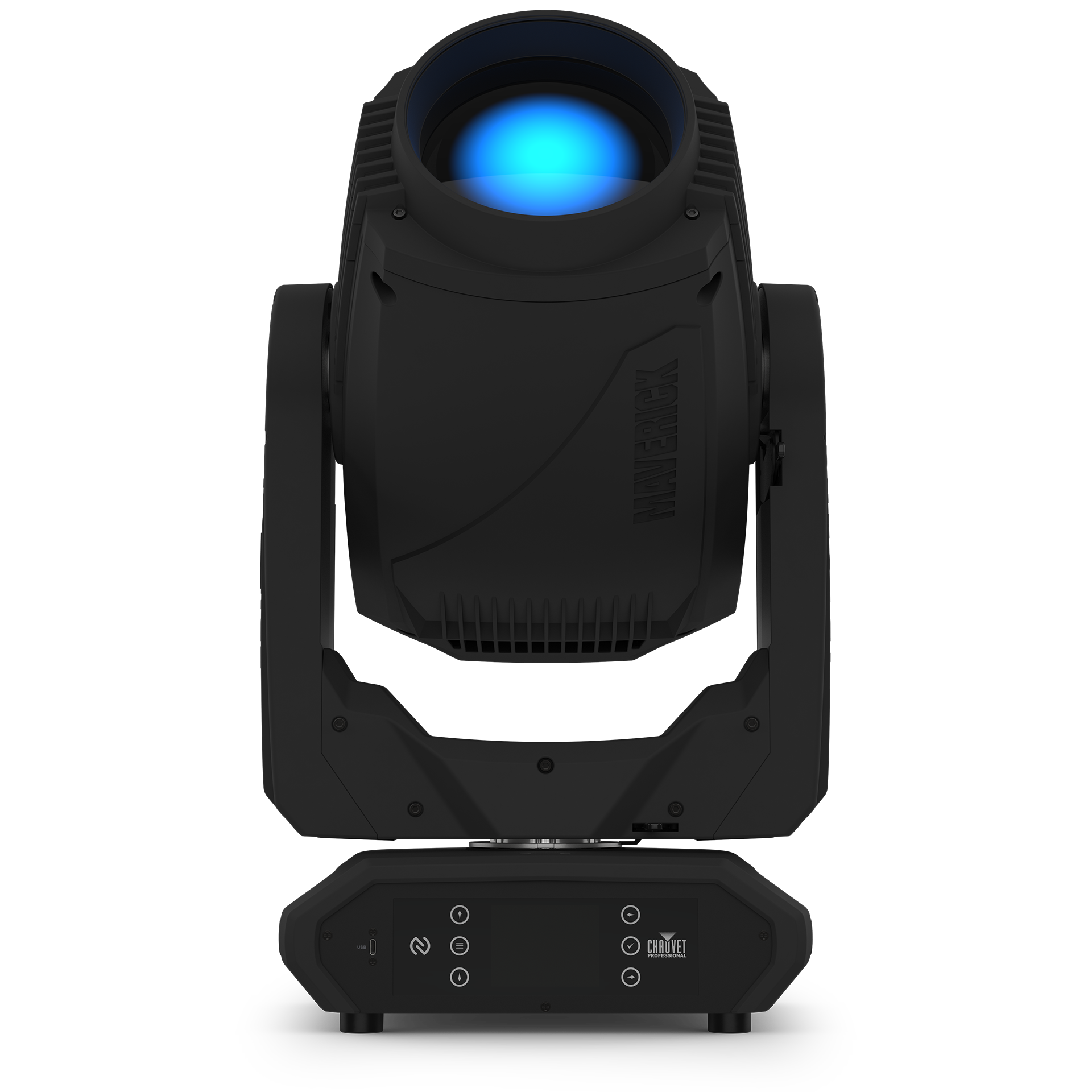

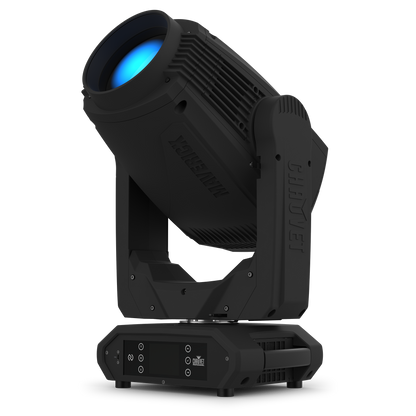

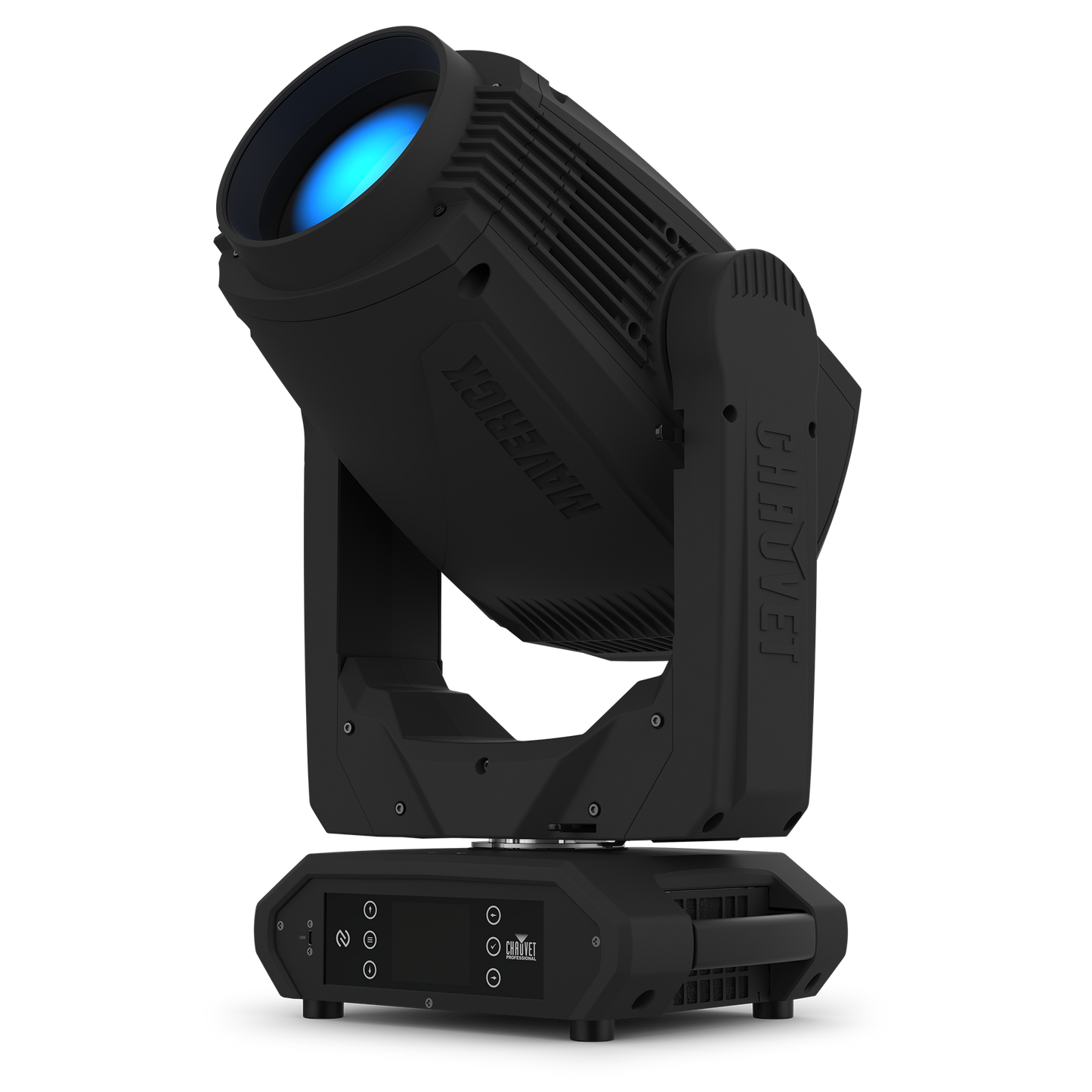

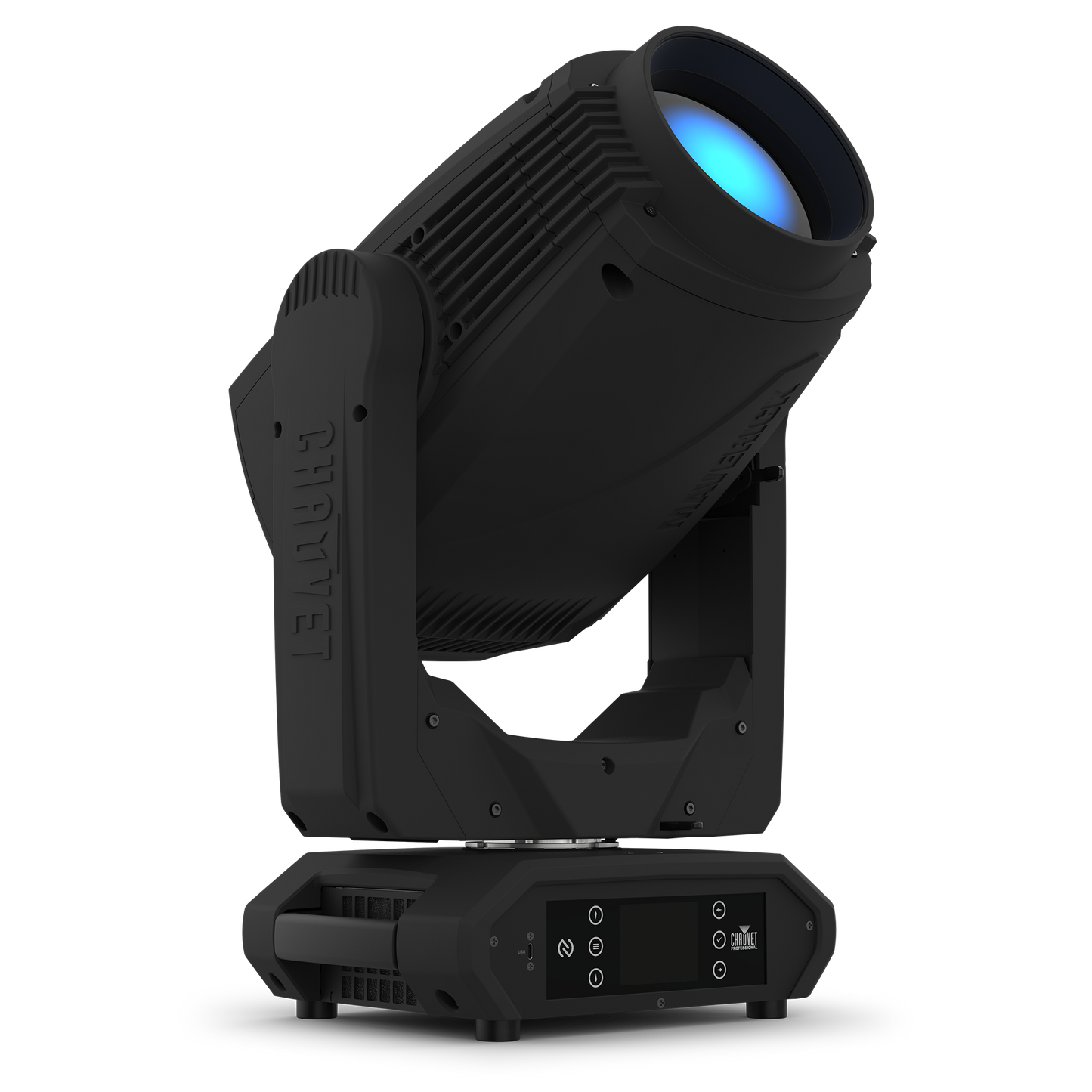

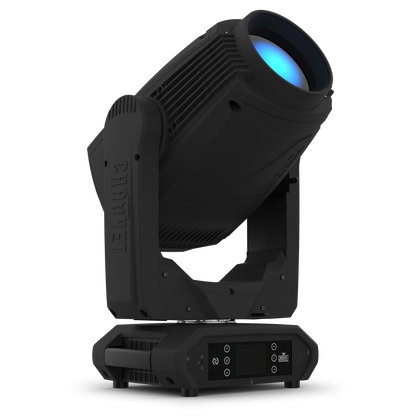

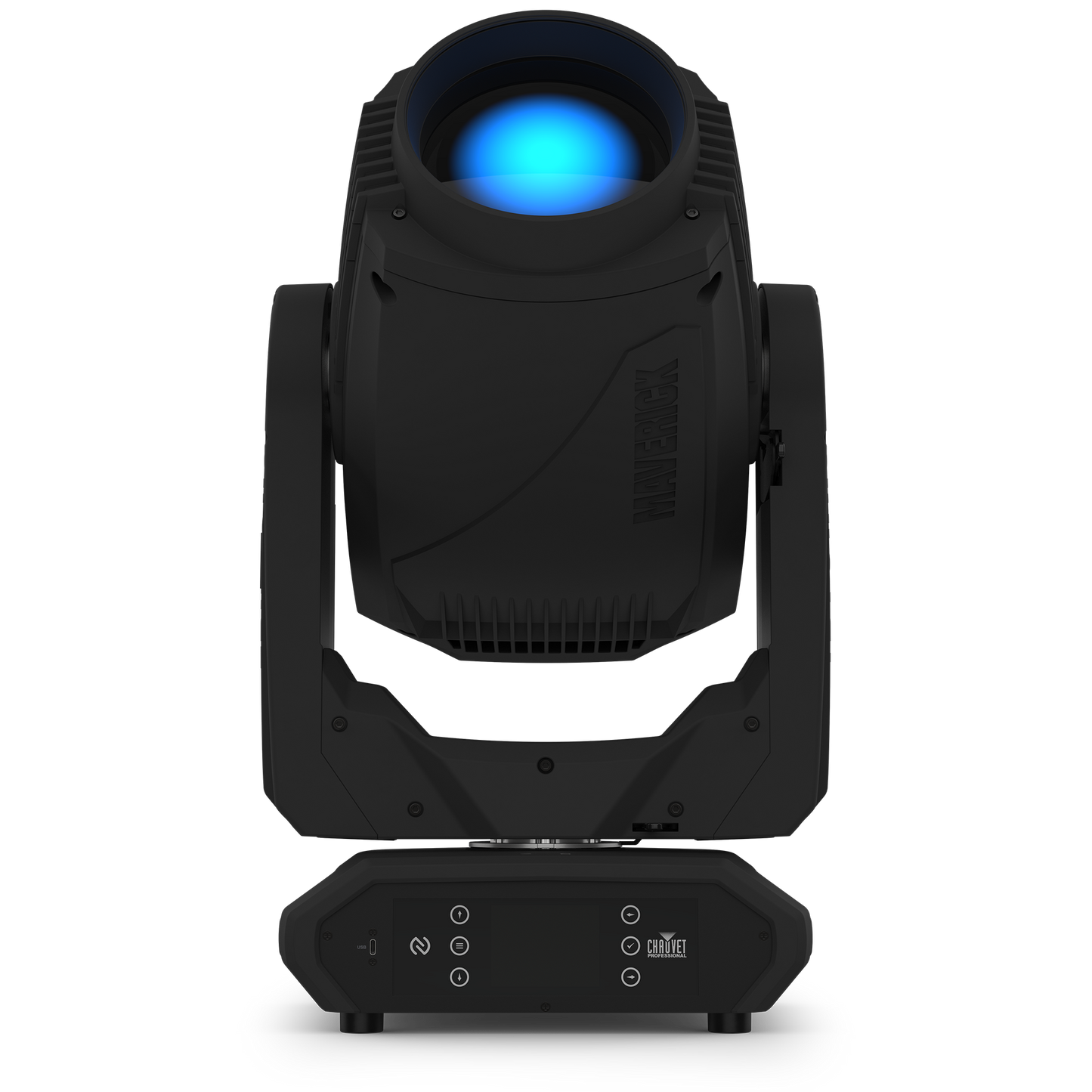

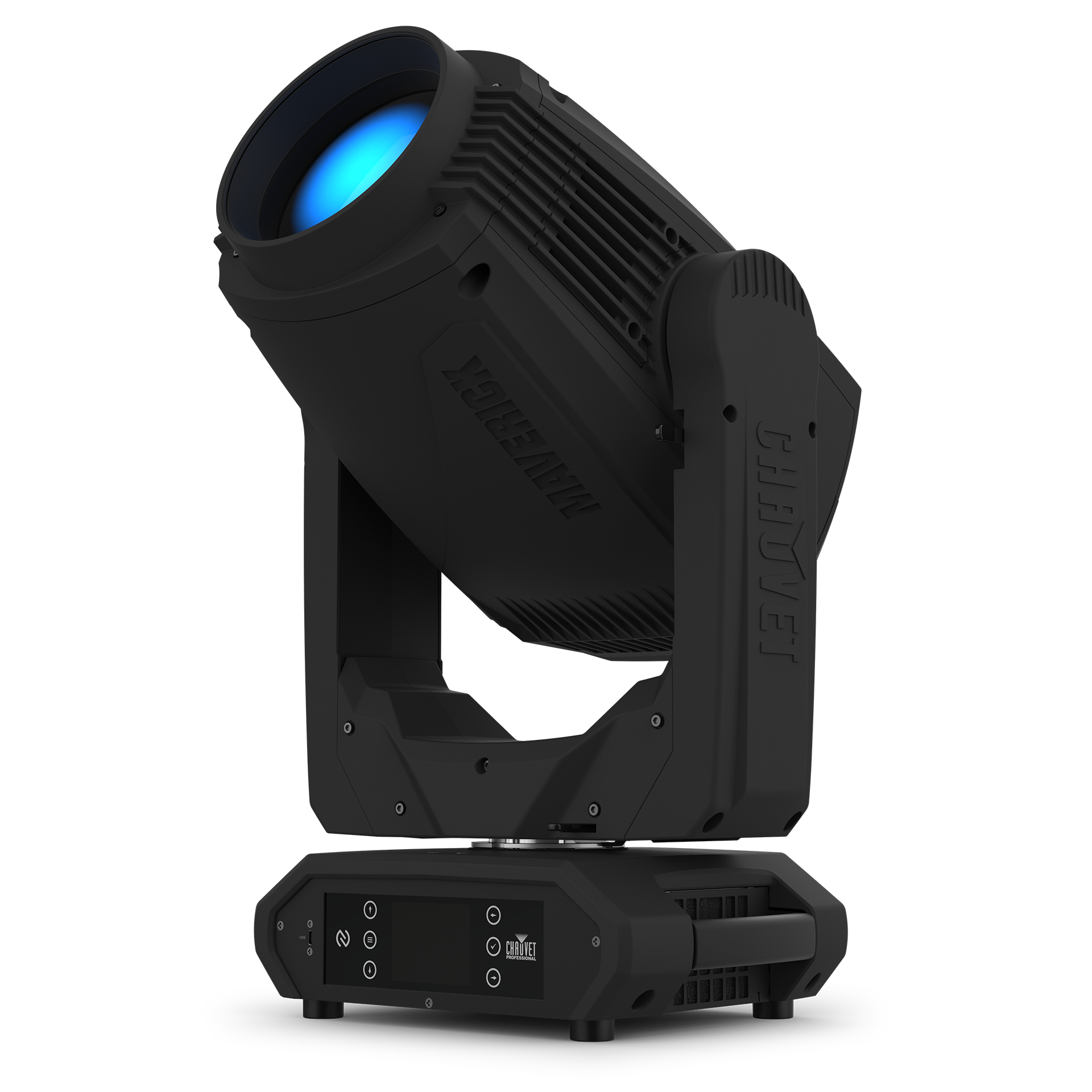

Maverick Force X Spot

The CHAUVET Professional Maverick Force X Spot is a compact, lightweight LED moving spot fixture delivering 17,325 lumens of output for touring, theatre, corporate events, and broadcast applications.

From the Manufacturer

This powerful yet lightweight fixture combines the latest technical advancements of the Maverick series to achieve 17,325 lumens of output in a design that maintains a flat field of focus from its narrow 3.5° beam to its wide 57.7° beam. Its variable CMY color mixing system is renowned for producing true reds, and is complemented by a color wheel with CRI and CTB filters, static and rotating gobo wheels, a five-facet prism, iris, and frost.

With exceptional dimming performance, a wide 18:1 zoom range, and a comprehensive array of professional features, the Maverick Force X Spot is built to handle a wide range of short- and long-throw applications. Control is available via DMX, RDM, sACN, Art-Net, or onboard CRMX for versatile integration into any control system.

Features

• Compact 520W LED yoke spot fixture with a fully professional feature set in a lightweight design
• 17,325-lumen output with a flat field of focus maintained across the full zoom range
• Variable CMY color mixing system delivers a vast spectrum of colors with smooth transitions and true reds
• Color wheel with 7 colors including CTO 4300K, CTO 3200K, CRI filter, and CTB filter, plus split colors and continuous scroll
• Dual gobo wheels: one rotating wheel (7 + open, glass and metal, indexing, slot-n-lock) and one static wheel (9 + open, metal)
• Wide 18:1 zoom range from 3.5° to 57.7° for flexible short- and long-throw applications
• Five-facet motorized rotating prism, motorized iris, and motorized frost for advanced beam shaping and effects
• 16-bit dimming with 5 selectable dim curves for exceptionally smooth intensity control
• High-speed 65,000 Hz PWM rate ensures flicker-free operation on camera
• Supports DMX, RDM, sACN, Art-Net, and onboard CRMX (WDMX) control protocols
• Failsafe Ethernet connectivity maintains data pass-through on the network line even if the fixture loses power
• NFC fixture setup for fast configuration directly from a compatible mobile device
• Battery-powered display with auto-rotation for menu access without main power
• USB software update slot for quick firmware uploads
• Three menu presets with the ability to sync settings across multiple fixtures for simplified shop prep
• True-1 compatible power input connection; power-linkable (2 units @ 120V, 5 units @ 230V)
• Certifications: CE, MET, FCC, UKCA | IP20, dry location
• Recommended use: Touring, theatre, corporate events, broadcast, short- and long-throw applications

Specifications

Optical

• Light Source: 1 LED (CW), 520W, 6462K, 50,000-hour rated life
• Color Temperature: 6462K (at full); 7946K with CTB filter
• Lumens Output: 17,325
• Beam Angle: 3.5° to 51.3°
• Field Angle: 3.7° to 56.3°
• Zoom Range: 3.5° to 57.7° (18:1)
• Front Lens Diameter: 145 mm
• CRI: 72.2 (90 with CRI filter)
• Illuminance (3.5°): 93,084 lux @ 5 m
• Illuminance (57.7°): 1,135 lux @ 5 m
• PWM Selectables: 600 Hz, 1500 Hz, 2000 Hz, 65,000 Hz

Dynamic Effects

• Pan / Tilt: 540° / 270° (selectable ranges: 540°/360°/180° pan; 270°/180°/90° tilt)
• Colors: 7 + white, split colors, continuous scroll at variable speeds
• CMY Mixing: Variable CMY wheels
• Gobos (Wheel 1 – Rotating): 7 + open (1 metal + 6 glass), indexing, slot-n-lock, continuous scroll
• Gobos (Wheel 2 – Static): 9 + open (9 metal), continuous scroll
• Gobo Size (Wheel 1): 24 mm OD / 14 mm image / 1.1 mm max thickness
• Prism: 5-facet, motorized, rotating
• Strobe Rate: 0–25 Hz
• Dimmer: Electronic, 16-bit, 5 dim curves
• Frost / Iris / Focus / Zoom: All motorized
• Move-in-Black: Yes

Electrical

• Input Voltage: 100–240 VAC, 50/60 Hz
• Power Consumption: 554W / 4.64A @ 120V | 541W / 2.68A @ 208V | 542W / 2.44A @ 230V
• Power Linking: 2 units @ 120V; 4 units @ 208V; 5 units @ 230V

Control

• DMX Channels: 22 or 29
• Personalities: 2 (22ch, 29ch)
• Protocols: DMX, RDM, sACN, Art-Net, CRMX (WDMX)

Construction / Physical

• Dimensions: 14.21 x 9.40 x 25.43 in (361 x 239 x 646 mm)
• Weight: 44.2 lbs (20 kg)
• Housing Material: Aluminum die-cast, high-impact flame-retardant polymer, steel
• Exterior Color: Black
• IP Rating: IP20, dry location
• Operating Temperature: -4°F to 113°F (-20°C to 45°C)

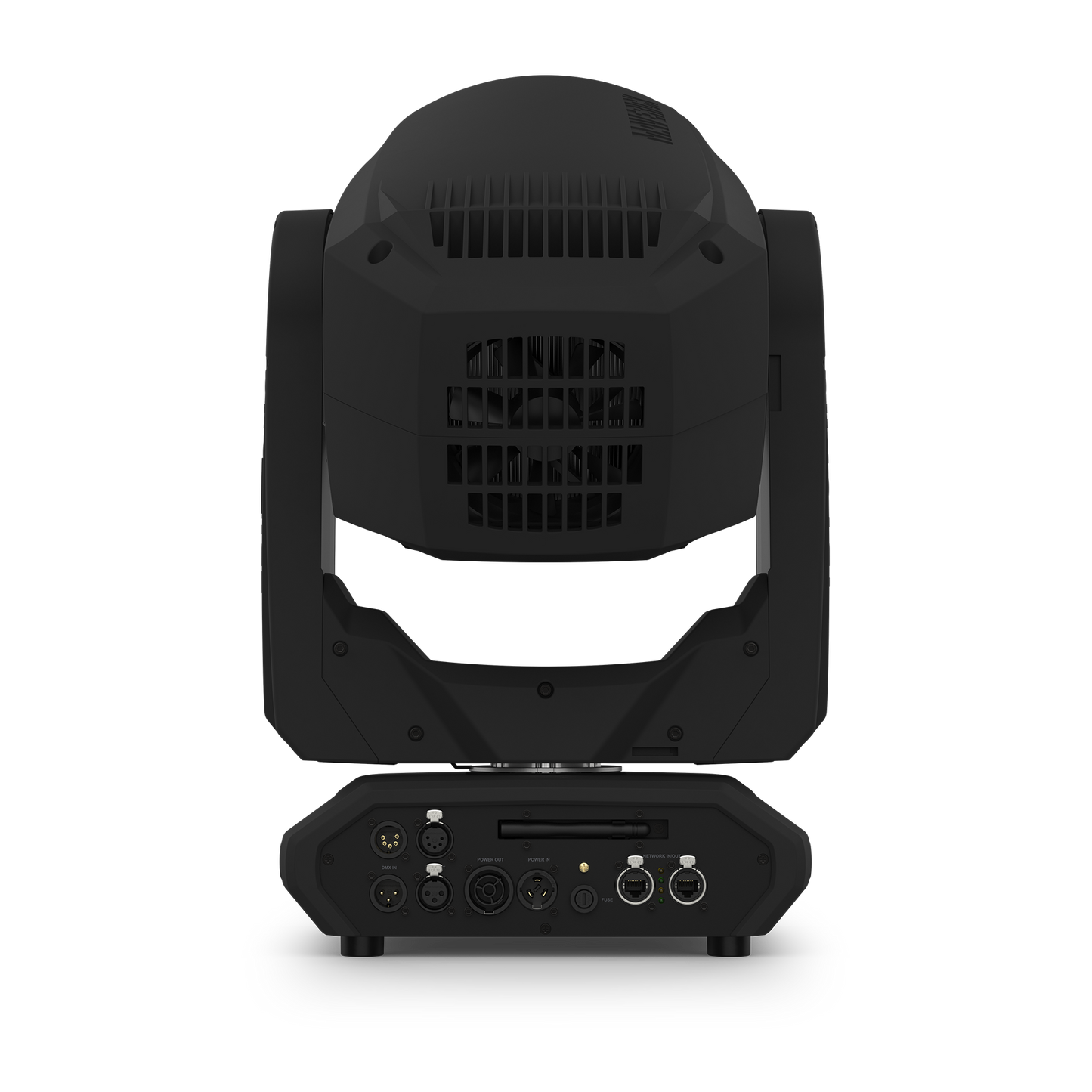

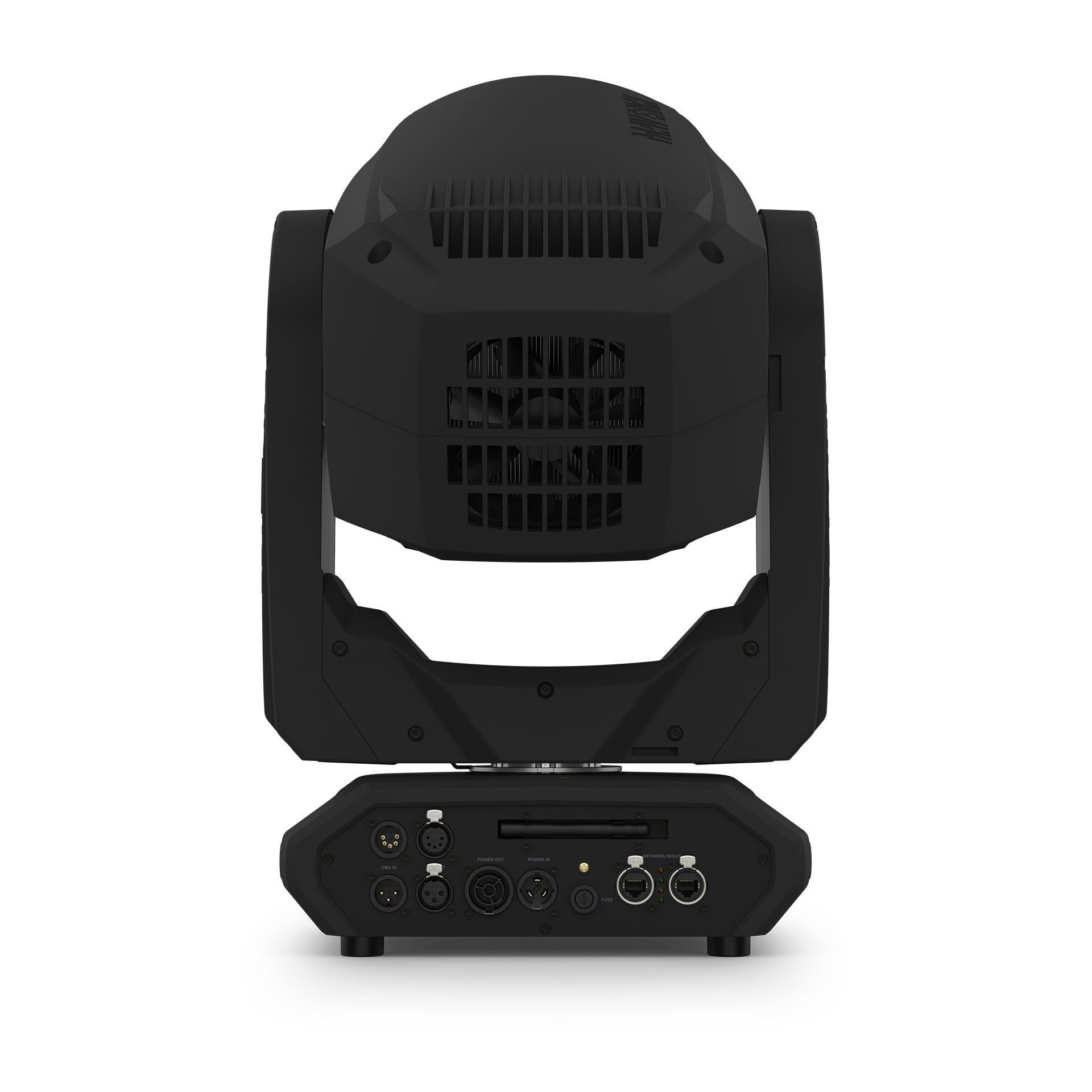

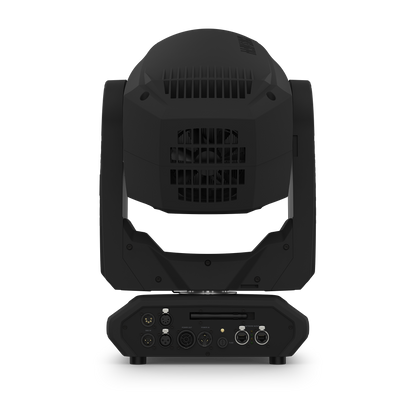

Connections

• Power Input / Output: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin IP65 XLR, Seetronic etherCON
• Signal Cable Length: 5 ft (1.5 m)

Noise Levels

• Idle: 33.6 dB(A) @ 1 m
• Auto: 36.6 dB(A) @ 1 m
• ECO / TV modes: 34.5 dB(A) @ 1 m
• Full: 39.7 dB(A) @ 1 m
• Max: 42.4 dB(A) @ 1 m

Certifications

• Certifications: CE, MET, FCC, UKCA

What's in the Box

• Maverick Force X Spot fixture
• Seetronic Powerkon power cable
• Omega brackets with mounting accessories
