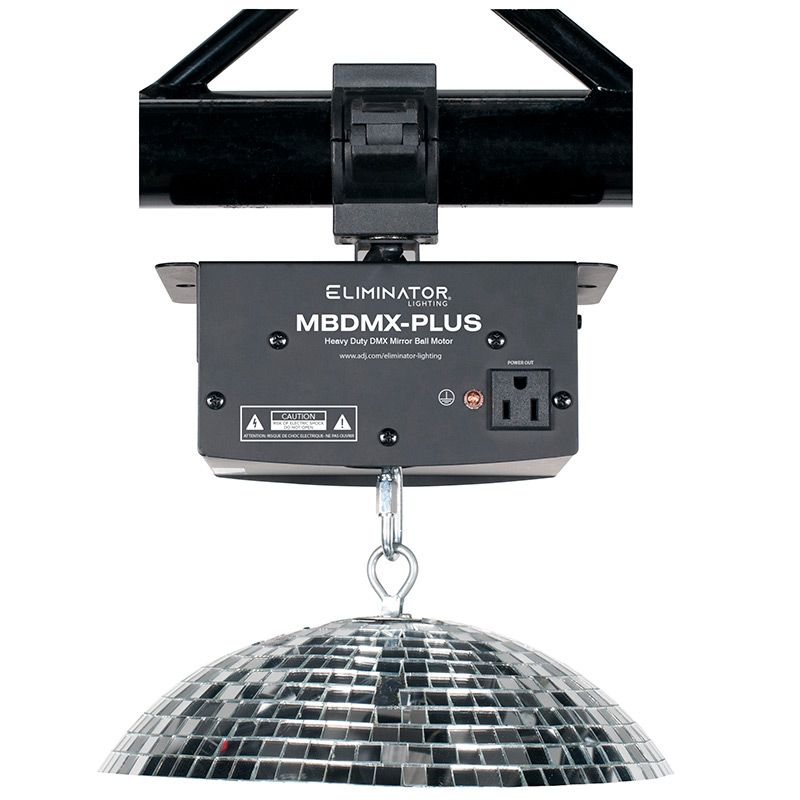

The Eliminator MBDMX-Plus is a Mirror Ball Motor to control mirror balls up to 20-inches.

From the Manufacturer:

The Eliminator Lighting MBDMX-PLUS offers DMX control of mirror balls up to 20-inches. The UC IR wireless remote may also be used to control the MBDMX-PLUS (UC IR sold separately)

Details:

If you need a mirror ball motor that will allow you to synchronize up to 4 mirror balls via DMX control, then the Eliminator Lighting MBDMX-PLUS is the motor you are looking for. This motor supports mirror balls up to 20 inches in size. Let your mind be at ease knowing that your mirror ball is safely supported by the MB DMX II motor from Eliminator Lighting.

The MBDMX-PLUS motor will allow you to control up to 4 units simultaneously via 3-pin DMX In/Out and allow for a synchronized motor rotation and universal speed. This will results in many dramatic visual effects. Circuit Breaker protection is included so you don't need to worry about changing fuses. The MBDMX-PLUS motor is meant for indoor use only but is great for night clubs, mobile entertainers, bands, and permanent installations. Plus, there are two 3-prong Edison plugs on the motor for powering pinspots or other lighting fixtures to light up the mirror ball.

The MBDMX-PLUS is equipped with 2 DMX channels: 1 channel to adjust the motor speed/direction of the mirror ball and 1 channel to turn the pinspots on and off. So when you are setting up that next dance and need a fantastic display of light, hook up multiple mirror balls using the ADJ MB DMX II heavy-duty mirror ball motor. There is a 1/4-inch socket and a supplied infrared cable that allows control of the MBDMX-PLUS with a UC IR remote control.

Mirror ball, lighting and UC IR remote not included.

Specifications:

  • Heavy Duty DMX Mirror Ball Motor

  • For use with up to a 20-inch mirror ball

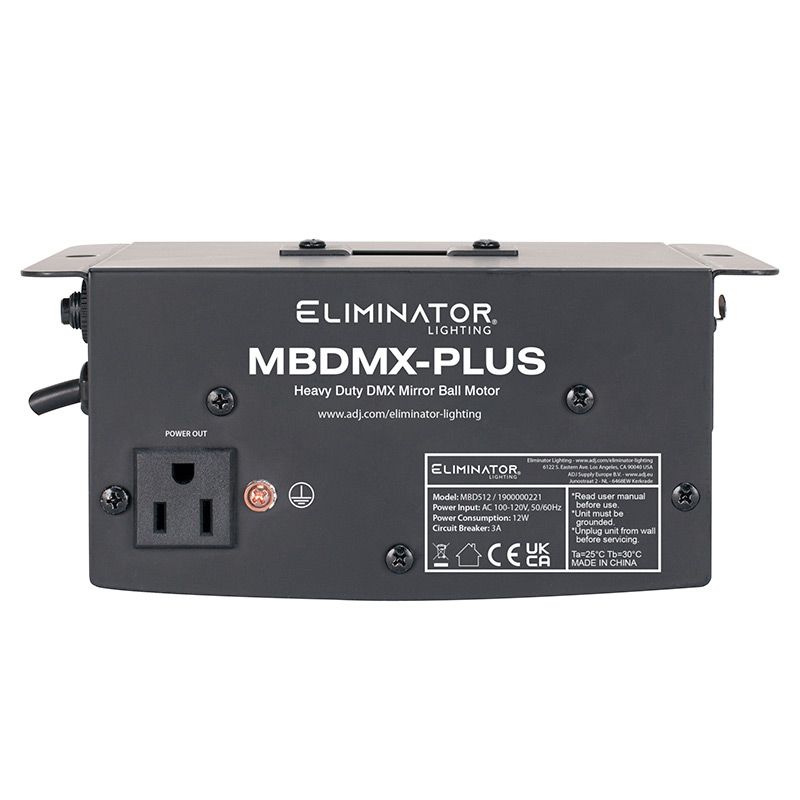

  • Includes two 3-prong Edison socket to power Pinspots

  • 2 DMX Channels: Channel 1: Turns lighting On/Off; Channel 2: Adjustable motor speed and direction control of mirror ball

  • Circuit breaker protection (no need to change fuses)

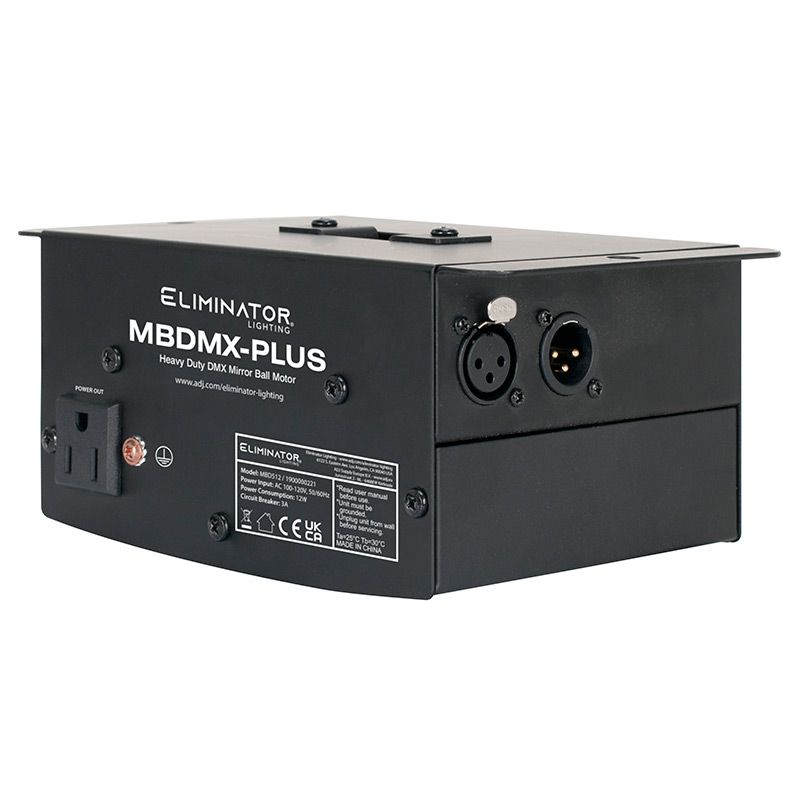

  • On-board 3-pin DMX In/Out

  • Primary/Secondary control: Up to 4 units may be data linked together for synchronized motor rotation and universal speed, resulting in dramatic visual effects

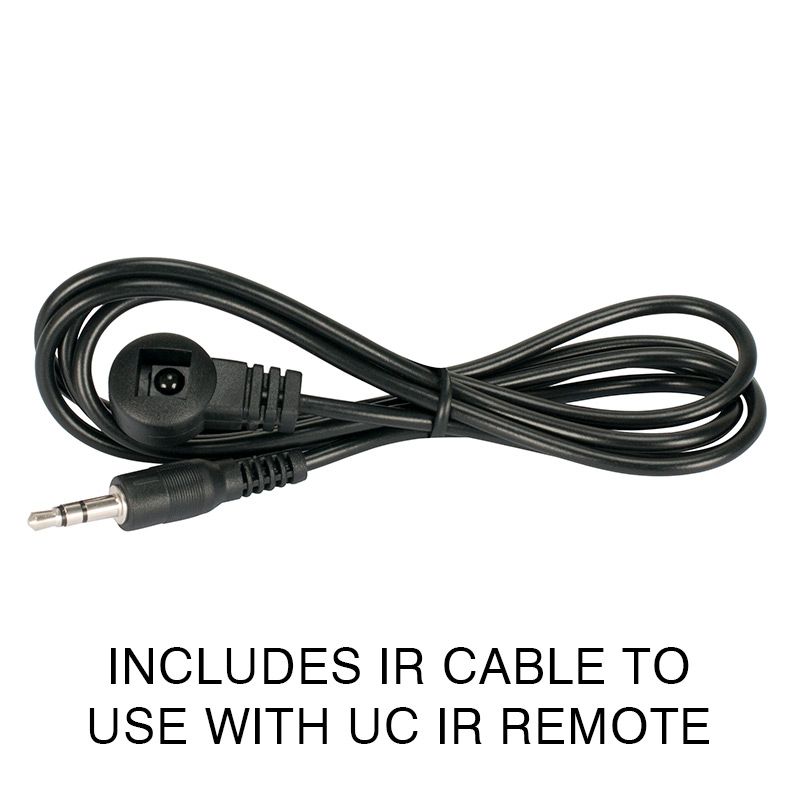

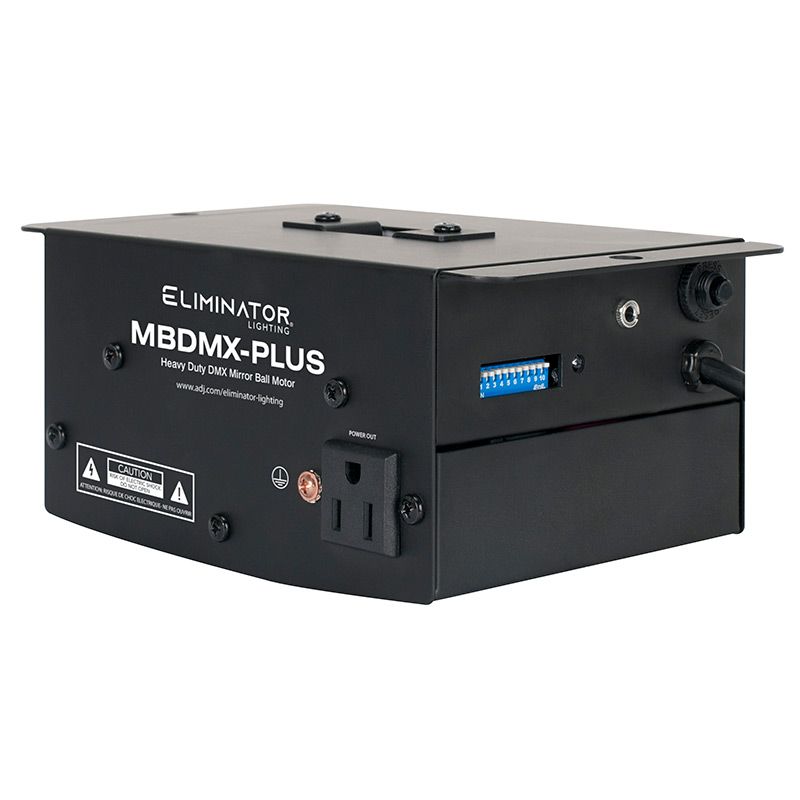

  • 1/4” socket and IR cable included for On/Off control with optional UC IR controller (sold separately)

  • Power Draw: @ Max 5rpm 10.5W / .101 amps -@Min 0.5rpm 10.2W /.100amps

  • Dimensions (LxWxH): 8” x 4.8” x 5.75” /203x122x146mm

  • Weight: 4 lbs. / 2kgs
